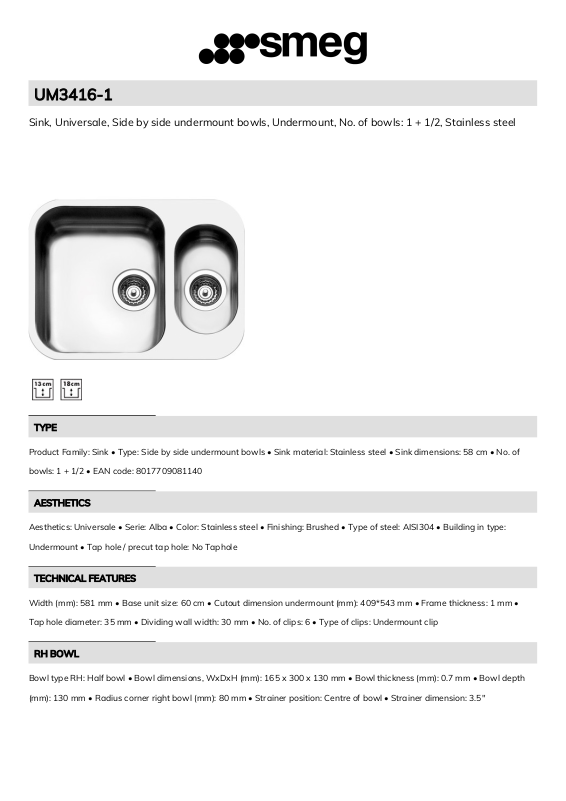

Smeg UM3416-1 Technical sheet
UM3416-1
Sink, Universale, Side by side undermount bowls, Undermount, No. of bowls: 1 + 1/2, Stainless steel
TYPE
Product Family: Sink • Type: Side by side undermount bowls • Sink material: Stainless steel • Sink dimensions: 58 cm • No. of
bowls: 1 + 1/2 • EAN code: 8017709081140
AESTHETICS
Aesthetics: Universale • Serie: Alba • Color: Stainless steel • Finishing: Brushed • Type of steel: AISI304 • Building in type:
Undermount • Tap hole / precut tap hole: No Taphole
TECHNICAL FEATURES
Width (mm): 581 mm • Base unit size: 60 cm • Cutout dimension undermount (mm): 409*543 mm • Frame thickness: 1 mm •
Tap hole diameter: 35 mm • Dividing wall width: 30 mm • No. of clips: 6 • Type of clips: Undermount clip
RH BOWL
Bowl type RH: Half bowl • Bowl dimensions, WxDxH (mm): 165 x 300 x 130 mm • Bowl thickness (mm): 0.7 mm • Bowl depth
(mm): 130 mm • Radius corner right bowl (mm): 80 mm • Strainer position: Centre of bowl • Strainer dimension: 3.5"
LH BOWL
Bowl type LH: Traditional • Bowl dimensions LH, WxDxA (mm): 340 x 400 x 180 mm • Bowl thickness LH (mm): 0.7 mm • LH
Bowl depth (mm): 180 mm • Radius corner left bowl: 80 mm • Overflow LH bowl: Yes, traditional • Strainer position LH bowl:
Side bowl • Strainer dimension LH bowl: 3.5"
LOGISTIC INFORMATION
Dimensions of the product (mm): 180x581x460 mm
ACCESSORIES INCLUDED
Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips
OPTIONAL
KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer, Sinks3713:
Siphon, SinksRND2V: Rondò waste kit, SinksDB34: Basket, Sinks
