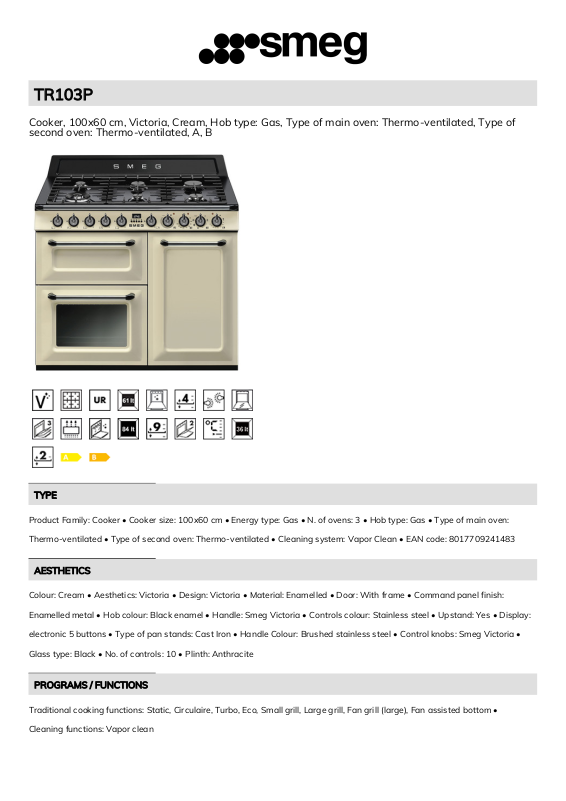

Smeg TR103P Technical sheet

TR103P

Cooker, 100x60 cm, Victoria, Cream, Hob type: Gas, Type of main oven: Thermo-ventilated, Type of
second oven: Thermo-ventilated, A, B

TYPE

Product Family: Cooker • Cooker size: 100x60 cm • Energy type: Gas • N. of ovens: 3 • Hob type: Gas • Type of main oven:

Thermo-ventilated • Type of second oven: Thermo-ventilated • Cleaning system: Vapor Clean • EAN code: 8017709241483

AESTHETICS

Colour: Cream • Aesthetics: Victoria • Design: Victoria • Material: Enamelled • Door: With frame • Command panel finish:

Enamelled metal • Hob colour: Black enamel • Handle: Smeg Victoria • Controls colour: Stainless steel • Upstand: Yes • Display:

electronic 5 buttons • Type of pan stands: Cast Iron • Handle Colour: Brushed stainless steel • Control knobs: Smeg Victoria •

Glass type: Black • No. of controls: 10 • Plinth: Anthracite

PROGRAMS / FUNCTIONS

Traditional cooking functions: Static, Circulaire, Turbo, Eco, Small grill, Large grill, Fan grill (large), Fan assisted bottom •

Cleaning functions: Vapor clean

PROGRAMS / FUNCTIONS AUXILIARY OVEN

Cooking functions cavity 2: 1 • Traditional cooking functions, cavity 2: Circulaire

PROGRAMS / FUNCTIONS THIRD OVEN

No. of functions third oven: 1

OPTIONS MAIN OVEN

Timer: Yes • End of cooking acoustic alarm: Yes • Minimum Temperature: 50 °C • Maximum temperature: 260 °C

OPTIONS AUXILIARY OVEN

Minimum Temperature: 50 °C • Maximum temperature: 245 °C

OPTIONS THIRD OVEN

Minimum Temperature: 50 °C • Maximum temperature: 260 °C

HOB TECHNICAL FEATURES

Total no. of cook zones: 6 • 1st zone position: Front left • 2nd zone position: Rear left • 3rd zone position: Front centre • 4th zone

position: Rear centre • 5th zone position: Front right • 6th zone position: Rear right • 1st zone type: Gas - 2UR (dual) • 2nd zone

type: Gas - AUX • 3rd zone type: Gas - AUX • 4th zone type: Gas - Semi Rapid • 5th zone type: Gas - Semi Rapid • 6th zone

type: Gas - Rapid • 1st zone power: 4.20 kW • 2nd zone power: 1.00 kW • 3rd zone power: 1.00 kW • 4th zone power: 1.80 kW

• 5th zone power: 1.80 kW • 6th zone power: 2.90 kW • Type of gas burners: Standard • Burner caps: Matt black enamelled •

Automatic electronic ignition: Yes • Gas safety valves: Yes

MAIN OVEN TECHNICAL FEATURES

Net volume of the cavity: 61 l • Cavity material: Ever Clean enamel • No. of shelves: 4 • Type of shelves: Metal racks • No. of

lights: 1 • Light type: Halogen • Light Power: 40 W • Fan number: 1 • Cooking time setting: Start and Stop • Door opening: Side

opening • Side opening door: Yes • Removable door: Yes • Full glass inner door: Yes • Total no. of door glasses: 3 • No.of thermo-

reflective door glasses: 1 • Safety Thermostat: Yes • Cooling system: Tangential • Grill type: Electric • Tilting grill: Yes • Grill

elememt: 1700 W • Large grill - Power: 2700 W • Lower heating element power: 1200 W • Upper heating element - Power:

1000 W • Circular heating element - Power: 2000 W • Temperature control: Electro-mechanical

SECOND OVEN TECHNICAL FEATURES

Net volume of the second cavity: 84 l • Cavity material: Ever Clean enamel • No. of shelves: 9 • Type of shelves: Metal racks •

No. of lights: 1 • Light type: Halogen • Light Power: 40 W • Door opening: Side opening • Side opening door: Yes • Removable

door: Yes • Full glass inner door: Yes • Removable inner door: Yes • No. total door glasses: 2 • No. thermo-reflective door

glasses: 1 • Safety Thermostat: Yes • Cooling system: Tangential • Temperature control: Electro-mechanical
