Smeg TLS12 User Manual

CONTENTS

BEFORE USING THE WASHING MACHINE PRECAUTIONS AND GENERAL

RECOMMENDATIONS DESCRIPTION OF THE WASHING MACHINE BEFORE THE FIRST WASH CYCLE PREPARATION OF THE WASHING DETERGENTS AND ADDITIVES CLEANING THE FILTER/

DRAINING RESIDUAL WATER CARE AND MAINTENANCE TROUBLESHOOTING GUIDE AFTER-SALES SERVICE TRANSPORT AND HANDLING INSTALLATION ELECTRICAL CONNECTION

GB TLS 12

5019 612 10134

Programme

Care

Labels

Max. Load

Type of wash / Notes

- for temperature selection, respect the manufacturer's recommendations on the care label

Detergents and Additives Special options Max.

Spin

Speed

rpm

Pre-

wash

Main

Wash

Softener Start

delay Avvio

ritardato

Eco

Pre-

wash

Pre-

lavaggio

Easy

ironing

Stiro

facile

Intensive

rinse

Risciacquo

intensivo

Rinse

hold

Esclusione centrifuga

Variable

spin

Centri-

fuga

Cotton

40 - 60 - 95 °C

Cotone

40 - 60 - 95°C

5.0

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

For washing heavily soiled laundry, the “Prewash” option can be selected.

Yes

i i

i i i i i i

1200

Synthetics

30 - 40 - 60 °C

Sintetici

30 - 40 - 60°C

2.5

Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon).

Yes

i i

i i i i i i

1000

Delicates

30 - 40 °C

Delicati

30 - 40°C

1.5 Curtains and delicate clothing, dresses, skirts, shirts and blouses.

Yes

i i

–

– –

i i

1000

Daily load

40 °C

Misti

40°C

3.0 Slightly to normally soiled textiles made of cotton and/or synthetics. – Yes

i i

– –

i i i i

1200

Quick wash

30 °C

Rapido 3.0

Shortly worn outer clothing made of cotton, polyester, polyamide and blends with cotton.

– Yes

i i

– – –

i i i

1200

Wool

Cold - 40 °C

Lana

Freddo - 40°C

1.0

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

– Yes

i i

– – – –

i i

1000

Handwash

30 - 40 °C

Lavaggio a mano

30 - 40°C

1.0

Textiles made of linen, silk, wool and viscose marked as “handwashable”.

A very gentle spin is used in this programme.

– Yes

i i

– – – –

i i

400

Rinse & Spin

Risciacquo &

Centrifuga

– 5.0 Same as the last rinse and the final spin in the “Cotton” programme. – –

i i

– – –

i i i

1200

Spin Centrifuga – 5.0

In this programme spinning is intensive. Same as the spin cycle in the “Cotton” programme.

– – –

– – – – –

1200

Gentle Spin Centrifuga breve – 1.0

In this programme spinning is gentle. Same as the spin cycle in the “Wool” programme.

– – –

– – – – –

1000

Drain Scarico – –

Drain only - no spinning. Alternative method of terminating programme after “Rinse hold”.

– – –

– – – – – – –

A. Programme selector

B. Time display

C. “Start delay” button

D. “Variable spin” button

E. “Start/Pause” button

F. Programme sequence indicator

G. “Reset” button

H. “Door open” indication

This washing machine is equipped with automatic safety functions which detect and diagnose faults at an early stage and react appropriately: I. “Service” indication J. “Water tap closed” indication K. “Clean pump” indication

Do not use liquid detergent for main wash if you

have activated prewash option.

Do not use liquid detergent.

For improved garment care, spin speed is restricted

in these programmes.

PROGRAMME CHART

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

5019 612 10134

Programme

Temperature

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme

Duration***

(hours : minutes)

White Cotton 95 5.0 49* 1.70 1:55

Cotton 60 5.0 42 0.95 2:10

Cotton + Eco** 60 5.0 42 0.85 2:20

Cotton 40 5.0 49 0.55 2:00 Synthetics 60 2.5 53* 0.85 1:30 Synthetics 40 2.5 47 0.50 1:15

Delicates 40 1.5 51 0.50 0:45

Daily load 40 3.0 43 0.48 1:00

Quick wash 30 3.0 36 0.30 0:30

Wool 40 1.0 53 0.50 0:45 Handwash 40 1.0 43 0.50 0:35 Handwash 30 1.0 42 0.30 0:31

1. Load the machine, close the drum doors and check that they are properly locked.

2. Add detergent and additives into the dispenser to no more than the “MAX” level mark, as follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Stain remover agents

• Anti-scale agents (if necessary)

3. Close the lid.

4. Turn the programme selector to the desired programme and temperature. The time display shows the duration of the chosen programme (in hour and minutes), and the lamp next to the “Start/ Pause” button flashes. The indication lamp of the predefined spin speed lights up.

CONSUMPTION DATA

Prewash cycle increases programme duration by aproximately 20 min. Consumption values were measured in normalized conditions in compliance with standard IEC/EN 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash. * To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out. ** Reference Programme for Energy Label. *** The remaining time indicator can deviate from the values in the table, because it takes into account the household conditions applicable at that time.

PREPARATION OF THE WASH CYCLE

“DOOR OPEN” INDICATION

Before starting and after end of a programme, the lamp lights to show the the lid can be opened. As long as a wash programme is running, the lid remains locked and must on no account be forced open. In case you have an urgent need to open it during a running programme, refer to “Cancel (Reset) a running programme before the end”.

RED INDICATIONS

“Service”

Lighting up of the “Service” indication can be caused by a fault in an electrical component. Refer to the “Troubleshooting Guide” in your “Instructions for Use”; if the fault persists, contact our After Sales Service.

“Water tap closed”

The appliance has no or insufficient water supply. Open the water tap: if the indications still lights up, refer to the “Troubleshooting Guide” in the Instructions for Use.

“Clean pump”

Waste water is not pumped out. Check whether the drain hose is kinked or the filter must be cleaned: in the latter case refer to the Instructions for Use (“Removing the Filter”).

“Easy ironing” button

• Can be used together with “Coton”, “Synthetics” and “Daily load” programmes to make ironing easier.

• Increases the water quantity and the clothes are spun very gently.

“Intensive rinse” button

• The amount of water is increased to ensure a more intensive rinse.

• This option is particularly suitable for areas with very soft water, washing baby linen and people with skin allergies.

“Rinse hold” button

• The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from changing.

• This option is particularly recommended for the “Synthetics”, “Daily load” and “Delicates” programmes.

• It is useful if you want to postpone spinning to a later time, or if you want to drain out only.

• If you select “Rinse hold”, do not leave items to soak for too long.

• As soon as the appliance stops in the rinse hold, the “Rinse hold” lamp of the sequence indicator lights up and the lamp next to the “Start/Pause” button flashes.

Terminate the “Rinse hold” option:

• Press the “Start/Pause” button; the programme will terminate automatically with the final spin cycle for the present wash programme.

• If you do not wish to spin the clothes, turn the programme selector knob to the “Drain” programme and press the “Start/Pause” button.

PROGRAMME START

Open the tap and press the “Start/Pause” button. The indication lamp next to the “Start/Pause” button lights up. The programme sequence indicator shows the current programme phase, running from left to right through Wash, Rinse, Spin/Drain. When the programme phrase is finised, the corresponding indication goes out.

• Note: If there is a power interruption or if the appliance is disconnected during the cycle, the programme will run again from the point where it was interrupted.

PROGRAMME END

• All the lights of the programme sequence indicator

are off, and the “Door open” indication lights up.

1. Turn the programme selector to the “Off/O” position.

2. Close the water tap.

3. Open lid and drum and unload the machine.

4. Leave the lid open for some time to allow the interior of the machine to dry.

CHANGE PROGRAMME AND/OR OPTIONS AFTER PROGRAMME START

1. Press the “Start/Pause” button to pause the programme. The light flashes.

2. Select the new programme, any options and another spin speed if you want.

3. Press the “Start/Pause” button again. The new programme continues at the same position where the previous programme was interrupted. Do not add detergent for this programme.

CANCEL (RESET) A RUNNING PROGRAMME BEFORE THE END

The “Reset” button cancels a programme before the end. Press the “Reset” button for at least 3 seconds. Any existing water is drained out before the lid can be opened.

SELECT THE DESIRED OPTION(S)

Selecting or deselecting an option can be done at any time during the programme. The option will be applied as long as the corresponding programme phase has not been executed yet. “Eco” button

• With a modified temperature profile and a slightly prolonged washing duration, the optimum combination of excellent washing result and even lower energy consumption is achieved.

“Prewash” button

• Only for heavily soiled loads (for example sand, granular dirt) sensible. Increases the cycle time by approximately 20 min.

START DELAY

The “Start delay” button allows the user to run the machine at his convenience, for example at night when electricity is cheaper.

• Select programme, spin speed and options.

• Press the “Start delay” button several times to

select a delay time by 1 to 23 hours.

• Start the programme (see “Progremme Start”). The indication lamp over the “Start delay” button lights up and goes off when the programme starts.

• Once having pressed the “Start/Pause” button, the countdown of the time delay begins. The time delay indication on the display disappears when the programme starts and is replaced by the remaining programme time.

• After the “Start/Pause” button has been pressed, the number of hours preselected can be reduced by pressing again the “Start delay” button.

To cancel the “Start delay” ..before you press the “Start/Pause” button:

• Turn the programme selector to another position or press the “Reset” button. ..after having pressed the “Start/Pause” button:

• Press the “Reset” button for at least 3 second. The

start delay indicator light goes off.

“Variable spin” button

• Every programme has a predefined spin speed.

• Press the button to set another spin speed.

• If spin speed “0” is selected, the final spinning is cancelled but intermediate spin peaks remain during the rinse. The water is drained out only.

BEFORE USING THE WASHING MACHINE

•

1.Remove the packaging and check

Cut and remove the shrink-wrap.

Remove the top protection and the protective

corners.

c. Remove the bottom protection by tilting

and turning the washing machine on one

rear bottom corner. Make sure that the

black plastic part of the bottom protection

(if available on the model) remains in the

packing and not in the machine bottom.

This is important, as otherwise the plastic part could

damage the washing machine during operation.

Open the lid by pressing it slightly down while

raising the handle. Remove the polystyrene

cushion (depending on model).

Remove the blue protective film from the panel

(depending on model).

•

After unpacking, make sure that the washing

machine is undamaged. If in doubt, do not use the

washing machine. Contact After-Sales Service or

your local retailer.

•

Keep the packaging materials (plastic bags,

polystyrene parts, etc.) out of reach of children;

they are potentially dangerous.

•

If the appliance was exposed to the cold prior to

delivery, keep it at room temperature for a few

hours before operating.

2.Remove the transport bracket

•

The washing machine is fitted with transport

screws and a transport bracket to prevent

damage during transport.

washing machine you must remove the

transport bracket

of transport bracket”).

Before using the

(see “Installation”/“Removal

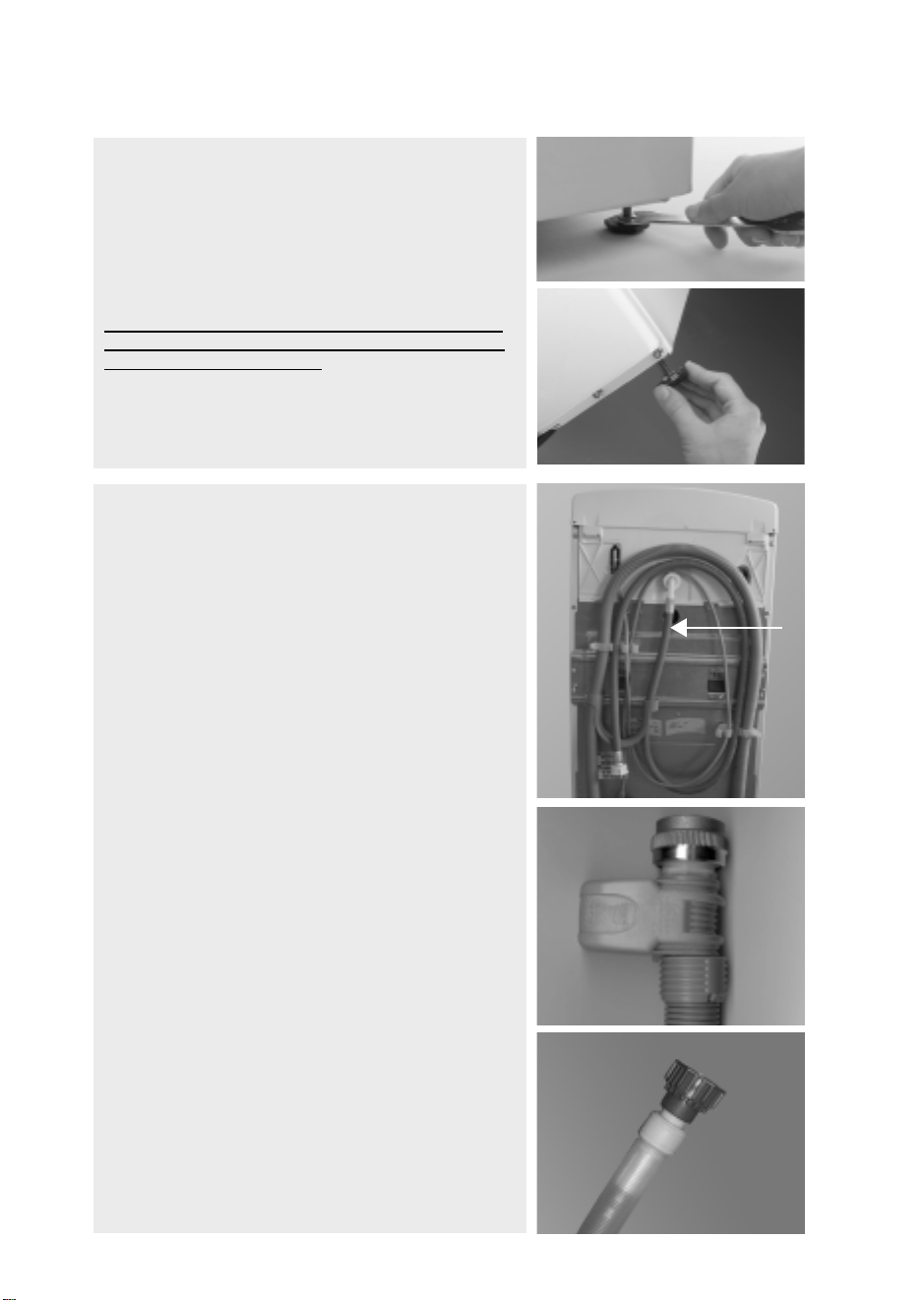

3.Install the washing machine

•

Place the washing machine on a flat and stable

floor surface.

• Adjust the feet to ensure that the machine is stable and level (see “Installation”/ “Adjust the feet”).

•

In case of wooden or so-called “floating floors” (for instance certain parquet or laminate floors), place the appliance on a 40 x 60 cm sheet of plywood at least 3 cm in thickness which is secured to the floor.

4.Water supply

•

Connect the water supply inlet hose in accordance with the regulations of your local water company (see “Installation”/“Connect the water inlet hose”).

•

Water supply: Cold water only

•

Tap: 3/4” threaded hose connection

•

Pressure: 100-1000 kPa (1-10 bar).

Only use new hoses for connecting the washing machine to the water supply. Used hoses must not be used anymore and should be discarded.

5.Drain hose

•

Connect the drain hose to the siphon or hook it over the edge of a sink with the “U” bend (see “Installation”/“Connect the water drain hose”).

•

If the washing machine is connected to a built-in drainage system, ensure the latter is equipped with a vent to avoid simultaneous loading and draining of water (siphoning effect).

6.Electrical connection

•

Electrical connections must be carried out by a qualified technician in compliance with the manufacturer’s instructions and the current standard safety regulations.

•

The technical data (voltage, power and fuses) are given on the rating plate on the rear of the washing machine.

•

The washing machine must be connected exclusively by means of a socket with an earth connection in accordance with current regulations. The washing machine must be earthed by law. The manufacturer declines all liability for injury to persons or animals or damage to property deriving directly or indirectly from failure to observe the directions.

•

Do not use extension leads or multi sockets.

•

Before any maintenance on the washing machine disconnect it from the mains supply.

•

Access to the mains plug or to disconnection from the mains supply via a double-pole switch must be ensured at all times following the installation.

•

Do not operate the washing machine if it has been damaged during transport. Inform the After-Sales Service.

•

Mains cable replacement is only to be carried out by After-Sales Service.

•

The washing machine must be connected to an effective earthing installation, in compliance with the regulations in force. In particular, washing machines installed in premises containing a shower or a bath must be protected by a differential residual current device of at least 30 mA. Earthing the washing machine is obligatory under the law. The manufacturer declines all liability for injury to persons or animals or damage to property deriving either directly or indirectly from failure to observe the directions above.

•

The washing machine may only be used in the household for the prescribed uses.

Dimensions:

Width: 400 mm Height: 900 mm Depth: 600 mm

GB 2

PRECAUTIONS AND GENERAL RECOMMENDATIONS

•

1.Packing

•

The packaging materials are 100% recyclable and bear the recycling symbol . Adhere to local regulations when disposing of packaging material.

If necessary, the power cable may be replaced with an identical one obtained from our AfterSales Service. The power cable must only be replaced by a qualified technician.

2.Disposing of packaging and old washing machines

•

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

•

The washing machine is built from reusable materials. It must be disposed of in compliance with current local waste disposal regulations.

•

Before scrapping, cut off the power cable so that the washing machine cannot be connected to the mains.

•

Remove detergent from compartment if you intend scrapping your washing machine.

4.Energy saving tips

•

Achieve the best use of energy, water, detergent and time by using the recommended maximum load size.

•

Do not exceed the detergent dosages indicated in the manufacturer’s instructions.

•

The Eco Ball - a special system in the outlet - will prevent detergent loss from the drum to avoid detergent loss into the environment.

•

Use “Prewash” for heavily soiled laundry only! Save detergent, time, water and energy consumption by not selecting “Prewash” for slightly to normally soiled laundry.

•

Pretreat stains with stain remover or soak dried in stains in water before washing to reduce the necessity of a hot wash program.

•

Save energy by using a 60° C instead of a 95° C wash programme or a 40° C instead of a 60° C wash programme.

•

Save energy and time by selecting a high spin speed to reduce the water content in laundry before using a tumble dryer (for machines with adjustable spin speed).

5.General recommendations

•

Do not leave the washing machine connected when not in use. Turn off the tap.

•

Before cleaning or carrying out maintenance switch off the washing machine and disconnect it from the mains supply.

3.Safety instructions

•

The washing machine is appropriate for indoor use only.

•

Do not store flammable fluids near the appliance.

•

Do not place electrical appliances on the worktop of your washing machine.

•

Children must not be allowed to play with or in the washing machine

•

Do not attempt to force the lid open.

6.EC Declaration of Conformity

•

This washing machine has been designed, constructed and distributed in compliance with the safety requirements of EC Directives:

73/23/EEC Low Voltage Directive 89/336/EEC EMC Directive 93/68/EEC CE Marking Directive

GB 3

DESCRIPTION OF THE WASHING MACHINE

Lid

Detergent dispenser

Drum

Pump access behind filter

After-Sales Service sticker (behind the filter cover)

Mobility lever (depending on model)

•

To move the washing machine: pull the handle out a little bit by hand and pull it out to the stop with the foot.

Adjustable feet

BEFORE THE FIRST WASH CYCLE

To remove any residual water used in testing by the manufacturer, we recommend that you carry out a short wash cycle without laundry.

Open the tap.

Close the drum flaps.

Pour a small amount of detergent (about 30 ml) into the main wash chamber of the detergent dispenser.

Close the lid.

Select and start a short programme (see separate programme chart).

GB 4

PREPARATION OF THE WASHING

Sort the laundry

1.Sort the laundry according to…

• Type of fabric / care label symbol

Cottons, mixed fibres, easy care/synthetics, wool, handwash items.

• Colour

Separate whites and coloureds. Wash new coloured items separately.

•Size

Wash items of different sizes in the same load to improve washing efficiency and distribution in the drum.

• Fabric delicacy

Wash delicate articles separately: use a special programme for Pure New Wool , curtains and other delicates. Always remove curtain glides or wash curtains with the glides inside a cotton bag. Use the special programme for handwash fabrics. Wash stockings, belts and other small items or articles with hooks (e.g. bras) in special cotton bags for washing machines or in zipped pillow cases.

2.Empty pockets

Coins, safety pins and similar items can damage your laundry as well as the washing machine’s drum and tub.

3.Fasteners

Close zips and fasten buttons or hooks; loose belts or ribbons should be tied together.

Stain removal

•

Blood, milk, egg and other organic substances are generally removed by the enzyme phase of the programme.

•

To remove red wine, coffee, tea, grass and fruit stains etc. add a stain remover to the main wash chamber of the detergent dispenser.

•

Particularly stubborn stains should be treated before the wash.

Dyeing and bleaching

•

Only use dyes and bleaches that are suitable for

washing machines.

•

Follow the manufacturer’s instructions.

•

Plastic and rubber parts of the machine may be

stained by dyes or bleaches.

GB 5

+ 14 hidden pages
