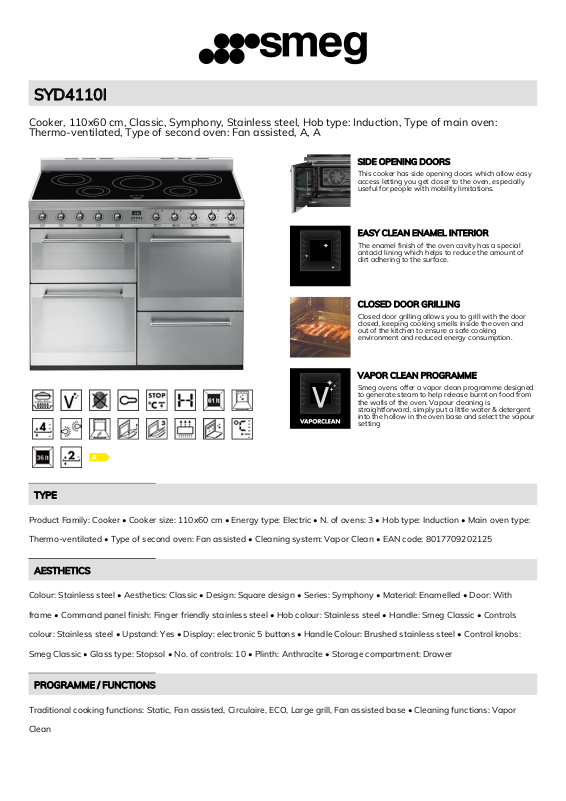

SYD4110I
Cooker, 110x60 cm, Classic, Symphony, Stainless steel, Hob type: Induction, Type of main oven:
Thermo-ventilated, Type of second oven: Fan assisted, A, A
TYPE
Product Family: Cooker • Cooker size: 110x60 cm • Energy type: Electric • N. of ovens: 3 • Hob type: Induction • Main oven type:
Thermo-ventilated • Type of second oven: Fan assisted • Cleaning system: Vapor Clean • EAN code: 8017709202125
AESTHETICS
Colour: Stainless steel • Aesthetics: Classic • Design: Square design • Series: Symphony • Material: Enamelled • Door: With
frame • Command panel finish: Finger friendly stainless steel • Hob colour: Stainless steel • Handle: Smeg Classic • Controls
colour: Stainless steel • Upstand: Yes • Display: electronic 5 buttons • Handle Colour: Brushed stainless steel • Control knobs:
Smeg Classic • Glass type: Stopsol • No. of controls: 10 • Plinth: Anthracite • Storage compartment: Drawer
PROGRAMME / FUNCTIONS
Traditional cooking functions: Static, Fan assisted, Circulaire, ECO, Large grill, Fan assisted base • Cleaning functions: Vapor
Clean
SIDE OPENING DOORS
This cookerhasside opening doors which allow easy
access letting you get closer to the oven, especially
useful for people with mobility limitations.
EASY CLEAN ENAMEL INTERIOR
The enamel finish of the oven cavity has a special
antacid lining which helps to reduce the amount of
dirt adhering to the surface.
CLOSED DOOR GRILLING
Closed door grilling allows you to grill with the door
closed, keeping cooking smells inside the oven and
out of the kitchen to ensure a safe cooking
environment and reduced energy consumption.
VAPOR CLEAN PROGRAMME
Smeg ovens offer a vapor clean programme designed
togenerate steam to help release burnt on food from
the walls of the oven. Vapour cleaning is
straightforward, simply puta little water & detergent
into the hollow inthe oven base and select the vapour
setting
Page 2
PROGRAMS / FUNCTIONS AUXILIARY OVEN
Cooking functions cavity 2: 5 • Traditional cooking functions, cavity 2: Static, Fan assisted, Fan grill (large), Bottom, Fan-assisted
bottom • Cleaning functions cavity 2: Vapor Clean • Other functions cavity 2: defrost by time
PROGRAMME / FUNCTIONS THIRD OVEN
No. of functions third oven: 1
HOB OPTIONS
Control Lock / Child Safety: Yes
OPTIONS MAIN OVEN
Timer: Yes • End of cooking acoustic alarm: Yes • Minimum Temperature: 50 °C • Maximum temperature: 260 °C
OPTIONS AUXILIARY OVEN
Minimum Temperature: 50 °C • Maximum temperature: 260 °C
OPTIONS THIRD OVEN
Minimum Temperature: 50 °C • Maximum temperature: 260 °C
HOB TECHNICAL FEATURES
Total no. of cook zones: 5 • 1st zone position: Front left • 2nd zone position: Rear left • 3rd zone position: Central • 4th zone
position: Rear right • 5th zone position: Front right • 1st zone type: Induction - single • 2nd zone type: Induction - single • 3rd
zone type: Induction - single • 4th zone type: Induction - single • 5th zone type: Induction - single • 1st zone dimensions: Ø 18.0
cm • 2nd zone dimensions: Ø 21.0 cm • 3rd zone dimensions: Ø 27.0 cm • 4th zone dimensions: Ø 21.0 cm • 5th zone
dimensions: Ø 18.0 cm • 1st zone power: 1.30 kW • 2nd zone power: 2.30 kW • 3rd zone power: 2.30 kW • 4th zone power:
2.30 kW • 5th zone power: 1.30 kW • 1st zone booster power: 1.40 kW • 2nd zone booster power: 3.00 kW • 3rd zone booster
power: 3.00 kW • 4th zone booster power: 3.00 kW • 5th zone booster power: 1.40 kW • Automatic switch off when overheat:
Yes • Automatic pan detection: Yes • Minimum pan diameter indication: Yes • Selected zone indicator: Yes • Residual heat
indicator: Yes
MAIN OVEN TECHNICAL FEATURES
Net volume of the cavity: 61 litres • Cavity material: Easy clean enamel • Shelf positions: 4 • Type of shelves: Metal racks • No. of
lights: 1 • Light type: Halogen • Light power: 40 W • Cooking time setting: Start and Stop • Door opening: Side opening • Side
opening door: Yes • Removable door: Yes • Full glass inner door: Yes • Removable inner door: Yes • Total no. of door glasses: 3 •
No.of thermo-reflective door glasses: 1 • Safety Thermostat: Yes • Cooling system: Tangential • Grill type: Electric • Grill
elememt: 1700 W • Large grill - Power: 2700 W • Lower heating element power: 1200 W • Upper heating element - Power:
1000 W • Circular heating element - Power: 2700 W • Temperature control: Electro-mechanical
Page 3
SECOND OVEN TECHNICAL FEATURES
Net volume of the second cavity: 61 litres • Cavity material: Easy clean enamel • Shelf positions: 4 • Type of shelves: Metal racks
• No. of lights: 1 • Light type: Halogen • Light power: 40 W • Door opening: Side opening • Side opening door: Yes • Removable
door: Yes • Full glass inner door: Yes • Removable inner door: Yes • No. total door glasses: 3 • No. thermo-reflective door
glasses: 1 • Safety Thermostat: Yes • Cooling system: Tangential • Grill type: Electric • Tilting grill: Yes • Grill element - power:
1700 W • Large grill - Power: 2700 W • Lower heating element - power: 1200 W • Upper heating element - Power: 1000 W •
Temperature control: Electro-mechanical
THIRD OVEN TECHNICAL FEATURES
Net volume, 3rd cavity: 36 l • Gross volume, 3rd cavity: 41 l • Cavity material: Easy clean enamel • Shelf positions: 2 • Type of
shelves: Metal racks • No. of lights: 1 • Light type: Incandescent • Light power: 25 W • Door opening: Flap down • Removable
door: Yes • Full glass inner door: Yes • Removable inner door: Yes • No. total door glasses: 3 • No. of thermo-reflective door
glasses: 1 • Safety Thermostat: Yes • Cooling system: Tangential • Grill type: Electric • Tilting grill: Yes • Large grill - Power:
2700 W • Temperature control: Electro-mechanical
PERFORMANCE / ENERGY LABEL
Energy efficiency class: A • GAS - Energy consumption in fan-forced convection, first cavity: 2.77 MJ • Energy consumption
forced air convection (kWh) first cavity: 0.77 KWh • GAS - Energy consumption conventional mode, first cavity: 3.42 MJ • Energy
consumption conventional first cavity (kWh): 0.95 KWh • Energy consumption zone 2: 182.6 Wh/Kg • Energy consumption zone
3: 142 Wh/Kg • Energy consumption zone 4: 182.6 Wh/Kg • Energy consumption zone 5: 176.7 Wh/Kg
PERFORMANCE /ENERGY LABEL - SECOND CAVITY
Energy efficiency class, second cavity: A • GAS - Energy consumption in conventional mode, second cavity: 3.42 MJ • GAS -
Energy consumption in conventional mode, second cavity: 0.95 KWh • GAS - Energy consumption in forced air convection,
second cavity: 3.06 MJ • GAS - Energy consumption in forced air convection, second cavity: 0.85 KWh
ELECTRICAL CONNECTION
Nominal power: 19500 W • Voltage: 220-240 V • Frequency: 50/60 Hz
LOGISTIC INFORMATION
Width (mm): 1100 mm • Product Height (mm): 900 mm • Depth (mm): 600 mm • Net weight (kg): 127.200 kg
ACCESSORIES INCLUDED FOR MAIN OVEN & HOB
Grill mesh: 1Telescopic Guide rails, partial Extraction: 1Top oven chrome shelf with back stop: 240mm deep tray: 1
ACCESSORIES INCLUDED FOR SECONDARY OVEN
Chrome shelf with back and side stop: 2Grill mesh: 140mm deep tray: 1Telescopic Guide rails, partial Extraction: 1
Page 4
ACCESSORIES INCLUDED FOR THIRD OVEN
40mm deep tray: 1Chrome shelf with back and side stop: 1
OPTIONAL
GTT: Telescopic guides, Ovens, CookersGTP: Telescopic guides, Ovens, Cookers
