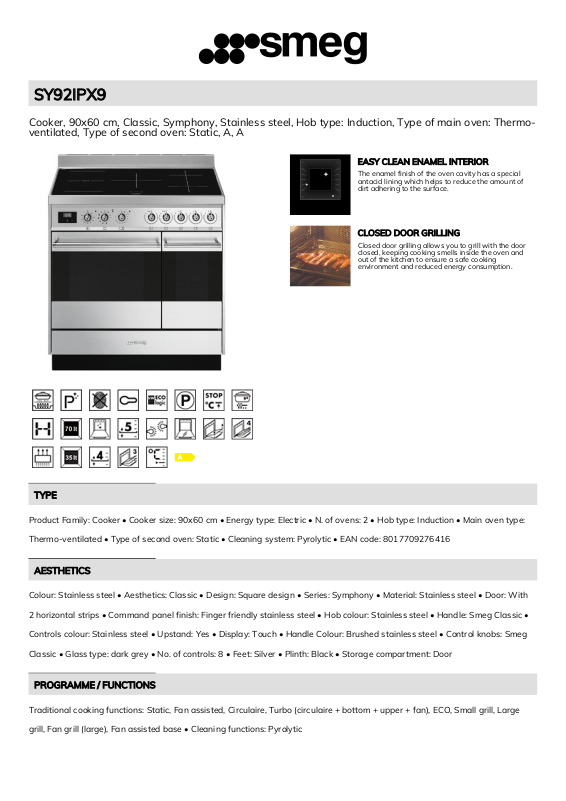

SY92IPX9
Cooker, 90x60 cm, Classic, Symphony, Stainless steel, Hob type: Induction, Type of main oven: Thermoventilated, Type of second oven: Static, A, A
TYPE
Product Family: Cooker • Cooker size: 90x60 cm • Energy type: Electric • N. of ovens: 2 • Hob type: Induction • Main oven type:
Thermo-ventilated • Type of second oven: Static • Cleaning system: Pyrolytic • EAN code: 8017709276416
AESTHETICS
Colour: Stainless steel • Aesthetics: Classic • Design: Square design • Series: Symphony • Material: Stainless steel • Door: With
2 horizontal strips • Command panel finish: Finger friendly stainless steel • Hob colour: Stainless steel • Handle: Smeg Classic •
Controls colour: Stainless steel • Upstand: Yes • Display: Touch • Handle Colour: Brushed stainless steel • Control knobs: Smeg
Classic • Glass type: dark grey • No. of controls: 8 • Feet: Silver • Plinth: Black • Storage compartment: Door
PROGRAMME / FUNCTIONS
Traditional cooking functions: Static, Fan assisted, Circulaire, Turbo (circulaire + bottom + upper + fan), ECO, Small grill, Large
grill, Fan grill (large), Fan assisted base • Cleaning functions: Pyrolytic
EASY CLEAN ENAMEL INTERIOR
The enamel finish of the oven cavity has a special
antacid lining which helps to reduce the amount of
dirt adhering to the surface.
CLOSED DOOR GRILLING
Closed door grilling allows you to grill with the door
closed, keeping cooking smells inside the oven and
out of the kitchen to ensure a safe cooking
environment and reduced energy consumption.
Page 2
PROGRAMS / FUNCTIONS AUXILIARY OVEN
Cooking functions cavity 2: 4 • Traditional cooking functions, cavity 2: Static, Small grill, Large grill, Bottom
HOB OPTIONS
Multizone Option: Yes • Control Lock / Child Safety: Yes • Limited Power Consumption Mode: Yes • Limited Power Consumption
Mode in W: 3700, 4800, 7400, 10400 W
OPTIONS MAIN OVEN
Timer: Yes • End of cooking acoustic alarm: Yes • Minimum Temperature: 50 °C • Maximum temperature: 280 °C
OPTIONS AUXILIARY OVEN
Minimum Temperature: 50 °C • Maximum temperature: 245 °C
HOB TECHNICAL FEATURES
Total no. of cook zones: 5 • No. of cooking zones with Booster: 5 • 1st zone position: Front left • 2nd zone position: Rear left •
3rd zone position: Central • 4th zone position: Rear right • 5th zone position: Front right • 1st zone type: Induction - multizone •
2nd zone type: Induction - multizone • 3rd zone type: Induction - single • 4th zone type: Induction - single • 5th zone type:
Induction - single • 1st zone dimensions: 21.0x19.0 cm • 2nd zone dimensions: 21.0x19.0 cm • 3rd zone dimensions: Ø 27.0 cm
• 4th zone dimensions: Ø 18.0 cm • 5th zone dimensions: Ø 21.0 cm • 1st zone power: 2.10 kW • 2nd zone power: 1.60 kW •
3rd zone power: 2.30 kW • 4th zone power: 1.20 kW • 5th zone power: 2.30 kW • 1st zone booster power: 2.30 kW • 2nd zone
booster power: 1.85 kW • 3rd zone booster power: 3.00 kW • 4th zone booster power: 1.40 kW • 5th zone booster power: 3.00
kW • Automatic switch off when overheat: Yes • Automatic switch off when overflow: Yes • Automatic pan detection: Yes •
Minimum pan diameter indication: Yes • Selected zone indicator: Yes • Residual heat indicator: Yes
MAIN OVEN TECHNICAL FEATURES
Net volume of the cavity: 70 litres • Cavity material: Easy clean enamel • Shelf positions: 5 • Type of shelves: Metal racks • No. of
lights: 1 • Light type: Halogen • Light power: 40 W • Fan number: 1 • Cooking time setting: Start and Stop • Door opening: Flap
down • Light when oven door is open: Yes • Removable door: Yes • Full glass inner door: Yes • Removable inner door: Yes •
Total no. of door glasses: 4 • No.of thermo-reflective door glasses: 3 • Door Lock During Pyrolisis: Yes • Safety Thermostat: Yes •
Cooling system: Tangential • Heating suspended when door is opened: Yes • Grill type: Electric • Grill elememt: 1700 W • Large
grill - Power: 2700 W • Lower heating element power: 1200 W • Upper heating element - Power: 1000 W • Circular heating
element - Power: 2000 W • Temperature control: Electro-mechanical
Page 3
SECOND OVEN TECHNICAL FEATURES
Net volume of the second cavity: 35 litres • Cavity material: Easy clean enamel • Shelf positions: 4 • Type of shelves: Metal racks
• No. of lights: 1 • Light type: Incandescent • Light power: 25 W • Door opening: Flap down • Removable door: Yes • Full glass
inner door: Yes • Removable inner door: Yes • No. total door glasses: 3 • No. thermo-reflective door glasses: 1 • Safety
Thermostat: Yes • Cooling system: Tangential • Grill type: Electric • Grill element - power: 1300 W • Large grill - Power: 1900 W
• Lower heating element - power: 700 W • Upper heating element - Power: 600 W • Temperature control: Electro-mechanical
PERFORMANCE / ENERGY LABEL
Energy efficiency class: A • GAS - Energy consumption in fan-forced convection, first cavity: 2.88 MJ • Energy consumption
forced air convection (kWh) first cavity: 0.80 KWh • GAS - Energy consumption conventional mode, first cavity: 3.92 MJ • Energy
consumption conventional first cavity (kWh): 1.09 KWh • Energy consumption zone 2: 186 Wh/Kg • Energy consumption zone 3:
195 Wh/Kg • Energy consumption zone 4: 187 Wh/Kg • Energy consumption zone 5: 176 Wh/Kg
PERFORMANCE /ENERGY LABEL - SECOND CAVITY
Energy efficiency class, second cavity: A • GAS - Energy consumption in conventional mode, second cavity: 2.66 MJ • GAS -
Energy consumption in conventional mode, second cavity: 0.74 KWh
ELECTRICAL CONNECTION
Nominal power: 15400 W • Voltage: 220-240 V • Voltage 2 (V): 380-415 V • Frequency: 50/60 Hz
LOGISTIC INFORMATION

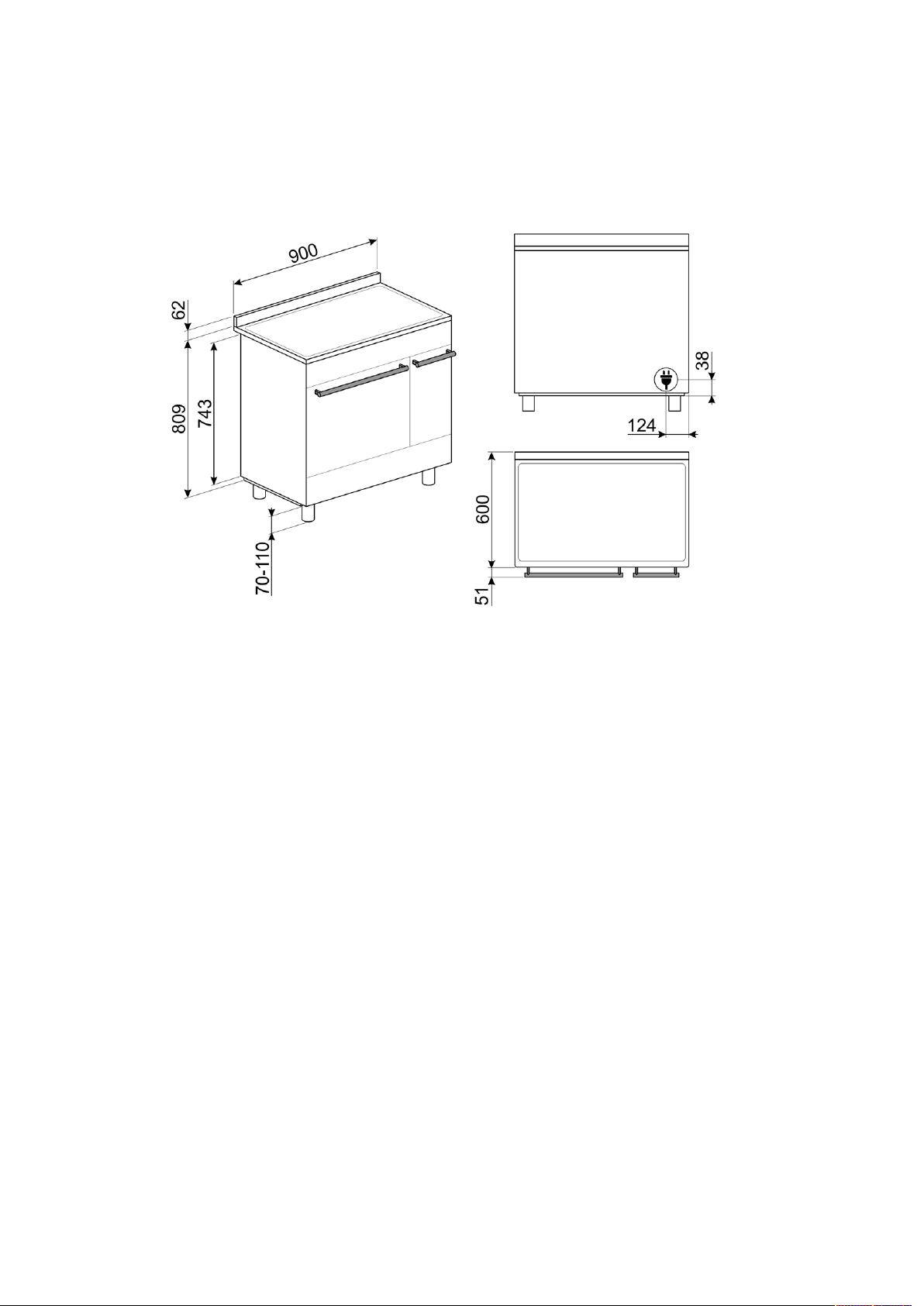

Width (mm): 900 mm • Product Height (mm): 900 mm • Depth (mm): 600 mm • Net weight (kg): 87.100 kg
ACCESSORIES INCLUDED FOR MAIN OVEN & HOB
Grill mesh: 1Telescopic Guide rails, partial Extraction: 1Top oven chrome shelf with back stop: 240mm deep tray: 1
ACCESSORIES INCLUDED FOR SECONDARY OVEN
Chrome shelf with back and side stop: 1Grill mesh: 1Wide baking tray: 1Plate rack/warmer: 1
OPTIONAL
GTT: Telescopic guides, Ovens, CookersGTP: Telescopic guides, Ovens, Cookers
