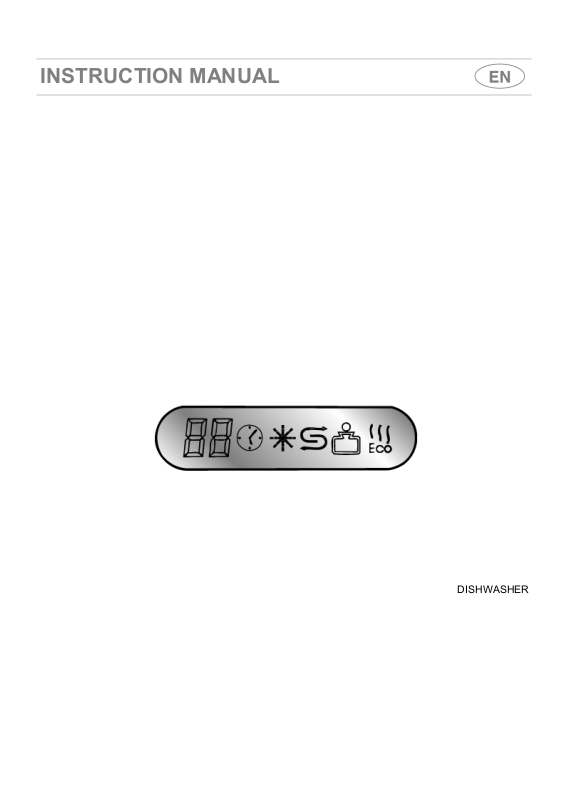

INSTRUCTION MANUAL

DISHWASHER

Page 2

Contents

1. Safety and operating instructions __________________________ 24

2. Installation and hook-up _________________________________ 26

2.1 Water supply connection _____________________________________________________ 26

2.2 Electrical connection ________________________________________________________ 27

3. Description of the controls _______________________________ 28

3.1 Upper panel _______________________________________________________________ 28

3.2 Information display__________________________________________________________ 28

3.3 Washing programs__________________________________________________________ 29

4. Operating instructions___________________________________ 30

4.1 Using the water softening system ______________________________________________ 30

4.2 Using the rinse aid and detergent dispensers _____________________________________ 32

4.3 General warnings and recommendations ________________________________________ 34

4.4 Using the baskets___________________________________________________________ 35

5. Cleaning and maintenance _______________________________ 38

5.1 General warnings and recommendations ________________________________________ 38

6. Troubleshooting _______________________________________ 41

Thank you for choosing this product. We advise you to carefully read all the instructions contained in this manual, in order to understand how to operate your dishwasher safely and correctly. The manual is divided into paragraphs, which provide a step by step description of the dishwasher functions, with clear instructions accompanied by detailed illustrations. Recommendations are given for the correct use of the baskets, spray arms, containers, filters, washing programs, and for operating the controls. Follow the recommended cleaning procedures to ensure that your dishwasher always remains in perfect working order. This manual provides a quick and easy reference for answering all your questions concerning the use of your new dishwasher.

INSTALLATION INSTRUCTIONS: these are intended for the out the installation, hook-up and testing of the appliance.

USER INSTRUCTIONS: these consist of recommendations for using the appliance, a description of its controls and of the correct cleaning and maintenance procedures.

qualified technician

who must carry

Page 3

Safety instructions

1. Safety and operating instructions

THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC USE, AND COMPLIES WITH THE PREVENTION AND ELIMINATION OF RADIO FREQUENCY INTERFERENCE. THE APPLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE: IMPROPER.

DESCRIBED ABOVE.

THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER AND MARKINGS IS VISIBLY POSITIONED ON THE INNE R EDGE OF THE DOOR.

REMOVED.

DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED WITHIN THE HOME. SEPARATE THE VARIOUS MATERIALS WHICH MAKE UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE COLLECTION CENTRE.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR USES OTHER THAN THOSE

EEC DIRECTIVES 72/23, 897336 (INCLUDING 92/31)

WASHING AND DRYING OF DISHE S

THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST NEVER BE

CURRE NTLY IN FORC E, INCLUD ING THE

; ANY OTHER USE SHALL BE CONSIDERED

THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.

IF THE APPLIANCE IS NOT CONNECTED TO THE ELECTRICAL POWER SUPPLY BY MEANS OF A PLUG, IT IS NECESSARY TO INSTALL AN ISOLATION SWITCH WITH A CONTACT OPENING GAP OF AT LEAST 3 MM.

THE PLUG ON THE POWER CORD AND THE CORRESPONDING SOCKET OUTLET MUST BE OF THE SAME TYPE, AND MUST CONFORM TO THE REGULATIONS IN FORCE. CHECK THAT THE VOLTAGE AND FREQUENCY OF THE ELECTRICAL POWER SUPPLY MATCH THE RATINGS ON THE NAME PLATE. AVOID USING ADAPTORS OR SHUNT CONNE CTIO NS.

NEVER UNPLUG THE APPLIANCE BY PULLING THE POWER CORD.

•

AFTER INSTALLATION, THE PLUG MUST REMAIN ACCESSIBLE.

•

IN THE EVENT OF DAMAGE TO THE POWER CORD, HAVE IT REPLACED BY A QUALIFIED TECHNICIAN.

•

AFTER CHANGING THE POWER CORD, MAKE SURE THAT THE BRACKET WHICH SECURES THE CORD IS FIXED SECURELY IN PLACE.

IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR, ENSURE THAT THE OPENINGS ON ITS UNDERSIDE ARE NOT OBSTRUCTED.

ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID WASTING ELECTRICITY.

OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET, AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR CHILDREN (LOCKS, DOORS, ETC.). THE APPLIANCE MUST THEN BE TAKEN TO A SORTED WASTE COLLECTION CENTRE.

Page 4

Safety instructions

IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP. THEN CALL IN A QUALIFIED TECHNICIAN.

DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER. THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A QUALIFIED TECHNICIAN.

THE APPLIANC E IS INTENDE D FOR USE BY ADULTS.

THE DISHWASHER. KEEP CHILDREN AWAY FROM DETERGENTS AND FROM THE OPEN DISHWASHER DOOR. THE PACKAGING MATERIALS (PLASTIC BAGS, POLYSTYRENE, METAL BARS, ETC.) MUST NOT BE LEFT WITHIN THE REACH OF CHILDREN. KEEP CHILDREN AWAY FROM THE OPEN DISHWASHER. THE APPLIANCE MAY CONTAIN RESIDUES OF DETERGENT WHICH CAN CAUSE IRREVERSIBLE DAMAGE TO THE EYES, MOUTH, AND THROAT, AS WELL AS POSSIBLE DEATH BY SUFFOCATION.

DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE WHICH MAY CAUSE AN EXPLOSION.

DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.

LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY CAUSE THE APPLIANCE TO OVERTURN, PUTING PEOPLE AT RISK.

DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE.

AQUASTOP MODELS

THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A WATER LEAK. WHEN THE AQUASTOP DEVICE IS TRIPPED, CALL IN A QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT. IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A SOLENOID VALVE INSIDE THE WATER INTAKE HOSE.

DO NOT CUT THE HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO WATER.

EVENT OF DAMAGE TO THE WATER INTAKE HOSE, DISCONNECT THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY AND FROM THE WATER SUPPLY.

DO NOT ALLOW CHILDREN TO COME NEAR OR PLAY WITH

IN THE

IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK TEST OF THE APPLIANCE FOLLOWING THE INSTRUCTIONS BELOW. IF THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT FROM THE ELECTRICAL POWER SUPPLY AND CALL THE NEAREST TECHNICAL SERVICE CENTRE.

DO NOT ATTEMPT TO REPAIR THE APPLIANCE.

THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUC TED EXCLUSIVELY BY A TRAINED AND AUTHORISED TECHNICIA N:

INVALIDATE THE WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.

The manufacturer declines all responsibility

for damage to persons or property resulting from failure to

REPAIRS CARRIED OUT BY UNAUTHORISED PERSONS WILL

observe the above precautions, from tampering with even a single component of the appliance, or from the use of non original spare parts.

Page 5

Installation instructions

2. Installation and hook-up

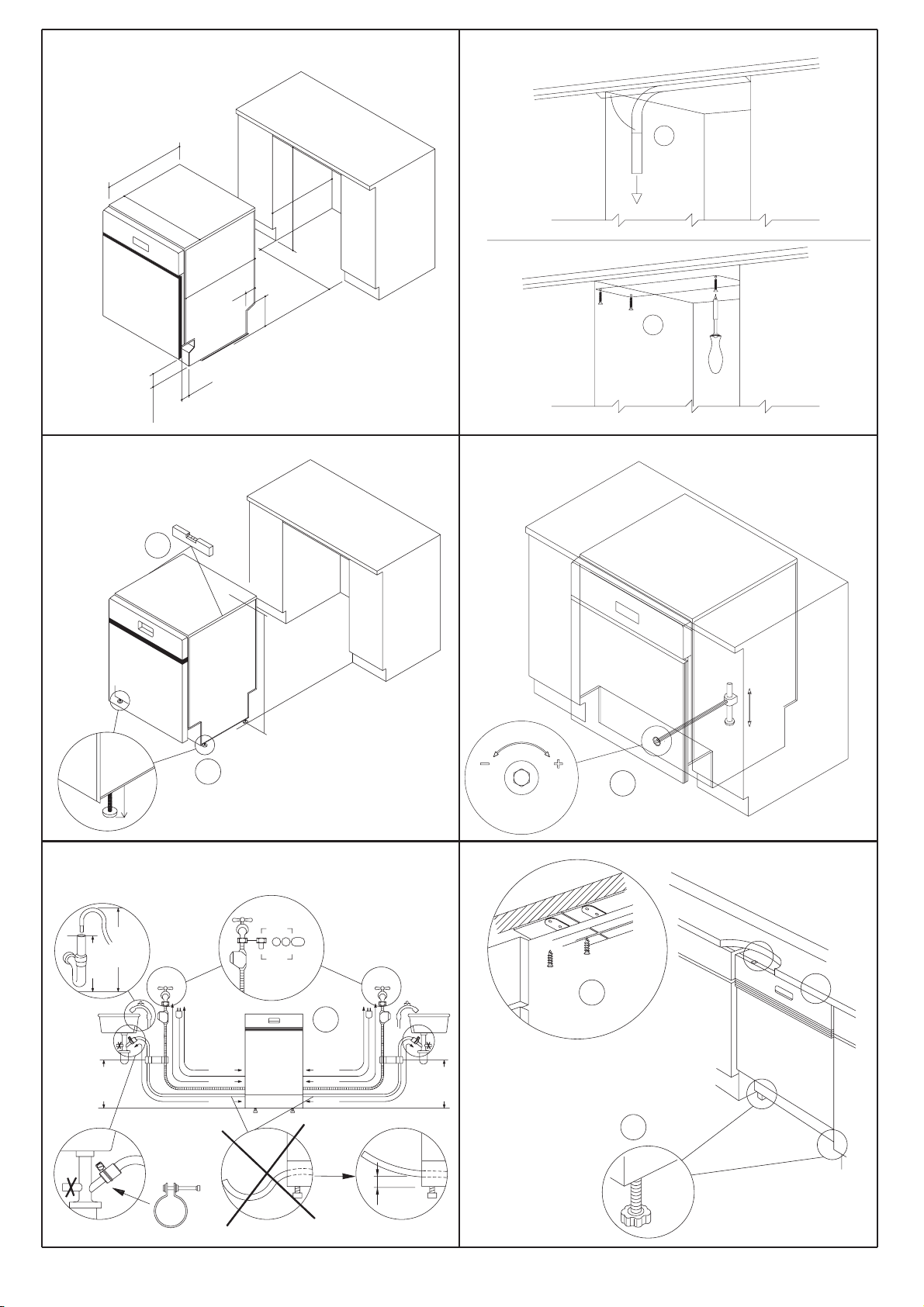

Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance. To ensure stability, install integrated or built-under dishwashers only under continuous worktops, and screw them to the adjacent units. To facilitate the installation procedure, the intake and drain hoses can be positioned in any direction; make sure that the hoses are not kinked, crushed or pulled too tightly.

Level the appliance on the floor using its adjustable feet. This operation is essential for ensuring correct operation of the dishwasher.

Some models are equipped with only one adjustable foot at the rear, which can be adjusted by turning the screw on the lower front part of the appliance.

2.1 Water supply connection

Preventing the risk of clogging or damage:

long time, before connecting to the water supply check that the water is clear and free of impurities, to prevent damage to the appliance.

The dishwasher must always be connected to the water system with new hoses; old or used ho ses must ne ver be reu sed.

CONNECTING T O THE WATER SUPPLY

Connect the intake hose to a cold water supply with ¾” gas thread, inserting the filter A supplied with the dishwasher.

Take care to screw the hose firmly into place with your hands and then complete by tightening about ¼ of a turn with pliers. In dishwashers equipped with the ACQUASTOP device, the filters is already fitted inside the threaded ring.

if the water pipe is new or has not been used for a

The dishwasher can also be connected to a hot water supply appliance with hot water cuts down the washing time by approximately 20 minutes, but slightly reduces its effectiveness. Make the connection to the domestic hot water supply using the same procedure described for connecting to the cold water supply.

not exceeding 60°C

. Supplying the

Page 6

Installation instructions

DRAIN CONNECT ION

Insert the dishwasher’s drain hose into a drain pipe having a diameter of at least

place it inside the kitchen sink using the plastic support provided, taking care not to crush or excessively bend the hose. It is important to prevent the hose from coming loose and falling. For this purpose, the plastic support is equipped with a hole for tying it to the wall or water tap. The free end should be positioned at a height of between submerged in water. If a horizo nt al drain e xte nsion hose is used ( for a maximum of 3 m) the drain hose can be placed at a maximum heig ht of

30 and 100 cm,

from the ground.

85 cm

, or alternatively,

4 cm

and should never be

2.2 Electrical connection

Plug the power cord into a suitable electrical outlet, according to the instr uctions given in chapter "1. Safety and operating instructions".

Page 7

User instructions

3. Description of the controls

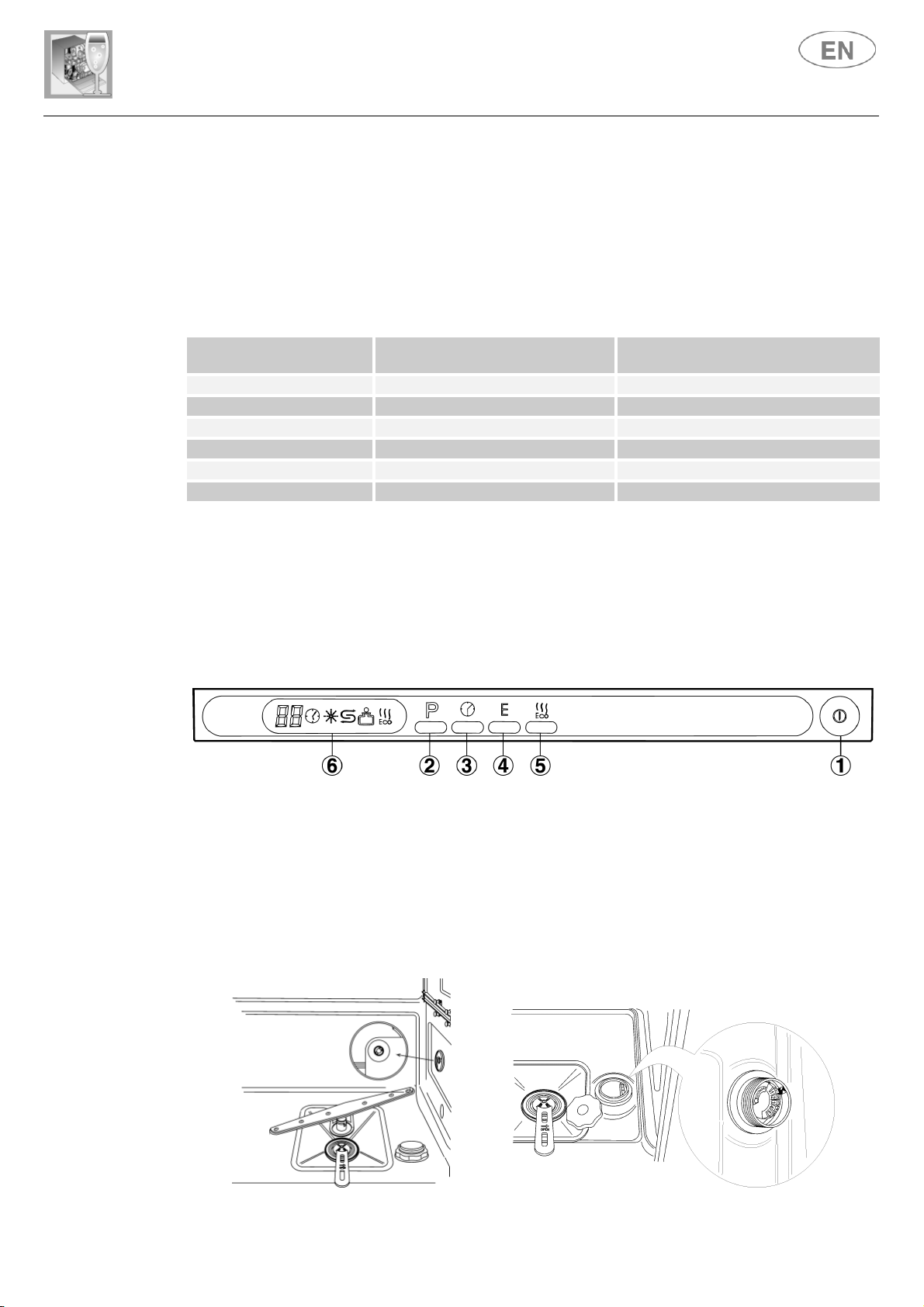

3.1 Upper panel

All the dishwasher controls are grouped on the upper panel.

ON/OFF

PROGRAM SELECTION

DELAYED START

ECONOMY PROGRAM SELECTION

ECO DRYING CYCLE

INFORMATION DISPLAY

BUTTON

BUTTON (on some models only)

3.2 Information display

The dishwasher is equipped with a practical dishwasher functions.

CURRENT PROGRAM INFORMATION (remaining time indication and warnings for the most common problems)

DELAYED START INDICATOR LIGHT

BUTTON

DISPLAY

which provides information on the programmed

RINSE AID WARNING LIGHT

REGENERATING SALT WARNING LIGHT

ECONOMY PROGRAM SELECTION LIGHT

ECO DRYING CYCLE LIGHT (on some models only)

DISABLING THE ACOUSTIC DEVICE AND ADJUSTING THE FILLING SYSTEM

The dishwasher’s electronic control system allows you to:

Disable the acoustic device which confirms all dishwasher programming and operating steps;

•

Adapt the dishwasher’s water filling system to the mains water pressure.

•

Page 8

SWITCHING OFF

The end of the washing program is signalled by a short intermittent beep and the appearance of “P0” on the DISPLAY.

ANNULLING THE PROGRAM IN PROGRESS

To annul the program being carried out, after opening the door select program "P0". When the door is closed the dishwasher will skip to the end of the program.

MODIFYING THE PROGRAM

To modify the current program, after opening the door select the new program. When the door is closed the dishwasher will start the new program automatica lly.

DELAYING THE PROGRAM The start of the washing program can be delayed from a min imum of 1 hour to a maximum of 9 hours; this allows you to operate the dishwasher at the time of day of

your choice. When the DELAYE D START button (3) is pressed, the DISPLAY (6) will show first the

duration of the program set and then the number of hours (9,8, …1) of delay with which it is to be started.

The symbol will remain until the start of the washing cycle, while the number of hours will disappear automatically if the keypad is not used for 5 seconds or if any other button except the DELAYED START button (3) is pressed. When the door is closed the dishwasher will perform a pre-wash, after which the “program delay” set previously will start. To check the time left before the program starts, simply press the corresponding button once.

TABLE FOR CERTIFICATION BODIES

Reference standard EN 50242

Reference program

(*) ECO BIO program (5)

Load 10 place-settings Type of detergent B Amount of detergent 25 g Rinse aid setting Depending on the model 3/4 or 4/6

EN 50242 STANDARD LOADS

If it is necessary to open dishwasher door during the washing cycle, there will be a 1-minute delay before the program can be resumed. After correctly closing the door, the washing program will start again from where it was interrupted. This operation may negatively affective the progress of the washing cycle.

LOWER B ASKE T UPPER B ASKE T

The upper basket must be set in the low position.

Page 9

TABLE OF PROGRAMS

SETTING THE WASHING PROGRAM AND SWITCH ING ON

To select the most suitab le pr ogram for the dishes to be washed r efer to the table below, which indicates the most appropriate program according to dish type and degr ee of soiling.

After choo sin g the most sui ta ble washi ng progr am using the tab le provided:

•

press the ON/OFF key (1) and wai t for the IN FORMAT ION D IS PLAY (6) to come on;

•

press the PRO GRAM SELECTION button (2) se ver al ti mes, until th e IN FORMAT ION D IS PL AY (6) shows the number c orresponding to

the progra m of choice; close the door, the machine will automatically b egin the washin g program after the s oundin g of the acoustic device.

"P0" on th e DISPLAY means tha t no washing program has been se lec ted. This message remain s until the PROGRAM SELECTION butto n (2) is pressed; at this point the number of the last progra m use d will appear . Each ti me the button is pr essed a gai n, the pr ogram numbers will move on from that point forward.

All progr amming opera tion s are acco mpani ed by a short confirmatory beep; if you do not hear a nything when you press a b utton, the func tion concerned is not available in the progr am selec ted.

CYCLE N. EC O

SOAK

DELICATE

SHORT

RAPID

NORMAL

DAILY

BIO

ECO BIO

(*) EN 50242

INTEN SIVE

(WITHO UT

PRE-WASH)

SUPER

RINSE

(**)

BUTTON

_ _

EC O

DRYING

(OPTIONAL)

TYPE A ND DEGREE

OF DI RT O N DI S H ES

PANS AND DISHES PENDING

COMPLETI ON OF TH E LO AD

DISHES WITH LIGHT DIRT

SLIGH TLY S OILED DELICATE ITEMS

DISHES WITH LIGHT DIRT

NORMALLY SOILED PANS AND DISHES

NORMALLY SOILED DISHES

NORMALLY SOILED PANS AND DISHES,

INCLUDING DRIED-ON RESIDUE

SLIGHTLY SOILED DISHES WITH

DRIED-ON RESIDUE

VERY DIRTY P ANS AND DISHES,

EVEN WITH DRIED-ON DIRT

NORMALLY SOILED PANS AND DISHES

WITH DRIED-ON STARCH DEPOSITS

HEAVILY SOILED PANS AND DISHES WITH

DRIED-ON STARCH DEPOSITS

DISHES THAT NEED

“FRESHENING UP”

AMOUNT OF DET ERGENT

GRAM S PREWASH WASH COLD RINS E HOT RINSE DRYING

COLD

HOT

_ _ _

PROGRAM SEQUENC E

_ _ _ _

45°C 1 1 YES

45°C 2

_ _

65°C 1 1 YES

55°C 1 1 YES

66°C 2 1 YES

68°C 2 1 YES

70°C 2 1 YES

1 1 YES

Only run the soak program with half loads.

ECO DRY (5) function is only present on some

models.

(*) Reference program as EN 50242 standard

(program recommended when using “new generation” detergents containing enzymes).

(**) Before starting program 8 check that the door of

the detergent dispenser is open.

(-) Not present.

If the dishwasher door is left open or is not properly closed, the INFORMATION DISPLAY (6) will signal that the washing program cannot be started.

For any other information about use and maintenance of the dishwasher, read the enclosed manual carefully.

In programs containin g the symbol, the ECO drying cycle option is available. This extends the program time (by abo ut 25’) but cuts power consumption du e to the lower r insing te mperature.

19 592 0007 00

Page 10

User instructions

Programming procedure:

Press the

•

seconds until the Press the

•

Press the

•

PROGRAM SELECTION (2)

DISPLAY (6)

DELAYED ST ART

shows the symbol of the parameter to be modified (see table);

button

PROGRAM SELECTION

to exit from the procedure.

DISPLAY SYMBOL PARAMETER ADJUS TABL E VALUE EFFECT

and

DELAYED ST ART (3)

to modify the parameter;

(3)

button

to change the parameter for modification and/or

(2)

buttons simultaneously for 3

ACOUSTIC DEVICE

WATER PRESSURE

OFF

NORMAL

LOW

3.3 Washing programs

The dishwasher is equipped with a control panel and an

INFORMATION DISPLAY

chapter "3. Description of the controls", from which it is possible to carry out all the power switchon, switch-off and programming operations.

See enclosed program table for washing cycles and the procedure for starting the dishwasher and switching it on/off.

Before starting a washing program make sure that:

The water supply tap is

•

The

•

correct amount of detergent

The baskets have been The spray arms are able to The dishwasher door is

open.

has been added to the

correctly loaded.

rotate freely

securel y clo sed

dispenser

and without obstruction.

, described in

TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONM ENT

Always try to run the dishwasher

•

Do not wash the dishes in running water.

•

Use the washing program that is

•

Do not carry out any preliminary rinsing.

•

If available, connect the dishwasher to a hot water supply up to 60°C.

•

When possible,

•

disable the drying cycle

fully loaded

most appropriate

for each type of load.

and leave the door open at the end of the washing

cycle: the residual air and heat will dry the dishes perfectly.

TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT THE ENVIRONM ENT

The phosphates contained in dishwasher detergents are harmful to the environment. To avoid using excessive amounts of detergent and to save on electricity, observe the following:

•

sep arate

the more delicate items from dishes that are more resistant to aggressive detergents

and high temperatures;

•

do not pour

the detergent directly on the dishes.

REMOVING T HE DISHES

At the end of the washing program, wait at least

20 minutes

before removing the dishes, to allow

them to cool down. To prevent any water droplets on the upper basket from falling on the dishes in the lower basket, it is

advisable

to unload the lower basket first, and then the upper basket.

Page 11

User instructions

4. Operating instructions

Once the dishwasher has been correctly installed, prepare for use as follows:

Adjust the water softening system;

•

Add the regenerating salt;

•

Add the rinse aid and detergent.

•

4.1 Using the water softening system

The amount of scale contained in the water (water hardness index) can cause whitish staining on the dry dishes, which tend to become dull over time. The dishwasher is equipped with an automatic softening system which uses a special regenerating salt to reduce the hardness of the water. The dishwasher is factory set for water hardness level (average hardness

41-60°dF – 24-31°dH

SALT

When using water of medium hardness, the regenerating salt container should be refilled after approximately

grains. The container is situated at the bottom of the dishwasher. After removing the lower basket, unscrew the salt container cap by turning it anticlockwise and pour in the salt using the funnel supplied with the dishwasher. Before replacing the cap, remove any salt residues from around the opening.

When using the dishwasher for the first time, in addition to the salt it is also necessary to add

•

one litre of water

Each time the salt container is refilled, make sure that

•

mixture of water and detergent must never penetrate the salt container, as this would compromise the operation of the regeneration system. In the event of this occurring, the warranty will be invalidated.

•

Only do not fill the container completely

•

Do not use table salt

water softening system.

When necessary, refill the regenerating salt container

•

In this way, the excess saline solution will be immediately removed by the water; the prolonged presence of salt water inside the tank may lead to

20 washing cycles

to the container.

use regenerating salt specially formulated for domestic dishwashers. If using salt tablets,

as it contains insoluble substances which, over time, may damage the

. The salt container can hold approximately

the cap i s se curel y clo sed

before starting the washing program

corro sion

1.5 Kg

of salt in

. The

Be careful not to confuse the salt and detergent packages

container will

damage

the water softening system.

; adding detergent to the salt

Page 12

User instructions

ADJUSTING THE WATER SOFTENING SYSTEM

The dishwasher is equipped with an electronic device for adjusting the water softening setting according to the hardness of the water.

Depending on model, the setting may be made

ELECTRONIC SETTING

The value entered for this parameter establishes whether or not at the end of the washing cycle, on the basis of the table below.

SETTING WATER HARDNESS REGENERATION

0 < 9°dH (15°dF) Not performed 1 < 15°dH (25°dF) 2 < 23°dH (40°dF) 3 < 34°dH (60°dF) 4 < 46°dH (80°dF) 5 < 58°dH (100°dF)

Contact your local water board for information on the hardness of your water supply.

N.B.:

is a washing program.

cycle

electronically

or by means of a

regeneration

Performed every Performed every Performed every Performed every

Performed

selector switch

is to be carried out

5 cycles 4 cycles 3 cycles 2 cycles

every cycle

Programming procedure:

Press the

•

3 seconds until the Press the

•

Press the

•

SWITCH SETTING

According to the machine model, the selector which acts on the adjustment may be located:

inside the plastic locking ring located on the

•

inside the water softener, just below the cap.

•

Both allow for adjustment to 5 settings:

PROGRAM SELECTION (2)

DISPLAY (6) DELAYED ST ART PROGRAM SELECTION

shows the symbol “H”;

button

and

DELAYED ST ART (3)

to modify the parameter;

(3)

button

to exit from the procedure.

(2)

right-hand

buttons simultaneously for

side, inside the dishwasher;

Page 13

User instructions

WATER HARDNESS TABLE

WATER HARDNESS

German Degrees (°dH) Frenc h Degrees (°dF)

0 - 4 0 - 7 Setting N. 1 NO SALT

5 - 9 8 - 15 Setting N. 1 10 - 17 16 - 30 Setting N. 2 18 - 26 31 - 45 Setting N. 3 27 - 35 46 - 60 Setting N. 4 36 - 47 61 - 80 Setting N. 5

Contact your local water board for information on the hardness of your water supply.

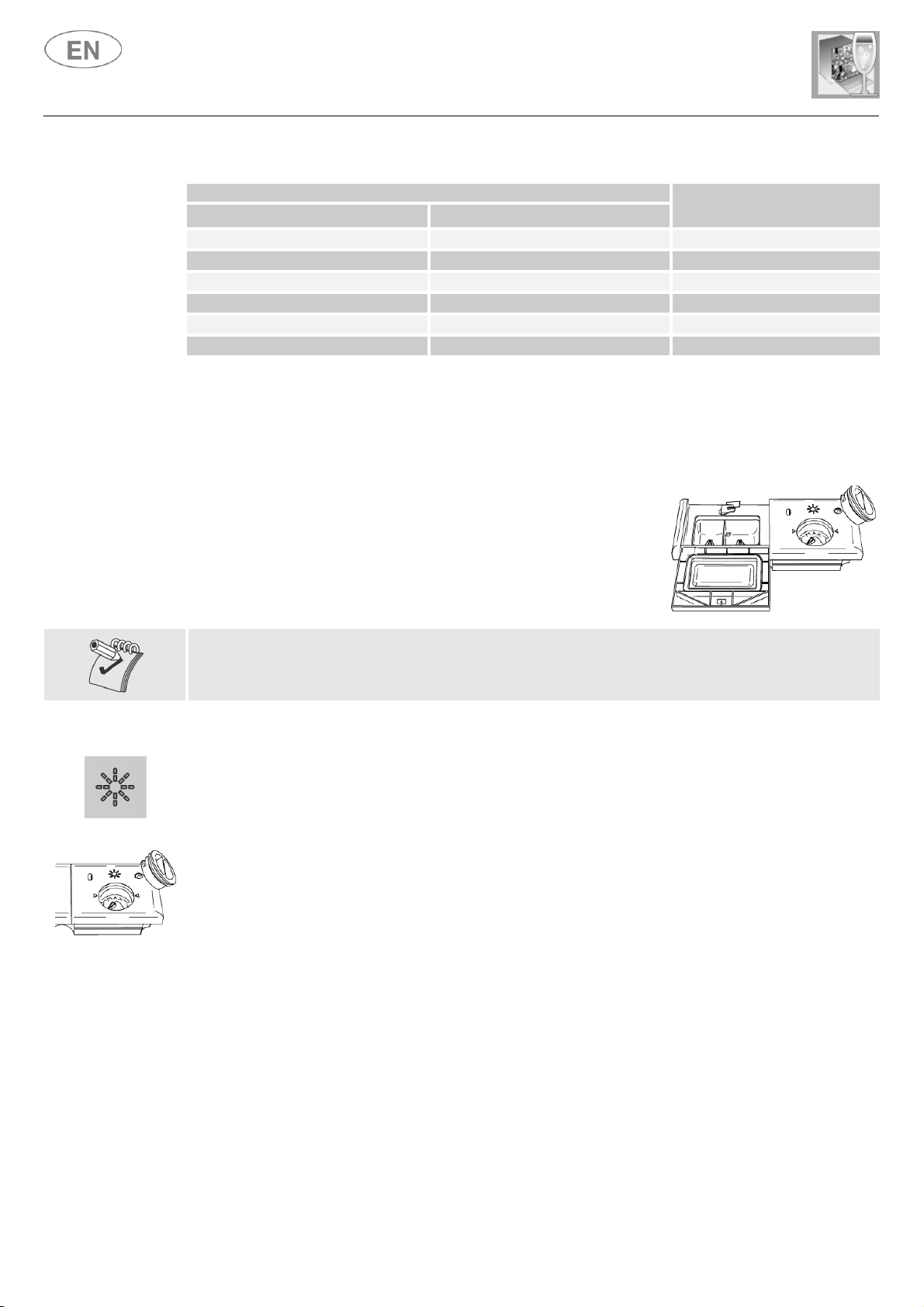

4.2 Using the rinse aid and detergent dispensers

The detergent and rinse aid dispensers are situated on the inner part of the door: the and the

rinse aid dispenser

detergent dispenser

is on the right.

is on the left,

SETTING

With the exception of the required amount of detergent to the

program, before every washing cycle it is necessary to add the

SOAK

detergent dispenser

. The rinse aid, on the other hand, should

only be added as required.

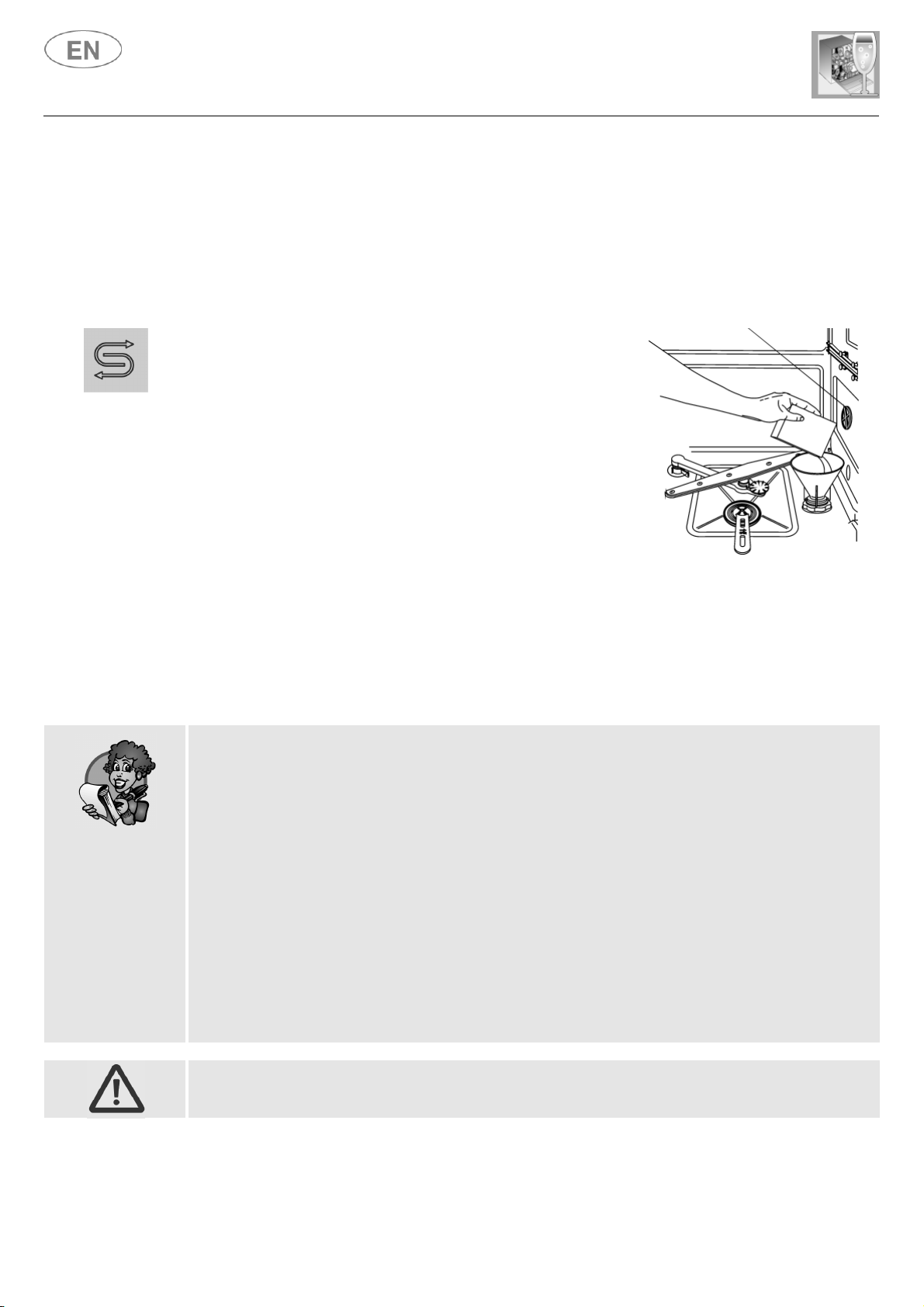

ADDING THE RINSE AID

The rinse aid helps the dishes dry faster and prevents the formation of scale deposits and staining; it is automatically added to the water during the final rinse cycle, from the container situated on the inner side of the door.

To add rinse aid:

Open the door.

•

Rotate the container cap anticlockwise by ¼ of a turn and remove it.

•

Add the rinse aid until the container is full (approximately 140 cc). The optical level indicator on

•

the side of the cap should be completely obscured. Refill t he rinse aid when the optical level indicator becomes clear again, or when the rinse aid warning light illuminates. Replace the cover and turn it in a clockwise direction.

•

Use a cloth to remove any spillage of rinse aid which might lead to the formation of excess

•

foam.

ADJUSTING THE RINSE AID DISPENSER SETTING

The dishwasher is factory set for medium water hardness. However it possible to change the setting by turning the dispenser’s selector to the desired position: the amount of rinse aid dispensed is proportional to the selector position.

To adjust the rinse aid setting, rotate the dispenser cap through a quarter turn in an

•

anticlockwise direction and remove it. Then use a screwdriver to rotate the rinse aid selector to the desired position.

•

Replace the cap, turning it clockwise.

•

Page 14

User instructions

The amount of rinse aid must be

•

increased

if the washed dishes appear dull or feature circular stains. If, on the other hand, the dishes are sticky or have white streaks, it is necessary to

•

reduce

the

rinse aid setting.

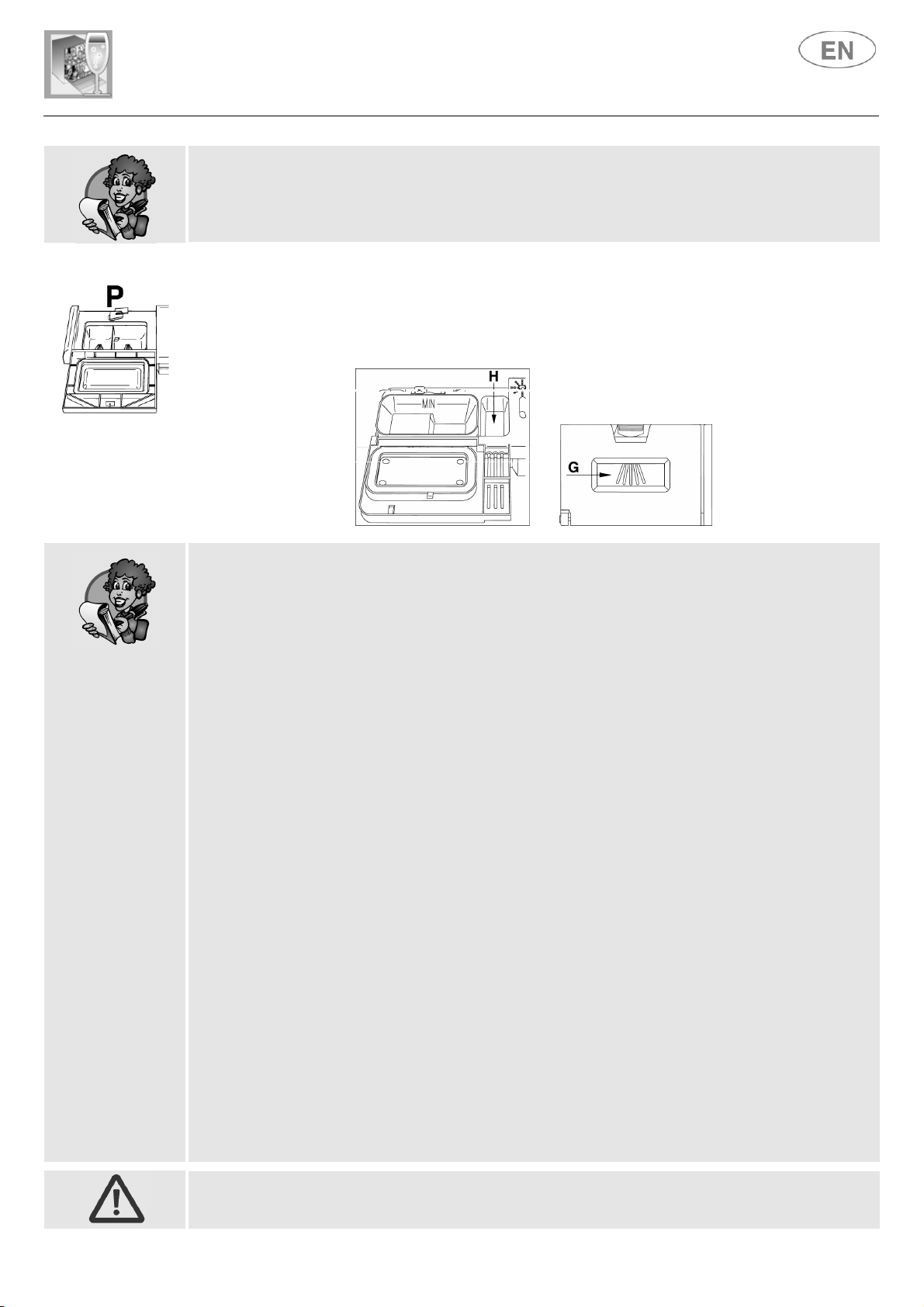

ADDING THE DETERGENT

To open the detergent dispenser cap, lightly press the button P. Add the detergent and close the cap carefully. During the washing cycle, the dispenser will be opened automatically.

•

When a

SUPER

program is selected, in addition to the normal dose of detergent, it is

necessary to add an additional amount inside compartment G or H.

Use

•

detergents specially formulated for dishwashers. For optimal washing results it is

only

important to use a good quality detergent.

The detergent packs must be sealed and stored in a dry place to prevent the formation of

•

lumps which may negatively affect washing results. Once opened the detergent packs should not be kept for too long, otherwise the detergent loses its effectiveness.

Do not use detergents formulated for washing dishes by hand, because they produce a great

•

deal of foam and may negatively affect the operation of the dishwasher.

Add the correct amount of detergent. An insufficient amount of detergent will result in a partial

•

removal of dirt from the dishes, whereas an excessive amount is wasteful and does not improve the washing results.

The market offers liquid and powder detergents with differing chemical compositions, which

•

may contain

phosphates

- Detergents containing

temperatures above 60°C

Enzyme

55°C

detergents, on the other hand, are also effective at lower temperatures (

) and are more easily biodegradable. With enzyme detergents it is possible to obtain at

low temperatures comparable results to those which can only be achieved at

, or be phosphate-free but contain

phosphates

are more effective against grease and starch at

natural enzymes

from 40 to

using

65°C

traditional detergents.

For the safeguarding of the environment we recommend the use of

detergents.

free

Also available are tablet detergents which state that that no salt or rinse aid is required. In

•

phosphate- and chlorine

some cases, these detergents might not give good results, especially with short and/or lowtemperature washing cycles. If performance problems (e.g. a white coating on the tank or dishes, poor drying, dirt on dishes at the end of the wash) are noted, users are advised to return to conventional products (granular salt, powder detergent and liquid rinse aid). However, please note that on return to the use of conventional salt, a number of cycles will be required before the system becomes fully efficient again, so traces of white coating may still be found on the tank and dishes. If the problem persists for too long, contact the After-Sales Service.

The introduction of detergent into the rinse aid dispenser, even in liquid form, will damage the dishwasher.

Page 15

User instructions

4.3 General warnings and recommendations

Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading. There are generally no constraints on the washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account.

Before loading the dishes into the baskets it is necessary to:

remove coarse food remains: e.g. bones, fish-bones, etc. which may clog the filter or damage

•

the wash pump. soak any pots or pans with burnt-on food remains on the bottom to facilitate removal, then

•

load them into the LOWER BASKET.

There is no need to pre-wash the dishes under running water before loading them into the baskets since this only wastes water.

Correct loading of the dishes helps ensure optimal washing results.

WARNING!

Make sure that the dishes are securely in place so that they cannot tip over or obstruct the

•

rotation of the spray arms during the washing cycle. Do not place very small objects in the baskets as these could fall and obstruct the spray arms

•

or the wash pump. Containers such as cups, bowls, glasses and pots should always be loaded with the opening

•

facing downwards and with any cavities at an angle, to allow the water to drain out. Do not stack dishes or place them in such a way that they cover one other.

•

Do not place glasses too close together because they may knock against each other and

•

break, or there might be staining at the point where they touch.

MAKE SURE that the items being washed are dishwasher-safe.

Items which are not dishwasher-safe:

•

Wooden dishes, pots or pans:

•

Handcrafted items:

these are rarely suitable for washing in a dishwasher. The relatively high

these may be damaged by the high washing temperatures.

water temperatures and the detergents used may damage them.

•

Pl astic di she s:

these are not heat resistant and may lose their shape. Heat resistant plastic

dishes must be washed in the upper basket.

•

Dishes and objects in copper, tin, zinc or brass:

•

Aluminium dishes:

•

Silverware:

•

Glass an d cry st al :

silver items may stain.

items made from anodised aluminium may lose their colour.

in general, glass and crystal objects can be washed in the dishwasher.

these tend to stain.

However, certain types of glass and crystal may become dull and lose their clearness after many washings. Therefore, for these items we recommend using the least aggressive program available.

•

Decorated i t ems:

the decorated objects available on the market are generally able to withstand washing in the dishwasher, although the colours may fade after a great many washes. If in doubt as to the fastness of the colours, it is advisable to wash just a few items at a time for approximately one month.

Page 16

User instructions

4.4 Using the baskets

The dishwasher has a capacity of

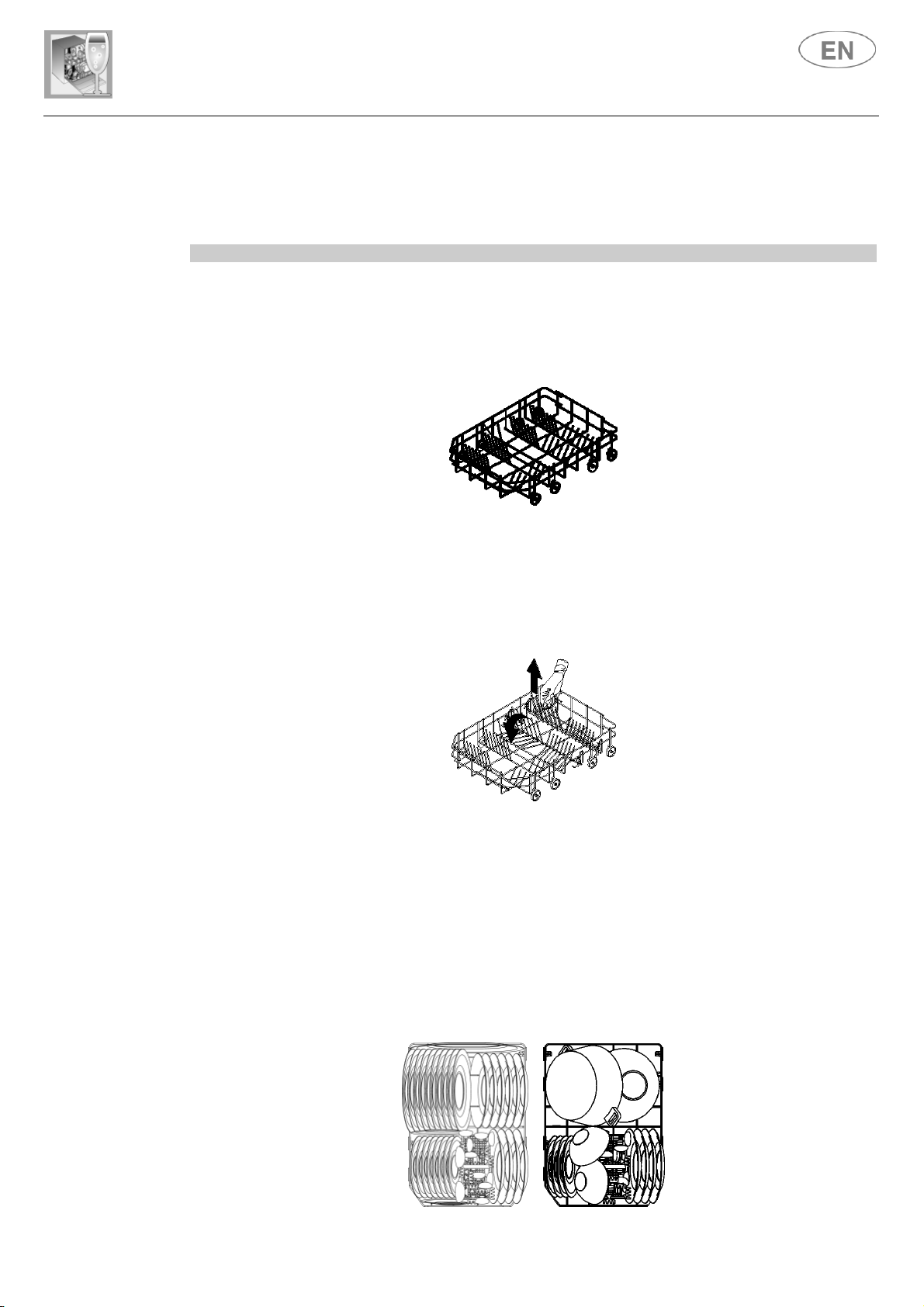

LOWER BASKET

The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling.

All types and combinations of loads are permitted, provided that the dishes, pots and pans are arranged with all the soiled surfaces exposed to the water jets coming from the bottom.

To make full use of the space in the basket when large dishes are loaded, some models have tilting plate supports.

10 place-settings

With fixed supports

, including serving dishes.

With tilting supports

LOADING THE LOWER BASKET

Carefully load flat plates, soup plates, dessert and serving dishes, positioning them vertically. Pots, pans and their covers must be loaded upside down. When loading soup plates and dessert bowls, be sure to leave a gap between them.

Loading examples:

Page 17

User instructions

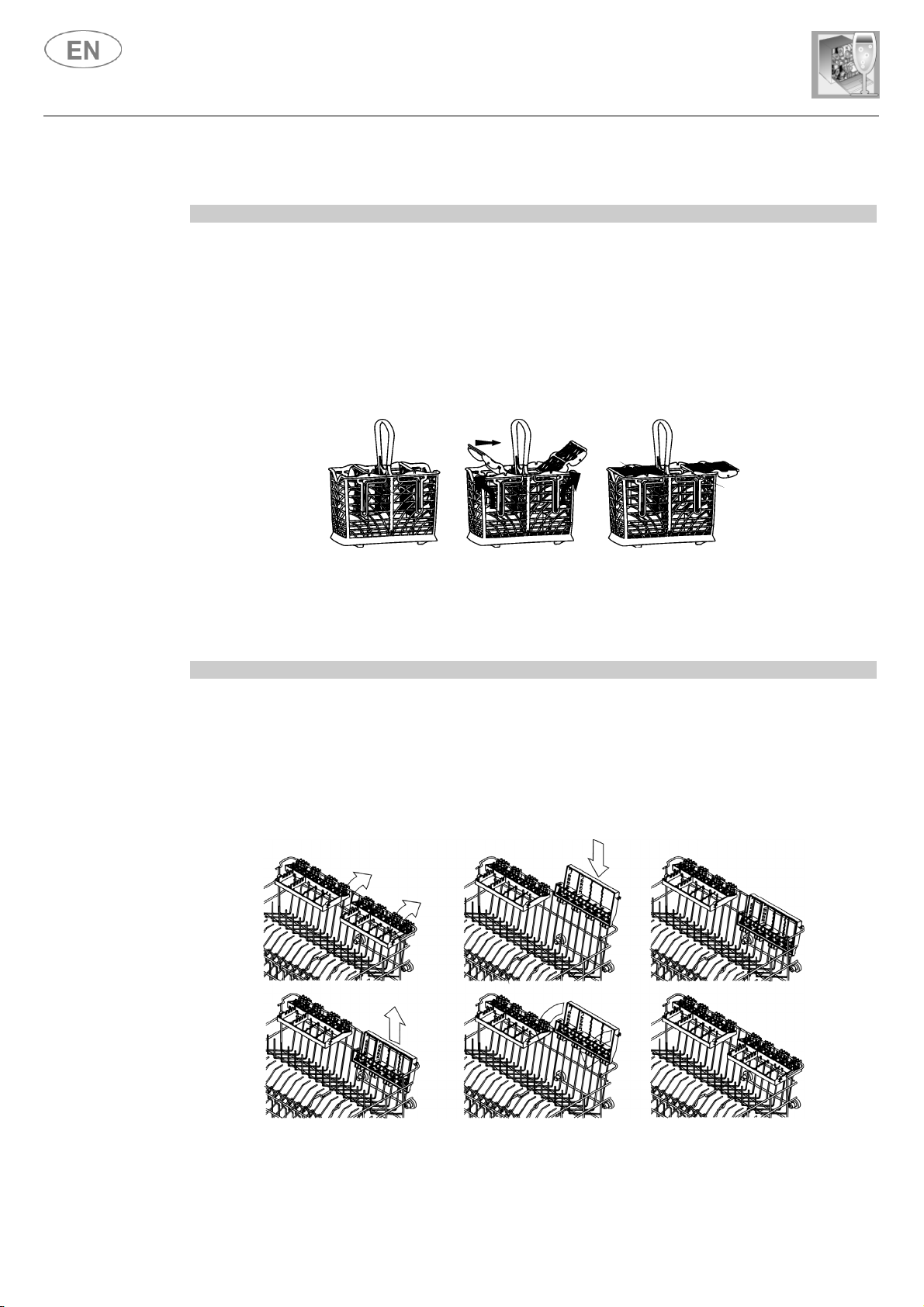

CUTLERY BAS KET

The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing downwards. Take care during loading to avoid injury from the knife blades. The basket is suitable for all types of cutlery, except those long enough to interfere with the upper spray arm. Ladles, wooden spoons and cooking knives can be placed in the upper basket,

the knife blades do not protrude from the basket.

making sure that

The cutlery basket features an

exclusive system

independent sliding tip-up supports

offering a choice of possible combinations to allow optimum use of the space available.

Vertical

inserts

Horizontal

insert

closed

Movement required

to extract the inserts

Horizontal

insert

open

UPPER BASKET

It is recommended to load the upper basket with small- or medium-sized items such as glasses, small plates, tea or coffee cups, shallow bowls and light objects made from heat resistant plastic. If the upper basket is used in the lowermost position, it can also be loaded with serving dishes, provided they are only slightly soiled.

The basket is equipped with two tip-up cutlery supports which can be raised or lowered as required. See illustrations below.

Page 18

User instructions

LOADING THE UPPER BASKET

Load the dishes with the top side facing forwards; cups and concave containers should always be loaded with the opening facing down. The left side of the basket can be loaded with cups and glasses on two levels. On the right plates and saucers can be slotted verticalli into the forks.

Loading examples:

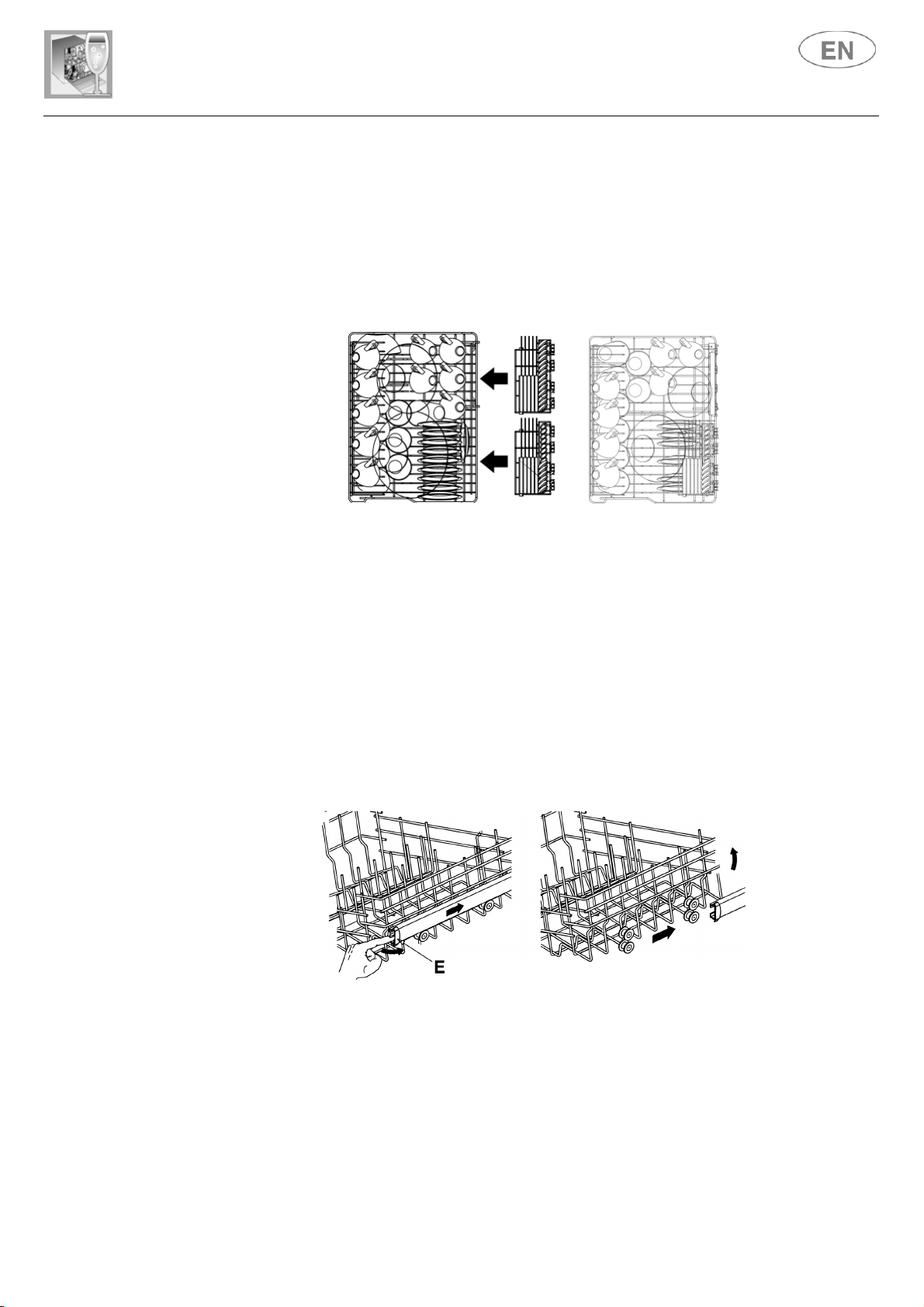

ADJUSTING THE UPPER BASKET

The upper basket can be adjusted in to the height of the dishes in the lower basket.

Proceed as follows:

turn the retainer E on both runners, right and left, through

•

remove the basket;

•

lift the basket and fit the smaller pairs of wheels in the runners;

•

return the retainers E to their original position.

•

two positions

, according to the user’s needs and according

90°

;

Page 19

User instructions

5. Cleaning and maintenance

Before carrying out any work, always disconnect the appliance from the electrical power supply.

5.1 General warnings and recommendations

Avoid the use of acidic or abrasive detergents.

Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces. Clean the door gaskets with a damp sponge. Periodically (once or twice a year) it is advisable to clean the tank and gaskets, using a soft cloth and water to remove any deposits.

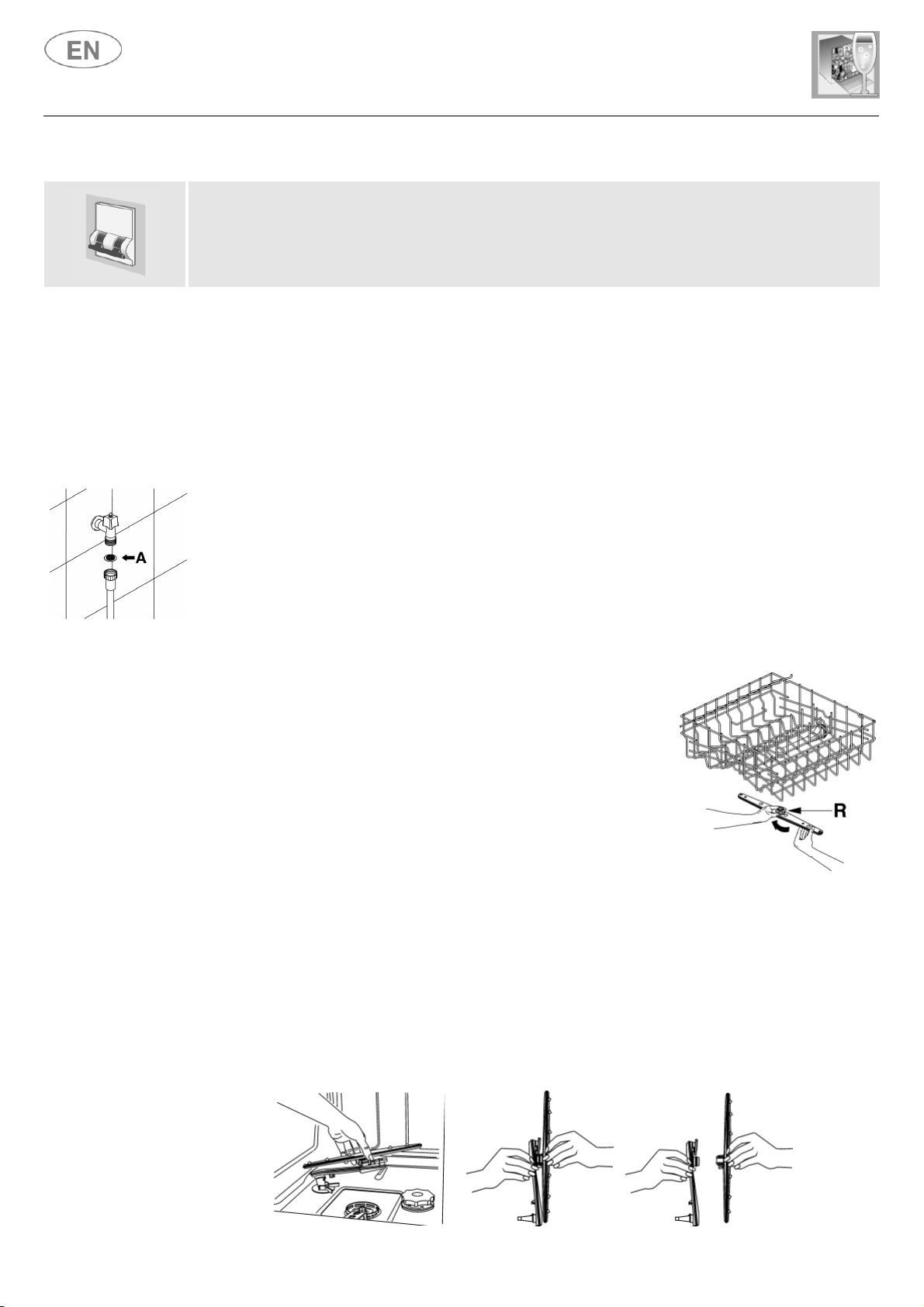

CLEANING THE WATER INT AKE FILTER

The water intake filter A located at the outlet of the water supply tap needs to be cleaned periodically. After having closed the water supply tap, unscrew the end of the water intake hose, remove the

filter A and clean it delicately under running water. Reassemble filter A in its seat and carefully screw the water intake hose back into position.

CLEANING THE SPRAY ARMS

The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging. Wash t hem under running water and carefully replace them in t heir seats,

that their rotary movement is in no way impeded.

To remove the

CLEANING THE SPRAY ARM, TRAVELLING VERSION

To remove the TRAVELLING spray arm, take hold of it and raise it to release both the spray arm and the pipe from the tank, then detach the spray arm from the pipe. Wash both the pipe and t he spray arm in running water, re-attach the spray arm to the pipe and return the assembly to the seat provided in the tank.

Once the assembly has been put back in place, check that the spray arm turns freely (turn through a couple of revolutions by hand) and that the pipe is able to travel without impediments.

Otherwise, check that it has been fitted correctly.

spray arm, unscrew locking ring R.

upper

checking

Page 20

User instructions

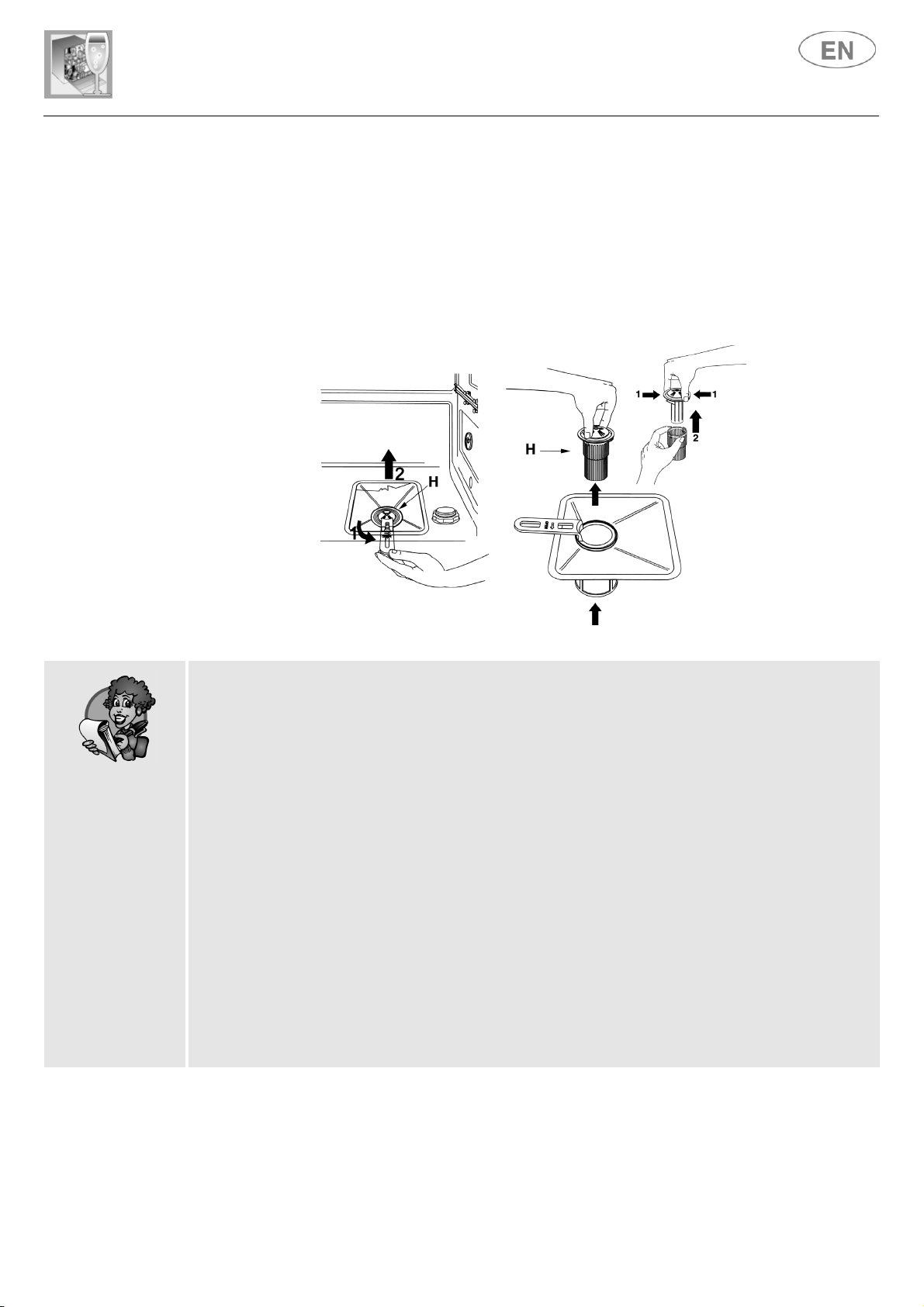

CLEANING THE FILTER UNIT

The ce ntral filter H should be inspected regularly and cleaned if necessary. To remove it, take

•

hold of the handle, turn anti-clockwise and lift.

Press the central filter H from below to extract it from the micro-filter.

•

Separate the two parts of the plastic filter by pressing the body of the filter in the zone shown

•

by the arrows.

Remove t he ce ntral filter by lifting it.

•

GENERAL WARNINGS AND RECOMMENDATIONS FOR CORRECT M AINTENANCE:

The filters should be cleaned

•

It is essential to

•

thoroughly clean the filters

under running water

using a stiff brush.

according to the above instructions: the

dishwasher cannot function if the filters are clogged.

•

Carefully replace

the filters in their seats, to avoid damaging the wash pump.

PROLONGED DISUSE:

Run the soak program twice in succession.

•

Unplug

•

Leave the door slightly open

the power cord from the socket.

, in order to prevent the formation of unpleasant odours inside

the washing tank.

•

Fill the rinse aid dispenser

•

Shut off the water supply tap.

BEFORE STARTING THE DISHWASHER AFTER PROLONGED DISUSE:

Check that there are no deposits of sludge or rust inside the water pipe: if there are, allow the

•

water to run from the water supply tap for a few minutes.

•

Plug the power cord

•

Reconnect the water intake hose and open the tap again.

back into the socket.

Page 21

User instructions

TROUBLESHOOTING MINOR PROBLEMS

In some cases it is possible to remedy minor problems by referring to the following instructions:

If the program fails to start, check that:

the dishwasher is connected to the electrical power supply;

•

there is no power failure;

•

the water tap is open;

•

the dishwasher door is properly closed.

•

If water remains inside the dishwasher, check that:

the drain hose is not kinked;

•

the drain siphon is not obstructed;

•

the dishwasher filters are not clogged.

•

If the dishes are not being cleaned properly, check that:

the correct amount of detergent has been added;

•

there is regenerating salt inside the special container;

•

the dishes are being loaded correctly;

•

the selected program is suitable for the dish types and their degree of soiling;

•

all the filters are clean and positioned correctly;

•

the spray arm nozzles are not obstructed;

•

there is no object obstructing the rotation of the spray arms.

•

If the dishes fail to dry or remain dull, check that:

there is rinse aid inside the special container;

•

the rinse aid dispenser setting is correct;

•

the detergent used is of good quality and has not lost its effectiveness (for example, through

•

incorrect storage, with the box left open).

If the dishes show signs of streaking, staining, etc., check that:

the rinse aid dispenser setting is not too high.

•

If there are visible traces of rust inside the tank:

the tank is made of steel, and therefore any rust marks are due to external elements

•

(fragments of rust from the water pipes, pots, cutlery, etc.). Special products are commercially available t o remove such marks; check that the amount of detergent being used is correct. Certain detergents can be more

•

corrosive than others. check that the cap of the salt container is securely closed, and that the water softening setting

•

is correct.

If after following the above troubleshooting instructions the problem persists, call the nearest AfterSales Centre.

WARNING: any operations performed on the appliance by unauthorised persons are not covered by the warranty and shall be paid for by the user.

Page 22

6. Troubleshooting

The dishwasher is equipped with a self-diagnostics system that is capable of detecting and signalling a number of possible faults. In the event of a fault or malfunction, that you first consult the troubleshooting guide below. If the problem persists even after implementing the recommended solutions, call the After-sales service centre

making a note of the message displayed by the self-diagnostics system;

•

unplug the power cord from the socket;

•

shut off the water supply tap.

•

TABLE OF FAULTS DETECTED BY THE SELF-DIAGNOSTICS SYSTEM

FAULT DESCRIPT ION

The system which limits the water level inside the dishwasher (Level Safety Device) has

E7 / E9

been tripped.

Since the cause might be a temporary failure, try reprogramming the dishwasher. If the problem persists, call the authorised technical service centre.

The dishwasher fails to heat the water.

To reset the appliance, open and close the door. To determine the cause of this problem call the authorised technical service centre.

The temperature monitoring system has failed.

Switch the dishwasher off, switch it back on and restart the washing program. If the alarm recurs, call the After Sales Service.

The dishwasher fails to draw water.

Check that:

the water supply tap is open;

•

the filter in the water intake hose is not clogged;

•

the water intake hose is not kinked or bent.

•

Switch the dishwasher off and back on. If the problem is resolved the washing program will resume from where it was halted. If the fault persists, call the authorised technical service centre.

The dishwasher fails to drain.

Check that:

the flexible drain hose is not kinked or obstructed;

•

the water drain pipe is not obstructed;

•

the dishwasher filter is not clogged.

•

Switch the dishwasher off and back on. If the problem is resolved, the washing program will resume from where it was halted. Otherwise, if the fault persists, call the authorised technical service centre.

The appliance is not able to "measure" the amount of water loaded (for models equipped with this device only).

Since the cause might be a temporary failure, try reprogramming the dishwasher. If the problem persists, call the authorised technical service centre.

Alternate washing device locked out (for models with this feature only).

Open the door and close it again; if the problem persists the authorised after-sale service centre will ha ve to be called in.

User instructions

before calling the After-sales service centre

having carried out the following:

after

, we suggest

In the event of error codes not included in this table, call the Technical Service Centre.

Page 23

User instructions

TECHNICAL DATA

Width Depth measured flush with the outer edge of

the control panel Height Capacity Water supply pressure Electrical characteristics

447 ÷ 449 mm 570 mm

from 820 mm to 870 mm 10 Standard place settings Min. 50 – max. 900 KPa (min. 0.5 – max. 9 bar) See rating plate

Page 24

567

598

- 870

min. 567min.

820 - 870820

567

- 165

75 - 16575

522

130

816-870

600

Solo su alcuni modelli Certain models only Seulement sur certains modèles nur bei einige Modellen Sólo en algunos modelos alleen indien van toepassing

m 0,5

min. 0,5 mmin.

m 0,4

min. 0,4 mmin.

1,10

max. 1,10 mmax.

820-

870

0,3-10 bar0,3-10 bar

1/2”

S N SF

3/4”

1,14 m1,14 m 1,25 m1,25 m 1,23 m1,23 m 1,50 m1,50 m

1,78 m1,78 m 1,66 m1,66 m

3x16

0,3-10 bar0,3-10 bar

m 0,4

min. 0,4 mmin.

0,00

min. 0,00 mmin.

820-

870

Page 25

SUPERFICIE INTERNA SURFACE INTERNE INNER SURFACE INNENFLACHE

LATO SUPERIORE BORD SUPERIEURE UPPER EDGE OBERKANTE

Solo su alcuni modelli - Certain models only Seulement sur certains modèles - nur bei einige Modellen

Sólo en algunos modelos - alleen indien van toepassing

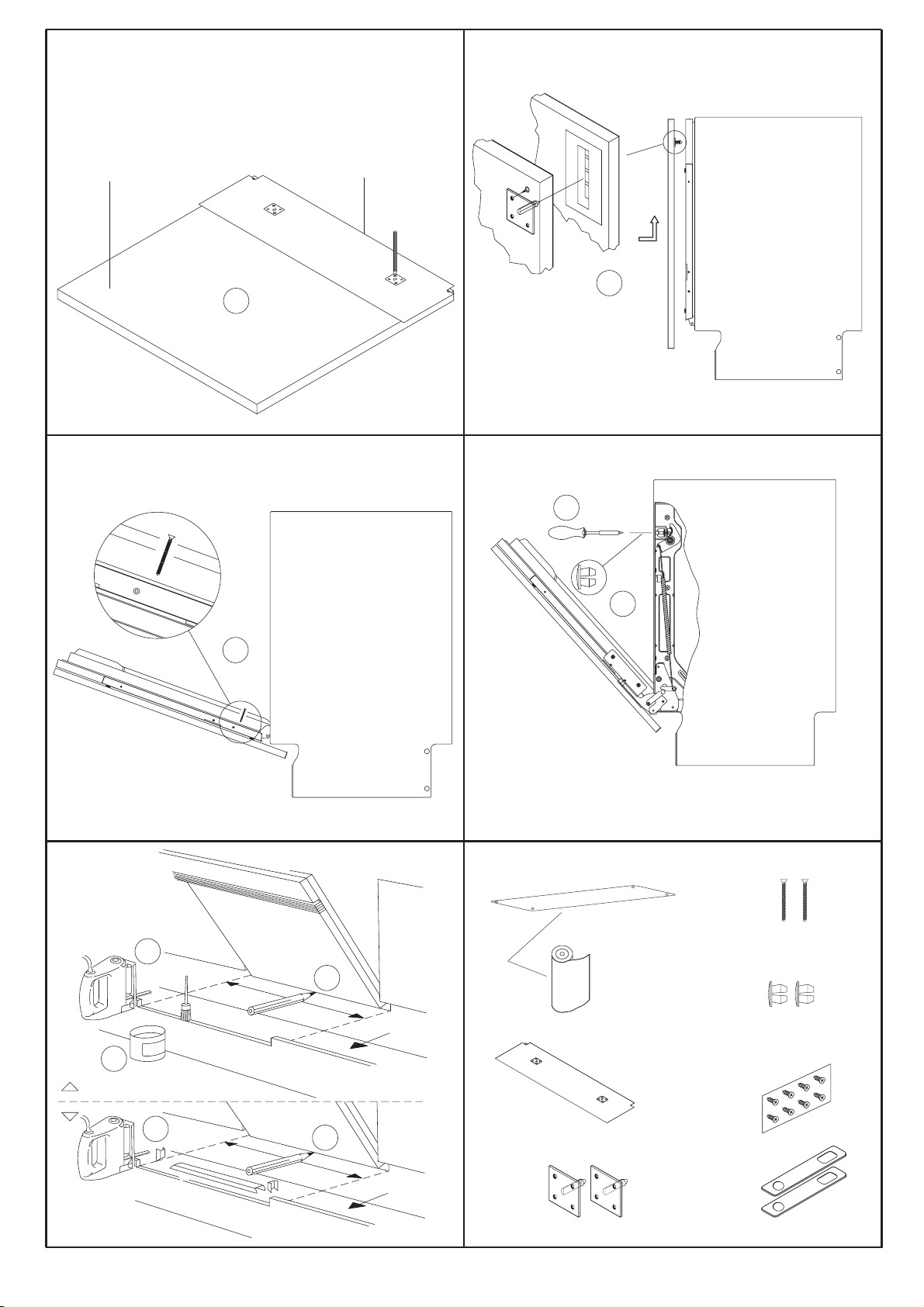

Regolazione vite tensione molle (11) - Copertura foto con tappo in dotazione (12) Door spring Adjustement device (11) - Covering of hole using cap provided (12) Réglage des ressorts de la porte (11) - Couverture du trou avec le bouchon fourni (12) Vorrichtung für die Einstellung der Spannung der Türfedem (11) Abdecken des Lochs mit dem mitgelieferten Stopfen (12)
