Smeg STL 60 User Manual

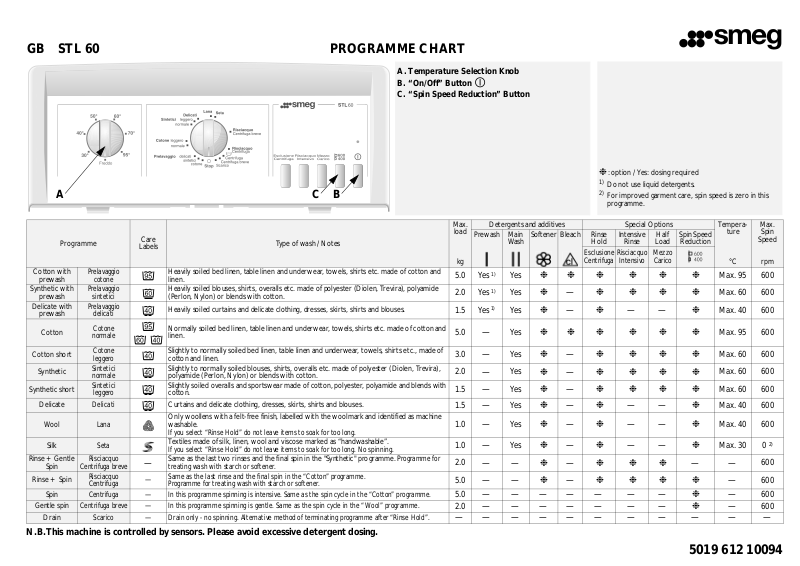

GB STL 60 PROGRAMME CHART

A. Temperature Selection Knob B. “On/Off” Button C. “Spin Speed Reduction” Button

❉

: option / Yes: dosing required

Do not use liquid detergents.

For improved garment care, spin speed is zero in this programme.

Programme

Cotton with

prewash

Synthetic with

prewash

Delicate with

prewash

Cotton

Cotton short

Synthetic

Synthetic short

Delicate Delicati Curtains and delicate clothing, dresses, skirts, shirts and blouses.

Wool Lana

Silk Seta

Rinse + Gentle

Spin

Rinse + Spin

Spin Centrifuga — In this programme spinning is intensive. Same as the spin cycle in the “Cotton” programme.

Gentle spin Centrifuga breve — In this programme spinning is gentle. Same as the spin cycle in the “Wool” programme.

Drain Scarico — Drain only - no spinning. Alternative method of terminating programme after “Rinse Hold”.

Prelavaggio

cotone

Prelavaggio

sintetici

Prelavaggio

delicati Cotone

normale

Cotone leggero

Sintetici normale

Sintetici

leggero

Risciacquo

Centrifuga breve

Risciacquo Centrifuga

Care

Labels

—

Type of wash / Notes

Heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Heavily soiled curtains and delicate clothing, dresses, skirts, shirts and blouses.

Normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Slightly to normally soiled bed linen, table linen and underwear, to wels, shirts etc., made of cotton and linen.

Slightly to normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Slightly soiled overalls and sportswear made of cotton, polyester, polyamide and blends with cotton.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

If you select “Rinse Hold” do not leave items to soak for too long.

Textiles made of silk, linen, wool and viscose marked as “handwashable”.

If you select “Rinse Hold” do not leave items to soak for too long. No spinning. Same as the last two rinses and the final spin in the "Synthetic" programme. Programme for

treating wash with starch or softener. Same as the last rinse and the final spin in the “Cotton” programme.

Programme for treating wash with starch or softener.

N.B.This machine is controlled by sensors. Please avoid excessive detergent dosing.

Max.

load

5.0

2.0

1.5

5.0

3.0

2.0

1.5

1.0

2.0

5.0

2.0

Detergents and additives Special Options Tem pe ra-

Prewash Main

Yes

— —

— —— ——

————— —— ————— ——

Softener Bleach Rinse

Wash

Yes Yes Yes

Yes

Yes Yes Yes

Yes Yes

Yes

❉❉ ❉ ❉ ❉ ❉ ❉ ❉

❉❉ ❉ ❉ ❉ ❉ ❉

❉ ❉

❉ ❉ ❉

— —

— — —

— —

— — —

Hold

Esclusione Centrifuga

Intensive

Rinse

Risciacquo

Intensivo

Half

Load

Mezzo Carico

Spin Speed

Reduction

❉❉❉❉ ❉

——

❉

❉❉❉❉ ❉❉❉❉ ❉❉❉❉

❉ ❉

❉

—— ——

——

❉❉❉

❉ ❉

❉

——

❉❉❉❉

❉ ❉

ture

°C

Max.

Spin

Speed

rpm

Max. 95 600 Max. 60 600 Max. 40 600

Max. 95 600

Max. 60 600 Max. 60 600 Max. 60 600

Max. 40 600 Max. 40 600

Max. 30

600

— —

—

600 600

600

—— ——— — — — — — —

5019 612 10094

CONSUMPTION DATA

Temperature Selector

Programme

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme

Duration

(hours : minutes) Cotton 95 5.0 63* 1.80 2:05 Cotton 60 5.0 55 0.95 2:05 Cotton 40 5.0 55 0.55 2:05

Synthetic 60 2.0 56 0.80 1:30 Synthetic 40 2.0 56 0.40 1:30

Delicate 40 1.5 60 0.55 0:45

Wool 40 1.0 60 0.50 0:40

Silk 30 1.0 60 0.30 0:50

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with standard IEC/EN 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

The data on the “Energy Label” refer to the programme “Cotton 60°C”.

* To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the

water out.

PREPARATION OF WASH CYCLE SELECT THE DESIRED OPTION

1. Load the machine, close the drum flaps and check that they are properly locked.

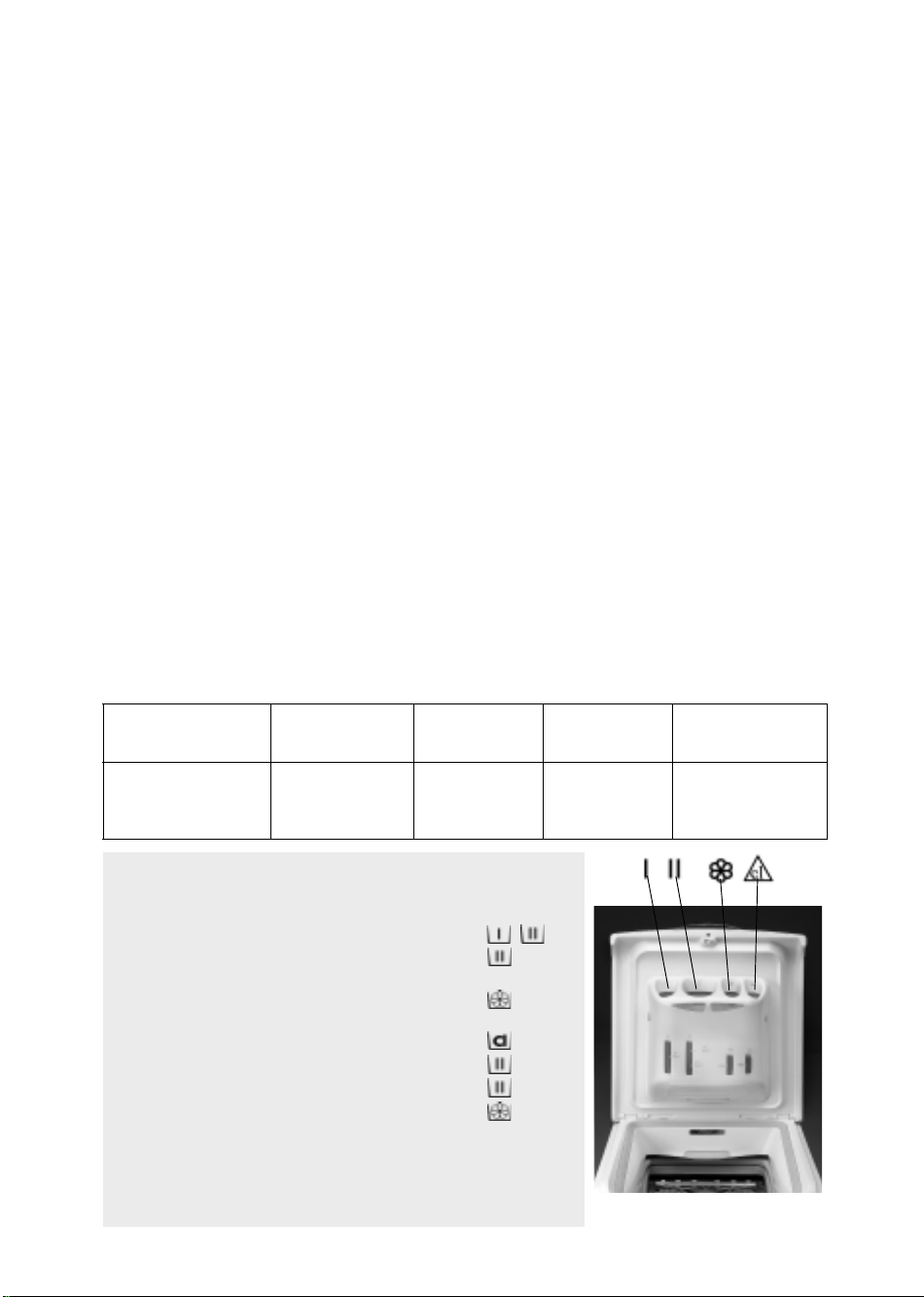

2. Add detergents and additives into the dispenser to no more then the

“MAX”

level mark, as

follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (if necessary)

3. Turn the

programme selector knob

to the

desired programme.

4. Turn the

temperature selector knob

to the

desired temperature.

5. Press the

spin speed reduction button

, if

desired.

• If you want to cancel the final spin, select the rinse hold option and drain the water after the cycle has finished

(see Appliance in “Rinse Hold”)

Selecting or deselecting an option can be done at any time during the programme. The option will be applied as long as the corresponding programme phase has not been executed yet.

“Rinse Hold” button

• The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from fading.

• This option is particularly recommended for the “Synthetic” or “Delicate” programmes.

• This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

Appliance in “Rinse Hold”:

• Press the “Rinse Hold” button again: the programme will terminate automatically with the selected spin cycle.

• If you do not wish to spin the clothes, press the

“On/Off ”

knob to the “Drain” programme and press the

“On/Off ”

button, turn the programme selector

button again.

“Intensive Rinse” button

• One rinse cycle is added to ensure a more intensive rinse.

• This option is particularly suitable for areas with very soft water, washing baby linen and people with detergents allergies.

“Half Load” button

• Can be used for small loads and lightly soiled laundry.

• Reduces the water consumption especially during the rinses.

PROGRAMME START

Turn on the tap and press the The indicator light of the

“On/Off”

button.

button lights

up.

: If there is a power interruption or if the

Note

appliance is disconnected during the cycle, the programme will run again from the point where it was interrupted.

END OF WASH CYCLE

• The programme selector knob is in the Stop position “ ”.

1. Press the

“On/Off”

button to switch off the

machine.

2. Cancel the options.

3. Turn the tap off.

4. Wait for the door to unlock (about 1 minute).

Open the door and the drum flaps and unload

the machine.

CHANGE THE PROGRAMME DURING THE WASH CYCLE

1. Switch off the machine by pressing the

“On/Off”

button.

2. Select the new programme. Start programme by pressing the

“On/Off”

button again.

PAUSE/INTERRUPT A PROGRAMME

If, for any reason, you wish to interrupt the programme for a certain time and continue it later:

1. Press the

“On/Off”

button.

2. After the desired pause, press again the

“On/Off”

button.

CANCEL PROGRAMME

1. Switch off the machine by pressing the

“On/Off”

button.

2. Set the programme selector to “Drain”.

3. Press the

“On/Off”

button again to start the

“Drain” programme.

5019 612 10094

CONTENTS

BEFORE USING THE WASHING MACHINE FIRST WASH CYCLE PRECAUTIONS AND GENERAL

RECOMMENDATIONS DESCRIPTION OF THE WASHING MACHINE PREPARATION OF THE WASHING DETERGENTS AND ADDITIVES PROGRAMME SELECTION CLEANING THE FOREIGN BODY TRAP DRAINING RESIDUAL WATER CARE AND MAINTENANCE TROUBLESHOOTING GUIDE AFTER-SALES SERVICE TRANSPORT AND HANDLING INSTALLATION ELECTRICAL CONNECTION

BEFORE USING THE WASHING MACHINE

1.Remove the packaging and check

Cut and remove the shrink-wrap.

Remove the top protection and the protective corners.

Remove the bottom protection by tilting and turning the washing machine on one rear bottom corner.

Open the lid by pressing it slightly down while raising the handle. Remove the polystyrene cushion.

Remove the blue protective film from the panel (depending on model).

•

After unpacking, make sure that the washing machine is undamaged. If in doubt, do not use the washing machine. Contact After-Sales Service or your local retailer.

•

Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children; they are potentially dangerous.

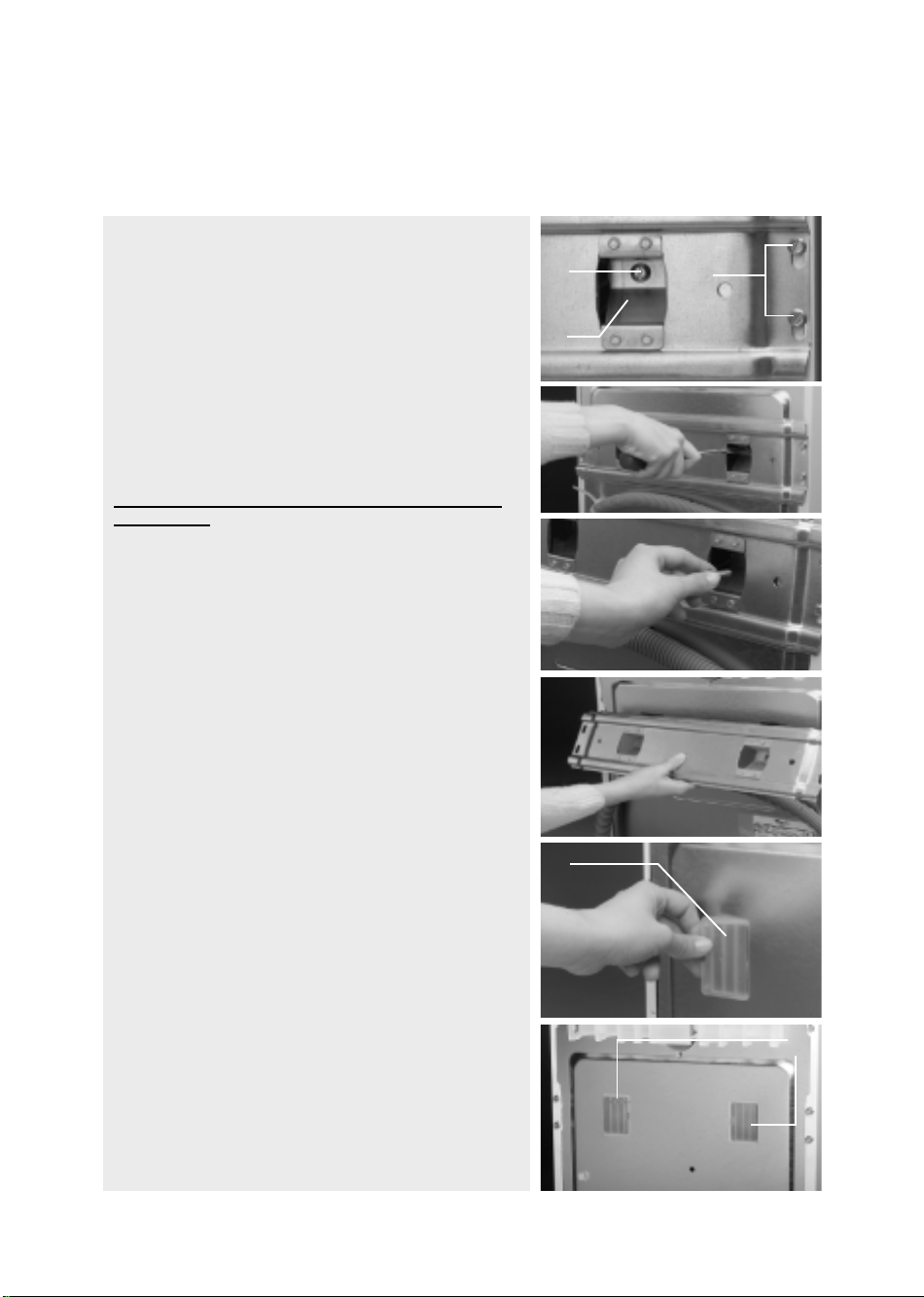

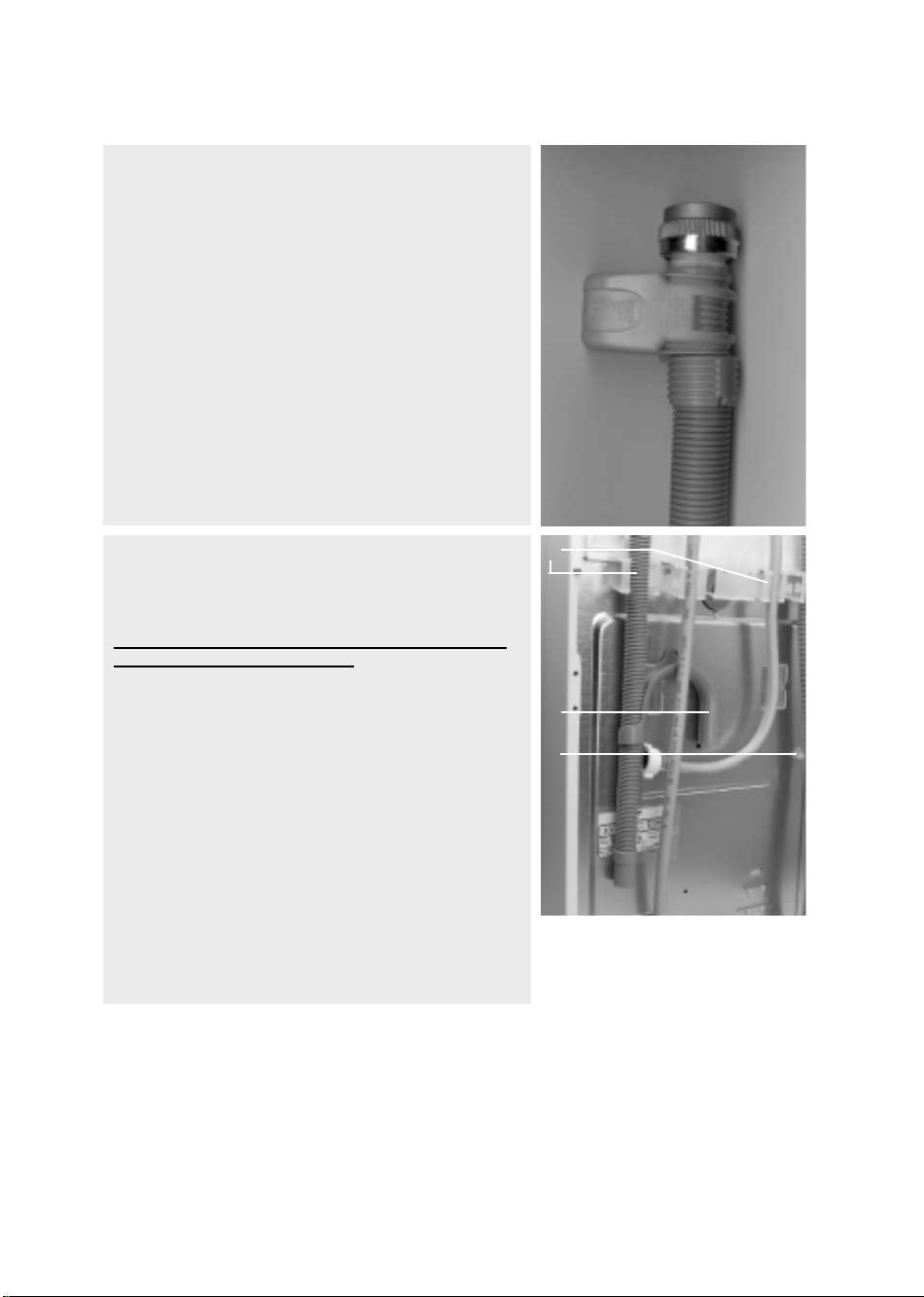

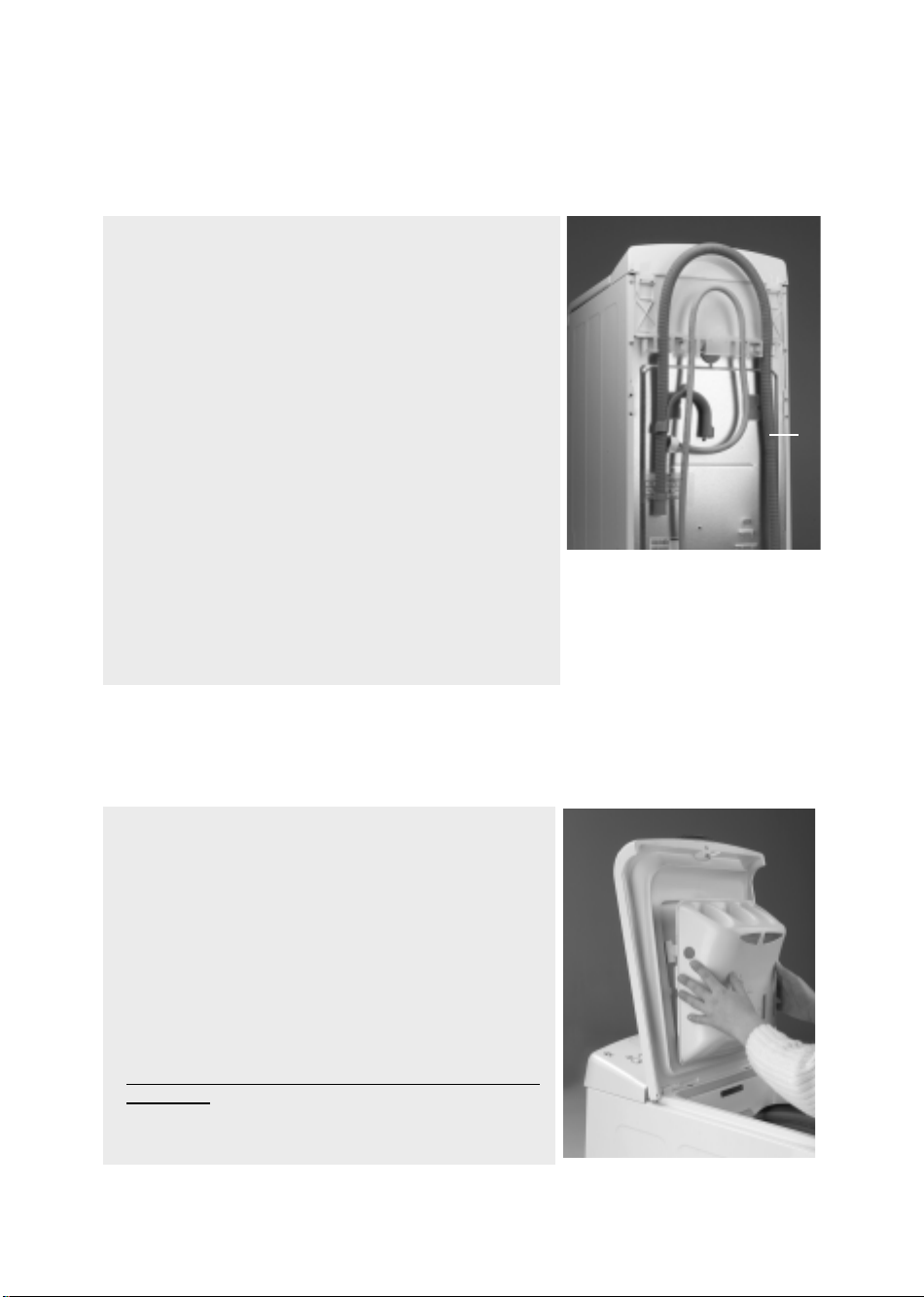

2.Remove the transport bracket

•

The washing machine is fitted with transport screws and a transport bracket to prevent damage during transport.

washing machine you must remove the transport bracket

the transport bracket”).

Before using the

(see “Installation/Remove

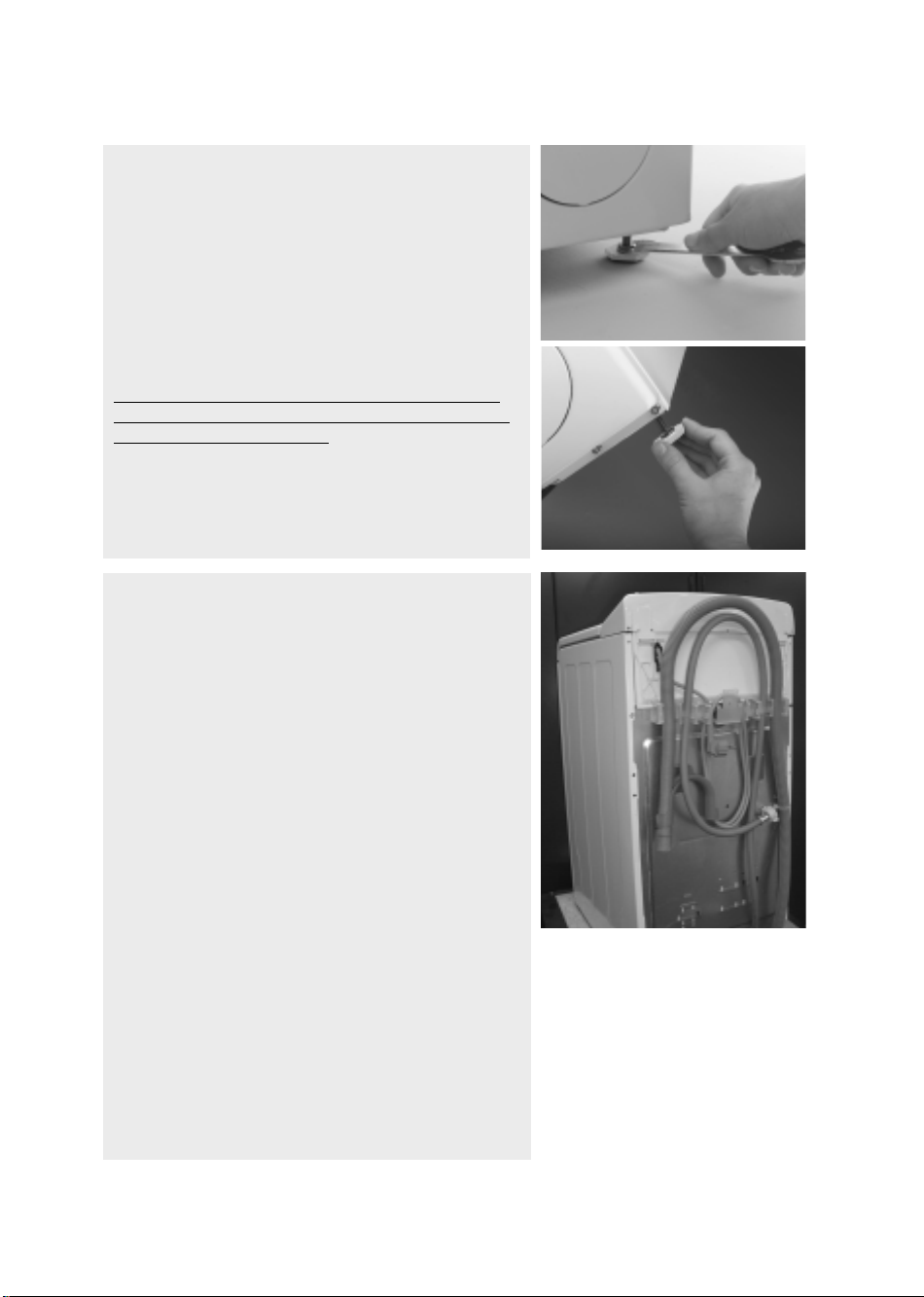

3.Install the washing machine

•

Place the washing machine on a flat and stable floor surface.

• Adjust the feet to ensure that the machine is stable and level (see “Installation/Adjust the feet”).

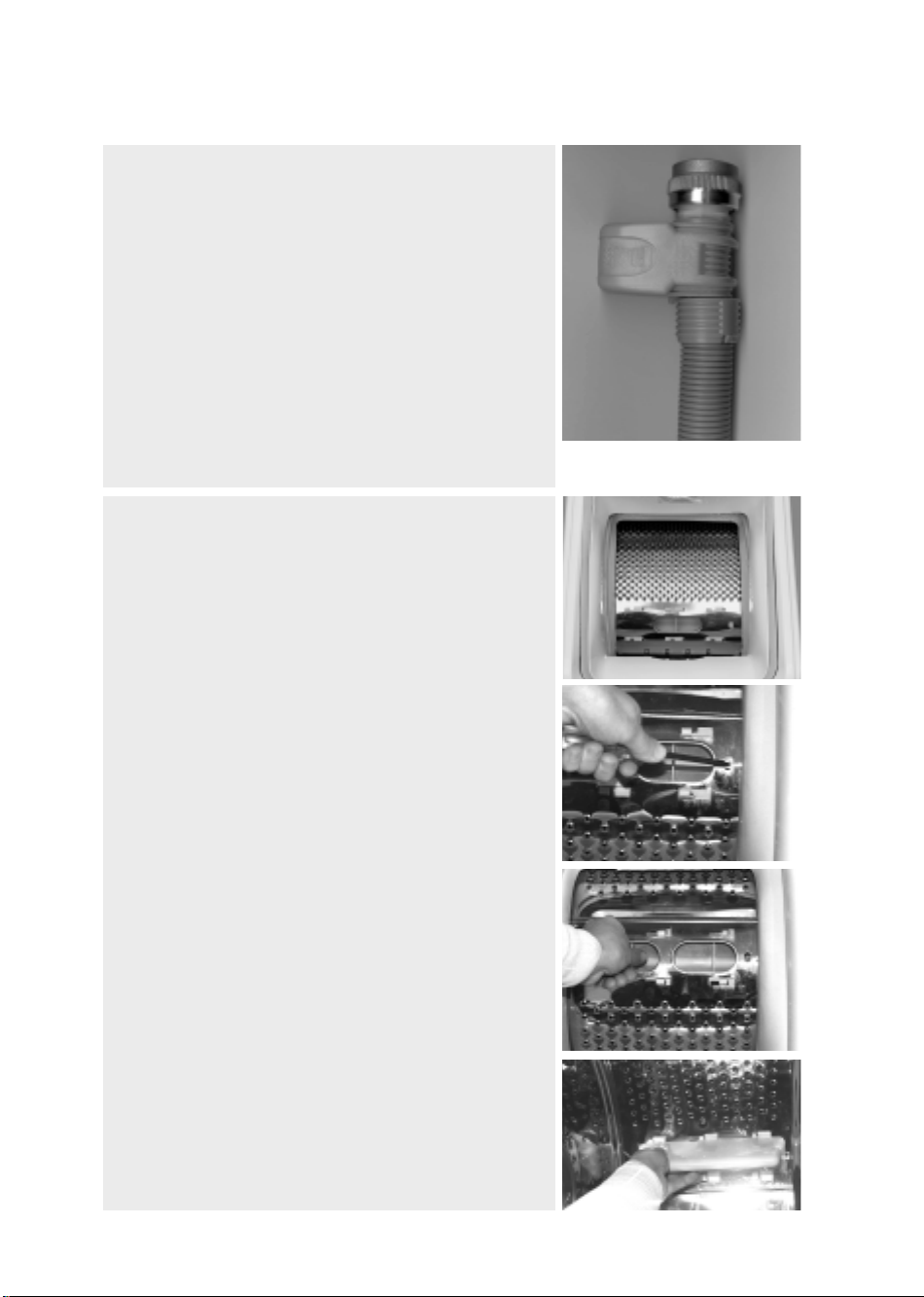

4.Water supply

•

Connect the water supply inlet hose in accordance with the regulations of your local water company (see “Installation/Connect the water inlet hose”).

•

Water supply: Cold water only

•

Tap: 3/4” threaded hose connection

•

Pressure: 100-1000 kPa (1-10 bar).

5.Drain hose

•

Connect the drain hose to the siphon or hook it over the edge of a sink with the “U” bend (see “Installation/Connect the water drain hose”).

•

If the washing machine is connected to a built-in drainage system, ensure the latter is equipped with a vent to avoid simultaneous loading and draining of water (siphoning effect).

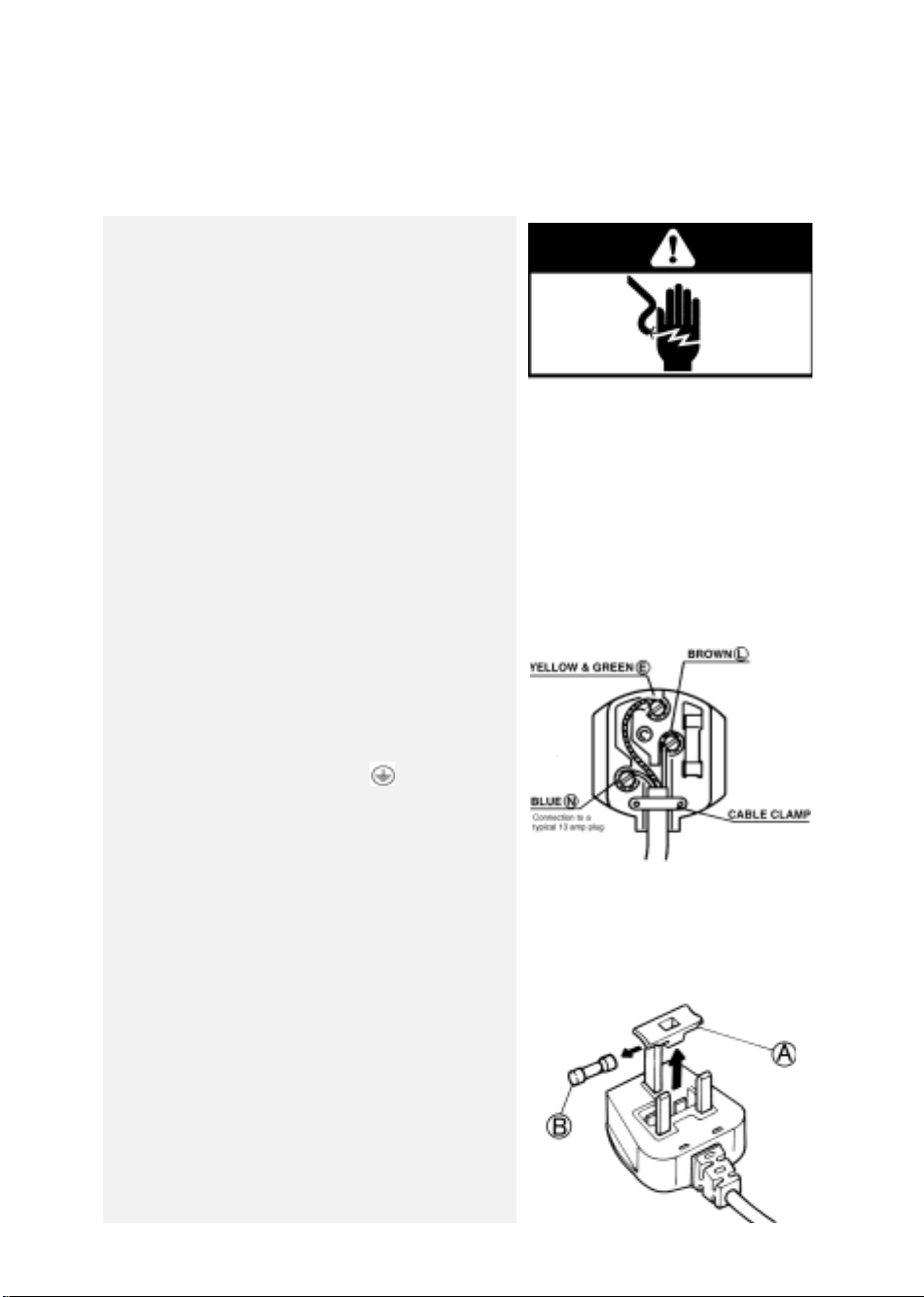

6.Electrical connection

•

Electrical connections must be carried out by a qualified technician in compliance with the manufacturer’s instructions and the current standard safety regulations.

•

The technical data (voltage, power and fuses) are given on the rating plate on the rear of the washing machine.

•

The washing machine must be connected exclusively by means of a socket with an earth connection in accordance with current regulations. The washing machine must be earthed by law. The manufacturer declines all liability for damage to persons or property deriving directly or indirectly from failure to observe the directions.

•

Do not use extension leads or multi sockets.

•

Before any maintenance on the washing machine disconnect it from the mains supply.

•

Access to the mains plug or to disconnection from the mains supply via a double-pole switch must be ensured at all times following the installation.

•

Do not operate the washing machine if it has been damaged during transport. Inform the After-Sales Service.

•

Mains cable replacement is only to be carried out by After-Sales Service.

•

The washing machine must be connected to an effective earthing installation, in compliance with the regulations in force. In particular, washing machines installed in premises containing a shower or a bath must be protected by a differential residual current device of at least 30 mA. Earthing the washing machine is obligatory under the law. The manufacturer declines all liability for damage to persons or property deriving either directly or indirectly from failure to observe the directions above.

•

The washing machine may only be used in the household for the prescribed uses.

Dimensions:

Width: 400 mm Height: 900 mm Depth: 600 mm

GB 2

FIRST WASH CYCLE

We recommend that the first wash cycle be carried out empty. This will remove any residual water used in the factory checks.

Turn on the tap.

Close the drum flaps.

Pour a small amount of detergent (about 30 ml) into the detergent dispenser .

Select a short programme (see programme chart).

Switch on the machine by pressing the

“On/Off”

button.

PRECAUTIONS AND GENERAL RECOMMENDATIONS

1.Packing

•

The packaging materials are 100% recyclable and bear the recycling symbol . Adhere to local regulations when disposing of packaging material.

2.Energy saving tips

•

Achieve the best use of energy, water, detergent and time by using the recommended maximum load size.

•

Do not exceed the detergent dosages indicated in the manufacturer’s instructions.

•

The Eco Ball - a special system in the outlet - will prevent detergent loss from the drum to avoid detergent loss into the environment.

•

Use “Prewash” for heavily soiled laundry only! Save detergent, time, water and energy consumption by not selecting “Prewash” for slight to normally soiled laundry.

•

Pretreat stains with stain remover or soak dried in stains in water before washing to reduce the necessity of a hot wash program.

•

Save energy by using a 60°C instead of a 90°C wash programme or a 40°C instead of a 60°C wash programme.

•

Save energy and time by selecting a high spin speed to reduce the water content in laundry before using a tumble dryer (for machines with adjustable spin speed).

3.Disposing of packaging and old washing machines

•

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over

to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

•

The washing machine is built from reusable materials. It must be disposed of in compliance with current local waste disposal regulations.

•

Before scrapping, cut off the power cable so that the washing machine cannot be connected to the mains.

•

Remove detergent from compartment if you intend scrapping your washing machine.

4.Child safety

•

Children must not be allowed to play with or in the washing machine.

5.General recommendations

•

Do not leave the washing machine connected when not in use. Turn off the tap.

•

Before cleaning or carrying out maintenance switch off the washing machine and disconnect it from the mains supply.

•

To clean the outside of the washing machine, use a neutral detergent and a damp cloth.

•

Do not use abrasive detergents.

•

Do not attempt to force the lid open.

•

If necessary, the power cable may be replaced with an identical one obtained from our AfterSales Service. The power cable must only be replaced by a qualified technician.

6.EC Declaration of Conformity

•

This washing machine has been designed, constructed and distributed in compliance with the safety requirements of EC Directives: 73/23/EEC Low Voltage Directive 89/336/EEC EMC Directive 93/68/EEC CE Marking Directive

GB 3

DESCRIPTION OF THE WASHING MACHINE

Lid

Detergent dispenser

Drum flaps

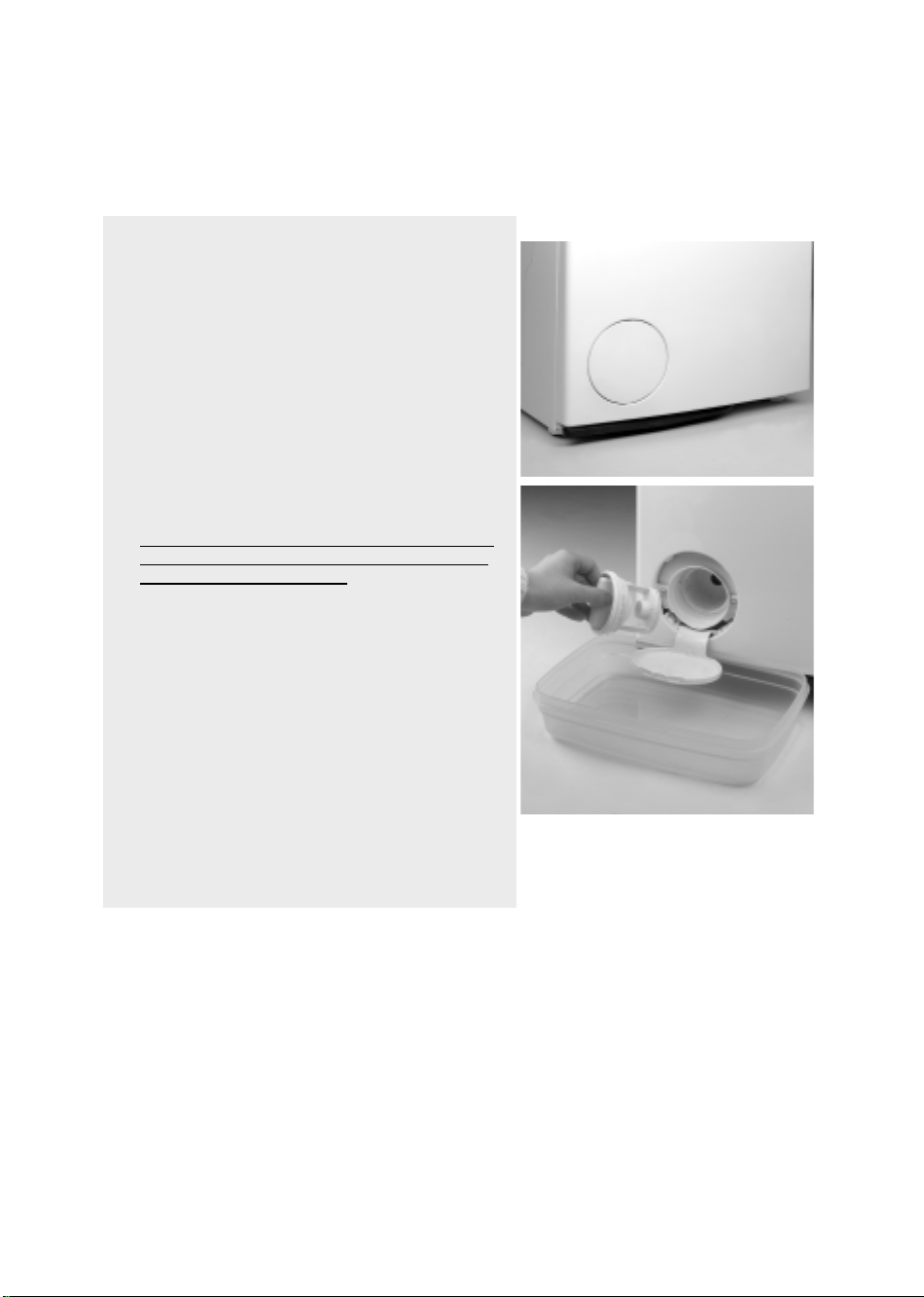

Pump and foreign body trap

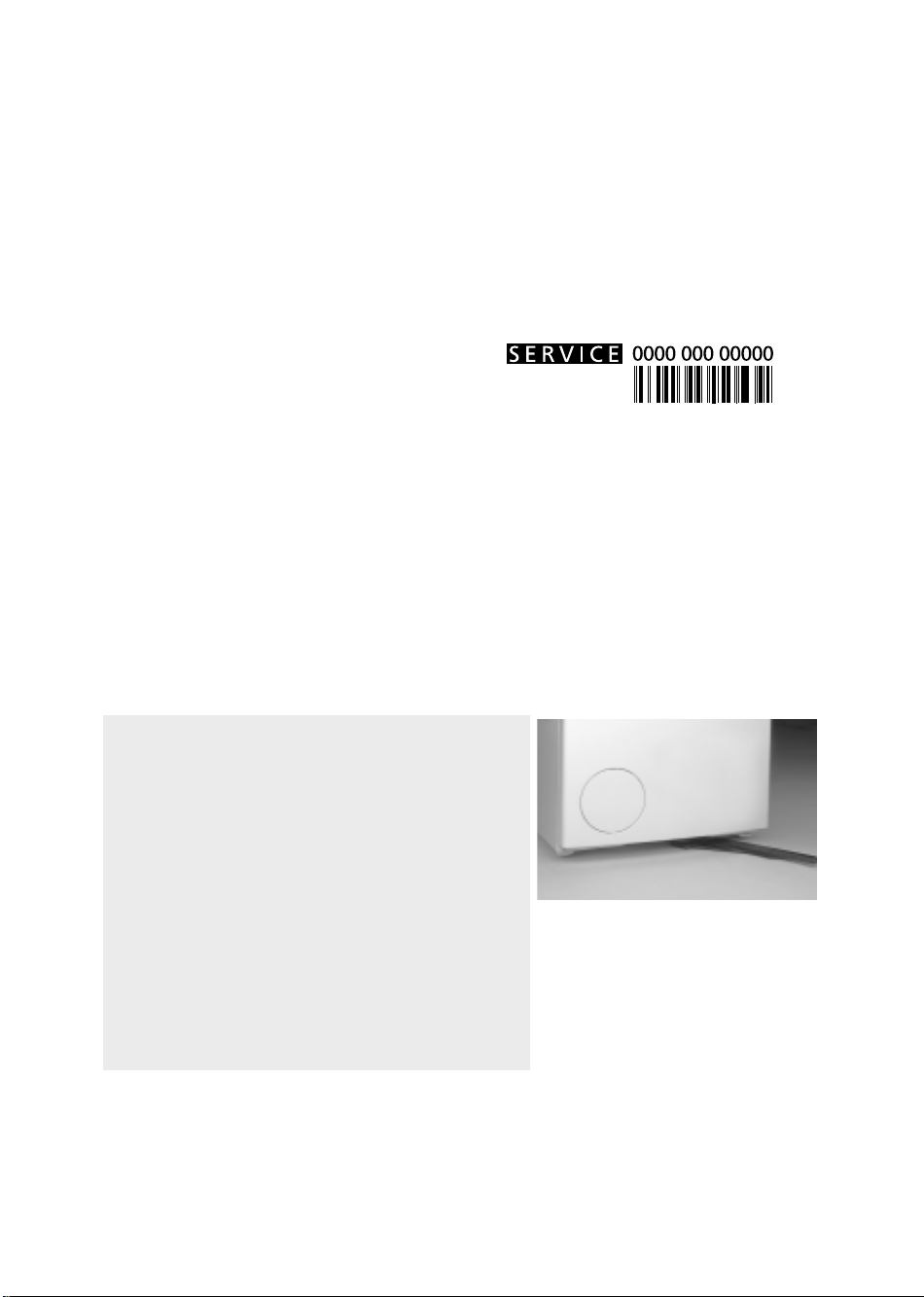

After-Sales Service sticker (behind the foreign body trap cover)

Mobility lever (depending on model)

•

To move the washing machine: pull the handle out a little bit by hand and pull it out to the stop with the foot.

Adjustable feet

PREPARATION OF THE WASHING

Sort the laundry

Sort the laundry according to…

• Type of fabric / care label symbol

Cottons, mixed fibres, easy care/synthetics, wool, handwashed items.

• Colour

Separate whites and coloureds. Wash new coloured items separately.

•Size

Wash items of different sizes in the same load to improve efficiency and distribution in the drum.

• Fabric delicacy

Wash delicate articles separately: use a special programme for Pure New Wool , curtains and other delicates. Always remove curtain glides or wash curtains with the glides inside a cotton bag. Use the special program for handwash fabrics. Wash stockings, belts and other small items or articles with hooks (e.g. bras) in special cotton bags for washing machines or in zipped pillow cases.

Empty pockets

Coins, safety pins and similar items can damage your washing machine drum and tub.

Fasteners Close zips and fasten buttons or hooks; loose belts or ribbons should be tied together.

Stain removal

•

Blood, milk, egg and other organic substances are generally removed by the enzyme phase of the programme.

•

To remove red wine, coffee, tea, grass and fruit stains etc. add a stain removing agent in detergents dispenser compartment or chlorine bleach in compartment (depending on model).

•

Particularly stubborn stains should be treated before the wash.

Dyeing and bleaching

Products usually consist of dye colour, fixing agent and salt. Pour the dye colour, the fixing agent and then the salt directly into the empty drum. Load the laundry only afterwards.

•

Only use dyes and bleaches recommended for washing machines.

•

Follow the manufacturer’s instructions.

•

Plastic and rubber parts of the machine may be stained by dyes or bleaches.

Starching

•

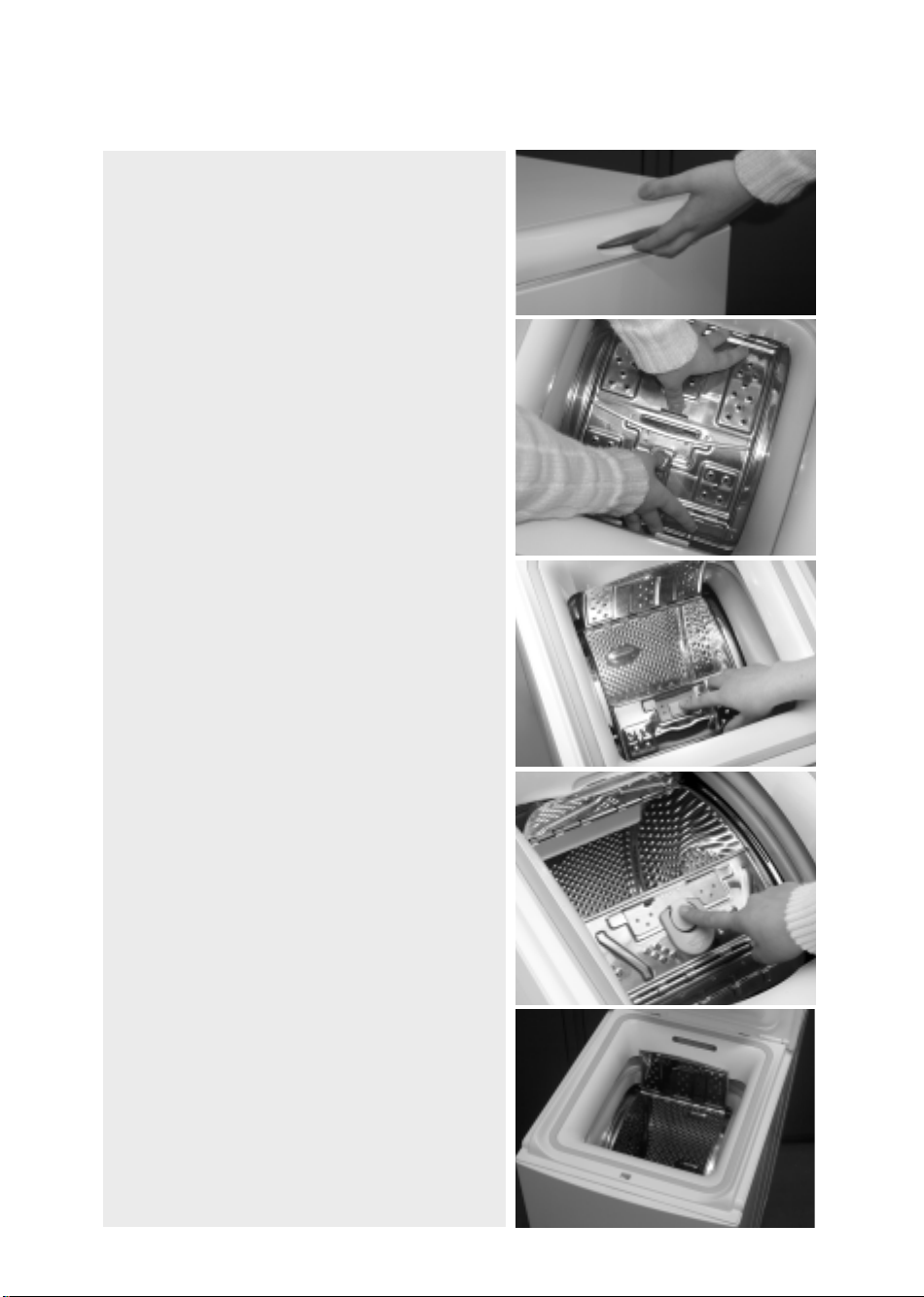

Dissolve/dilute the starch powder or liquid in approximately 80 - 100 ml water outside the washing machine in a small container. Load the washing machine and close the drum flaps. Pour the dissolved starch into the softener chamber of the detergent dispenser. Then close the lid, chose programme “Rinse and Spin” and start.

GB 4

+ 13 hidden pages
