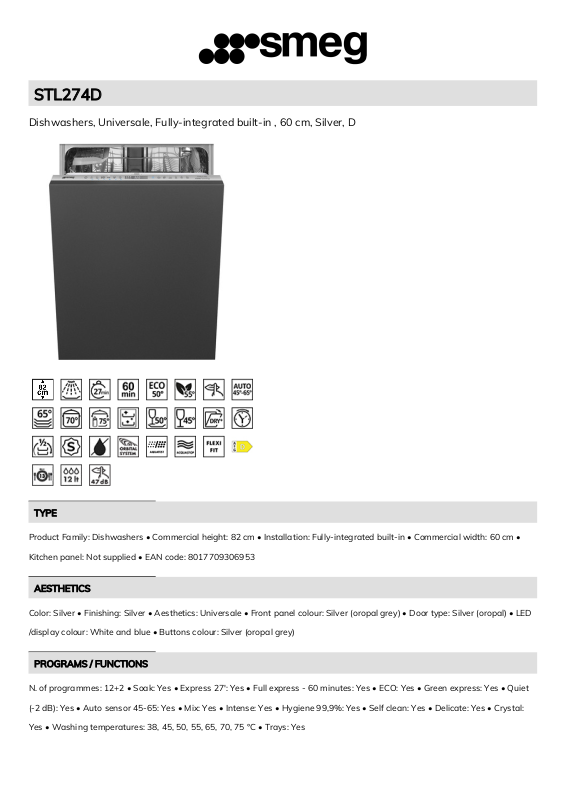

Smeg STL274D Technical sheet

STL274D

Dishwashers, Universale, Fully-integrated built-in , 60 cm, Silver, D

TYPE

Product Family: Dishwashers • Commercial height: 82 cm • Installation: Fully-integrated built-in • Commercial width: 60 cm •

Kitchen panel: Not supplied • EAN code: 8017709306953

AESTHETICS

Color: Silver • Finishing: Silver • Aesthetics: Universale • Front panel colour: Silver (oropal grey) • Door type: Silver (oropal) • LED

/display colour: White and blue • Buttons colour: Silver (oropal grey)

PROGRAMS / FUNCTIONS

N. of programmes: 12+2 • Soak: Yes • Express 27': Yes • Full express - 60 minutes: Yes • ECO: Yes • Green express: Yes • Quiet

(-2 dB): Yes • Auto sensor 45-65: Yes • Mix: Yes • Intense: Yes • Hygiene 99,9%: Yes • Self clean: Yes • Delicate: Yes • Crystal:

Yes • Washing temperatures: 38, 45, 50, 55, 65, 70, 75 °C • Trays: Yes

OPTIONS

Dry Assist+ option: Yes • Delay timer option: Up to 24 hours • 1/2 load FlexiZone option: Yes • Special programs option: Yes •

Clean&Shine option: Yes

BASKETS

N° baskets: 2 • Basket colour: Grey • Basket components colour: Grey • Handle: In plastic on upper and lower basket • Upper

Basket: With central fixed racks • Glass holder: Yes • Height adjustment of the upper basket: On three levels (5 cm) • Largest

loadable dish in upper basket: 25,0 cm • Lower Basket: With 2 foldable racks • Lower basket with anti-drip inserts: Yes •

Largest loadable dish in lower basket: 30,0 cm • Cutlery basket: Yes • Colour Inner Components: Blue

TECHNICAL FEATURES

Controls: Electronic • Display: Delayed start, Programme time indicator, Time to end indication, Consumptions • Door opening

system: Yes • Display type: LED display • Salt light indicator: Light • Rinse aid indicator: Light • End of cycle indicator: Acoustic

signal • Washing system: Orbital • Drying system: Natural condenser drying, with Dry Assist + automatic door opening system

at the end of the cycle • Motor: Inverter 2.0 • Third spray arm: Single • Water softener: With electronic setting • Turbidity sensor

Aquatest: Yes • Flood protection system: Total Acquastop • Water supply: Single; cold/hot water max. 60°C - energysave with

hot water up to 35% • Max water hardness: 100°fH;58°dH • Steam protection: In plastic • Tub material: Stainless steel • Filter:

Stainless steel • Concealed heating element: Yes • Min. and max plinth height: 50 - 215 mm • Min. and max. frontal panel

weight: 2 - 11 kg • Hinges: Self balancing, Sliding, FLEXIFIT • Adjustable feet: 7cm, from 820 to 890 mm • Back feet adjustable

from front: Yes

PERFORMANCE / ENERGY LABEL - REG. 2019

Energy Efficiency Class: D • Energy consumption [per 100 cycles, based on the eco programme]: 84 KWh • Rated capacity (ps):

13 • Water consumption [per cycle]: 12.0 litres • Programme duration: 4:10 h:min • Airborne acoustical noise emissions: 47 dB

(A) re 1 pW • Airborne acoustical noise emission class: C • Energy efficiency Index (EEI): 49.9

ELECTRICAL CONNECTION

Connected power: 1800 W • Voltage: 220-240 V • Type of connection: Single-phase • Frequency (Hz): 50 Hz • Power supply

cable length: 140 cm

LOGISTIC INFORMATION

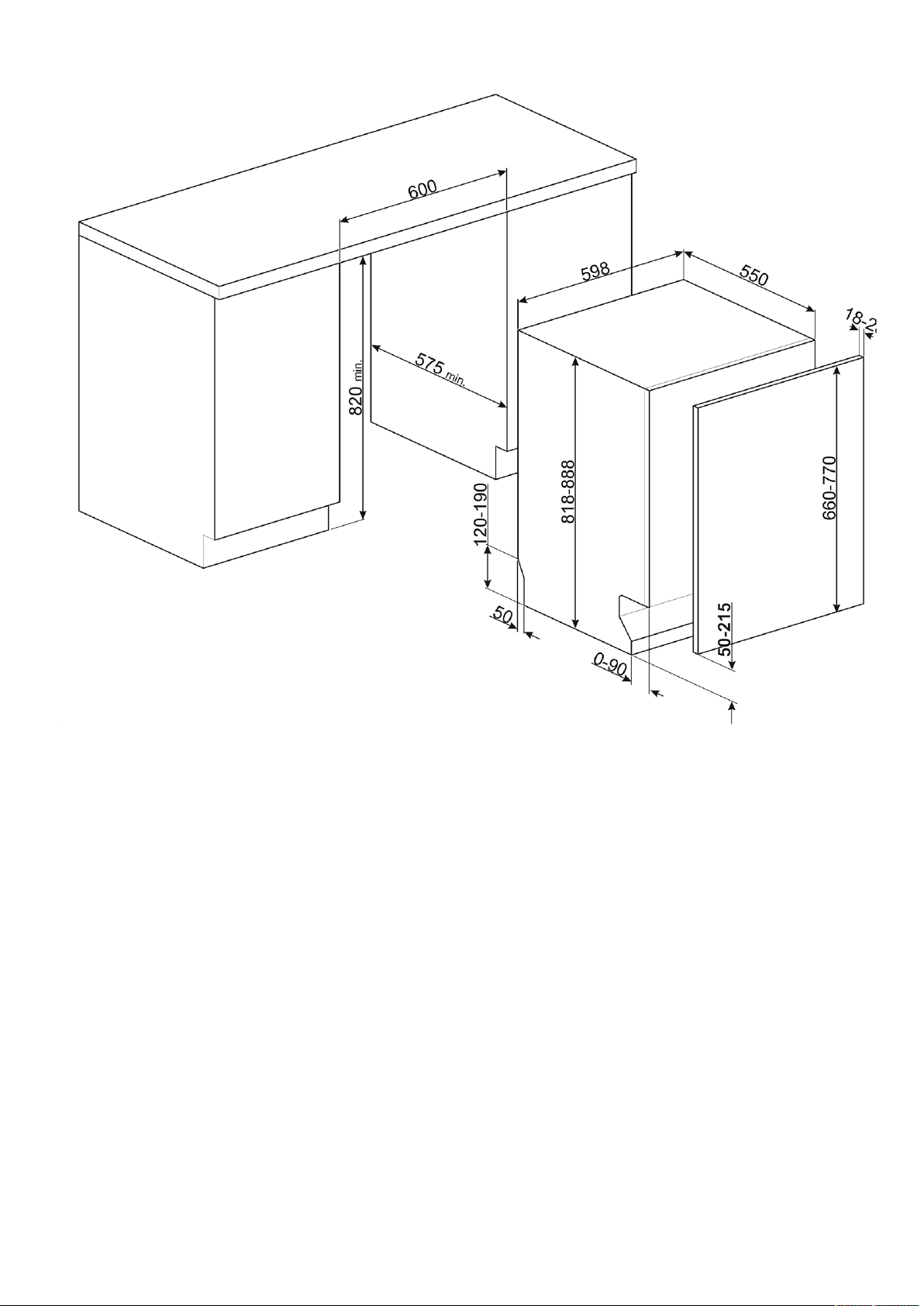

Dimensions of the product HxWxD (mm): 818x598x545

OPTIONAL

KITPLV2: Extension kit, DishwashersKITGH: Glass holder kit, Dishwashers
