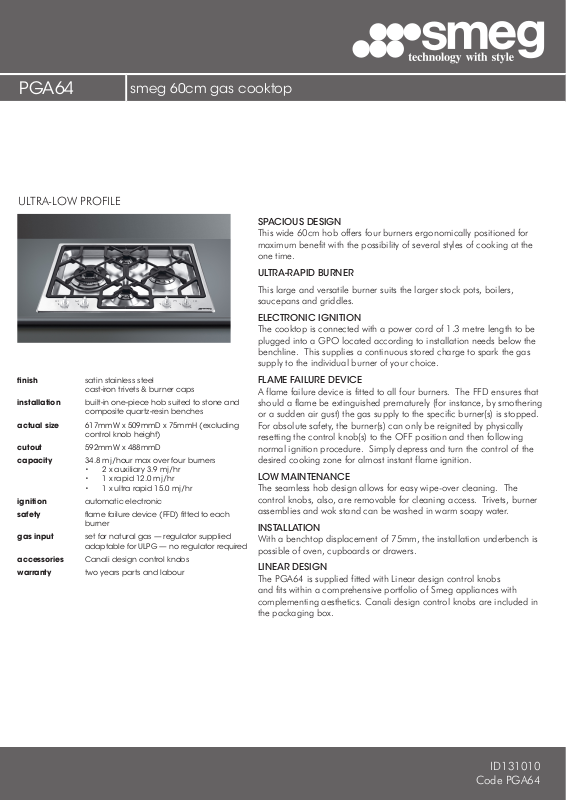

Smeg PGA64, SMEGSTYLEPACK4, STARTERPACK Specifications Sheet

ULTRA-LOW PROFILE

smeg 60cm gas cooktop

SPACIOUS DESIGN

This wide 60cm hob offers four burners ergonomically positioned for maximum benefit with the possibility of several styles of cooking at the one time.

ULTRA-RAPID BURNER

This large and versatile burner suits the larger stock pots, boilers, saucepans and griddles.

ELECTRONIC IGNITION

The cooktop is connected with a power cord of 1.3 metre length to be plugged into a GPO located according to installation needs below the benchline. This supplies a continuous stored charge to spark the gas supply to the individual burner of your choice.

ﬁnish satin stainless steel

cast-iron trivets & burner caps

installation built-in one-piece hob suited to stone and

composite quartz-resin benches

actual size 617mmW x 509mmD x 75mmH (excluding

control knob height)

cutout 592mmW x 488mmD

capacity 34.8 mj/hour max over four burners

2 x auxiliary 3.9 mj/hr• 1 x rapid 12.0 mj/hr• 1 x ultra rapid 15.0 mj/hr•

ignition automatic electronic

safety ﬂame failure device (FFD) ﬁtted to each

burner

gas input set for natural gas — regulator supplied

adaptable for ULPG — no regulator required

accessories Canali design control knobs

warranty two years parts and labour

FLAME FAILURE DEVICE

A flame failure device is fitted to all four burners. The FFD ensures that should a flame be extinguished prematurely (for instance, by smothering or a sudden air gust) the gas supply to the specific burner(s) is stopped. For absolute safety, the burner(s) can only be reignited by physically resetting the control knob(s) to the OFF position and then following normal ignition procedure. Simply depress and turn the control of the desired cooking zone for almost instant flame ignition.

LOW MAINTENANCE

The seamless hob design allows for easy wipe-over cleaning. The control knobs, also, are removable for cleaning access. Trivets, burner assemblies and wok stand can be washed in warm soapy water.

INSTALLATION

With a benchtop displacement of 75mm, the installation underbench is possible of oven, cupboards or drawers.

LINEAR DESIGN

The PGA64 is supplied fitted with Linear design control knobs and fits within a comprehensive portfolio of Smeg appliances with complementing aesthetics. Canali design control knobs are included in the packaging box.

ID131010

Code PGA64

smeg 60cm gas cooktop

50 min

505

620

488

592

UNDERSIDE

134

front

1.4m power cord

555

556 586

FRONT

packaged weight: 15.4kg packaged dimensions: 750mm x 660mm x 170mm

NB: drawings are not to scale — they are to assist only. Product should be on hand to ensure correct measurements for installation into cabinetry.

WARNING: technical speciﬁcations and product sizes can be varied by the manufacturer, without notice. Cutouts for appliances should only be by physical product measurements. The above information is indicative only.

ID131010

Code PGA64
