INSTRUCTION MANUAL
DISHWASHER
Contents
1. Safety and operating instructions __________________________ 4
2. Installation and hook-up _________________________________ 7
3. Description of the controls________________________________11
4. Operating instructions___________________________________20
5. Cleaning and maintenance _______________________________29
6. Troubleshooting _______________________________________ 33
Thank you for choosing this product.
We advise you to carefully read all the instructions contained in this
manual, in order to understand how to operate your dishwasher safely
and correctly.
The manual is divided into paragraphs, which provide a step by step
description of the dishwasher functions, with clear instructions
accompanied by detailed illustrations.
Recommendations are given for the correct use of the baskets, spray
arms, containers, filters, washing programs, and for operating the
controls.
Follow the recommended cleaning procedures to ensure that your
dishwasher always remains in perfect working order.
This manual provides a quick and easy reference for answering all your
questions concerning the use of your new dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the qualified
technician who must carry out the installation, hook-up and testing of
the appliance.
USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.
3
Safety instructions
1. Safety and operating instructions
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST
ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE
USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS
CONTAINED IN THIS MANUAL.
INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN
COMPLIANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR DOMESTIC USE, AND COMPLIES WITH THE
DIRECTIVES 72/23, 89/336 (INCLUDING 92/31)
INCLUDING THE PREVENTION AND ELIMINATION OF RADIO FREQUENCY
INTERFERENCE.
THE APPLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE:
AND DRYING OF DISHES
IMPROPER.
USES OTHER THAN THOSE DESCRIBED ABOVE.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER
AND MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE
DOOR.
NEVER BE REMOVED.
DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED
WITHIN THE HOME. SEPARATE THE VARIOUS MATERIALS WHICH MAKE
UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE
COLLECTION CENTRE.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST
; ANY OTHER USE SHALL BE CONSIDERED
CURRENTLY IN FORCE,
EEC
WASHING
THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN
ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO
PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE
APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.
IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR,
ENSURE THAT THE OPENINGS ON ITS UNDERSIDE ARE NOT
OBSTRUCTED.
ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID
WASTING ELECTRICITY.
OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE
MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET,
AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR
CHILDREN (LOCKS, DOORS, ETC.).
4
Safety instructions
THIS APPLIANCE IS MARKED ACCORDING TO THE
2002/96/EC
WEEE
(
YOU WILL HELP PREVENT POTENTIAL NEGATIVE CONSEQUENCES FOR
THE ENVIRONMENT AND HUMAN HEALTH, WHICH COULD OTHERWISE BE
CAUSED BY INAPPROPRIATE WASTE HANDLING OF THIS PRODUCT.
THE SYMBOL
ACCOMPANYING THE PRODUCT, INDICATES THAT THIS APPLIANCE MAY
NOT BE TREATED AS HOUSEHOLD WASTE. INSTEAD IT SHALL BE
HANDED OVER TO THE APPLICABLE COLLECTION POINT FOR THE
RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT.
DISPOSAL MUST BE CARRIED OUT IN ACCORDANCE WITH LOCAL
ENVIRONMENTAL REGULATIONS FOR WASTE DISPOSAL. FOR MORE
DETAILED INFORMATION ABOUT TREATMENT, RECOVERY AND
RECYCLING OF THIS PRODUCT, PLEASE CONTACT YOUR LOCAL CITY
OFFICE, YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP
WHERE YOU PURCHASED THE PRODUCT.
IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE
ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING
TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER.
THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE
WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A
QUALIFIED TECHNICIAN.
THE APPLIANCE IS INTENDED FOR USE BY ADULTS.
CHILDREN TO COME NEAR OR PLAY WITH THE DISHWASHER. KEEP
CHILDREN AWAY FROM DETERGENTS AND FROM THE OPEN
DISHWASHER DOOR. THE PACKAGING MATERIALS (PLASTIC BAGS,
POLYSTYRENE, METAL BARS, ETC.) MUST NOT BE LEFT WITHIN THE
REACH OF CHILDREN.
KEEP CHILDREN AWAY FROM THE OPEN DISHWASHER. THE APPLIANCE
MAY CONTAIN RESIDUES OF DETERGENT WHICH CAN CAUSE
IRREVERSIBLE DAMAGE TO THE EYES, MOUTH, AND THROAT, AS WELL
AS POSSIBLE DEATH BY SUFFOCATION.
ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
). BY ENSURING THIS PRODUCT IS DISPOSED OF CORRECTLY,
ON THE PRODUCT, OR ON THE DOCUMENTS
EUROPEAN DIRECTIVE
DO NOT ALLOW
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE
WHICH MAY CAUSE AN EXPLOSION.
DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.
LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY
CAUSE THE APPLIANCE TO OVERTURN, PUTING PEOPLE AT RISK.
NEVER LEAVE THE DISHWASHER DOOR OPEN; PEOPLE MIGHT TRIP
OVER IT.
5
Safety instructions
DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE
THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM
AND BEFORE THE DRYING CYCLE.
KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED
IN THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE
TOP BASKET. TAKE CARE NOT TO CUT YOURSELF AND ENSURE THAT
THEY DO NOT PROJECT FROM THE BASKET.
AQUASTOP MODELS
THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A
WATER LEAK. WHEN THE AQUASTOP DEVICE IS TRIPPED, CALL IN A
QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT.
IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A
SOLENOID VALVE INSIDE THE WATER INTAKE HOSE.
HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO
WATER.
DISCONNECT THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY
AND FROM THE WATER SUPPLY.
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK
TEST OF THE APPLIANCE FOLLOWING THE INSTRUCTIONS BELOW. IF
THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT
FROM THE ELECTRICAL POWER SUPPLY AND CALL THE NEAREST
TECHNICAL SERVICE CENTRE.
APPLIANCE.
IN THE EVENT OF DAMAGE TO THE WATER INTAKE HOSE,
DO NOT ATTEMPT TO REPAIR THE
DO NOT CUT THE
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE
REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL
EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED
EXCLUSIVELY BY A TRAINED AND AUTHORISED TECHNICIAN:
CARRIED OUT BY UNAUTHORISED PERSONS WILL INVALIDATE THE
WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.
The manufacturer declines all responsibility
for damage to persons or property
REPAIRS
resulting from failure to observe the above precautions, from tampering with
even a single component of the appliance, or from the use of non original
spare parts.
6

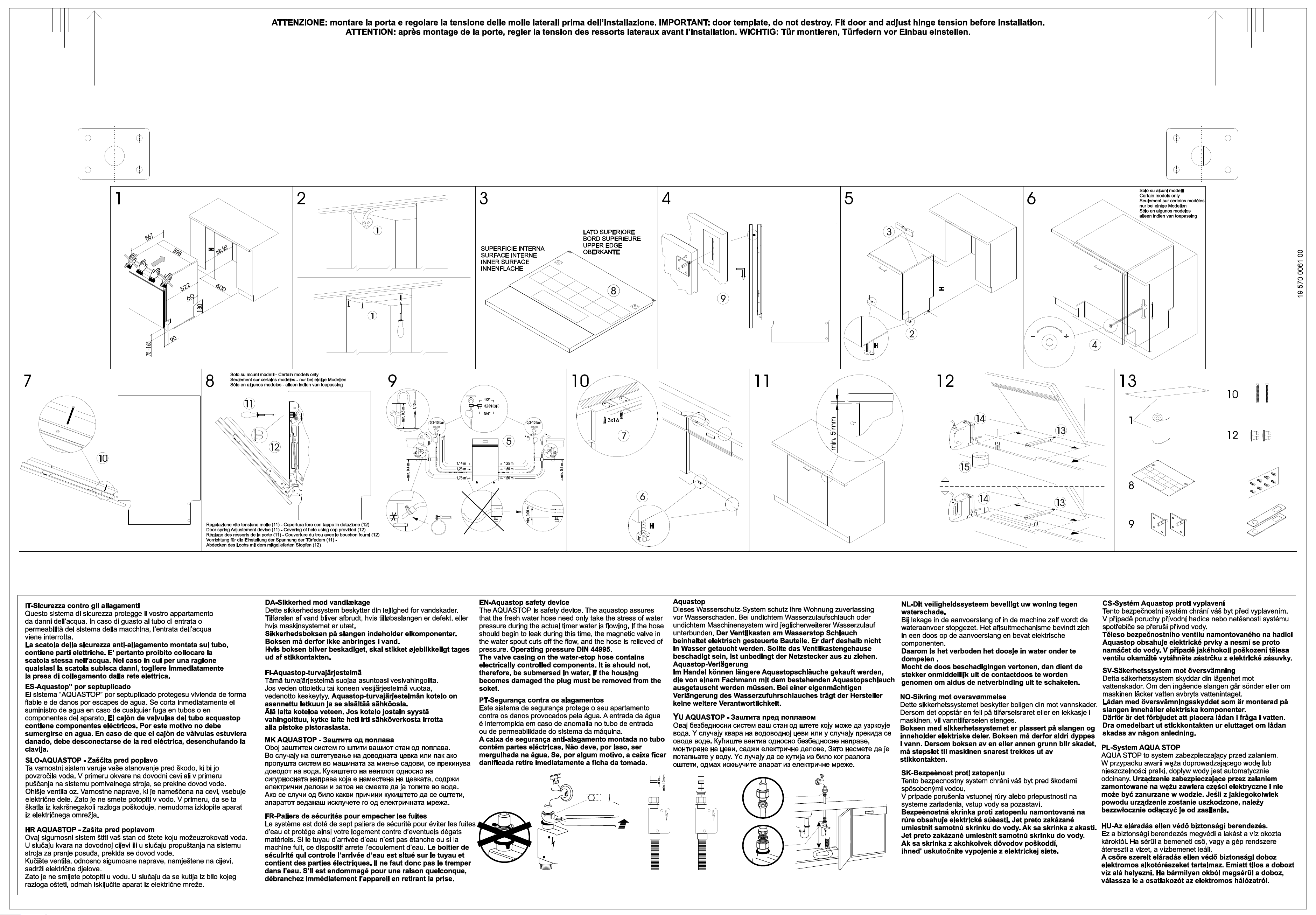

Installation instructions
2. Installation and hook-up
Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation. The back or
sides of the dishwasher may be placed up against walls or other
furniture units. If the dishwasher is installed near a heat source, fit the
special insulating panel to prevent overheating and malfunction of the
appliance. To ensure stability, install integrated or built-under
dishwashers only under continuous worktops, and screw them to the
adjacent units. To facilitate the installation procedure, the intake and
drain hoses can be positioned in any direction; make sure that the hoses
are not kinked, crushed or pulled too tightly. Make sure to tighten the
locking ring-nut once the pipes have been placed in the direction
required. A hole at least 8 cm in diameter is required to allow the power
supply cable and pipes to pass.
Level the appliance on the floor using its adjustable feet. This operation
is essential for ensuring correct operation of the dishwasher.
Building-in a dishwasher underneath a ceramic hob is absolutely
forbidden.
A dishwasher can be built-in underneath a conventional hob provided
there is no break in the kitchen worktop, and the dishwasher and hob
are installed and secured correctly, so that no hazards are
generated.
The fully integrated models are equipped with only one adjustable
foot at the rear, which can be adjusted by turning the screw on the lower
front part of the appliance.
7
Installation instructions
2.1 Water supply connection
Preventing the risk of clogging or damage: if the water pipe is new or
has not been used for a long time, before connecting to the water supply
check that the water is clear and free of impurities, to prevent damage to
the appliance. The dishwasher must always be connected to the water
system with new hoses; old or used hoses must never be reused.

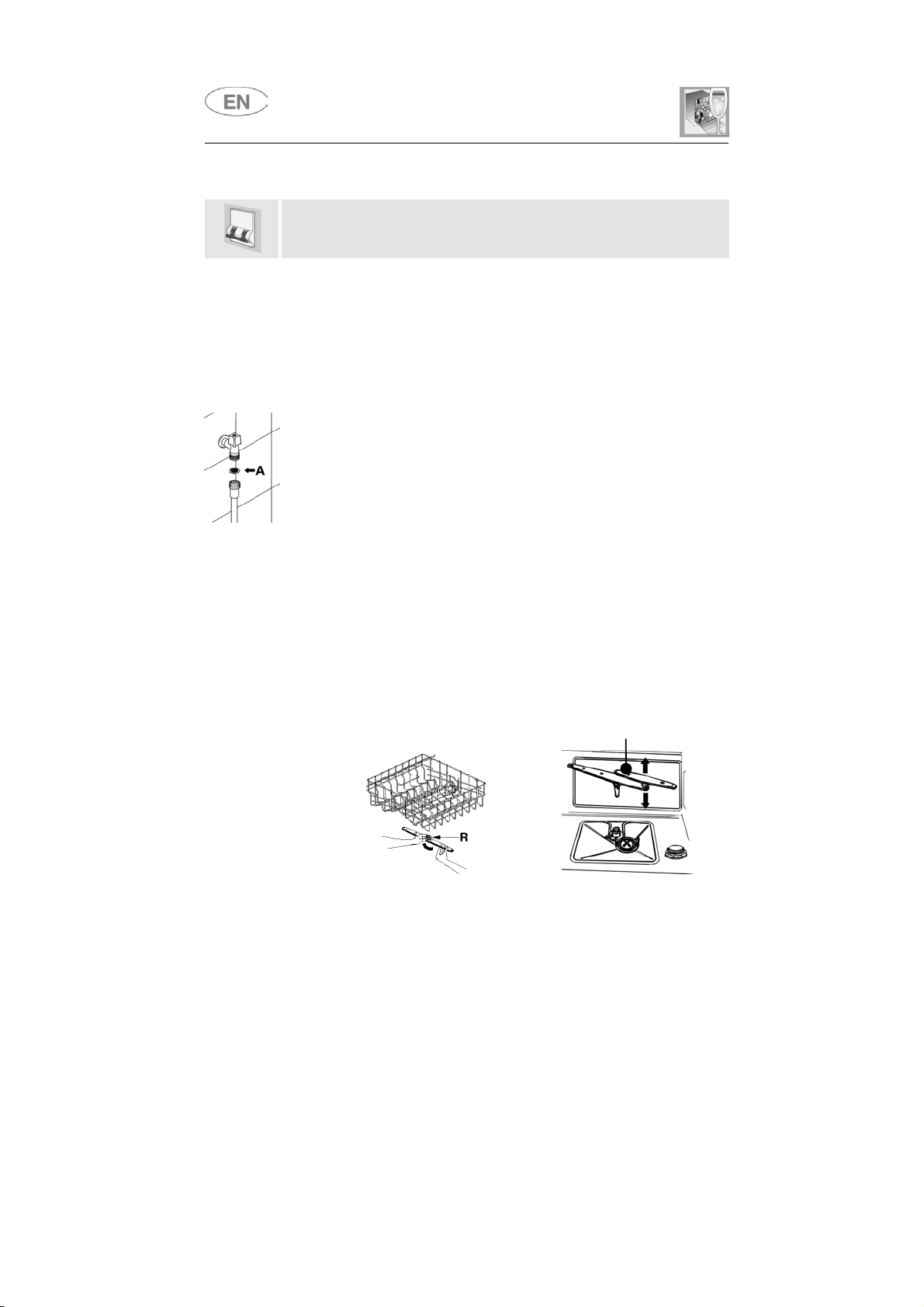

CONNECTING TO THE WATER SUPPLY
Connect the intake hose to a cold water supply with ¾”
gas thread, inserting the filter A supplied with the
dishwasher.
place with your hands and then complete by
tightening about ¼ of a turn with pliers.
In dishwashers equipped with the ACQUASTOP
device, the filters is already fitted inside the threaded
ring.
Take care to screw the hose firmly into
The dishwasher can also be connected to a hot water supply
exceeding 60°C
washing time by approximately 20 minutes, but slightly reduces its
effectiveness. Make the connection to the domestic hot water supply using
the same procedure described for connecting to the cold water supply.
DRAIN CONNECTION
Insert the dishwasher’s drain hose
into a drain pipe having a diameter
of at least
place it inside the kitchen sink
using the plastic support provided,
taking care not to crush or
excessively bend the hose. It is
important to prevent the hose from
coming loose and falling. For this
purpose, the plastic support is
equipped with a hole for tying it to
the wall or water tap.
The free end should be positioned at a height of between
cm
, and should never be submerged in water. If a horizontal drain
extension hose is used (for a maximum of 3 m) the drain hose can be
placed at a maximum height of
8
. Supplying the appliance with hot water cuts down the
4 cm
, or alternatively,
30 and 100
85 cm
from the ground.
not
Installation instructions
2.2 Electrical connection and precautions
CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH
THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON
THE INNER EDGE OF THE DOOR.
THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET
OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN
FORCE.
THE PLUG MUST BE ACCESSIBLE AFTER INSTALLATION.
NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY
LEAD.
IN THE EVENT OF DAMAGE TO THE SUPPLY CORD
BY THE MANUFACTURER OR AN AUTHORIZED TECHNICAL SERVICE
CENTRE.
, HAVE IT REPLACED
DO NOT USE ADAPTORS OR SHUNT CONNECTIONS
THE POSSIBILITY OF OVERHEATING OR BURNING.
IN ORDER TO AVOID
IF THE APPLIANCE IS PROVIDED WITH A PLUGLESS SUPPLY CORD:
IT IS NECESSARY TO INSTALL IN THE FIXED WIRING AN ALL-POLE
DISCONNECTION DEVICE HAVING A GAP BETWEEN CONTACTS OF AT
3.5MM
LEAST
TO BE EASY TO REACH.
THE CONNECTION TO THE MAINS MUST BE CARRIED OUT BY A
QUALIFIED TECHNICIAN
BELOW AND THE REGULATIONS IN FORCE.
. AFTER INSTALLATION THE DISCONNECTION DEVICE HAS
IN ACCORDANCE TO THE SCHEME SHOWN
L
= brown
N
= blue
= yellow-green
In the event of damage to the supply cord, have it replaced by the
manufacturer or an Authorized Technical Service Centre in order to
avoid any risk.
9
Installation instructions
WHEN CLEANING AND MAINTAINING THE APPLIANCE:
BEFORE CARRYING OUT ANY WORK, ALWAYS UNPLUG THE APPLIANCE
FROM THE ELECTRICAL SUPPLY OR SWITCH OFF THE ALL-POLE
DISCONNECTION DEVICE.
FOR GREAT BRITAIN ONLY:
THIS APPLIANCE MUST BE EARTHED.
Fuse replacement
If the mains lead of this appliance is fitted
with a
change a fuse in this type of plug use an
A.S.T.A.
and proceed as follows:
1.
2.
3.
BS 1363A 13amp
approved fuse to
Remove the fuse cover A and fuse B.
Fit replacement 13A fuse into fuse
cover.
Refit both into plug.
fused plug, to
BS 1362
type
10
The fuse cover must be refitted when changing a fuse and if the fuse
cover is lost the plug must not be used until a correct replacement is
fitted.
Correct replacement are identified by the colour insert or the colour
embossed in words on the base of the plug.
Replacement fuse covers are available from your local electrical store.
User instructions

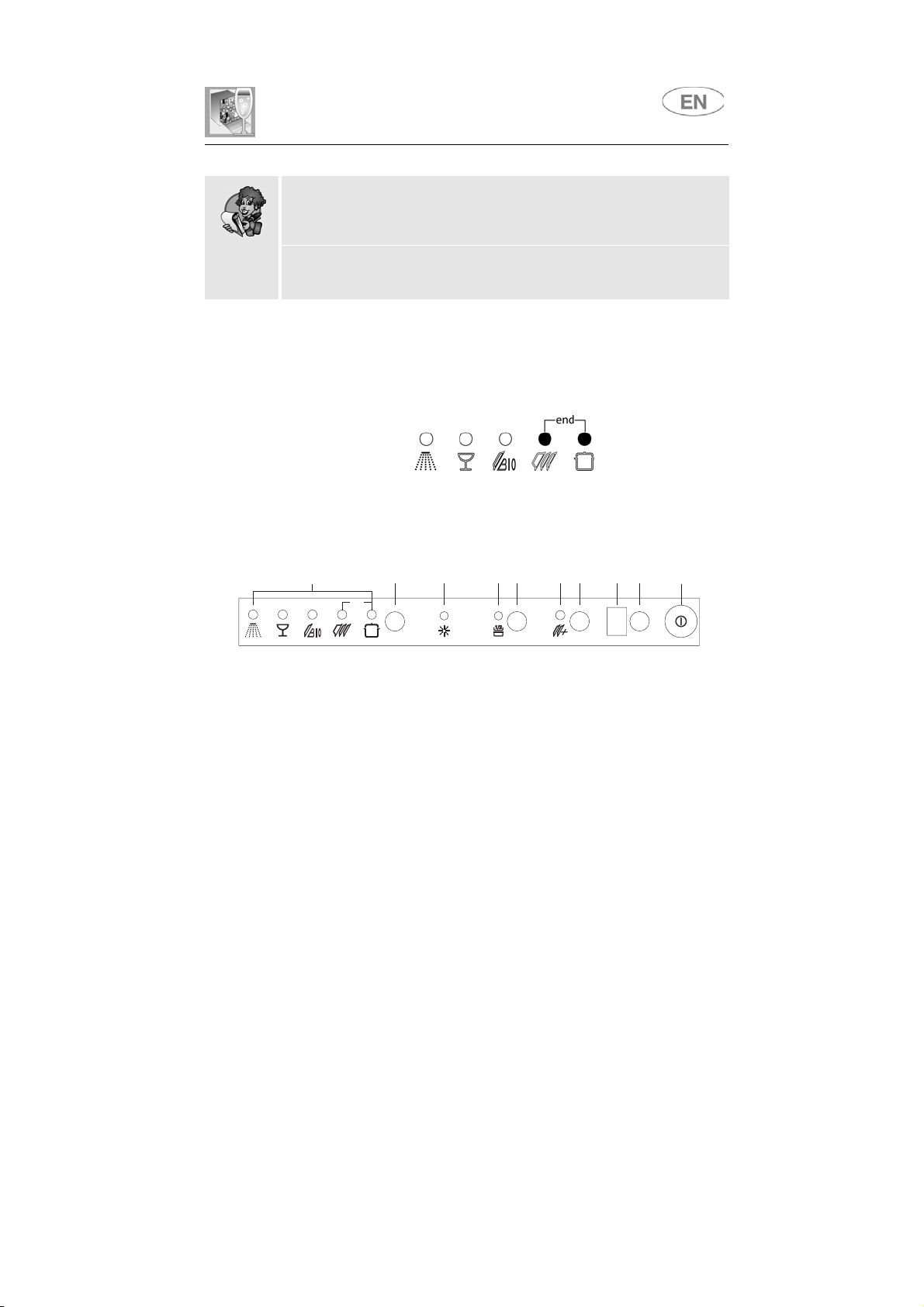

1. Description of the controls

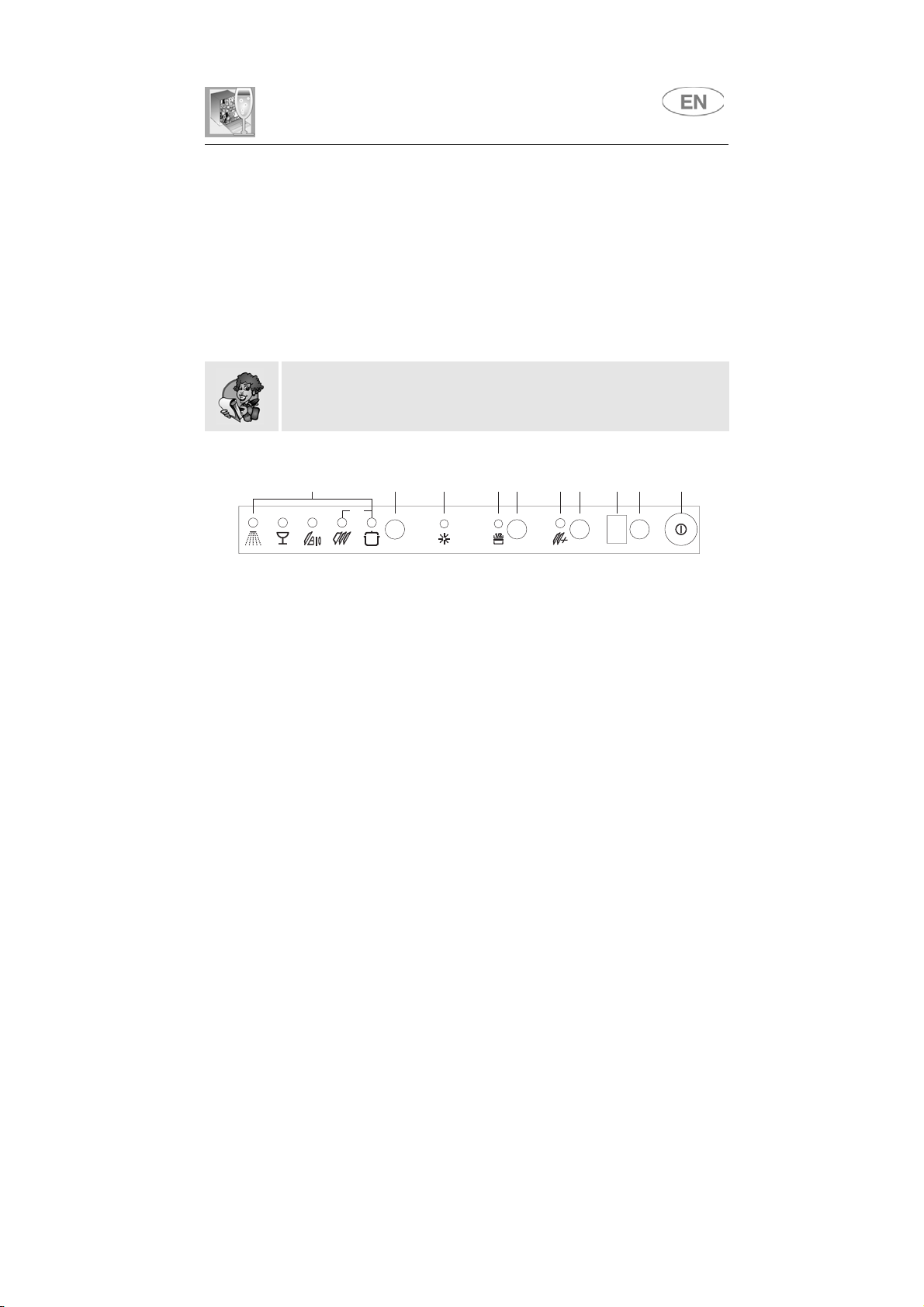

1.1 Upper panel
All the dishwasher controls are grouped on the upper panel. Switch-on,
programming, switch-off etc. procedures are only possible when the door
is open.
23487
end
ON/OFF BUTTON
1
Pressing this button energises the appliance.
65 109 1
SELECTED PROGRAM INDICATOR LIGHTS
2
Illumination of this light denotes the program selected and the occurrence of a
fault (troubleshooting).
PROGRAM SELECTION BUTTON
3
By pressing this button in sequence it is possible to select the desired program.
RINSE AID WARNING LIGHT
4
Illumination of this light signals that rinse aid dispenser is empty.
EXTRA PROGRAM BUTTON
5
This button gives access to the one of the five extra programs (see table).
EXTRA PROGRAM LIGHT
Illuminates to indicate that one of the five extra programs (see table) is going
6
to be executed.
HALF LOAD BUTTON
7
Press this button to activate the half load wash option.
HALF LOAD LIGHT
8
Illumination of the light indicates selection of the HALF-LOAD function.
PROGRAM DELAY BUTTON
9
Press this button to delay the start of the program by up to 9 hours.
INFORMATION DISPLAY
10
11
User instructions

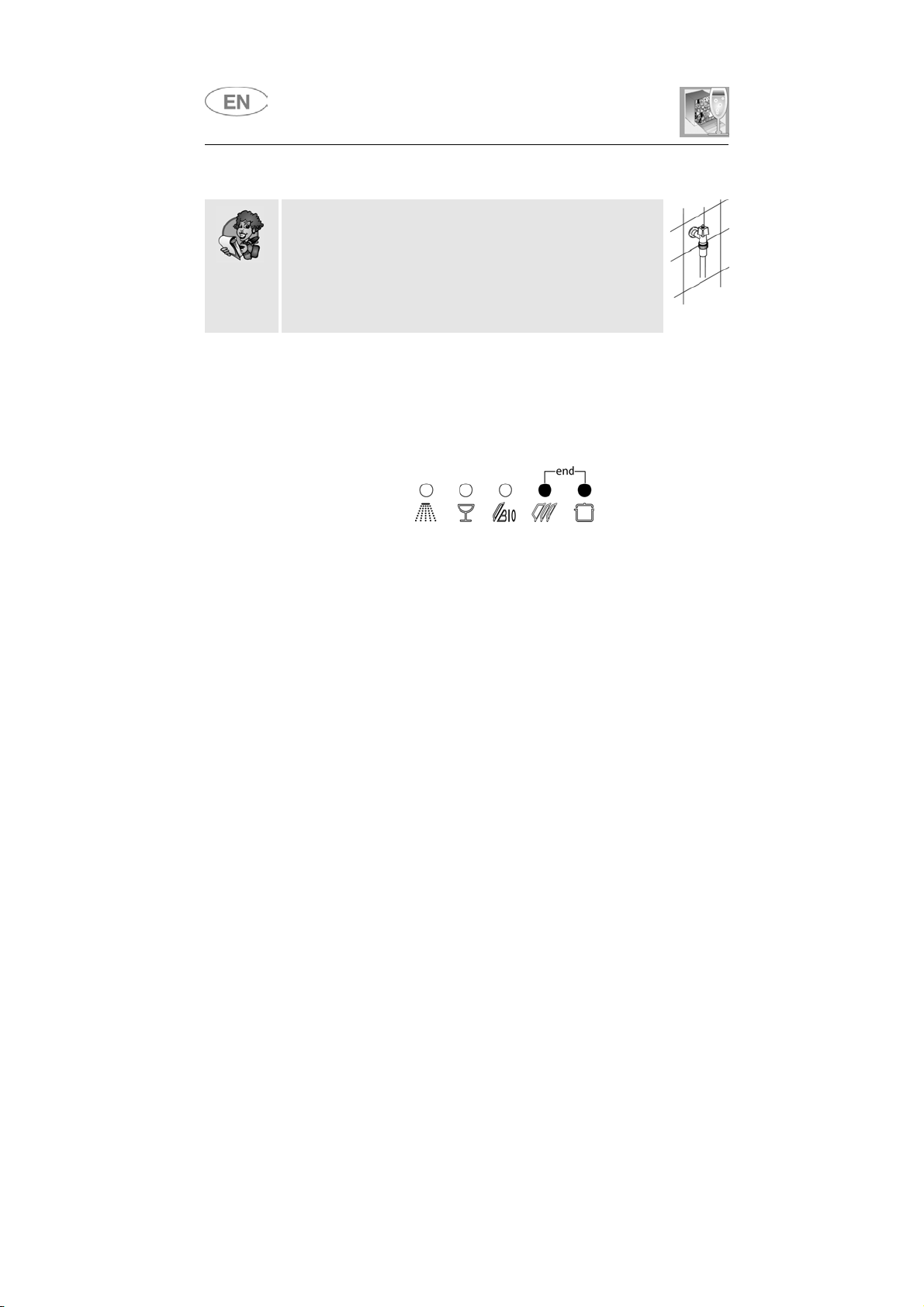

SETTING THE WASHING PROGRAM AND SWITCHING ON

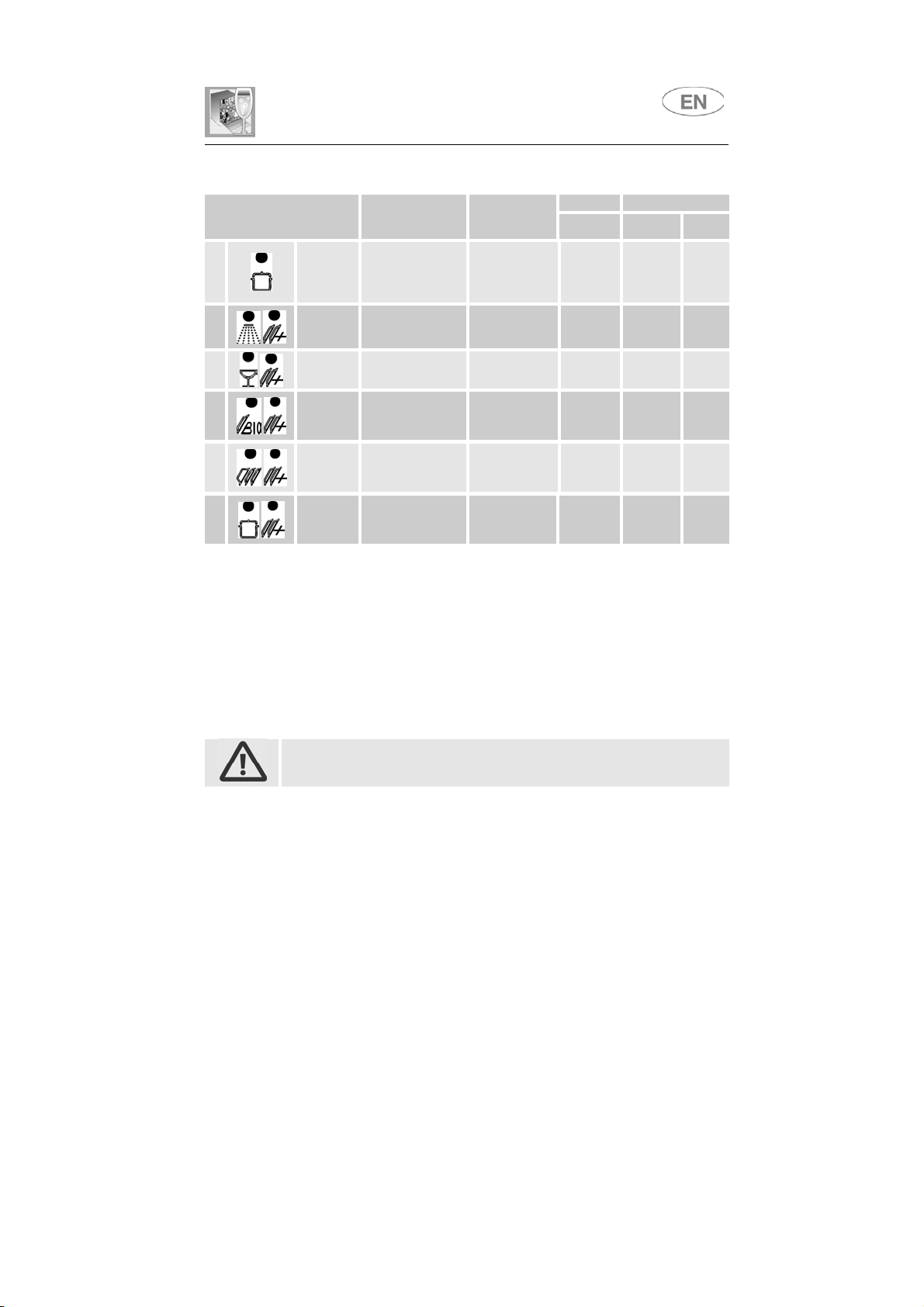

To select the most suitable program for the dishes to be washed refer to
the table below, which indicates the most appropriate program according
to dish type and degree of soiling.

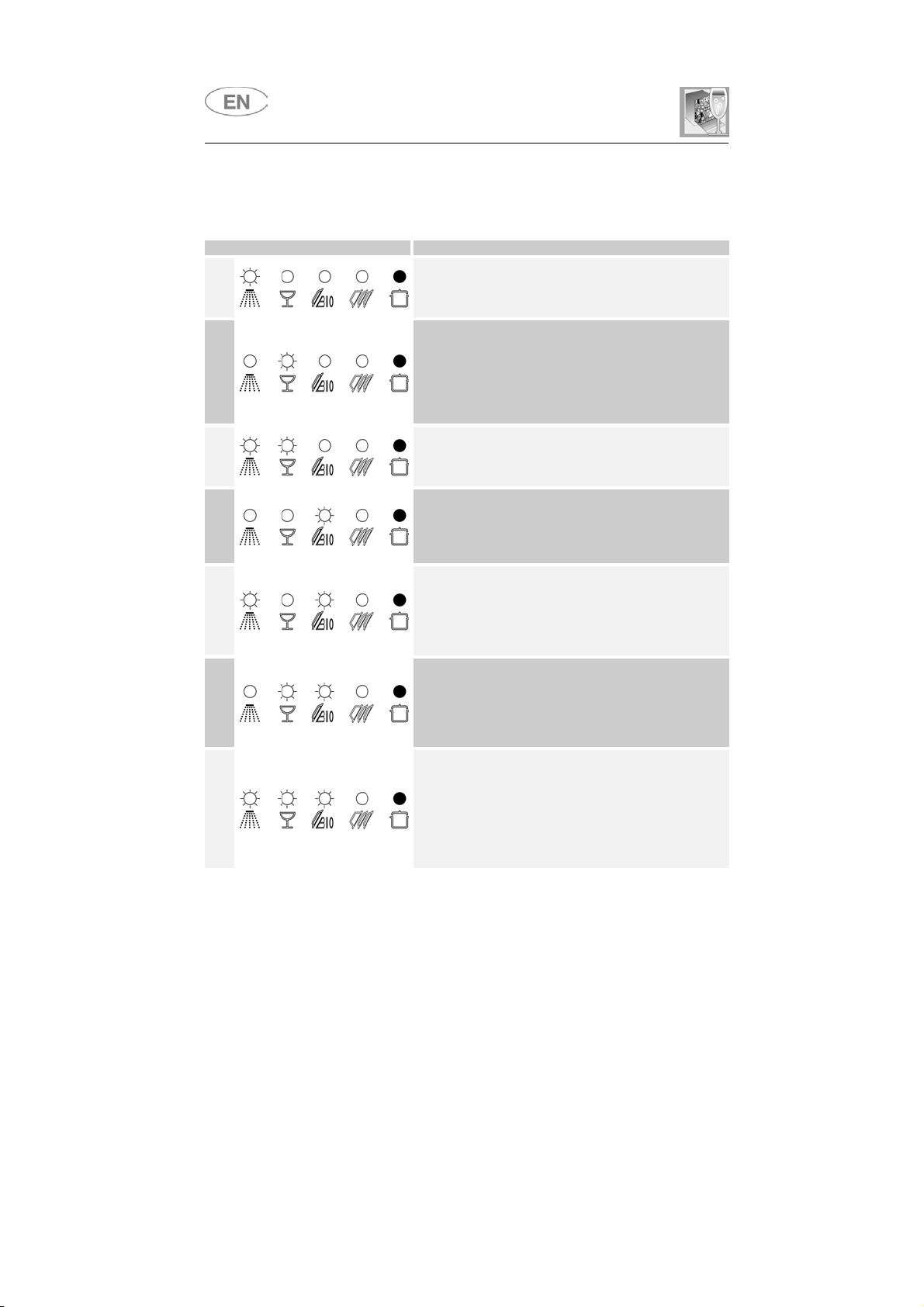

PROGRAMME,
NUMBER & SYMBOL
1
2
3
4
23487
end
65 109 1
After using the table to identify the most appropriate washing program:
• press the
ON/OFF
INDICATOR LIGHT (2)
• keep pressing the
PROGRAM SELECTION
button
to illuminate;
(1)
and wait for the
button
PROGRAM
(3)
until the
indicator light corresponding to the desired program illuminates;
• close the door; after about 2" the program will start. While it is in
progress, the relative
LIGHT
will flash (indicating that the program is
being executed).
DURATION CONSUMPTION
MINUTES
(2)
WATER
LITRES (1)
POWER
KWh (2)
60' 11 0,9
123' 16,9 0,75
100' 21 1,40
95' 20 1,40
RINSE
NORMAL
ECO (*)
BIO
NORMAL
LOAD CROCKERY
AND CUTLERY
Pans and dishes for
rinsing and drying
Dishes
with normal dirt
Dishes
with normal dirt
Normally soiled
dishes, including
dried-on residue
PROGRAM
PROGRESS
Cold rinse
Rinse at 68°C
Dry
Cold prewash
Wash at 40°C
Cold rinse
Rinse at 45°C
Dry
Cold prewash
Wash at 55°C
Cold rinse
Rinse at 68°C
Dry
Cold prewash
Wash at 65°C
Cold rinse
Rinse at 68°C
Dry
12
Loading...
