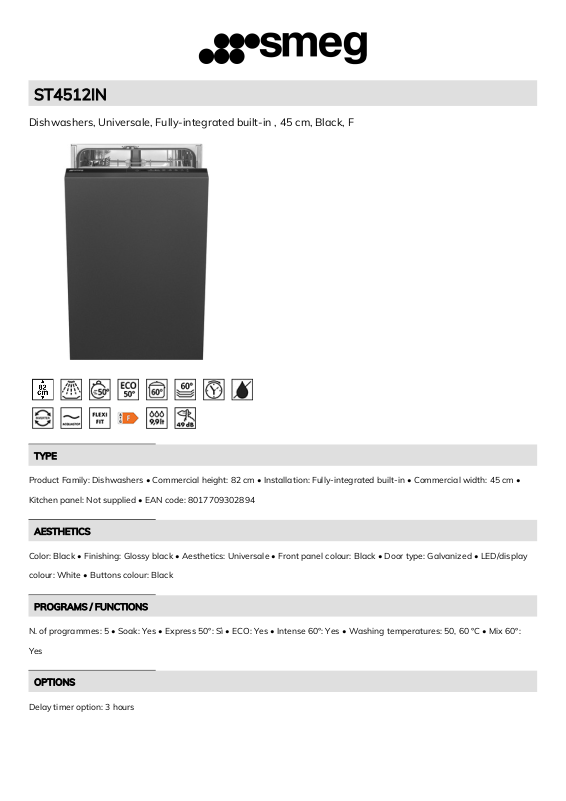

Smeg ST4512IN Technical sheet

ST4512IN

Dishwashers, Universale, Fully-integrated built-in , 45 cm, Black, F

TYPE

Product Family: Dishwashers • Commercial height: 82 cm • Installation: Fully-integrated built-in • Commercial width: 45 cm •

Kitchen panel: Not supplied • EAN code: 8017709302894

AESTHETICS

Color: Black • Finishing: Glossy black • Aesthetics: Universale • Front panel colour: Black • Door type: Galvanized • LED/display

colour: White • Buttons colour: Black

PROGRAMS / FUNCTIONS

N. of programmes: 5 • Soak: Yes • Express 50°: Sì • ECO: Yes • Intense 60°: Yes • Washing temperatures: 50, 60 °C • Mix 60°:

Yes

OPTIONS

Delay timer option: 3 hours

BASKETS

N° baskets: 2 • Basket colour: Grey • Basket components colour: Grey • Upper Basket: With central fixed racks • Height

adjustment of the upper basket: On two levels, by extraction • Largest loadable dish in upper basket: 20,0 cm • Lower Basket:

With fixed racks • Lower basket with anti-drip inserts: Yes • Largest loadable dish in lower basket: 31,5 cm • Cutlery basket: Yes

• Colour Inner Components: Grey

TECHNICAL FEATURES

Controls: Electronic • Door opening system: Yes • On/off indicator: Yes • Salt light indicator: Light • Rinse aid indicator: Light •

End of cycle indicator: Acoustic signal • Washing system: Standard • Drying system: Natural condenser drying, with Dry Assist

automatic door opening system at the end of the cycle • Motor: Inverter • Water softener: With electronic setting • Flood

protection system: Single Acquastop • Water supply: Single; cold/hot water max. 60°C - energysave with hot water up to 35% •

Max water hardness: 90°fH; 50°dH • Steam protection: In plastic • Tub material: Stainless steel • Filter: Stainless steel •

Concealed heating element: Yes • Min. and max. frontal panel weight: 2 - 7,5 kg • Hinges: Self balancing, Sliding, FLEXIFIT • Min.

and max plinth height: 40 - 175 mm • Adjustable feet: 6 cm, from 820 to 880 mm • Back feet adjustable from front: Yes

PERFORMANCE / ENERGY LABEL - REG. 2019

Energy Efficiency Class: F • Energy consumption [per 100 cycles, based on the eco programme]: 78 KWh • Rated capacity (ps): 9

• Water consumption [per cycle]: 9.9 litres • Programme duration: 4:00 h:min • Airborne acoustical noise emissions: 49 dB(A) re

1 pW • Airborne acoustical noise emission class: C • Energy efficiency Index (EEI): 61.8

ELECTRICAL CONNECTION

Connected power: 1300 W • Voltage: 220-240 V • Type of connection: Single-phase • Frequency (Hz): 50 Hz • Power supply

cable length: 150 cm

LOGISTIC INFORMATION

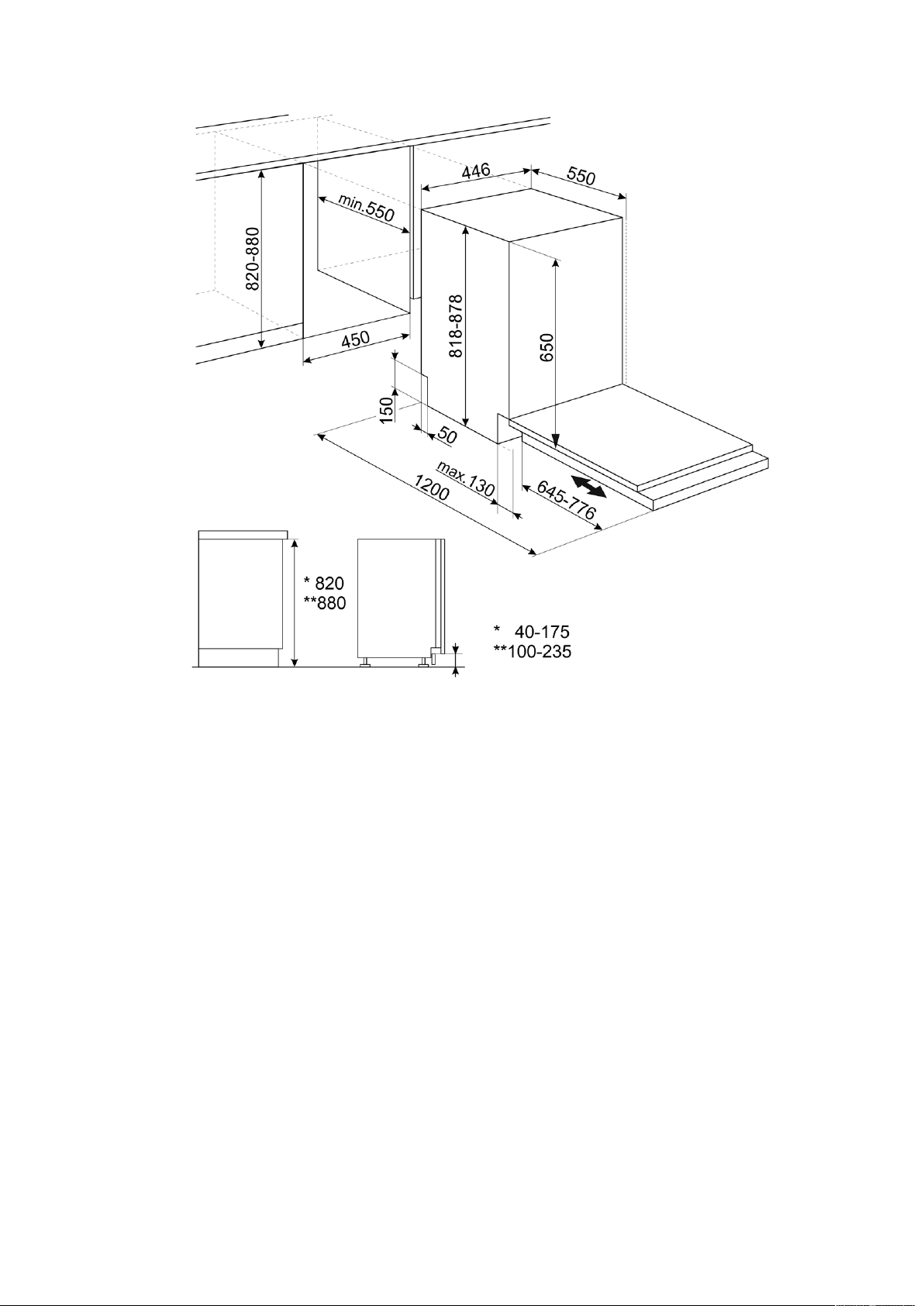

Dimensions of the product HxWxD (mm): 818x446x550

OPTIONAL

KITPLV2: Extension kit, Dishwashers
