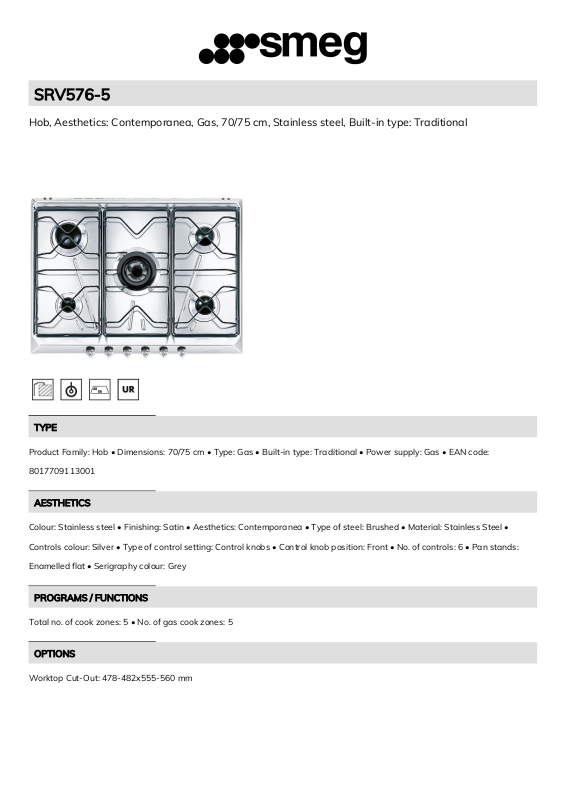

Smeg SRV576-5 Technical sheet

SRV576-5

Hob, Aesthetics: Contemporanea, Gas, 70/75 cm, Stainless steel, Built-in type: Traditional

TYPE

Product Family: Hob • Dimensions: 70/75 cm • Type: Gas • Built-in type: Traditional • Power supply: Gas • EAN code:

8017709113001

AESTHETICS

Colour: Stainless steel • Finishing: Satin • Aesthetics: Contemporanea • Type of steel: Brushed • Material: Stainless Steel •

Controls colour: Silver • Type of control setting: Control knobs • Control knob position: Front • No. of controls: 6 • Pan stands:

Enamelled flat • Serigraphy colour: Grey

PROGRAMS / FUNCTIONS

Total no. of cook zones: 5 • No. of gas cook zones: 5

OPTIONS

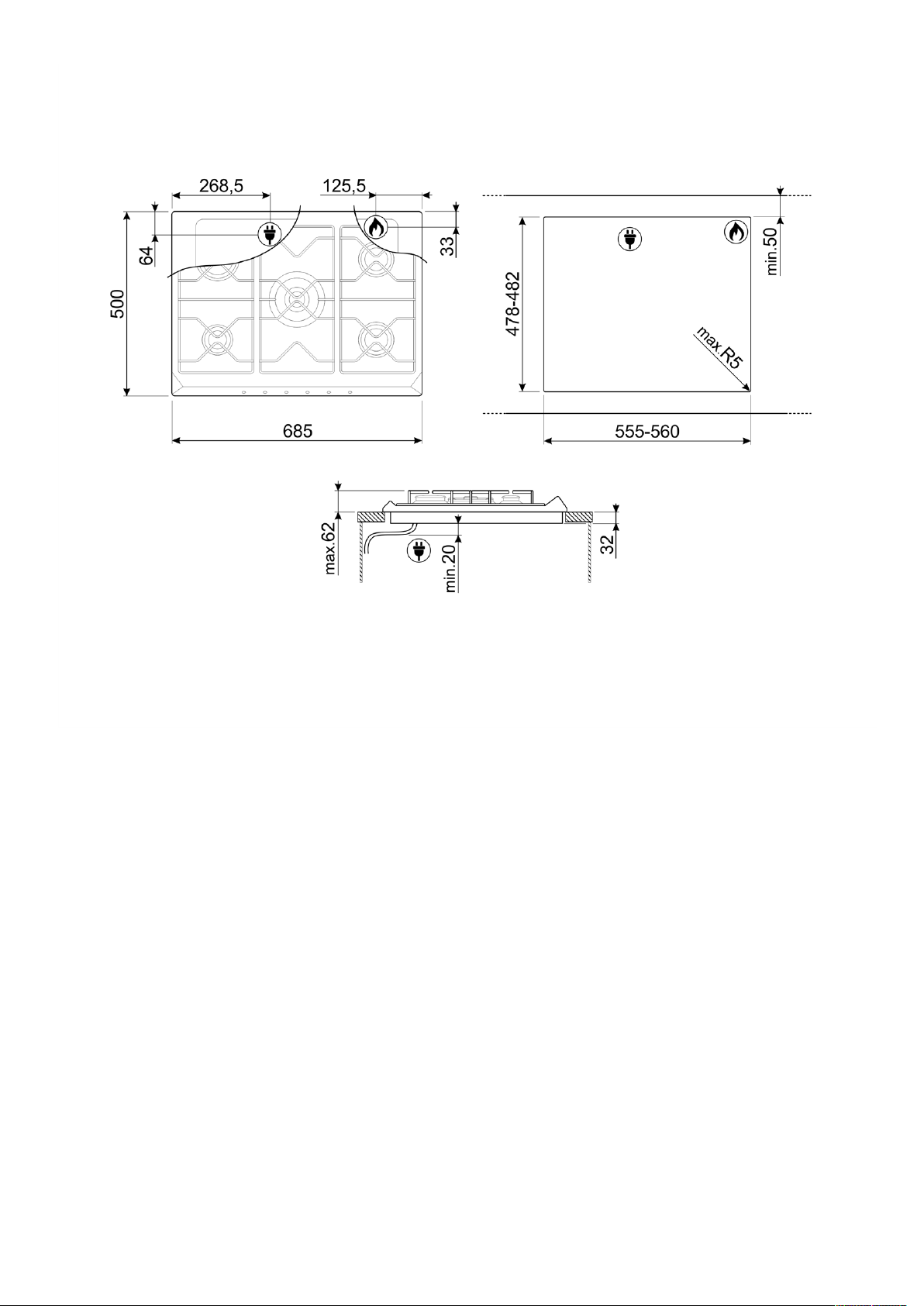

Worktop Cut-Out: 478-482x555-560 mm

COOKING ZONES

1st zone position: Front-left • 2nd zone position: Rear-left • 3rd zone position: Central • 4th zone position: Rear-right • 5th zone

position: Front-right • 1st zone type: Gas - AUX • 2nd zone type: Gas - Rapid • 3rd zone type: Gas - 2UR (dual) • 4th zone tipe:

Gas - Semi Rapid • 5th zone type: Gas - Semi Rapid • 1st zone power: 1.10 kW • 2nd zone power: 2.60 kW • 3rd zone power:

5.00 kW • 4th zone power: 1.70 kW • 5th zone power: 1.70 kW

TECHNICAL FEATURES

Gas Type: G20 Natural gas • Gas safety valves: Yes • Automatic Ignition: Yes

PERFORMANCE / ENERGY LABEL

ELECTRICAL CONNECTION

Gas connection rating (W): 11900 W • Power supply cable length: 120 cm

LOGISTIC INFORMATION

Dimensions of the product (mm): 32x685x500 • Depth: 500 mm • Width: 685 mm • Product Height: 32 mm

ACCESSORIES INCLUDED

Other gas connections provided: Conical

OPTIONAL

GGB70-1: Pan stands, Hobs6MP700AO: Knobs Set, Hobs6MP700AX: Knobs Set, Hobs6MP700PO: Knobs Set,

Hobs6MP700RWX: Knobs Set, Hobs6MP700BS: Knobs Set, Hobs6MPF2465X: Knobs Set, HobsC70CX-1: Cover, HobsC70CEB-

1: Cover, HobsC70CA-1: Cover, HobsC70CD-1: Cover, HobsC70CNE-2: Cover, HobsC70CP-1: Cover, HobsTPK: Teppanyaki grill,

HobsBB3679: Grill, Hobs
