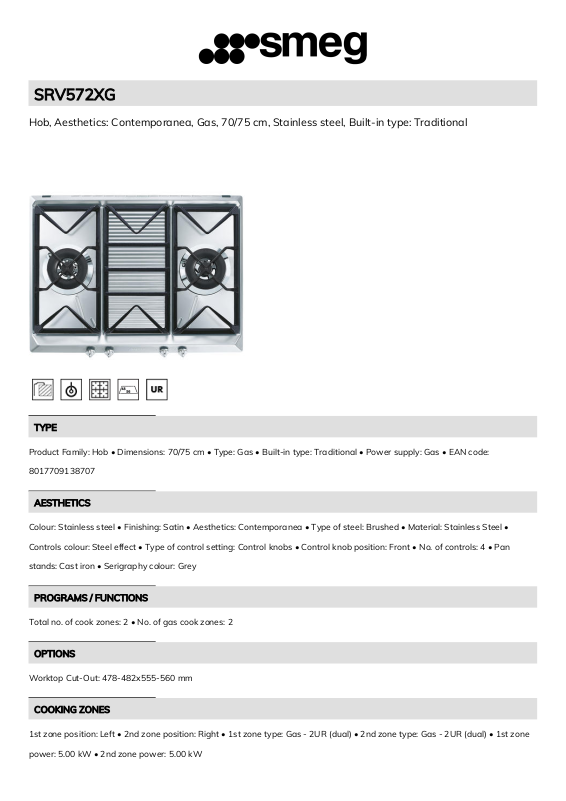

Smeg SRV572XG Technical sheet

SRV572XG

Hob, Aesthetics: Contemporanea, Gas, 70/75 cm, Stainless steel, Built-in type: Traditional

TYPE

Product Family: Hob • Dimensions: 70/75 cm • Type: Gas • Built-in type: Traditional • Power supply: Gas • EAN code:

8017709138707

AESTHETICS

Colour: Stainless steel • Finishing: Satin • Aesthetics: Contemporanea • Type of steel: Brushed • Material: Stainless Steel •

Controls colour: Steel effect • Type of control setting: Control knobs • Control knob position: Front • No. of controls: 4 • Pan

stands: Cast iron • Serigraphy colour: Grey

PROGRAMS / FUNCTIONS

Total no. of cook zones: 2 • No. of gas cook zones: 2

OPTIONS

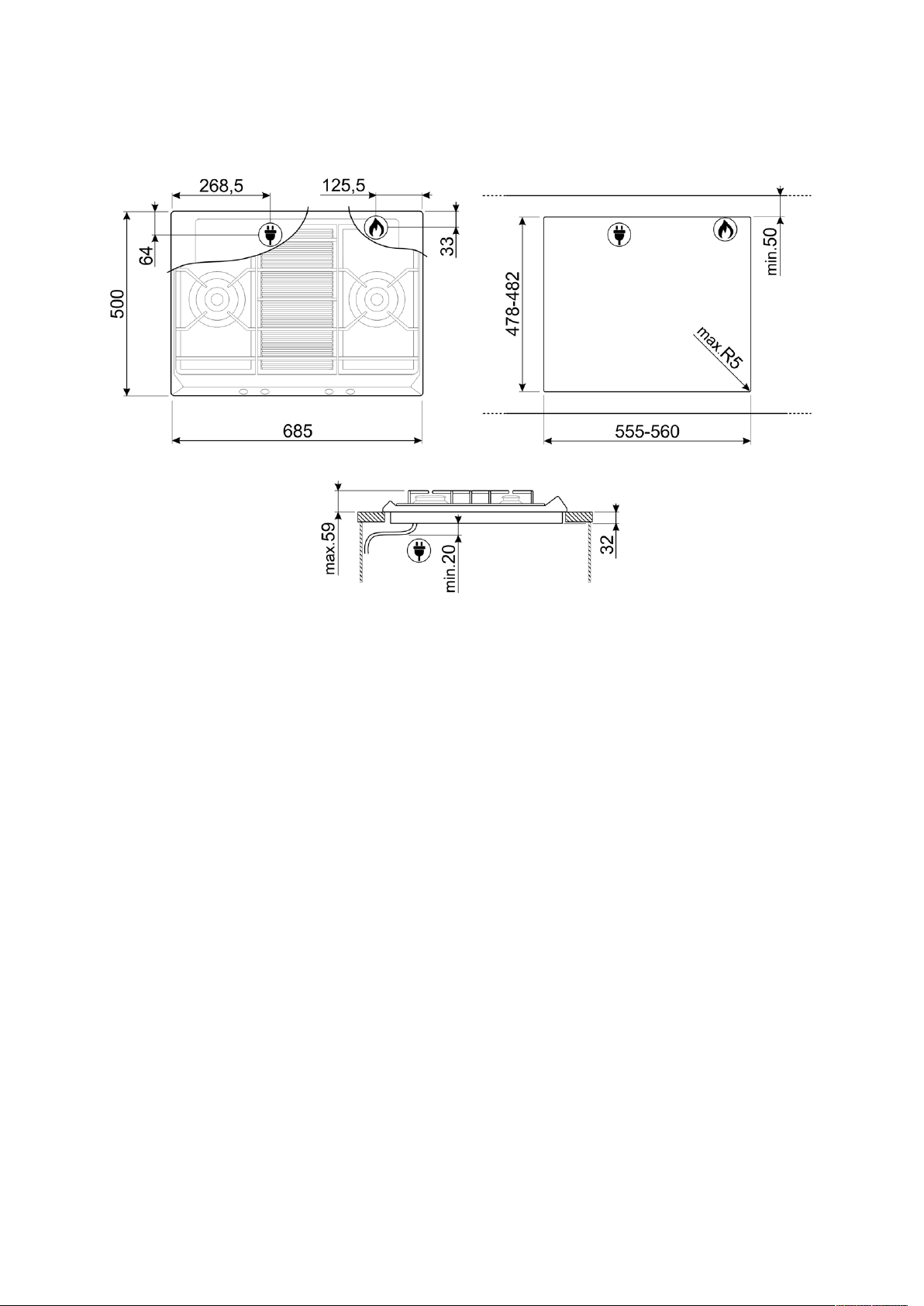

Worktop Cut-Out: 478-482x555-560 mm

COOKING ZONES

1st zone position: Left • 2nd zone position: Right • 1st zone type: Gas - 2UR (dual) • 2nd zone type: Gas - 2UR (dual) • 1st zone

power: 5.00 kW • 2nd zone power: 5.00 kW

TECHNICAL FEATURES

Gas Type: G20 Natural gas • Gas safety valves: Yes • Automatic Ignition: Yes

ELECTRICAL CONNECTION

Gas connection rating (W): 9900 W • Electrical connection rating (W): 1 W • Voltage (V): 220-240 V • Frequency (Hz): 50/60 Hz

• Power supply cable length: 120 cm

LOGISTIC INFORMATION

Dimensions of the product (mm): 32x685x500 • Depth: 500 mm • Width: 685 mm • Product Height: 32 mm

ACCESSORIES INCLUDED

Other gas nozzles included: G30 GPL Liquid gasWok stand: 1

OPTIONAL

6MP700AO: Knobs Set, Hobs6MP700AX: Knobs Set, Hobs6MP700PO: Knobs Set, Hobs6MP700RWX: Knobs Set,

Hobs6MP700BS: Knobs Set, Hobs6MPF2465X: Knobs Set, HobsC70CX-1: Cover, HobsC70CEB-1: Cover, HobsC70CA-1: Cover,

HobsC70CD-1: Cover, HobsC70CNE-2: Cover, HobsC70CP-1: Cover, HobsTPK: Teppanyaki grill, HobsBB3679: Grill, HobsGRW:

Reduction Grid, Hobs
