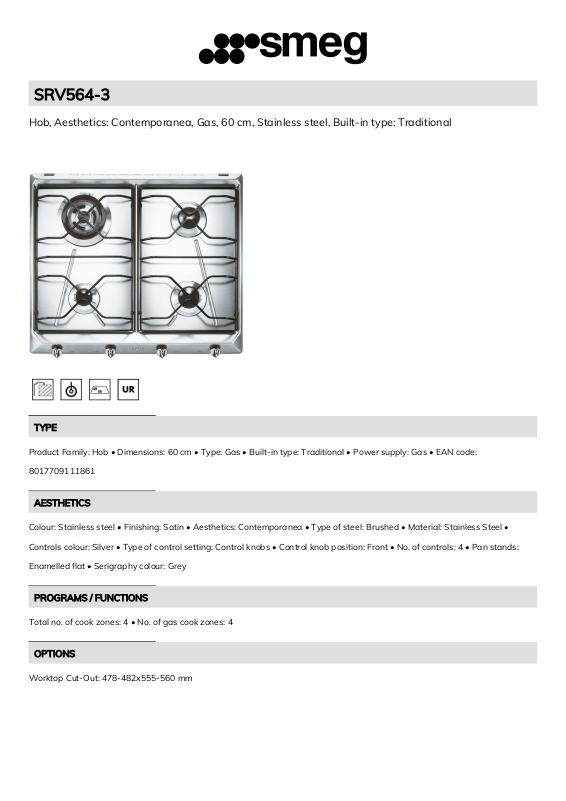

Smeg SRV564-3 Technical sheet

SRV564-3

Hob, Aesthetics: Contemporanea, Gas, 60 cm, Stainless steel, Built-in type: Traditional

TYPE

Product Family: Hob • Dimensions: 60 cm • Type: Gas • Built-in type: Traditional • Power supply: Gas • EAN code:

8017709111861

AESTHETICS

Colour: Stainless steel • Finishing: Satin • Aesthetics: Contemporanea • Type of steel: Brushed • Material: Stainless Steel •

Controls colour: Silver • Type of control setting: Control knobs • Control knob position: Front • No. of controls: 4 • Pan stands:

Enamelled flat • Serigraphy colour: Grey

PROGRAMS / FUNCTIONS

Total no. of cook zones: 4 • No. of gas cook zones: 4

OPTIONS

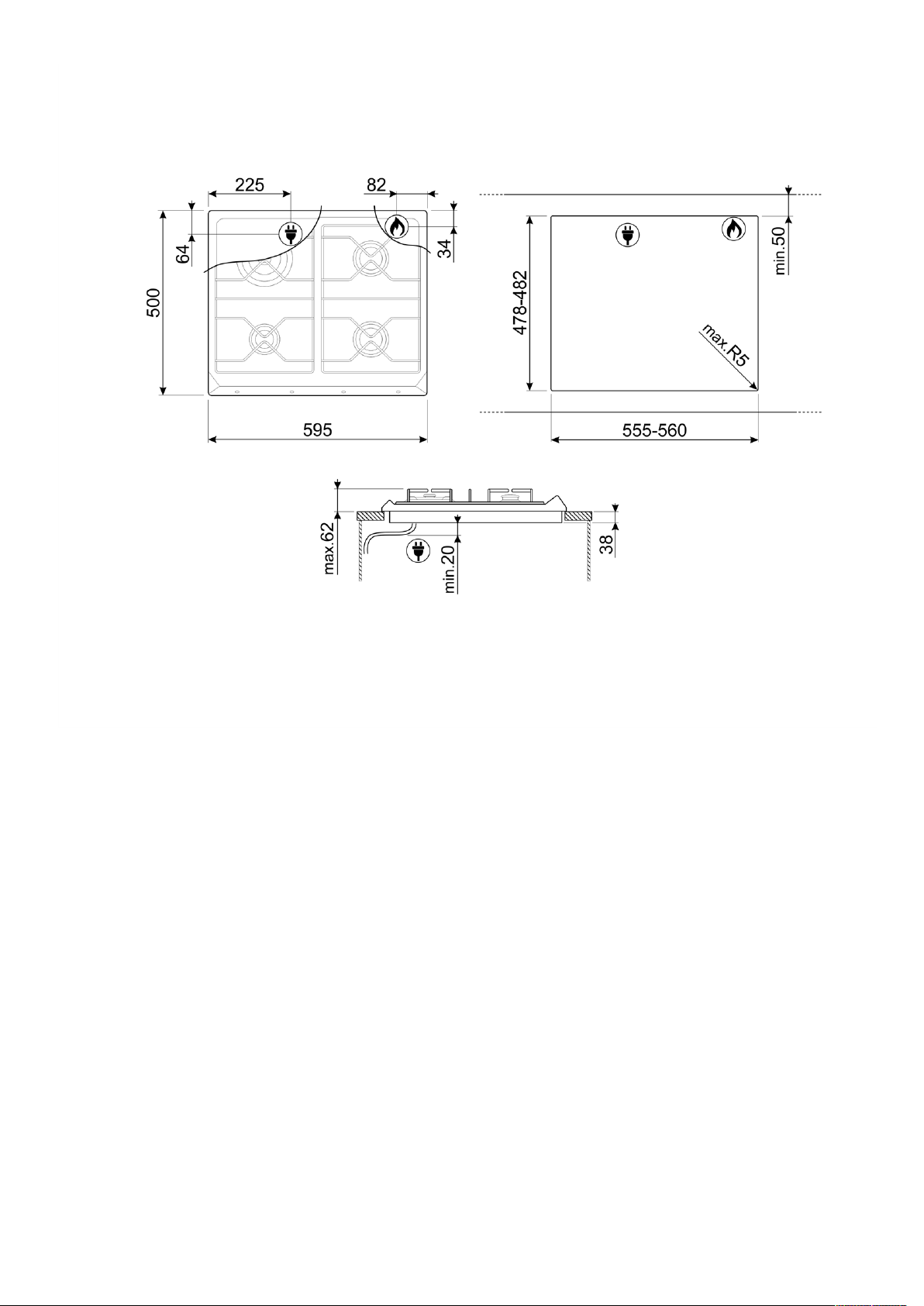

Worktop Cut-Out: 478-482x555-560 mm

COOKING ZONES

1st zone position: Front-left • 2nd zone position: Rear-left • 3rd zone position: Rear-right • 4th zone position: Front-right • 1st

zone type: Gas - AUX • 2nd zone type: Gas - UR • 3rd zone type: Gas - Semi Rapid • 4th zone tipe: Gas - Semi Rapid • 1st zone

power: 1.10 kW • 2nd zone power: 3.30 kW • 3rd zone power: 1.70 kW • 4th zone power: 1.70 kW

TECHNICAL FEATURES

Gas Type: G20 Natural gas • Gas safety valves: Yes • Automatic Ignition: Yes

PERFORMANCE / ENERGY LABEL

ELECTRICAL CONNECTION

Gas connection rating (W): 7800 W • Power supply cable length: 120 cm

LOGISTIC INFORMATION

Dimensions of the product (mm): 30x595x500 • Depth: 500 mm • Width: 595 mm • Product Height: 30 mm

ACCESSORIES INCLUDED

Other gas connections provided: Conical

OPTIONAL

GGB60: Pan stands, Hobs6MP700AO: Knobs Set, Hobs6MP700AX: Knobs Set, Hobs6MP700PO: Knobs Set, Hobs6MP700RWX:

Knobs Set, Hobs6MP700BS: Knobs Set, Hobs6MPF2465X: Knobs Set, HobsC60CX-1: Cover, HobsC60CEB-1: Cover,

HobsC60CNE-2: Cover, HobsTPK: Teppanyaki grill, HobsBB3679: Grill, HobsGRW: Reduction Grid, Hobs
