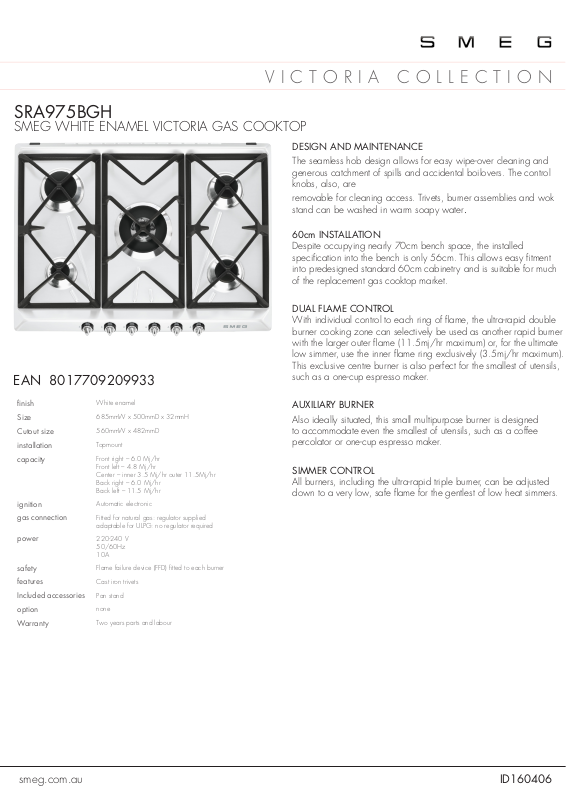

Smeg SRA975BGH Specifications Sheet

VICTORIA COLLECTION

SRA975BGH

SMEG WHITE ENAMEL VICTORIA GAS COOKTOP

DESIGN AND MAINTENANCE

The seamless hob design allows for easy wipe-over cleaning and
generous catchment of spills and accidental boilovers. The control
knobs, also, are

removable for cleaning access. Trivets, burner assemblies and wok
stand can be washed in warm soapy water.

60cm INSTALLATION

Despite occupying nearly 70cm bench space, the installed
specification into the bench is only 56cm. This allows easy fitment
into predesigned standard 60cm cabinetry and is suitable for much
of the replacement gas cooktop market.

DUAL FLAME CONTROL

With individual control to each ring of flame, the ultra-rapid double
burner cooking zone can selectively be used as another rapid burner
with the larger outer flame (11.5mj/hr maximum) or, for the ultimate
low simmer, use the inner flame ring exclusively (3.5mj/hr maximum).
This exclusive centre burner is also perfect for the smallest of utensils,

EAN 8017709209933

such as a one-cup espresso maker.

finish

Size

Cutout size

installation

capacity

ignition

gas connection

power

safety

features

Included accessories

option

Warranty

White enamel

685mmW x 500mmD x 32mmH

560mmW x 482mmD

Topmount

Front right – 6.0 Mj/hr
Front left – 4.8 Mj/hr
Center – inner 3.5 Mj/hr outer 11.5Mj/hr
Back right – 6.0 Mj/hr
Back left – 11.5 Mj/hr

Automatic electronic

Fitted for natural gas: regulator supplied
adaptable for ULPG: no regulator required

220-240 V
50/60Hz
10A

Flame failure device (FFD) fitted to each burner

Cast iron trivets

Pan stand

none

Two years parts and labour

AUXILIARY BURNER

Also ideally situated, this small multipurpose burner is designed
to accommodate even the smallest of utensils, such as a coffee
percolator or one-cup espresso maker.

SIMMER CONTROL

All burners, including the ultra-rapid triple burner, can be adjusted
down to a very low, safe flame for the gentlest of low heat simmers.

ID160406smeg.com.au

VICTORIA COLLECTION

PLEASE NOTE: drawings are not to scale. They are to assist only.
WARNING: technical specifications and product sizes can be varied by the manufacturer without notice.
Cutouts for appliances should only be by physical product measurements. The above information is indicative only.
