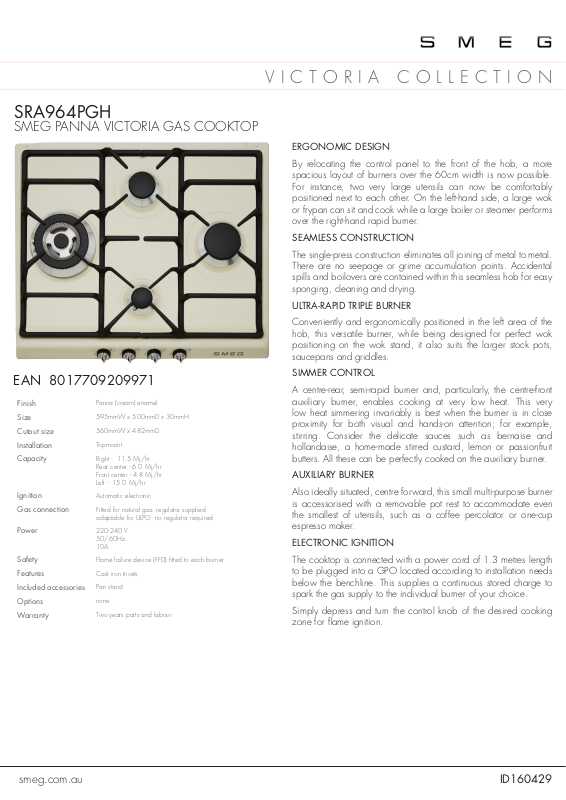

Smeg SRA964PGH Specifications Sheet

SRA964PGH

SMEG PANNA VICTORIA GAS COOKTOP

VICTORIA COLLECTION

ERGONOMIC DESIGN

By relocating the control panel to the front of the hob, a more
spacious layout of burners over the 60cm width is now possible.
For instance, two very large utensils can now be comfortably
positioned next to each other. On the left-hand side, a large wok
or frypan can sit and cook while a large boiler or steamer performs
over the right-hand rapid burner.

SEAMLESS CONSTRUCTION

The single-press construction eliminates all joining of metal to metal.
There are no seepage or grime accumulation points. Accidental
spills and boilovers are contained within this seamless hob for easy
sponging, cleaning and drying.

ULTRA-RAPID TRIPLE BURNER

Conveniently and ergonomically positioned in the left area of the
hob, this versatile burner, while being designed for perfect wok
positioning on the wok stand, it also suits the larger stock pots,
saucepans and griddles.

EAN 8017709209971

Finish

Size

Cutout size

Installation

Capacity

Ignition

Gas connection

Power

Safety

Features

Included accessories

Options

Warranty

Panna (cream) enamel

595mmW x 500mmD x 30mmH

560mmW x 482mmD

Topmount

Right - 11.5 Mj/hr
Rear center - 6.0 Mj/hr
Front center - 4.8 Mj/hr
Left - 15.0 Mj/hr

Automatic electronic

Fitted for natural gas: regulator supplied
adaptable for ULPG: no regulator required

220-240 V
50/60Hz
10A

Flame failure device (FFD) fitted to each burner

Cast iron trivets

Pan stand

none

Two years parts and labour

SIMMER CONTROL

A centre-rear, semi-rapid burner and, particularly, the centre-front
auxiliary burner, enables cooking at very low heat. This very
low heat simmering invariably is best when the burner is in close
proximity for both visual and hands-on attention; for example,
stirring. Consider the delicate sauces such as bernaise and
hollandaise, a home-made stirred custard, lemon or passionfruit
butters. All these can be perfectly cooked on the auxiliary burner.

AUXILIARY BURNER

Also ideally situated, centre forward, this small multi-purpose burner
is accessorised with a removable pot rest to accommodate even
the smallest of utensils, such as a coffee percolator or one-cup
espresso maker.

ELECTRONIC IGNITION

The cooktop is connected with a power cord of 1.3 metres length
to be plugged into a GPO located according to installation needs
below the benchline. This supplies a continuous stored charge to
spark the gas supply to the individual burner of your choice.

Simply depress and turn the control knob of the desired cooking
zone for flame ignition.

ID160429smeg.com.au

VICTORIA COLLECTION

PLEASE NOTE: drawings are not to scale. They are to assist only.
WARNING: technical specifications and product sizes can be varied by the manufacturer without notice.
Cutouts for appliances should only be by physical product measurements. The above information is indicative only.
