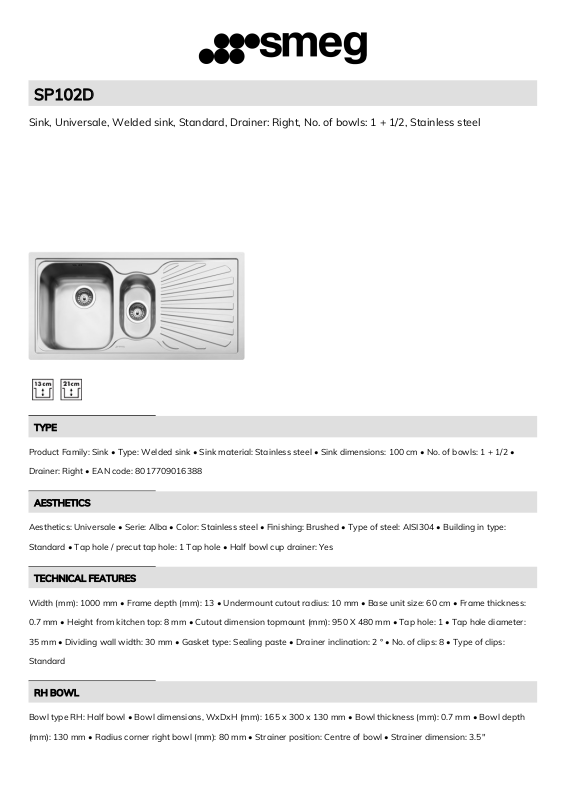

Smeg SP102D Technical sheet

SP102D

Sink, Universale, Welded sink, Standard, Drainer: Right, No. of bowls: 1 + 1/2, Stainless steel

TYPE

Product Family: Sink • Type: Welded sink • Sink material: Stainless steel • Sink dimensions: 100 cm • No. of bowls: 1 + 1/2 •

Drainer: Right • EAN code: 8017709016388

AESTHETICS

Aesthetics: Universale • Serie: Alba • Color: Stainless steel • Finishing: Brushed • Type of steel: AISI304 • Building in type:

Standard • Tap hole / precut tap hole: 1 Tap hole • Half bowl cup drainer: Yes

TECHNICAL FEATURES

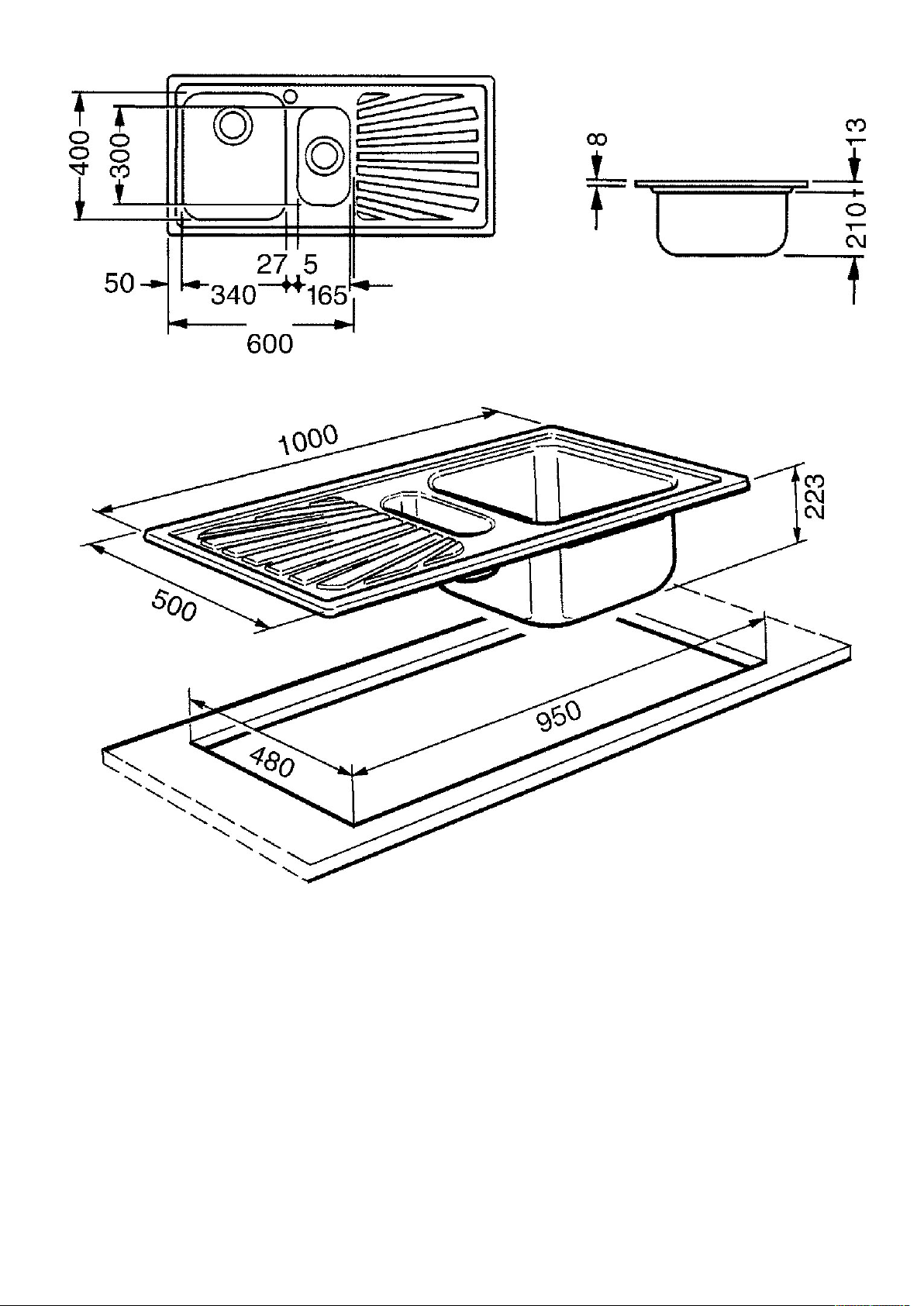

Width (mm): 1000 mm • Frame depth (mm): 13 • Undermount cutout radius: 10 mm • Base unit size: 60 cm • Frame thickness:

0.7 mm • Height from kitchen top: 8 mm • Cutout dimension topmount (mm): 950 X 480 mm • Tap hole: 1 • Tap hole diameter:

35 mm • Dividing wall width: 30 mm • Gasket type: Sealing paste • Drainer inclination: 2 ° • No. of clips: 8 • Type of clips:

Standard

RH BOWL

Bowl type RH: Half bowl • Bowl dimensions, WxDxH (mm): 165 x 300 x 130 mm • Bowl thickness (mm): 0.7 mm • Bowl depth

(mm): 130 mm • Radius corner right bowl (mm): 80 mm • Strainer position: Centre of bowl • Strainer dimension: 3.5"

LH BOWL

Bowl type LH: Traditional • Bowl dimensions LH, WxDxA (mm): 340 x 400 x 210 mm • Bowl thickness LH (mm): 0.7 mm • LH

Bowl depth (mm): 210 mm • Radius corner left bowl: 80 mm • Overflow LH bowl: Yes, traditional • Strainer position LH bowl:

Side bowl • Strainer dimension LH bowl: 3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 223x1000x500 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips, Gasket

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksHBCOL: Colander,

SinksCB34: Chopping board, SinksCOLPTX: Drainer, SinksRND2V: Rondò waste kit, SinksDB34: Basket, SinksSTABMIX:

Stabiliser, Sinks
