Smeg SO64M3S2N User manual [GB]

PRECAUTIONS 30
General safety instructions 30 Appliance purpose 33 This user manual 34 Manufacturer’s liability 34 Identification plate 34 Disposal 34 To save energy 34 How to read the user manual 34
DESCRIPTION 35
General Description 35 Control panel 35 Other parts 36 Accessories 36 Advantages of assisted steam cooking 36
We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com
USE 37
Preliminary operations 37 Using the accessories 37 Using the oven 37 Steam-assisted cooking 38 Cooking advice 40 Cooking information table 41
CLEANING AND MAINTENANCE 43
Cleaning the appliance 43 Cleaning the door 44 Cleaning the oven cavity 45 Cleaning the water circuit 46 Extraordinary maintenance 48

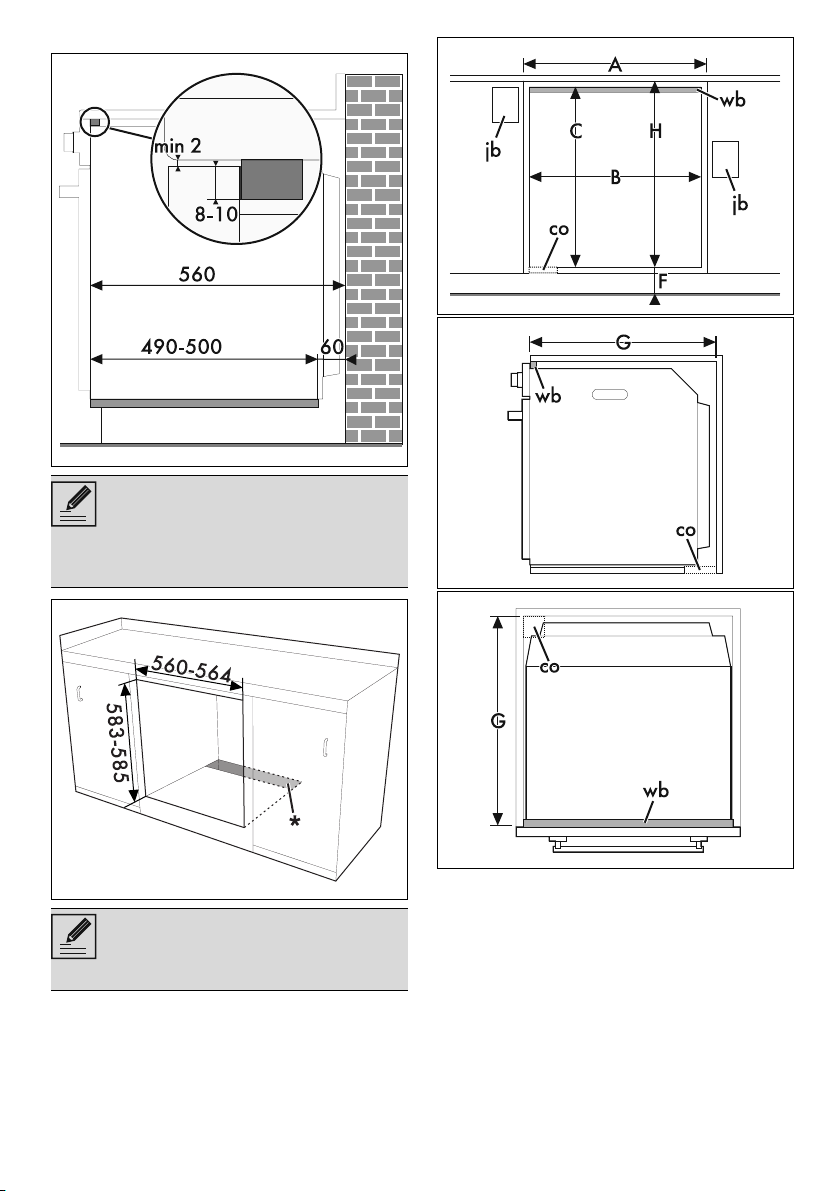

INSTALLATION 49
Electrical connection 49 Positioning 50
PRECAUTIONS
General safety instructions
Risk of personal injury
• ATTENTION: during use, the appliance and its accessible parts become very hot. Children must be kept away from the appliance.
• ATTENTION: during use, the appliance and its accessible parts become very hot. Never touch the heating elements during use.
• Protect your hands by wearing oven gloves when moving food inside the oven.
• Never try to put out a fire or flames with water: turn off the appliance and smother the flames with a fire blanket or other appropriate cover.
• This appliance may be used by children aged at least 8 and by people of reduced physical, sensory or mental capacity, or lacking in experience in the use of electrical appliances, provided that they are supervised or instructed by adults who are responsible for their safety.
• Children must not play with the appliance.
• Keep children under the age of 8 at a safe distance unless they are constantly supervised.
• Keep children under the age of 8 away from the appliance when it is in use.
• Cleaning and maintenance must not be carried out by unsupervised children.
30 - PRECAUTIONS 914779637/B
e
• The cooking process must always be monitored. A short cooking process must be continuously surveyed.
• Never leave the appliance unattended during cooking operations where fats or oils could be released, as these could then heat up and catch fire. Be very careful.
• Do not pour water directly onto very hot trays.
• Keep the oven door closed during cooking.
• If you need to move food or at the end of cooking, open the door 5 cm for a few seconds, let the steam come out, then open it fully.
• Do not insert pointed metal objects (cutlery or utensils) into the slots in the appliance.
• Switch off the appliance immediately after use.
• DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THE APPLIANCE.
•DO NOT USE AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILST IT IS IN USE.
• DO NOT MODIFY THIS APPLIANCE.
• Installation and servicing should be carried out by qualified personnel in accordance with current standards.
• Do not try to repair the appliance yourself or without
the assistance of a qualified technician.
• Do not pull the cable to unplug the appliance.
Risk of damaging the appliance
• Do not use abrasive or corrosive detergents (e.g. scouring powders, stain removers and metallic sponges), rough or abrasive materials or sharp metal scrapers on glass parts as this could cause scratch the surface and break the glass. Use wooden or plastic utensils.
• Do not sit on the appliance.
• Do not use cleaning products containing chlorine, ammonia or bleach on parts made of steel or that have metallic surface finishes (e.g. anodizing, nickel- or chromium-plating).
• Racks and trays should be inserted as far as they will go into the side guides. The mechanical safety locks that prevent them from being removed must face downwards and towards the back of the oven cavity.
• Do not use steam jets to clean the appliance.
• Do not spray any spray product
PRECAUTIONS - 31914779637/B
near the appliance.
• Do not obstruct ventilation openings and heat dispersal slots.
• Fire hazard: never leave objects in the oven cavity.
• DO NOT FOR ANY REASON USE THE APPLIANCE AS A SPACE HEATER.
• Do not use plastic cookware or containers when cooking food.
• Do not place sealed tins or containers in the oven cavity.
• Remove all trays and racks which are not required during cooking.
• Do not cover the bottom of the oven cavity with aluminium or tin foil sheets.
• Do not place pans or trays directly on the bottom of the oven cavity. If necessary use the rack for the tray.
• If you wish to use greaseproof paper, place it so that it will not interfere with the hot air circulation inside the oven cavity.
• Do not use the open door to rest pans or trays on the internal glass pane.
• Never use the oven door to lever the appliance into place when fitting.
• Avoid exerting too much pressure on the door when open.
• Do not use the handle to lift or move this appliance.
For pyrolytic appliances
• When the pyrolitic function is in use, the surfaces could reach temperatures that are higher than usual. Keep children at a safe distance.
• Before starting the pyrolytic cycle, remove any food residues or large spills from previous cooking operations from the inside of the oven.
• Before starting the pyrolytic cycle, remove all accessories from the oven cavity.
• Before starting the pyrolytic cycle, switch off the burners or electric hot plates of the hob installed above the oven.
Installation and maintenance
• THIS APPLIANCE MUST NOT BE INSTALLED IN A BOAT OR
CARAVAN.
• The appliance must not be installed on a pedestal.
• Position the appliance into the cabinet cut-out with the help of a second person.
• To prevent any possible overheating, the appliance should not be installed behind a decoration door or a panel.
• Installation and servicing should be carried out by qualified personnel in accordance with current standards.
• Have the electrical connection performed by authorised technical personnel.
32 - PRECAUTIONS 914779637/B
e
• The appliance must be connected to ground in compliance with electrical system safety standards.
• Use cables withstanding a temperature of at least 90 °C.
• The tightening torque of the screws of the terminal supply wires must be 1.5 - 2 Nm.
• If the power cable becomes damaged, contact technical support immediately to arrange for it to be replaced in order to avoid possible hazards.
• Always use any necessary/ required personal protective equipment (PPE) before performing any work on the appliance (installation, maintenance, positioning or movement).
• Before performing any operation on the appliance, switch off the power supply.
• ATTENTION: ensure that the appliance is switched off before replacing the bulb, to prevent electric shocks.
• Disconnect the appliance after the installation, through an accessible plug or switch in case of fixed connection.
• Fit the power line with an all­pole circuit breaker with a contact separation distance sufficient to provide complete disconnection in category III overvoltage conditions, pursuant to installation
regulations.
• This appliance can be used up to a maximum altitude of 2,000 metres above sea level.
For this appliance
• WARNING: ensure that the appliance is switched off before replacing the bulb, to prevent electric shocks.
• Do not rest any weight or sit on the open door of the appliance.
• Take care that no objects are stuck in the doors.
• Do not install/use the appliance outdoors.
• (on some models only) Only use the temperature probe provided or recommended by the manufacturer.
• For cooking with the Direct Steam function, take great care not to exceed the maximum capacity of the tray (250 ml).
Appliance purpose
This appliance is intended for cooking food in the home environment. Every other use is considered inappropriate. It cannot be used:
• in employee kitchens, shops, offices and other working environments.
• in farms/farmhouses.
• by guests in hotels, motels and residential environments.
• In bed and breakfast accommodation.
PRECAUTIONS - 33914779637/B
This user manual
• This user manual is an integral part of the appliance and must therefore be kept in its entirety and within the user's reach for the whole working life of the appliance.
• Read this user manual carefully before using the appliance.
• The explanations in this manual include images, which describe all that regularly appears on the display. However, it should be kept in mind that the appliance may be equipped with an updated version of the system, and as such, all that appears on the display may differ from those in the manual.
Manufacturer’s liability
The manufacturer declines all liability for damage to persons or property caused by:
• use of the appliance other than that specified;
• failure to comply with the instructions in the user manual;
• tampering with any part of the appliance;
• use of non-original spare parts.
Identification plate
The identification plate bears the technical data, serial number and brand name of the appliance. Do not remove the identification plate for any reason.
Disposal
This appliance conforms to the WEEE European directive (2012/19/EU) and must be disposed of separately from
other waste at the end of its service life. The appliance does not contain substances in
quantities sufficient to be considered hazardous to health and the environment, in accordance
with current European directives.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
To dispose of the appliance:
• Cut the power cable and remove it.
• Deliver the appliance to the appropriate recycling centre for electrical and electronic equipment waste, or return it to the retailer when purchasing an equivalent product, on a one for one basis.
Our appliances are packaged in non-polluting and recyclable materials.
• Deliver the packing materials to the appropriate recycling centre.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part of it unattended.
• Do not let children play with the plastic bags.
To save energy
• Only preheat the appliance if the recipe requires you to do so.
• Unless otherwise indicated on the package, defrost frozen foods before placing them in the oven.
• When cooking several types of food it is recommended to cook the foods one after the other to make the best use of the already hot oven.
• Use dark metal moulds: They help to absorb the heat better.
• Remove all trays and racks which are not required during cooking.
• Stop cooking a few minutes before the time normally used. Cooking will continue for the remaining minutes with the heat which has accumulated inside the oven.
• Reduce any opening of the door to a minimum to avoid heat dispersal.
• Keep the inside of the oven clean at all times.
How to read the user manual
This user manual uses the following reading conventions:
Warning/Caution
Information/Advice
34 - PRECAUTIONS 914779637/B
e
DESCRIPTION
General Description
1 Control panel 2 Seal 3 Light bulb 4 Door
Control panel
1 Minute minder knob
It allows you to use the minute minder timer or to perform manual cooking.
2 Thermostat indicator light
The indicator light comes on to indicate that the oven is heating up. It turns off as soon as it reaches the set temperature. It will then turn on and off regularly, indicating that the temperature set inside the oven is being kept constant.
3 Temperature knob
This knob allows you to select the cooking temperature.
Turn the knob clockwise to the required value, between the minimum and maximum setting.
4 Function knob
The oven's various functions are suitable for
5 Fan 6 Loading tray
Frame shelf
different cooking methods. After selecting the required function, set the cooking temperature using the temperature knob.
Turn the Function knob to the position 0 to immediately complete any cooking operation.
5 Min. level indicator light
Comes on to indicate that the liquid inside the reservoir has reached the minimum level for an assisted steam function.
6 Max. level indicator light
Comes on to indicate that the liquid inside the reservoir has reached the maximum level for an assisted steam function.
DESCRIPTION - 35914779637/B
Other parts
Shelves
The appliance features shelves to position trays and racks at different heights. The insertion heights are indicated from the bottom upwards.
Cooling fan
The fan cools the appliance and comes into operation during cooking. The fan causes a steady outflow of air from above the door which may continue for a short period of time even after the appliance has been turned off.
Oven lighting
The appliance’s interior lighting comes on:
• when the door is opened (on some models only).
• when any function is selected, apart from
ECO function (where present).
Rack
Used for supporting containers with food during cooking.
Deep tray
Useful for collecting fat from foods placed on the rack above and for cooking pies, pizzas, baked desserts, biscuits, etc.

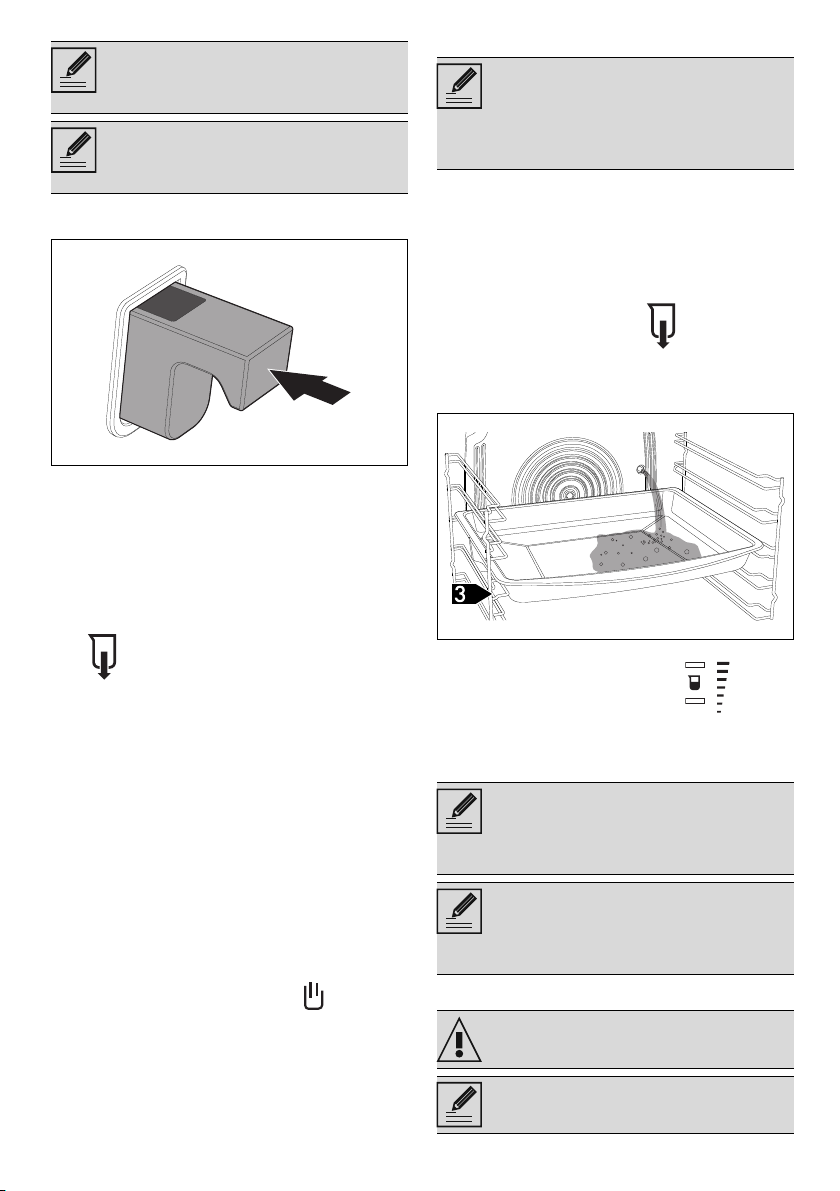

Funnel
(on some models only) When the door is open, it is not possible to turn off the interior lighting.
Accessories
• Not all accessories are available on some models.
• The accessories intended to come into contact with food are made of materials that comply with the provisions of current legislation.
• Original supplied and optional accessories can be requested to Authorised Assistance Centres. Use only original accessories supplied by the manufacturer.
36 - DESCRIPTION 914779637/B
Used for filling the reservoir with water.
Advantages of assisted steam cooking
The assisted steaming cooking system cooks any type of food much smoother and faster and finds its main applications for:
• Braising and stewing
•Cooking sauces
•Cooking au gratin
•Roasting
•Low temperature cooking
• Regenerating
• Multi-mode cooking Variations in temperature and humidity levels
allow the wished gastronomic result to be achieved.
The addition of steam allows the use of less fat in favour of a healthier and more genuine cuisine. It also minimizes the loss of weight and volume in food while cooking.
e
Assisted steam cooking is particularly suitable for cooking meat: in addition to making it very soft, it maintains it bright and makes it more succulent.
Also recommended for baking leavened and
USE
bread dough. The humidity in fact lets the dough grow and develop while cooking before creating the outer crust. The result is a lighter and more digestible mixture, recognizable by thicker pockets.
Preliminary operations
See General safety instructions.
• Remove any protective film from the outside or inside of the appliance, including accessories.
• Remove any labels (apart from the technical data plate) from the accessories and shelves.
• Remove and wash all the appliance accessories (see chapter "CLEANING AND MAINTENANCE").
First heating
1. Set a cooking time of at least one hour (see paragraph "Using the oven").
2. Heat the empty oven compartment at the maximum temperature to burn off any residues left by the manufacturing process.
When heating the appliance
• air the room;
•don't stay.
Using the accessories
Racks and trays
Racks and trays have to be inserted into the side guides until they come to a complete stop.
• The mechanical safety locks that prevent the rack from being removed accidentally must face downwards and towards the back of
the oven cavity.
Gently insert racks and trays into the oven until they come to a stop.
Clean the trays before using them for the first time to remove any residues left by the manufacturing process.
How to interpret symbols in steam assisted functions
When a function with assisted steam (cooking, special or cleaning) is selected, the appliance uses the following rules:
• the indicator lights are off
reservoir is empty;
• only one indicator light is on : the
reservoir contains at least a minimum amount of water or detergent;
• both indicator lights are on : the
reservoir is full.
: the
Using the oven
See General safety instructions.
Switching on the oven
To switch on the oven:
1. Select the cooking function using the function knob.
2. Select the temperature using the temperature knob.
3. Select cooking with the minute minder or manual cooking using the timer knob:
• Turn the knob clockwise to set the buzzer. The numbers indicated are minutes. Adjustment is progressive and intermediate positions between the figures can be used. The end of cooking buzzer interrupts oven operation.
• Turn the knob anticlockwise to to perform manual cooking.
USE - 37914779637/B
List of traditional cooking functions
Not all functions are available on some models.
Steam-assisted cooking
Reservoir filling
1. Turn the function knob to an assisted steam
FAN-ASSISTED
Intense and uniform cooking. Ideal for biscuits, cakes and multilevel cooking.
STATIC
Traditional cooking suitable for the preparation of one dish at a time. Ideal for cooking roasts, fatty meats, bread, pies.
GRILL
It allows to obtain excellent grilling and grating results. Used at the end of cooking, it gives a uniform browning to the dishes.
BASE
The heat only comes from the bottom of the cavity. Perfect for cakes, pies, tarts and pizzas.
ECO
This function is particularly suitable for cooking on a single shelf with low energy consumption. It is recommended for all types of food, excluding those that can create a lot of humidity (such as vegetables). To obtain maximum energy savings and reduce cooking times, it is recommended to place food in the oven without preheating.
function to display the level indicators .
2. Open the door and pull the loading drawer out of its housing.
3. Insert the funnel provided in the loading drawer.
4. Pour the water (using a bottle or a measuring jug) until the max. level indicator light comes on (the reservoir contains about 800 ml of water).
When using the ECO function, avoid opening the door during cooking.
In the ECO function cooking times (and any preheating) are longer and may depend on the amount of food in the cooking compartment.
The ECO function is a delicate cooking function and is recommended for food withstanding temperatures lower than 210°C; in case of cooking at higher temperatures, select another function.
38 - USE 914779637/B
e
Use cold tap water which is not too hard, softened water or still mineral water.
Do not use distilled water, tap water with a high chloride content (> 40 mg/ l), or other liquids.
5. At the end, remove the funnel and place the loading drawer back in its place.
Reservoir draining
Before draining the reservoir, wait for the oven to cool down, leaving the door open. To make sure that the water remaining in the reservoir is not too hot, wait at least 40 minutes.
After cooking:
4. Open the door
5. Place the deep tray on the third shelf from the bottom. Push it against the rear wall of the oven cavity.
6. Turn the function knob clockwise to the
If there is too much water in the reservoir, the excess water will drain into the cooking compartment:
• in this case dry with a cloth or sponge before a cooking.
• It is recommended to drain the reservoir buy 200 ml by turning the function knob clockwise to the reservoir drain function
.
6. Close the door.
Start of assisted steam cooking
1. Select the assisted steam cooking function using the function knob.
2. Select the temperature using the temperature knob.
3. Select cooking with the minute minder or manual cooking using the timer knob:
• Turn the knob clockwise to set the buzzer. The numbers indicated are minutes. Adjustment is progressive and intermediate positions between the figures can be used. The end of cooking buzzer interrupts oven operation.
• Turn the knob anticlockwise to to perform manual cooking.
reservoir drain function
The water starts to flow into the deep pan from the drain pipe on the right side of the rear wall of the oven cavity.
7. Wait for the end of the exhaust flow (check
that both level indicator lights are
switched off).
8. At the end, return the function knob to the 0 position.
It is recommended to drain at the end of each cooking, to prevent any residue of unused water from remaining inside the reservoir.
After a long period of inactivity it is recommended to make a reservoir filling and draining cycle to rinse the steam circuit.
9. Drain the water from the deep pan.
Take care: the water may be very hot.
.
The drained water cannot be used for other cooking.
USE - 39914779637/B
List of steam assisted cooking functions
Assisted-steam cooking at 40%: the steam is delivered constantly throughout the cooking time and is recommended for long cooking of meat, fish, timbales, tarts, lasagna, etc... Particularly suitable for cooking fish and meat with a high fat content. The steam melts them while keeping the food soft, making it more digestible and nicely browned on the surface.
Assisted steam function at 20%: the steam is delivered in small pulses. It is recommended for baking cakes and bread-type products (bread, focaccia, etc...) where the amount of steam must be minimal to allow the food to lose its moisture and cook internally. The steam facilitates leavening during the first few minutes of baking, creating a shiny, crisp surface. Steam-assisted cooking is recommended only for the first 5-10 minutes, then switch to the corresponding function without steam to complete cooking. This function is also indicated for the preparation of products breaded with egg and breadcrumbs, as it restores crunchiness to the breadcrumb coat, thus simulating the result of frying, but more digestible.
20% STEAM-ASSISTED
the steam is delivered in small pulses. It is recommended for baking cakes and bread-type products (bread, focaccia, etc...) where the amount of steam must be minimal to allow the food to lose its moisture and cook internally. The steam facilitates leavening during the first few minutes of baking, creating a shiny, crisp surface.
40% STEAM-ASSISTED
the steam is delivered constantly throughout the cooking time and is recommended for long cooking of meat, fish, timbales, tarts, lasagne, etc...
DRAIN
Useful for draining the tank after a cooking or descaling process.
Cooking advice
General advice
• Use a fan-assisted function to achieve consistent cooking at several levels.
• It is not possible to shorten cooking times by increasing the temperature (the food could be overcooked on the outside and undercooked on the inside).
Advice for cooking meat
• Cooking times vary according to the thickness and quality of the food and to consumer taste.
• Turn the food to brown both sides.
• Use a meat thermometer when roasting meat, or simply press on the roast with a spoon. If it is hard, it is ready; If not, it needs another few minutes cooking.
Advice for cooking with the Grill
• Meat can be grilled even when it is put into the cold oven or into the preheated oven if you wish to change the effect of the cooking.
• When using the fan-assisted with grill function(if any), we recommend that you preheat the oven before grilling.
• We recommend placing the food at the centre of the rack.
• With the Grill function, we recommend that you set the temperature to the maximum value to optimise cooking.
Advice for cooking desserts/pastries and biscuits
• Use dark metal moulds: They help to absorb the heat better.
• The temperature and the cooking time depend on the quality and consistency of the dough.
• To check whether the dessert is cooked right through: At the end of the cooking time, put a toothpick into the highest point of the dessert. If the dough does not stick to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes out of the oven, on the next occasion reduce the set temperature by about 10°C, selecting a longer cooking time if necessary.
40 - USE 914779637/B
e
Advice for steam cooking
• For bread-type products (bread, focaccia, etc.) and frozen desserts, where steam is useful during the first few minutes of cooking, we recommend setting a steam function for the first 5-10 minutes and then switching to ventilated mode to complete cooking.
• For steam heating insert in a cold oven.
Advice for defrosting and proving
• Place frozen foods without their packaging in a lidless container on the first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on the second level and a tray on the first level. In

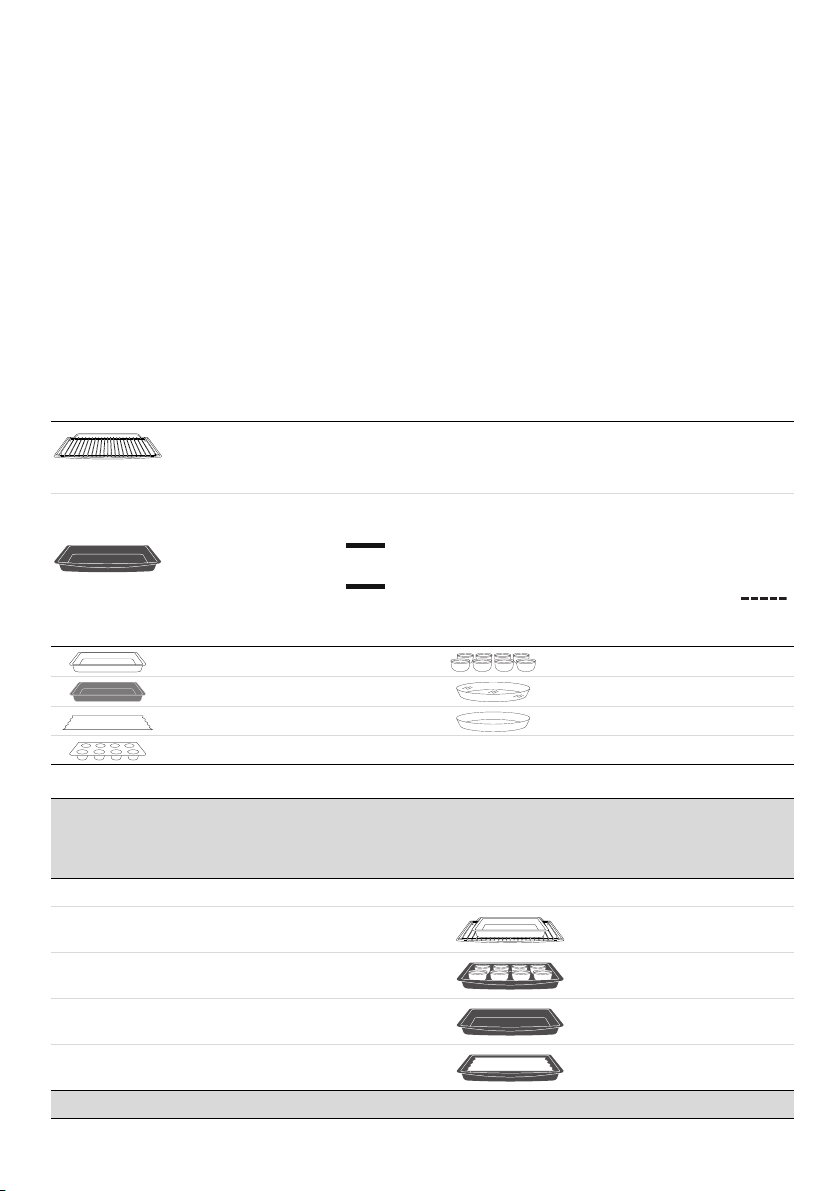

Cooking information table
Key
We recommend the use of the grill as a support surface for baking moulds/casseroles.
Rack
In the absence of the baking tray grill, the grill can be used as a base for grilling with the deep baking tray placed on a shelf below to collect the juices.
We recommend the use of the deep baking tray for cooking on one level only. Place the deep baking tray on the centre shelf when using the fan-assisted functions. When
this way, the liquid from the defrosting food drains away from the food.
• The most delicate parts can be covered with aluminium foil.
• For successful proving, a container of water should be placed in the bottom of the oven.
To save energy
• Stop cooking a few minutes before the time normally used. Cooking will continue for the remaining minutes with the heat which has accumulated inside the oven.
• Reduce any opening of the door to a minimum to avoid heat dispersal.
• Keep the inside of the appliance clean at all times.
Deep tray
preh = preheating
Pasta au gratin (single mould) 0.35
Rice timbale (single portion) 0.1
Bran baguette 0.7
Focaccia 1.3
The times indicated in the table do not include preheating times and are provided only as a guide.
using the STATIC function place the deep baking tray on the required shelf.
Place the baking tray on the last shelf with the baking tray grill to cook in GRILL mode .
Casserole aluminium baking cup
roast baking dish aluminium mould
baking paper mould for cakes
mould for muffins
Food
Weigh
t
Function Shelf
(kg)
DOUGH AND LEAVENED PRODUCTS
STEAM
20%
STEAM
40%
STEAM
20%
STEAM
20%
4 180 15 yes
4 180 15 yes
2 190 50 - 55 yes
3 200 17 - 20 yes
Temp.
(°C)
Time
(minutes)
preh
USE - 41914779637/B
Food
Weigh
t
(kg)
Function Shelf
Temp.
(°C)
Time
(minutes)
preh
Note: baking time may vary depending on the dough type. Note: for bread-type products (bread, focaccia, etc.) where steam is useful during the first few minutes of
cooking, we recommend setting a steam function for the first 5-10 minutes and then switching to VENTILATED mode to complete cooking.
MEAT
1
Pork loin
Roast chicken
1
Whole piece.
1
0.7
1.2
STEAM
20%
STEAM
40%
4 180 65 yes
4 230 45 - 50 yes
Note: turn the food to brown both sides.
FISH
Whole fish (fresh) 0.6
STEAM
20%
4 200 20 yes
Note: the indicated time is for a well cooked fish.
VEGETABLES AND SIDE DISHES
Roast potatoes
Crusty courgettes
1
1
Vegetable ratatouille 1.5
Pre-cooked vegetable flans (single portion)
Quiche
1
2 - 3
Tomato sauce (fresh tomatoes) 0.5
1
The baking time and shelf may vary depending on the size of the food and the desired degree of browning.
2
The baking times may vary depending on the thickness and stuffing.
3
For bread-type products where steam is useful during the first few minutes of baking, we recommend setting a
0.7
1.5
0.1
1.0
STEAM
40%
STEAM
40%
STEAM
40%
STEAM
40%
STEAM
20%
STEAM
20%
4 230 - 240 25 yes
4 250 15 yes
4 220 20
3 130 - 140 25 yes
2 200 13 + 7 yes
4 180 30
steam function for the first 5-10 minutes and then switching to FAN-ASSISTED mode to complete baking.
DESSERTS/PASTRIES
Lemon muffins
1
60 g
(each)
STEAM
20%
3 180 18 yes
The times indicated in the table do not include preheating times and are provided only as a guide.
42 - USE 914779637/B
e
Weigh
Food
Chocolate cake (single
2
portion)
Cream puffs
Note: baking time may vary depending on the weight of the single portion.
Slices or single portions of pies, quiches...
pasta, baked pasta, lasagne... 0.5
Sliced roast meats, meat small pieces, spare ribs...
Fish (whole or fillets) -
Slice of strudel, apple pie... -
Note: for steam heating insert in a cold oven.
Meat 0.5
Meat 1.0
Fish 0.4
Fish 0.8
Bread roll 0.2
Loaf 0.5
The times indicated in the table do not include preheating times and are provided only as a guide.
3
t
(kg)
80 g
(each)
(small)
-
-
Function Shelf
STEAM
20%
STEAM
20%
FOOD STEAM HEATING
STEAM
20% or 40%
STEAM
20% or 40%
STEAM
20% or 40%
STEAM
20% or 40%
STEAM
20%
FAN-
ASSISTED
FAN-
ASSISTED
FAN-
ASSISTED
FAN-
ASSISTED
FAN-
ASSISTED
FAN-
ASSISTED
3 190 - 200 7 yes
2 190 17 yes
2 120 - 130 20 - 25 no
2 120 - 130 20 - 25 no
2 120 - 130 20 - 30 no
2 120 - 130 15 - 20 no
2 120 - 130 10 - 15 no
DEFROSTING
1 - 2 0 90 - 100 no
1 - 2 0 120 - 140 no
1 - 2 0 80 - 90 no
1 - 2 0 120 - 140 no
1 - 2 0 30 - 40 no
1 - 2 0 50 - 60 no
Temp.
(°C)
Time
(minutes)
preh
CLEANING AND MAINTENANCE
Cleaning the appliance
See General safety instructions.
Cleaning the surfaces
To keep the surfaces in good condition, they
should be cleaned regularly after use. Let them cool first.
Ordinary daily cleaning
Always and only use specific products that do not contain abrasives or chlorine-based acids. Pour the product onto a damp cloth and wipe
CLEANING AND MAINTENANCE - 43914779637/B
the surface, rinse thoroughly and dry with a soft cloth or a microfibre cloth.
Food stains or residues
Do not use steel sponges and sharp scrapers as they will damage the surface. Use normal, non-abrasive products and a wooden or plastic tool, if necessary. Rinse thoroughly and dry with a soft cloth or a microfibre cloth.
Do not allow residues of sugary foods (such as jam) to set inside the oven. If left to set for too long, they might damage the enamel lining of the oven.
Cleaning the door
Door disassembly
For easier cleaning it is recommended to remove the door and place it on a tea towel.
To remove the door proceed as follows:
1. Open the door completely and insert two pins into the holes on the hinges indicated in the figure.
that grooved sections A are resting completely in the slots.
4. Lower the door and once it is in place remove the pins from the holes in the hinges.
Cleaning the door glazing
The glass in the door should always be kept thoroughly clean. Use absorbent kitchen roll. In case of stubborn dirt, wash with a damp sponge and an ordinary detergent.
Removing the internal glass panes
For easier cleaning the internal glass panes of the door can be removed.
1. Lock the door with the appropriate pins.
2. Remove the internal glass pane by pulling the rear part gently upwards, following the movement indicated by the arrows 1.
2. Grasp the door on both sides with both hands, lift it forming an angle of around 30° and remove it.
3. To reassemble the door, put the hinges in the relevant slots in the oven, making sure
5. Pull the intermediate glass unit downwards
44 - CLEANING AND MAINTENANCE 914779637/B
3. Release the front pins following the movement indicated by the arrows 2
4. Then remove the inner glass pane from the front profile.
e
from the door and then lift it upwards.
N.B.: in some models, the intermediate glass unit consists of two glasses.
During this step, the upper grommets may come out of their seats.
6. Insert the front grommets into their seats. The feet of the grommets must be facing the outer glass
7. Clean the external glass pane and the panes removed previously.
9. Reinsert the intermediate glass unit and reposition the inner glass.
10. Be sure to fit the 4 pins of the inner glass well into their seats on the door.
Cleaning the oven cavity
In order to keep your oven in the best possible condition, clean it regularly after letting it cool down.
Avoid letting food residue dry inside the oven cavity, as this could damage the enamel.
Take out all removable parts before cleaning. For easier cleaning, it is recommended to remove:
•the door
• The rack/tray support frames
•The oven seal.
8. Use absorbent kitchen roll. In case of stubborn dirt, wash with a damp sponge and neutral detergent.
In the event you are using specific cleaning products, we recommend running the oven at maximum temperature for 15-20 minutes in order to eliminate any residue.
Drying
Cooking food generates moisture inside the appliance. This is a normal phenomenon and does not affect the appliance’s operation in any way.
Each time you finish cooking:
1. Let the appliance cool down.
2. Remove any dirt from inside the appliance.
3. Dry the interior of the appliance with a soft cloth.
CLEANING AND MAINTENANCE - 45914779637/B
4. Leave the door open until the inside of the appliance has dried completely.
Removing racks/trays support frames
Removing the rack/tray support frames enables the sides to be cleaned more easily. To remove the rack/tray support frames:
• Pull the frame towards the inside of the oven cavity to unhook it from its groove A, then slide it out of the seats B at the back.
• When cleaning is complete, repeat the above procedures to put the rack/tray support frames back in.
Cleaning the water circuit
The presence of scale due to lack of descaling can compromise correct operation of the appliance in the long term.
Periodically it is necessary to carry out the descaling procedure of the hydraulic circuit.
Depending on the degree of water hardness (°dH or °dF), the number of hours after which descaling is required is as follows:
°dH °dF
0 - 11 0 - 20 35
12 - 17 21 - 30 30
18 - 24 31 - 42 25
25 - 30 43 - 53 15
31 - 50 54 - 90 10
Preliminary operations
1. Mix 100 g of citric acid with 650 ml of water in a jug.
Steam cooking
hours
3. Open the door and pull the loading drawer out of its housing.
4. Insert the funnel provided in the loading drawer.
5. Pour in the descaling solution until the max. level indicator light comes on.
Do not use lactic acid or other descaling agents.
2. Turn the function knob on the 40% steam assisted function.
46 - CLEANING AND MAINTENANCE 914779637/B
e
6. At the end, remove the funnel and place the loading drawer back in its place.
4. The descaling solution starts to flow into the deep pan from the drain pipe on the right side of the rear wall of the oven cavity.
If there is too much water in the reservoir, the excess water will drain into the oven cavity. In this case dry with a cloth or sponge before proceeding.
Descaling
1. Close the door.
2. Use the minute minder knob to set a timed cooking of 10 minutes.
3. Turn the temperature knob to the value of 200°C.
4. Wait for the function to be executed until the end.
5. When the function has finished, turn the function and temperature knobs to the 0 position.
6. Use the minute minder knob to set a timer of 50 minutes and leave the descaling solution to act.
Reservoir draining
After descaling:
1. Open the door
2. Place the deep tray on the third shelf from the bottom. Push it against the rear wall of the oven cavity.
3. Turn the function knob clockwise to the
reservoir drain function
.
5. Wait for the end of the exhaust flow (check
that both level indicator lights are
switched off).
6. At the end, return the function knob to the 0 position.
7. Drain the descaling solution from the deep pan.
Take care: the descaling solution may be still hot.
Rinse
Once the descaling agent has been drained, the hydraulic circuit must be rinsed with clean
water.
Use cold tap water which is not too hard, softened water or still mineral water.
Do not use distilled water, tap water with a high chloride content (> 40 mg/ l), or other liquids.
1. Open the door.
2. Place the deep tray on the third shelf from the bottom. Push it against the rear wall of the oven cavity.
3. Pull the loading drawer out of its housing.
4. Insert the funnel provided in the loading drawer.
5. Pour one litre of water using a bottle or a measuring jug.
The overflowing of water inside the oven cavity is not intended as a malfunction, rather it is part of the rinsing procedure.
CLEANING AND MAINTENANCE - 47914779637/B
6. Turn the function knob clockwise to the
14. Turn the function knob clockwise to the
reservoir drain function
.
The water starts to flow into the deep pan from the drain pipe on the right side of the rear wall of the oven cavity.
7. Wait for the end of the exhaust flow (check
that both level indicator lights are
switched off).
8. At the end, return the function knob to the 0 position.
9. Drain the water from the deep pan.
10.Repeat the rinse operation a second time.
Repeat the operation more times if the water drained into the deep tray is still dirty.
11.Wipe off any spillage of water in the oven cavity with a cloth or sponge.
Sanitization
Sanitization with steam allows to remove the last residues of descaling from the hydraulic circuit.
1. Open the door.
2. Turn the function knob on the 40% steam assisted function.
3. Turn the temperature knob to the value of 200°C.
4. Pull the loading drawer out of its housing.
5. Insert the funnel provided in the loading drawer.
6. Pour 500 ml water (using a bottle or a measuring jug).
7. At the end, remove the funnel and place the loading drawer back in its place.
8. Close the door.
9. Use the minute minder knob to set a timed cooking of 30 minutes.
10.Wait for the function to be executed until the end.
11.When the function has finished, turn the function and temperature knobs to the 0
position.
Take care: wait for the oven cavity to cool down.
12.Open the door
13.Place the deep tray on the third shelf from the bottom. Push it against the rear wall of the oven cavity.
reservoir drain function
.
The water starts to flow into the deep pan from the drain pipe on the right side of the rear wall of the oven cavity.
15. Wait for the end of the exhaust flow (check
that both level indicator lights are
switched off).
16.At the end, return the function knob to the 0 position.
17. Drain the water from the deep pan.
18.Wipe off any spillage of water in the cooking compartment with a cloth or sponge.
19.Close the door.
Extraordinary maintenance
Seal maintenance tips
The seal should be soft and elastic.
• To keep the seal clean, use a non-abrasive sponge and wash with lukewarm water.
Replacing the internal light bulb
Power voltage
Danger of electrocution
• Unplug the appliance.
• Wear protective gloves.
1. Completely remove all accessories from inside the oven.
2. Remove the rack/tray support frames.
3. Use a tool (e.g. a spoon) to remove the bulb cover.
Take care not to scratch the enamel of the oven cavity wall.
48 - CLEANING AND MAINTENANCE 914779637/B
e
4. Slide out and remove the light bulb. 5. Replace the light bulb with one of the same type (40 W).
6. Refit the cover. Ensure the moulded part of the glass (A) is facing the door.
Do not touch the halogen light bulb directly with your fingers, use an insulating material.
7. Press the cover completely down so that it attaches perfectly to the bulb support.
INSTALLATION
Electrical connection
See General safety instructions.
General information
Check the mains characteristics against the data indicated on the plate.
The identification plate bearing the technical data, serial number and brand name is visibly positioned on the appliance.
Do not remove this plate for any reason. The appliance must be connected to ground
using a wire that is at least 20 mm longer than the other wires.
The appliance can work in the following modes:
220-240 V~
3 x 1.5 mm² three-core cable.
The values indicated above refer to the cross section of the internal lead.
The aforementioned power cables are sized taking into account the coincidence factor (in compliance with standard EN 60335-2-6).
Fixed connection
Fit the power line with an all-pole circuit breaker with a contact separation distance sufficient to provide complete disconnection in category III overvoltage conditions, pursuant to installation regulations.
For the Australian/New Zealand market:
The circuit breaker incorporated in the fixed connection must comply with AS/NZS 3000.
Connection with plug and socket
Make sure that the plug and socket are of the same type. Avoid using adapters, gang sockets or shunts as these could cause overheating and a risk of burns.
INSTALLATION - 49914779637/B
Cable replacement
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
1. Unscrew the rear casing screws and remove the casing to access the terminal board.
2. Replace the cable.
3. Make sure that the cables (for the oven or any hob) follow the best route in order to avoid any contact with the appliance.
Positioning
See General safety instructions.
Position of the power cable
Fastening bushings
1. Remove the bushing covers on the front of the appliance.
2. Mount the appliance into the recess.
3. Secure the appliance to the cabinet using screws.
4. Cover the bushings with the previously removed covers.
Appliance overall dimensions (mm)
Front panel seal
Glue the supplied seal to the rear part of the front panel to avoid water or other liquids from leaking in.
50 - INSTALLATION 914779637/B
e
Mounting into a column (mm)
*Make sure that the cabinet top/rear
section has an opening approx. 35-40 mm deep.
INSTALLATION - 51914779637/B
A min. 603 mm
B 560 - 564 mm
C 583 - 585 mm
D 9 - 11 mm
Emin. 5 mm
F 121 - 1105 mm
G min. 560 mm
H min. 594 mm
co
Cutout for power cord (min. 6 cm
2
)
jb Electrical connection box
52 - INSTALLATION 914779637/B
e
Mounting under worktops (mm)
If the appliance is to be built-in under a worktop, a wooden bar has to be installed order to use the seal that is glued to the back of the front panel to prevent water or other liquids leaking in.
*Make sure that the piece of furniture
top/rear part has an opening approx. 60 mm deep.
INSTALLATION - 53914779637/B
A min. 603 mm
B 560 - 564 mm
C 583 - 585 mm
D 9 - 11 mm
Emin. 5 mm
F 121 - 1105 mm
G min. 560 mm
H min. 594 mm
co
Cutout for power cord (min. 6 cm
jb Electrical connection box
wb Wooden bar (recommended)
2
)
Mounting under worktops (mm) (pyrolytic models only)
Whenever a hob is installed above the oven, a wooden separator has to be installed at a minimum distance of 20 mm from the top of the oven to prevent overheating when the two appliances are used at the same time. It must only be possible to remove the separator by using suitable tools.
When using a wooden separator, a wooden bar has to be installed under the worktop in order to use the seal that is glued to the back of the front panel to prevent water or other liquids leaking in.
54 - INSTALLATION 914779637/B
Loading...
