Dear Customer,
The manufacturer reserves the right to make any changes deemed useful for improvement of its products without prior
notice. The illustrations and descriptions contained in this manual are therefore not binding and are merely indicative.
Thank you for choosing a Smeg product.
By choosing Smeg, you have selected an appliance which combines iconic style with
innovative technical design and attention to detail.
This appliance coordinates perfectly with other Smeg products, or works equally well
as a standalone statement piece in your kitchen.
We hope you enjoy using your new appliance!
For any further information please visit www.smeg.com or www.smegusa.com (website
valid only for the USA, Canada and South America).
SMSG01
Rotary slicer and shredder accessory
Contents
ENEN
1 Instructions 21
1.1 Introduction 21
1.2 User manual 21
1.3 Intended use 21
1.4 Manufacturer liability 22
1.5 Disposal 22
2 Description 23
2.1 Product description 23
2.2 Description of parts 24
3 Use 25
3.1 Before first use 25
3.2 Installing on the stand mixer attachment 26
3.3 Using the rotary slicer and shredder accessory 29
4 Cleaning and Care 30
4.1 Instructions 30
4.2 Maintenance 30
4.3 Cleaning the rotary slicer and shredder accessory 30
Important Safeguards
WARNING: If the instructions contained in this manual are not followed
precisely, fire or explosion may result causing property damage, personal
injury or death.
READ AND SAVE THESE INSTRUCTIONS - Your safety and the safety of
others are very important.
We have provided many important safety messages throughout this manual and
on the appliance.
Read all the instructions before using the appliance and always obey all safety
messages.
17
Important Safeguards
RECOGNIZE SAFETY INFORMATION
This is a safety alert symbol. This symbol alerts you to potential hazards that can
result in severe personal injury or death.
UNDERSTAND SIGNAL WORDS
A signal word - DANGER, WARNING or CAUTION - is used with the safety alert
symbol. DANGER denotes the most serious hazards. It means you could be killed
or seriously injured if you do not immediately
means you could be killed or seriously injured if the instructions are not followed.
CAUTION indicates a potentially hazardous situation, which, if not avoided, could
result in minor to moderate injury.
• This appliance is intended for use in the home only.
• Use this appliance only for its intended purpose. The
manufacturer cannot be held liable for damage caused by
WARNING
improper use of this appliance.
• This appliance complies with current safety regulations.
Improper use of this appliance can result in personal injury
and material damage.
• Read all the instructions before installing or using the
appliance for the first time.
• Keep these operating instructions in a safe place and pass
them on to any future user.
follow the instructions. WARNING
The safety messages will inform you of potential hazards, on how to avoid the risk of injury
and what can occur if the instructions are not followed.
IMPORTANT: Observe all codes and ordinances in force.
WARNING: For your safety, the instructions contained in this manual must be
followed to minimize the risk of fire or explosion and to prevent property damage,
personal injury or death.
Do not store or use gasoline or other flammable vapors, liquids or materials near this or any
other appliance.
NOTE: This appliance is NOT designed for installation in manufactured (mobile)
homes or in recreational vehicles (RVs).
DO NOT install this appliance outdoors.
18
Important Safeguards
ENEN
WARNING
To reduce the risk of fire, electrical shock, personal injury, or
damage when using the appliance, follow basic safety
precautions, including the following:
The rotary slicer and shredder accessory is
an accessory of the stand mixer.
Follow all safety instructions in order to use
the appliance safely.
• Read this user manual and the manual
supplied with the stand mixer carefully
before using the appliance.
• To protect against electric shock, do not
immerse the appliance, the power cord
or the plug in water or any other liquid.
• Do not use the stand mixer when the
power cord or the plug is damaged or
after the appliance malfunctions, or
when the appliance has fallen or is
damaged in any manner. Return
appliance to the nearest authorized
service center for examination, repair or
adjustment.
• If the power cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
• The cable is short to prevent accidents.
Do not use an extension cord.
• Do not let cord hang over edge of table
or counter or touch hot surfaces.
• Do not pull on the cord to unplug it from
the power socket.
• This appliance shall not be used by
children.
• Keep the appliance and its cord out of
reach of children.
• Do not place the appliance above or
near lit gas or electric burners, inside an
oven or near other heat sources.
• Switch off the appliance immediately
after use.
• Always disconnect the appliance from
the supply if it is left unattended and
before assembling, disassembling or
cleaning.
• This appliance can be used by children
aged from 8 years and above if they
have been given supervision or
instruction concerning use of the
appliance in a safe way and if they
understand the hazards involved.
• Cleaning and user maintenance shall not
be made by children unless they are
aged from 8 years and above and
supervised.
• Do not leave the appliance unattended
while it is operating.
• In case of fault, repairs should only be
carried out by a qualified technician.
• Never try to put out a fire or flames with
water: turn off the appliance, remove the
plug from the socket and smother the
flames with a fire blanket or any other
appropriate cover.
• Do not modify the appliance.
19
Important Safeguards
For the appliance and the rotary slicer
and shredder accessory
• Unplug the appliance from the power
socket after use and before cleaning it.
• Do not use the rotary slicer and shredder
accessory if the stand mixer power cord
or the plug is damaged, or if the stand
mixer has been dropped or is damaged
in any manner.
• Do not use the rotary slicer and shredder
accessory if it is damaged.
• Do not leave the rotary slicer and
shredder accessory unattended while it is
operating.
• Do not modify the rotary slicer and
shredder accessory.
• Do not try to repair the rotary slicer and
shredder accessory yourself or without
the assistance of a qualified technician.
• Do not install, remove or replace
standard accessories with the safety lock
disengaged (motor head lowered).
• Do not use your hands to push foods into
the funnel. Use the specific pusher
accessory.
• The blades of the rotary slicer and
shredder’s cylinders are sharp. Be very
careful when handling them.
• Never use your fingers to remove food
residue from the rotary slicer and
shredder’s cylinders while the appliance
is plugged in or operational. Danger of
cuts!
• Foods must not contain stones, pits or
other hard objects.
• Let cooked food cool down before
cutting it, as the thicker consistency will
give better results.
• Do not touch moving parts while the
appliance is operating. Keep hands,
hair, clothing, spoons, spatulas and other
objects at a safe distance from the rotary
slicer and shredder accessory to avoid
personal injury and/or damage to the
stand mixer and rotary slicer and
shredder accessory.
• Let the appliance cool down before
cleaning.
• Only use original accessories provided
and supplied by the manufacturer. The
use of non-original components, utensils
and accessories could lead to personal
injury or damage to the stand mixer and
rotary slicer and shredder accessory.
• Do not use harsh detergents or sharp
objects to wash or remove residue from
the bowl, utensils and rotary slicer and
shredder accessory.
• Keep a close eye on children and
ensure they do not play with the
appliance.
• Turn off the stand mixer before fitting or
removing the rotary slicer and shredder
accessory.
• Do not remove the rotary slicer and
shredder accessory while the stand mixer
is operational. Check that the speed
selector is in the 0 (OFF) position.
• Let the rotary slicer and shredder
accessory cool down before cleaning.
20
SAVE THESE INSTRUCTIONS
Important Safeguards
ENEN
1 Instructions
1.1 Introduction
Key information for the user:
Instructions
General information about this
manual, safety and final disposal.
Description
Description of the rotary slicer and
shredder accessory.
Use
Information on use of the rotary
slicer and shredder accessory.
Cleaning and care
Information for proper cleaning and
maintenance of the rotary slicer and
shredder accessory.
Safety instructions
Information
1.2 User manual
This user manual is an integral part of the
rotary slicer and shredder accessory and
must therefore be kept in its entirety and in
an accessible place for the whole working
life of the appliance.
1.3 Intended use
• The rotary slicer and shredder accessory
has been designed specifically for
domestic use.
• Use the rotary slicer and shredder
accessory only in combination with the
same manufacturer’s stand mixer.
• Use the rotary slicer and shredder
accessory indoors.
• The rotary slicer and shredder accessory
can be used for grating and slicing fruit,
vegetables and nuts.
• Do not use the rotary slicer and shredder
accessory for anything other than its
intended use.
• The rotary slicer and shredder accessory
may not be used by people of reduced
physical and mental capacity, or without
sufficient experience and knowledge
(including children), unless they are
supervised or instructed by adults who
are responsible for their safety.
Advice
21
Important Safeguards
1.4 Manufacturer liability
The manufacturer shall not be held
responsible for personal injuries or property
damage caused by:
• Use of the rotary slicer and shredder
accessory for purposes other than those
envisaged
• Not having read the user manual.
• Tampering with any part of the rotary
slicer and shredder accessory
• The use of non-original spare parts.
• Not following the safety instructions.
1.5 Disposal
Old appliances should not be disposed
of together with household waste! To
comply with applicable legislation, old
appliances, on reaching the end of their
useful lives, should be taken to a disposal
facility where they can be sorted. In this
way, any valuable material contained in the
old appliances can be recycled, helping to
protect the environment. The relevant local
authorities or their waste disposal operators
can provide further information.
The rotary slicer and shredder accessory is
packed in non-polluting and recyclable
materials.
• Dispose of the packaging materials at an
appropriate disposal facility.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.
22
ENEN
2 Description
2.1 Product description
Description
1 Grater body
2 Closure
3 Coarse grating cylinder
4 Medium grating cylinder
5 Thick slicing cylinder (ref. 1)
Medium slicing cylinder (ref. 2)
6 Pusher
SMSG01 - Rotary slicer and shredder accessory
23
2.2 Description of parts
Description
Coarse grating cylinder
To be used to grate vegetables, fruit, nuts,
chocolate, cheeses and cheese rinds.
Medium grating cylinder
To be used to grate raw vegetables, fruit,
nuts, and soft cheeses.
Slicing cylinders (2 pieces)
To be used to slice potatoes, onions, other
raw vegetables and fruits.
Pusher
Facilitates introduction of food to be grated
or sliced inside the body of the rotary slicer
and shredder accessory.
24
The accessories that may come
into contact with food are made of
materials that comply with the
requirements of current legislation.
Use
ENEN
3 Use
Electrical Shock Hazard
• Plug into a grounded 3-prong outlet.
• Do not remove the ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Failure to follow these instructions can
result in death, fire, or electrical shock.
Stand Mixer US version only
Volts: 120 Volts AC only.
Hertz: 60 Hz
Your stand mixer has a 3-prong
grounded plug. To reduce the risk
of electrical shock, this plug will fit
into an outlet only one way. If the
plug does not fit in the outlet,
contact a qualified electrician. Do
not modify the plug in any way.
If a longer detachable power supply cord
or extension cord is used:
• The marked electrical rating of the
power supply cord or extension cord
should be at least as great as the
electrical rating of the appliance.
• The cord should be arranged so that it
will not hang over the countertop or
tabletop where it can be pulled on by
children or tripped over unintentionally.
• If the appliance is of the grounded type,
the extension cord should be a
grounded, 3-prong cord.
3.1 Before first use
1. Remove any protective packaging from
the outside or inside of the rotary slicer
and shredder accessory.
2. Remove any labels from the rotary slicer
and shredder accessory.
3. Clean the rotary slicer and shredder
accessory (see “4 Cleaning and Care”).
• Do not use an extension cord. If the
power supply cord is too short, have a
qualified electrician or service technician
install an outlet near the appliance.
• A short power supply cord (or
detachable power supply cord) should
be used to reduce the risk resulting from
becoming entangled in or tripping over a
longer cord.
• Longer detachable power supply cords
or extension cords are available and
may be used if care is taken when using
them.
25
Use
1
4
4

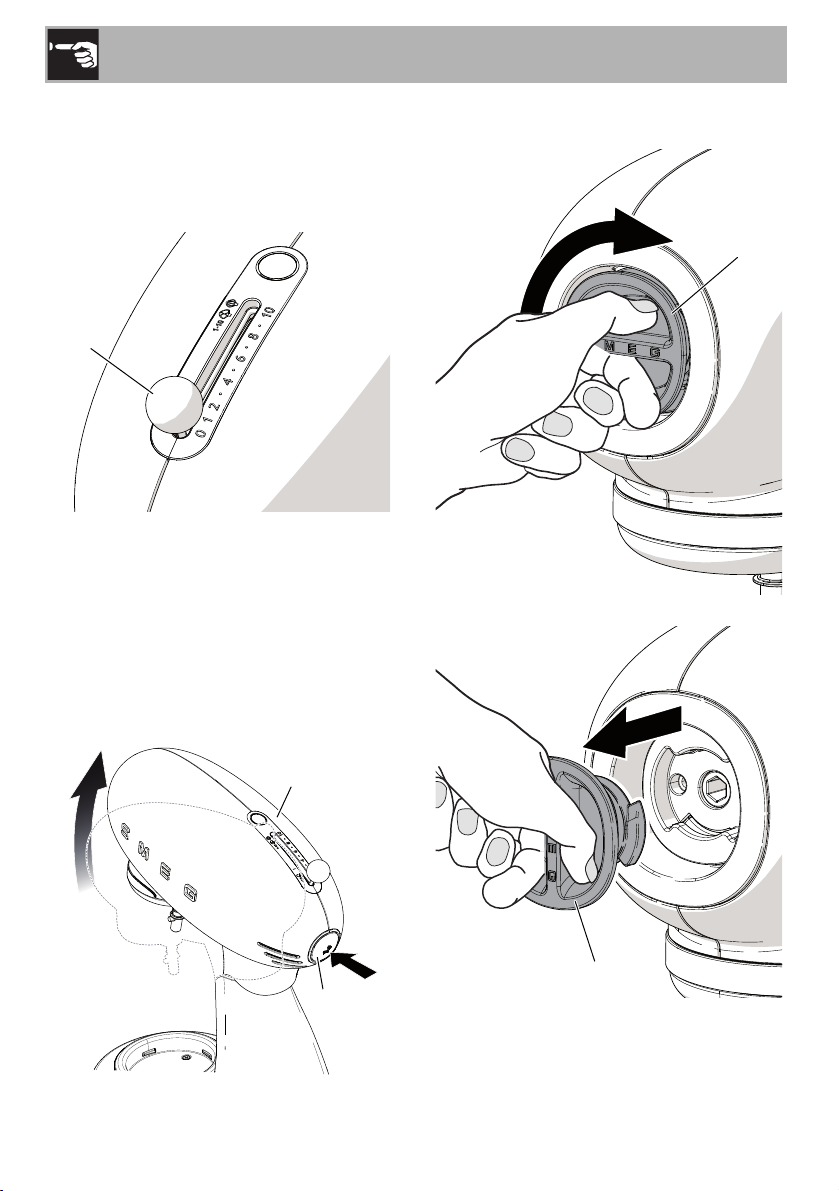

3.2 Installing on the stand mixer
attachment
1. Turn off the stand mixer by moving the
stand mixer speed selector (1) to the ‘0’
(OFF) position.
2. Remove the plug from the power socket.
3. Press the release button (2).
4. Hold down the button and raise the
head (3), accompanying its movement
with your hand.
5. Remove any standard accessories
(dough hook, wire whisk, flat beater)
which may be fitted.
6. Grasp the front attachment hub cover (4)
at the centre and turn it clockwise.
7. Pull the cover (4) to remove it.
3
26
2
Use
ENEN

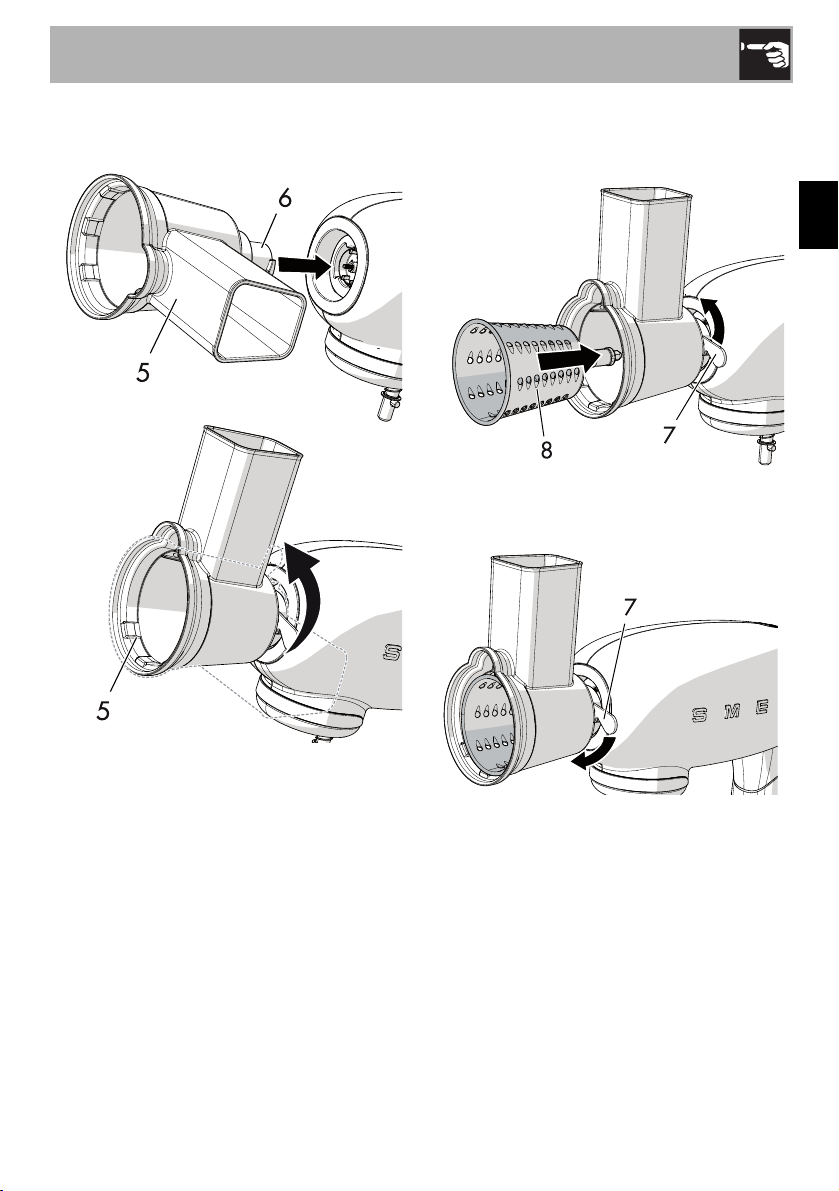

8. Insert the rotary slicer and shredder
body (5) following the guide in the
attachment hub (6), then turn it 60°.
10. Lift the closure (7) and insert the
required cylinder (8) inside the body of
the rotary slicer and shredder.
11. Lock the cylinder by lowering the
closure (7).
9. Press the release button and lower the
stand mixer head, supporting it with your
hand as you lower it.
27
12. Position the stand mixer bowl (9)
underneath the grater to collect the
grated food. Use the pusher (10) to help
introduce food inside the grater body.
Use
Moving parts
Danger of personal injury and
damage to the appliance
• Do not attach the cylinders directly to
the stand mixer attachment. The
cylinders must always be inserted inside
the body of the rotary slicer and
shredder.
• The cylinder blade is sharp. Be very
careful when handling it.
• Keep fingers away from the openings.
• Do not touch the rotary slicer and
shredder accessory during operation.
• Do not use the rotary slicer and
shredder accessory for anything other
than the uses specified.
13. To remove the body of the rotary slicer
and shredder from the stand mixer
attachment, follow the instructions given
in point 8 in reverse order.
28
Use
ENEN
3.3 Using the rotary slicer and
shredder accessory
1. Cut the food to be grated or sliced into
pieces small enough to fit through the top
opening of the grater body.
2. Position the body of the rotary slicer and
shredder in the stand mixer attachment.
Insert the required cylinder inside the
rotary slicer and shredder body.
3. Plug the stand mixer into a power socket
and select speed 4.
4. Use the pusher to help introduce food
inside the grater body. Take care not to
push too hard in order to avoid damage
to the rotary slicer and shredder.
5. Move the stand mixer speed selector to
the ‘0’ (OFF) position to stop it.
Cylinder selection
Cylinder Suitable for
Coarse grating Fruit and vegetables,
shelled nuts, chocolate,
cheese and cheese
rinds.
Medium grating Raw vegetables, fruit,
shelled nuts, soft
cheeses.
Thick or medium
slicing
Potatoes, onions, raw
vegetables and fruit.
29
Cleaning and Care
4 Cleaning and Care
4.1 Instructions
Improper use
Danger of electrocution
• Switch off and unplug the stand mixer
before cleaning it and its standard and
optional accessories.
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the rotary
slicer and shredder accessory.
• Do not use cleaning products that
contain chlorine, ammonia or bleach.
• Do not use abrasive or corrosive
detergents (e.g. powder products, stain
removers and metallic sponges).
• Do not use rough or abrasive materials
or sharp metal scrapers.
4.3 Cleaning the rotary slicer and
shredder accessory
The body of the rotary slicer and shredder
and the pusher can be washed in the
dishwasher.
The cylinders must be washed by hand with
warm water and neutral soap.
Ensure all parts of the rotary slicer and
shredder accessory are thoroughly dry
before putting them away or reassembling
them.
4.2 Maintenance
All service should be performed by an
authorized service representative.
30
Loading...
