Smeg SMRERADW2 Conversion Kit
Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
WARNING: If the instructions contained in this manual are not followed
precisely, fire or explosion may result causing property damage, personal
injury or loss of life.
- Do not store or use gasoline or other flammable vapors or liquids near this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switches.
• Do not use any telephones in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service
company or gas supplier.
READ AND SAVE THESE INSTRUCTIONS - Your safety and the safety of others are very important.
We have provided many important safety messages throughout this manual and on the appliance.
Read all the instructions before using the appliance and always obey all safety messages.
RECOGNIZE SAFETY INFORMATION
This is a safety alert symbol. This symbol alerts you to potential hazards that can result in severe
personal injury or loss of life.
UNDERSTAND SIGNAL WORDS
A signal word - DANGER, WARNING or CAUTION - is used with the safety alert symbol. DANGER
denotes the most serious hazards. It means you could lose your life or be seriously injured if you do not
immediately
the instructions are not followed. CAUTION indicates a potentially hazardous situation which, if not
avoided, could result in minor to moderate injury.
follow the instructions. WARNING means you could lose your life or be seriously injured if
3
Important Safety Instructions
The safety messages will inform you of potential hazards, on how to avoid the risk of injury and what can
occur if the instructions are not followed.
IMPORTANT: Observe all governing codes and ordinances.
WARNING: For your safety, the instructions contained in this manual must be followed to
minimize the risk of fire or explosion and to prevent property damage, personal injury or loss of
life.
- This conversion kit must be installed by a qualified service agency in accordance with the
manufacturer's instructions and all applicable codes and requirements of the authority having
jurisdiction.
- If the information in these instructions is not followed exactly, a fire, an explosion or
production of carbon monoxide may result causing property damage, personal injury or loss
of life.
- The qualified service agency is responsible for the proper installation of this kit. The
Installation is not proper and complete until the operation of the converted appliance is
checked as specified in the manufacturer’s instructions supplied with the kit.
Installation shall not be considered correct and complete until the operation of the converted
appliance is checked as specified in the manufacturer's instructions supplied with this kit.
FIRE HAZARD
WARNING
Securely tighten all gas connections. lf connected to LP, have a qualified
technician ensure that the gas pressure does not exceed a 14” W.C.P.
Examples of qualified technicians include licensed heating personnel,
authorized gas company personnel and authorized service personnel.
FAILURE TO DO SO CAN RESULT IN LOSS OF LIFE, EXPLOSION, OR FIRE.
Caution: Before proceeding with the conversion, the gas supply must be shut off prior to
disconnecting the electrical power.
4

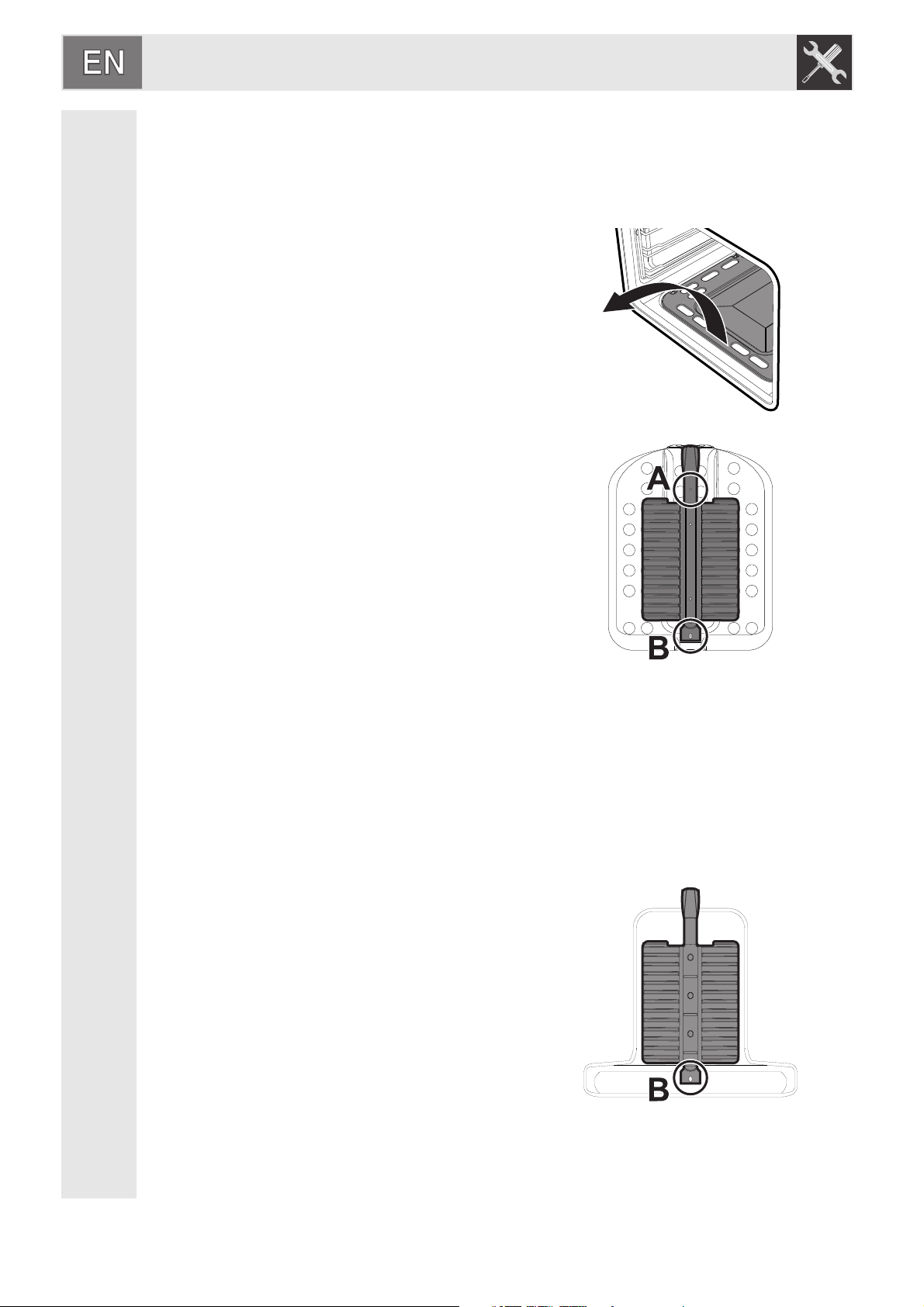

1)
2)
Conversion Kit
Check that the main gas supply line to the range is shut off and that the
power supply cord is disconnected.
Remove access cap “A” by using a screwdriver or a coin, turning the access cap counterclockwise.
The gas pressure regulator has two settings which are indicated on two sides of the cap. Turn the cap
and reinstall it in the regulator with "LP" visible from the outside of the regulator.
Incoming line pressure upstream from the
regulator must be 1” (2.5 cm) W.C.P. higher than
the manifold pressure in order to check the
regulator. Incoming line pressure to the regulator
should be as follows for operation and checking
the regulator setting:
- NATURAL GAS: Set pressure to 4” W.C.P.
Incoming line pressure of 3
maximum;
- LP GAS: Set pressure to 11” W.C.P. Incoming
line pressure 8”- 13” W.C.P. maximum.
The range must be isolated from the gas supply piping system by turning off the respective manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or
greater than 1/2 psig (3.5 kPa).
1
/2” - 10 1/2” W.C.P
3)
Replacing the rangetop's burners nozzles (This operation does not require primary air regulation).
1 Remove the grates and all the burner caps and heads;
2 Unscrew the burner nozzles with a 7 mm socket wrench;
3 Replace the nozzles according to the type of gas to be used and the description in paragraph 3.2
“Burner and nozzle characteristics table”.
4 Put the burners back in their correct position.
5
