Smeg SIM61BDE, SIM62BDE, SIM942B User Manual

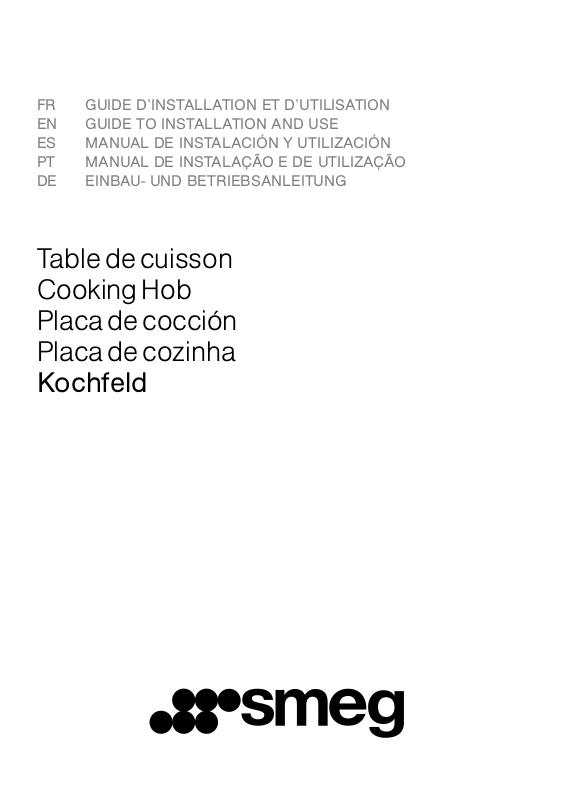

FR GUIDE D’INSTALLATION ET D’UTILISATION EN GUIDE TO INSTALLATION AND USE ES MANUAL DE INSTALACIÓN Y UTILIZACIÓN PT MANUAL DE INSTALAÇÃO E DE UTILIZAÇÃO DE EINBAU- UND BETRIEBSANLEITUNG

Table de cuisson Cooking Hob Placa de cocción Placa de cozinha

Kochfeld

TABLE OF CONTENTS

• Safety Guidelines

____________________________________________________

• Environmental Protection

_____________________________________________

• Description of Your Appliance

_________________________________________

1 / INSTALLING YOUR APPLIANCE

• Proper positioning

___________________________________________________

• Building in

__________________________________________________________

• Hook-up

___________________________________________________________

2 / USING YOUR APPLIANCE

• Description of the top

_________________________________________________

• Cookware for induction

_______________________________________________

• Which cooking zone should you use based on your cookware?

_____________

• Description of control panel

___________________________________________

• Powering on /Stop

___________________________________________________

• Adjusting the power

_________________________________________________

• Adjusting the timer

__________________________________________________

• child safety use

_____________________________________________________

• Safety during operation

_______________________________________________

3 / DAILY CARE OF YOUR APPLIANCE

• Protecting your appliance

_____________________________________________

• Maintaining your appliance

____________________________________________

4 / SPECIAL MESSAGES, DIFFICULTIES

• During initial use

____________________________________________________

• When powering on

___________________________________________________

• During operation

____________________________________________________

5 / COOKING CHART

• Cooking chart for food types

__________________________________________

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Warning

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.

Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way, the appliance recy-

cling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home. We thank you doing your part to protect the environment.

FFoorr AAuussttrraalliiaa oonnllyy ::

- Young children should be supervised to ensure that they do not play with the appliance.

- The appliance is not intended for use by young children or infirm person without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid hazard.

- Do not install the product if you see any damage on it. FFoorr SSeerrvviiccee iissssuueess,, pphhoonnee nnuummbbeerr :: 11330000 555533 772200,, ffaaxx nnuummbbeerr :: 11330000 555533 771199

SAFETY GUIDELINES

We have designed this cooking hob for use by private persons in their homes. These cooking hobs are meant to be used exclusively for cooking beverages and foodstuffs and do not contain any asbestos-based materials.

This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental abilities, or persons lacking experience or awareness, unless using it with the help of a person reponsible for their safety, or under supervision and with prior instruction in its use. Children should be supervised to ensure that they do not play with the appliance.

••

Residual heat

A cooking zone can remain hot for several minutes after use.

""HH""

is displayed during this period.

Avoid touching the hot areas during this time.

••

Child safety device

Your hob is equipped with a child safety device that locks its operation after use or during cooking (See " Child Safety use" section).

Do not forget to unlock it before using the hob again.

••

For users of pacemakers and

active implants

The functioning of the hob conforms to current electromagnetic interference standards and thus is in total compliance with legal requirements (89/336/CEE directives). In order to avoid interference between your cooking hob and a pacemaker, your pacemaker must be designed and programmed in compliance with the regulations that apply to it.

Consequently, we can only guarantee that our own product is compliant. With regard to the compliance of the pacemaker or any potential incompatibility, you can obtain information from the manufacturer or your attending physician.

Electrical Danger

Ensure that the power cables of any electrical appliances plugged in close to the hob are not in contact with the cooking zones.

If a crack appears in the glass worktop, immediately disconnect your appliance to avoid the risk of electric shock. To do this, remove the fuses or use the circuit breaker. Do not use your hob until you have replaced the glass worktop.

••

ENVIRONMENTAL PROTECTION

••

DESCRIPTION OF YOUR APPLIANCE

••

Air intake Air outlet Vitroceramic glass Power cord

/ INSTALLING YOUR APPLIANCE

On 30, 38, 80 and 90 cm models, ensure that the upper rail across the front of the cabinet does not impede the air flow. If necessary, cut a chamfer.

••

CHOOSING THE POSITION

The distance between the edge of your appliance and the side and rear walls (or partitions) must be at least four centimetres (zone A). YYoouurr aapppplliiaannccee mmaayy bbee bbuuiilltt iinn wwiitthhoouutt aannyy rreessttrriicc-- ttiioonn.. CChheecckk,, hhoowweevveerr,, tthhaatt tthhee aaiirr iinnttaakkee aanndd

oouutt--

lleett aarree ffrreeee ooff oobbssttrruuccttiioonn ((sseeee ““ddeessccrriippttiioonn ooff yyoouurr aapppplliiaannccee”” cchhaapptteerr)).. The building-in method opposite is recommended for use above an oven or a built-in appliance.

BUILDING-IN

Follow the diagram above. Glue the foam seal underneath your appliance, following the perimeter of the hole in the worktop, upon which your appliance will rest. This will ensure a good seal against the worktop. Attach the clips to the hob

(depending on the

model

••

AAbboovvee aann oovveenn

MIN 4 mm

Tip

If your hob is located above your oven, the hob’s thermal safety devices can impede the simultaneous use of the hob and the oven’s pyrolysis program. Your hob is equipped with an anti-overheating safety system. This safety device can trigger, for example, when the hob is installed over an oven that is not sufficiently insulated. If this occurs, a series of small lines appears on the control panel. In such circumstances we recommend that you increase the hob’s ventilation by creating an opening in the side of the cabinet, (8 x 5 cm), and/or installing an oven insulation kit available from the after-sales department.

5511 -- 4444

5588 -- 9933

5566 -- 9900

4499 -- 4411

66,,44

Air outlet

Air intake

vveennttiillaattiioonn ssppaaccee

AAbboovvee aa ccaabbiinneett wwiitthh aa ddoooorr oorr ddrraawweerr

Entrée d'air

4 cm

Sortie d'air

4 cm
