Page 1

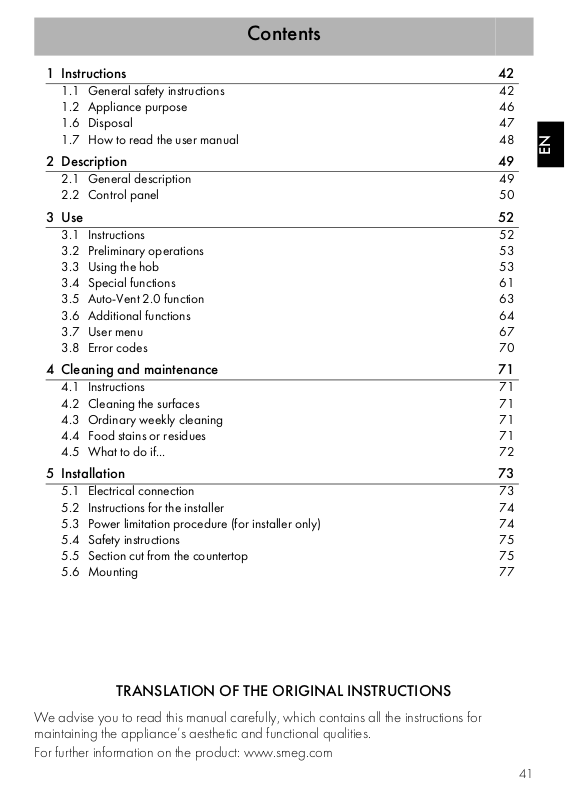

Contents
EN
1Instructions 42
1.1 General safety instructions 42
1.2 Appliance purpose 46
1.6 Disposal 47
1.7 How to read the user manual 48
2 Description 49
2.1 General description 49
2.2 Control panel 50
3Use 52
3.1 Instructions 52
3.2 Preliminary operations 53
3.3 Using the hob 53
3.4 Special functions 61
3.5 Auto-Vent 2.0 function 63
3.6 Additional functions 64
3.7 User menu 67
3.8 Error codes 70
4 Cleaning and maintenance 71
4.1 Instructions 71
4.2 Cleaning the surfaces 71
4.3 Ordinary weekly cleaning 71
4.4 Food stains or residues 71
4.5 What to do if... 72
5Installation 73

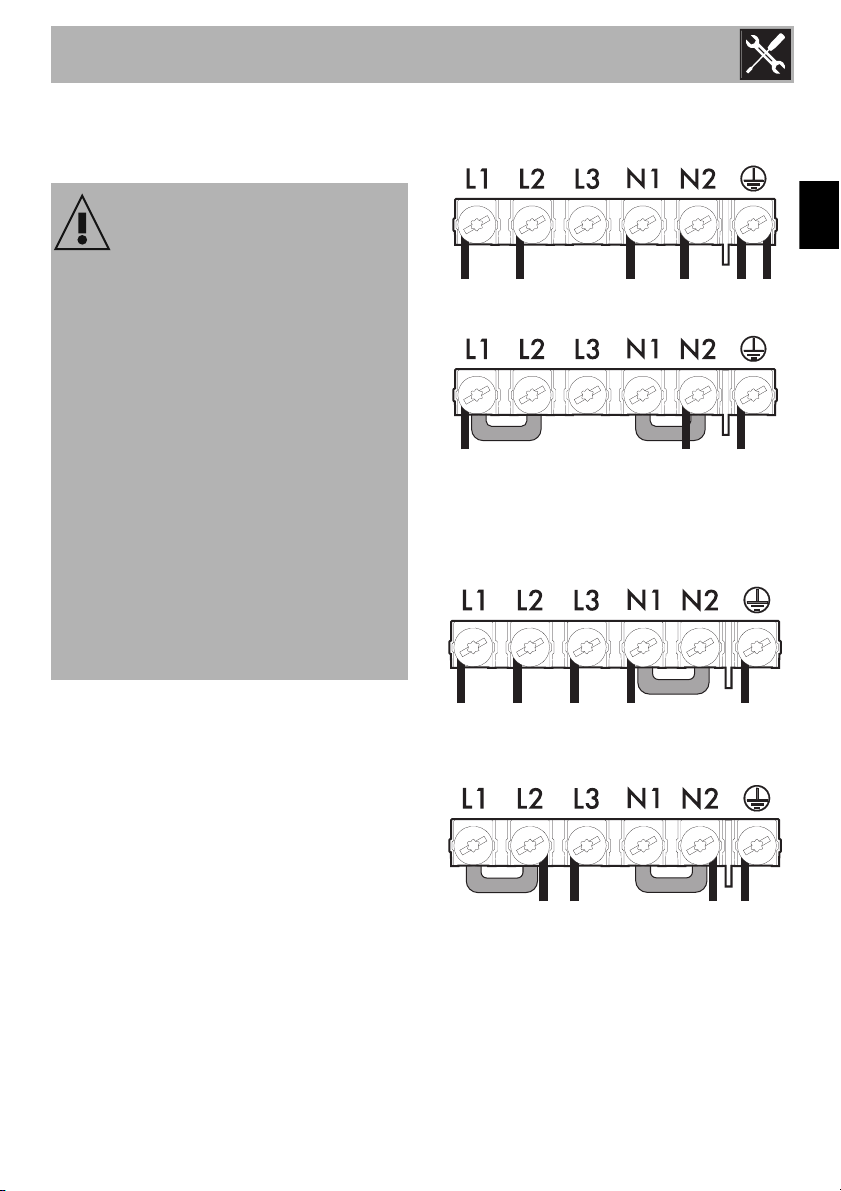

5.1 Electrical connection 73
5.2 Instructions for the installer 74
5.3 Power limitation procedure (for installer only) 74
5.4 Safety instructions 75

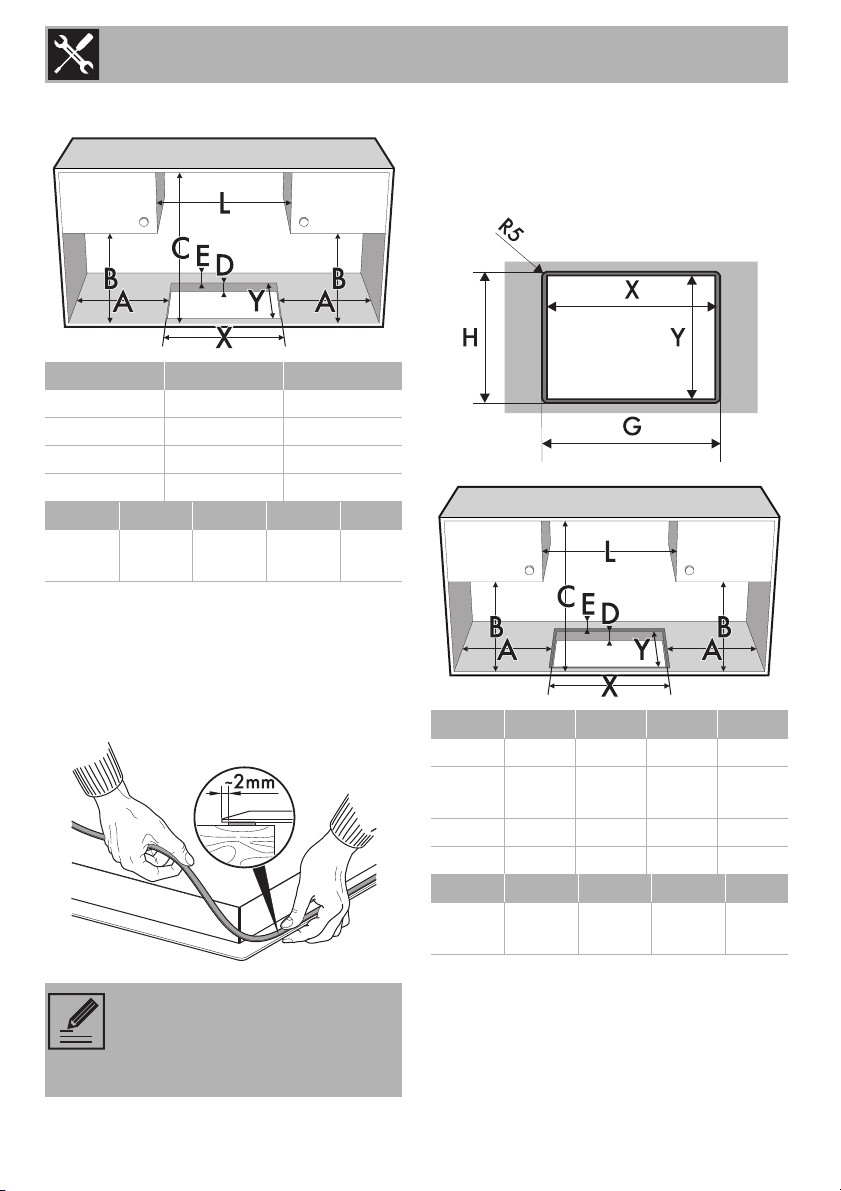

5.5 Section cut from the countertop 75
5.6 Mounting 77
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
41
Page 2
Instructions
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
• Never touch the heating elements
during use.
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless
they are constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by
unsupervised children.
• Be aware of how rapidly the
cooking zones heat up. Do not let
pans heat up when dry, as there is
a danger of them overheating.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid
on the pan and turn off the
relevant cooking zone.
• Do not use the Booster and
Double Booster functions to heat
fats or oils. Fire hazard.
• The cooking process must always
be monitored. A short cooking
process must be continuously
monitored.
• Do not place metal objects, such
as dishes or cutlery, on the hob
surface during use as they may
overheat.
• Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
42
Page 3
Instructions
EN
• Do not use or store flammable
materials near the appliance or
directly underneath the hob.
• DO NOT USE AEROSOLS IN
THE VICINITY OF THIS
APPLIANCE WHILST IT IS IN
USE.
• Switch off the appliance
immediately after use.
• DO NOT MODIFY THIS
APPLIANCE.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any work on
the appliance, switch off the
power supply.
• Installation and servicing should
be carried out by qualified
personnel in accordance with
current standards.
• Do not try to repair the appliance
yourself or without the assistance
of a qualified technician.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Do not place hot pans on the
control panel.
• Use wooden or plastic utensils.
• Do not sit on the appliance.
• Do not use the hob as a support
surface.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Do not use steam jets to clean the
appliance.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released, as these could
then heat up and catch fire. Be
very careful.
• Fire hazard: Never leave objects
on the cooking surfaces.
• DO NOT FOR ANY REASON
USE THE APPLIANCE AS A
SPACE HEATER.
• Cooking vessels or griddle plates
should be placed inside the
perimeter of the hob.
43
Page 4
Instructions
• All pans must have smooth, flat
bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
• Take care not to spill acid
substances such as lemon juice or
vinegar on the hob.
• Do not spill sugar or sweet
mixtures on the hob during
cooking.
• Do not place materials or
substances that could melt or
catch fire (paper, plastic or
aluminium foil) on the appliance
while it is in use.
• Place the cookware directly on
the glass ceramic surface.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
Installation
• THIS APPLIANCE MUST NOT BE
INSTALLED IN BOATS OR
CARAVANS.
• Position the appliance into the
cabinet cut-out with the help of a
second person.
• Check that the carcase material is
heat resistant.
• Check that the carcase has the
required openings.
• To avoid potential overheating,
the appliance must not be
installed behind a decorative
door or a panel.
• Have the electrical connection
performed by authorised
technical personnel.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90°C.
• The tightening torque of the
screws of the terminal supply
wires must be 1.5 - 2 Nm.
• The power cable must only be
installed or replaced by a
qualified technician.
44
Page 5
Instructions
EN
For this appliance
• If cracks or fissures form, or if the
glass ceramic cooking surface
breaks, turn off the appliance
immediately. Disconnect the
power supply and call Technical
Support.
• Avoid hard, solid objects falling
on the cooking surface.
• Do not use the hob if the pyrolytic
cycle is taking place inside any
oven installed below.
• Do not touch or clean the hob
surface during operation or when
the residual heat indicator lights
are still on.
• Activate the controls lock when
you have children or pets which
could reach the hob.
• After use the cooking zones
remain hot for a certain period of
time after they have been turned
off. Do not touch the hob
surfaces.
• After use, switch off the plates.
Never rely solely on the
cookware detector.
• Supervise children carefully as
they cannot readily see the
residual heat indication. After use
the cooking zones remain hot for
a certain period of time even if
they have been turned off. Keep
children away from the cooking
zones.
• The glass ceramic surface is
highly resistant to impact.
However, prevent hard, solid
objects from falling on the
cooking surface as they may
cause it to break if they are sharp.
• Do not use the glass ceramic
cooking surface as a support
surface.
• Remove any traces of liquid from
the cover (if fitted) before
opening.
• Let the cooking surface cool
down before closing the cover.
• People who have pacemakers or
other similar devices fitted must
make sure that the operation of
these devices is not affected by
the induction field, the frequency
range of which is between 20
and 50 kHz.
45
Page 6
Instructions
• In conformity with the provisions
regarding electromagnetic
compatibility, the electromagnetic
induction cooking hob comes
under group 2 and class B (EN
55011).
• This appliance complies with the
current standards and directives
regarding safety and
electromagnetic compatibility.
However, people who wear
pacemakers should keep a
minimum distance of 20-30 cm
between the pacemaker and the
appliance when it is in operation.
Contact the pacemaker
manufacturer for further
information.
1.2 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or
with remote-control systems.
1.3 Manufacturer’s liability
• The manufacturer declines all
liability for damage to persons or
property caused by:
• Use of the appliance other than
that specified
• Failure to comply with the
instructions in the user manual
• Tampering with any part of the
appliance
• The use of non-original spare
parts.
1.4 Identification plate
The identification plate bears the
technical data, serial number and
brand name of the appliance. Do not
remove the identification plate for
any reason.
1.5 This user manual
This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the
user’s reach for the whole working
life of the appliance.
• Read this user manual carefully before
using the appliance.
46
Page 7
Instructions
EN
1.6 Disposal
This appliance conforms to the
WEEE European directive
(2012/19/EU) and must be
disposed of separately from other
waste at the end of its service life.
The appliance does not contain
substances in quantities sufficient to
be considered hazardous to health
and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and
remove it along with the plug.
Power voltage
Danger of electrocution
• Disconnect the mains power
supply.
• Unplug the appliance.
• Deliver the appliance to the
appropriate recycling centre for
electrical and electronic
equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for
one basis.
Our appliances are packaged in
non-polluting and recyclable
materials.
• Deliver the packing materials to
the appropriate recycling centre.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or
any part of it unattended.
• Do not let children play with the
plastic bags.
47
Page 8
Instructions
1.7 How to read the user manual
This user manual uses the following reading
conventions:
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice
1. Sequence of instructions for use.
• Standalone instruction.
48
Page 9
EN
2 Description
2.1 General description
Description
60 cm
80 cm (A) 80 cm (B)
SX = Left cooking zones
CNT = Centre cooking zones
DX = Right cooking zones
90 cm
1 = Rear central cooking zone
2 = Front right cooking zone
49
Page 10
2.2 Control panel
Description
1 Special functions buttons
2 Timer display
3 Cooking zone display
4 Scroll bar
5 ON/OFF button
6 Auto-Vent 2.0 function button
Maximum power consumption table
60 cm, 80 cm (A) and 90 cm models:
Dimensions
H x L (mm)
Single zone 180 x 240 2100 W 2500 W 3000 W
Multizone 360 x 240 3000 W 3700 W -
Zone 1 200 x 200 2300 W 3000 W Zone 2 160 x 160 1400 W 1850 W 2100 W
Level 9 Booster Double Booster
80 cm (B) model:
Dimensions
H x L (mm)
Single zone 180 x 200 2100 W 2500 W 3000 W
Multizone 360 x 200 3000 W 3700 W -
* power levels are approximate and may vary according to the pan used or the settings made.
Level 9 Booster Double Booster
50
Page 11
Description
EN
Advantages of induction cooking
The appliance is equipped with an
induction generator for each
cooking zone. Each generator
located under the glass ceramic
cooking surface creates an
electromagnetic field which
induces a thermal current in the
base of the pan. This means the
heat is no longer transmitted from
the hob to the pan but created
directly inside the pan by the
inductive current.
• Energy saving thanks to the direct
transmission of energy to the pan
(suitable magnetisable cookware is
required) compared to traditional
electric cooking.
• Improved safety as the energy is only
transmitted to the pan placed on the
hob.
• High level of energy transmitted from the
induction cooking zone to the base of
the pan.
• Rapid heating speed.
• Reduced danger of burns as the cooking
surface is only heated under the base of
the pan; foods which overflow do not
stick.
Power control
The hob is fitted with a power control
module that optimises/limits consumption. If
the overall set power level exceeds the
maximum limit permitted, the electronic
circuit board will automatically manage the
power supplied by the hot plates.
The module tries to maintain the maximum
deliverable power levels. Levels set by the
automatic control will appear on the
display.
• Priority is given to the last zone
set.
• The power control module does
not affect the total power
consumption of the appliance.
51
Page 12
Use
3 Use
3.1 Instructions
High temperature
Danger of burns
• Protect your hands by wearing heatproof gloves during use.
• Do not touch or clean the hob surface
during operation or when the residual
heat indicator lights are still on.
• Do not put empty pans or frying pans on
switched on cooking zones.
• Keep children under the age of 8 away
from the appliance when it is in use.
• Activate the controls lock when you
have children or pets which could reach
the hob.
• After use the cooking zones remain hot
for a certain period of time after they
have been turned off. Do not touch the
hob surfaces.
High temperature
Danger of fire or explosion
• Do not use or leave flammable materials
near the appliance or directly
underneath the hob.
• Do not cook in closed tins or containers,
plastic kitchenware or containers.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• In case you notice cracks or fissures or
you cannot turn off the appliance,
disconnect the power supply and
contact the Assistance Centre.
Improper use
Risk of damage to surfaces
• Do not use the hob if the pyrolytic cycle
is taking place inside any oven installed
below.
• Never place pans with bases which are
not perfectly flat and smooth.
• Avoid hard, solid objects falling on the
cooking surface.
• Do not use the hob as a support surface.
52
Page 13
Use
EN
3.2 Preliminary operations
In order to remove any moisture that could
have accumulated during the manufacturing
process and for the electronic circuits and
control keypad to work properly:
1. Remove the protective films from the
external surfaces of the appliance and
accessories.
2. Remove any labels (apart from the
technical data plate).
3.3 Using the hob
All the appliance’s control and monitoring
devices are located together on the front
panel. The induction hob is controlled by
means of the Touch control sensor buttons.
Lightly touch a symbol on the glass ceramic
surface. A beep will sound to confirm every
effective touch.
Switching on the hob for the first time
On first connection to the electrical
mains, an automatic check will be
carried out that will switch on all
indicator lights for a few seconds.

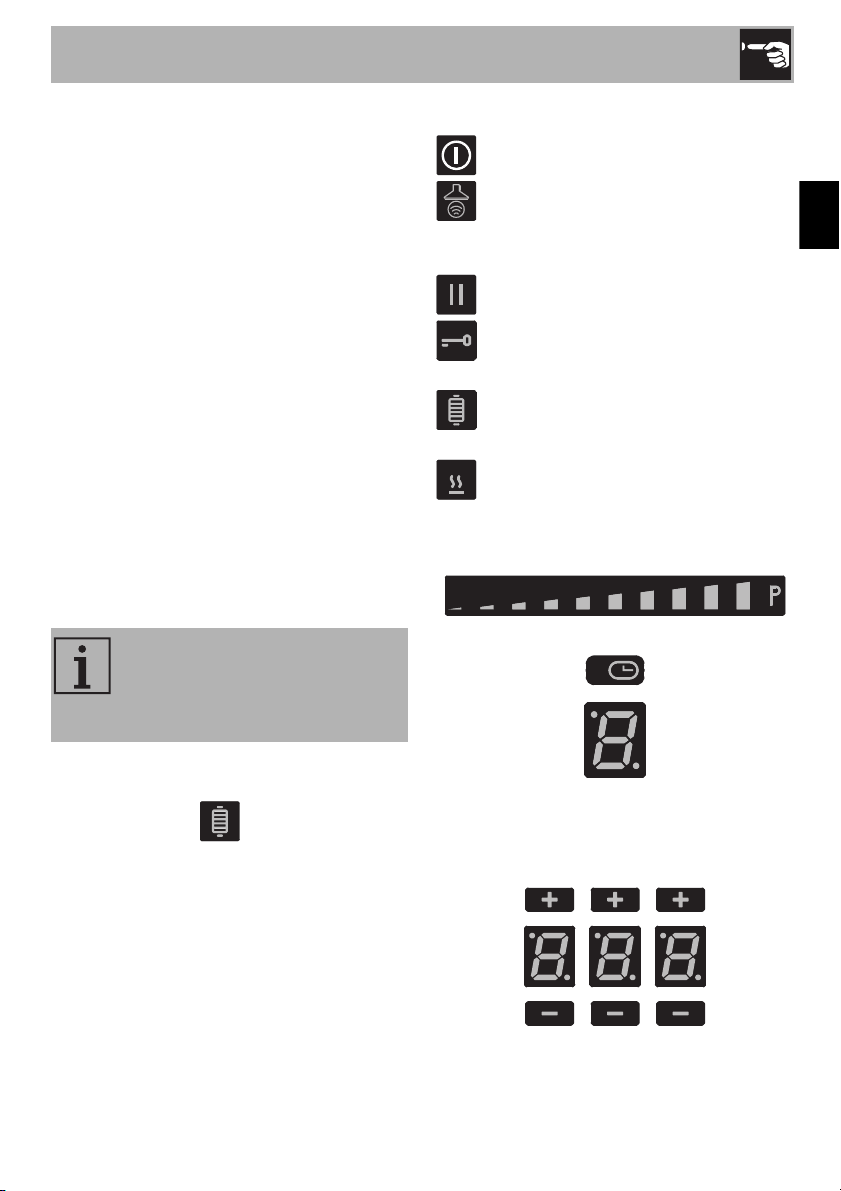

List of symbols
On/Off button: turns the hob on or off.
Auto-Vent 2.0 function button:
activates communication between the
hob and the extractor hood.

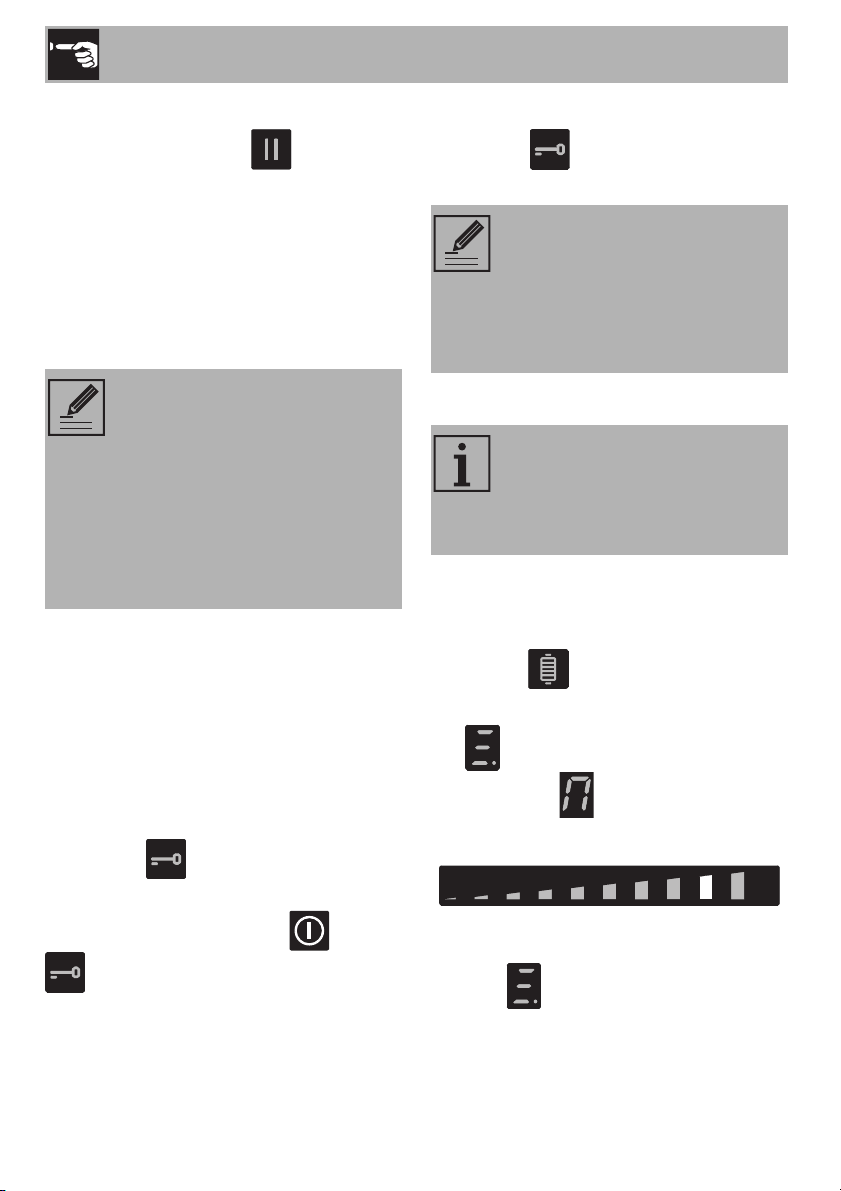

Pause button: pauses cooking.
Controls lock button: prevents
accidental operation of controls.
Grill function button: activates the Grill
function
Warming function button: activates the
keep warm function.

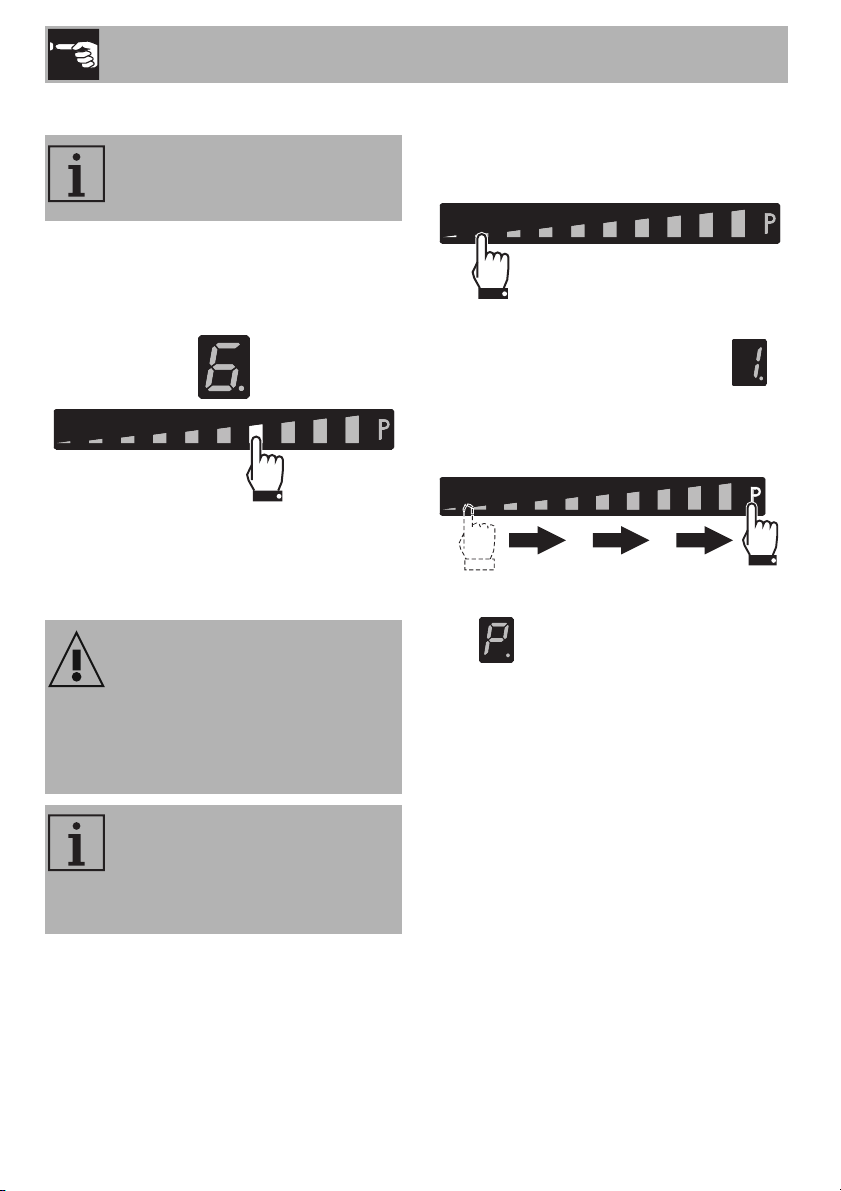

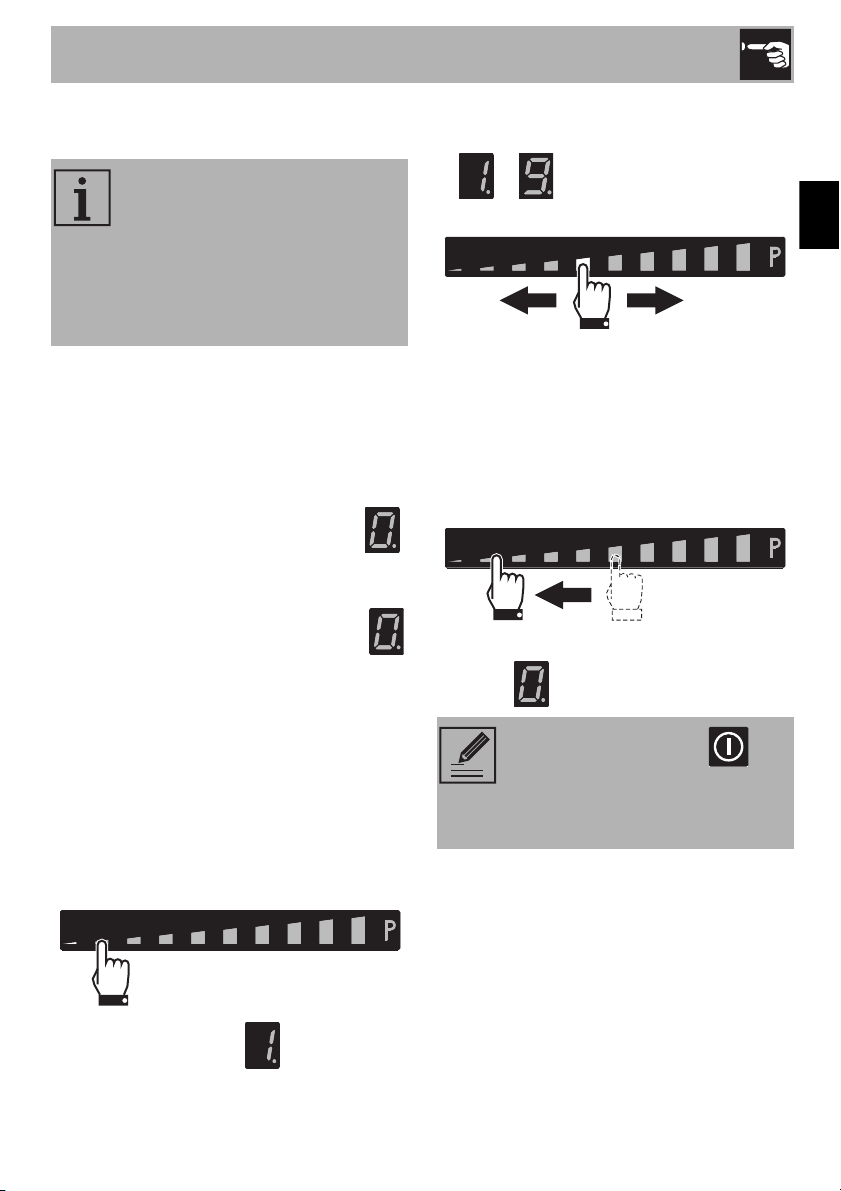

Scroll bar: increases or decreases the
power level of a cooking zone.
Cooking zones display
When the appliance is used for the first
time, after having been connected to the
mains the flashing symbol appears on
the display. It is used to access the
appliance’s technical menu and is intended
only for Technical Support personnel.
The buttons for selecting the cooking zones
and the timer icons above each of them are
located in this zone.

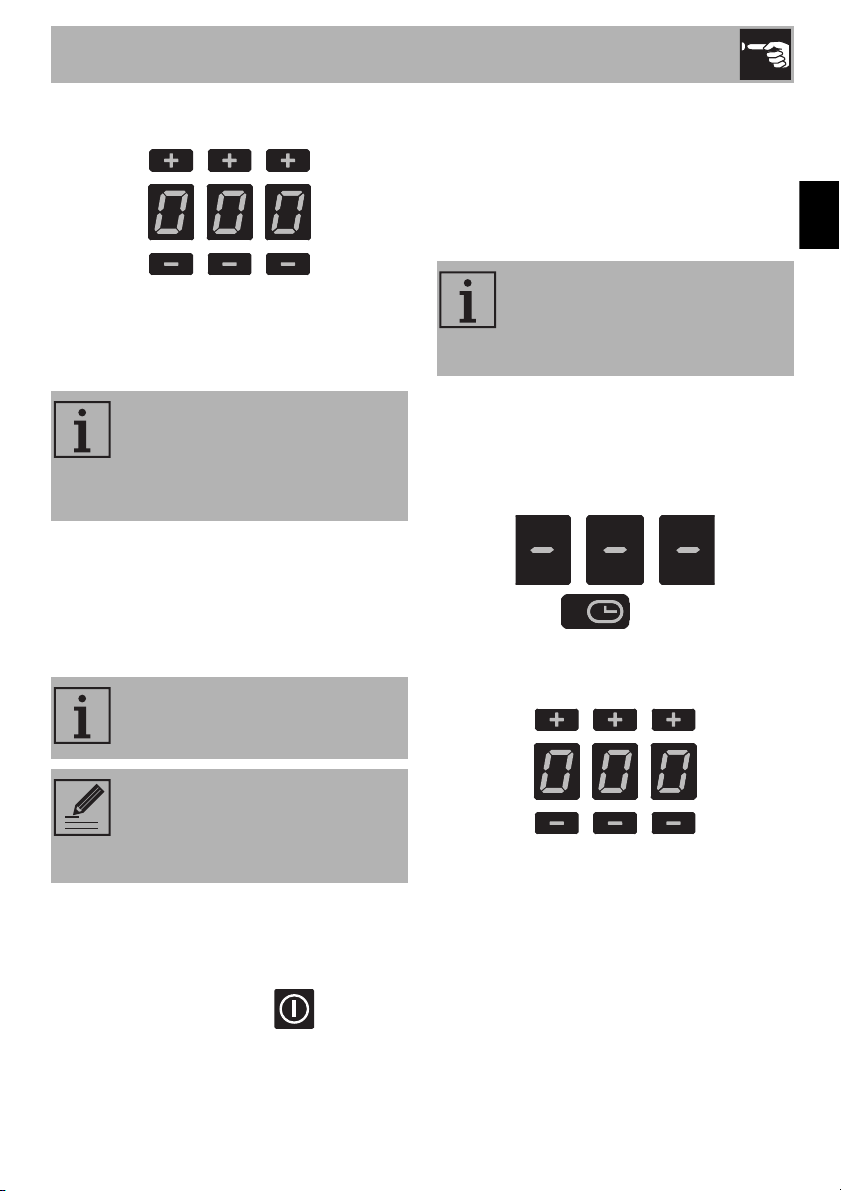

Timer display
The controls for setting the independent
timer and the timer for the cooking zones
are located in this area.
53
Page 14
Use
Minimum pan diameter
Make sure that the minimum diameter of the
pans are those indicated in the following
table, for both configurations.
Configuration
Single zone 11 18
Multizone 19 20* - 22
Zone 1 11 20
Zone 2 916
Recommended diameter for the 80 cm (B)
model.
Ø
minimum (cm)
Ø
recommended
(cm)

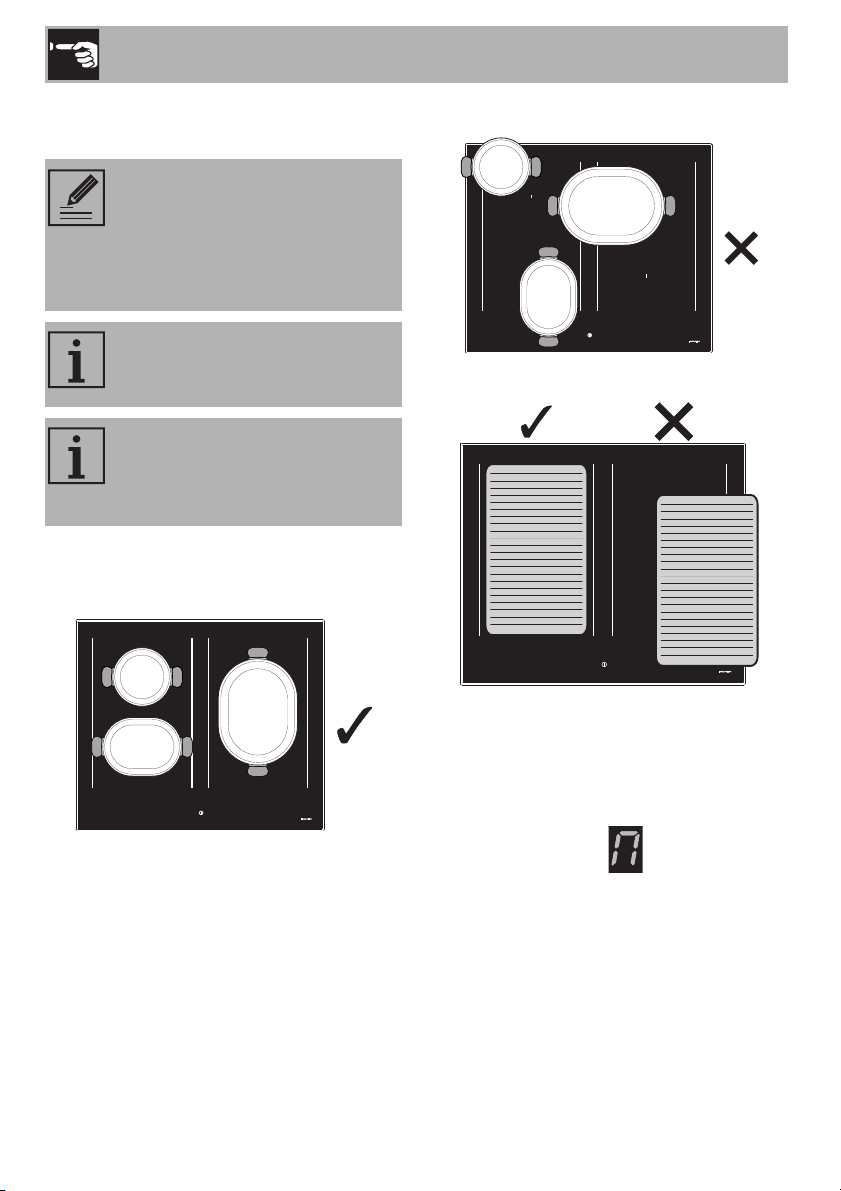

Bear in mind the following:
• Do not allow the pans to exceed the
limits of the zones printed on the
cooktop.
• Do not cover the control panel.
• Do not place the pans next to the edges
of the glass.
• If you use a pan with a diameter less
than the one indicated in the “minimum
Ø (cm)” column, it might not be
detected.
Minimum and maximum sizes for a griddle
used in the Multizone configuration (cm):
Model
60 cm 19 x 19 22 x 36
80 cm (A) 19 x 19 22 x 36
80 cm (B) 19 x 19 20 x 36
90 cm 19 x 19 22 x 36
Minimum
dimensions
Maximum
dimensions
Cookware suitable for use in induction
cooking
Cookware used on the induction cooking
surface must be made of metal, with
magnetic properties and a sufficiently large
base.
Suitable cookware:
• Enamelled steel cookware with thick
bases.
• Cast iron cookware with an enamelled
base.
• Cookware in multilayer stainless steel,
ferritic stainless steel and aluminium with
a special base.
Unsuitable cookware:
• Copper, stainless steel, aluminium,
fireproof glass, wood, ceramic and
terracotta cookware.

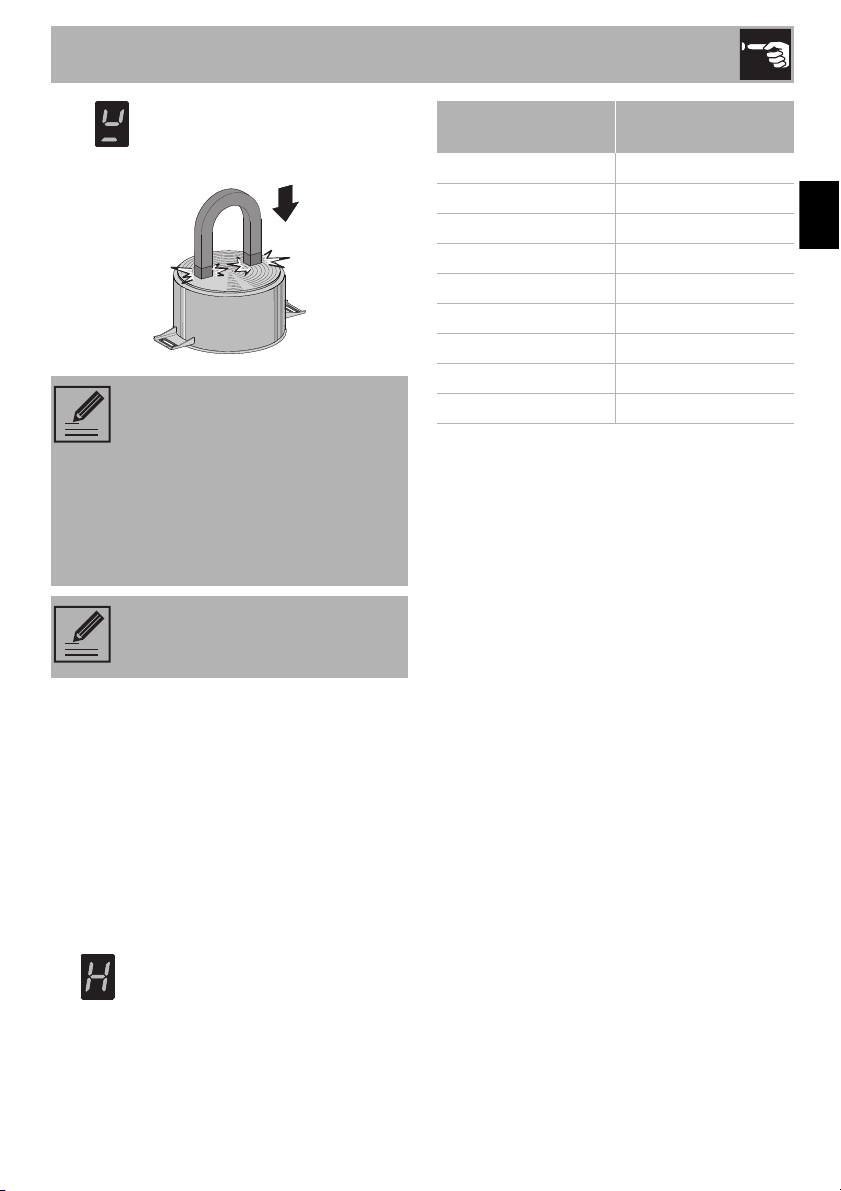

To see whether the pan is suitable, bring a
magnet close to the bottom: if it is attracted,
the pan is suitable for induction cooking.
If you do not have a magnet, you can put a
small amount of water in the pan, place it
on a cooking zone and start the hot plate.
54
The Multizone function can only
be activated for zones marked
with “SX”, “CNT” and “DX” - see
“General description”.
Page 15
Use
EN
If the symbol appears on the display, it
means the pan is not suitable.
Use only cookware with a
perfectly flat bottom which is
suitable for induction hot plates.
Using cookware with an irregular
bottom could jeopardise the
efficiency of the heating system
and prevent cookware from being
detected on the hot plate.
Make sure that the pans do not
cover the control panel.
Limiting the cooking duration
The hob has an automatic device which
limits the duration of use.
If the cooking zone settings are not
changed, the maximum duration of
operation for each zone depends on the
power level selected.
When the device for limiting the duration of
use is activated, the cooking zone turns off,
a short alert sounds and, if the zone is hot,
the symbol appears on the display.
Set power level
16
26
35
45
54
61 ½
71 ½
81 ½
91 ½
Maximum cooking dura-
tion in hours
Protection from overheating
If the hob is used on full power for a long
period, the electronics will have trouble
cooling down if the room temperature is
high.
If the temperature of the internal electronic
components exceeds the safety threshold,
the appliance will switch off automatically
and “ER21” will be displayed (see “Error
codes”).
Advice on energy-saving
• The diameter of the base of the pan must
not exceed the width of the silk-screened
cooking zone.
• Pans must not be placed outside the
perimeter of the hob or above the front
control panel.
• When buying a pan, check whether the
diameter indicated is that of the base or
the top of the pan, as the top is almost
always larger than the base.
55
Page 16
Use
• When preparing dishes with long
cooking times, you can save time and
energy by using a pressure cooker,
which also helps to retain vitamins
contained in the food.
• Make sure that the pressure cooker
contains enough liquid as, if there is not
enough and it overheats, this may cause
damage to both the pressure cooker
and the cooking zone.
• If possible, always cover pans with a
suitable lid.
• Choose a pan suitable for the quantity of
food to be cooked. A large, half-empty
saucepan leads to a waste of energy.
Under certain circumstances, if the
hob and the oven are being used
at the same time, the maximum
power limit that can be used by the
electrical system might be
exceeded.
Power levels
The power in the cooking zone can be
adjusted to various levels. The table shows
the levels suitable for various types of
cooking.
Power level Suitable for:
0 OFF setting
1 - 2
3 - 4 Cooking
5 - 6
7 - 8 Roasting, slow frying with flour
9 Roasting
P /

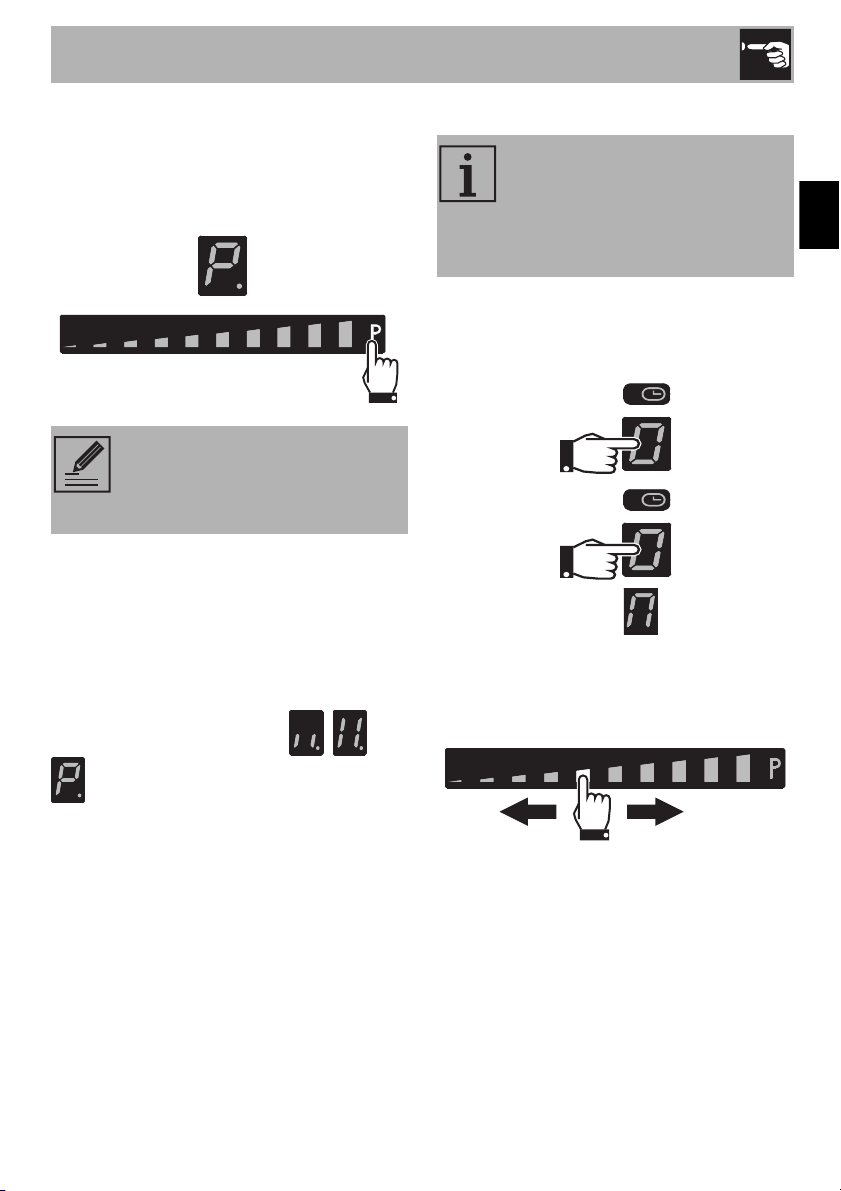

* see Booster and Double Booster function
Cooking small amounts of food
(minimum power)
Cooking large quantities of food,
roasting larger portions
Roasting / Browning, cooking
(maximum power)*
Switching the hob on and off
Keep the On/Off button pressed in
for at least 1 second to activate the hob.
Press it again for at least one second to
deactivate it.
56
If no power value is selected within
a few seconds, the hob is
automatically deactivated.
Page 17
Use
EN
Switching on the cooking zone
automatically
The hob is fitted with a pan
detection system that automatically
selects the zones on which a
suitable pan has been placed; this
function is enabled by default and
can be deactivated via the user
menu.
After switching on the hob:
1. Position a pan (suitable for induction
cooking and not empty) on the cooking
zone you wish to use.
• The display corresponding to the zone
on which the container has been placed
turns on automatically and displays .
The slider bar lights up.
If automatic pan detection is disabled,
when the appliance is switched on, the
symbol with a flashing dot in the bottom
right corner appears on the all the displays
of the cooking zones. To activate the zones,
select them via the relative display and then
select the required power level.
Adjusting the cooking zone
After selecting a cooking zone:
1. Place a finger on the left-hand side of the
scroll bar of the cooking zone to be
used.
2. Move your finger to the left or right on the
scroll bar to select the power level, from
to or activate the Booster
function (see “Booster Function”).
The display of the zone being used will
indicate the selected power level.
Switching off the cooking zone
1. Move your finger all the way to the left
on the scroll bar of the cooking zone you
wish to turn off.
The display of the zone being used
indicates .
Hold the On/Off button
down for at least 2 seconds to
switch off all cooking zones at the
same time.
The power level is now .
57
Page 18
Use
Quick selection
This function allows you to quickly
set the cooking zones to the
required power.
After switching on the hob and having
selected a cooking zone:
1. Place a finger on the scroll bar at
approximately the required power level.
2. Move your finger to the left or right to
select the required cooking power.
Booster Function
Improper use
Danger of burns
After switching on the hob and having
selected a cooking zone:
1. Place a finger on the left-hand side of the
scroll bar.
The display of the cooking zone used will
turn on: the power value indicated is .
2. Move your finger all the way to the right
of the scroll bar to select the Booster
function.
The display of the cooking zone used will
show .
• Do not use the Booster and Double
Booster functions to heat fats or oils as
they could catch fire.
This function allows you to use the
maximum available power of the
cooking zone in order to bring a
large amount of water to the boil
rapidly.
58
Page 19
Use
EN
The Booster function can be activated
quickly.
• After switching on the hob, place your
finger at the far right of the scroll bar of
the cooking zone you wish to use.
The Booster function remains
active for a maximum of 5 minutes,
after which the power is reduced
automatically to level 9.
Double Booster Function
The Double Booster function allows more
power to be supplied compared to the
Booster function.
After having activated the Booster function
for a cooking zone, press “P” at the far right
of the scroll bar. The symbols , and
Multizone function
This function can be used to
operate two
cooking zones (front and
rear) when using pans like fish
kettles or rectangular pans.
After switching on the hob:
1. Place a finger simultaneously on the
buttons of two cooking zones one above
the other.
After a short beep, the symbol will
appear next to the button of the rear zone.
The Multizone function is now active.
2. Use the left-hand scroll bar to set the
required cooking power.
will be displayed in sequence.
59
Page 20
The same parameters are set on both
cooking zones.
The Multizone function can only
be activated between cooking
zones that are vertically connected
(zones indicated by “SX”, “CNT”
and “DX” - see “General
description”).
This function automatically divides
the power equally between both
of the hot plates in use.
It is not possible to activate the
Double Booster function for the
cooking zones on which the
Multizone function is active.
If a large, oval or oblong pan is being
used, make sure that it is placed in the
centre of the cooking zone.
Use
Example of incorrect pan position
60
Example of correct pan position
Examples of griddle position
To deactivate the Multizone function:
Simultaneously press the buttons of the
cooking zones on which the Multizone
function is active. The symbol
disappears and the two zones can be
regulated separately.
Page 21
Use
EN
Cooking guidelines
The table below shows the power values
which can be set, together with the
corresponding type of food. Settings may
vary depending on the amount of food and
consumer taste.
Power level Suitable for:
Reheating food, keeping
small amounts of water on
1 - 2
3 - 4
5 - 7
8-9
Booster and
Double Booster
the boil, and whipping up
sauces with egg yolk or
butter.
Cooking solid or liquid food,
keeping water on the boil,
defrosting deep-frozen food,
cooking 2- or 3-egg
omelettes, fruit and
vegetables, various cooking
processes.
Stewing meat, fish and
vegetables, simmering food,
making jams etc.
Cooking or frying meat, fish,
steaks and liver; browning
meat, fish, eggs, etc.
Deep-frying potatoes, etc., or
bringing water to the boil
rapidly.
Residual heat
Improper use
Danger of burns
• Supervise children carefully as they
cannot easily see the residual heat
indicator. The cooking zones remain hot
for a certain period of time even after
they have been turned off. Make sure
that children never touch the hob.
If the cooking zone is still hot after being
switched off, the symbol will be
displayed on the display. The symbol clears
once the temperature drops below 60°C.
3.4 Special functions
Pause function
This function pauses the operation
of all the cooking zones.
To activate the Pause function:
1. Switch on at least one cooking zone.
2. Hold down the pause button .
appears on the displays of all the
cooking zones.
The pause function can be
maintained for a maximum of 10
minutes, after which the appliance
switches off.
61
Page 22
Use
To deactivate the Pause function:
1. Hold down the button . The pause
symbol, which has just been pressed,
starts to flash.
2. Press any button apart from the Pause
button.
3. The pause function has now been
deactivated and the previously set
functions are restored.
• The cooking time limitation, the
residual heat indicators and the
control lock function remain
enabled during the Pause
function.
• When the power comes back
on after a power failure, the
pause function will be
deactivated.
Controls lock
This function is useful as it allows the
appliance to be cleaned while it is in
operation.
In order to activate the controls lock
function, there must be at least one active
zone on the appliance or the Pause function
must be active.
• Press the button for at least one
second.
All the buttons, apart from the and
buttons, are locked.
To deactivate the control lock:
1. press the button again for at least
one second.
• When power comes back on
after a power failure, the controls
lock will be deactivated.
• If the appliance is turned off and
on again, the controls lock
remains active.
Grill Function
This function is used to
automatically activate the
Multizone function for the left
zones only. It is used when using a
griddle or cooking with long pans.
To activate the Grill function:
1. Place a griddle or a long pan on the left
zones.
2. Press the button, which will start to
flash.
The symbol appears on the front zone
display and the symbol appears on the
rear zone display. The scroll bar will be set
automatically to level 8. (preheating stage)
After two minutes of operation, the power
will be reduced to level 6.
Press the button and use the scroll bar
to modify the power level at any time.
62
Page 23
Use
EN
Warming Function
This function allows you to keep
cooked food warm or to keep
water on the boil.
To activate the Warming function, first turn
on the hob, then:
1. Select a cooking zone.
2. Press the button to activate the
function. The symbol appears on the
display of the selected cooking zone.
To deactivate the Warming function:
1. Select the cooking zone on which the
function is active.
2. Press the button.
3.5 Auto-Vent 2.0 function
• This function allows you to
control the speed of the hood
extractor fan via a wireless
connection.
• The hood must be designed to
use the Auto-Vent 2.0 function.
• The connection is always
unidirectional, from the hob to
the hood: it is not possible to
control the hob via the hood.
This function has an automatic and a
manual mode:
• Automatic mode (default), adjusts the
hood extractor fan speed according to
the total power of the appliance (see
“User menu” - option U8)
• Manual mode allows you to adjust the
extractor fan speed by pressing the
button.
After switching on the hob, to activate
manual mode:
1. Press the button, which will light up
at full brightness.
2. Each subsequent press of the button
increases the hood fan speed according
to a cyclic sequence with 5 levels of
adjustment, from 0 (off) to 4 (maximum
speed).
To go back to automatic mode, the
appliance has to be switched off and on
again.
Refer to the hood manual for more
detailed information.
The Auto-Vent 2.0 function is disabled by
default, but can be enabled from the user
menu. Once enabled, the button
always remains dimly lit.
63
Page 24
Use
3.6 Additional functions
Child lock
This is useful to prevent functions being
activated by mistake (e.g. by children).
To activate the child lock, the appliance
must be on, but with the zones deactivated:
1. Press and hold any cooking zone
display.
• The slider bar shows an animation.
2. Release the display and slide your finger
on the bar from left to right.
The child lock function is active and the
symbol appears on the cooking zone
displays.
To deactivate the child lock, with the
appliance switched on:
1. Press and hold any cooking zone
display.
• The slider bar shows an animation.
2. Release the display and slide your finger
on the bar from right to left.
Rapid heating
This function is not available for
power level 9 or the Booster and
Double booster functions.
The rapid heating function heats one
cooking zone at maximum power for a
limited time, after which it continues cooking
at the set power level.
After selecting a cooking zone:
• Press and hold a power level (from 1 to
8) for at least 3 seconds.
• appears on the display of the
cooking zone.
• After the heating time has elapsed, the
cooking zone reverts to the previously
selected power level.
This function can be deactivated by
pressing and holding the set power level for
at least 3 seconds, or by selecting a lower
power level.
Timer
64
• When power comes back on
after a power failure, the child
lock will remain active.
• Once deactivated, the child lock
cannot be reactivated. To
reactivate it, you have to turn the
appliance off and on again.
This function is used to set a timer
that will emit a sound at the end of
the pre-set time.
After having switched on the hob, without
having selected a cooking zone:
1. Touch the area inside the timer display.
Page 25
Use
EN
2. Use the + and - buttons to select the
required time.
• The first digit on the left is used to select
the hours, the middle one to set the tens
of minutes and the one on the right the
minutes.
Touch the timer display within 3
seconds of having switched on the
appliance, otherwise it will
deactivate and the appliance will
have to be restarted.
3. After 10 seconds, the timer will start the
countdown.
4. When the time elapses, a series of beeps
will sound. Press any button to deactivate
them.
A maximum of 9 hours and 59
minutes can be set.
2. Use the + and - buttons to modify or reset
the timer.
3. After 10 seconds, the timer will start the
new countdown or will be deactivated.
Timed cooking
This function is used to program the
automatic switch-off of each
cooking zone at the end of a
period of time.
The timed cooking function can be
activated when at least one cooking zone
is switched on:
1. Select a power level.
2. Touch the area inside the timer display.
• The flashing symbol will appear
above the cooking zone display.
3. Use the + and - buttons to select the
required time.
Using the minute minder does not
stop the operation of the cooking
zones but rather informs the user
when the set minutes have run out.
Modifying or deactivating the timer
To modify or deactivate the timer during the
countdown:
1. Press the On/Off button to activate
the hob (if it is in stand-by).
• The timer display will indicate the minutes
that were set at the beginning.
4. Timed cooking will start a few seconds
after the last selection.
At the end of the set time, a buzzer tells the
user that the Minute minder has finished.
65
Page 26
Use
5. Press any button to deactivate the
buzzer.
A maximum of 9 hours and 59
minutes can be set.
This function can be activated on
multiple cooking zones at the same
time. The flashing LED and time
indicator refer to the next cooking
zone to be switched off.
Modifying or deactivating timed cooking
To modify timed cooking during the
countdown:
1. Press the On/Off button to activate
the hob (if it is in stand-by).
2. Press the display button of the timed
cooking zone.
• The timer display will indicate the minutes
that were set at the beginning.
3. Use the + and - buttons to modify or reset
the timer.
4. After 10 seconds, the timer will start the
new countdown or will be deactivated.
Recall Function
This is used to restore some
functions that have already been
started after the appliance has
been switched off unintentionally.
If the appliance is switched off
unintentionally, carry out the following
procedure within 6 seconds:
1. Switch on the appliance.
• The button starts to flash.
2. Press the pause button immediately
to restore the functions that were
previously active.
This function restores the cooking
zones, timer and rapid heating
functions; no other functions will be
restored.
66
An independent timer can be set
during timed cooking.
Page 27
Use
EN
3.7 User menu
The user menu allows you to modify the
operating characteristics of the appliance.
9 of the options can be modified. Each
option is indicated on the display with the
letter “U”, which alternates with a
progressive number.
Option Description
Maximum total power (kW) - Change
U0
U1
U2
U3
U4
U5
U6
U7
U8
U9

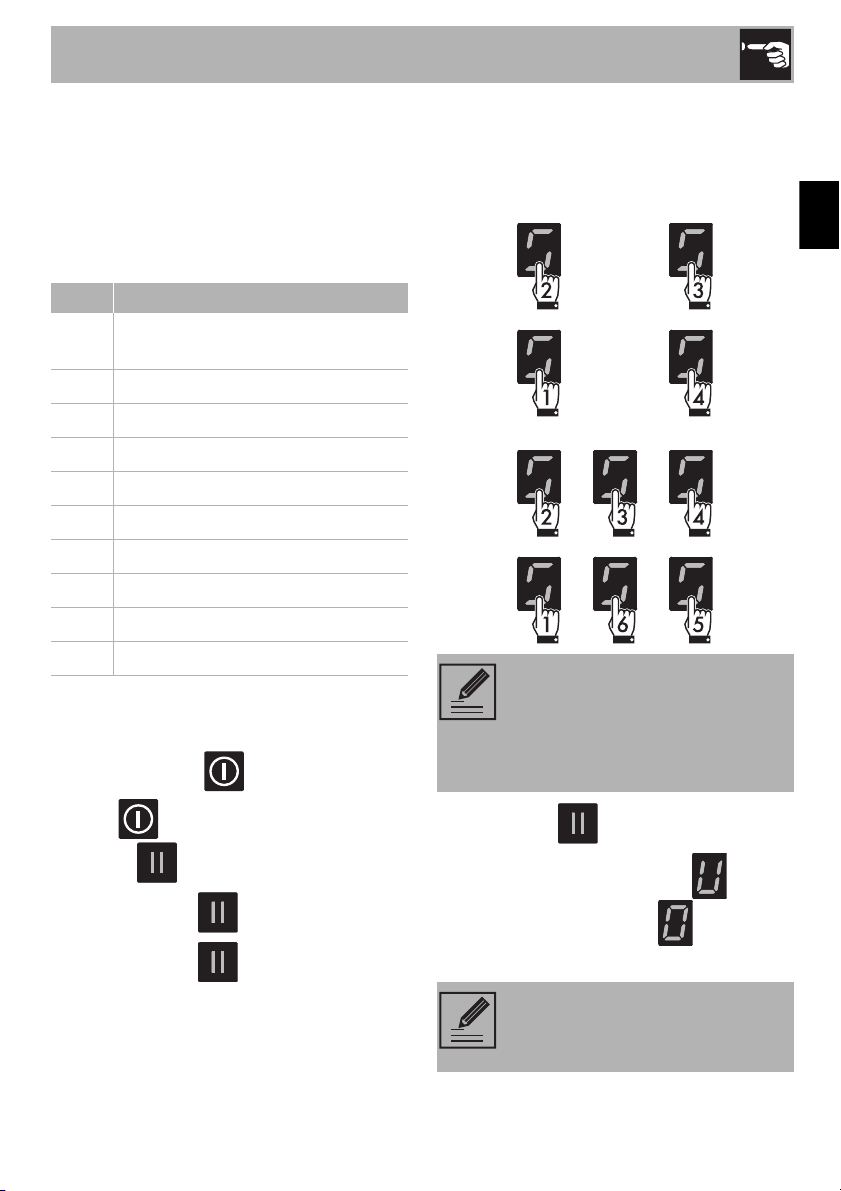

Accessing the user menu
1. If the hob is off, switch it on using the
On/Off button .
by the installer only
Option disabled
Button volume
Timer alarm volume
Display brightness
Timer animation
Automatic pan detection
Timer alarm duration
Hood fan configuration
Auto-Vent 2.0 function
Press all the buttons of the cooking zones in
sequence in a clockwise direction starting
from the front left. Every effective touch will
be confirmed by a beep.
60 cm and 80 cm (A) models:
80 cm (B) and 90 cm models:
If the sequence of the buttons is
selected incorrectly, the hob will
be turned off and the procedure
for accessing the menu will have to
be repeated.
2. Press again immediately to switch it
off; the button starts to flash.
3. Press and hold .
4. Press and hold . Some symbols will
appear on the cooking zones displays
that have to be pressed in sequence to
access the menu options.
5. Release the button.
The user menu is active and the symbol
alternating with the number will appear
at the top of the cooking zones display.

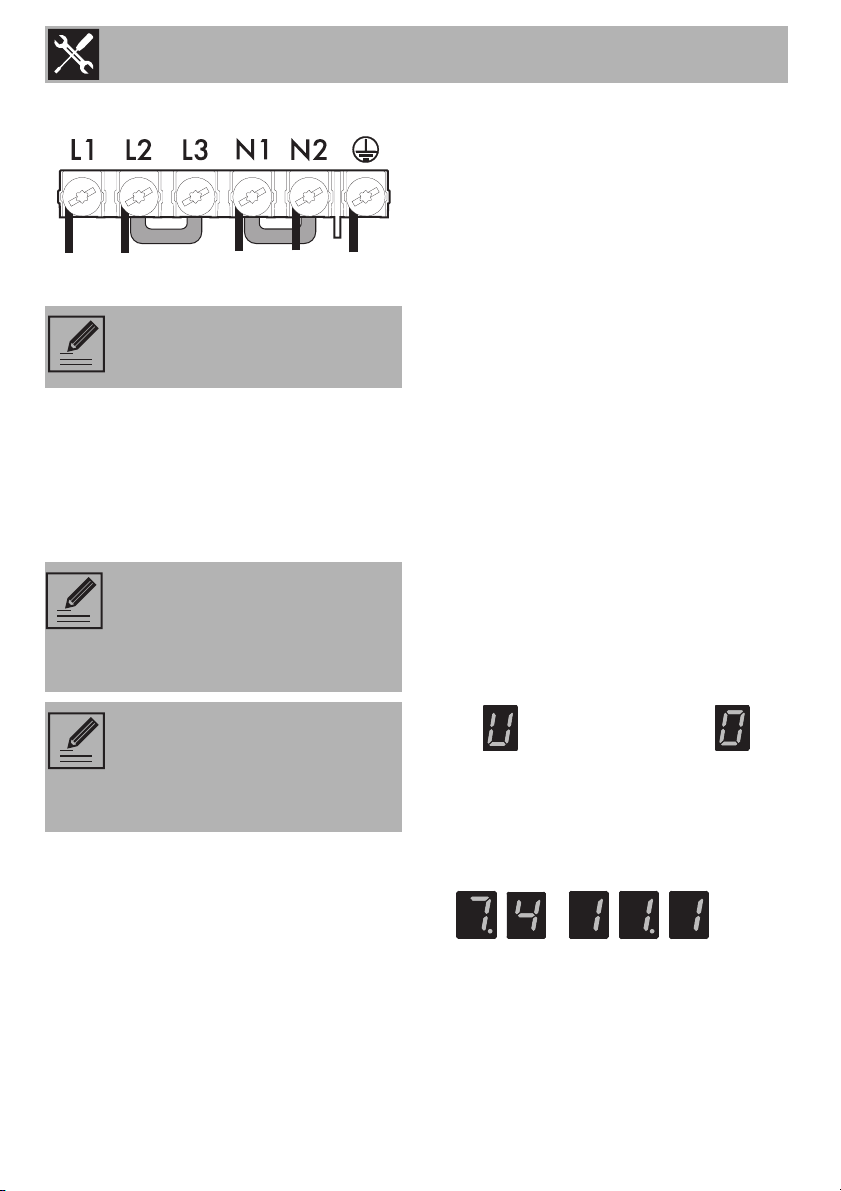

This option is only to be used by
the installer (see “Power limitation
procedure (for installer only)”).
67
Page 28

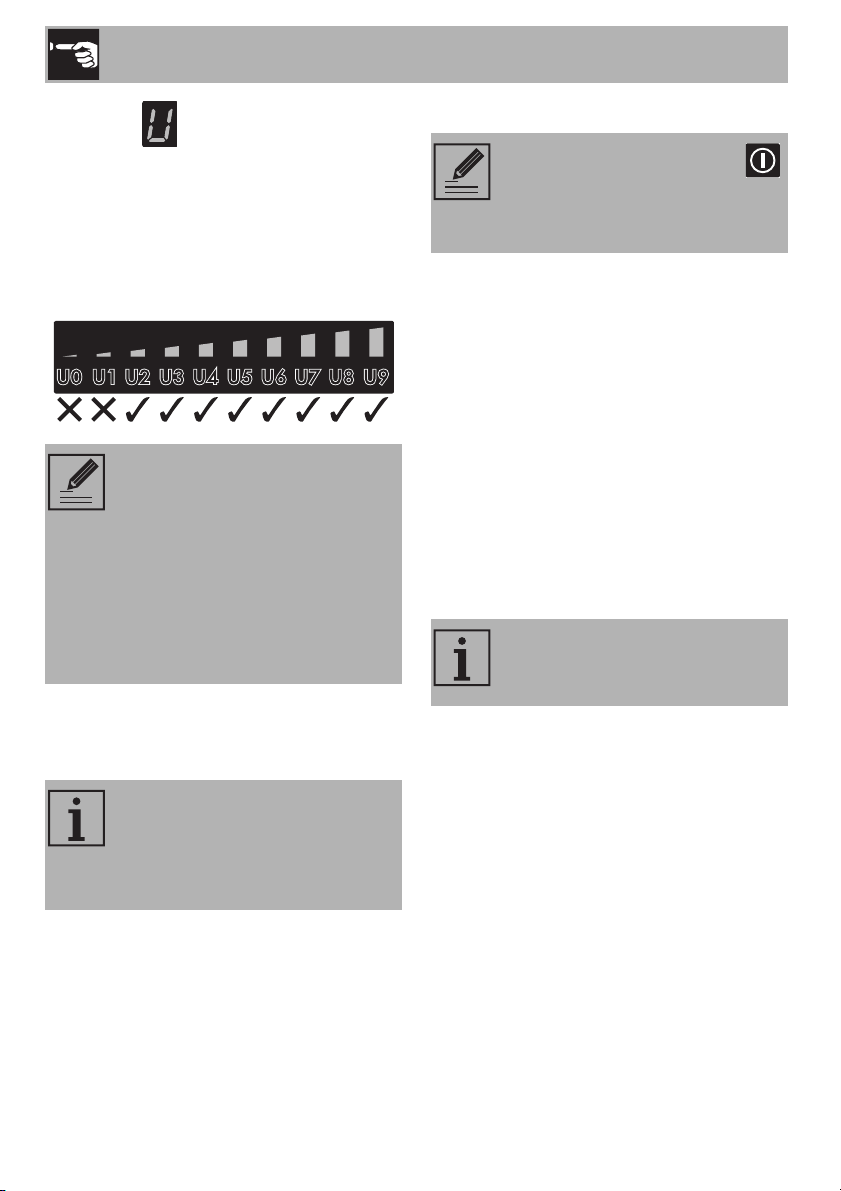

6. Press the symbol to go back to
Use
selecting the options. A scroll bar
appears in which each segment is
associated with a menu option.
7. Press the segments of the scroll bar
(except the first two) to select the
available options.
• The first segment on the left
(option U0) is reserved for the
power limitation procedure (for
installer only).
• For technical reasons, the
second segment from the left
(option U1) is disabled.
Selecting this option will have no
effect.
Option U2 modifies the volume of the
button sounds; 4 sound levels can be
selected using the scroll bar.
The sound associated with the
button and the sounds associated
with error messages cannot be
deactivated.
Option U3 modifies the volume of the
sound signals when the timer has ended. 4
levels can be selected.
• 0: minimum volume.
• 3: maximum volume.
Option U4 modifies the brightness of the
display. 10 levels can be selected.
• 0: maximum brightness.
• 9: minimum brightness.
Option U5 allows you to display the
countdown of the minute minder timer and
timed cooking in seconds, from 59 to 0
seconds.
The seconds count is displayed
when the timer is set for less than
10 minutes.
• 0: animation off.
• 1: animation on.
According to the adjustment range
of each option, the scroll bar will
show only those segments that
correspond to the adjustments
available for each option.
• 0: minimum volume.
• 3: maximum volume.
68
Page 29
Use
EN
Option U6 allows you to activate or
deactivate the automatic pan detection
function. (see “Switching on the cooking
zone automatically”).
• 0: automatic detection off.
• 1: automatic detection on.
If automatic pan detection is
disabled, the area must be
switched on manually when a pan
is placed on the hob.
Option U7 specifies the length of the alarm
when the timer has finished. 3 levels can be
selected:
• 0: alarm duration 120 seconds.
• 1: alarm duration 10 seconds.
• 2: alarm disabled.
Option U8 allows you to activate the Auto-
Vent 2.0 function in automatic mode. 8
levels can be selected. The following table
summarises the possible settings:
Hardness
level
2 - 4 - 6 on off speed 1 speed 2
3 - 5 - 7 on speed 1speed 2speed 3
Hood
lighting
0 off off
1 on off
Hood fan speed
Delicate
cooking
Medium
cooking
Intense
cooking
Refer to the following table to choose the
most suitable value according to the power
limitation of the appliance:
Hardness level Power limitation
2 - 3 up to 4 kW
4 - 5 from 4 to 5 kW
6 - 7 from 5 to 11.1 kW
If you select a higher power level
compared to the one that has
been set, it may not be possible to
select some of the hood fans
speeds.
Option U9 allows you to activate or
deactivate the Auto-Vent 2.0 function:
• 0: function off.
• 1: function on.
Exiting the user menu
There are two ways to exit from the user
menu:
1. Press the button. Any modifications
will be discarded and the hob will be
switched off.
Or
2. Press and hold the On/Off button
for at least 2 seconds. The modifications
will be saved and the hob will be
switched off.
69
Page 30
3.8 Error codes
If the appliance malfunctions or operates
incorrectly, the associated error code
appears on the cooking zones display.
The error codes always begin with “E..” or
“Er..”, followed by a number.
The following error codes can be corrected
without having to contact the Technical
Support Service.
• Er03: Remove any materials or pans
from the area of the front control panel.
• E2: Make sure that the pans are suitable
for induction cooking and that they are
not empty; allow the appliance to cool
down.
If these error codes appear
frequently, contact Technical
Support.
For all other errors, make a note of the
code, if possible, and contact Technical
Support.
Use
70
Page 31
Cleaning and maintenance
EN
4 Cleaning and maintenance
4.1 Instructions
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not spill sugar or sweet mixtures on
the hob during cooking.
• Do not place materials or substances
that could melt (plastic or aluminium
foil).
• Keep sensor buttons clean at all times
and do not rest any object on them.
• Do not use cleaning products containing
chlorine, ammonia or bleach on parts
made of steel or that have metallic
surface finishes (e.g. anodizing, nickelor chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring powders, stain
removers and metallic sponges) on
glass parts. Use wooden or plastic
utensils.
4.3 Ordinary weekly cleaning
Clean and maintain the hob once a week
using an ordinary glass cleaning product.
Always follow the manufacturer’s
instructions. The silicon in these products
creates a protective, water-repellent
membrane which also resists dirt. All marks
stay on the membrane and can therefore be
removed easily. After cleaning, dry the
surface with a clean cloth. Make sure that
there is no detergent left on the cooking
surface as it will undergo a corrosive
reaction when heated up and could modify
the structure of the cooking surface.
4.4 Food stains or residues
Light coloured marks from pans with
aluminium bases can be easily cleaned off
with a cloth moistened in vinegar.
Remove any burnt-on residues after
cooking; then rinse with water and dry
thoroughly with a clean cloth.
Dirt which may have fallen on the hob
while cleaning lettuce or potatoes can
scratch the hob when moving pans.
Consequently, remove any dirt from the
cooking surface immediately.
4.2 Cleaning the surfaces
To keep the surfaces in good condition,
they should be cleaned regularly after use.
Let them cool first.
71
Page 32
Cleaning and maintenance
Changes in colour do not affect the
operation and stability of the glass. These
are not alterations to the material of the hob
but just residues which have not been
removed and have then carbonised.
Shiny surfaces can form due to the bases
of pans, especially aluminium ones, rubbing
on the surface, and due to the use of
unsuitable detergents. They are difficult to
remove using conventional cleaning
products. It may be necessary to repeat the
cleaning process several times. Use of
corrosive detergents or rubbing of pan
bases can wear away the decoration on
the hob over time and contribute to the
formation of stains.
4.5 What to do if...
The hob does not work:
• Make sure that the hob is connected
and that the main switch is turned on.
• Make sure that there is no power failure.
• Make sure that the fuse has not blown. In
this case replace the fuse.
• Make sure that the circuit breaker of the
residential electrical system has not
tripped. In this case, reset the circuit
breaker.
The cooking results are unsatisfactory:
• Make sure that the cooking temperature
is not too high or too low.
The hob smokes:
• Let the hob cool down and clean it once
cooking is complete.
• Make sure that the food has not spilled
out of the pan and use a larger cooking
vessel, if needed.
The fuses blow or the circuit breaker of the
residential electrical system trips repeatedly.
• Call Technical Support or an electrician.
There are cracks or fissures in the hob:
• Turn off the appliance immediately,
disconnect the power supply and
contact Technical Support.
72
Page 33
Installation
EN
5 Installation
5.1 Electrical connection
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised technical
personnel.
• Use personal protective equipment.
• The appliance must be connected to
earth in compliance with electrical
system safety standards.
• Disconnect the mains supply.
• Do not pull the cable to unplug the
appliance.
• Use cables withstanding a temperature
of at least 90°C.
• The tightening torque of the screws of the
terminal supply wires must be 1.5 - 2
Nm.
60 cm and 80 cm (A) models:
• 220-240 V / 380-415 V 2N~
6 x 1.5 mm² six-core cable.
3 x 6 mm² three-core cable.
80 cm (B) and 90 cm models:
• 380-415 V 3N~
General information
Check the grid characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
Perform the ground connection using a wire
that is 20 mm longer than the other wires.
The appliance, depending on the model,
can be connected as follows:
5 x 2.5 mm² five-core cable.
• 220-240 V 3~ / 380-415 V 2N~
4 x 4 mm² four-core cable.
73
Page 34
Installation
• 220-240 V 1N~
5 x 4 mm² five-core cable
For all types of connection, use the
jumper provided.
Fixed connection
Fit the power line with an all-pole circuit
breaker in compliance with installation
regulations. The circuit breaker should be
located near the appliance and in an easily
reachable position.
Run the power cable in the rear
part of the unit. Make sure that it
.
does not come into contact with
the lower part of the hob or a builtin oven below it.
Be careful when connecting
additional electrical appliances.
Connection cables must not come
into contact with hot cooking
zones.
Testing
At the end of installation, carry out a brief
inspection test. If the hob fails to operate,
after checking that you have carried out the
instructions correctly, unplug the appliance
and contact Technical Support.
5.2 Instructions for the installer
• Do not bend or trap the power cable.
• The appliance must be installed
according to the installation diagrams.
• If the appliance does not work correctly
after having carried out all the checks,
contact your local Authorised Service
Centre.
• Once the appliance has been installed,
please explain to the user how to use it
correctly.
5.3 Power limitation procedure (for
installer only)
In order to modify the maximum power
absorbed by the appliance, you have to
access the user menu (see “User menu”).
Once you have accessed the menu, the first
available option is indicated by “U0”
(Maximum total power). 10 of the options
can be modified. Each option is indicated
on the display with the letter “U”, which
alternates with a progressive number.
1. Once you have accessed the user menu,
the symbol alternating with will
appear at the top of the cooking zones
display.
2. The timer display on the other hand,
indicates the default power setting
(according to the model - in kW):
/
3. Press the timer display to enable changes
to the power settings.
74
Page 35

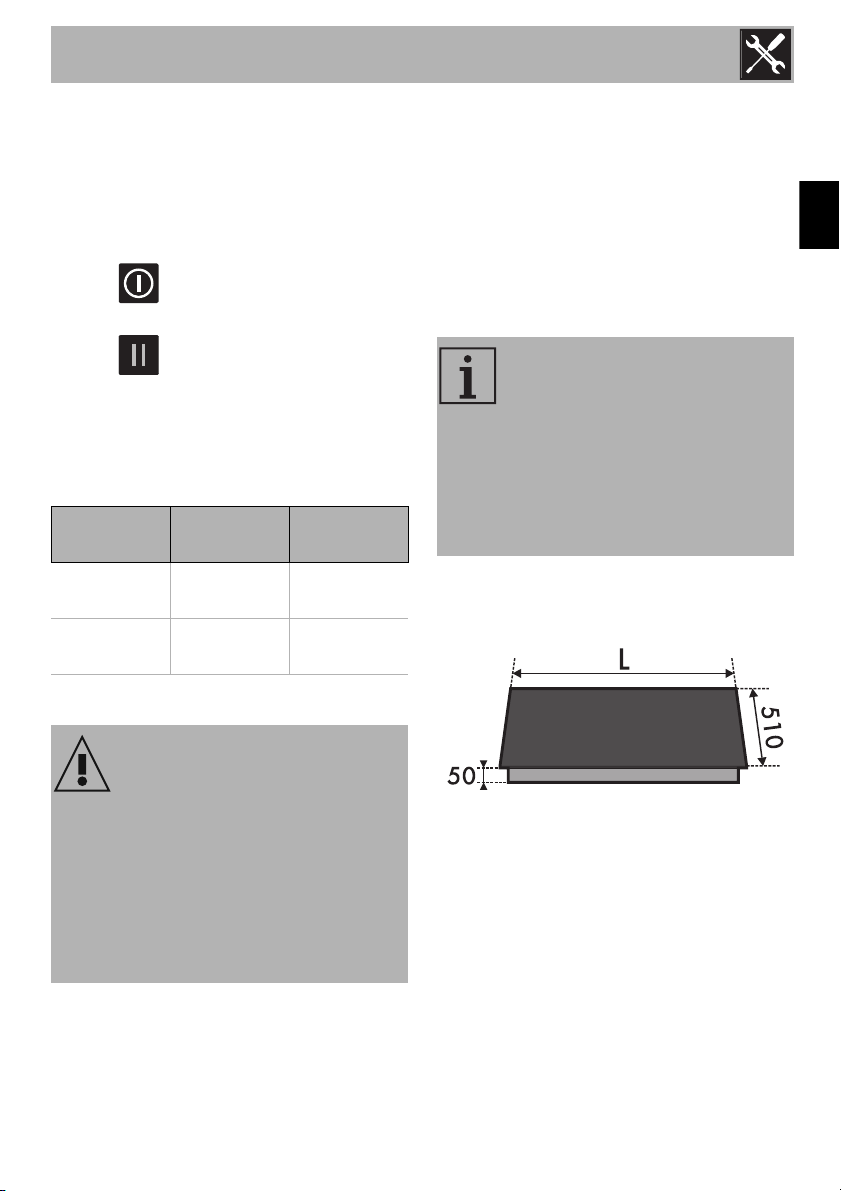

Installation
EN
4. Press the left of the scroll bar to decrease
the power and the right to increase it.
The Eco-Logic Advance function increases
or decreases the power steps of 0.1 kW at
each touch.
To exit from the user menu:
1. Press for at least 2 seconds to save
the modifications.
2. Press to exit without saving the
modifications.
In both cases, the hob will be switched off
and will have to be switched back on.
Table of power draws
Model
60 cm
80 cm (A)
80 cm (B)
90 cm
Minimum
power (kW)
2.4 7.4
2.4 11.1
Maximum
power (kW)
The minimum clearance between exhaust
hoods and the cooking surface must be at
least the distance indicated in the exhaust
hood installation instructions.
The minimum clearances must also be
respected for the edges of the hob on the
back as indicated in the mounting
illustrations.
5.5 Section cut from the countertop
The following operation requires
building and/or carpentry work
and must therefore be carried out
by a competent tradesman.
Installation can be carried out on
various materials such as masonry,
metal, solid wood or plastic
laminated wood as long as they
are heat resistant (>90°C).
Make a hole in the countertop of the unit
according to the dimensions shown in the
figure (mm).
5.4 Safety instructions
Heat production during appliance
operation
Risk of fire
• Check that the carcase material is heat
resistant.
• Check that the carcase has the required
openings.
• Do not obstruct the ventilation grille in
front of the product during mounting.
Veneers, adhesives or plastic coatings on
adjacent furniture should be temperatureresistant (>90°C), otherwise they might
warp over time.
75
Page 36
Installation
Semi-flush mounting
L X Y
600 560 480
800 (A) 730 - 750 480 - 490
800 (B) 750 490
900 860 490
A B C D E
min.
50
min.
460
min.
750
20÷60
min.
50
Hob seal
To prevent leakage of liquid between the
frame of the hob and the countertop, place
the adhesive seal provided along the entire
outer edge of the hob before assembly.
Do not use silicone to secure the
hob. This would make it impossible
to remove the hob, if necessary,
without damaging it.
Flush built-in model
For this kind of hobs additional milling is
needed in the recessed hole if you wish to
install the hob flush with the work surface.
L X Y G H
600 560 480 604 514
800 (A)
800 (B) 750 490 804 514
900 860 490 904 514
min.
50
730 -
750
A B C D E
min.
460
480 804 514
min.
750
20÷60
min.
50
After laying the adhesive seal (A) on the
glass surface and after positioning and
securing the hob, fill the edges with
insulating silicone (B) and wipe away any
excess.
76
Page 37

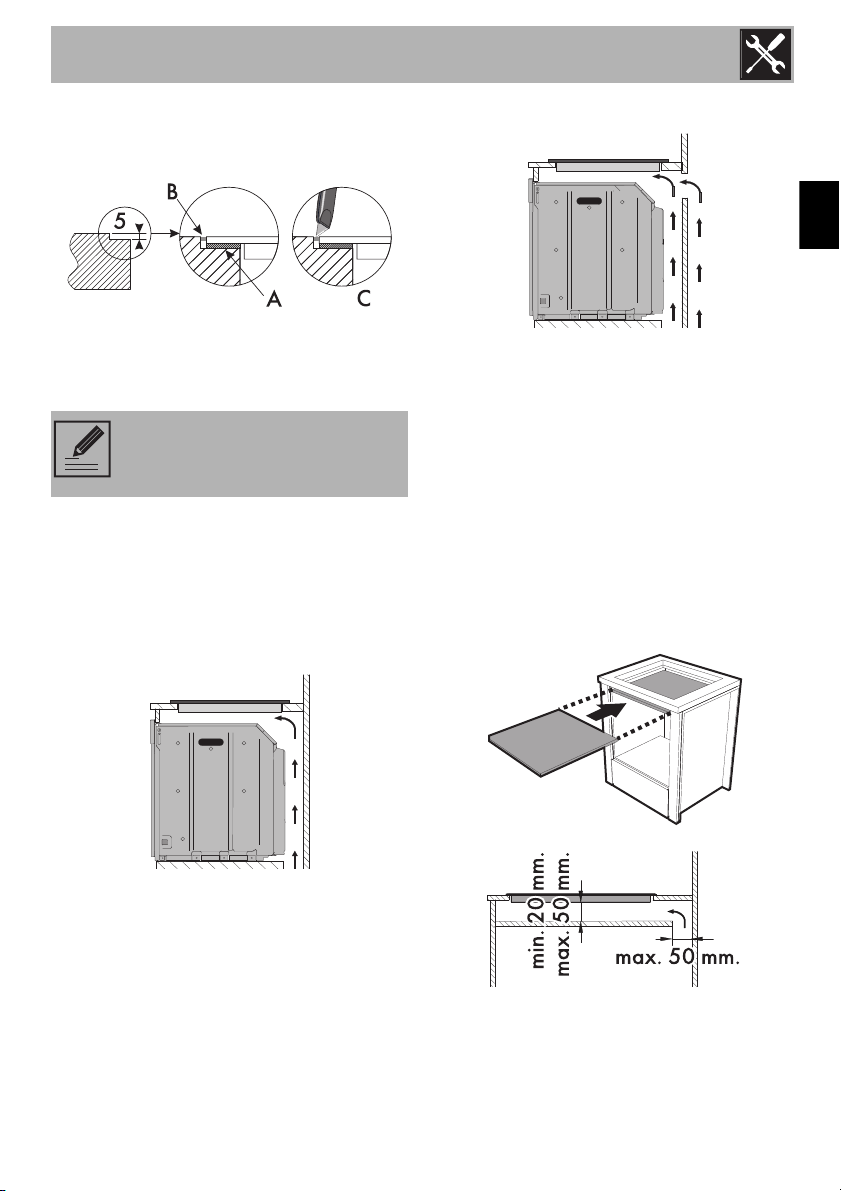

Installation
EN
In the event the hob needs to be removed,
cut the silicone using a cutter before
attempting to remove it (C).
5.6 Mounting
Over built-in oven unit
If installed on top of an oven, the
latter must be equipped with a
cooling fan.
The clearance between the hob and the
kitchen units or other built-in appliances
must be enough to ensure sufficient
ventilation and air discharge. If installed
above an oven, a space must be left
between the bottom of the hob and the top
of the appliance installed below.
opens on bottom
opens on bottom and on rear
On top of an empty kitchen unit or
drawers
If there are other pieces of furniture (lateral
walls, drawers, etc.), dishwashers or fridges
under the hob, a double-layer wooden
base must be installed at least 20 mm from
the bottom of the hob to avoid any
accidental contact. It must only be possible
to remove the double-layer base using
suitable equipment.
opens on bottom
77
Page 38

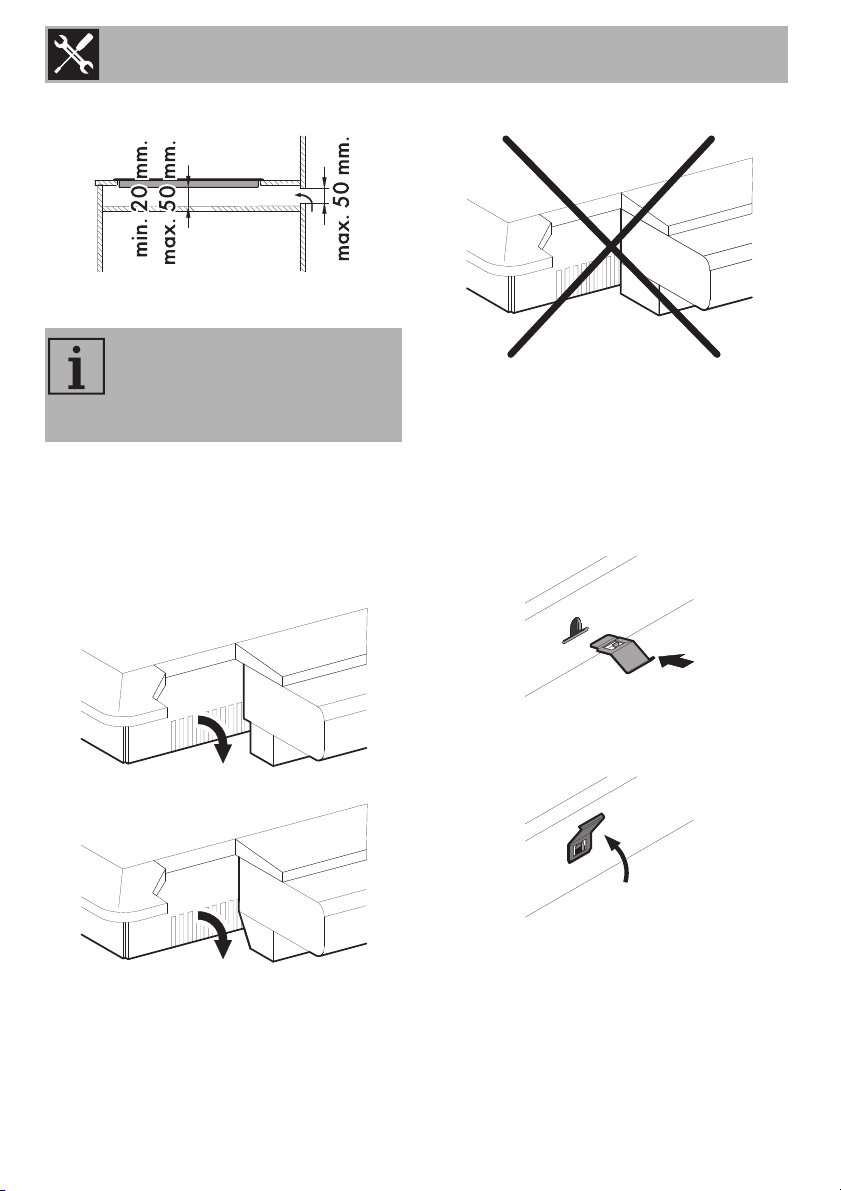

Installation
opens on rear
Failure to install the double-layer
wooden base exposes the user to
possible accidental contact with
sharp or hot parts.
Ven ti la ti on
The illustrations below show two examples
of installation suitable for proper ventilation
and one example of incorrect installation to
be avoided.
Spring clips
To ensure the hob is fixed and centred as
accurately as possible, the clips provided
must be positioned as described below:
1. Fit the clips by gently pressing them
horizontally into the appropriate space.
78
2. Then turn them upwards to fix them in
place.
Loading...
