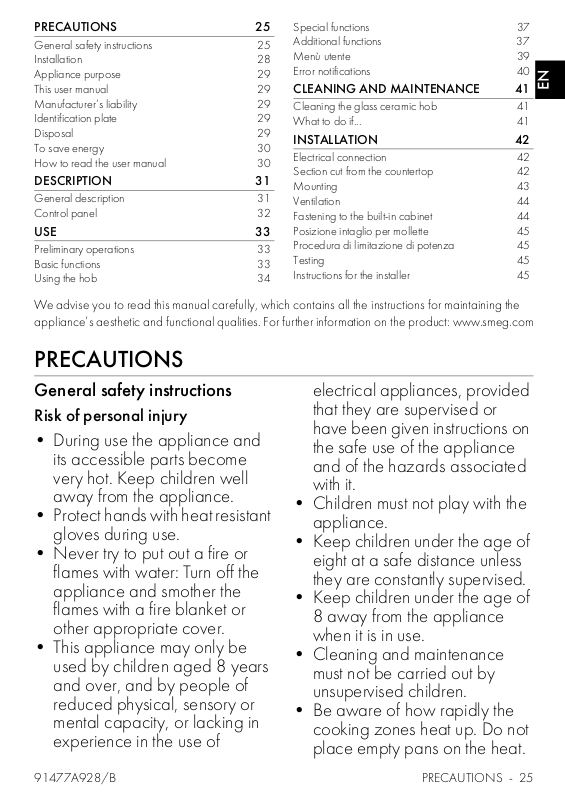

PRECAUTIONS 25
General safety instructions 25
Installation 28
Appliance purpose 29
This user manual 29
Manufacturer’s liability 29
Identification plate 29
Disposal 29
To save energy 30
How to read the user manual 30

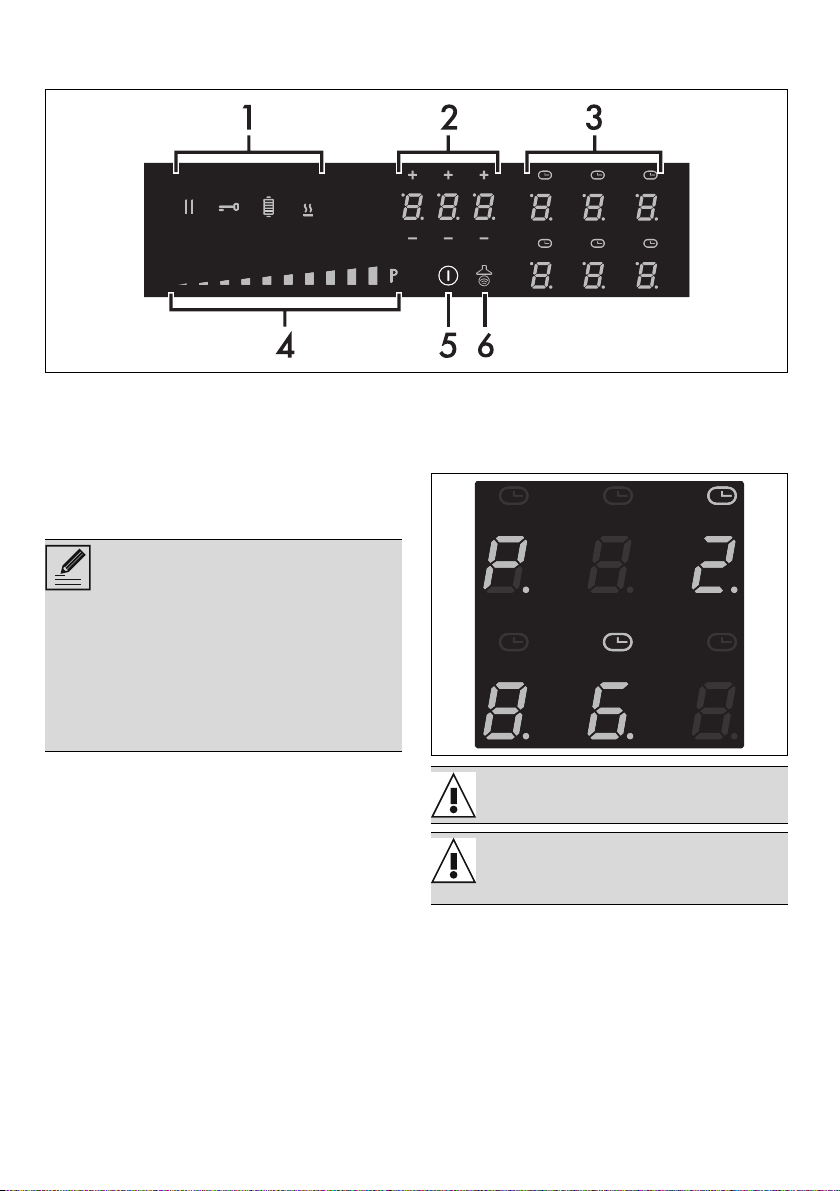

DESCRIPTION 31
General description 31
Control panel 32
USE 33
Preliminary operations 33
Basic functions 33
Using the hob 34
We advise you to read this manual carefully, which contains all the instructions for maintaining the
appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com
Special functions 37
Additional functions 37
Menù utente 39
Error notifications 40
CLEANING AND MAINTENANCE 41
Cleaning the glass ceramic hob 41
What to do if... 41

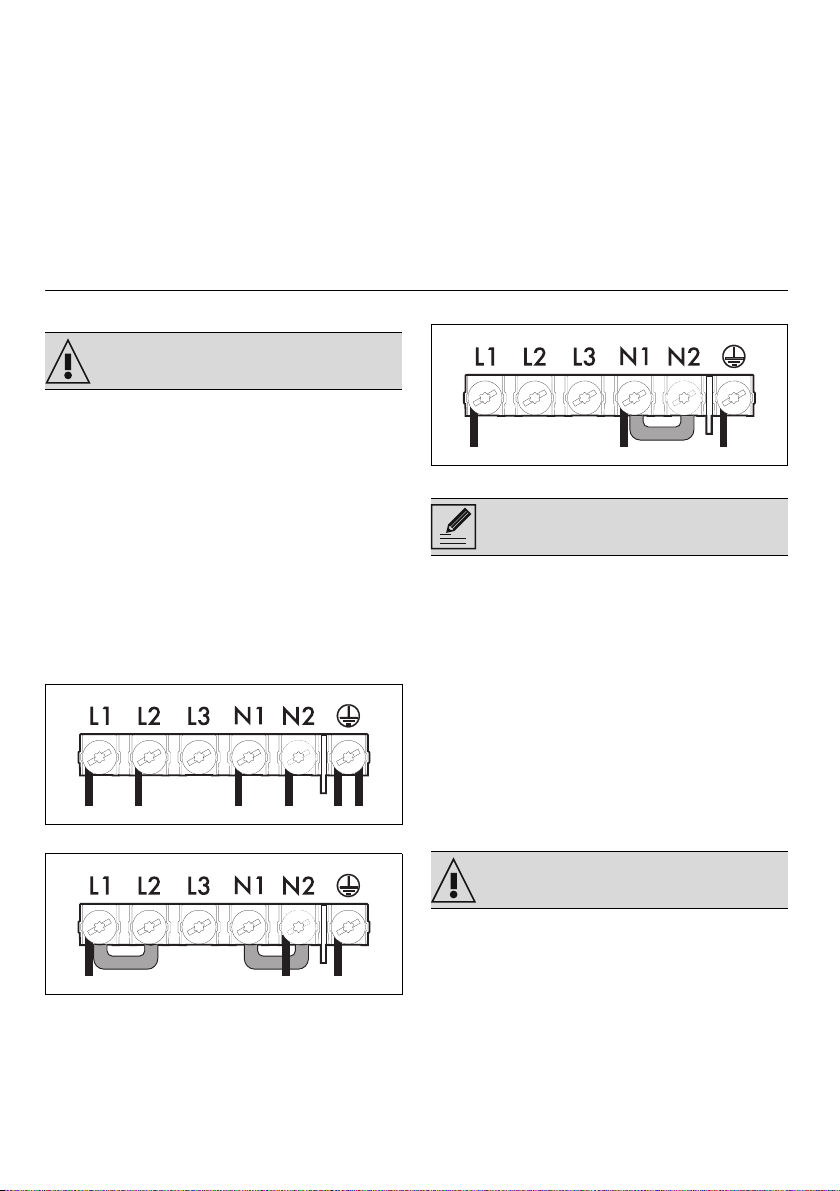

INSTALLATION 42
Electrical connection 42

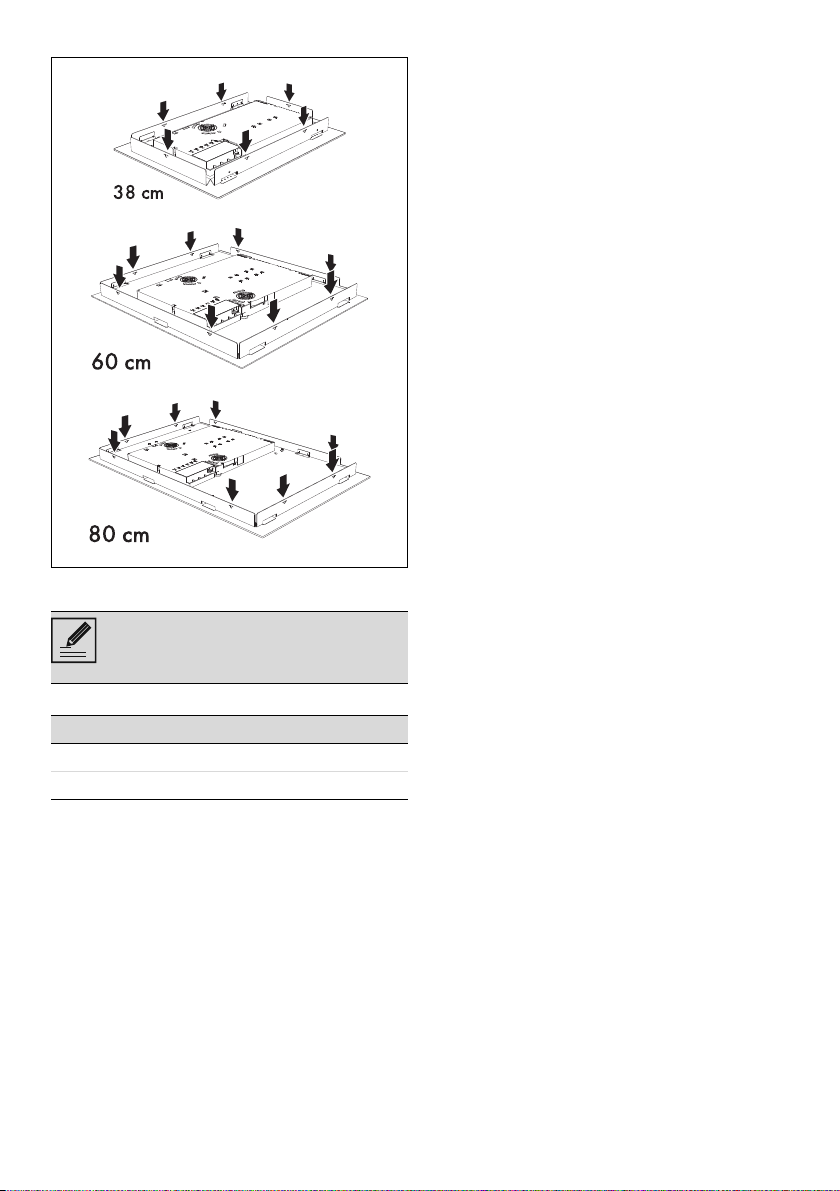

Section cut from the countertop 42
Mounting 43
Ventilation 44
Fastening to the built-in cabinet 44
Posizione intaglio per mollette 45
Procedura di limitazione di potenza 45
Testing 45
Instructions for the installer 45
PRECAUTIONS
General safety instructions
Risk of personal injury
• During use the appliance and
its accessible parts become
very hot. Keep children well
away from the appliance.
• Protect hands with heat resistant
gloves during use.
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the
flames with a fire blanket or
other appropriate cover.
• This appliance may only be
used by children aged 8 years
and over, and by people of
reduced physical, sensory or
mental capacity, or lacking in
experience in the use of
electrical appliances, provided
that they are supervised or
have been given instructions on
the safe use of the appliance
and of the hazards associated
with it.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless
they are constantly supervised.
• Keep children under the age of
8 away from the appliance
when it is in use.
• Cleaning and maintenance
must not be carried out by
unsupervised children.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
PRECAUTIONS - 2591477A928/B
Page 2
Danger of overheating.
• Activate the controls lock when
you have children or pets which
could reach the hob.
• Do not touch or clean the hob
surface during operation or
when the residual heat
indicator lights are still on.
• After use, switch off the plates.
Never rely solely on the
cookware detector.
• Supervise children carefully as
they cannot readily see the
residual heat indication. After
use the cooking zones remain
hot for a certain period of time
even if they have been turned
off. Keep children away from
the cooking zones.
• The cooking process must
always kept under control. A
short cooking process must be
continuously monitored.
• WARNING: Cooking foods
containing fat and/or oil
without monitoring them can be
dangerous and can cause a
fire.
• Fats and oils can catch fire if
they overheat. Do not leave the
appliance unattended while
preparing foods containing oils
or fats. If fats or oils catch fire,
never put water on them. Place
the lid on the pan and turn off
the relevant cooking zone.
• Do not use the Booster and/or
the Double Booster functions (if
present) to heat fats or oils. Fire
hazard.
• Do not place metal objects,
such as dishes or cutlery, on the
surface of the hob during
cooking as they may overheat.
• Do not cook foods in closed
tins or containers or plastic
containers.
• Do not use magnetic tins.
• Do not use trivets or other items
between the bottom of the pan
and the glass ceramic surface.
Danger of burns.
• Do not insert pointed metal
objects (cutlery or utensils) into
the slots in the appliance.
• Do not use or store flammable
materials near the appliance or
directly underneath the hob.
• Switch off the appliance
immediately after use.
• Do not pull the cable to unplug
the appliance (if present).
•DO NOT USE AEROSOLS IN
THE VICINITY OF THIS
APPLIANCE WHILST IT IS IN
USE.
• DO NOT MODIFY THIS
APPLIANCE.
• Always wear personal
protective equipment (PPE)
before carrying out any work
on the appliance (installation,
maintenance, positioning or
moving).
• Do not clean the appliance if it
is still hot or in operation.
• After use the cooking zones
remain hot for a certain period
26 - PRECAUTIONS 91477A928/B
Page 3
e
of time after they have been
turned off. Do not touch the hob
surfaces.
• Before performing any work on
the appliance, switch off the
power supply.
• Do not try to repair the
appliance yourself or without
the assistance of a qualified
technician.
• If the power cable becomes
damaged, contact technical
support immediately to arrange
for it to be replaced in order to
avoid possible hazards.
• If cracks or fissures form, or if
the glass ceramic cooking
surface breaks, turn off the
appliance immediately.
Disconnect the power supply
and call Technical Support.
• People who have pacemakers
or other similar devices fitted
must make sure that the
operation of these devices is
not affected by the induction
field, the frequency range of
which is between 20 and 50
kHz.
• In conformity with the provisions
regarding electromagnetic
compatibility, the
electromagnetic induction
cooking hob comes under
group 2 and class B (EN
55011).
Risk of damaging the appliance
• Do not use abrasive or
corrosive detergents (e.g.
scouring powders, stain
removers and metallic
sponges) on glass parts.
• Use wooden or plastic utensils.
• Do not sit on the appliance.
• Do not use the glass ceramic
cooking surface as a support
surface.
• Do not use the appliance as a
support surface.
• Do not obstruct ventilation
openings and heat dispersal
slots.
• Do not use the hob if the
pyrolytic cycle is taking place
inside any oven installed
below.
• Do not use steam jets to clean
the appliance.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released, as these
could then heat up and catch
fire. Be very careful.
• Fire hazard: Never leave
objects on the cooking
surfaces.
• DO NOT FOR ANY REASON
USE THE APPLIANCE AS A
SPACE HEATER.
• Cooking vessels or griddle
plates should be placed inside
the perimeter of the hob.
• All pans must have smooth, flat
bottoms.
• If any liquid does boil over or
spill, remove the excess from
PRECAUTIONS - 2791477A928/B
Page 4
the hob.
• Take care not to spill acid
substances such as lemon juice
or vinegar on the hob.
• Do not spill sugar or sweet
mixtures on the hob during
cooking.
• Do not place materials or
substances that could melt or
catch fire (paper, plastic or
aluminium foil) on the
appliance while it is in use.
• Place the cookware directly on
the glass ceramic surface.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use rough or abrasive
materials or sharp metal
scrapers.
• The glass ceramic surface is
highly resistant to impact.
However, prevent hard, solid
objects from falling on the
cooking surface as they may
cause it to break.
• Do not use cleaning products
containing chlorine, ammonia
or bleach on parts made of
steel or that have metallic
surface finishes (e.g. anodizing,
nickel- or chromium-plating).
• This appliance is not intended
to be operated by means of
external timer or separate
remote control system.
Installation
• THIS APPLIANCE MUST NOT
BE INSTALLED IN BOATS OR
CARAVANS.
• Position the appliance into the
cabinet cut-out with the help of
a second person.
• Check that the carcase has the
required openings.
• Check that the carcase material
is heat resistant.
• Installation and servicing should
be carried out by qualified
personnel in accordance with
current standards.
• Have the electrical connection
performed by authorised
technical personnel.
• The appliance must be
connected to earth in
compliance with electrical
system safety standards.
• Use cables that can withstand
temperatures of at least 90°C.
• Run the power cable in the rear
part of the unit. Make sure that
it does not come into contact
with the lower part of the hob
or a built-in oven below it.
• Be careful when connecting
additional electrical
appliances. Connection cables
must not come into contact with
hot cooking zones.
• The tightening torque of the
screws of the terminal supply
wires must be 1.5 - 2 Nm.
• Do not attach the appliance
too tightly to the unit as this
could cause damage during
use or partially obstruct the heat
dispersal slots.
28 - PRECAUTIONS 91477A928/B
Page 5
e
• The power cable must only be
installed or replaced by a
qualified technician.
• If the power cable becomes
damaged, contact technical
support immediately to arrange
for it to be replaced in order to
avoid possible hazards.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any work on
the appliance, switch off the
power supply.
• Allow the appliance to be
disconnected after installation,
via an accessible plug or a
switch in the case of a fixed
connection.
• Fit the power line with an allpole circuit breaker with a
contact separation distance
sufficient to provide complete
disconnection in category III
overvoltage conditions,
pursuant to installation
regulations.
• This appliance can be used up
to a maximum altitude of 2,000
metres above sea level.
Appliance purpose
This appliance is intended for
cooking food in the home
environment. Every other use is
considered inappropriate. It
cannot be used:
• in employee kitchens, shops,
offices and other working
environments.
• in farms/farmhouses.
• by guests in hotels, motels and
residential environments.
• In bed and breakfast
accommodation.
This user manual
• This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user's reach for the
whole working life of the appliance.
• Read this user manual carefully before using
the appliance.
• The explanations in this manual include
images, which describe all that regularly
appears on the display. However, it should
be kept in mind that the appliance may be
equipped with an updated version of the
system, and as such, all that appears on the
display may differ from those in the manual.
Manufacturer’s liability
The manufacturer declines all liability for
damage to persons or property caused by:
• use of the appliance other than that
specified;
• failure to comply with the instructions in the
user manual;
• tampering with any part of the appliance;
• use of non-original spare parts.
Identification plate
The identification plate bears the technical data,
serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
Disposal
This appliance conforms to the WEEE
European directive (2012/19/EU) and
must be disposed of separately from
other waste at the end of its service life.
The appliance does not contain substances in
quantities sufficient to be considered hazardous
to health and the environment, in accordance
PRECAUTIONS - 2991477A928/B
Page 6
with current European directives.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
To dispose of the appliance:
• Cut the power cable and remove it.
• Deliver the appliance to the appropriate
recycling centre for electrical and electronic
equipment waste, or return it to the retailer
when purchasing an equivalent product, on
a one for one basis.
Our appliances are packaged in non-polluting
and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part of it
unattended.
• Do not let children play with the plastic
bags.
To save energy
• The diameter of the base of the pan must not
extend beyond the lines printed on the glass
ceramic surface.
• Pans must not be placed outside the
perimeter of the hob or on the display.
• When buying a pan, check whether the
diameter indicated is that of the base or the
top of the pan, as the top is almost always
larger than the base.
• When preparing dishes with long cooking
times, you can save time and energy by
using a pressure cooker, which also helps to
retain vitamins contained in the food.
• Make sure that the pressure cooker contains
enough liquid as, if there is not enough and
it overheats, this may cause damage to both
the pressure cooker and the cooking zone.
• If possible, always cover pans with a
suitable lid.
• Choose a pan suitable for the quantity of
food to be cooked. A large, half-empty
saucepan leads to a waste of energy.
Under certain circumstances, if the hob
and the oven are used at the same time,
the maximum power limit of the
electrical system might be exceeded.
How to read the user manual
This user manual uses the following reading
conventions:
Warning/Caution
Information/Advice
30 - PRECAUTIONS 91477A928/B
Page 7
e
DESCRIPTION
60
80 (A)
80/90

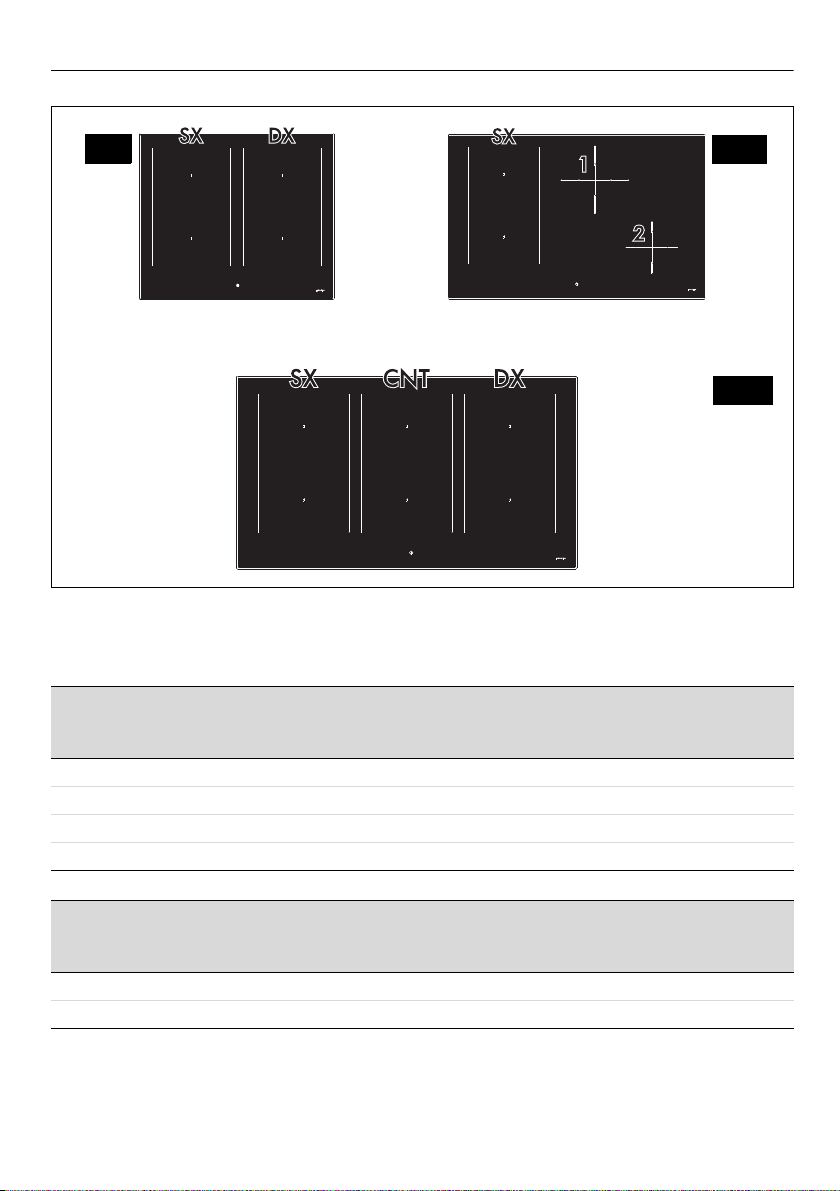

General description
• SX: Left cooking zones
• CNT: Central cooking zones
• DX: Right cooking zones
• 1: Rear central cooking zone
• 2: Front right cooking zone
60 cm, 80 cm (A) and 90 cm models:
Zone
Single zone 190 x 210 2100 2500 3000
Multizone 360 x 240 3000 3700 -
Zone 1 200 x 200 2300 3000 -
Zone 2 160 x 160 1400 1850 2100
80 cm models:
Zone
Single zone 180 x 200 2100 2500 3000
Multizone 360 x 200 3000 3700 -
*Power levels are approximate and may vary
according to the pan used or the settings made.
Dimensions H x L
(mm)
Dimensions H x L
(mm)
Max. power draw
Lev. 9 (W)*
Max. power draw
Lev. 9 (W)*
Power draw in
booster function (W)
*
Power draw in
booster function (W)
*
DESCRIPTION - 3191477A928/B
Power draw in Double Booster function
(W)*
Power draw in Double Booster function
(W)*
Page 8
Control panel
Cooking zones area
1. Functions buttons
2. Timer display
3. Cooking zone display
4. Scroll bar
5. ON/OFF button
6. Auto-Vent 2.0 function button
Advantages of induction cooking
The appliance is equipped with an
induction generator for each cooking
zone. Each generator located under the
glass ceramic cooking surface creates
an electromagnetic field which induces
a thermal current in the base of the pan.
This means the heat is no longer
transmitted from the hob to the pan but
created directly inside the pan by the
inductive current.
• Energy saving thanks to the direct
transmission of energy to the pan (suitable
magnetisable cookware is required)
compared to traditional electric cooking.
• Improved safety as the energy is only
transmitted to the pan placed on the hob.
• High level of energy transmitted from the
induction cooking zone to the base of the
pan.
• Rapid heating speed.
• Reduced danger of burns as the cooking
surface is only heated under the base of the
pan; foods which overflow do not stick.
permitted, the electronic circuit board will
automatically manage the power supplied by
the hot plates. The module tries to maintain the
maximum deliverable power levels. Levels set by
the automatic control will appear on the display.
Priority is given to the last zone set.
The power control module does not
affect the total power consumption of
the appliance.
Power control
The hob is fitted with a power control module
that optimises/limits consumption. If the overall
set power level exceeds the maximum limit
32 - DESCRIPTION 91477A928/B
Page 9
e
USE
Preliminary operations
See General safety instructions.
• Remove any protective film from the outside
or inside of the appliance, including any
accessories (if present).
• Remove any labels (apart from the technical
data plate).
Cookware suitable for use in induction
cooking
Cookware used on the induction cooking
surface must be made of metal, with magnetic
properties and a sufficiently large base.
Suitable cookware:
• Enamelled steel cookware with thick bases.
• Cast iron cookware with an enamelled
base.
• Cookware in multilayer stainless steel, ferritic
stainless steel and aluminium with a special
base.
Unsuitable cookware:
• Copper, stainless steel, aluminium, fireproof
glass, wood, ceramic and terracotta
cookware.
Advice on energy-saving

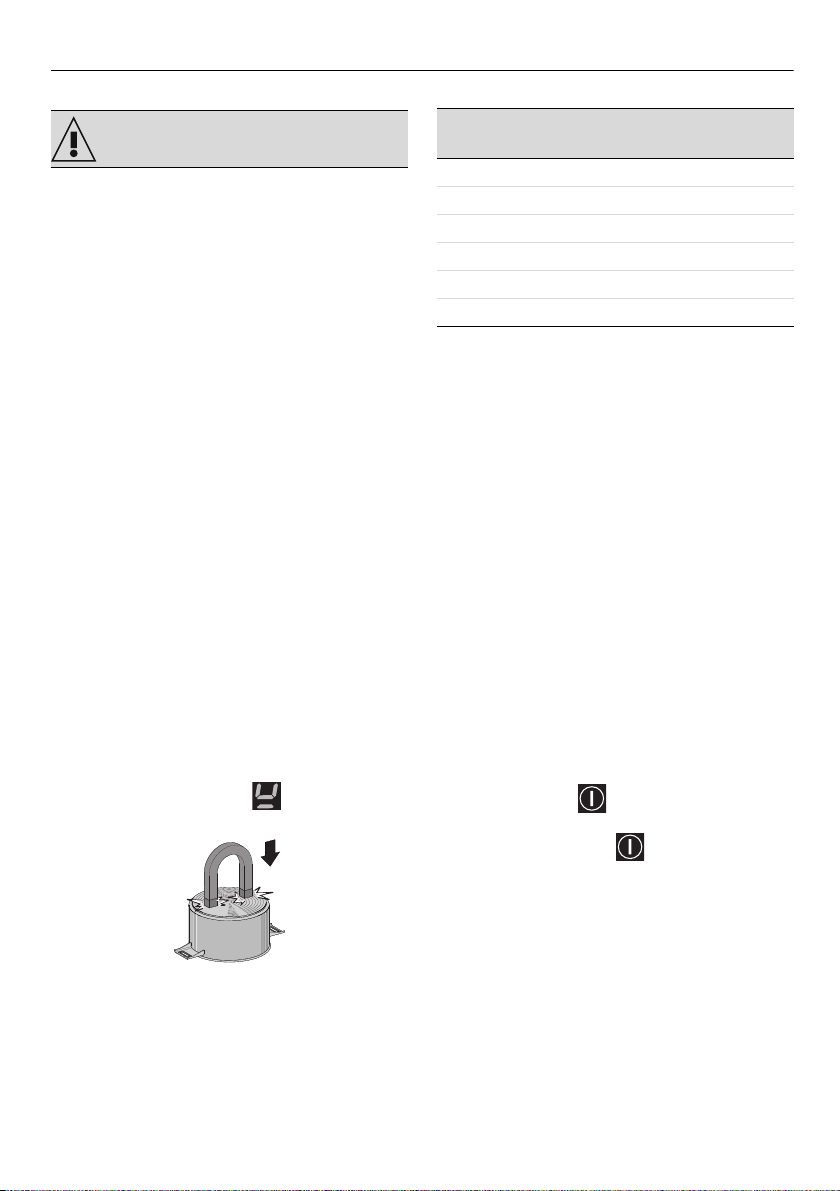

To see whether the pan is suitable, bring a
magnet close to the bottom: if it is attracted, the
pan is suitable for induction cooking. If you do
not have a magnet, you can put a small amount
of water in the pan, place it on a cooking zone
and start the hot plate. If the symbol appears
on the display, it means the pan is not suitable.
Cookware diameters
To ensure that the appliance detects the
containers correctly and for best results, use the
pan sizes indicated in the following table.
Cooking zones
1 - 2 (Single) 90 - 110 170 - 190
1 - 2 (Bridge) 190 - 230 240
3 - 4 (Single) 90 - 110 160 - 180
3 - 4 (Bridge) 190 - 230 200
5 70 - 90 160
6 110 - 130 250
Bear in mind the following:
• Pans should not extend beyond the lines
marked on the surface of the appliance.
• Do not place pans near to the edges of the
glass ceramic surface or close to the control
panel.
• If you use a griddle, it must have a maximum
size of 36 x 24 cm for zones 1 - 2 and 36 x
20 cm for zones 3 - 4.
• Do not use a griddle on zones 5 and 6.
Minimum diam-
eter (mm)
Recommended
diameter (mm)
Basic functions
First power connection
When connected to the power supply for the
first time, or after power has been switched
back on after a power failure, an automatic
check is carried out that control turns on the
indicator lights and the displays for a few
seconds. Afterwards, the appliance can be
used normally.
Switching on and off
Press and hold the button for at least one
second to switch on the appliance. To turn off
the appliance, press the button until a sound
is emitted. The appliance will switch off
automatically after about 10 seconds of
inactivity.
Summary table of power levels
The power can be adjusted to various levels.
The table below shows the levels suitable for
USE - 3391477A928/B
Page 10
various types of cooking.
Power level Suitable for:
0 OFF setting
1 to 2
3 to 4 Cooking
5 to 6
7 to 8 Roasting, slow frying with flour
9Roasting
Cooking small quantities of food
(minimum power)
Cooking large quantities of food,
roasting larger portions
Bringing large quantities of water to
a boil (maximum power, see
“Booster function”)
Using the hob
Automatic cooking zone activation
The hob is fitted with a pan detection
system that automatically selects the
zones on which a suitable pan has
been placed; this function is enabled by
default and can be deactivated via the
user menu.
After switching on the display:
1. Position a pan (suitable for induction
cooking and not empty) on the cooking
zone you wish to use.
• The display corresponding to the zone on
which the container has been placed turns
on automatically and displays .
If automatic pan detection is deactivated, when
the appliance is switched on, the symbol with
a flashing dot in the bottom right corner appears
on the all the displays of the cooking zones. To
activate the zones, select them via the relative
display and then select the required power
level.

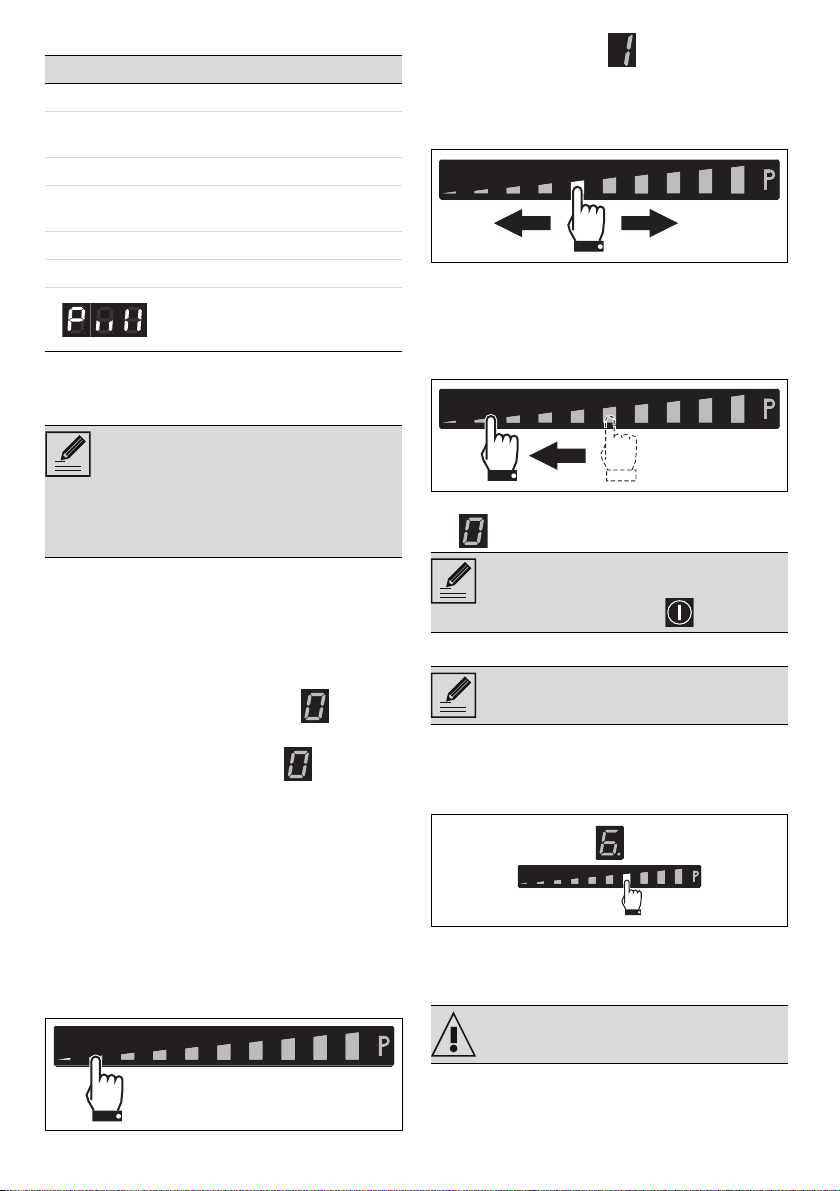

Adjusting cooking zones
After having placed a pan on the cooking zone
and made sure that the zone has been
activated:
1. Place a finger on the left-hand side of the
scroll bar of the cooking zone to be used.
The power level is now .
2. Move your finger to the left or right to select
the power level from 1 to 9 or enable the
Booster or Double Booster function (see
specific sections).
The display of the zone being used will indicate
the selected power level.
Switching off the cooking zones
1. Move your finger to the far left of the scroll
bar of the cooking zone you wish to turn off.
1. The display of the zone selected indicates
.
To switch off more than one cooking
zone at the same time, simply switch off
the appliance using the button.
Quick selection
The appliance is fitted with an automatic
pan sensing system.
After switching on the appliance and having
selected a cooking zone:
1. Place a finger on the scroll bar at
approximately the required power level.
2. Move your finger to the left or right to select
the required cooking power.
Booster function
See General safety instructions.
The Booster function allows you to heat a pan at
maximum power for a limited amount of time. It
can be used to bring a large amount of water to
34 - USE 91477A928/B
Page 11
e
the boil rapidly.
After switching on the hob and having selected
a zone:

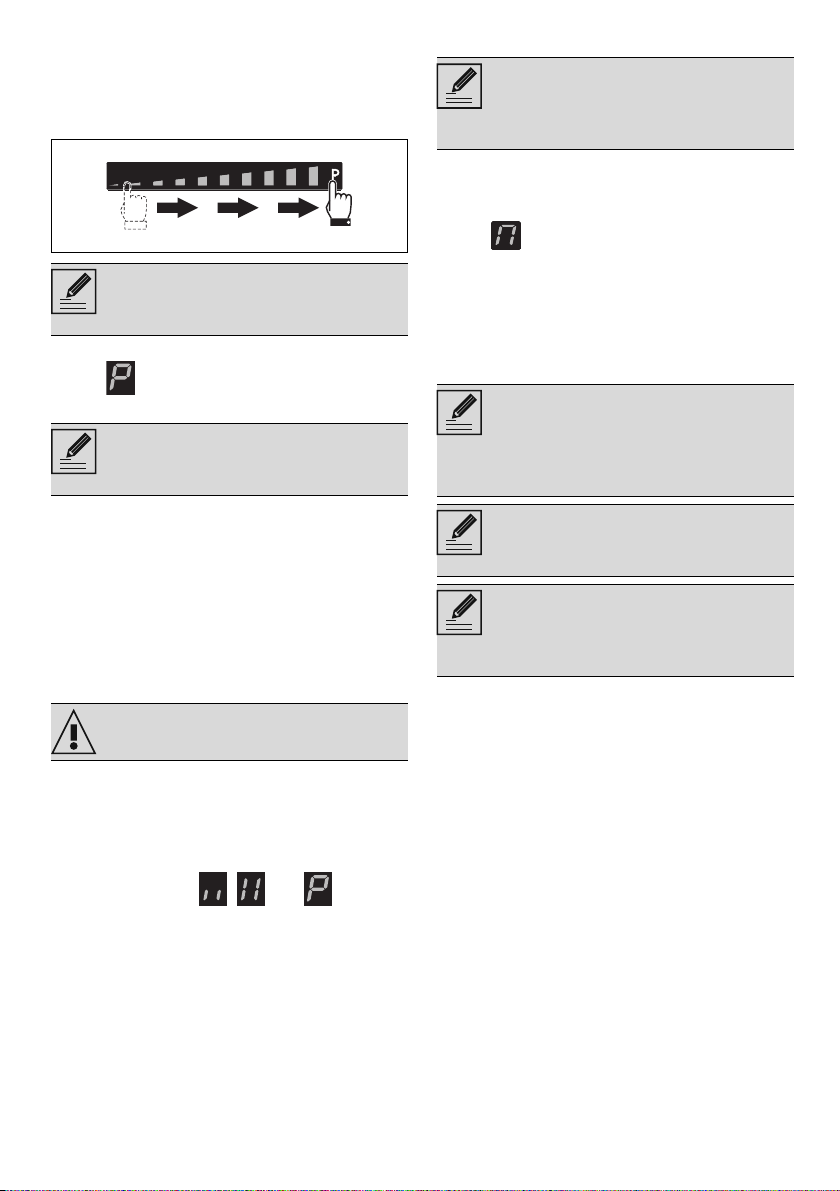

1. Swipe your finger from the far left to the far
right of the scroll bar.
The Booster function can also be
activated by a pressing the right end of
the scroll bar once.
2. The Booster function will be activated and
the symbol appears on the cooking
zone display.
The Booster function remains active for
a maximum of 5 minutes, after which the
power level of the zone returns to 9.
To deactivate the Booster function, simply
decrease the power level of the cooking zone
or switch off the appliance.
The Booster function can be activated quickly.
• After switching on the hob and having
selected a cooking zone, place a finger on
the “P” symbol at the far right of the scroll
bar.
Double Booster Function
See General safety instructions.
Multizone function
This function allows you to operate two
cooking zones (front and rear) at the
same time when using pans such as fish
kettles or rectangular pans.
After switching on the hob:
1. Place a finger simultaneously on the buttons
of two cooking zones one above the other.
• The symbol will appear in
correspondence with the rear zone to
indicate that the function is active.
2. Use the left-hand scroll bar to set the
required cooking power.
The same parameters are set on both cooking
zones.
It is only possible to activate the
Multizone function between zones that
are vertically connected (zones
indicated by “SX”, “CNT” and “DX” see “General description”).
This function automatically divides the
power equally between both of the hot
plates in use.
It is not possible to activate the Double
Booster function for the cooking zones
on which the Multizone function is
active.

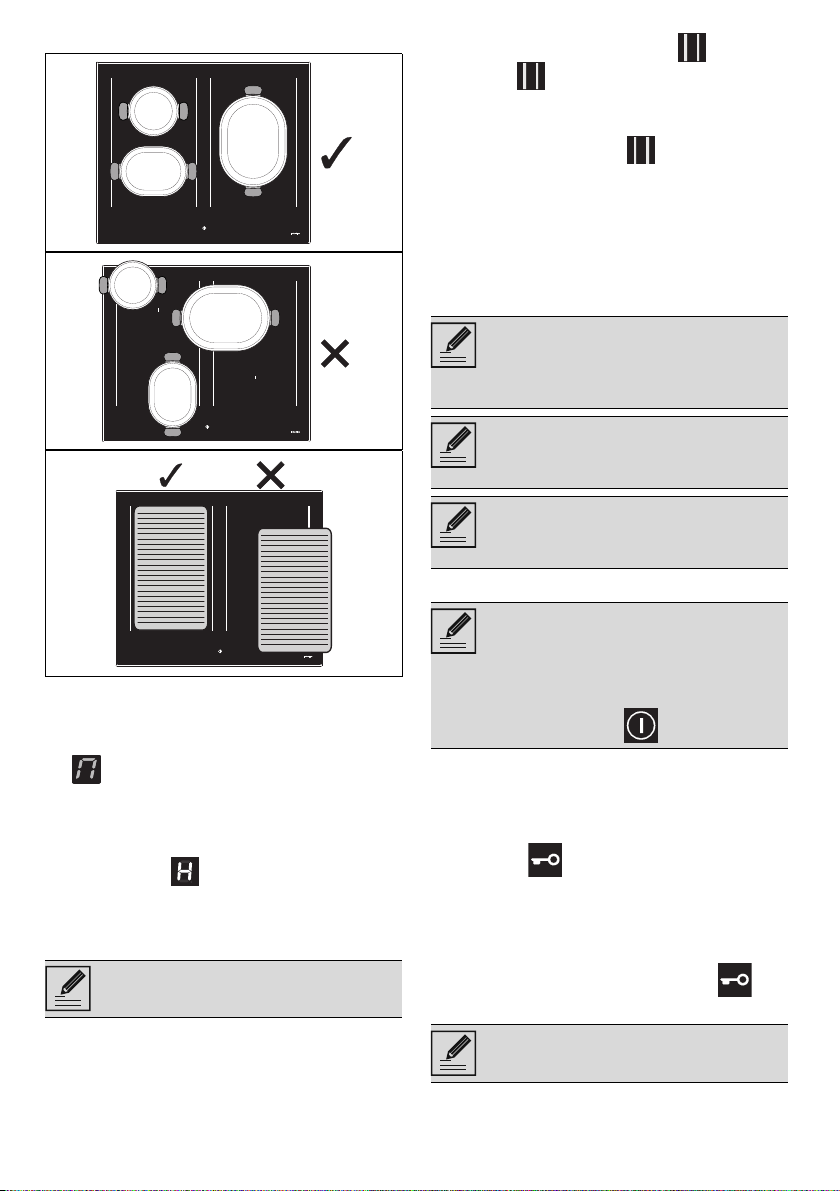

If a large, oval or oblong pan is being used,
make sure that it is placed in the centre of the
The Double Booster function allows more
power to be supplied compared to the Booster
function.
After having activated the Booster function for a
cooking zone, press the far right of the scroll bar
again. The symbols , and will be
displayed in sequence to indicate that the
Double Booster function is on.
To deactivate the function, simply select any
other power level or switch off the appliance.
USE - 3591477A928/B
Page 12
cooking zone.
To deactivate the Multizone function:
Simultaneously press the buttons of the cooking
zones on which the Multizone function is active.
The symbol disappears and the two zones
can be regulated separately.
Residual heat
If the cooking zone is still hot after being
switched off, the symbol will be displayed
on the display. The symbol clears once the
temperature drops below 60°C.
Pause function
This function pauses the operation of all
the cooking zones.
To activate the Pause function:
1. Switch on at least one cooking zone.
2. Hold down the pause button . The
symbol displays on all the cooking
zones.
To deactivate the Pause function:
1. Hold down the button . The pause
symbol, which has just been pressed, starts
to flash.
2. Press any button apart from the Pause
button.
3. The pause function has now been
deactivated and the previously set functions
are restored.
The cooking time limitation, the residual
heat indicators and the control lock
function remain enabled during the
Pause function.
When the power comes back on after
a power failure, the pause function will
be deactivated.
The pause function can be maintained
for a maximum of 10 minutes, after
which the appliance switches off.
Controls lock
This feature is designed to lock all the
hob controls.
It is always active when the hob is
switched on.
It locks all buttons apart from this one
and the ON/OFF button.
This is useful when cleaning the appliance and
to prevent functions being modified by mistake.
To activate the controls lock function, at least
one cooking zone has to be active:
1. Press the button for at least one
second.
2. The LED on the display lights up for 2
seconds to indicate that the function has
been activated.
To disable the Controls lock, press the
button for at least one second.
It is always lit when the hob is activated.
36 - USE 91477A928/B
Page 13
e

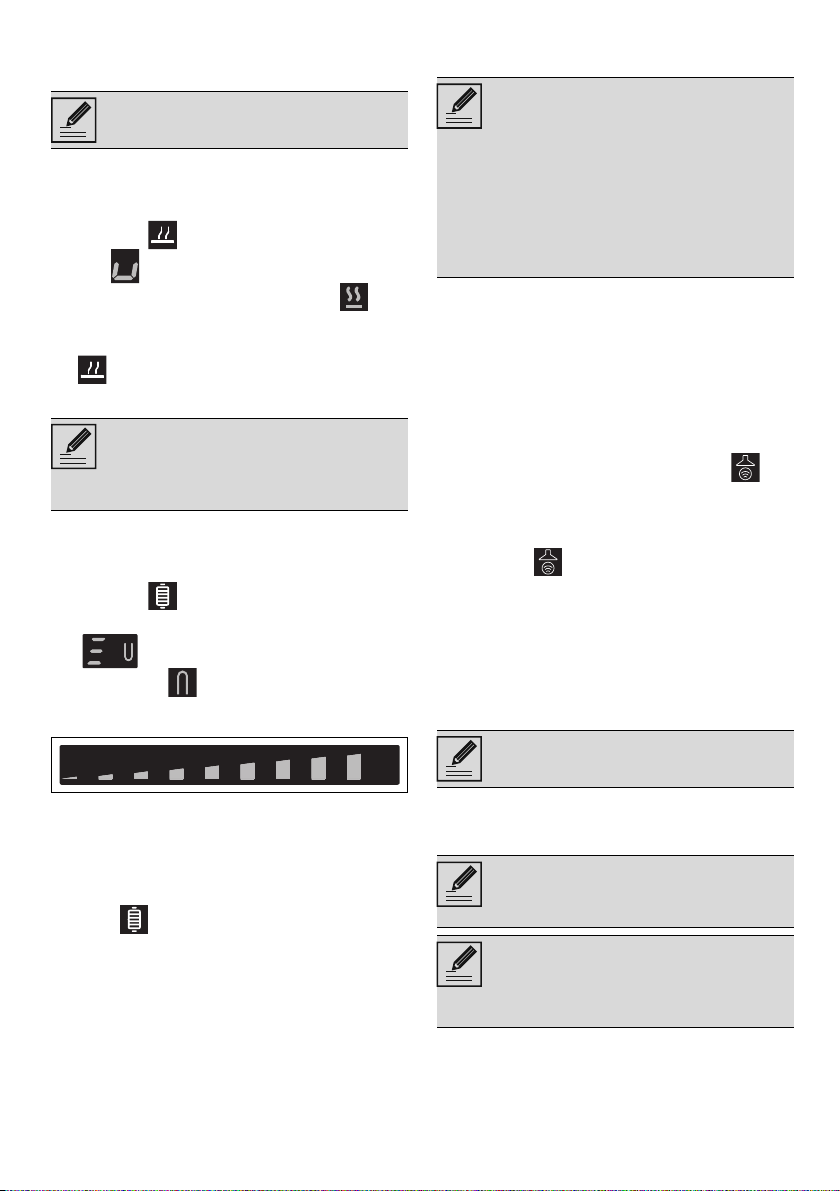

Special functions
Warming Fu n c t i on
This function allows you to keep cooked
food warm or to keep water on the boil.
To activate the Warming function, first turn on the
hob, then:
1. Place a pan on a cooking zone.
2. Press the button to activate the function.
The symbol appears on the display of
the selected cooking zone and the icon
will appear next to the scroll bar.
To turn off the Warming function, simply press
the button of the relative zone again.
Grill Function
This function is used to activate the
Bridge function automatically for the
right zones only. It is used when using a
griddle or cooking with long pans.
To activate the Grill function:
1. Place a griddle or a long pan on the right
zones.
2. Press the button. The LED above it will
flash.
The symbol appears on the front zone
display and the symbol appears on the rear
zone display. The electronics will automatically
set the power level to 9 (preheating phase).
Auto-Vent 2.0 function (on some models
only)
• This function allows you to control
the speed of the hood extractor fan
via a wireless connection.
• The hood must be designed to use
the Auto-Vent 2.0 function.
• The connection is always one way,
from the hob to the hood. It is not
possible to control the hob via the
hood.
The Auto-Vent 2.0 function is disabled by
default, but can be enabled from the user menu.
This function has an automatic and a manual
mode:
• Automatic mode adjusts the hood extractor
fan speed according to the total power of
the appliance (see “User menu - option U2).
• Manual mode allows you to adjust the
extractor fan speed by pressing the
button.
After switching on the hob, to activate manual
mode:
1. Press the button.
2. Each subsequent press of the button
increases the hood fan speed according to
a cyclic sequence with 5 levels of
adjustment, from 0 (off) to 4 (maximum
speed).
To go back to automatic mode, the appliance
has to be switched off and on again.
Refer to the hood manual for more
detailed information.
After 3 minutes of operation, the power will be
lowered to level 7 and the LED above the Grill
function button becomes steady.
Use the scroll bar to modify the power level at
any time.
Press the button to deactivate the Grill
function.
Additional functions
Child lock
When power comes back on after a
power failure, the child lock will remain
active.
Once deactivated, the child lock
cannot be reactivated. To reactivate it,
you have to turn the appliance off and
on again.
This is useful to prevent functions being activated
by mistake (e.g. by children).
To activate the child lock, the appliance must be
on, but with the zones deactivated:
USE - 3791477A928/B
Page 14
1. Press and hold any cooking zone display,
an animation will be shown on the scroll bar.
2. Release the display and slide your finger on
the bar from left to right.
The symbol appears on the timer and
cooking zone displays.
To deactivate the controls lock, with the
appliance switched on:
1. Press and hold any cooking zone display,
an animation will be shown on the scroll bar.
2. Release the display and slide your finger on
the bar from right to left.
Rapid heating function
This function is not available for power
level 9 or the Booster and Double
Booster functions
The rapid heating function heats one cooking
zone at maximum power for a limited time, after
which it continues cooking at the set power
level.
After selecting a cooking zone:
• Press and hold a power level (from 1 to 8)
for at least 3 seconds.
• appears on the display of the cooking
zone.
• After the heating time has elapsed, the
cooking zone reverts to the previously
selected power level.
• This function can be deactivated by pressing
and holding the set power level for at least
3 seconds, or by selecting a lower power
level.
Rapid heating times
Power level
148 s
2 2 m 24 s
3 3 m 50 s
4 5 m 12 s
5 6 m 48 s
62 m
7 2 m 48 s
8 3 m 36 s
Automatic heating time
(minutes/seconds)

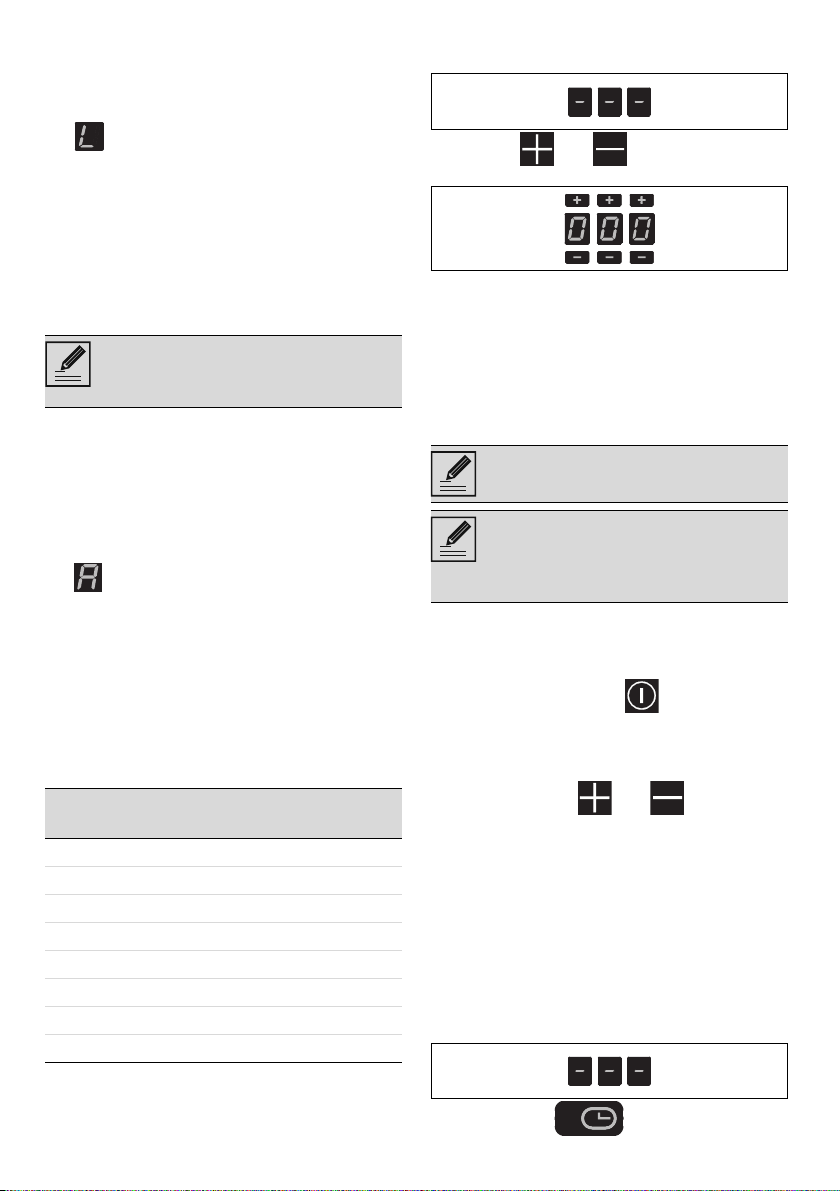

Minute minder timer
After having switched on the hob, without
having activated any cooking zone:
1. Simultaneously press the buttons inside the
timer setting area.
2. Use the and buttons to select the
required time.
• The first digit on the left is used to select the
hours, the middle one to set the tens of
minutes and the one on the right the minutes.
3. After 10 seconds, the timer will start the
countdown.
4. When the time elapses, a series of beeps
will sound. Press any button to deactivate
them.
A maximum of 9 hours and 59 minutes
can be set.
Using the minute minder does not stop
the operation of the cooking zones but
rather informs the user when the set
minutes have run out.
Modifying or deactivating the timer
To modify or deactivate the minute minder
during the countdown:
1. Press the On/Off key to
activate the hob (if it was on standby).
• The timer setting area will indicate the
minutes that were set.
2. Use the buttons and to change
the
minute minder time or reset it to zero.
3. After 10 seconds the timer
will start the new countdown or will be
deactivated.
Timed cooking
The timed cooking function can be activated
when at least one cooking zone is switched on:
1. Select the power level.
2. Touch the inside of the timer setting area.
• The flashing symbol will appear
38 - USE 91477A928/B
Page 15
e
above the cooking zone display.

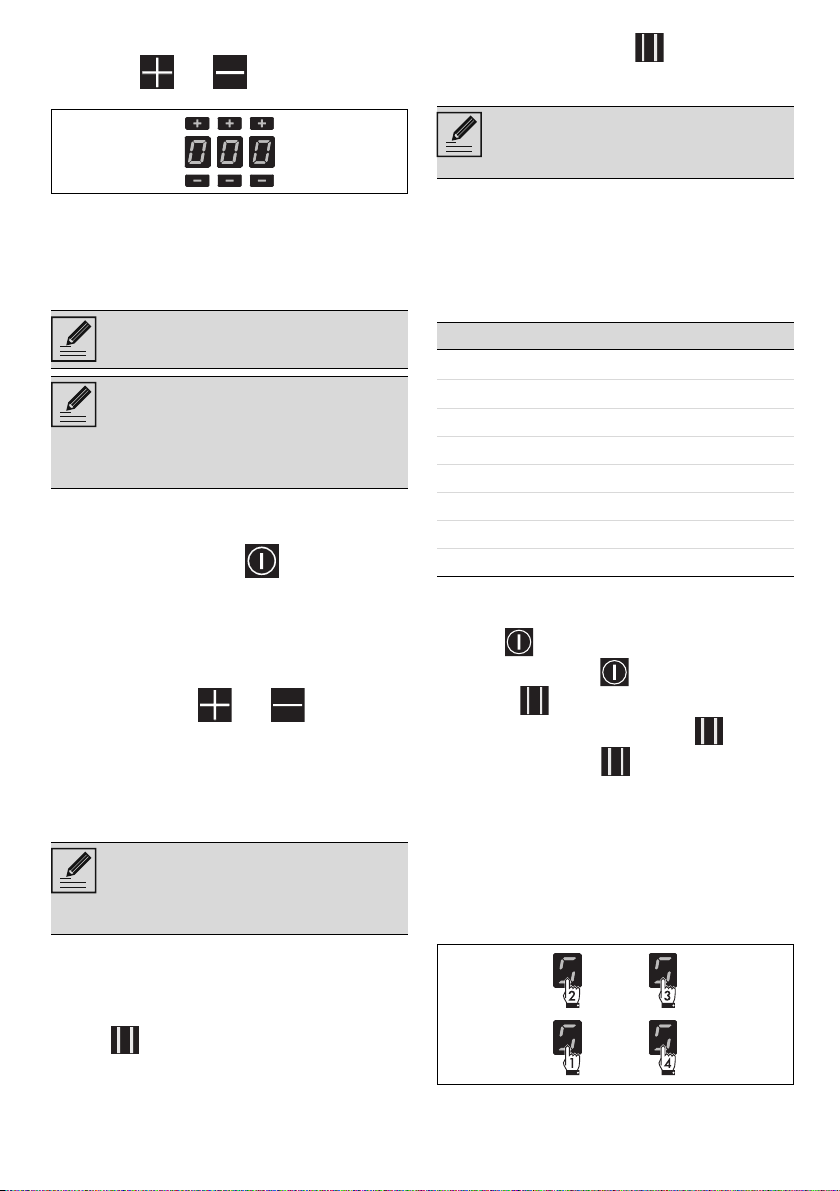

3. Use the and buttons to select the
required time.
2. Press the pause button immediately to
restore the functions that were previously
active.
This function restores the cooking zones,
timer and rapid heating functions; no
other functions will be restored.
4. Timed cooking will start a few seconds after
the last selection.
At the end of the set time, a buzzer warns the
user.
5. Press any button to deactivate the buzzer.
A maximum of 9 hours and 59 minutes
can be set.
This function can be activated on
multiple cooking zones at the same
time. The flashing LED and time indicator
refer to the next cooking zone to be
switched off.
Modifying or deactivating timed cooking
To modify timed cooking during the countdown:
1. Press the On/Off key to
activate the hob (if it was on standby).
2. Press the display button of the timed cooking
zone.
• The timer setting area will indicate the
minutes that were set.
3. Use the buttons and to change
the
minute minder time or reset it to zero.
4. After 10 seconds, the timer will start the new
countdown or will be deactivated.
Recall Function
This is used to restore some functions
that have already been started after the
appliance has been switched off
unintentionally.
If the appliance is switched off unintentionally,
carry out the following procedure within 6
seconds:
1. Switch on the appliance.
• The button starts to flash.
Menù utente
Il menù utente permette di modificare alcune
caratteristiche funzionali dell’apparecchio.
Sono disponibili 9 opzioni e ogni opzione è
contrassegnata, sul display del timer, con la
lettera “U” insieme a un numero progressivo.
Opzione Descrizione
U0
U1 Opzione disabilitata
U2 Volume tasti
U3 Volume segnali acustici
U4 Luminosità display
U5 Animazione timer
U6 Rilevamento pentole automatico
U7 Durata suoneria timer
Accedere al menù utente
1. Con il piano spento, accenderlo tramite il
tasto .
2. Premere di nuovo per spegnerlo;
l’icona inizia a lampeggiare.
3. Premere e mantenere premuto .
4. Tenendo premuto , sui display delle
zone cottura, compariranno dei simboli da
premere in sequenza per accedere alle
opzioni del menù.
Premere in sequenza tutti i tasti delle zone
cottura, a partire dalla anteriore sinistra in senso
orario; ogni tocco corretto verrà confermato da
un segnale acustico.
Modelli da 60 e 80 cm (A):
Potenza massima totale (Kw)
Modelli da 38 cm:
Premere prima il tasto zona cottura anteriore e
USE - 3991477A928/B
Page 16
poi quello posteriore.
Se si sbaglia la sequenza dei tasti, il
piano verrà spento e sarà necessario
ripetere la procedura d’accesso al
menù.
1. Rilasciare il tasto .
Il menù utente è attivo e il display zone cottura
mostrerà, in alto il simbolo alternato con il
numero (opzione U0 - Funzone Eco-Logic
Advance).
La funzione Eco-Logic Advance permette di
aumentare e diminuire la potenza totale
dell’apparecchio in step da 0,1 kW. Il display
timer invece mostra la potenza impostata di
fabbrica (a seconda dei modelli - vedi
“Limitazione di potenza”):
• 7.4 per i modelli da 60 cm e 80 cm.
• 3.7 per i modelli da 38 cm.
Premere la parte sinistra della barra di
scorrimento per diminuire la potenza, e la parte
destra per aumentarla.
Modello Potenza minima Potenza massima
60 - 80 cm
38 cm 2,1 kW 3,7 kW
2,4 kW 7,4 kW
2. Premere sul simbolo per tornare alla
selezione opzioni.
3. Premere i segmenti della barra di
scorrimento per selezionare un’opzione.
Ad ogni segmento della barra
corrisponde una voce del menù utente,
ad eccezione del secondo segmento
da sinistra (U1), che è disattivato.
L’opzione U2 permette di modificare il volume
dei suoni dei tasti; sono disponibili 4 gradi di
regolazione selezionabili tramite la barra di
scorrimento.
A seconda dei gradi di regolazione di
ogni opzione, la barra di scorrimento
mostrerà solo i segmenti corrispondenti
ai gradi selezionabili.
• Valore 0: volume minimo.
• Valore 3: volume massimo.
L’opzione U3 permette di modificare il volume
dei segnali acustici del timer scaduto in 4 gradi
di regolazione.
• Valore 0: volume minimo.
• Valore 3: valore massimo.
L’opzione U4 permette di modificare la
luminosità del display in 10 gradi di
regolazione.
•Valore 0: luminosità massima.
• Valore 9: luminosità minima.
L’opzione U5 permette di mostrare il conto alla
rovescia dei secondi del timer contaminuti e
della cottura temporizzata, da 59 secondi a 0.
Il conteggio dei secondi viene
visualizzato quando il timer è impostato
con un tempo inferiore ai 10 minuti.
• Valore 0: animazione disattivata.
• Valore 1: animazione attivata.
L’opzione U6 permette di attivare o disattivare il
rilevamento automatico dei recipienti. (vedi
“Accensione automatica della zona di cottura”).
• Valore 0: rilevamento automatico disattivato.
• Valore 1: rilevamento automatico attivato.
Se il rilevamento automatico dei
recipienti è disattivato, una volta
appoggiato un recipiente sul piano, è
necessario attivare la zona
manualmente.
L’opzione U7 permette di stabilire la durata
della suoneria del contaminuti scaduto,
attraverso 3 gradi di regolazione:
• Valore 0: durata suoneria 120 secondi.
• Valore 1: durata suoneria 10 secondi.
• Valore 2: suoneria disattivata.
Uscire dal menu utente
Si può uscire dal menu utente in due modi:
1. Premere il tasto . Ogni modifica verrà
scartata e il piano verrà spento.
Oppure
2. Tenere premuto il tasto On/Off per
almeno 2 secondi. Le modifiche verranno
salvate e il piano verrà spento.
Error notifications
If the appliance malfunctions or operates
incorrectly, the associated error code appears
40 - USE 91477A928/B
Page 17
e
on the display.
The error codes always begin with the letter “E”
or “Er” followed by a series of digits (e.g. “Er4730”).
Errors coded as:
• “E02”
•“E2”
• “Er21”
Indicate that the appliance or part of it is
overheating. If this occurs, you should switch off
the appliance immediately, remove all pans and
let it cool down.
If these errors persist or if other errors appear,
make a note of the code and contact Technical
Support.
CLEANING AND MAINTENANCE
Cleaning the glass ceramic hob
See General safety instructions.
Cleaning the surfaces
To keep the surfaces in good condition, they
should be cleaned regularly after use. Let them
cool first.
Ordinary daily cleaning
Always and only use specific products that do
not contain abrasives or chlorine-based acids.
Pour the product onto a damp cloth and wipe
the surface, rinse thoroughly and dry with a soft
cloth or a microfibre cloth.
In case of stubborn dirt, clean when
cold using a damp kitchen sponge and
neutral detergent; then dry with a
microfibre cloth.
Weekly cleaning
Clean and maintain the hob once a week using
an ordinary glass ceramic cleaning product.
Always follow the manufacturer’s instructions.
The silicon in these products creates a
protective, water-repellent membrane which
also resists dirt. All marks stay on the membrane
and can therefore be removed easily. After
cleaning, dry the surface with a clean cloth.
Make sure that there is no detergent left on the
cooking surface as it might undergo an
aggressive reaction when heated up and could
modify the structure of the cooking surface.
Food stains or residues
Light coloured marks from pans with aluminium
bases can be easily cleaned off with a cloth
moistened in vinegar. Remove any burnt-on
residues after cooking; then rinse with water and
dry thoroughly with a clean cloth. Dirt, which
may have fallen on the hob while cleaning
lettuce or potatoes, can scratch the hob when
moving pans. Consequently, remove any dirt
from the cooking surface immediately. Changes
in colour do not affect the operation and
stability of the glass. These are not alterations to
the material of the hob but just residues which
have not been removed and have then
carbonised. Shiny surfaces can form due to the
bases of pans, especially aluminium ones,
rubbing on the surface, and due to the use of
unsuitable detergents. They are difficult to
remove using conventional cleaning products. It
may be necessary to repeat the cleaning
process several times. Use of corrosive
detergents or rubbing of pan bases can wear
away the decoration on the hob over time and
contribute to the formation of stains.
We recommend the use of cleaning
products distributed by the
manufacturer.
After cleaning, dry the appliance
thoroughly to prevent any water or
detergent from interfering with its
operation or creating unsightly marks.
What to do if...
The hob does not work:
• Make sure that the hob is connected and
that the main switch is turned on.
• Make sure that there is no power failure.
• Make sure that the fuse has not blown. In
this case replace the fuse.
• Make sure that the circuit breaker of the
residential electrical system has not tripped.
In this case, reset the circuit breaker.
The cooking results are unsatisfactory:
• Make sure that the cooking temperature is
not too high or too low.
• Make sure that the hob is properly
CLEANING AND MAINTENANCE - 4191477A928/B
Page 18
ventilated and that the air inlets are
unobstructed.
• Use cookware that is certified and tested for
induction cooking.
The hob smokes:
• Let the hob cool down and clean it once
cooking is complete.
• Make sure that the food has not spilled out
of the pan and use a larger cooking vessel,
INSTALLATION
if needed.
The fuses blow or the circuit breaker of the
residential electrical system trips repeatedly.
• Call Technical Support or an electrician.
There are cracks or fissures in the hob:
• Turn off the appliance immediately,
disconnect the power supply and contact
Technical Support.
Electrical connection
See General safety instructions.
General information
Check the mains characteristics against the data
indicated on the plate.
The identification plate bearing the technical
data, serial number and brand name is visibly
positioned on the appliance.
Do not remove this plate for any reason.
The appliance must be connected to ground
using a wire that is at least 20 mm longer than
the other wires.
The appliance can be connected as follows:
60 cm and 80 cm models:
• 220-240 V / 380-415 V 2N
Six-core cable 6 x 1.5 mm².
~
• 220-240 V 1N
Three-core cable 3 x 1.5 mm².
For all types of connection, use the
jumper provided.
Fixed connection
Fit the power line with an all-pole circuit breaker
with a contact separation distance sufficient to
provide complete disconnection in category III
overvoltage conditions, pursuant to installation
regulations.
For the Australian/New Zealand market:
The circuit breaker incorporated in the fixed
connection must comply with AS/NZS 3000.
~
Section cut from the countertop
Safety instructions for positioning and
installation
See General safety instructions.
• Installation can be carried out on various
materials such as masonry, metal, solid
wood or plastic laminated wood as long as
they are heat resistant (>90°C).
Three-core cable 3 x 6 mm
38 cm models:
42 - INSTALLATION 91477A928/B
².
• Veneers, adhesives or plastic coatings on
adjacent furniture should be temperatureresistant (>90°C), otherwise they might
warp over time.
• If the piece of furniture does not have the
required recess opening, either it will have
Page 19
e
to be cut or masonry work carried out by a
competent technician.
• The minimum clearance between exhaust
hoods and the cooking surface must be at
least the distance indicated in the exhaust
hood installation instructions.
• The minimum clearances must also be
respected for the edges of the hob on the
back as indicated in the assembly
instructions.
• If the appliance is to be installed above an
oven, the oven must be fitted with a cooling
fan.

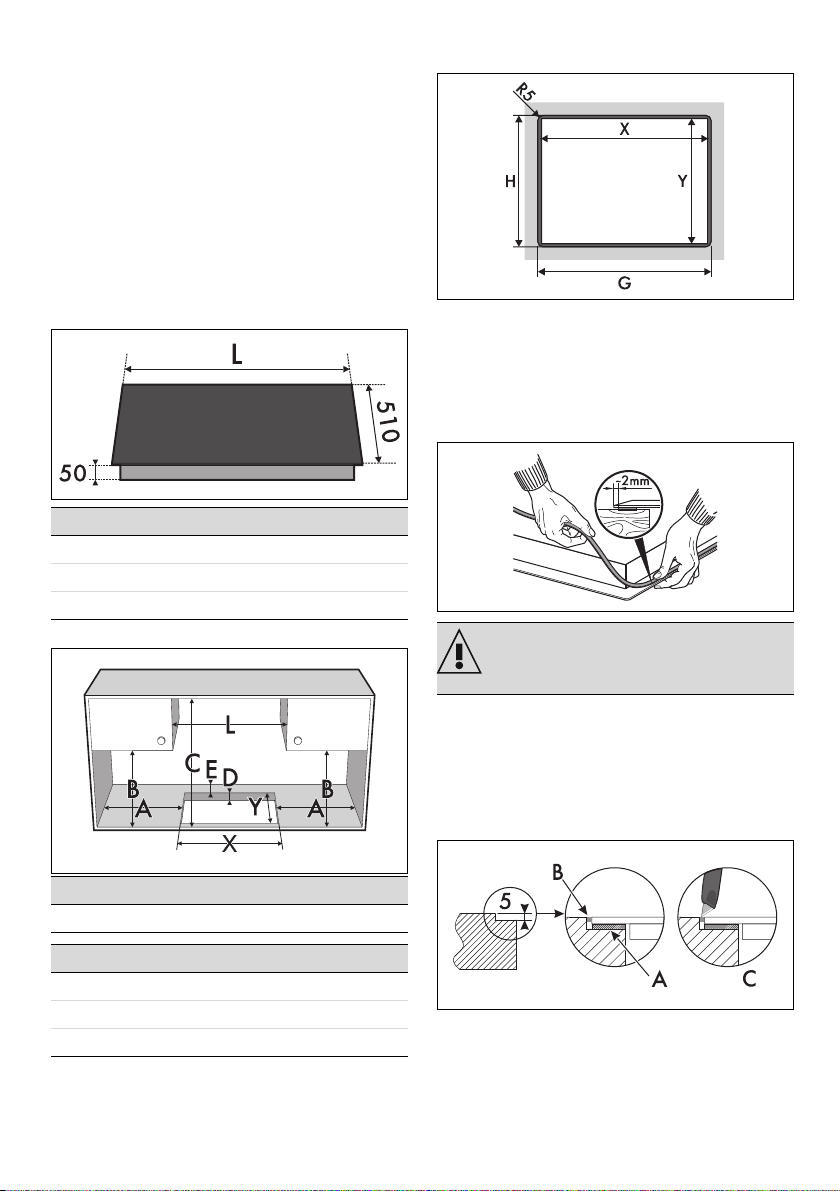

Ingombri dell’apparecchio (mm)
L
Modelli da 38 cm 380
Modelli da 60 cm 600
Modelli da 80 cm 800
Incasso normale e a filo (mm)
del foro del mobile qualora si desideri installare
il piano cottura a filo con il piano di lavoro.
*Riferirsi alle quote della tabella sopra.
Hob seal
To prevent leakage of liquid between the frame
of the hob and the countertop, place the
adhesive seal provided along the entire outer
edge of the hob before assembly.
Do not use silicone to secure the hob.
This would make it impossible to remove
the hob without damaging it.
In the case of flush mounting, after placing the
adhesive seal (A) on the glass surface and after
positioning and securing the hob, fill the edges
with insulating silicone (B) and wipe off any
excess. If for any reason the hob needs to be
removed, cut the silicone using a cutter before
attempting to remove it (C).
A B C D E
min 150 min 460 min 750 20 ÷ 60 min 50
L X Y G H
380 310 490 384 514
600 560 478÷490 604 514
800 730 480 804 514
Incassa a filo
Per questa tipologia di incasso è necessario
aggiungere una fresatura da praticare ai bordi
Mounting
Over built-in oven unit

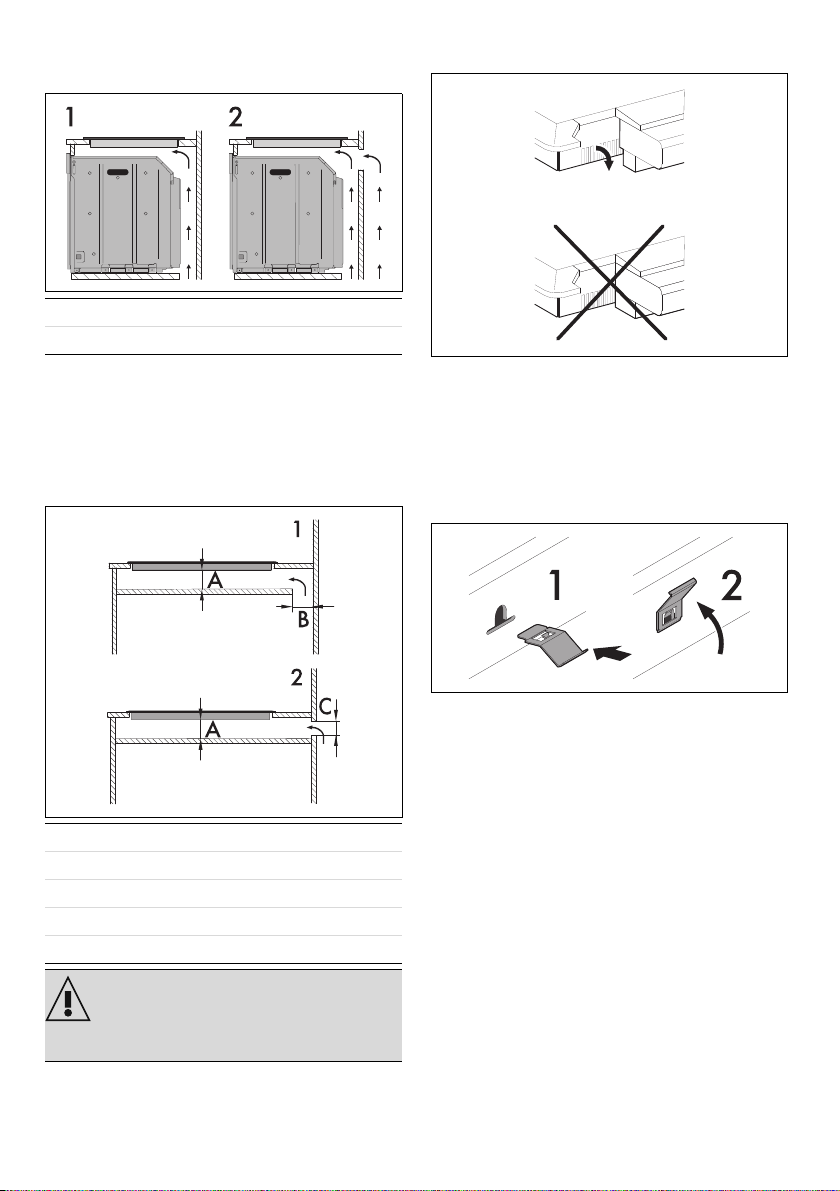

The clearance between the hob and the kitchen
units or other built-in appliances must be enough
to ensure sufficient ventilation and air discharge.
INSTALLATION - 4391477A928/B
Page 20
If installed above an oven, a space must be left
between the bottom of the hob and the top of
the appliance installed below.
1 Opens on bottom
2 Opens on bottom and back
On an empty kitchen
If there are other pieces of furniture under the
hob, a double-layer wooden base must be
installed at least 20 mm from the bottom of the
hob to avoid any accidental contact. It must
only be possible to remove the double-layer
base using suitable equipment.
one example of incorrect installation to be
avoided.
Fastening to the built-in cabinet
To ensure the hob is fixed and centred as
accurately as possible, the clips provided must
be positioned as described below:
1. Fit the clips by gently pressing them
horizontally into the appropriate space.
2. Then turn them upwards to fix them in place.
1 Opens on bottom
2 Opens on back
A min. 20 mm - max. 50 mm
B max. 50 mm
C max. 50 mm
Failure to install the double-layer
wooden base exposes the user to
possible accidental contact with sharp
or hot parts.
Ventilation
The illustrations below show two examples of
installation suitable for proper ventilation and
44 - INSTALLATION 91477A928/B
Page 21
e
Posizione intaglio per mollette
Procedura di limitazione di potenza
L’apparecchio, a seconda dei modelli,
viene regolato di fabbrica alla massima
potenza.
contact your local Authorised Service
Centre.
• Once the appliance has been installed,
please explain to the user how to use it
correctly.
Tabella delle potenze assorbite
Modelli Potenza (kW)
38 cm 3,7
60 cm e 80 cm 7,4
Testing
At the end of installation, carry out a brief
inspection test. If it fails to work, after making
sure that you have carried out the instructions
correctly, contact Technical Support.
Instructions for the installer
• If you use a plug (if present) to connect to
the power supply, the plug must be
accessible after installation.
• Do not bend or trap the power cable.
• The appliance must be installed according
to the installation diagrams.
• If the appliance does not work correctly
after having carried out all the checks,
INSTALLATION - 4591477A928/B
Loading...
