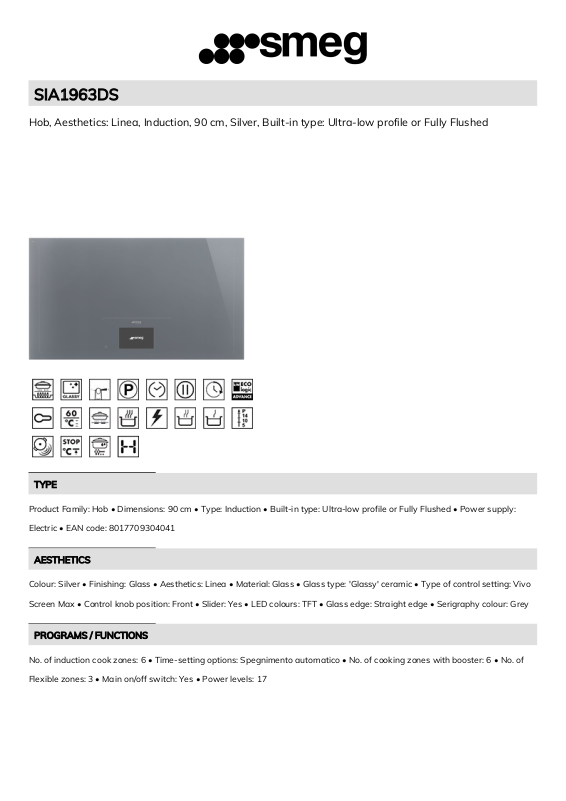

Smeg SIA1963DS Technical sheet

SIA1963DS

Hob, Aesthetics: Linea, Induction, 90 cm, Silver, Built-in type: Ultra-low profile or Fully Flushed

TYPE

Product Family: Hob • Dimensions: 90 cm • Type: Induction • Built-in type: Ultra-low profile or Fully Flushed • Power supply:

Electric • EAN code: 8017709304041

AESTHETICS

Colour: Silver • Finishing: Glass • Aesthetics: Linea • Material: Glass • Glass type: 'Glassy' ceramic • Type of control setting: Vivo

Screen Max • Control knob position: Front • Slider: Yes • LED colours: TFT • Glass edge: Straight edge • Serigraphy colour: Grey

PROGRAMS / FUNCTIONS

No. of induction cook zones: 6 • Time-setting options: Spegnimento automatico • No. of cooking zones with booster: 6 • No. of

Flexible zones: 3 • Main on/off switch: Yes • Power levels: 17

OPTIONS

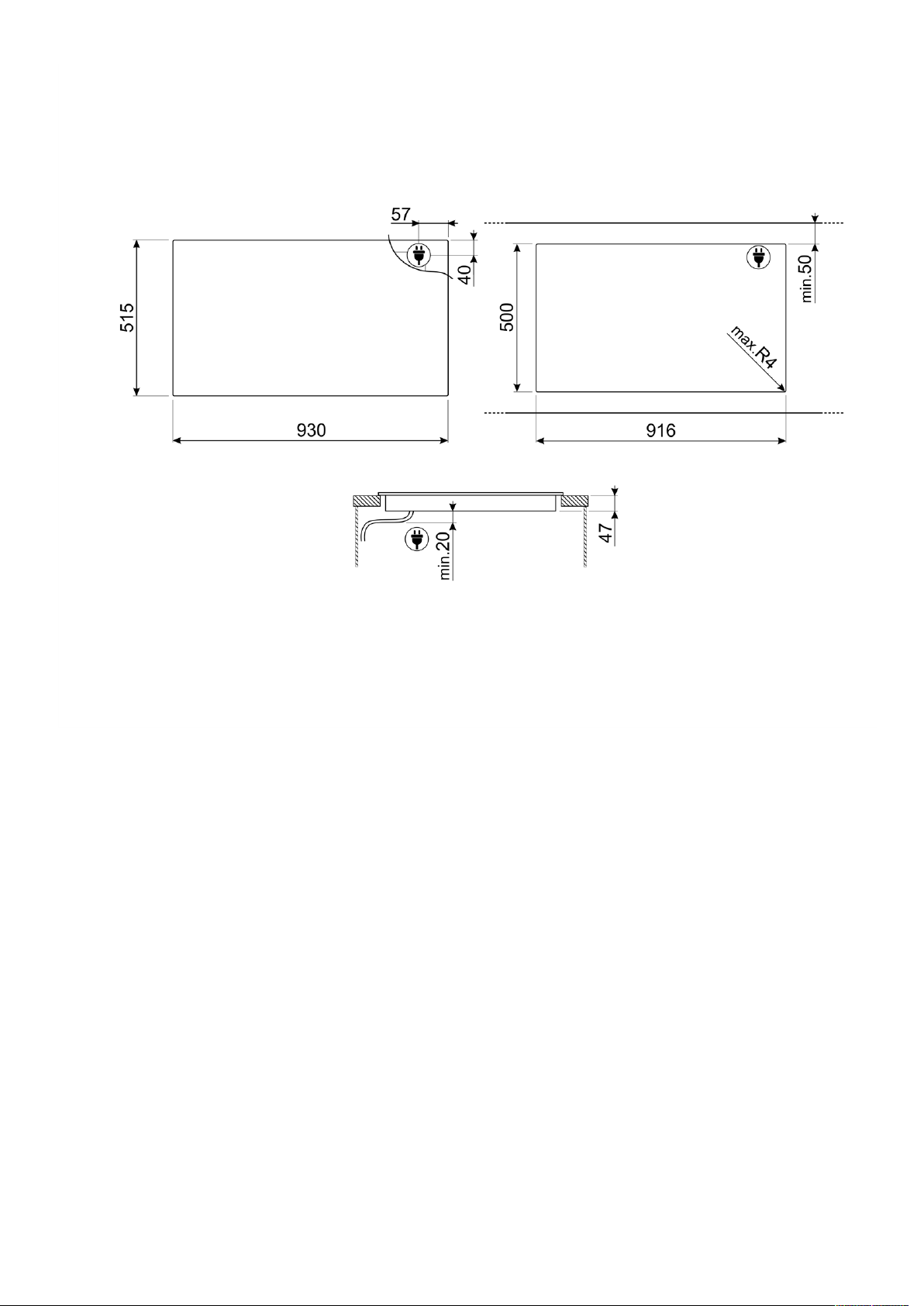

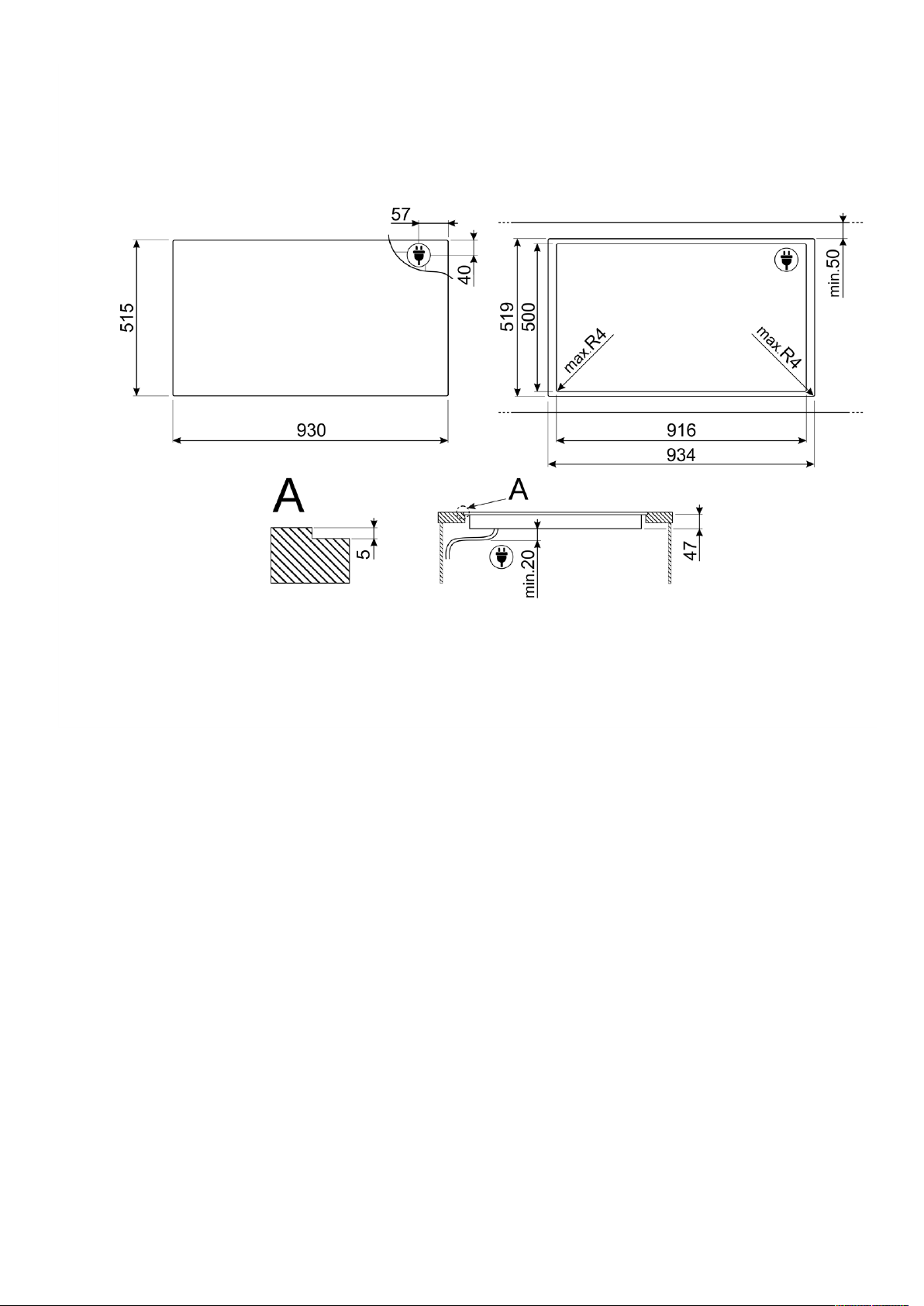

Worktop Cut-Out: 500-916 mm • Multizone Option: Yes • Auto Multizone: Yes • Flexible Zone Type: AreaZone • End cooking

timer: 6 • Pause option: Yes • Minute minder: 1 • End of cooking alarm: Yes • Residual time indicator: Yes • Limited Power

Consumption Mode: Si Advance • Limited Power Consumption Mode in W: 2400 a 11100 - step 100 W • Showroom Demo

Option: Yes • Control Lock / Child Safety: Yes • Keep warm automatic function: Yes • Bridge option: Yes • Auto-boiling Function:

Yes • Quick start: Yes • Simmering Function: Yes • Melting/Low temperature cooking function: Yes • Rapid level selection: Yes

COOKING ZONES

1st zone position: Central • 1st zone type: Induction - Multizone • 1st zone dimensions: 84.0x40.0 cm • 1st zone power: 2.40 kW

• 1st zone booster power: 3.70 kW

TECHNICAL FEATURES

Automatic setting according to pan dimension: Yes • Permanent Automatic Pot Detection with indication of the relative control:

Yes • pan detection: Si, min 10 cm • Automatic switch off when overheat: Yes • Automatic switch off when overflow: Yes •

Residual heat indicator: Yes • Protection against accidental start up: Yes

PERFORMANCE / ENERGY LABEL

ELECTRICAL CONNECTION

Electrical connection rating (W): 11100 W • Voltage (V): 220-240 V • Frequency (Hz): 50/60 Hz • Type of electric cable: Three

and Single/Two-phase • Power supply cable length: 120 cm

ALSO AVAILABLE

LOGISTIC INFORMATION

Dimensions of the product (mm): 53x900x510 • Depth: 510 mm • Width: 900 mm • Product Height: 53 mm

OPTIONAL

SCRP: Scraper, Cookers, HobsTPK: Teppanyaki grill, HobsGRIDDLE: Grill, Cookers, Hobs
