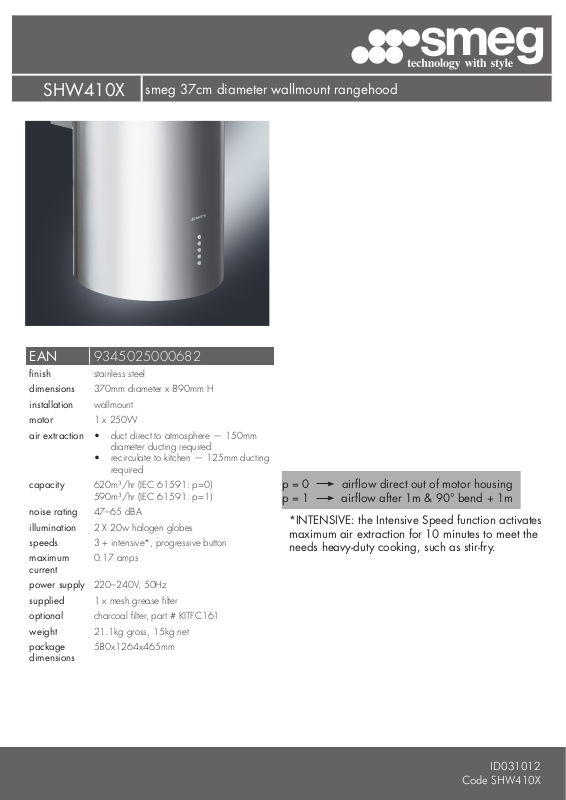

Page 1
SHW410X
smeg 37cm diameter wallmount rangehood
EAN 9345025000682
finish stainless steel
dimensions 370mm diameter x 890mm H
installation wallmount
motor 1 x 250W
air extraction • duct direct to atmosphere — 150mm
diameter ducting required
• recirculate to kitchen — 125mm ducting
required
capacity 620m³/hr (IEC 61591: p=0)
590m³/hr (IEC 61591: p=1)
noise rating 47–65 dBA
illumination 2 X 20w halogen globes
speeds 3 + intensive*, progressive button
maximum
current
power supply 220–240V, 50Hz
supplied 1 x mesh grease filter
optional charcoal filter, part # KITFC161
weight 21.1kg gross, 15kg net
package
dimensions
0.17 amps
580x1264x465mm
p = 0 airflow direct out of motor housing
p = 1 airflow after 1m & 90° bend + 1m
*INTENSIVE: the Intensive Speed function activates
maximum air extraction for 10 minutes to meet the
needs heavy-duty cooking, such as stir-fry.
ID031012
Code SHW410X
Page 2
SHW410X
smeg 37cm diameter wallmount rangehood
540
435
250
650mm minimum
112
250185
•
Ø370
PLEASE NOTE: drawings are not to scale. They are to assist only.
WARNING: technical specications and product sizes can be varied by the manufacturer
without notice. Cutouts for appliances should only be by physical product measurements.
The above information is indicative only.
ID031012
Code SHW410X
