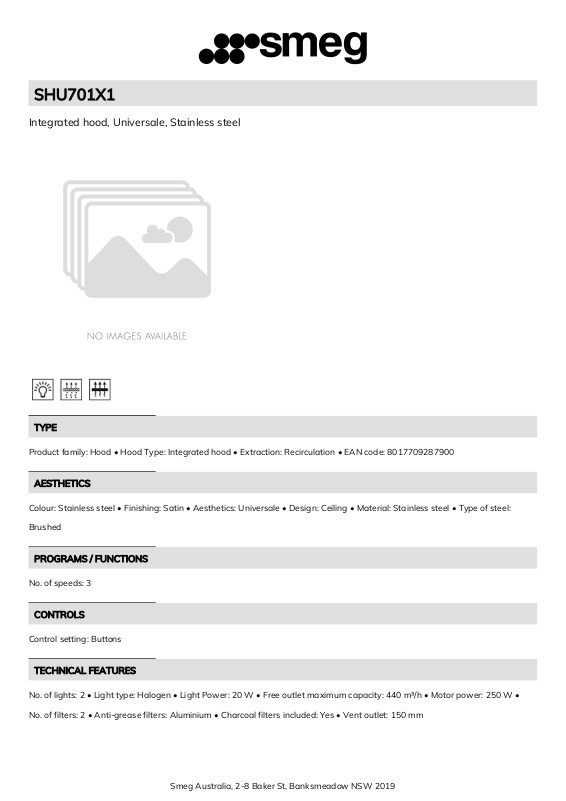

Smeg SHU701X1 Technical sheet

SHU701X1

Integrated hood, Universale, Stainless steel

TYPE

Product family: Hood • Hood Type: Integrated hood • Extraction: Recirculation • EAN code: 8017709287900

AESTHETICS

Colour: Stainless steel • Finishing: Satin • Aesthetics: Universale • Design: Ceiling • Material: Stainless steel • Type of steel:

Brushed

PROGRAMS / FUNCTIONS

No. of speeds: 3

CONTROLS

Control setting: Buttons

TECHNICAL FEATURES

No. of lights: 2 • Light type: Halogen • Light Power: 20 W • Free outlet maximum capacity: 440 m³/h • Motor power: 250 W •

No. of filters: 2 • Anti-grease filters: Aluminium • Charcoal filters included: Yes • Vent outlet: 150 mm

Smeg Australia, 2-8 Baker St, Banksmeadow NSW 2019

PERFORMANCE / ENERGY LABEL

Energy efficicency class ( EEC): F

ELECTRICAL CONNECTION

Voltage: 220-240 V • Frequency (Hz): 50 Hz

OPTIONAL ACCESSORIES

SPEED 1

Extraction rate IEC 61591: 420 m³/h • Noise level IEC 60704-2-13: 54 dB(A)

SPEED 3

Extraction rate IEC 61591: 440 m³/h • Noise level IEC 60704-2-13: 67 dB(A)

LOGISTIC INFORMATION

Dimensions of the product (mm): 174x702x284 • Width: 702 mm • Depth (mm): 284 mm • Product Height (mm): 174 mm
