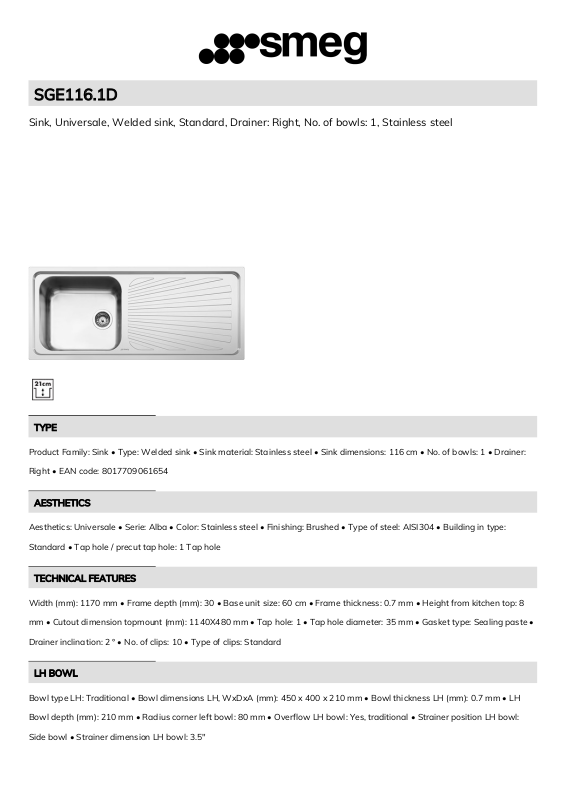

Smeg SGE116.1D Technical sheet
SGE116.1D
Sink, Universale, Welded sink, Standard, Drainer: Right, No. of bowls: 1, Stainless steel
TYPE
Product Family: Sink • Type: Welded sink • Sink material: Stainless steel • Sink dimensions: 116 cm • No. of bowls: 1 • Drainer:
Right • EAN code: 8017709061654
AESTHETICS
Aesthetics: Universale • Serie: Alba • Color: Stainless steel • Finishing: Brushed • Type of steel: AISI304 • Building in type:
Standard • Tap hole / precut tap hole: 1 Tap hole
TECHNICAL FEATURES
Width (mm): 1170 mm • Frame depth (mm): 30 • Base unit size: 60 cm • Frame thickness: 0.7 mm • Height from kitchen top: 8
mm • Cutout dimension topmount (mm): 1140X480 mm • Tap hole: 1 • Tap hole diameter: 35 mm • Gasket type: Sealing paste •
Drainer inclination: 2 ° • No. of clips: 10 • Type of clips: Standard
LH BOWL
Bowl type LH: Traditional • Bowl dimensions LH, WxDxA (mm): 450 x 400 x 210 mm • Bowl thickness LH (mm): 0.7 mm • LH
Bowl depth (mm): 210 mm • Radius corner left bowl: 80 mm • Overflow LH bowl: Yes, traditional • Strainer position LH bowl:
Side bowl • Strainer dimension LH bowl: 3.5"
LOGISTIC INFORMATION
Dimensions of the product (mm): 220x1170x510 mm
ACCESSORIES INCLUDED
Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips, Gasket
OPTIONAL
KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer, Sinks3712:
Siphon, SinksRND1V: Rondò waste kit, SinksDB34: Basket, SinksMATROL: Drainer, SinksSTABMIX: Stabiliser, Sinks
