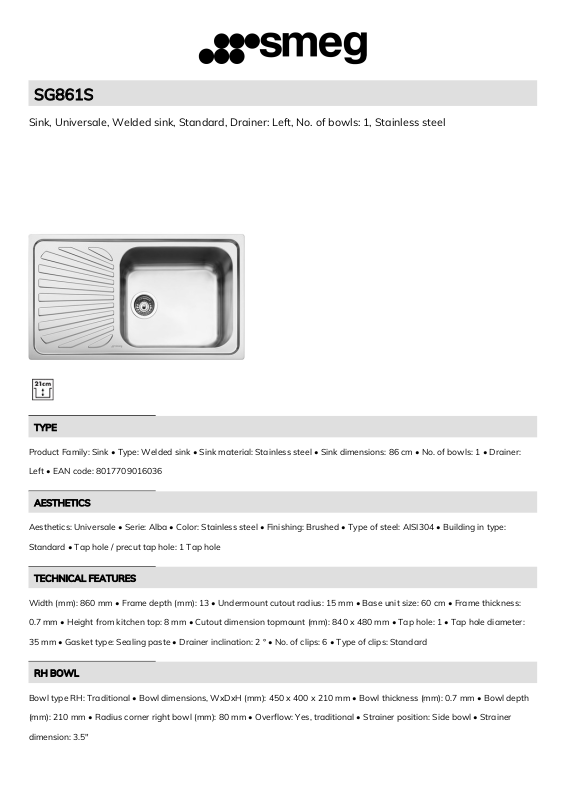

Smeg SG861S Technical sheet
SG861S
Sink, Universale, Welded sink, Standard, Drainer: Left, No. of bowls: 1, Stainless steel
TYPE
Product Family: Sink • Type: Welded sink • Sink material: Stainless steel • Sink dimensions: 86 cm • No. of bowls: 1 • Drainer:
Left • EAN code: 8017709016036
AESTHETICS
Aesthetics: Universale • Serie: Alba • Color: Stainless steel • Finishing: Brushed • Type of steel: AISI304 • Building in type:
Standard • Tap hole / precut tap hole: 1 Tap hole
TECHNICAL FEATURES
Width (mm): 860 mm • Frame depth (mm): 13 • Undermount cutout radius: 15 mm • Base unit size: 60 cm • Frame thickness:
0.7 mm • Height from kitchen top: 8 mm • Cutout dimension topmount (mm): 840 x 480 mm • Tap hole: 1 • Tap hole diameter:
35 mm • Gasket type: Sealing paste • Drainer inclination: 2 ° • No. of clips: 6 • Type of clips: Standard
RH BOWL
Bowl type RH: Traditional • Bowl dimensions, WxDxH (mm): 450 x 400 x 210 mm • Bowl thickness (mm): 0.7 mm • Bowl depth
(mm): 210 mm • Radius corner right bowl (mm): 80 mm • Overflow: Yes, traditional • Strainer position: Side bowl • Strainer
dimension: 3.5"
LOGISTIC INFORMATION
Dimensions of the product (mm): 220x860x500 mm
ACCESSORIES INCLUDED
Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips, Gasket
OPTIONAL
KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer, Sinks3712:
Siphon, SinksRND1V: Rondò waste kit, SinksSTABMIX: Stabiliser, Sinks
