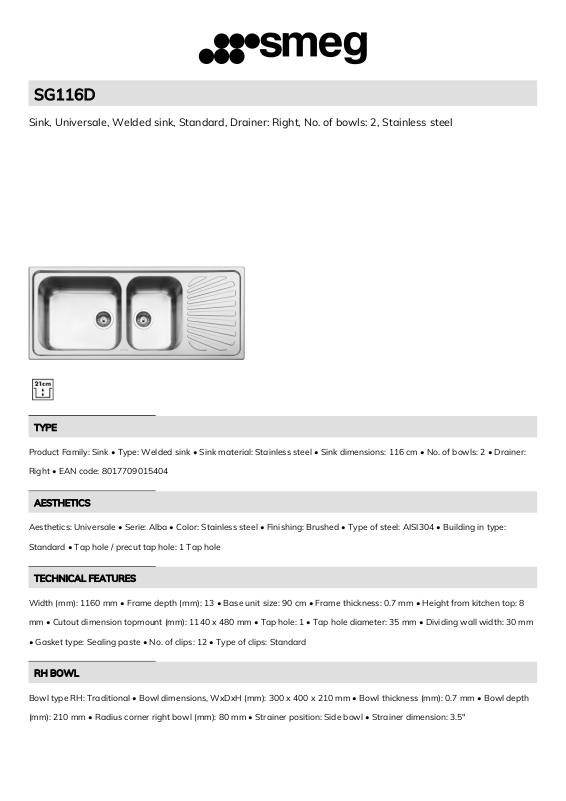

Smeg SG116D Technical sheet

SG116D

Sink, Universale, Welded sink, Standard, Drainer: Right, No. of bowls: 2, Stainless steel

TYPE

Product Family: Sink • Type: Welded sink • Sink material: Stainless steel • Sink dimensions: 116 cm • No. of bowls: 2 • Drainer:

Right • EAN code: 8017709015404

AESTHETICS

Aesthetics: Universale • Serie: Alba • Color: Stainless steel • Finishing: Brushed • Type of steel: AISI304 • Building in type:

Standard • Tap hole / precut tap hole: 1 Tap hole

TECHNICAL FEATURES

Width (mm): 1160 mm • Frame depth (mm): 13 • Base unit size: 90 cm • Frame thickness: 0.7 mm • Height from kitchen top: 8

mm • Cutout dimension topmount (mm): 1140 x 480 mm • Tap hole: 1 • Tap hole diameter: 35 mm • Dividing wall width: 30 mm

• Gasket type: Sealing paste • No. of clips: 12 • Type of clips: Standard

RH BOWL

Bowl type RH: Traditional • Bowl dimensions, WxDxH (mm): 300 x 400 x 210 mm • Bowl thickness (mm): 0.7 mm • Bowl depth

(mm): 210 mm • Radius corner right bowl (mm): 80 mm • Strainer position: Side bowl • Strainer dimension: 3.5"

LH BOWL

Bowl type LH: Traditional • Bowl dimensions LH, WxDxA (mm): 450 x 400 x 210 mm • Bowl thickness LH (mm): 0.7 mm • LH

Bowl depth (mm): 210 mm • Radius corner left bowl: 80 mm • Overflow LH bowl: Yes, traditional • Strainer position LH bowl:

Side bowl • Strainer dimension LH bowl: 3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 220x1160x500 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips, Gasket

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer, Sinks3713:

Siphon, SinksRND2V: Rondò waste kit, SinksDB34: Basket, SinksMATROL: Drainer, SinksSTABMIX: Stabiliser, Sinks
