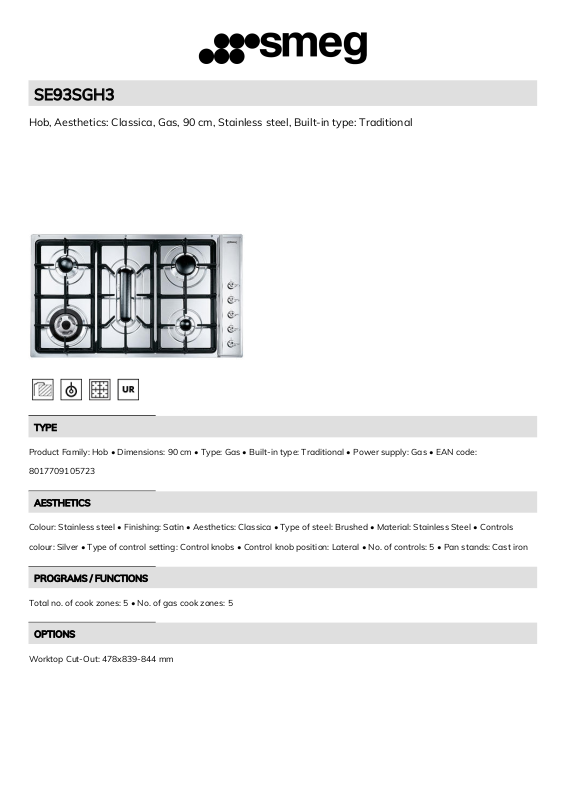

Smeg SE93SGH3 Technical sheet

SE93SGH3

Hob, Aesthetics: Classica, Gas, 90 cm, Stainless steel, Built-in type: Traditional

TYPE

Product Family: Hob • Dimensions: 90 cm • Type: Gas • Built-in type: Traditional • Power supply: Gas • EAN code:

8017709105723

AESTHETICS

Colour: Stainless steel • Finishing: Satin • Aesthetics: Classica • Type of steel: Brushed • Material: Stainless Steel • Controls

colour: Silver • Type of control setting: Control knobs • Control knob position: Lateral • No. of controls: 5 • Pan stands: Cast iron

PROGRAMS / FUNCTIONS

Total no. of cook zones: 5 • No. of gas cook zones: 5

OPTIONS

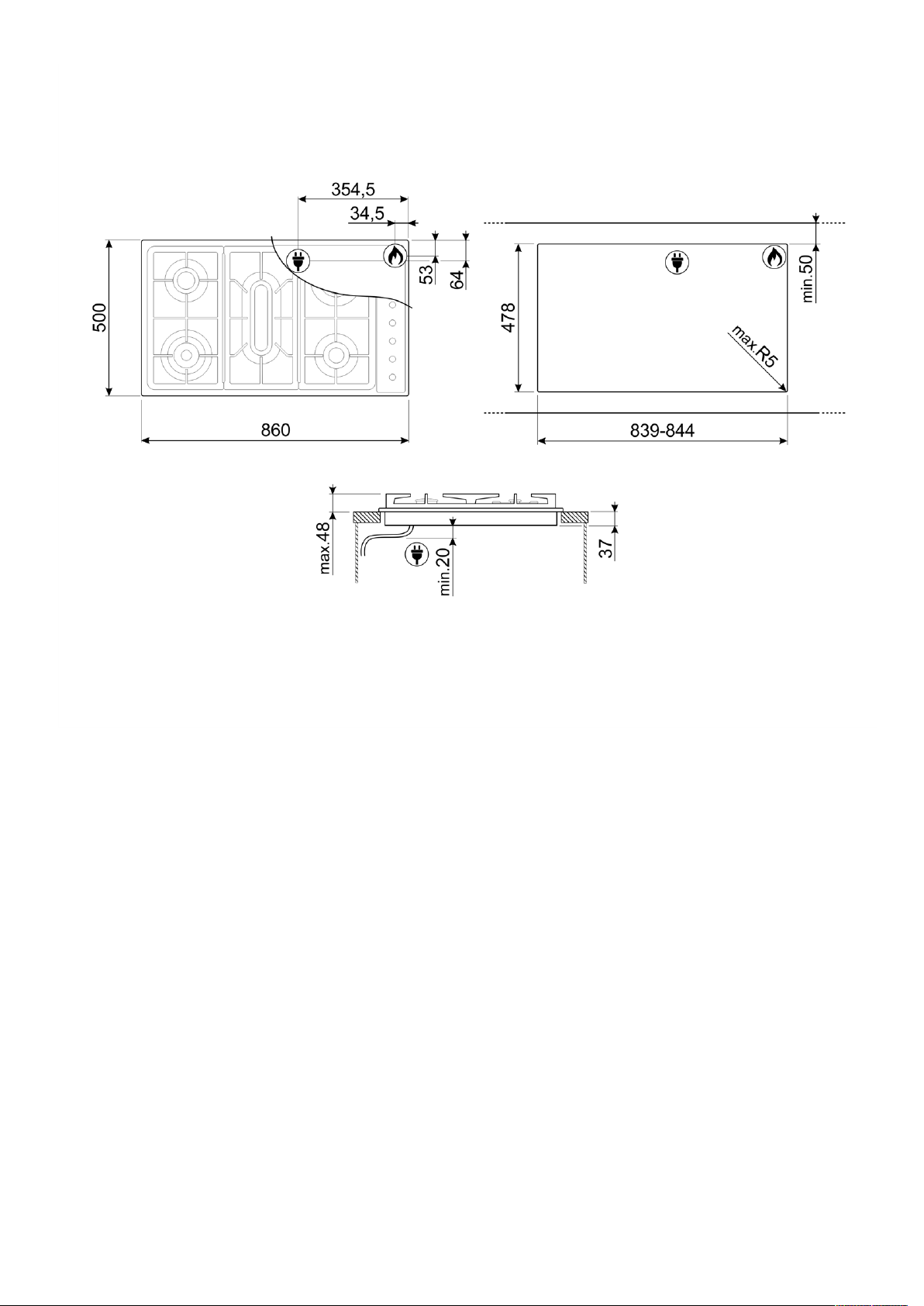

Worktop Cut-Out: 478x839-844 mm

COOKING ZONES

1st zone position: Front-left • 2nd zone position: Rear-left • 3rd zone position: Central • 4th zone position: Rear-right • 5th zone

position: Front-right • 1st zone type: Gas - UR • 2nd zone type: Gas - Semi Rapid • 3rd zone type: Gas - FISH burner • 4th zone

tipe: Gas - Rapid • 5th zone type: Gas - AUX • 1st zone power: 4.10 kW • 2nd zone power: 1.80 kW • 3rd zone power: 2.90 kW

• 4th zone power: 2.60 kW • 5th zone power: 1.10 kW

TECHNICAL FEATURES

Gas Type: G20 Natural gas • Gas safety valves: Yes • Automatic Ignition: Yes

PERFORMANCE / ENERGY LABEL

ELECTRICAL CONNECTION

Gas connection rating (W): 12400 W • Electrical connection rating (W): 1 W • Voltage (V): 220-240 V • Frequency (Hz): 50/60 Hz

ALSO AVAILABLE

LOGISTIC INFORMATION

Dimensions of the product (mm): 30x860x500 • Depth: 500 mm • Width: 860 mm • Product Height: 30 mm

ACCESSORIES INCLUDED

Other gas nozzles included: G30 GPL Liquid gasOther gas connections provided: Conical
