Smeg SE435XT User Manual

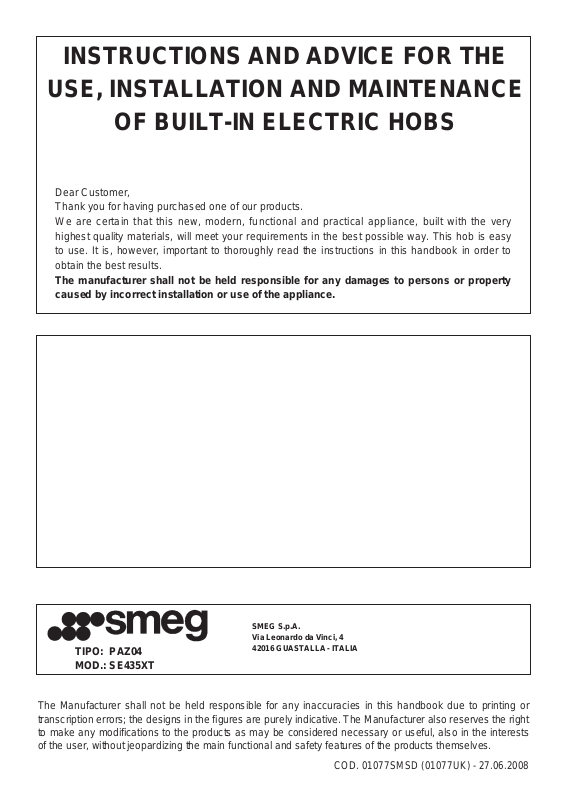

Dear Customer,
Thank you for having purchased one of our products.
We are certain that this new, modern, functional and practical appliance, built with the very
highest quality materials, will meet your requirements in the best possible way. This hob is easy
to use. It is, however, important to thoroughly read the instructions in this handbook in order to
obtain the best results.

The manufacturer shall not be held responsible for any damages to persons or property
caused by incorrect installation or use of the appliance.

The Manufacturer shall not be held responsible for any inaccuracies in this handbook due to printing or
transcription errors; the designs in the figures are purely indicative. The Manufacturer also reserves the right
to make any modifications to the products as may be considered necessary or useful, also in the interests
of the user, without jeopardizing the main functional and safety features of the products themselves.

COD. 01077SMSD (01077UK) - 27.06.2008

INSTRUCTIONS AND ADVICE FOR THE

USE, INSTALLATION AND MAINTENANCE

OF BUILT-IN ELECTRIC HOBS

SMEG S.p.A.
Via Leonardo da Vinci, 4
42016 GUASTALLA - ITALIA

TIPO: PAZ04
MOD.: SE435XT

2

1 Normal plate Ø 145 of 1000 W
2 Normal plate Ø 180 of 1500 W
7 Control knob for electric plate n° 1
8 Control knob for electric plate n° 2
13 Warning light indicating that one or more plates are operating

DESCRIPTION OF THE HOT PLATES

TYPE: PAZ 04

3

USE

1) SWITCHING ON THE ELECTRIC
PLATES

The hobs may be equipped with three types of
electric plates: normal, thermostat and rapid plates
indicated by a red mark. The normal plates and the
rapid plates are controlled by a 7 - position switch
(see fig. 1). The thermostat plates are controlled by
12 - position switch (see fig. 2).
Switch on the plates by turning the knob to the
required position.
A diagram is screen-printed on the front panel. This

diagram indicates to which electric plate the knob in
question corresponds (see fig. 1 - 2).
A red warning light will come on to indicate that the
plate has been ignited.

2) HOW TO USE THE ELECTRIC PLATES

A purely indicative plate regulation chart is given
below.

FIG. 1 FIG. 2

0Off

1 1 Weak

2 1 - 4 Low

3 4 - 8 Slow

4 8 - 10 Medium

5 10 - 12 Strong

6 12 High

NORMAL AND THERMOSTAT HEAT POSSIBLE COOKING

RAPID PLATE PLATE INTENSITY PROCESSES

TABLE

To dissolve butter, chocolate, etc.. To heat small
amounts of liquid.

To heat larger amounts of liquid. To prepare cremes
and suces requiring long slow cooking times.

To thaw frozen foods and prepare stews, heat to boiling
point or simmer.

To heat foods to boiling point. To brown delicate
meats and fish.

For escalopes and steaks. To simmer large amounts
of food.

To bring large amounts of liquid to the boil. For frying.

4

USE

WARNINGS:
When the plate is switched on for the first time, or if it has remained unused for a long period, it should

be dried for 30 minutes on switch position n° 1. This will eliminate any moisture that may have been
absorbed by the insulating material.

To correctly use the appliance, remember:

- To place a pan on the plate before switching this on.

- To always use pans with flat and very thick bottoms (see fig. 3).

- To never use pans that are smaller than the plate diameters.

- To dry the bottom of the pan before placing it on the plate.

- Correctly preserve the plate after use by treating it with special products, easily available on the market.
This will keep the surface of the plate clean and bright. The operation will also prevent the formation
of rust. Never allow children to play near the appliance when using the plates. Check that the pan handles
are positioned correctly. The user should never leave the appliance unattended when cooking with
easily inflammable oil and fat.

- The plates will remain hot for a long period of time even after use. Never touch them with the hands
or other objects in order to prevent scorching.

- If the appliance has a glass lid, this could shatter when the cooker becomes hot. Always disconnect
all the plates before closing the lid.

- Immediately disconnect the appliance from the electricity main as soon as cracks are noted on the
surfaces of the plates.

FIG. 3
