Smeg SE2752/1, SE2741/1, SE2541, SE2741EB1, SE2741X/1 User Manual

PIANI VETROCERAMICA SENSORIALI

TABLES VITROCERAMIQUES SENSITIVES

TOUCH-CONTROL CERAMIC HOBS

GLASKERAMIKKOCHFELDER MIT TASTENBEDIENUNG

ENCIMERAS VITROCERAMICAS SENSORIALES

GLASKERAMISCHE KOOKPLATEN TIPTOETSEN

Istruzioni per l'uso

Mode d'emploi

Instructions for use

Bedienungsanleitung

Instrucciones de uso

Gebruiksaanwijzing

Pagina 1 - 15

Page 17 - 31

Page 33 - 47

Seite 49 - 63

Página 65 - 79

Bladzijde 81 - 95

Contents

Installation advice................................................... 34

Installation instructions ......................................... 35

Presetting .................................................................. 35

Positioning................................................................. 35

Electrical connection ................................................. 37

Using the hob .......................................................... 39

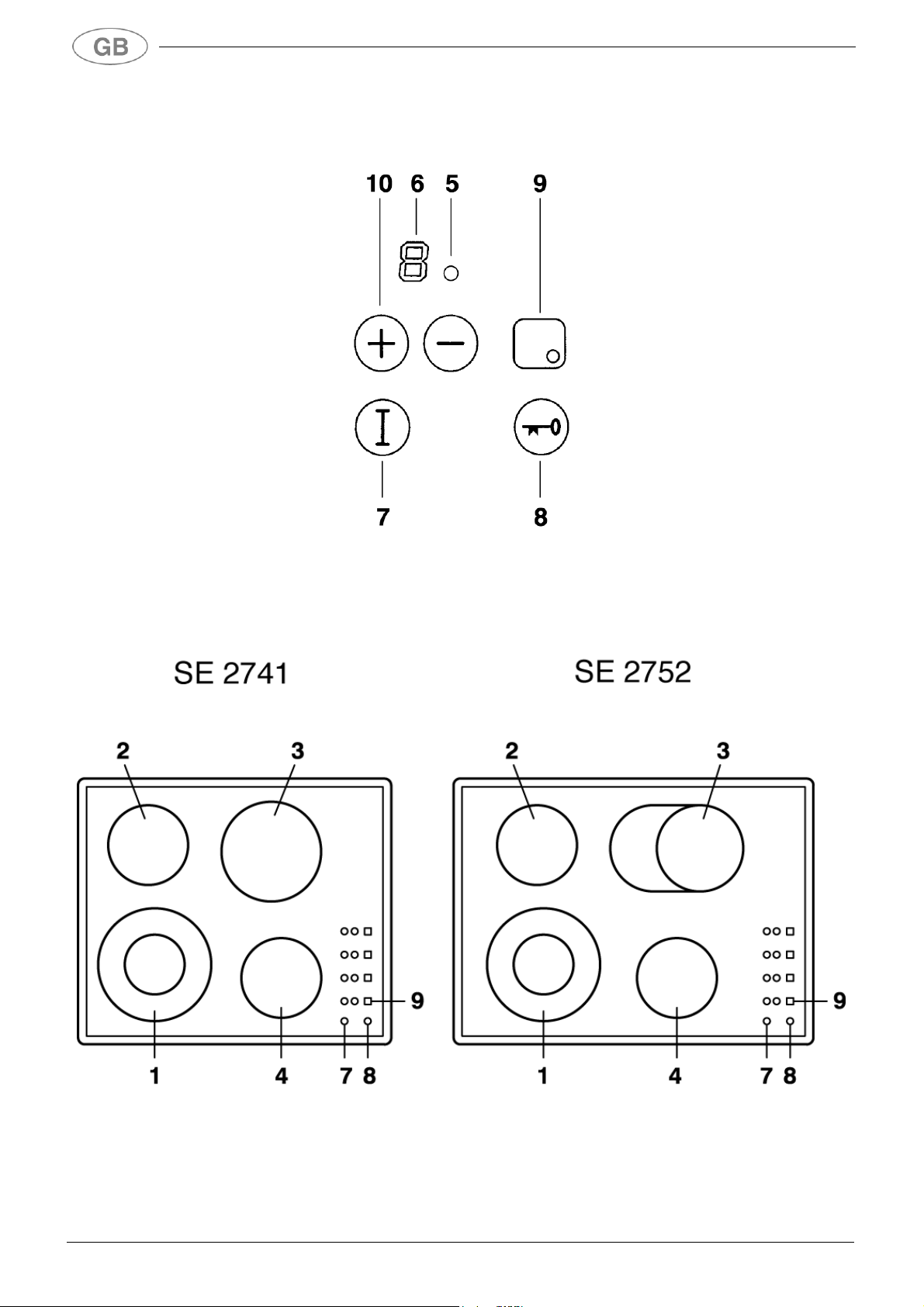

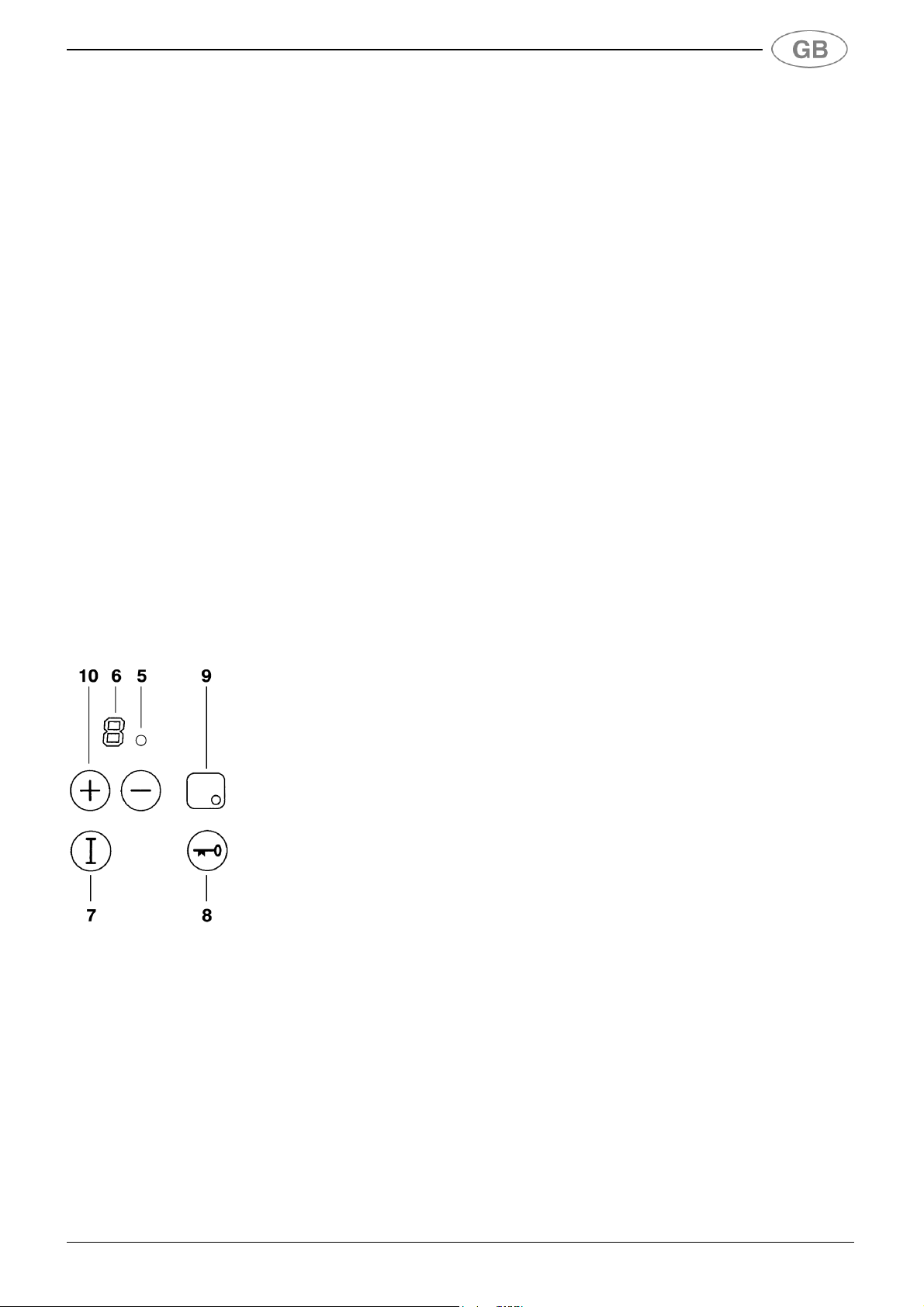

Touch-control keys.................................................... 39

Switching on the cooking zones ............................... 41

Control disabling key................................................. 42

Switching off the cooking zones ............................... 42

Safety cut-out device ................................................ 43

Residual heat indicator ............................................. 43

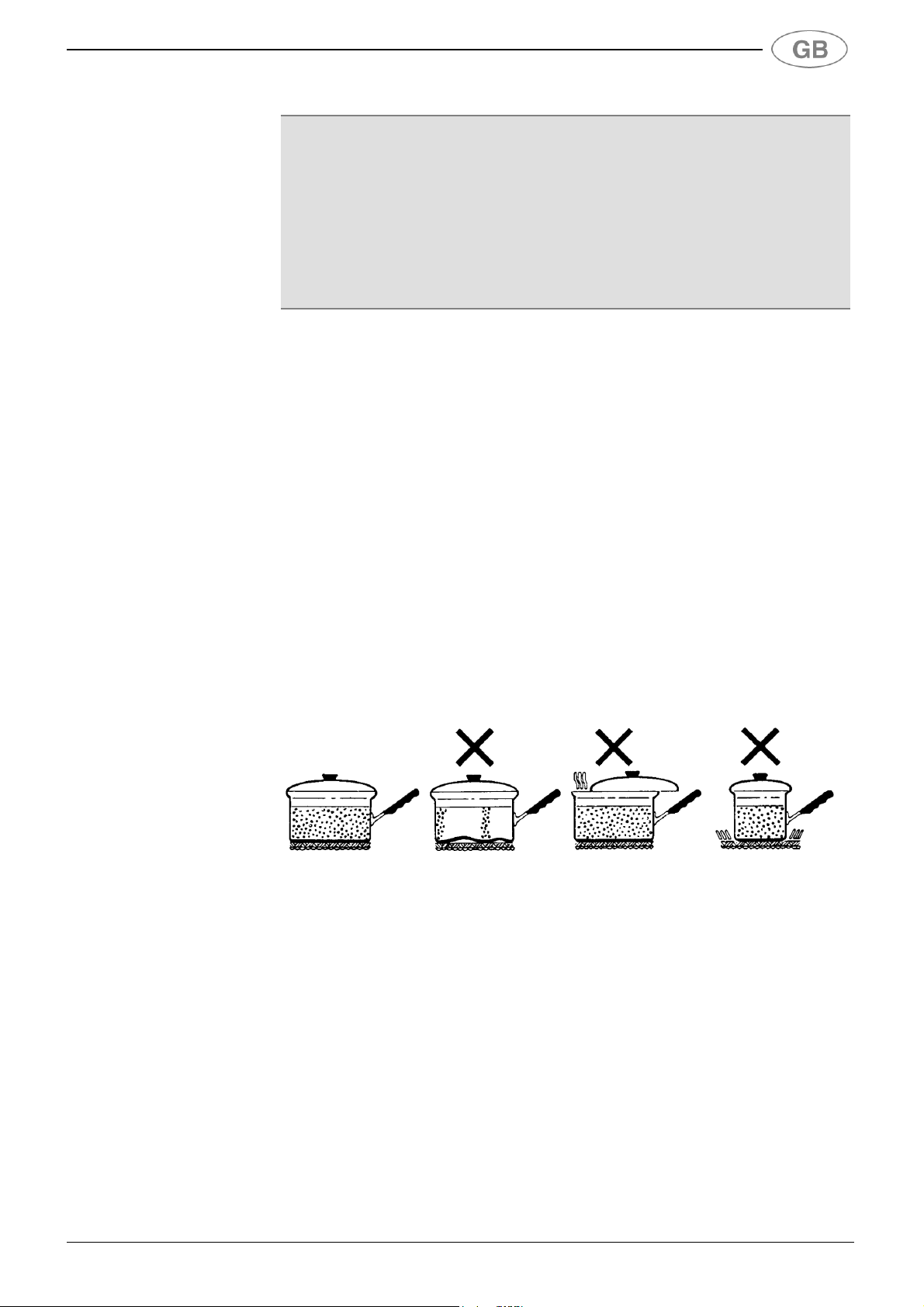

Practical hints for use of the cooking zones ............. 43

General advice ........................................................ 44

Controls..................................................................... 44

Warnings ................................................................... 44

Cleaning, maintenance and suggestions ............. 46

33

Installation advice

Touch-control ceramic hobs are particularly sensitive
electrical appliances.
Leaving aside the end result, these hobs, produced by
a specific technique, are completely different from
conventional hobs.

Since the electronic equipment is extremely sensitive,
special care must be taken when installing the hob,
which will be affected by knocks or humidity.

Moreover, because of their special structure touch­control hobs have a built-in installation height which
exceeds
ordinary hobs.

The unit below the hob has to be modified during built­in installation and assembly.
To allow built-in installation, the engineer must remove
the front and rear stabilizer cross-pieces at each end of
the wooden unit.
Since this unit is often installed between other units, its
stability is not impaired.
However, this modification is not possible on all units.
Corner units, for example, usually have a swivel body
fixed at the bottom and top by means of a beam.
In this case, the top part cannot be removed because
the swivel body might fall if disconnected from the
stabilizer.

40 mm

the standard maximum thickness of

34

There may also be problems in installation if the unit
below the hob contains a built-in appliance which uses
water or produces steam (refrigerators, dishwashers,
washing machines and some types of oven).
Experience has shown that the heat generated between
the appliance and the hob without ventilation will cause
condensation which damages the hob.

Installation instructions

Presetting

Positioning

By connecting the device to the electric grid, the
electrical components checking procedure is
automatically activated. Numbers 1 to 9 appear in

sequence above the symbols
When they go out, the appliance is ready for use.

This ceramic hob can be installed in units of all kinds: in
brickwork, metal, wood, wood clad with melamine
laminates or plywood.

The opening for built-in installation must be of the
dimensions shown.

and .

35

Optimum protection of the opening

The wood used in the tops of kitchen units may change
shape (e.g. swell) if humidity is present.
Apply a varnish or special adhesive to the sides of the
opening made for built-in installation to assure proper
protection.

Permitted level of protection against fire, and
instructions for use

The appliance has «type X» protection against
overheating (EN 60335-2-6/1990) and can be installed
against walls higher than the work top. For this, it is
important to leave a gap of
of the unit and

110 mm

from the left-hand side.

50 mm

from the rear edge

The hob is complete with a special adhesive seal «A»
which prevents any infiltration into the unit. The seal
must be carefully fixed around the edge of the opening
for built-in mounting, pressing lightly with the hand to
ensure that it sticks.
Remove the paper protection and place the hob on the
seal.
The seal guarantees a waterproof finish and a perfectly
smooth work top. Fix the hob to the unit using the
brackets already fitted to the appliance.

36

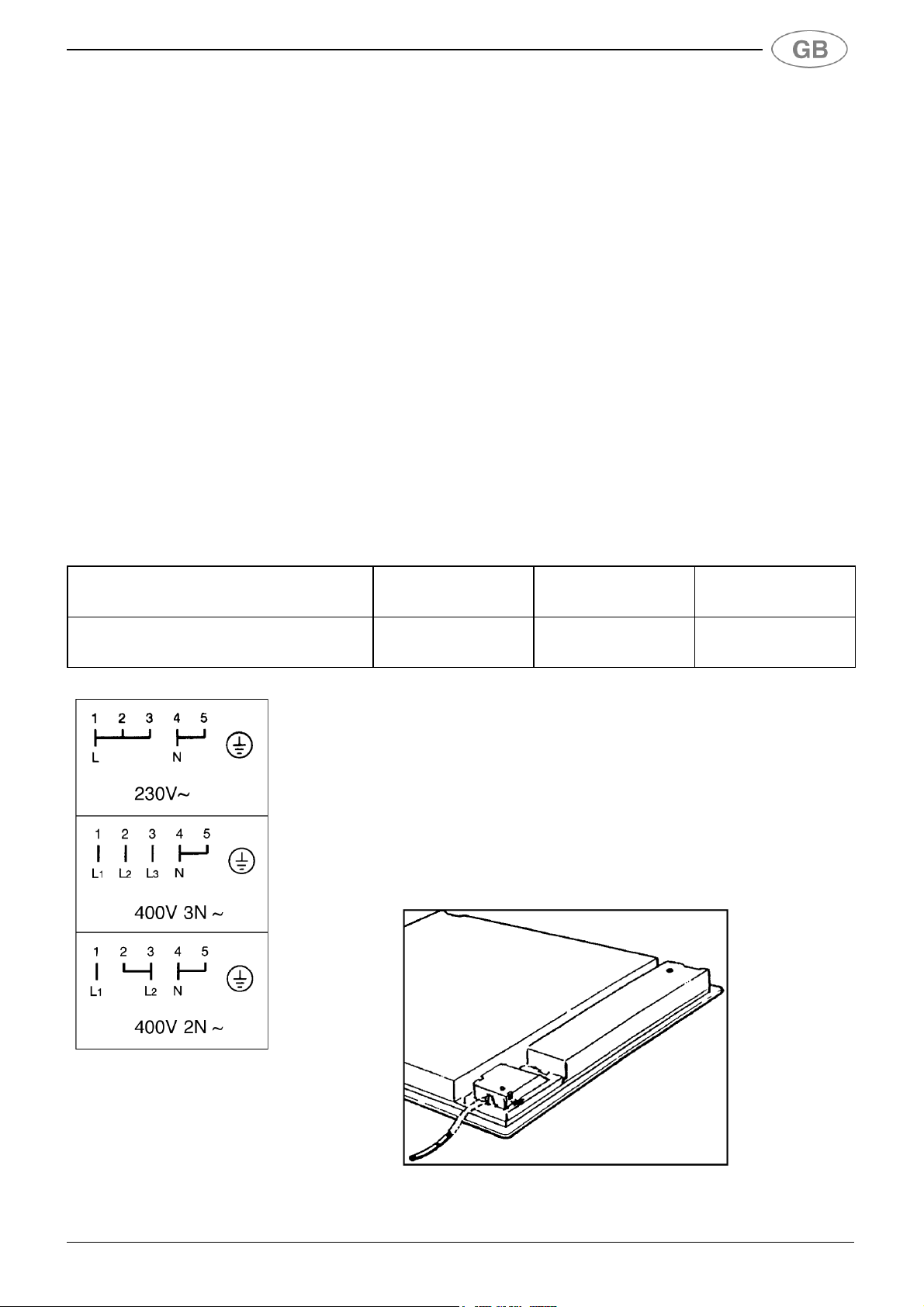

N.B.

- The appliance must be installed by a skilled
engineer in accordance with the regulations in force in
your country.
Always disconnect the appliance from the electricity
supply before any adjustments, maintenance, etc.
