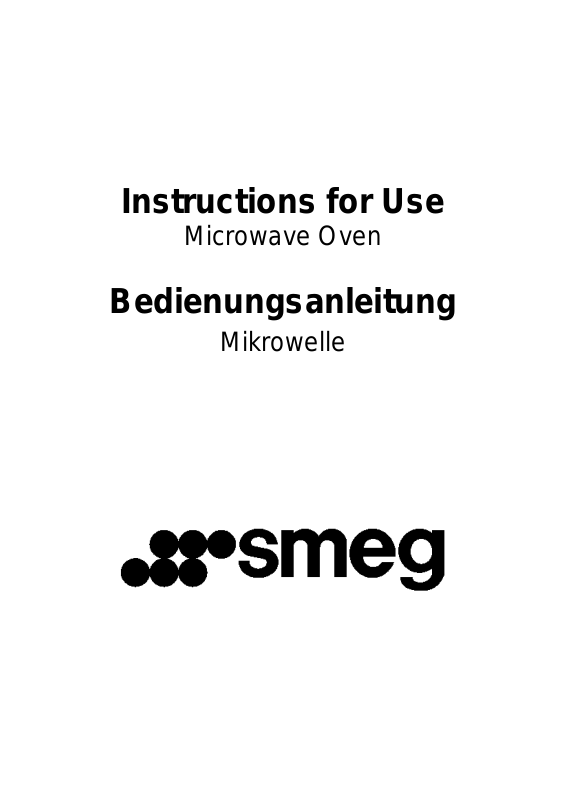

Instructions for Use

Microwave Oven

Bedienungsanleitung

Mikrowelle

Dear Customer:

Before going any further, we want to thank you for preferring our product. We are sure that this modern, functional and practical microwave oven, manufactured with top quality materials, will fully meet your expectations.

We ask you to read the instructions in this booklet very carefully as this will allow you to get the best results from using your microwave oven.

KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.

Always keep the instruction manual handy. If you lend the microwave oven to someone else give them the manual as well!

The user manual is also available for download at www.smeg.it

Contents

Safety Information .............................................................................................................................. 4

Safety Instructions ............................................................................................................................. 7

The advantages of microwaves ......................................................................................................... 8

Description of microwave oven ......................................................................................................... 9

Basic settings ................................................................................................................................... 10

Setting the clock ............................................................................................................................. 10

Hiding / Displaying the Clock .......................................................................................................... 10

Child lock ........................................................................................................................................ 11

Timer .............................................................................................................................................. 11

Basic functions ................................................................................................................................. 12

Microwave ...................................................................................................................................... 12

Grill ................................................................................................................................................. 12

Microwave + Grill ............................................................................................................................ 13

Quick start ...................................................................................................................................... 13

When the oven is working... ............................................................................................................. 14

Altering parameters ........................................................................................................................ 14

End of a cooking cycle .................................................................................................................... 14

Cooking with a microwave oven ..................................................................................................... 15

Cooking with the grill ....................................................................................................................... 17

What kind of ovenware can be used? ............................................................................................. 20

Microwave function ......................................................................................................................... 20

Grill function .................................................................................................................................... 20

Microwave + grill function ............................................................................................................... 20

Aluminium containers and foil ......................................................................................................... 20

Lids ................................................................................................................................................. 20

Oven Cleaning and Maintenance ..................................................................................................... 22

What should I do if the oven doesn’t work? ................................................................................... 24

Substitution of light bulb ................................................................................................................. 24

Technical characteristics ................................ ................................ ................................................. 25

Description of Functions ................................................................................................................. 25

Specifications ................................................................................................................................. 25

Environmental protection ................................................................................................................ 26

Installation instructions ................................................................................................................... 27

Before installation ........................................................................................................................... 27

After installation .............................................................................................................................. 27

Installation ......................................................................................................................................... 54

Safety Information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

CHILDREN AND VULNERABLE PEOPLE SAFETY Warning! Risk of suffocation, injury or permanent disability.

 This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a person who is responsible for their safety.

 Do not let children play with the appliance.  Keep all packaging away from children.  WARNING: Keep children away from the appliance when it operates or when it

cools down. Accessible parts are hot.

 If the appliance has a child safety device, we recommend that you activate it.

Children under 3 years must not be left unsupervised in the vicinity of the appliance.

 Cleaning and user maintenance shall not be made by children without

supervision.

GENERAL SAFETY

 This appliance is intended to be used in household and similar applications

such as:

– staff kitchen areas in shops, offices and other working environments; – farm houses; – by clients in hotels, motels and other residential environments; – bed and breakfast type environments.

 Internally the appliance becomes hot when in operation. Do not touch the

heating elements that are in the appliance. Always use oven gloves to remove or put in accessories or ovenware.

WARNING: Do not heat liquids and other foods in sealed containers. They are

liable to explode.

 Only use utensils that are suitable for use in microwave ovens.  When heating food in plastic or paper containers, keep an eye on the

appliance due to the possibility of ignition.

 The appliance is intended for heating food and beverages. Drying of food or

clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

Safety Information

 Warning! The oven cannot be used if:

- The door is not closed correctly;

- The door hinges are damaged;

- The surfaces of the contact between the door and the oven front are damaged;

- The door window glass is damaged;

- There is frequent electrical arcing inside the oven even though there is no

metal object inside. The oven can only be used again after it has been repaired by a Technical Assistance Service technician.  If smoke is emitted, switch off or unplug the appliance and keep the door

closed in order to stifle any flames.  Microwave heating of beverages can result in delayed eruptive boiling. Care

must be taken when handling the container.  The contents of feeding bottles and baby food jars shall be stirred or shaken

and the temperature checked before consumption, in order to avoid burns.  Eggs in their shell and whole hard-boiled eggs should not be heated in the

appliance since they may explode, even after microwave heating has ended.

INSTALLATION

 The electrical installation is to be set up so that the appliance can be isolated

from the mains with a minimum 3mm all-pole contact separation.  Suitable separation devices include e.g. cutouts, fuses (screw fuses are to be

taken out of the holder), RCD’s and contactors.  Anti-shock protection must be provided by the installation.

CLEANING

 The appliance should be cleaned regularly and any food deposits removed.  Failure to maintain the appliance in a clean condition could lead to

deterioration of the surface that could adversely affect the life of the appliance

and possibly result in a hazardous situation.  Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass

door since they can scratch the surface, which may result in shattering of the

glass.

 Do not use a steam cleaner to clean the appliance.  The door contact surfaces (the front of the cavity and the inside part of the

doors) must be kept very clean in order to ensure the oven functions correctly.  Please follow the instructions regarding cleaning in the section "Oven Cleaning

and Maintenance".

Safety Information

REPAIRS

 WARNING: Before maintenance cut the power supply.  WARNING: Only a competent person can carry out any service or repair

operation that involves the removal of a cover which gives protection against

exposure to microwave energy.  WARNING: If the door or door seals are damaged, the appliance must not be

operated until it has been repaired by a competent person.  If the power cable is damaged it should be substituted by the manufacturer,

authorized agents or technicians qualified for this task in order to avoid

dangerous situations. Furthermore, special tools are required for this task.  Repair and maintenance work, especially of current carrying parts, can only be

carried out by technicians authorized by the manufacturer.

Safety Instructions

 Warning! Do not heat pure alcohol or

alcoholic drinks in the microwave. FIRE RISK!

 Beware!  To avoid food overheating or burning it

is very important not to select long time periods or power levels that are too high when heating small quantities of food. For example, a bread roll can burn after 3 minutes if the power selected is too high.

 For toasting, use just the grilling function

and watch the oven all the time. It you use a combined function to toast bread it will catch fire in a very short time.

 Make sure you never catch the power

cables of other electrical appliances in the hot door or the oven. The cable insulation may melt.

Danger of short-circuiting!

 Take care when heating liquids!  When liquids (water, coffee, tea, milk,

etc.) are nearly at boiling point inside the oven and are taken out suddenly, they may spurt out of their containers.

DANGER OF INJURIES AND BURNS!

 To avoid that type of situation when

heating liquids, put a teaspoon or glass rod inside the container.

 Avoid damaging the oven or other

dangerous situations by following these instructions:

 Do not switch on the oven without the

turntable support, the turntable ring and the respective plate being in place.

 Never switch on the microwave when it is

empty. If there is no food inside there may be an electrical overcharge and the oven could be damaged.

RISK OF DAMAGE!

 For carrying out oven programming tests put

a glass of water inside the oven. The water will absorb the microwaves and the oven will not be damaged.

 Do not cover or obstruct the ventilation

openings.

 Use only dishes suitable for microwaves.

Before using dishes and containers in the microwave, check that these are suitable (see the section on types of dishes).

 Never remove the mica cover on the ceiling

of the oven interior! This cover stops fat and pieces of food damaging the microwave generator.

 Do not keep any inflammable object inside

the oven as it may burn if the oven is switched on.

 Do not use the oven as a pantry.  Do not use the oven for frying as it is

impossible to control the temperature of oil heated by microwaves.

 Do not lean or sit on the open oven door.

This may damage the oven, especially in the hinge zone. The door can bear a maximum weight of 8 kg.

 The turntable and the grills can bear a

maximum load of 8 kg. To avoid damaging the oven, do not exceed this load.

The advantages of microwaves

In conventional ovens, heat radiated by electrical elements or gas burners slowly penetrates the food from outside to inside. On account of this there is a major amount of energy is wasted heating the air, the oven components and the food containers.

In a microwave oven, heat is generated by the food itself and the heat travels from inside to outside. No heat is lost to the air, the walls of the oven cavity or the dishes and containers (if these are suitable for use in microwave oven), in other words, only the food is heated.

Microwave ovens have the following advantages:

1. Shorter cooking times; in general these are up to 3/4 less than the time required for conventional cooking.

2. Ultra-fast food defrosting, thus reducing the danger of bacterial development.

3. Energy savings.

4. Conservation of the nutritional value of foods due to the shorter cooking times.

5. Easy to clean.

Why food heats up

Most foods contain water and water molecules vibrate when subjected to microwaves.

The friction between molecules produces heat which raises the temperature of the food, defreezing it, cooking it or keeping it hot.

Since the heat arises inside the food:

 This can be cooked with little or no liquid

or fats/oils;

 De-freezing, heating or cooking in a

microwave oven is quicker than in a conventional oven;

 The vitamins, minerals and nutritional

substances in the food are conserved;

 The natural colour and aroma of the food

are unchanged.

Microwaves pass through china, glass, cardboard or plastic but do not go through metal. For this reason, metal containers or ones with metal parts must not be used in a microwave oven.

Microwaves are reflected by metal...

How a microwave oven works

In a microwave oven there is a high tension valve called a magnetron which converts electrical energy into microwave energy. These electromagnetic waves are channelled to the interior of the oven through a wave guide and distributed by a metallic spreader or through a turntable.

Inside the oven the microwaves propagate in all directions and are reflected by the metal walls, uniformly penetrating the food.

... but go through glass and china...

and are absorbed by foods.

1. – Door window glass

7. – High grille

2. – Catches

8. – Control panel

3. – Turntable support

9. – Grill

4. – Turntable ring

10. – Mica cover

5. – Turntable plate

11. – Lamp

6. – Low grille

75 864

a b

1. – Function selector

5. – ”-” key

a. – Child lock indicator light

2. – Display

6. – “+“ key

b. – Clock indicator light

3. – Microwave power level selector

7. – Start key

c. – Timer indicator light

4. – Child lock key

8. – Stop key

d. – Operating time indicator light

Description of microwave oven

1, 3, 5

08:30

2, 4, 6

1, 2

Basic settings

Setting the clock

After your microwave oven is first plugged-in or after a power failure, the clock display will flash to indicate that the time shown is not correct.

To set the clock, proceed as follows:

1. Press the “+” key until the Clock Indicator

4. Press the Start key to validate the hour value. The minute numbers will start to flash.

Light starts to flash.

2. Press the Start key.

3. Press “+” and “-” keys to set the correct hour value.

Hiding / Displaying the Clock

If the clock display disturbs you, you can hide it.

1. Press the “+” and “-” keys simultaneously

for 5 seconds. The dots that separate the hours

5. Press “+” and “-” keys to set the correct minute value.

6. To finish, press the Start key again.

2. If you want to see the clock again, press the “+”

and “-” simultaneously again for 5 seconds.

and minutes will flash but the rest of the clock display will be hidden.

1, 2

SAFE

1, 3

2, 4

Basic settings

Child lock

The oven can be blocked against improper use (e.g., to prevent children from using it).

1. To block the oven, press the Child lock key

for 3-5 seconds. When the oven is blocked “SAFE” appears on the display and the oven performs no function.

2. To unblock the oven press again the Child lock

key for 3-5 seconds..

Timer

1. Press the “+” key until the Timer indicator light flashes.

2. Press the Start key.

3. The numbers flash. Press the “+” and “-” keys to set the desired time.

4. Press the Start key. The timer will countdown to zero and at the end of the set time the oven will sound 3 beeps every 30 seconds until the Stop key is pressed.

To cancel the active Timer function repeat the

above steps but setting the time to zero.

01:00

10:00

Basic functions

Microwave

Use this function to cook and heat up vegetables, potatoes, rice, fish and meat.

1. Turn the Function selector to the microwave position. . The Operating

time indicator Light and Display (numbers) start to flash.

2. With the “-” and “+“ keys, select the desired time.

Grill

Use this function to brown the surface of food quickly.

3. Set the desired microwave power level with the Microwave power level selector (see technical features).

4. Press the Start key. The cooking process begins.

1. Turn the Function selector to the grill position “ “. The Operating time indicator light and Display (numbers) start to flash.

2. With the “-” and “+“ keys, select the desired time.

3. Press the start key. The cooking process will begin.

Please note: The position of the microwave power level selector does not affect the operation.

01:00

1, 2

00:30

Basic functions

Microwave + Grill

Use this function to cook lasagne, poultry, baked potatoes and casseroles.

1. Turn the function selector to the microwave + grill position. . The Operating time

indicator light and Display (numbers) start to flash.

2. With the “-” and “+-“ keys, select the desired time.

3. Set the desired microwave power level with the Microwave power level selector (see technical features).

4. Press the Start key. The cooking process will begin.

Quick start

This function can be used with all the basic functions (microwave, grill, and microwave + grill).

1. In the Standby mode (function selector in any position: microwave, grill or microwave + grill) press the Start key . The oven starts to operate for 30 seconds.

2. If you want to increase the operating time press the Start key again. Each time you press this key the operating time will be increased by 30 seconds.

When the oven is working...

Interrupting a cooking cycle

You can stop the cooking process at any time by pressing the Stop key once or by opening the oven door.

In both cases:

 Microwave emission is stopped

immediately.

 The grill is de-activated but is still very

hot. Danger of burning!

 The timer stops automatically, indicating

the operating time that is left.

If you wish, at this time you can:

1. Turn or stir the food to ensure it will be evenly cooked.

2. Change the process parameters.

To restart the process, close the door and press the Start key

Altering parameters

The operating parameters

 Time (with the “+“ and “-“ keys)  Function (with the function selector)  Power (with the microwave power level

selector)

can be altered when the oven is operating or when the cooking process has been interrupted by simply turning the respective knob to the new value.

Cancelling a cooking cycle

If you wish to cancel the cooking process, press the Stop key twice.

End of a cooking cycle

At the end of the process you will hear one beep and the display will show the word “End”.

Cooking with a microwave oven

Warning! Read the section “Microwave Safety”

before cooking with your microwave.

Follow these recommendations when cooking with your microwave:

 Before heating or cooking foods with peel

or skin (e.g. apples, tomatoes, potatoes, sausages) prick them so that they do not burst. Cut the food up before starting to prepare it.

 Before using a container or dish make

sure that it is suitable for microwave use (see the section on types of ovenware).

 When cooking food with very little moisture

(e.g. defrosting bread, making popcorn, etc.) evaporation is very quick. The oven then works as if it was empty and the food may burn. The oven and the container may be damaged in such a situation. You should therefore set just the cooking time necessary and you must keep a close eye on the cooking process.

 It is not possible to heat large quantities of

oil (frying) in the microwave.

 Remove pre-cooked food from the

containers they come in since these are not always heat resistant. Follow the food manufacturer’s instructions.

 If you have several containers, such as

cups, for example, set them out uniformly on the turntable plate.

 Do not close plastic bags with metal clips.

Use plastic clips instead. Prick the bags several times so that the steam can escape easily.

 When heating or cooking foods, check that

they reach at least a temperature of 70°C.

 During cooking, steam may form on the

oven door window and may start to drip. This situation is normal and may be more noticeable if the room temperature is low.

The oven’s safe working is not affected by

this. After you have finished cooking, clean up the water coming from the condensation

 When heating liquids, use containers

with a wide opening, so that the steam

can evaporate easily.

Prepare the foods as per the instructions and keep in mind the cooking times and power levels indicated in the tables.

Keep in mind that the figures given are only indicative and can vary depending on the initial state, temperature, moisture and type of food. It is advisable to adjust the times and power levels to each situation. Depending on the exact characteristics of the food you may need to increase or shorten the cooking times or increase or decrease the power levels.

Cooling with microwaves...

1. The greater the amount of food, the longer the cooking time. Keep in mind that:

 Double the quantity » double the time  Half the quantity » half the time

2. The lower the temperature, the longer the cooking time.

3. Foods containing a lot of liquid heat up more quickly.

4. Cooking will be more uniform if the food is evenly distributed on the turntable. If you put dense foods on the outside part of the plate and less dense ones on the centre of the plate, you can heat up different types of food simultaneously.

5. You can open the oven door at any time. When you do this the oven switches off automatically. The microwave will only start working again when you close the door and press the start key.

6. Foods that are covered require less cooking time and retain their characteristics better. The lids used must let microwaves pass through and have small holes that allow steam to escape.

Food

Quantity (g)

Addition of

liquids

Power

(Watt)

Time

(min.)

Standing

Time (min.)

Instructions

Cauliflower Broccoli Mushrooms

500 300 250

100 ml

50 ml 25 ml

750 750 750

9-11

6-8 6-8

2-3 2-3 2-3

Divide into florets Cut into slices Turn 1 x, cover

Peas & carrots,

Frozen carrots

300

250

100 ml

25 ml

750

7-9

8-10

2-3

Cut into cubes or slices. Cover. Turn 1 x

Potatoes

250

25 ml

750

5-7

2-3

Peel, cut into uniform pieces. Cover, turn 1 x

Pepper Leek

250 250

25 ml 50 ml

750 750

5-7 5-7

2-3 2-3

Cut into pieces or slices. Cover. Turn 1 x

Frozen Brussel sprouts

300

50 ml

750

6-8

2-3

Cover. Turn 1 x Sauerkraut

250

25 ml

750

8-10

2-3

Cover. Turn 1 x

Food

Quantity (g)

Power

(Watt)

Time

(min.)

Standing Time

(min.)

Instructions

Fish fillets

500

550

10-12

Cook covered over. Turn after half of cooking time.

Whole fish

800

750 300

2-3 7-9

2-3

Cook covered over. Turn after half of cooking time. You may wish to cover up the small edges of the fish.

Cooking with a microwave oven

Tables and suggestions – Cooking vegetables

Tables and suggestions – Cooking fish

Cooking with the grill

For good results with the grill, use the grid iron supplied with the oven.

Fit the grid iron in such a way that it doesn’t

come into contact with the metal surfaces of the oven cavity since if it does there is a danger of electric arcing which may damage the oven.

IMPORTANT POINTS:

1. When the microwave grill is used for the first time there will be some smoke and a smell coming from the oils used during oven manufacture.

2. The oven door window becomes very hot when the grill is working. Keep children away.

3. When the grill is operating, the cavity walls and the grid iron become very hot. You should use oven gloves.

4. If the grill is used for extended period of time it is normal to find that the elements will switch themselves off temporarily due to the safety thermostat.

5. Important! When food is to be grilled or cooked in containers you must check that the container in question is suitable for microwave use. See the section on types of ovenware!

6. When the grill is used it is possible that some splashes of fat may go onto the elements and be burnt. This is a normal situation and does not mean there is any kind of operating fault.

7. After you have finished cooking, clean the interior and the accessories so that cooking remains do not become encrusted.

Fish

Quantity (g)

Time (min.)

Instructions

Fish

Bass Sardines/gurnard

800

6-8 fish.

18-24 15-20

Spread lightly with butter. After half of cooking time turn and spread with seasoning.

Meat

Sausages

6-8 units

22-26

Halfway through, pierce and turn over.

Frozen hamburgers

3 units

18-20

Turn over 2 or 3x

Spare rib (approx. 3 cm thick)

400

25-30

Baste with oil, turn over halfway through

Others

Toast

4 units

1½-3

Keep an eye on the toasting process, turn over

Toasted sandwiches

2 units

5-10

Keep an eye on the toasting process.

Cooking with the grill

Tables and suggestions – Grill without microwave

Heat up the grill beforehand for 2 minutes. Unless indicated otherwise, use the grid iron. Place the grid on a bowl so that the water and the fat can drop.

The times shown are merely indicative and can vary as a function of the composition and quantity of the food, as well as the final condition wished for. Fish and meat taste great if, before grilling, you brush them with vegetable oil, spices and herbs and leave to marinate for a few hours. Only add salt after grilling.

Sausages will not burst if you prick them with a fork before grilling.

After half the grilling time has passed, check on how the cooking is going and, if necessary, turn the food over.

The grill is especially suitable for cooking thin portions of meat and fish. Thin portions of meat only need to be turned once, but thicker portions should be turned several times.

Food

Quantity (g)

Dish

Power

(Watt)

Time (min.)

Standing time

(min.)

Cheese topped pasta

500

Low dish

300

12-17

3-5

Cheese topped potatoes

800

Low dish

550

20-22

3-5

Lasagne

approx. 800

Low dish

550

15-20

3-5

Grilled cream cheese

approx. 500

Low dish

300

18-20

3-5

2 fresh chicken legs (grilled)

200 each

Low dish

300

10-15

3-5

Chicken

approx. 1000

Low and wide dish

300

35-40

3-5

Cheese topped onion soup

2 x 200 g cups

Soup bowls

300

2-4

3-5

Cooking with the Grill

Tables and suggestions – Microwave + Grill

The microwave + grill function is ideal for cooking quickly and, at the same time, browning foods. Furthermore, you can also grill and cook cheese

Before using a dish in the microwave oven make sure that it is suitable for microwave use. Only use dishes or containers that are suitable for microwave use.

The dish to be used in the combined function must be suitable for microwave and grill use. See the section on types of ovenware!

Keep in mind that the figures given are merely indicative and can vary as a function of the initial state, temperature, moisture and type of food.

covered food. The microwave and the grill work simultaneously. The microwave cooks and the grill toasts.

If the time is not enough to brown the food well, put it under the grill for another 5 or 10 minutes.

Please follow the standing times and don’t forget

to turn the meat pieces. Unless indicated to the contrary, use the turntable

plate for cooking. The values given in the tables are valid when the

oven cavity is cold (it is not necessary to pre-heat the oven).

What kind of ovenware can be used?

Microwave function

For the microwave function, keep in mind that microwaves are reflected by metal surfaces. Glass, china, clay, plastic, and paper let microwaves pass.

For this reason, metal pans and dishes or

containers with metal parts or decorations cannot be used in the microwave. Glass ware

and clay with metallic decoration or content (e.g. lead crystal) cannot be used in microwave ovens.

The ideal materials for use in microwave ovens are glass, refractory china or clay, or heat resistant plastic. Very thin, fragile glass or china should only be used for short period of times (e.g. heating).

Hot food transmits heat to the dishes which can become very hot. You should, therefore, always use an oven glove!

How to test ovenware you want to use

Put the item you want to use in the oven for 20 seconds at maximum microwave power. After that time, if it is cold and just slightly warm, it is suitable to use. However, if it heats up a lot or causes electric arcing it is not suitable for microwave use.

 Keep in mind the manufacturer’s

recommendations written on the packaging.

 The aluminium containers cannot be more

than 3 cm high or come in contact with the cavity walls (minimum distance 3 cm). Any aluminium lid or top must be removed.

 Put the aluminium container directly on top

of the turntable plate. If you use the grid iron, put the container on a china plate. Never put the container directly on the grid iron!

 The cooking time is longer because the

microwaves only enter the food from the top. If you have any doubts, it is best to use only dishes suitable for microwave use.

 Aluminium foil can be used to reflect

microwaves during the defrosting process. Delicate food, such as poultry or minced meat, can be protected from excessive heat by covering the respective extremities/edges.

 Important: aluminium foil cannot come

into contact with the cavity walls since this may cause electrical arcing.

Grill function

In the case of the grill function, the ovenware must be resistant to temperature of at least 300°C.

Plastic dishes are not suitable for use in the grill.

Microwave + grill function

In the microwave + grill function, the ovenware used must be suitable for use in both the microwave and the grill.

Aluminium containers and foil

Pre-cooked food in aluminium containers or in aluminium foil can be put in the microwave if the following aspects are respected:

Lids

We recommend you use glass or plastic lids or cling film since:

1. This will stop excessive evaporation (mainly during very long cooking times);

2. The cooking times are shorter;

3. The food does not become dry;

4. The aroma is preserved.

The lid should have holes or openings so that no pressure develops. Plastic bags must also be opened. Baby feeding bottles or jars with baby food and similar containers can only be heated without their tops / lids otherwise they can burst.

Operating mode

Type of ovenware

Microwave

Grill

Microwave +

Grill

Defrosting /

heating

Cooking

Glass and china 1)

Home use, not flame resistant, can be used in dish washer

yes

Glazed china

Flame resistant glass and china

yes

China, stone ware 2)

Unglazed or glazed without metallic decorations

yes

Clay dishes 2)

Glazed Unglazed

yes

no no

Plastic dishes 2)

Heat resistant to 100°C Heat resistant to 250°C

yes yes

yes

no no

Plastic films 3)

Plastic film for food Cellophane

yes

no no

Paper, cardboard, parchment 4)

yes

Metal

Aluminium foil Aluminium wrappings 5) Accessories

yes

no yes yes

yes yes yes

no yes yes

What kind of ovenware can be used?

Table of Ovenware

The table below gives you a general idea of what type of ovenware is suitable for each situation.

1. Without any gold or silver leaf edging; no lead crystal.

2. Keep the manufacturer’s instructions in mind!

3. Do not use metal clips for closing bags. Make holes in the bags. Use the films only to cover the food.

4. Do not use paper plates.

5. Only shallow aluminium containers without lids/tops. The aluminium cannot come into contact with the cavity walls.

Oven Cleaning and Maintenance

Cleaning is the only maintenance normally required.

Warning! Your microwave oven should be cleaned regularly, with all food remains being removed. If the microwave is not kept clean its surfaces may deteriorate, reducing the oven’s

working life and possibly resulting in a dangerous situation.

Warning! Cleaning should be done with the oven power switched off. Take the plug out of

the socket or switch off the oven’s power

circuit. Do not use aggressive or abrasive cleaning

products, scourers that scratch surfaces or sharp objects, since stains may appear.

Do not use high pressure or stream jet cleaning appliances.

Front surface

Normally you just need to clean the oven with a damp cloth. If it is very dirty, add a few drops of dishwashing liquid to the cleaning water. Afterwards, wipe the oven with a dry cloth.

In an oven with an aluminium front, use a glass cleaning product and a soft cloth that does not release any fibres or threads. Wipe from side to side without exerting any pressure on the surface.

Immediately remove lime, fat, starch or egg white stains. Corrosion can occur under these stains.

Do not let any water get inside the oven.

Oven interior

After each time the oven is used, clean the inside walls with a damp cloth since this is the easiest way to remove splashes or spots of food that may have stuck to the inside.

To remove dirt that is harder to shift, use a nonaggressive cleaning product. Do not use oven

sprays or other aggressive or abrasive cleaning products.

Always keep the door and the oven front very clean to ensure that the door opens and closes properly.

Make sure water does not enter the microwave ventilation holes.

Regularly take out the turntable plate and the respective support and clean the cavity base, especially after any liquid spillage.

Do not switch on the oven without the turntable and the respective support being in place.

If the oven cavity is very dirty, put a glass of water on the turntable and switch on the microwave oven for 2 or 3 minutes at maximum power. The steam released will soften the dirt which can then be cleaned easily using a soft cloth. Unpleasant odours (e.g. after cooking fish) can be eliminated easily. Add a few drops of lemon juice or vinegar in a cup of water. Put a spoonful of coffee in the cup to avoid the water boiling over. Heat the water for 2 to 3 minutes at maximum microwave power.

Oven Cleaning and Maintenance

Oven ceiling

If the oven ceiling is dirty, the grill can be lowered to make cleaning easier.

To avoid the danger of burning, wait until the grill is cold before lowering it.

Proceed as follows:

1. Turn the grill support by 180º (1).

2. Lower the grill gently (2). Do not use

excessive force as this may cause damage.

3. After cleaning the ceiling, put the grill (2) back in its place, carrying out the previous operation.

IMPORTANT WARNING: The grill heating element support (1) may fall when it is rotated. If this happens, insert the grill heating element support (1) into the slot in the ceiling of the cavity and rotate it 90º to the grill heating element support (2) position.

The mica cover (3) located in the ceiling must always be kept clean. Any food remains that

collect on the mica cover can cause damage or provoke sparks.

Do not use abrasive cleaning products or sharp objects.

To avoid any risk, do not remove the mica cover.

The glass lamp cover (4) is located on the oven ceiling and can be removed easily for cleaning. For this you just need to unscrew it and clean it with water and dishwashing liquid.

Accessories

Clean the accessories after each use. If they are very dirty, soak them first of all and then use a brush and sponge. The accessories can be washed in a dish washing machine.

Make sure that the turntable plate and the respective support are always clean. Do not switch on the oven unless the turntable and the respective support are in place.

What should I do if the oven doesn’t work?

WARNING! Any type of repair must only be done by a specialised technician. Any repair done by a person not authorised by the manufacturer is dangerous.

You do not need to contact Technical Assistance to resolve the following questions:

 The display is not showing! Check if:

- The time indication has been switched off (see section on Basic Settings).

 Nothing happens when I press the keys!

Check if:

- The Safety Block is active (see section on Basic Settings).

 The oven does not work! Check if:

- The plug is correctly fitted in the socket.

- The oven’s power is switched on.

- The door is completely closed. The door should close with an audible click.

- There are any foreign bodies between the door and the cavity front.

 When the oven is operating I can hear some

strange noises! Check if:

- There is any electrical arcing inside the oven caused by foreign metallic objects (see section on type of ovenware).

- The ovenware is touching the oven walls.

 The food is too hot, dried out or burnt!

Check if you selected the correct operating time and power level.

 I hear some noises after the cooking

process is finished! This is not a problem. The cooling fan keeps on working for some time. When the temperature has dropped sufficiently, the fan will switch itself off.

 The oven switches on but the interior light

does not go on! If all the functions work properly it is probable that the lamp has blown. You can keep on using the oven.

Substitution of light bulb

To substitute the light bulb, proceed as follows:

- Disconnect the oven from the power supply. Take the plug out of the socket or switch off the oven’s power circuit.

- Unscrew and remove the glass light cover (1).

- Remove the halogen light bulb (2). Warning! The bulb may be very hot.

- Fit a new 12V / 10W halogen bulb. Warning!

Do not touch the light bulb surface directly with your fingers because you may damage the bulb. Follow the lamp

manufacturer’s instructions.

- There are any loose items of cutlery or cooking tools inside the oven.

 The food doesn’t heat up or heats very

slowly! Check if:

- You have inadvertently used metal ovenware.

- You have selected the correct operating times and power level.

- The food you have put inside the oven is a larger amount or colder than you usually put in.

- Screw the glass light cover into place (1).

- Connect the oven again to the power supply.

Function

Microwaves Power

Foods

Microwave

150 W

Slow defrosting for delicate foods; keeping food hot

300 W

Cooking with little heat; boiling rice. Rapid defrosting

550 W

Melting butter. Heating baby food

750 W

Cooking vegetables and food. Cooking and heating carefully. Heating and cooking small portions of food. Heating delicate food

1000 W

Cooking and rapidly heating liquids and pre-cooked foods

Microwave

+ Grill

150 W

Toasting food

300 W

Grilling poultry and meat

550 W

Cooking pies and cheese-topped dishes

750 W

Use carefully: food might burn.

1000 W

Use carefully: food might burn.

Grill

---

Grilling food

Technical characteristics

Description of Functions

Specifications

 AC Voltage ................................................................................... 230-240 V / 50 Hz

 Power required ............................................................................. 3300 W

 Grill power.... ................................ ................................ ................ 1500 W

 Microwave output power. ............................................................. 1000 W

 Microwave frequency … ............................................................... 2450 MHz

 Exterior dimensions (WHD). ..................................................... 595  455  472 mm

 Interior dimensions (WHD). ...................................................... 420  210  390 mm

 Oven capacity. ............................................................................. 32 l

 Weight .......................................................................................... 35 kg

Environmental protection

Disposal of the packaging

The packaging bears the Green Point mark. Dispose of all the packaging materials such as

cardboard, expanded polystyrene and plastic wrapping in the appropriate bins. In this way you can be sure that the packaging materials will be re-used.

Disposal of equipment no longer used

According to European Directive 2002/96/EC on the management of waste electrical and electronic equipment (WEEE), home electrical appliances should not be put into the normal systems for disposal of solid urban waste.

Outdated appliances should be collected separately to optimise component material recovery and re-cycling rates and to prevent potential harm to human health and the environment. The symbol of a rubbish container superimposed by a diagonal cross should be put on all such products to remind people of their obligation to have such items collected separately.

Consumers should contact their local authorities or point of sale and request information on the appropriate places to leave their old home electrical appliances.

Before disposing of your appliance, render it nonusable by pulling out the power cable, cutting this and disposing of it

Installation instructions

Before installation

Check that the input voltage indicated on the

characteristics plate is the same as the voltage of the power outlet you are going to use.

Open the oven door and take out all the

accessories and remove the packing material. Do not remove the mica cover on the ceiling of

the interior! This cover stops fat and pieces of food damaging the microwave generator.

Warning! The front surface of the oven may be wrapped with a protective film. Before using the oven for the first time, carefully remove this film, starting on the inside.

Make sure that the oven is not damaged in any way. Check that the oven door closes correctly

and that the interior of the door and the front of the oven opening are not damaged. If you find any damage contact the Technical Assistance Service.

DO NOT USE THE OVEN if the power cable or the plug are damaged, if the oven does not function correctly or if it has been damaged or dropped. Contact the Technical Assistance Service.

Put the oven on a flat and stable surface. The oven must not be put close to any sources of heat, radios or televisions.

After installation

The oven is equipped with a power cable and a plug for single phase current.

If the oven is to be installed on a permanent basis it should be installed by a qualified

technician. In such a case, the oven should be connected to a circuit with an all-pole circuit breaker with a minimum separation of 3 mm between contacts.

WARNING: THE OVEN MUST BE EARTHED. The manufacturer and retailers do not accept

responsibility for any damage that may be

caused to people, animals or property if these installation instructions are not observed.

The oven only functions when the door is closed correctly.

After the first use, clean the inside of the oven and the accessories, following the cleaning instructions given in the section “Oven cleaning and maintenance”.

Fit the Turntable support in the centre of the oven cavity and put the Turntable ring and the Turntable plate on top, making sure they slot in. Whenever you use the microwave, the turntable plate and the respective accessories must be inside and correctly fitted. The turntable plate

can rotate in both directions.

During installation, make sure that the power cable does not come into contact with any moisture or objects with sharp edges behind the oven. High temperatures can damage the cable.

Warning: after the oven is installed you must make sure you can access the plug.

During installation, follow the instructions supplied separately.
