INSTRUCTION MANUAL
DISHWASHER
Contents
1. Safety and operating instructions ___________________________ 4
2. Installation and hook-up __________________________________7
3. Description of the controls________________________________11
4. Operating instructions___________________________________16
5. Cleaning and maintenance _______________________________24
Thank you for choosing this product.
We advise you to carefully read all the instructions contained in this
manual, in order to understand how to operate your dishwasher safely
and correctly.
The manual is divided into paragraphs, which provide a step by step
description of the dishwasher functions, with clear instructions
accompanied by detailed illustrations.
Recommendations are given for the correct use of the baskets, spray
arms, containers, filters, washing programs, and for operating the
controls.
Follow the recommended cleaning procedures to ensure that your
dishwasher always remains in perfect working order.
This manual provides a quick and easy reference for answering all your
questions concerning the use of your new dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the qualified
technician who must carry out the installation, hook-up and testing of
the appliance.
USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.
Safety instructions
1. Safety and operating instructions
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST
ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE
USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS
CONTAINED IN THIS MANUAL.
INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN
COMPLIANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR DOMESTIC USE, AND COMPLIES WITH THE
DIRECTIVES 72/23, 89/336 (INCLUDING 92/31)
INCLUDING THE PREVENTION AND ELIMINATION OF RADIO FREQUENCY
INTERFERENCE.
THE APPLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE:
AND DRYING OF DISHES
IMPROPER.
USES OTHER THAN THOSE DESCRIBED ABOVE.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER
AND MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE
DOOR.
NEVER BE REMOVED.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST
; ANY OTHER USE SHALL BE CONSIDERED
CURRENTLY IN FORCE,
EEC
WASHING
DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED
WITHIN THE HOME. SEPARATE THE VARIOUS MATERIALS WHICH MAKE
UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE
COLLECTION CENTRE.
THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN
ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO
PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE
APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.
IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR,
ENSURE THAT THE OPENINGS ON ITS UNDERSIDE ARE NOT
OBSTRUCTED.
ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID
WASTING ELECTRICITY.
Safety instructions
OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE
MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET,
AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR
CHILDREN (LOCKS, DOORS, ETC.).
THIS APPLIANCE IS MARKED ACCORDING TO THE
2002/96/EC
WEEE
(
BY ENSURING THIS PRODUCT IS DISPOSED OF CORRECTLY, YOU WILL
HELP PREVENT POTENTIAL NEGATIVE CONSEQUENCES FOR THE
ENVIRONMENT AND HUMAN HEALTH, WHICH COULD OTHERWISE BE
CAUSED BY INAPPROPRIATE WASTE HANDLING OF THIS PRODUCT.
THE SYMBOL
ACCOMPANYING THE PRODUCT, INDICATES THAT THIS APPLIANCE MAY
NOT BE TREATED AS HOUSEHOLD WASTE. INSTEAD IT SHALL BE
HANDED OVER TO THE APPLICABLE COLLECTION POINT FOR THE
RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT.
DISPOSAL MUST BE CARRIED OUT IN ACCORDANCE WITH LOCAL
ENVIRONMENTAL REGULATIONS FOR WASTE DISPOSAL. FOR MORE
DETAILED INFORMATION ABOUT TREATMENT, RECOVERY AND
RECYCLING OF THIS PRODUCT, PLEASE CONTACT YOUR LOCAL CITY
OFFICE, YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP
WHERE YOU PURCHASED THE PRODUCT.
IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE
ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING
TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER.
THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE
WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A
QUALIFIED TECHNICIAN.
THE APPLIANCE IS INTENDED FOR USE BY ADULTS.
CHILDREN TO COME NEAR OR PLAY WITH THE DISHWASHER. KEEP
CHILDREN AWAY FROM DETERGENTS AND FROM THE OPEN
DISHWASHER DOOR. THE PACKAGING MATERIALS (PLASTIC BAGS,
POLYSTYRENE, METAL BARS, ETC.) MUST NOT BE LEFT WITHIN THE
REACH OF CHILDREN.
KEEP CHILDREN AWAY FROM THE OPEN DISHWASHER. THE APPLIANCE
MAY CONTAIN RESIDUES OF DETERGENT WHICH CAN CAUSE
IRREVERSIBLE DAMAGE TO THE EYES, MOUTH, AND THROAT, AS WELL
AS POSSIBLE DEATH BY SUFFOCATION.
ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
).
ON THE PRODUCT, OR ON THE DOCUMENTS
EUROPEAN DIRECTIVE
DO NOT ALLOW
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE
WHICH MAY CAUSE AN EXPLOSION.
DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.
Safety instructions
LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY
CAUSE THE APPLIANCE TO OVERTURN, PUTING PEOPLE AT RISK.
DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE
THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM
AND BEFORE THE DRYING CYCLE.
KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED
IN THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE
TOP BASKET. TAKE CARE NOT TO CUT YOURSELF AND ENSURE THAT
THEY DO NOT PROJECT FROM THE BASKET.
AQUASTOP M ODELS
THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A
WATER LEAK. WHEN THE AQUASTOP DEVICE IS TRIPPED, CALL IN A
QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT.
IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A
SOLENOID VALVE INSIDE THE WATER INTAKE HOSE.
HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO
WATER.
DISCONNECT THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY
AND FROM THE WATER SUPPLY.
IN THE EVENT OF DAMAGE TO THE WATER INTAKE HOSE,
DO NOT CUT THE
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK
TEST OF THE APPLIANCE FOLLOWING THE INSTRUCTIONS BELOW. IF
THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT
FROM THE ELECTRICAL POWER SUPPLY AND CALL THE NEAREST
TECHNICAL SERVICE CENTRE.
APPLIANCE.
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE
REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL
EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED
EXCLUSIVELY BY A TRAINED AND AUTHORISED TECHNICIAN:
CARRIED OUT BY UNAUTHORISED PERSONS WILL INVALIDATE THE
WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.
The manufacturer declines all responsibility
DO NOT ATTEMPT TO REPAIR THE
REPAIRS
for damage to persons or property
resulting from failure to observe the above precautions, from tampering with
even a single component of the appliance, or from the use of non original
spare parts.
Installation instructions
2. Installation and hook-up
Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation. The back or sides
of the dishwasher may be placed up against walls or other furniture units. If
the dishwasher is installed near a heat source, fit the special insulating panel
to prevent overheating and malfunction of the appliance. To ensure stability,
install integrated or built-under dishwashers only under continuous worktops,
and screw them to the adjacent units. To facilitate the installation procedure,
the intake and drain hoses can be positioned in any direction; make sure that
the hoses are not kinked, crushed or pulled too tightly. Make sure to tighten
the locking ring-nut once the pipes have been placed in the direction
required. A hole at least 8 cm in diameter is required to allow the power supply
cable and pipes to pass.
Level the appliance on the floor using its adjustable feet. This operation is
essential for ensuring correct operation of the dishwasher.
Installing a hob on top of a free-standing dishwasher is
forbidden
forbidden
A dishwasher can be built-in underneath a conventional hob provided there is
no break
and secured correctly
For free-standing models only:
therefore accessible on one side, the door hinge area must be covered for
safety reasons (injury hazard).
The covering fixtures are available as an accessory from specialist dealers or
the After-Sales Service.
To build in the dishwasher, the
authorised dealers or the After-Sales Service.
Some models are equipped with only one adjustable foot at the rear, which
can be adjusted by turning the screw on the lower front part of the appliance.
. Building-in a dishwasher underneath a ceramic hob is
.
in the kitchen worktop, and the dishwasher and hob are
, so that
no hazards are generated
if the appliance is not built-in and is
special kit
must be purchased from
absolutely
absolutely
installed
.
2.1 Water supply connection
Preventing the risk of clogging or damage:
not been used for a long time, before connecting to the water supply check
that the water is clear and free of impurities, to prevent damage to the
appliance.
system with new hoses; old or used hoses must never be reused.
The dishwasher must always be connected to the water
if the water pipe is new or has
Installation instructions
CONNECTING TO THE WATER SUPPLY
Connect the intake hose to a cold water supply with ¾”
gas thread, inserting the filter A supplied with the
dishwasher.
place with your hands and then complete by
tightening about ¼ of a turn with pliers.
In dishwashers equipped with the ACQUASTOP
device, the filters is already fitted inside the threaded
ring.
Take care to screw the hose firmly into
The dishwasher can also be connected to a hot water supply
exceeding 60°C
washing time by approximately 20 minutes, but slightly reduces its
effectiveness. Make the connection to the domestic hot water supply using
the same procedure described for connecting to the cold water supply.
DRAIN CONNECTION
Insert the dishwasher’s drain hose
into a drain pipe having a diameter
of at least
place it inside the kitchen sink
using the plastic support provided,
taking care not to crush or
excessively bend the hose. It is
important to prevent the hose from
coming loose and falling. For this
purpose, the plastic support is
equipped with a hole for tying it to
the wall or water tap.
The free end should be positioned at a height of between
cm
, and should never be submerged in water. If a horizontal drain
extension hose is used (for a maximum of 3 m) the drain hose can be
placed at a maximum height of
. Supplying the appliance with hot water cuts down the
4 cm
, or alternatively,
30 and 100
85 cm
from the ground.
not
Installation instructions
2.2 Electrical connection and precautions
CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH
THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON
THE INNER EDGE OF THE DOOR.
THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET
OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN
FORCE.
THE PLUG MUST BE ACCESSIBLE AFTER INSTALLATION.
NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY
LEAD.
IN THE EVENT OF DAMAGE TO THE SUPPLY CORD
BY THE MANUFACTURER OR AN AUTHORIZED TECHNICAL SERVICE
CENTRE. AFTER CHANGING THE SUPPLY CORD, MAKE SURE THAT THE
BRACKET
WHICH SECURES THE CORD IS FIXED SECURELY IN PLACE.
, HAVE IT REPLACED
DO NOT USE ADAPTORS OR SHUNT CONNECTIONS
THE POSSIBILITY OF OVERHEATING OR BURNING.
IN ORDER TO AVOID
IF THE APPLIANCE IS PROVIDED WITH A PLUGLESS SUPPLY CORD:
IT IS NECESSARY TO INSTALL IN THE FIXED WIRING AN ALL-POLE
DISCONNECTION DEVICE HAVING A GAP BETWEEN CONTACTS OF AT
3.5MM
LEAST
TO BE EASY TO REACH.
THE CONNECTION TO THE MAINS MUST BE CARRIED OUT BY A
QUALIFIED TECHNICIAN
BELOW AND THE REGULATIONS IN FORCE.
. AFTER INSTALLATION THE DISCONNECTION DEVICE HAS
IN ACCORDANCE TO THE SCHEME SHOWN
L
= brown
N
= blue
= yellow-green
In the event of damage to the supply cord, have it replaced by the
manufacturer or an Authorized Technical Service Centre in order to
avoid any risk.
Installation instructions
WHEN CLEANING AND MAINTAINING THE APPLIANCE:
BEFORE CARRYING OUT ANY WORK, ALWAYS UNPLUG THE APPLIANCE
FROM THE ELECTRICAL SUPPLY OR SWITCH OFF THE ALL-POLE
DISCONNECTION DEVICE.
FOR GREAT BRITAIN ONLY:
THIS APPLIANCE MUST BE EARTHED.
Fuse replacement
If the mains lead of this appliance is fitted
with a
change a fuse in this type of plug use an
A.S.T.A.
and proceed as follows:
1.
2.
3.
BS 1363A 13amp
approved fuse to
Remove the fuse cover A and fuse B.
Fit replacement 13A fuse into fuse
cover.
Refit both into plug.
fused plug, to
BS 1362
type
After changing the fuse, take care to replace the cover on the plug
correctly. If the cover is missing, the plug must not be reused until a
suitable replacement cover has been fitted.
Correct replacement are identified by the colour insert or the colour
embossed in words on the base of the plug.
Replacement fuse covers are available from your local electrical store.
User instructions
3. Description of the controls
3.1 Front panel
All the dishwasher controls are grouped on the front panel.
1 WASHING PROGRAM
2 ON/OFF
3 ON/OFF
4
RECESSED DOOR HANDLE
KEY
INDICATOR LIGHT
SELECTOR
User instructions
SETTING THE WASHING PROGRAM
To select the most suitable washing program, refer to the table below
which indicates the recommended washing according to dish type and
the degree of soiling.
After using the table to identify the most appropriate washing program,
turn the
PROGRAM SELECTION
of the controls") to set the program of choice by aligning the pointer with
the program number.
TABLE OF PROGRAMS
SELECTOR
AND CYCLE
PRE-WASH
1
INTENSIVE
2
NORMAL
3
(*)
DAILY
4
DRYING/
PLATE
5
WARM
Only
run the soak program with half loads.
(*) Reference program as AS/NZS 2007 (NORMAL).
(–) Not present.
(1) The cycle duration and power consumption may vary according to the water and room
temperatures, and the type and amount of dishes.
TYPE OF
CUTLERY
AND DEGREE
OF DIRTNESS
Pots and
crockery,
before a wash
programme.
Heavily soiled
crockery,
pots, not for
delicate
crockery.
Normally
soiled
crockery pots.
Slightly soiled
crockery
washed
immediately
after use.
Cycle for
rising and
drying clean
or dusty
crockery.
PROGRAM
SEQUENCE
Cold prewash
Cold prewash cycle
Wash cycle at 65°C
2 cold water rinse cycles
Rinse cycle at 68°C
Drying cycle with hot hair
Cold prewash cycle
Wash cycle at 65°C
Cold rinse cycle
Rinse cycle at 68°C
Drying cycle with hot hair
Wash cycle at 65°C
Cold rinse cycle
Rinse cycle at 68°C
Drying cycle with hot hair
Cold rinse cycle
Rinse cycle at 68°C
Drying cycle with hot hair
(1)
knob
AMOUNT OF
DETERGENT
(see section "3. Description
DURATION
GRAMS
_
MINUTES
(1)
6' 3,5 0,01
WATER
LITRES
CONSUMPTION
25 90' 22 1,30
25 76' 16,7 1,10
25 75' 15 1,15
_
45' 9 0,70
POWER
KWh (1)
The washing cycle will not take place if the dishwasher door is left open
or not properly closed.
User instructions
TABLE FOR CERTIFICATION BODIES
Reference standard AS/NZS 2007
Reference program
Load 9 place-settings
Type of detergent in accordance with AS/NZS 2007
5g
Amount of detergent
Rinse aid setting 4/6
pour
(*) Selector on
of cleaner on to the appliance door
20g
and
into the dispenser
3
At the end of the cycle, you MUST open the door approximately
to improve the drying performance.
AS/NZS 2007 cycle test conditions:
The upper basket must be set in the low position.
50 mm
AS/NZS 2007
User instructions
3.2 Washing programs
Before starting a washing program make sure that:
• The water supply tap is open.
• The correct amount of detergent has been added to the
dispenser.
• The baskets have been correctly loaded.
• The spray arms are able to rotate freely and without
obstruction.
• The dishwasher door is securely closed.
CANCELLING THE CURRENT PROGRAM
To cancel the program in progress the dishwasher must be switched off
by pressing the
Turn the program selector to
On completion of the program, switch off the dishwasher by pressing the
ON/OFF
key
ON/OFF
(2)
.
key
(2)
.
SOAK
and wait for the dishwasher to start.
CHANGING THE PROGRAM
To change the program in progress the dishwasher must be switched off
by pressing the
Turn the program selector to the program required and then switch the
dishwasher on again by pressing
The dishwasher will carry out the new program automatically.
ON/OFF
key
(2)
.
ON/OFF
key
(2)
.
User instructions
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
• Always try to run the dishwasher fully loaded.
• Do not wash the dishes in running water.
• Use the washing program that is most appropriate for each type of
load.
• Do not carry out any preliminary rinsing.
• If available, connect the dishwasher to a hot water supply up to
60°C.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to
save on electricity, observe the following:
•
separate the more delicate items from dishes that are more
resistant to aggressive detergents and high temperatures;
•
do not pour the detergent directly on the dishes.
If it is necessary to open dishwasher door during the washing cycle,
there will be a 1-minute delay before the program can be resumed.
After correctly closing the door, the washing program will start again from
where it was interrupted. This operation may negatively affective the
progress of the washing cycle.
END OF CYCLE
At the end of the washing program the selector will be on one of the
STOP
markers, depending on the program carried out. Switch off the
dishwasher by pressing the
REMOVING THE DISHES
At the end of the washing program, wait at least
removing the dishes, to allow them to cool down. To prevent any water
droplets on the upper basket from falling on the dishes in the lower
basket, it is
upper basket.
advisable
ON/OFF
to unload the lower basket first, and then the
key
(2)
.
20 minutes
before
User instructions
4. Operating instructions
Once the dishwasher has been correctly installed, prepare for use as
follows:
•
Add the rinse aid and detergent.
4.1 Using the rinse aid and detergent dispensers
The detergent and rinse aid
dispensers are situated on the inner
part of the door: the
dispenser
rinse aid dispenser
With the exception of the SOAK program, before every washing cycle it
is necessary to add the required amount of detergent to the detergent
dispenser. The rinse aid, on the other hand, should only be added as
required.
is on the left, and the
detergent
is on the right.
ADDING THE RINSE AID
The rinse aid helps the dishes dry faster and
prevents the formation of scale deposits and
staining; it is automatically added to the water
during the final rinse cycle, from the container
situated on the inner side of the door.
To add rinse aid:
•
Open the door.
•
Rotate the container cap anticlockwise by ¼ of a turn and remove it.
•
Add the rinse aid until the container is full (approximately 140 cc).
The optical level indicator on the side of the cap should be
completely obscured. Refill the rinse aid when the optical level
indicator becomes clear again, or when the rinse aid warning light
illuminates.
•
Replace the cover and turn it in a clockwise direction.
•
Use a cloth to remove any spillage of rinse aid which might lead to
the formation of excess foam.
User instructions
ADJUSTING THE RINSE AID DISPENSER SETTING
The dishwasher is factory set for medium water hardness. However it
possible to change the setting by turning the dispenser’s selector to the
desired position: the amount of rinse aid dispensed is proportional to the
selector position.
The setting must be increased when the washed dishes appear dull or
have circular staining.
•
To adjust the rinse aid setting, rotate the dispenser cap through a
quarter turn in an anticlockwise direction and remove it.
•
Then use a screwdriver to rotate the rinse aid selector to the desired
position.
•
Replace the cap, turning it clockwise.
• The amount of rinse aid must be increased if the washed dishes
appear dull or feature circular stains.
• If, on the other hand, the dishes are sticky or have white streaks, it
is necessary to reduce the rinse aid setting.

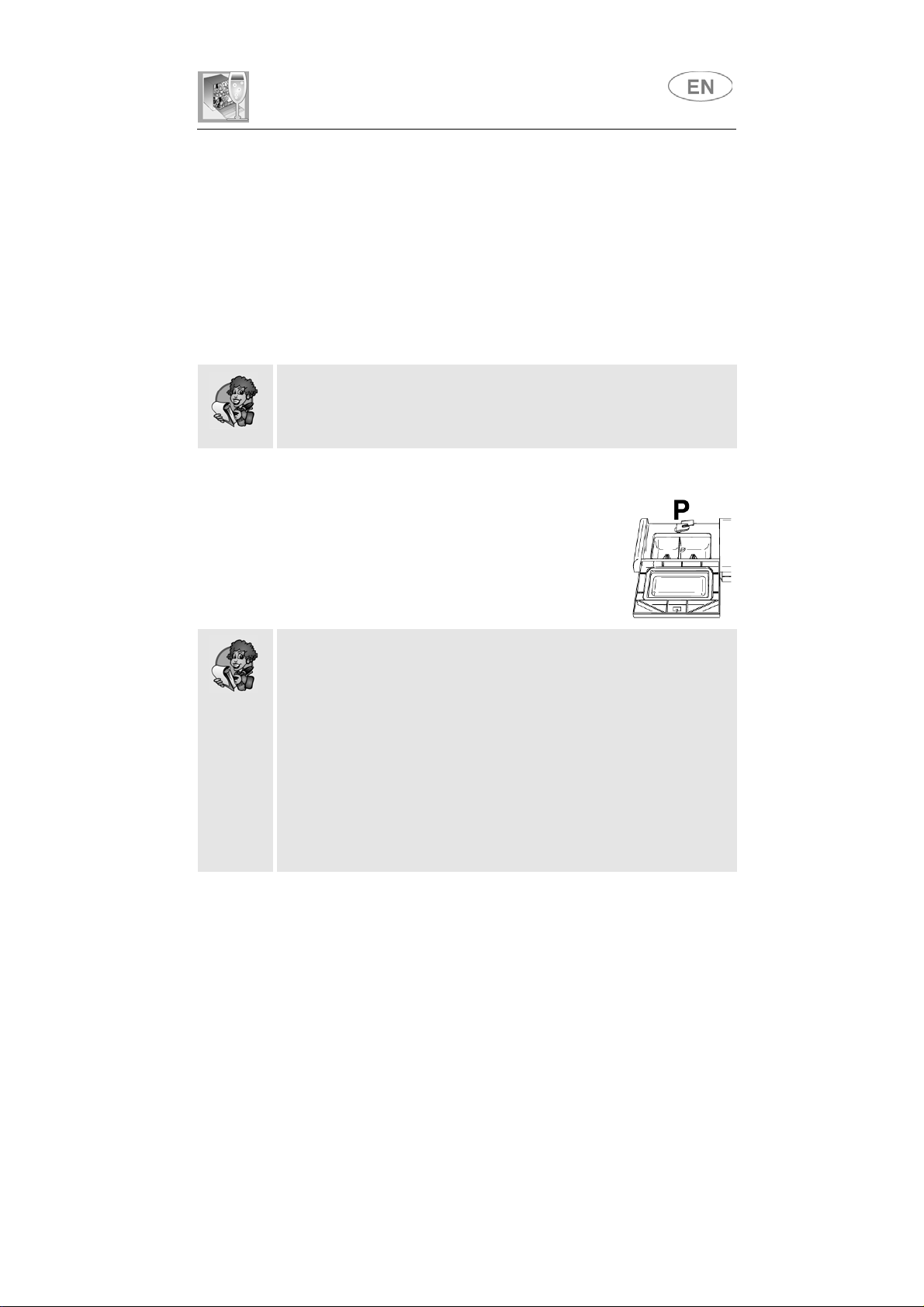

ADDING THE DETERGENT
To open the detergent dispenser cap, lightly press
the button P. Add the detergent and close the cap
carefully.
During the washing cycle, the dispenser will be
opened automatically.
• Use only detergents specially formulated for dishwashers. For
optimal washing results it is important to use a good quality
detergent.
• The detergent packs must be sealed and stored in a dry place to
prevent the formation of lumps which may negatively affect washing
results. Once opened the detergent packs should not be kept for too
long, otherwise the detergent loses its effectiveness.
• Do not use detergents formulated for washing dishes by hand,
because they produce a great deal of foam and may negatively
affect the operation of the dishwasher.
• Add the correct amount of detergent. An insufficient amount of
detergent will result in a partial removal of dirt from the dishes,
whereas an excessive amount is wasteful and does not improve the
washing results.
User instructions
• The market offers liquid and powder detergents with differing
chemical compositions, which may contain phosphates, or be
phosphate-free but contain natural enzymes.
- Detergents containing phosphates are more effective against
grease and starch at temperatures above 60°C.
- Enzyme detergents, on the other hand, are also effective at lower
temperatures (from 40 to 55°C) and are more easily
biodegradable. With enzyme detergents it is possible to obtain at
low temperatures comparable results to those which can only be
achieved at 65°C using traditional detergents.
For the safeguarding of the environment we recommend the use of
phosphate- and chlorine free detergents.
• Also available are tablet detergents which state that that no salt or
rinse aid is required. In some cases, these detergents might not give
good results, especially with short and/or low-temperature washing
cycles.
If performance problems (e.g. a white coating on the tank or dishes,
poor drying, dirt on dishes at the end of the wash) are noted, users
are advised to return to conventional products (granular salt, powder
detergent and liquid rinse aid).
However, please note that on return to the use of conventional salt,
a number of cycles will be required before the system becomes fully
efficient again, so traces of white coating may still be found on the
tank and dishes. If the problem persists for too long, contact the
After-Sales Service.
• When using detergent in tablet form (bear in mind that we
recommend the use of three separate products: detergent, salt and
rinse aid), place the tablets in the cutlery rack. The dispenser is
designed to use powder or liquid detergent and the door does not
open completely during the washing cycle. This means that a tablet
is not completely dissolved (released), which may lead to the
following:
- not enough detergent released during the cycle, with poor washing
results;
- the detergent forms a solid block in the distributor and is released
during the final rinse cycle.
The introduction of detergent into the rinse aid dispenser, even in
liquid form, will damage the dishwasher.
User instructions
4.2 General warnings and recommendations
Before using the dishwasher for the first time, it is advisable to read the
following recommendations concerning dish types to be washed and
their loading.
There are generally no constraints on the washing of domestic dishes,
but in certain cases it is necessary to take their characteristics into
account.
Before loading the dishes into the baskets it is necessary to:
• remove coarse food remains: e.g. bones, fish-bones, etc. which
may clog the filter or damage the wash pump.
• soak any pots or pans with burnt-on food remains on the bottom to
facilitate removal, then load them into the LOWER BASKET.
There is no need to pre-wash the dishes under running water before
loading them into the baskets since this only wastes water.
Correct loading of the dishes helps ensure optimal washing
results.
WARNING!
• Make sure that the dishes are securely in place so that they cannot
tip over or obstruct the rotation of the spray arms during the
washing cycle.
• Do not place very small objects in the baskets as these could fall
and obstruct the spray arms or the wash pump.
• Containers such as cups, bowls, glasses and pots should always
be loaded with the opening facing downwards and with any cavities
at an angle, to allow the water to drain out.
• Do not stack dishes or place them in such a way that they cover
one other.
• Do not place glasses too close together because they may knock
against each other and break, or there might be staining at the
point where they touch.
MAKE SURE that the items being washed are dishwasher-safe.
User instructions
Items which are not dishwasher-safe:
•
Wooden dishes, pots or pans: these may be damaged by the
high washing temperatures.
•
Handcrafted items: these are rarely suitable for washing in a
dishwasher. The relatively high water temperatures and the
detergents used may damage them.
•
Plastic dishes: heat resistant plastic dishes must be washed in the
upper basket.
•
Dishes and objects in copper, tin, zinc or brass: these tend to
stain.
•
Aluminium dishes: items made from anodised aluminium may
lose their colour.
•
Silverware: silver items may stain.
•
Glass and crystal: in general, glass and crystal objects can be
washed in the dishwasher. However, certain types of glass and
crystal may become dull and lose their clearness after many
washings. Therefore, for these items we recommend using the
least aggressive program available.
•
Decorated items: the decorated objects available on the market
are generally able to withstand washing in the dishwasher,
although the colours may fade after a great many washes. If in
doubt as to the fastness of the colours, it is advisable to wash just a
few items at a time for approximately one month.
User instructions
4.3 Using the baskets
The dishwasher has a capacity of
dishes.
LOWER BASKET
The lower basket receives the full force of the lower spray arm, and
should therefore be used for the “toughest” items with a heavier degree
of soiling.
All types and combinations of loads are
permitted, provided that the dishes, pots
and pans are arranged with all the soiled
surfaces exposed to the water jets coming
from the bottom.

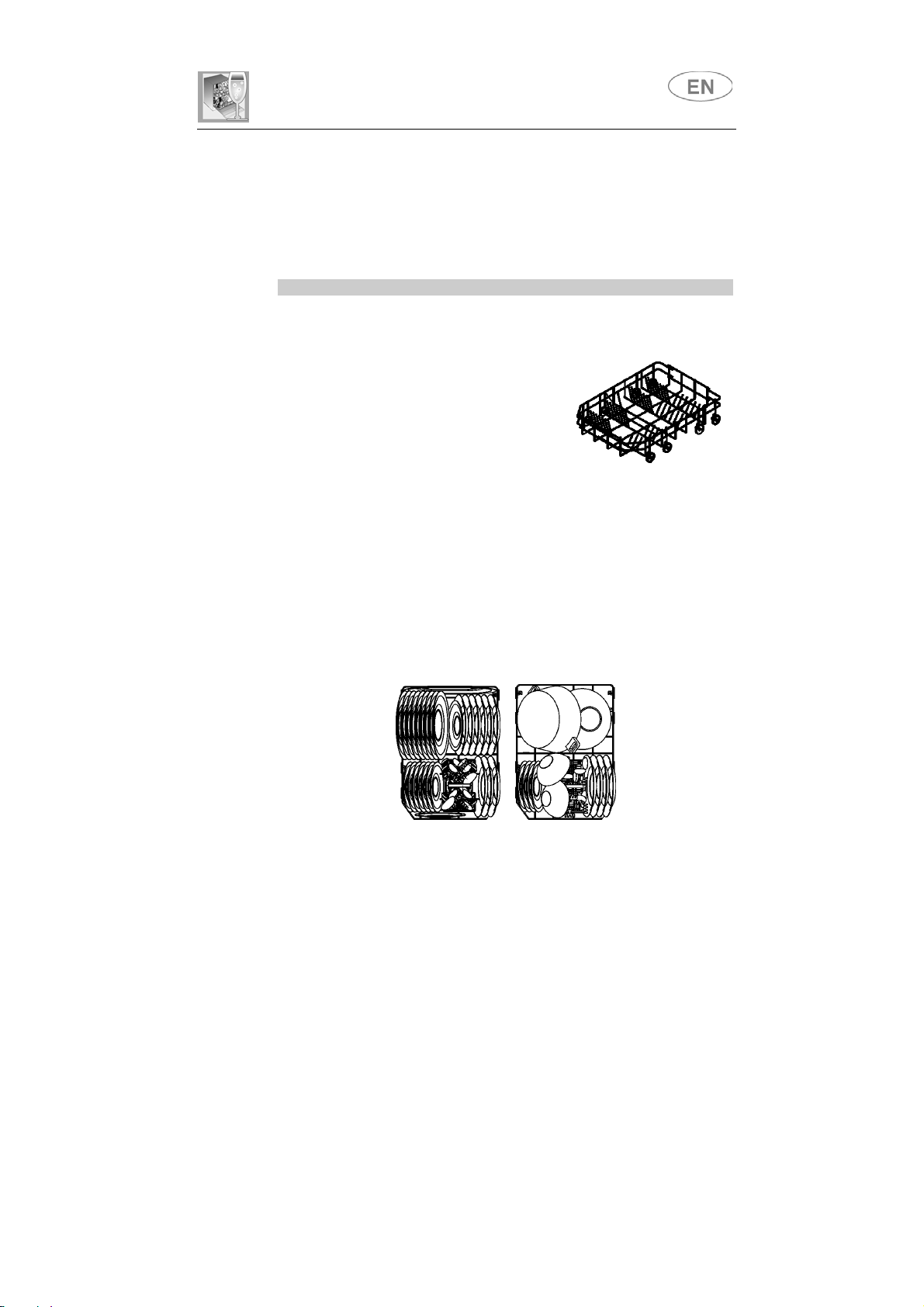

LOADING THE LOWER BASKET
Carefully load flat plates, soup plates, dessert and serving dishes,
positioning them vertically. Pots, pans and their covers must be loaded
upside down. When loading soup plates and dessert bowls, be sure to
leave a gap between them.
Loading examples:
9 place-settings
, including serving
User instructions

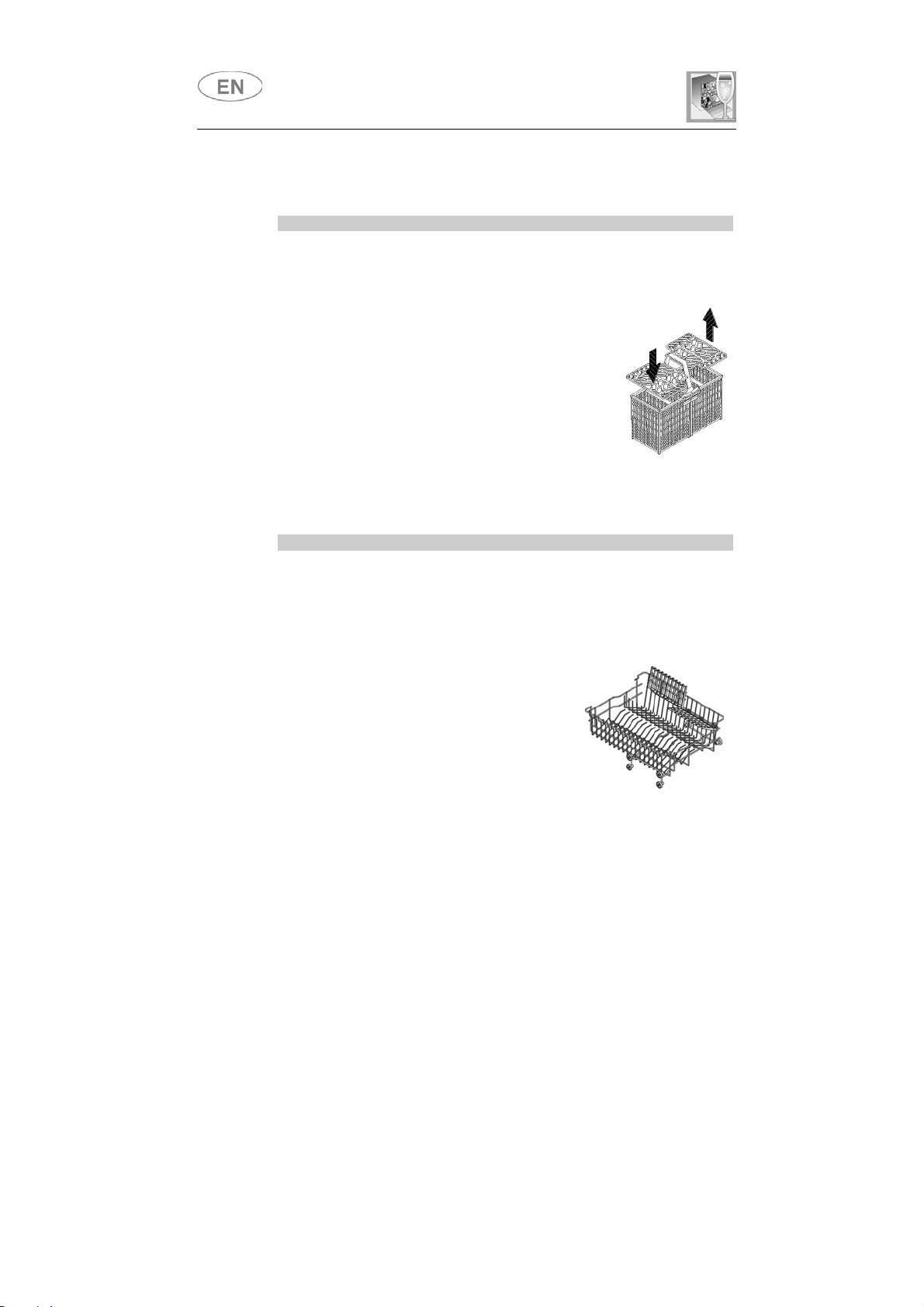

CUTLERY BASKET
The cutlery should be arranged in an orderly manner inside the basket,
with the handles pointing downwards. Take care during loading to avoid
injury from the knife blades.
The basket is suitable for all types of cutlery, except
those long enough to interfere with the upper spray
arm.
Ladles, wooden spoons and cooking knives can be
placed in the upper basket,
knife blades do not protrude from the basket.
UPPER BASKET
It is recommended to load the upper basket with small- or medium-sized
items such as glasses, small plates, tea or coffee cups, shallow bowls
and light objects made from heat resistant plastic. If the upper basket is
used in the lowermost position, it can also be loaded with serving dishes,
provided they are only slightly soiled.
making sure that the
To make full use of the space available, the
top basket has two plastic grids that can be
lifted to make room for tall glasses such as
stem glasses.
User instructions
LOADING THE UPPER BASKET
Load plates facing forward; cups, bowls etc. must always be facing
downwards. The left side of the basket can be loaded with cups and
glasses on two levels. On the right plates and saucers can be slotted
verticalli into the forks.
Loading examples:
ADJUSTING THE UPPER BASKET
The upper basket can be adjusted in
user’s needs and according to the height of the dishes in the lower
basket.
two positions
, according to the
Proceed as follows:
•
turn the retainer E on both runners, right and left, through
•
remove the basket;
•
lift the basket and fit the smaller pairs of wheels in the runners;
•
return the retainers E to their original position.
90°
;
User instructions
5. Cleaning and maintenance
Before carrying out any work, always disconnect the appliance
from the electrical power supply.
5.1 General warnings and recommendations
Avoid the use of acidic or abrasive detergents.
Clean the outer surfaces and door-lining of the dishwasher regularly
using a soft cloth moistened with water or with a normal detergent
suitable for painted surfaces. Clean the door gaskets with a damp
sponge. Periodically (once or twice a year) it is advisable to clean the
tank and gaskets, using a soft cloth and water to remove any deposits.
CLEANING THE WATER INTAKE FILTER
The water intake filter Alocated at the outlet of the water supply tap
needs to be cleaned periodically.
After having closed the water supply tap, unscrew the end of the water
intake hose, remove the filter Aand clean it delicately under running
water. Reassemble filter Ain its seat and carefully screw the water
intake hose back into position.
CLEANING THE SPRAY ARMS
The spray arms can be easily removed for periodic cleaning of the
nozzles, to prevent possible clogging. Wash them under running water
and carefully replace them in their seats,
movement is in no way impeded
•
To remove the
•
To remove the
longer arm and pull the orbital unit upward. Wash the arms under a
jet of running water and return them carefully to their seat.
reassembly, check that the spray arms turn freely.
check that they have been installed correctly.
upper
spray arm, unscrew locking ring R.
orbital lower
.
spray arm assembly, take hold of the
checking that their rotary
After
Otherwise,
14$+6#.
User instructions
CLEANING THE FILTER UNIT
•
The filter H should be periodically removed and inspected, and if
necessary, cleaned. To remove the filter, take hold of the handle
and turn clockwise, then lift upwards.
•
Then separate parts L and M, and separate the two parts of the
plastic filter by pressing gently in the points shown, lifting it upwards
to extract it.
•
Remove the centre filter by lifting it upwards.
GENERAL WARNINGS AND RECOMMENDATIONS FOR CORRECT
MAINTENANCE:
• The filters should be cleaned under running water using a stiff
brush.
• It is essential to thoroughly clean the filters according to the
above instructions: the dishwasher cannot function if the filters are
clogged.
•
Carefully replace the filters in their seats, to avoid damaging the
wash pump.
PROLONGED DISUSE:
• Run the soak program twice in succession.
•
Unplug the power cord from the socket.
•
Leave the door slightly open, in order to prevent the formation of
unpleasant odours inside the washing tank.
•
Fill the rinse aid dispenser.
•
Shut off the water supply tap.
User instructions
BEFORE STARTING THE DISHWASHER AFTER PROLONGED
DISUSE:
• Check that there are no deposits of sludge or rust inside the water
pipe: if there are, allow the water to run from the water supply tap for
a few minutes.
•
Plug the power cord back into the socket.
•
Reconnect the water intake hose and open the tap again.
TROUBLESHOOTING MINOR PROBLEMS
In some cases it is possible to remedy minor problems by referring to the
following instructions:
If the program fails to start, check that:
• the dishwasher is connected to the electrical power supply;
• there is no power failure;
• the water tap is open;
• the dishwasher door is properly closed.
If water remains inside the dishwasher, check that:
• the drain hose is not kinked;
• the drain siphon is not obstructed;
• the dishwasher filters are not clogged.
If the dishes are not being cleaned properly, check that:
• the correct amount of detergent has been added;
• the dishes are being loaded correctly;
• the selected program is suitable for the dish types and their degree
of soiling;
• all the filters are clean and positioned correctly;
• the spray arm nozzles are not obstructed;
• there is no object obstructing the rotation of the spray arms.
User instructions
If the dishes fail to dry or remain dull, check that:
• there is rinse aid inside the special container;
• the rinse aid dispenser setting is correct;
• the detergent used is of good quality and has not lost its
effectiveness (for example, through incorrect storage, with the box
left open).
If the dishes show signs of streaking, staining, etc., check that:
• the rinse aid dispenser setting is not too high.
If there are visible traces of rust inside the tank:
• the tank is made of steel, and therefore any rust marks are due to
external elements (fragments of rust from the water pipes, pots,
cutlery, etc.). Special products are commercially available to remove
such marks;
• check that the amount of detergent being used is correct. Certain
detergents can be more corrosive than others.
If after following the above troubleshooting instructions the problem
persists, call the nearest After-Sales Centre.
WARNING: any operations performed on the appliance by
unauthorised persons are not covered by the warranty and shall be
paid for by the user.
TECHNICAL DATA
Width
Depth measured flush with the
outer edge of the control panel
Height
Capacity
Water supply pressure
Electrical characteristics
447÷ 449 mm
Free standing: 600 mm
Semi-integrated: 570 mm
Free standing from 850 mm to 870 mm
Semi-integrated from 820 mm to 870 mm
9 Standard place settings
min. 0,05 - max. 0,9 MPa (min. 0.5 – max. 9 bar)
See rating plate
115
125
Misurarel’altezzadelpannellocomandi;farecoinciderel’indicerelativoatalevaloreconilprofilosuperioredellaportainlegno;tracciareilposizionamentodegliagganciporta.
Measuretheheightofthecontrolpanel;bringthemarkrelatingtothisvalueintolinewiththetopedgeofthewoodendoor;markthepositionsofthedoorconnections.
Measurerlahauteurdupanneaudecommandes;fairecoïnciderl’indexrelatifàcettevaleuravecleprofilsupérieur delaporteenbois;tracerlepositionnementdescrochetsdelaporte.
DieHöhedesBedienfeldsmessen;DiediesemWertentsprechendeMarkierungmitdemoberenProfilderHolztürzurDeckungbringen;DiePositionderTüraufhängungenanzeichen.
Meetdehoogtevanhetbedieningspaneel;laatdemarkeringdiebijdiewaardehoortovereenstemmenmethetbovensteprofielvandehoutendeur;tekendepositievandedeurhengselsaf.
Medirlaalturadelpaneldemandos;hacercoincidirelíndicecorrespondienteadichovalorconelperfilsuperiorde lapuertademadera;trazarelposicionamientodelasbisagrasdelapuerta.
Meçaaalturadopaineldecomandos;façacomqueoindicadorrelativoaestevalorcoincida comoperfilsuperiordaportademadeira;marqueaposiçãodosganchosparaporta.
115
125
135
145
155
SW32
3/4”
1/2”
3/4”
MIN
40cm
135
145
155
Cuø10
ATTENZIONE:Quota:secondoimodelli820÷870oppure820÷890.Dependingonthemodel,distancemaybe820÷870or820÷890.Cote:selonlesmodèles820÷870ou820÷890.Maß:gemäßdenModellen820÷870oder820÷890.
LETOP:"H"ATENCIÓN:"H"ATENÇÃO:"H"
Hoogte:voordemodellen820÷870of820÷890.Cota:segúnlosmodelos820÷870obien820÷890.Cota:dependendodosmodelos820-870ou820-890.
1 2 3 4 5
"H"CAUTION:"H"ATTENTION:“H”ACHTUNG:"H"
6
7 8 9 10 11
12
1
8
11
12
13
Loading...
