Smeg SA9066XSFFD Specifications Sheet

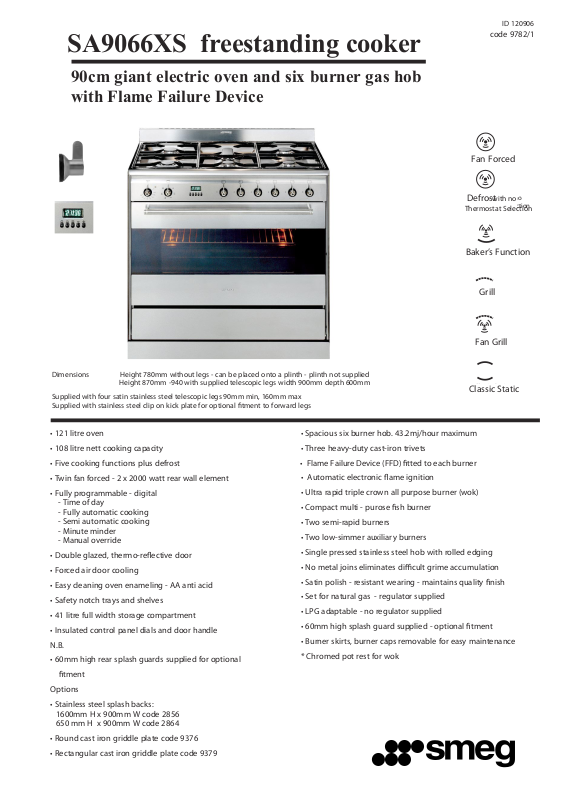

SA9066XS freestanding cooker

• 121 litre oven

• 108 litre nett cooking capacity

• Five cooking functions plus defrost

• Twin fan forced - 2 x 2000 watt rear wall element

• Fully programmable - digital

- Time of day

- Fully automatic cooking

- Semi automatic cooking

- Minute minder

- Manual override

• Double glazed, thermo-reflective door

• Forced air door cooling

• Easy cleaning oven enameling - AA anti acid

• Safety notch trays and shelves

• 41 litre full width storage compartment

• Insulated control panel dials and door handle

N.B.

• 60mm high rear splash guards supplied for optional

fitment

Options

• Stainless steel splash backs:
1600mm H x 900mm W code 2856
650 mm H x 900mm W code 2864

• Round cast iron griddle plate code 9376

• Rectangular cast iron griddle plate code 9379

• Spacious six burner hob. 43.2mj/hour maximum

• Three heavy-duty cast-iron trivets

• Automatic electronic flame ignition

• Ultra rapid triple crown all purpose burner (wok)

• Compact multi - purose fish burner

• Two semi-rapid burners

• Two low-simmer auxiliary burners

• Single pressed stainless steel hob with rolled edging

• No metal joins eliminates difficult grime accumulation

• Satin polish - resistant wearing - maintains quality finish

• Set for natural gas - regulator supplied

• LPG adaptable - no regulator supplied

• 60mm high splash guard supplied - optional fitment

• Burner skirts, burner caps removable for easy maintenance

* Chromed pot rest for wok

90cm giant electric oven and six burner gas hob
with Flame Failure Device

code 9782/1

ID 120906

Dimensions Height 780mm without legs - can be placed onto a plinth - plinth not supplied

Height 870mm -940 with supplied telescopic legs width 900mm depth 600mm

Supplied with four satin stainless steel telescopic legs 90mm min, 160mm max
Supplied with stainless steel clip on kick plate for optional fitment to forward legs

p

Fan Forced

Defrost- with no

Thermostat Selection

Baker’s Function

Grill

Fan Grill

Classic Static

Fan Forced

Defrost - with no
Thermostat Selection

Baker's Function

Grill

Fan Grill

• Flame Failure Device (FFD) fitted to each burner

Classic Static

SA9066XS freestanding cooker

90cm giant electric oven and five burner gas hob
with Flame Failure Device

380

750

50

10

30

100

780

870 - 940

60
HARD WIRED ELECTRICAL
CONNECTION REAR LEFT

GAS

INLET PIPE

REAR RIGHT

Storage Compartment

898

90

6060

160
max

The four height adjustable
telescopic legs can be removed
and alternatively the SA9065X
can be positioned onto a plinth
(not supplied)

595

380

535

30

90

750

870 - 940

10

50

60

160

ELECTRICAL
CONNECTION

GAS
INPUT

SUPPLIED

SPLASH

GUARD

FOR

OPTIONAL

FITMENT

ANCHORING

SAFETY

CHAINS (2)

Storage Compartment

Removable
Telescopic

Legs

150

Stainless steel kickplate

supplied for optional fitment

to forward legs

113mmH x 898mmW x 12mmD

g

Warning: technical specifications and product sizes can be varied by the manufacturer - without notice.

Cut outs for appliances should only be by physical product measurements. The above information is indicative only.

SIDE ELEVATION

Height 870 - 940mm with telescopic legs

780mm excluding legs

Width 898mm

Depth 595mm

Splash guard height 60mm optional fitment, supplied

Gross weight 80kg

Net weight 74kg

Oven Internal dimensions 350mmH x 770mm W x 450mm D

= 121.3 litre

Nett cooking capacity 340mm H x 750mm W x 420mm D

= 107.8 litre

Storage compartment 760mmW x 450mmD x 120H

= 41 litre

Electricity supply 240 Volt 50Hz

Electrical connection Hard wired single phase

Maximum current 17.1 amp

All gas hob 43.2mj /hour max over 6 burners

Supplied • Three heavy duty cast iron trivets for

full gas hob cover

• 60mmH x 898W splash guard for rear of hob, optional fitment

• Baking/grill tray

• Two chromed wire shelves

• One teflon biscuit tray

• 4 x telescopic legs 90 - 160mm

• Full width stainless steel clip on kick plate for
optional fitment to forward legs

• Chromed pot rest for wok

Options • Stainless steel splash backs

1600mm H x 900mm W code 2856
650 mm H x 900mm W code 2864

• Round cast iron griddle plate code 9376

• Rectangular cast griddle plate code 9379

Gas Connection •

1

/2“ BSP gas inlet connection

•1/2“ BSP 1.0 Kpa natural gas, regulator supplied

• Adapt for L.P.G. no regulator required

N.B. the supplied four telescopic legs are for optional fitment. The cooker
can be placed

directly onto a manufactured kitchen cabinet plinth.

N.B. Drawings are not to scale, they are to assist only.

code 9782/1

PLAN

FRONT ELEVATION

ID 120906

ULTRA RAPID TRIPLE

CROWN (WOK)

900

FISH BURNER

6.6mj/hr

AUXILIARY 4.8mj/hr

SEMI

RAPID

6mj/hr

595

AUXILIARY

4.8mj/hr

50

ELEMENT

Wattage

Static Grill

Fan Grill

Classic Static

Fan Force

Baker's Function

ROOF

Inner Outer

1600 1250 2100

VENTS

SEMI

RAPID

6mj/hr

15mj/hr

REAR
WALL

REAR
WALL

FAN

(2)

25 x 2

COOLING

FAN

24

FLOOR

2000 x 2

LIGHT

(2)

15 x 2

max.

Wattage

2904

2954

3404

4104

2180

current

Amp.

12.1

12.31

14.2

17.1

9.1
