Page 1

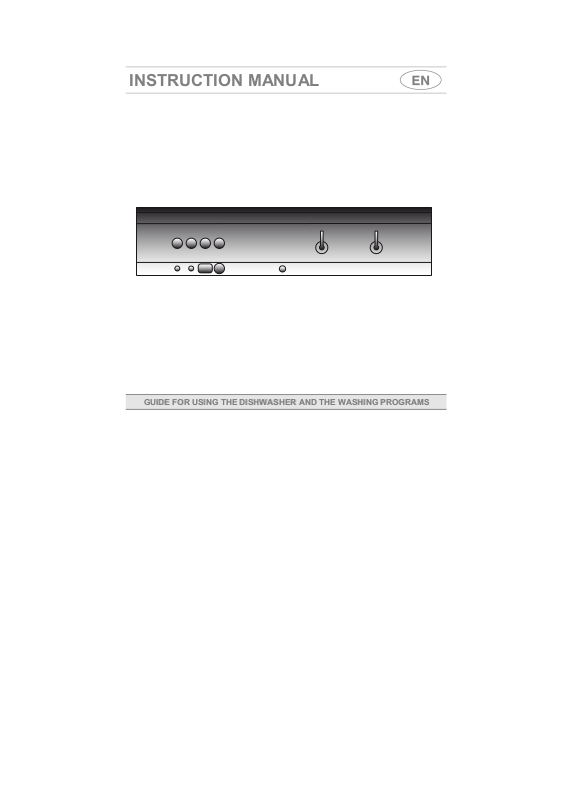

INSTRUCTION MANUAL

GGUUIIDDEEFFOORRUUSSIINNGGTTHHEEDDIISSHHWWAASSHHEERRAANNDDTTHHEEWWAASSHHIINNGGPPRROOGGRRAAMMS

Page 2

Page 3

Contents

1. Safety and operating instructions AAAAAAAAAAAAAAAAAAAAAAAAAAA 

2. Installation and hook-up AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

3. Description of the controlsAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

4. Operating instructionsAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

5. Cleaning and maintenanceAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA28

6. TroubleshootingAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA32

Thank you for choosing this product. We advise you to carefully read all the instructions contained in this manual, in order to understand how to operate your dishwasher safely and correctly. The manual is divided into paragraphs, which provide a step by step description of the dishwasher functions, with clear instructions accompanied by detailed illustrations. Recommendations are given for the correct use of the baskets, spray arms, containers, filters, washing programs, and for operating the controls. Follow the recommended cleaning procedures to ensure that your dishwasher always remains in perfect working order. This manual provides a quick and easy reference for answering all your questions concerning the use of your new dishwasher.

INSTALLATION INSTRUCTIONS: these are intended for the qualified technician who must carry out the installation, hook-up and testing of the appliance.

USER INSTRUCTIONS: these consist of recommendations for using the appliance, a description of its controls and of the correct cleaning and maintenance procedures.



Page 4

Safety instructions

1. Safety and operating instructions

THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC USE, AND COMPLIES WITH THE EEC DIRECTIVES 73/23, 89/336 (INCLUDING 92/31 AND 93/68) CURRENTLY IN FORCE, INCLUDING THE PREVENTION AND ELIMINATION OF RADIO FREQUENCY INTERFERENCE. THE APPLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE: WASHING AND DRYING OF DISHES; ANY OTHER USE SHALL BE CONSIDERED IMPROPER. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR

USES OTHER THAN THOSE DESCRIBED ABOVE.

THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER AND MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE DOOR.

NEVER BE REMOVED.

DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED WITHIN THE HOME. SEPARATE THE VARIOUS MATERIALS WHICH MAKE UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE COLLECTION CENTRE.

THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST

THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.

IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR, ENSURE THAT THE OPENINGS ON ITS UNDERSIDE ARE NOT OBSTRUCTED.

ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID WASTING ELECTRICITY.

OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET, AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR CHILDREN (LOCKS, DOORS, ETC.).



Page 5

Safety instructions

THIS APPLIANCE IS MARKED ACCORDING TO THE

2002/96/EC

WEEE

( YOU WILL HELP PREVENT POTENTIAL NEGATIVE CONSEQUENCES FOR THE ENVIRONMENT AND HUMAN HEALTH, WHICH COULD OTHERWISE BE CAUSED BY INAPPROPRIATE WASTE HANDLING OF THIS PRODUCT.

THE SYMBOL ACCOMPANYING THE PRODUCT, INDICATES THAT THIS APPLIANCE MAY NOT BE TREATED AS HOUSEHOLD WASTE. INSTEAD IT SHALL BE HANDED OVER TO THE APPLICABLE COLLECTION POINT FOR THE RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT. DISPOSAL MUST BE CARRIED OUT IN ACCORDANCE WITH LOCAL ENVIRONMENTAL REGULATIONS FOR WASTE DISPOSAL. FOR MORE DETAILED INFORMATION ABOUT TREATMENT, RECOVERY AND RECYCLING OF THIS PRODUCT, PLEASE CONTACT YOUR LOCAL CITY OFFICE, YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP WHERE YOU PURCHASED THE PRODUCT.

IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP.

DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER. THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A QUALIFIED TECHNICIAN.

THIS DISHWASHER MUST BE USED BY ADULTS. USE BY PERSONS WITH REDUCED MENTAL AND/OR PHYSICAL CAPABILITIES IS ONLY PERMITTED UNDER THE SUPERVISION OF A PERSON RESPONSIBLE FOR THEIR SAFETY. KEEP CHILDREN AWAY FROM DETERGENTS AND PACKAGING MATERIALS (PLASTIC BAGS, POLYSTYRENE, ETC.), AND NEVER ALLOW THEM TO APPROACH OR PLAY WITH THE DISHWASHER, SINCE IT MIGHT CONTAIN DETERGENT RESIDUES CAPABLE OF CAUSING PERMANENT DAMAGE TO THE EYES, MOUTH AND THROAT, AND EVEN LEADING TO SUFFOCATION.

ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT

). BY ENSURING THIS PRODUCT IS DISPOSED OF CORRECTLY,

ON THE PRODUCT, OR ON THE DOCUMENTS

EUROPEAN DIRECTIVE

DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE WHICH MAY CAUSE AN EXPLOSION.

DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.

LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY CAUSE THE APPLIANCE TO OVERTURN, PUTING PEOPLE AT RISK. NEVER LEAVE THE DISHWASHER DOOR OPEN; PEOPLE MIGHT TRIP OVER IT.



Page 6

Safety instructions

DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE.

KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED IN THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE TOP BASKET. TAKE CARE NOT TO CUT YOURSELF AND ENSURE THAT THEY DO NOT PROJECT FROM THE BASKET.

AQUASTOP M ODELS

THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A WATER LEAK. WHEN THE AQUASTOP DEVICE IS TRIPPED, CALL IN A QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT. IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A SOLENOID VALVE INSIDE THE WATER INTAKE HOSE.

HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO WATER.

DISCONNECT THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY AND FROM THE WATER SUPPLY.

IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK TEST OF THE APPLIANCE FOLLOWING THE INSTRUCTIONS BELOW. IF THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT FROM THE ELECTRICAL POWER SUPPLY AND CALL THE NEAREST TECHNICAL SERVICE CENTRE.

APPLIANCE.

IN THE EVENT OF DAMAGE TO THE WATER INTAKE HOSE,

DO NOT ATTEMPT TO REPAIR THE

DO NOT CUT THE

THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED EXCLUSIVELY BY A TRAINED AND AUTHORISED TECHNICIAN:

CARRIED OUT BY UNAUTHORISED PERSONS WILL INVALIDATE THE WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.

The manufacturer declines all responsibility

for damage to persons or property

REPAIRS

resulting from failure to observe the above precautions, from tampering with even a single component of the appliance, or from the use of non original spare parts.



Page 7

Installation instructions

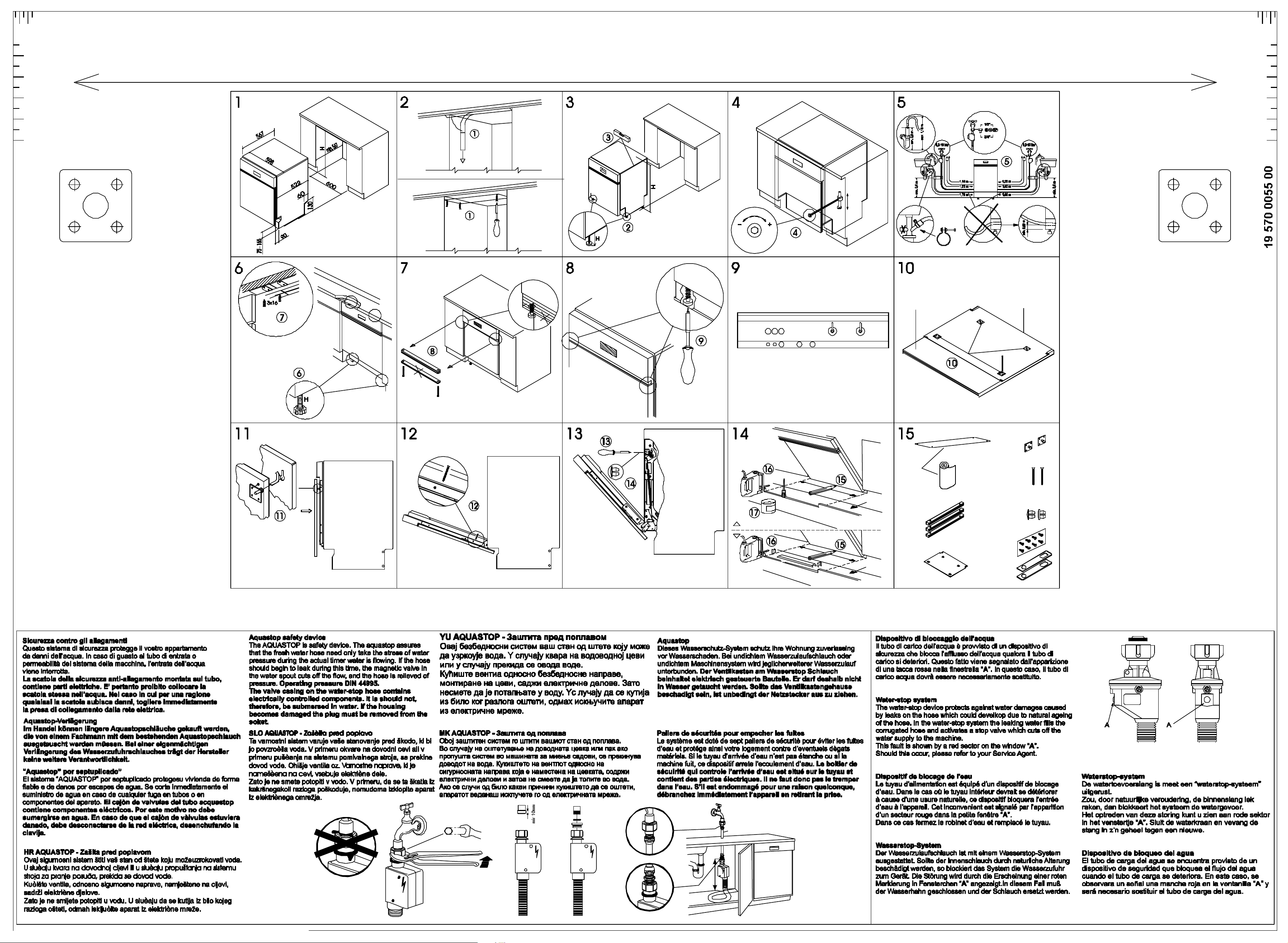

2. Installation and hook-up

Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance. To ensure stability, install integrated or built-under dishwashers only under continuous worktops, and screw them to the adjacent units. To facilitate the installation procedure, the intake and drain hoses can be positioned in any direction; make sure that the hoses are not kinked, crushed or pulled too tightly. Make sure to tighten the locking ring-nut once the pipes have been placed in the direction required. A hole at least 8 cm in diameter is required to allow the power supply cable and pipes to pass.

Level the appliance on the floor using its adjustable feet. This operation is essential for ensuring correct operation of the dishwasher.

Building-in a dishwasher underneath a ceramic hob is absolutely forbidden.

A dishwasher can be built-in underneath a conventional hob provided there is no break in the kitchen worktop, and the dishwasher and hob are installed and secured correctly, so that no hazards are

generated.

For free-standing models only

- Installing a hob on top of a free-standing dishwasher is absolutely forbidden.

- If the appliance is not built-in and is therefore accessible on one side, the door hinge area must be covered for safety reasons (injury hazard). The covering fixtures are available as an accessory from specialist dealers or the After-Sales Service.

- To build in the dishwasher, the special kit must be purchased from authorised dealers or the After-Sales Service.



Page 8

Installation instructions

2.1 Water supply connection

Preventing the risk of clogging or damage: if the water pipe is new or

has not been used for a long time, before connecting to the water supply check that the water is clear and free of impurities, to prevent damage to the appliance. The dishwasher must always be connected to the water

system with new hoses; old or used hoses must never be reused.

CONNECTING TO THE WATER SUPPLY

Connect the intake hose to a cold water supply with ¾” gas thread, inserting the filter A supplied with the dishwasher.

place with your hands and then complete by tightening about ¼ of a turn with pliers.

In dishwashers equipped with the ACQUASTOP device, the filters is already fitted inside the threaded ring.

Take care to screw the hose firmly into

The dishwasher can also be connected to a hot water supply

exceeding 60°C

washing time by approximately 20 minutes, but slightly reduces its effectiveness. Make the connection to the domestic hot water supply using the same procedure described for connecting to the cold water supply.

DRAIN CONNECTION

Insert the dishwasher’s drain hose into a drain pipe having a diameter of at least place it inside the kitchen sink using the plastic support provided, taking care not to crush or excessively bend the hose. It is important to prevent the hose from coming loose and falling. For this purpose, the plastic support is equipped with a hole for tying it to the wall or water tap.

The free end should be positioned at a height of between

, and should never be submerged in water. If a horizontal drain extension hose is used (for a maximum of 3 m) the drain hose can be placed at a maximum height of



. Supplying the appliance with hot water cuts down the

4 cm

, or alternatively,

30 and 100

85 cm

from the ground.

not

Page 9

Installation instructions

2.2 Electrical connection and precautions

CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON THE INNER EDGE OF THE DOOR.

THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN FORCE.

THE PLUG MUST BE ACCESSIBLE AFTER INSTALLATION.

NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY LEAD.

IN THE EVENT OF DAMAGE TO THE SUPPLY CORD

BY THE MANUFACTURER OR AN AUTHORIZED TECHNICAL SERVICE CENTRE.

, HAVE IT REPLACED

DO NOT USE ADAPTORS OR SHUNT CONNECTIONS

THE POSSIBILITY OF OVERHEATING OR BURNING.

IN ORDER TO AVOID

In the event of damage to the supply cord, have it replaced by the manufacturer or an Authorized Technical Service Centre in order to avoid any risk.



Page 10

User instructions

3. Description of the controls

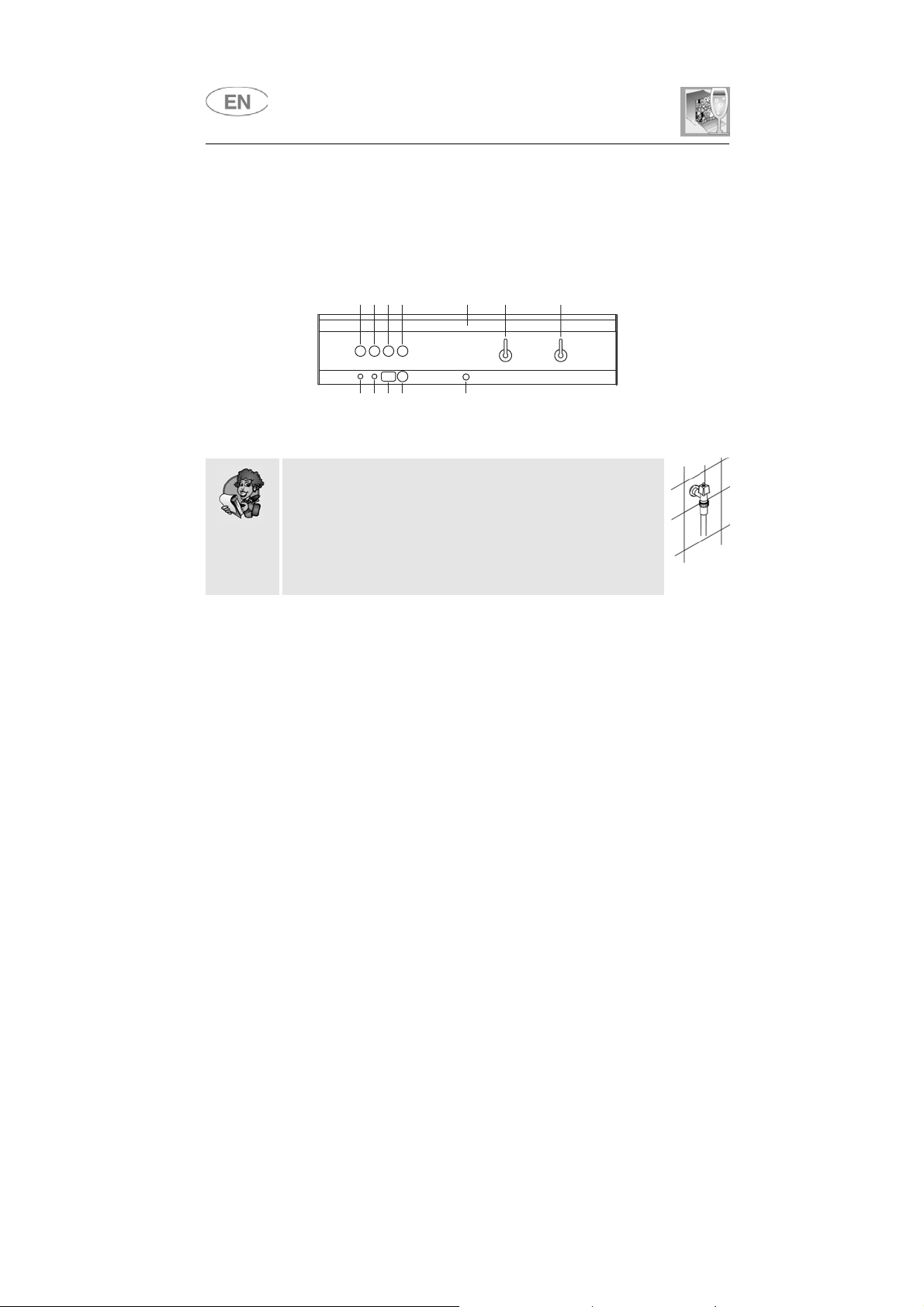

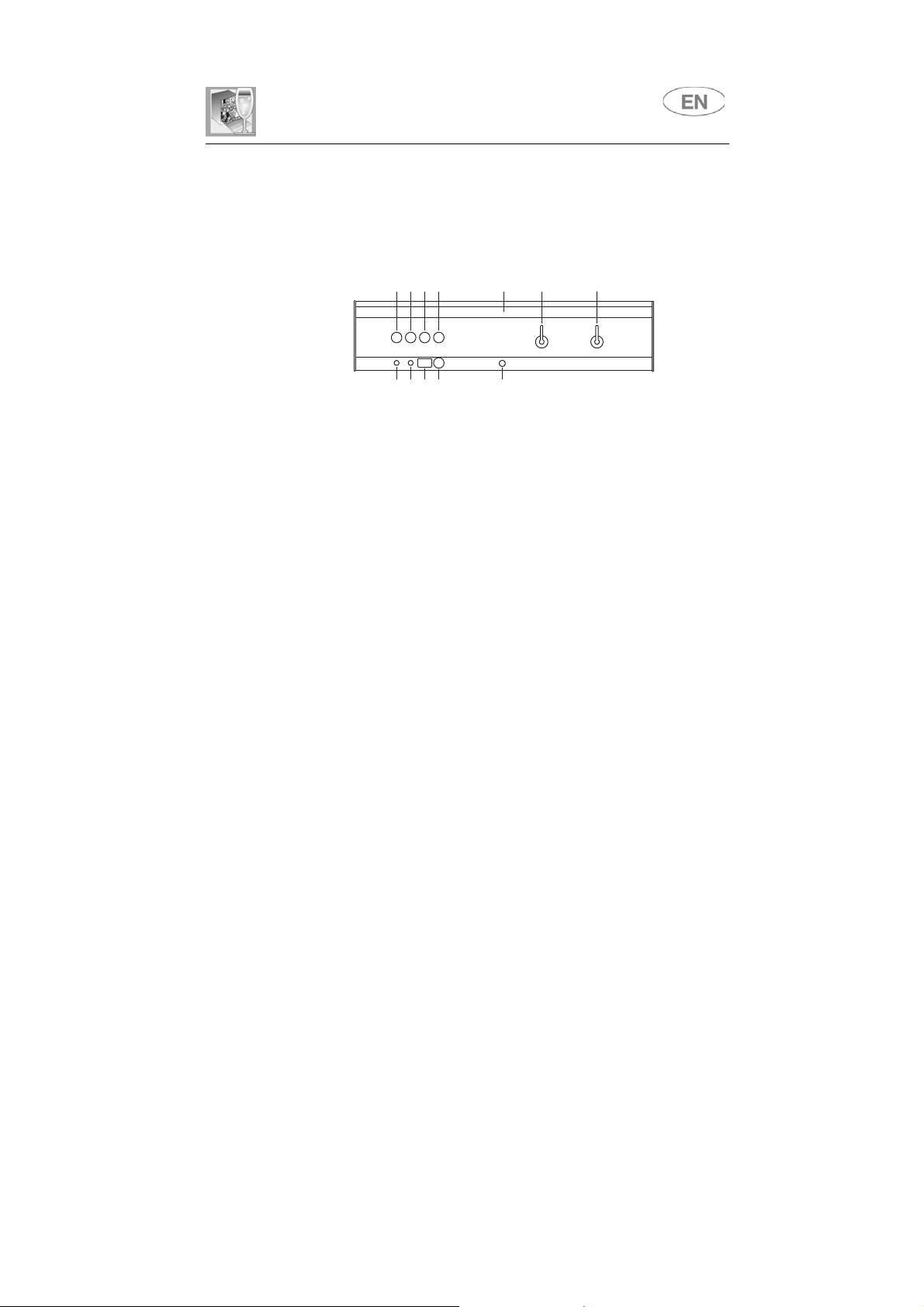

3.1 Front panel

All the dishwasher's controls and indicators are located on the front panel. Programming and option selection are only possible with the door closed.

78910 11

1 WASHING PROGRAM SELECTOR

2 ON/OFF SELECTOR

3 START/PAUSE BUTTON

4 PROGRAM DELAY BUTTON

5 ½ LOAD WASH BUTTON

6 "2/1" OPTION BUTTON

7 START/PAUSE LIGHT

8 INFORMATION DISPLAY

9 ½ LOAD WASH LIGHT

10 "2/1" OPTION LIGHT

RINSE AID WARNING LIGHT

RECESSED DOOR HANDLE

3.2 Information display

123456

The dishwasher is equipped with a practical DISPLAY which provides information on the programmed dishwasher functions.

SWITCHING ON

To switch on the dishwasher turn the ON/OFF switch (2) in the direction shown by the arrow.

Page 11

PROGRAM

User instructions

SETTING THE WASHING PROGRAM

To select the most suitable washing program, refer to the table below which indicates the recommended washing according to dish type and the degree of soiling. Once the most suitable washing program has been selected using the table provided, turn the WASHING PROGRAM SELECTOR (1) to set the program required, placing it against the identification symbol or nummer.

QUANTITY

INFORMATION

DISPLAY

PROGRAM SELECTOR

DISHES TYPE

AND DEGREE OF SOILING

DETERGENT

GRAMS

SOAK

DISH WARMER

QUICK

NORMAL ECO

(*)

ECO

BIO

AUTO 40-50

AUTO 60-70

STRONG and FAST

SUPER

P10

DISHES, POTS AND PANS

AWAITING COMPLETION OF THE LOAD

DISHES REQUIRING RINSING AND

WARMING BEFORE TAKING TO TABLE

SLIGHTLY SOILED DELICATE DISHES

PANS AND DISHES NOT VERY DIRTY

BUT WITH DRY RESIDUALS

NORMALLY SOILED DISHES,

POTS AND PANS WITH DRIED-ON RESIDUE

SLIGHTLY SOILED DISHES,

POTS AND PANS WITH DRIED-ON RESIDUE

DISHES WASHED IMMEDIATELY AFTER USE

NORMALLY SOILED DISHES,

INCLUDING DRIED-ON RESIDUE

DISHES WITH NORMAL DIRT

WHICH HAS NOT DRIED

HEAVILY SOILED DISHES,

POTS AND PANS WITH DRIED-ON RESIDUE

10+20

(**)

10 - 25

Only run the soak program with half loads. The HALF LOAD option (5) - "2/1" (6) is available for all programs except the soak program. (*) Reference program as AS/NZS 2007. (-) Not present.

(**) 10 grams on the door + 20 grams in the detergent dispenser.

Page 12

User instructions

PROGRAM

INFORMATION

DISPLAY

SOAK

DISH WARMER

QUICK

NORMAL ECO (*)

ECO

BIO

AUTO 40-50

AUTO 60-70

STRONG and FAST

SUPER

P10

PROGRAM SEQUENCE

PRE-

WASH

COLD

WASH COLD

_ _ _

38°C 1 58°C NO 45' 13 0,85

40°C 1 45°C YES 123’

55°C 1 68°C YES 125’ 14 1,25

COLD

55°C 1 68°C YES 100' 15 1,08

55°C 1 68°C YES

65°C 1 70°C YES

65°C 1 70°C NO 60' 10 1,20

RINSE

HOT

RINSE

DRYING MINUTES

68°C YES 40' 3,5 0,70

DURATION CONSUMPTION

WATER LITRES

POWER Kwh (1)

(1)

NO 15' 6 0,01

see water rating

(***) (***) (***)

0,75

45°C 70°C 2 70°C YES 110' 20 1,70

Only run the soak program with half loads. The HALF LOAD option (5) - "2/1" (6) is available for all programs except the soak program. (*) Reference program as AS/NZS 2007.

(***) When the "

AUTO 40-50" or "AUTO 60-70" program is selected, the dishwasher recognises

the type of dirt and automatically adapts the washing parameters and washing stages as appropriate.

(1) The cycle duration and power consumption may vary according to the water and room

temperatures, and the type and amount of dishes.

The washing cycle will not take place if the dishwasher door is left open or not properly closed.



Page 13

User instructions

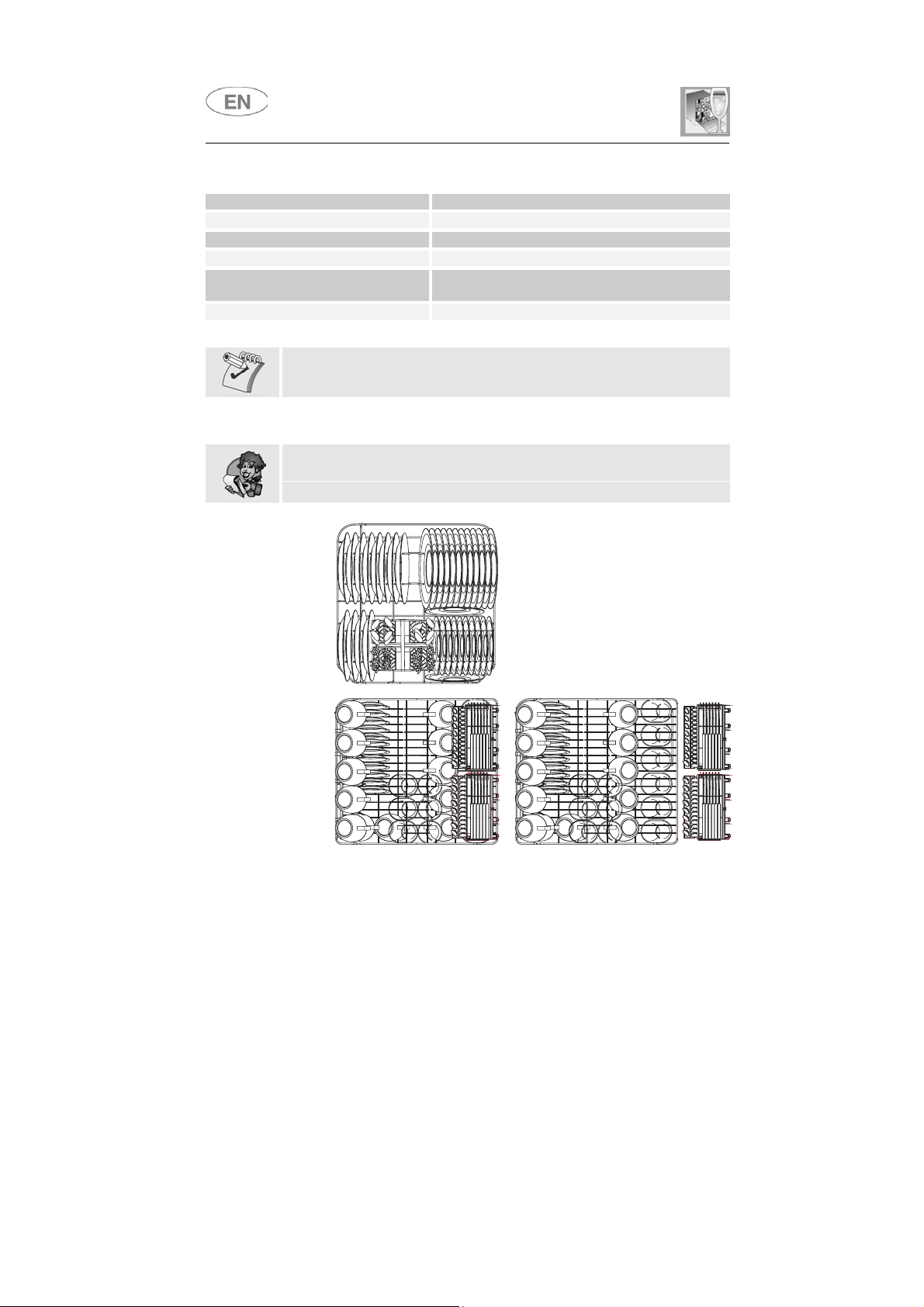

TABLE FOR CERTIFICATION BODIES

Reference standard AS/NZS 2007

NORMAL ECO

Reference program Load 12 place-settings Type of detergent in accordance with AS/NZS 2007

Amount of detergent

pour

Rinse aid setting 4/6

The door can be opened at the end of the cycle approximately 50 mm for improved drying performance.

AS/NZS 2007 cycle test conditions:

The upper basket must be set in the low position.

(*)

10g

of cleaner on to the appliance door

20g

and

into the dispenser



AS/NZS 2007

Page 14

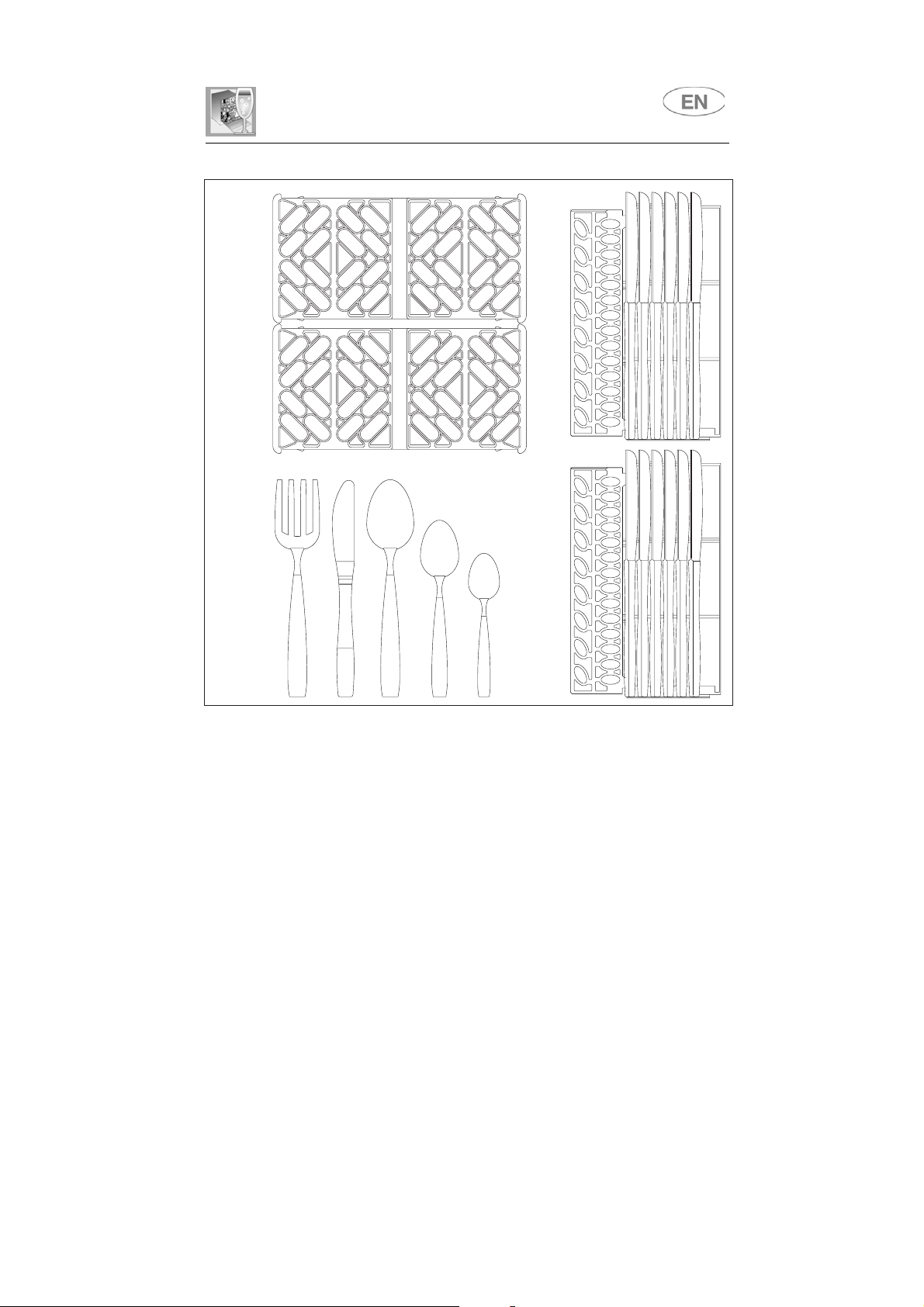

User instructions

222222

54321

222222



Page 15

User instructions

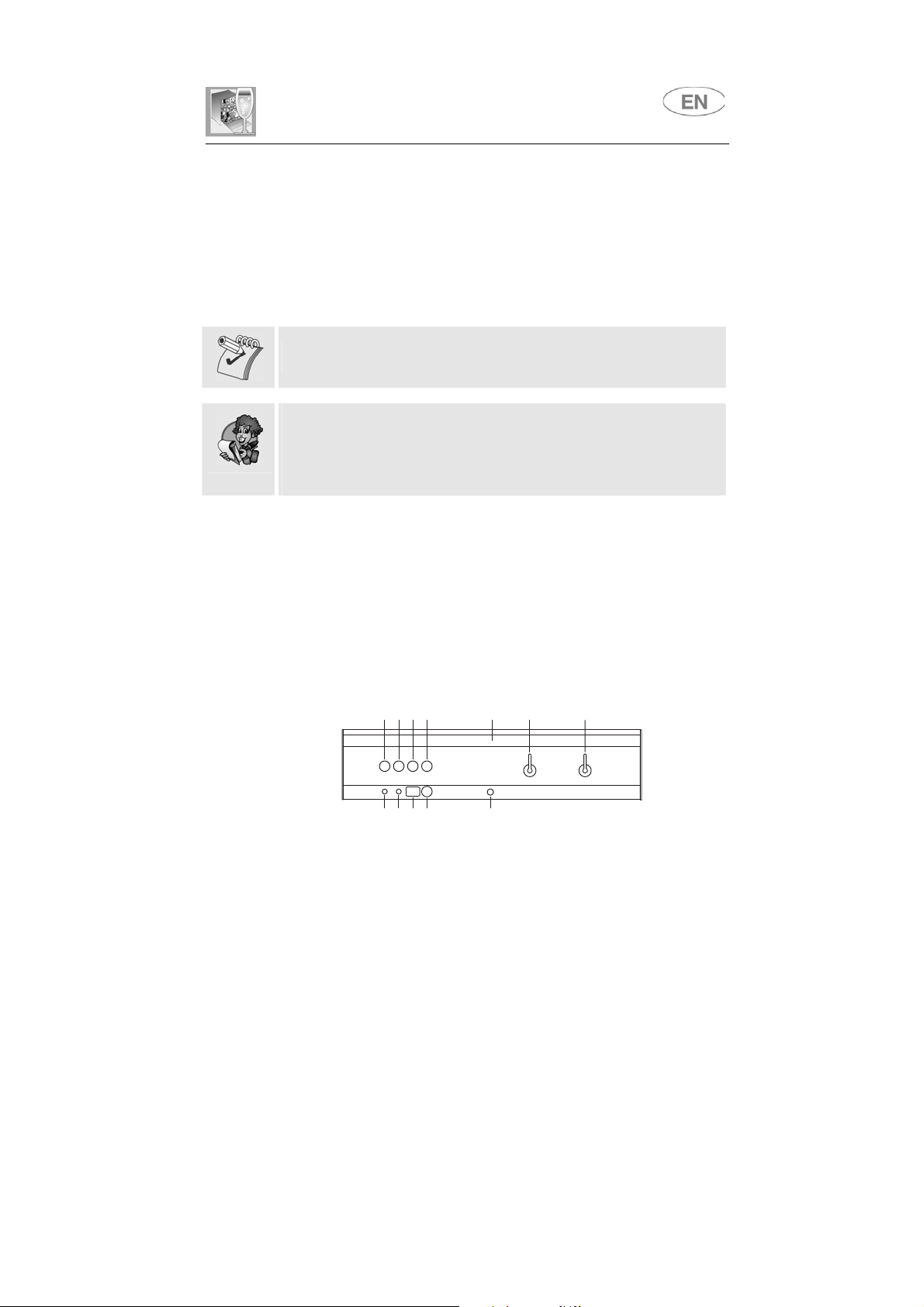

3.3 Washing programs

The dishwasher is equipped with a control panel and an

DISPLAY (8)

on, switch-off and programming operations.

from which it is possible to carry out all the power switch-

INFORMATION

78910 11

Before starting a washing program make sure that:

• The water supply tap is

• The

• The baskets have been

• The spray arms are able to

• The dishwasher door is

CANCELLING THE CURRENT PROGRAM

To annul the current program, press the START/PAUSE button (3) for a few seconds, until the beep of confirmation is heard. At this point, to end the program, press the HALF LOAD (5) and START/PAUSE (3) buttons simultaneously. "P0" appears on the INFORMATION DISPLAY (8) and the dishwasher will automatically switch to the end of the cycle, displaying the word "End" when done.

correct amount of detergent

dispenser

obstruction.

open.

correctly loaded.

rotate freely

securely closed

123456

has been added to the

and without

Page 16

User instructions

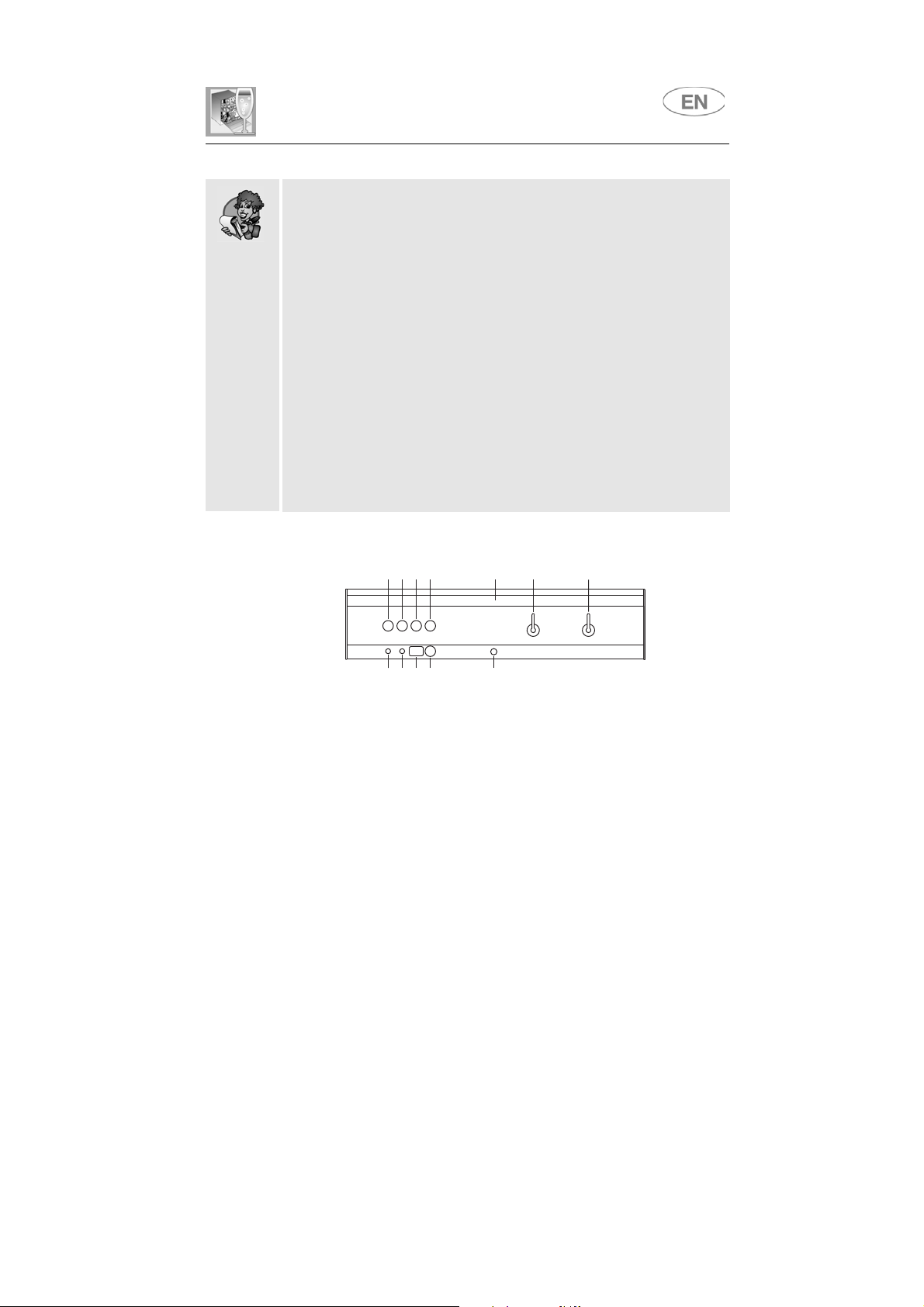

CHANGING THE PROGRAM

To change the program, press and hold down the START/PAUSE button (3) for a few seconds, then select the new program as described

previously in the instructions; press the START/PAUSE button (3) again, holding it down for a few seconds.

78910 11

DELAYING THE PROGRAM (available in all programs except the soak program)

The PROGRAM DELAY button (4) can be pressed to delay the start of the washing program by up to 12 hours. This means that the dishwasher can be operated at the time of day of your choice.

Press the PROGRAM DELAY button (4) again; the INFORMATION DISPLAY (8) will show the number of hours of delay with which the appliance will start.

The INFORMATION DISPLAY (8) shows the set washing program duration in hours and minutes.

After setting the delay, start the program: press the START/PAUSE button (3) for a few seconds, until the START/PAUSE light (7) starts flashing. The appliance will prewash the dishes, after which the "program delay" set previously will come into effect.

To cancel the program delay once the wash has started, proceed as follows:

x press the START/PAUSE button (3) for a few seconds, until the

START/PAUSE light (7) stops flashing;

x press the PROGRAM DELAY button (4) several times until the

program delay returns to zero (the scheduled duration of the program set appears);

x press the START/PAUSE button (3) to start the program.

123456

N.B.: It is not possible to select the “delay program” when the program have already began.

Page 17

User instructions

"2/1" OPTION BUTTON (on some models only) (available in all programs except the soak program)

By pressing the button the relative light comes on. This option has been studied for the use of dishwashing powder or tablets with integrated substances in place of rinse-aid known on the market as “2 in 1” or “double action" products; in this case the dishwasher will use the product in an optimal way avoiding salt and rinse-aid consumption, which could already be found in the dishwasher.

Note:

light remain on, if the container are empty.

HALF LOAD WASH FUNCTION (on some models only)

This function is recommended for loads of up to cuts down on the use of water and electricity. By pressing the upper basket washing.

After having the program selected, continue as follows:

• by pressing for one time the

When selecting the "

WASH (5)

basket (the "½ LOAD WASH LIGHT " (9) comes on);

(6)

you activate the "

2/1

" button, it is normal that the rinse-aid

½ LOAD WASH (5)

button, it will select the upper

2/1

" option, confirmed when

6 place-settings

button it is possible to select only

½ LOAD

, and

• by pressing a second time the ½ LOADWASH(5) button it will bring back to the full load washing mode (the "½ LOAD WASH LIGHT " (9)

goes out).

One half of the cutlery basket can be placed in the top basket.

WARNING: do not load dishes and cutlery into the lower basket, because the water spray will only reach the top basket.

Page 18

User instructions

STARTING THE DISHWASHER

After correctly carrying out all the preceding operations, to start the dishwasher simply press the START/PAUSE button (3) for a few seconds, until the start cycle acoustic device sounds. The INFORMATION DISPLAY (8) will show the duration of the program in minutes. The duration time is only approximate, because it depends on the washing conditions (quantity of dishes, water temperature, etc.), and is also continually updated as the washing program progresses.

The INFORMATION DISPLAY (8) shows the estimated duration of the washing program.

If it is necessary to open dishwasher door during the washing cycle, there will be a 1-minute delay before the program can be resumed. After correctly closing the door, press the START/PAUSE button (3) again. This operation may negatively affective the progress of the washing cycle.

END OF CYCLE The beeper sounds briefly and the word "End" appears on the INFORMATION DISPLAY (8) to indicate the end of the program.

Before setting a new washing program, the door must first be opened, then reclosed, or the START/PAUSE button (3) pressed to “reset” the display and stop the flashing. To switch off the dishwasher turn the ON/OFF switch (2) anticlockwise back to the vertical position.

78910 11

123456

Page 19

User instructions

TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT

• Always try to run the dishwasher

• Do not wash the dishes in running water.

• Use the washing program that is

load.

• Do not carry out any preliminary rinsing.

• If available, connect the dishwasher to a hot water supply up to

60°C.

TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT THE ENVIRONMENT

The phosphates contained in dishwasher detergents are harmful to the environment. To avoid using excessive amounts of detergent and to save on electricity, observe the following:

•

separate

resistant to aggressive detergents and high temperatures;

•

do not pour

the more delicate items from dishes that are more

the detergent directly on the dishes.

fully loaded

most appropriate

for each type of

78910 11

REMOVING THE DISHES

At the end of the washing program, wait at least removing the dishes, to allow them to cool down. To prevent any water droplets on the upper basket from falling on the dishes in the lower basket, it is upper basket.

advisable

to unload the lower basket first, and then the

123456

20 minutes

before

Page 20

User instructions

4. Operating instructions

Once the dishwasher has been correctly installed, prepare for use as follows:

•

Add the rinse aid and detergent.

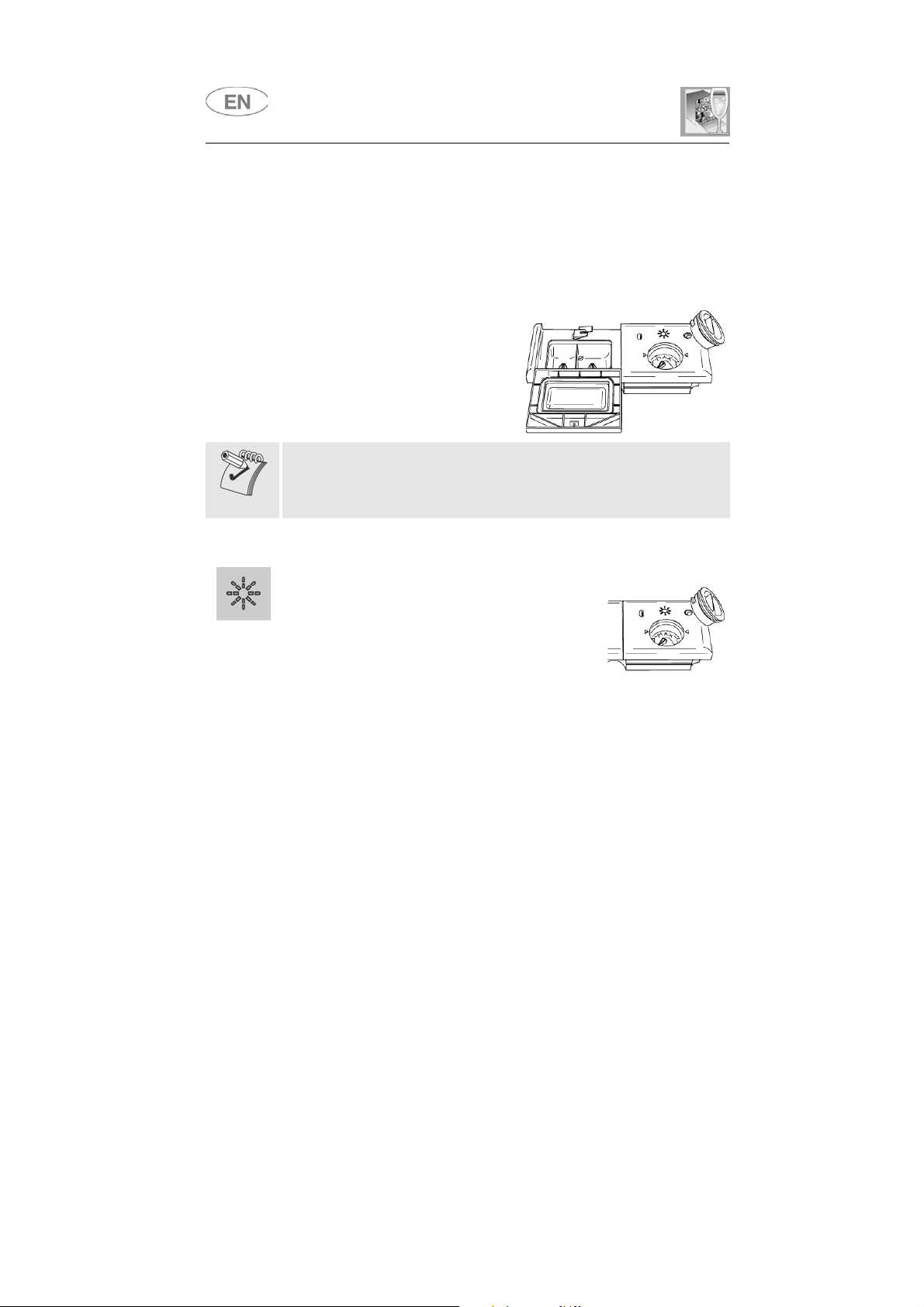

4.1 Using the rinse aid and detergent dispensers

The detergent and rinse aid dispensers are situated on the inner part of the door: the

dispenser rinse aid dispenser

With the exception of the SOAK program, before every washing cycle it is necessary to add the required amount of detergent to the detergent dispenser. The rinse aid, on the other hand, should only be added as required.

is on the left, and the

detergent

is on the right.

ADDING THE RINSE AID

The rinse aid helps the dishes dry faster and prevents the formation of scale deposits and staining; it is automatically added to the water during the final rinse cycle, from the container situated on the inner side of the door.

To add rinse aid:

•

Open the door.

•

Rotate the container cap anticlockwise by ¼ of a turn and remove it.

•

Add the rinse aid until the container is full (approximately 140 cc).

The optical level indicator on the side of the cap should be completely obscured. Refill the rinse aid when the optical level indicator becomes clear again, or when the rinse aid warning light illuminates.

•

Replace the cover and turn it in a clockwise direction.

•

Use a cloth to remove any spillage of rinse aid which might lead to

the formation of excess foam.

Page 21

User instructions

ADJUSTING THE RINSE AID DISPENSER SETTING

The dishwasher is factory set for medium water hardness. However it possible to change the setting by turning the dispenser’s selector to the desired position: the amount of rinse aid dispensed is proportional to the selector position.

•

To adjust the rinse aid setting, rotate the dispenser cap through a

quarter turn in an anticlockwise direction and remove it.

•

Then use a screwdriver to rotate the rinse aid selector to the desired

position.

•

Replace the cap, turning it clockwise.

• The amount of rinse aid must be increased if the washed dishes appear dull or feature circular stains.

• If, on the other hand, the dishes are sticky or have white streaks, it is necessary to reduce the rinse aid setting.

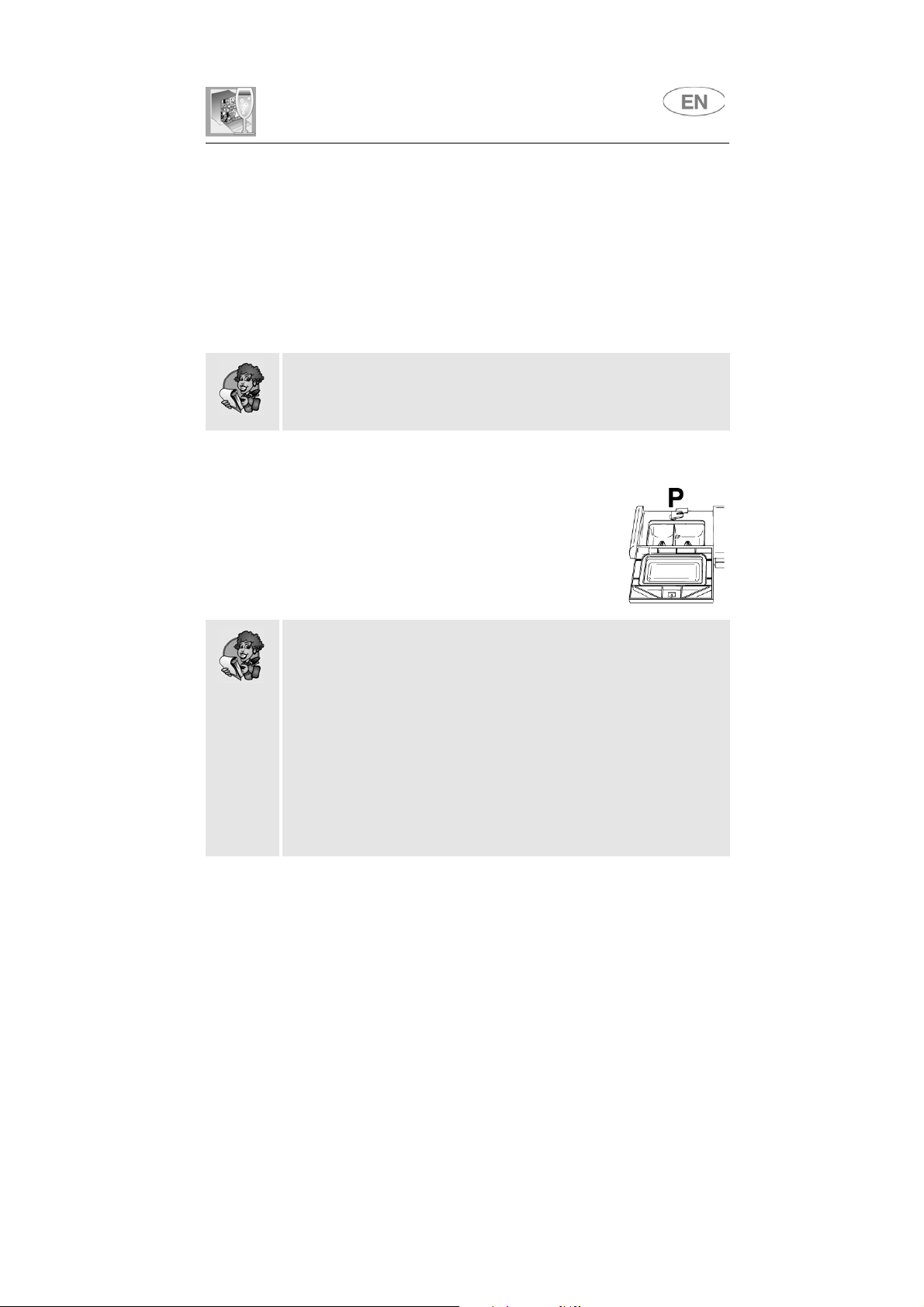

ADDING THE DETERGENT

To open the detergent dispenser cap, lightly press the button P. Add the detergent and close the cap carefully. During the washing cycle, the dispenser will be opened automatically.

• Use only detergents specially formulated for dishwashers. For optimal washing results it is important to use a good quality detergent.

• The detergent packs must be sealed and stored in a dry place to prevent the formation of lumps which may negatively affect washing results. Once opened the detergent packs should not be kept for too long, otherwise the detergent loses its effectiveness.

• Do not use detergents formulated for washing dishes by hand, because they produce a great deal of foam and may negatively affect the operation of the dishwasher.

• Add the correct amount of detergent. An insufficient amount of detergent will result in a partial removal of dirt from the dishes, whereas an excessive amount is wasteful and does not improve the washing results.

Page 22

User instructions

• The market offers liquid and powder detergents with differing chemical compositions, which may contain phosphates, or be phosphate-free but contain natural enzymes.

- Detergents containing phosphates are more effective against

grease and starch at temperatures above 60°C.

- Enzyme detergents, on the other hand, are also effective at lower temperatures (from 40 to 55°C) and are more easily biodegradable. With enzyme detergents it is possible to obtain at low temperatures comparable results to those which can only be achieved at 65°C using traditional detergents.

For the safeguarding of the environment we recommend the use of phosphate- and chlorine free detergents.

• Also available are tablet detergents which state that that no salt or rinse aid is required. In some cases, these detergents might not give good results, especially with short and/or low-temperature washing cycles. If performance problems (e.g. a white coating on the tank or dishes, poor drying, dirt on dishes at the end of the wash) are noted, users are advised to return to conventional products (granular salt, powder detergent and liquid rinse aid). However, please note that on return to the use of conventional salt, a number of cycles will be required before the system becomes fully efficient again, so traces of white coating may still be found on the tank and dishes. If the problem persists for too long, contact the After-Sales Service.

• When using detergent in tablet form (bear in mind that we recommend the use of three separate products: detergent, salt and rinse aid), place the tablets in the cutlery rack. The dispenser is designed to use powder or liquid detergent and the door does not open completely during the washing cycle. This means that a tablet is not completely dissolved (released), which may lead to the following:

- not enough detergent released during the cycle, with poor washing

results;

- the detergent forms a solid block in the distributor and is released

during the final rinse cycle.

The introduction of detergent into the rinse aid dispenser, even in liquid form, will damage the dishwasher.

Page 23

User instructions

4.2 General warnings and recommendations

Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading. There are generally no constraints on the washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account.

Before loading the dishes into the baskets it is necessary to:

• remove coarse food remains: e.g. bones, fish-bones, etc. which may clog the filter or damage the wash pump.

• soak any pots or pans with burnt-on food remains on the bottom to facilitate removal, then load them into the LOWER BASKET.

There is no need to pre-wash the dishes under running water before loading them into the baskets since this only wastes water.

Correct loading of the dishes helps ensure optimal washing results.

WARNING!

• Make sure that the dishes are securely in place so that they cannot tip over or obstruct the rotation of the spray arms during the washing cycle.

• Do not place very small objects in the baskets as these could fall and obstruct the spray arms or the wash pump.

• Containers such as cups, bowls, glasses and pots should always be loaded with the opening facing downwards and with any cavities at an angle, to allow the water to drain out.

• Do not stack dishes or place them in such a way that they cover one other.

• Do not place glasses too close together because they may knock against each other and break, or there might be staining at the point where they touch.

MAKE SURE that the items being washed are dishwasher-safe.

Page 24

User instructions

Items which are not dishwasher-safe:

•

Wooden dishes, pots or pans: these may be damaged by the high washing temperatures.

•

Handcrafted items: these are rarely suitable for washing in a dishwasher. The relatively high water temperatures and the detergents used may damage them.

•

Plastic dishes: heat resistant plastic dishes must be washed in the upper basket.

•

Dishes and objects in copper, tin, zinc or brass: these tend to stain.

•

Aluminium dishes: items made from anodised aluminium may lose their colour.

•

Silverware: silver items may stain.

•

Glass and crystal: in general, glass and crystal objects can be washed in the dishwasher. However, certain types of glass and crystal may become dull and lose their clearness after many washings. Therefore, for these items we recommend using the least aggressive program available.

•

Decorated items: the decorated objects available on the market are generally able to withstand washing in the dishwasher, although the colours may fade after a great many washes. If in doubt as to the fastness of the colours, it is advisable to wash just a few items at a time for approximately one month.

Page 25

User instructions

4.3 Using the baskets

The dishwasher has a capacity of dishes.

LOWER BASKET

The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling.

All types and combinations of loads are permitted, provided that the dishes, pots and pans are arranged with all the soiled surfaces exposed to the water jets coming from the bottom.

To make the most of the space inside the basket when loading large items, certain models are equipped with tip-up supports for plates in 2 or 4 sections.

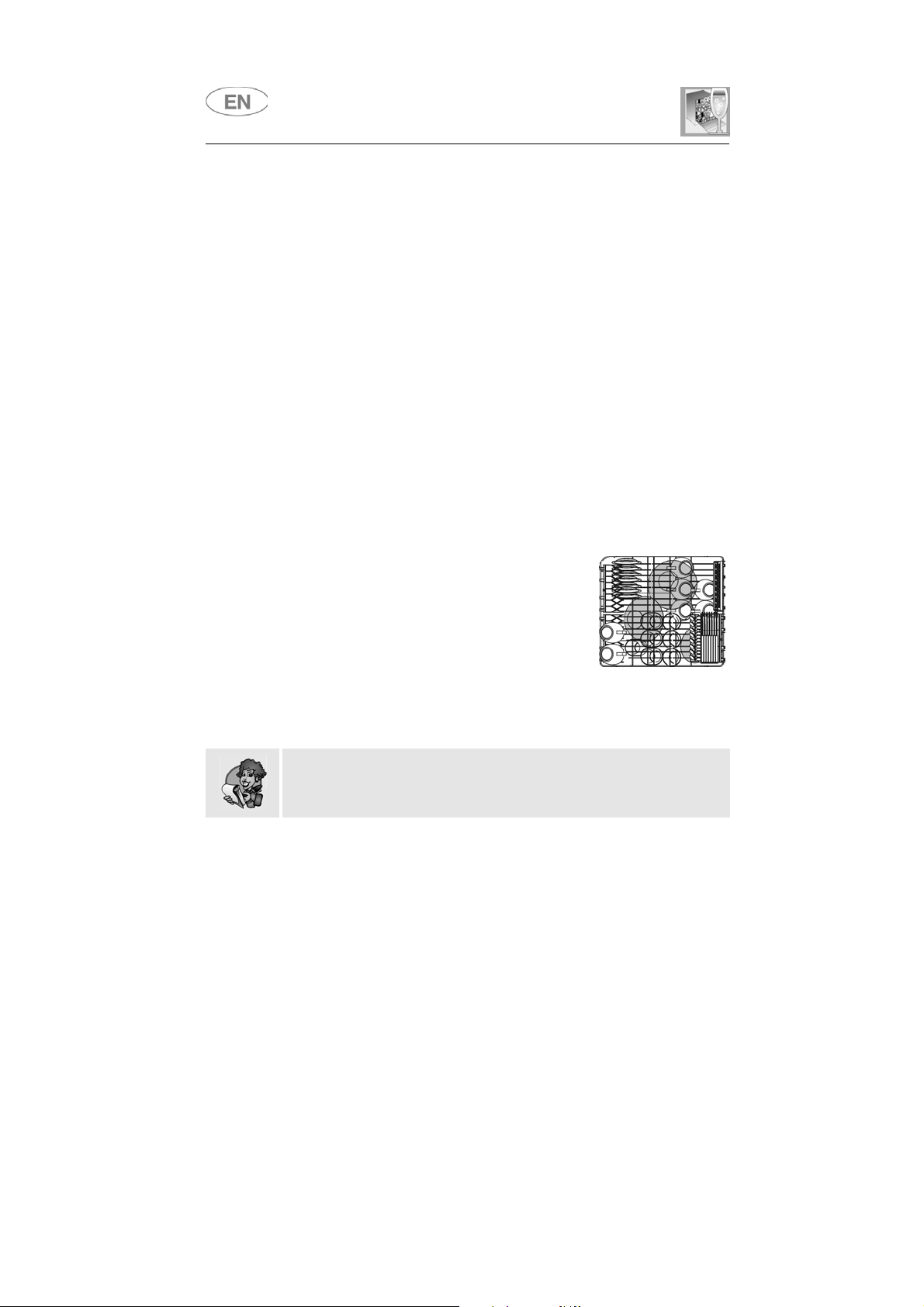

LOADING THE LOWER BASKET

Carefully load flat plates, soup plates, dessert and serving dishes, positioning them vertically. Pots, pans and their covers must be loaded upside down. When loading soup plates and dessert bowls, be sure to leave a gap between them.

Loading examples:

12 place-settings

With fixed supports

With tip-up supports

, including serving

Page 26

User instructions

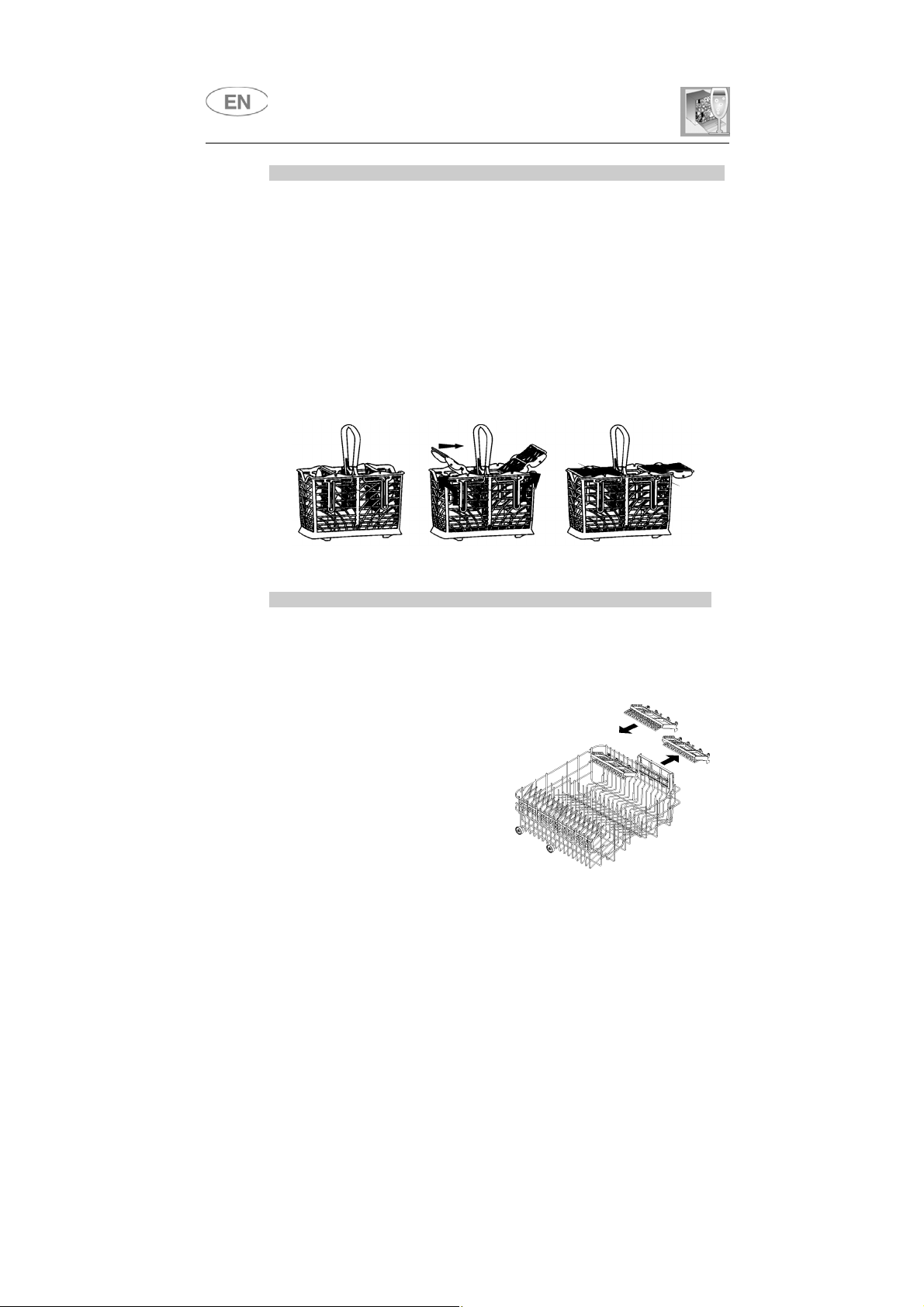

CUTLERY BASKET

The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing downwards. Take care during loading to avoid injury from the knife blades. The basket is suitable for all types of cutlery, except those long enough to interfere with the upper spray arm. Ladles, wooden spoons and cooking knives can be placed in the upper basket,

making sure that the knife blades do not protrude from the basket.

The dishwasher is complete with two cutlery baskets, which means that one of them can be removed, freeing space in the bottom basket, if there is not much cutlery to be washed, or if a ½ load program is being used (on models with this function). The basket features an exclusive system of independent sliding tip- up supports, offering a choice of possible combinations to allow optimum use of the space available.

Horizontal

insert

closed

Horizontal

insert

open

Vertical

inserts

Movement required

to extract the inserts

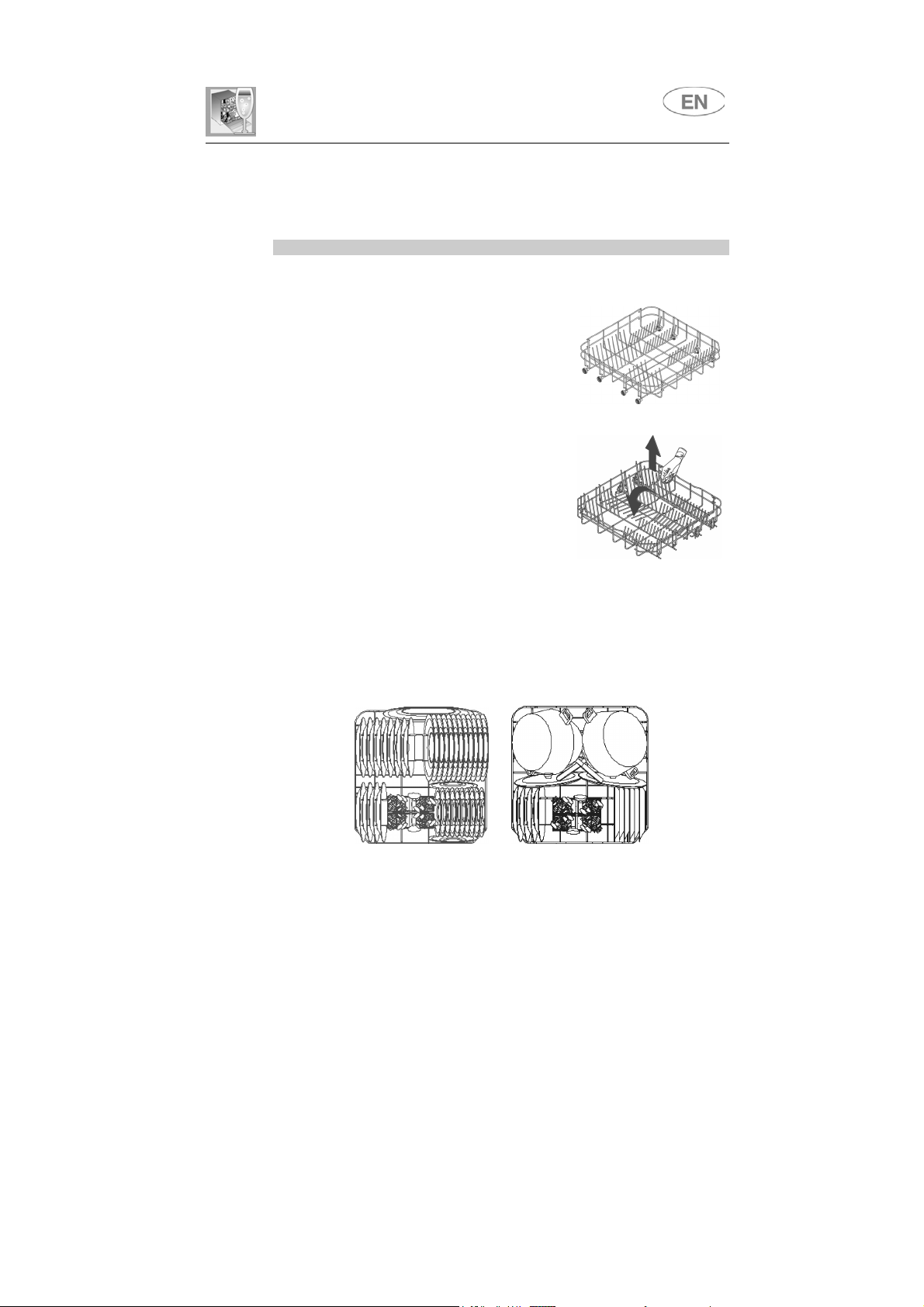

UPPER BASKET

It is recommended to load the upper basket with small- or medium-sized items such as glasses, small plates, tea or coffee cups, shallow bowls and light objects made from heat resistant plastic. If the upper basket is used in the lowermost position, it can also be loaded with serving dishes, provided they are only slightly soiled.

The top basket is fitted (on the left) with two plastic racks which can be raised to make room for tall glasses, such as stem glasses. On the right there are two cutlery racks designed to take knives and teaspoons; when not in use, they can be left vertical, attached to the basket. To use the space designed for

teaspoons, remove the insert as shown in the illustrations.

Page 27

User instructions

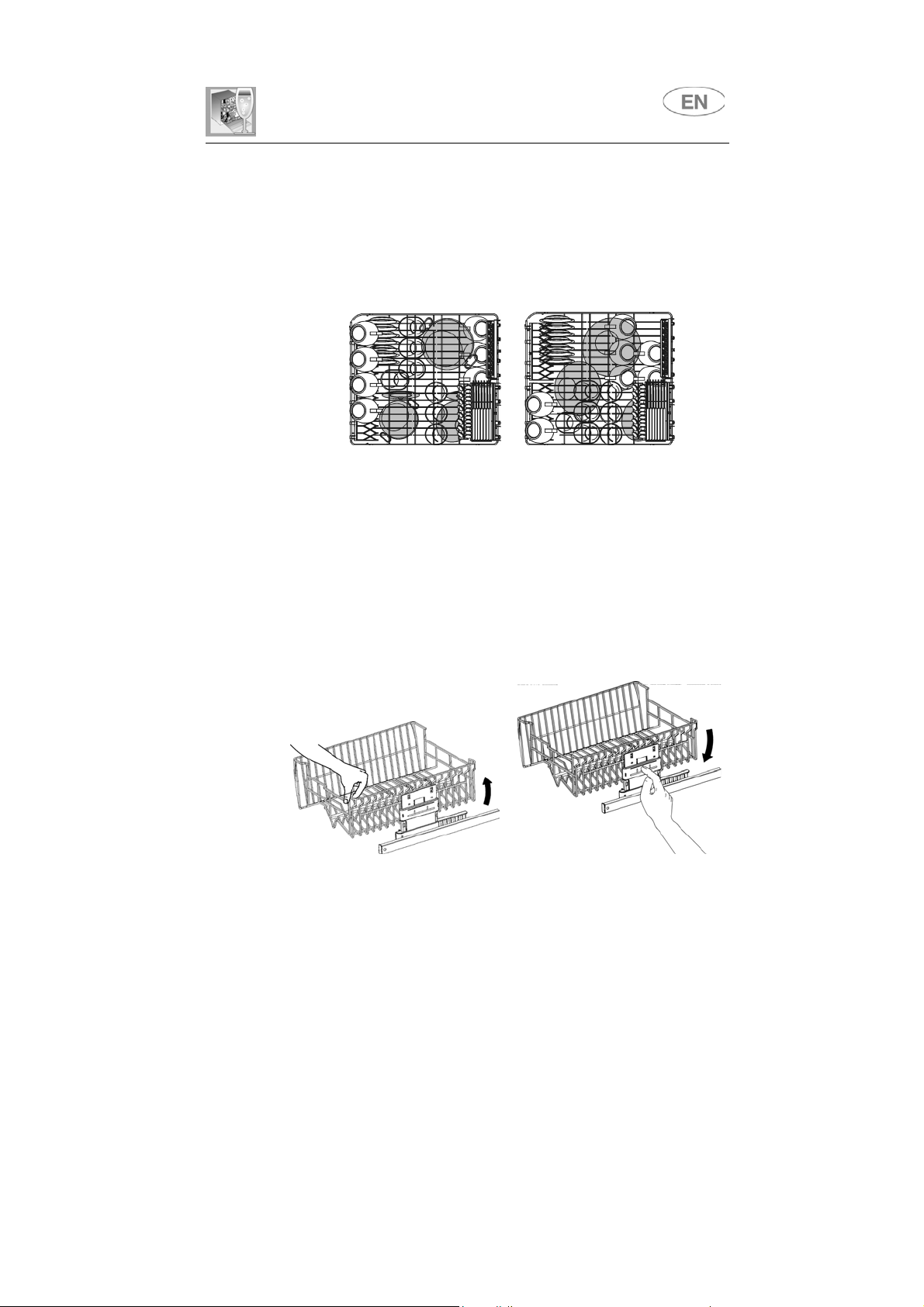

LOADING THE UPPER BASKET

Load the dishes with the top side facing forwards; cups and concave containers should always be loaded with the opening facing down. The left side of the basket can be loaded with cups and glasses on two levels. In the centre section, plates and saucers can be loaded vertically into the supports provided.

Loading examples:

½ LOAD

ADJUSTING THE UPPER BASKET

The upper basket can be adjusted in two positions, according to the user’s needs and according to the height of the dishes in the lower basket. Proceed as follows:

x pull out the basket to its limit position and pull the right side

upwards. At this point it is possible to load larger sized plates into the lower basket.

x To return to the original position, pull out the upper basket again and

press the release lever.

Page 28

User instructions

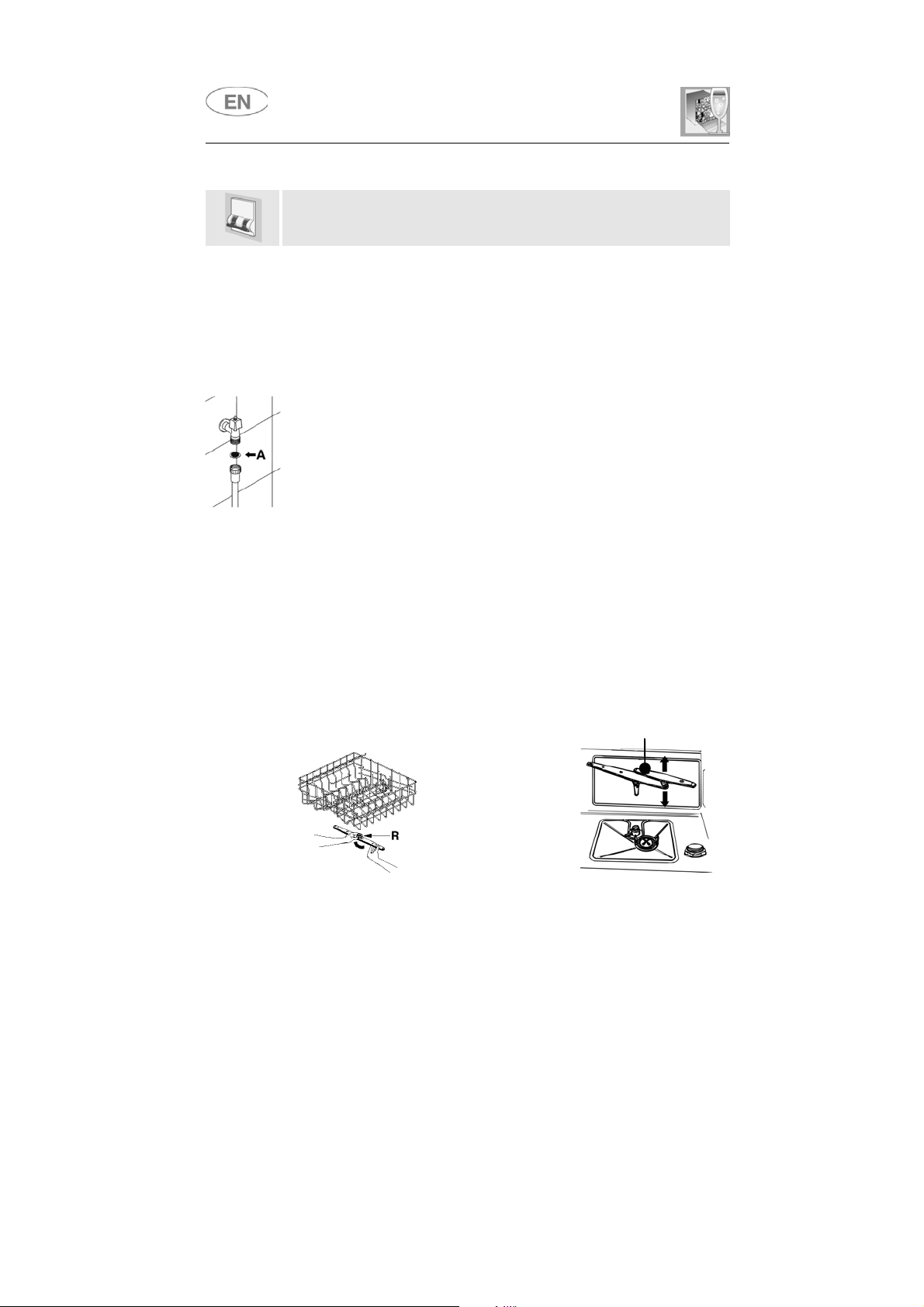

5. Cleaning and maintenance

Before carrying out any work, always unplug the appliance from the electrical supply or switch off the all-pole disconnection device.

5.1 General warnings and recommendations

Avoid the use of acidic or abrasive detergents.

Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces. Clean the door gaskets with a damp sponge. Periodically (once or twice a year) it is advisable to clean the tank and gaskets, using a soft cloth and water to remove any deposits.

CLEANING THE WATER INTAKE FILTER

The water intake filter Alocated at the outlet of the water supply tap needs to be cleaned periodically. After having closed the water supply tap, unscrew the end of the water intake hose, remove the filter Aand clean it delicately under running water. Reassemble filter Ain its seat and carefully screw the water intake hose back into position.

CLEANING THE SPRAY ARMS

The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging. Wash them under running water and carefully replace them in their seats,

movement is in no way impeded

•

To remove the

upper

spray arm, unscrew locking ring R.

checking that their rotary

•

To remove the

arm and pull the orbital unit upward. Wash the arms under a jet of running water and return them carefully to their seat.

reassembly, check that the spray arms turn freely.

check that they have been installed correctly.

orbital

spray arm assembly, take hold of the longer

14$+6#.

After

Otherwise,

Page 29

User instructions

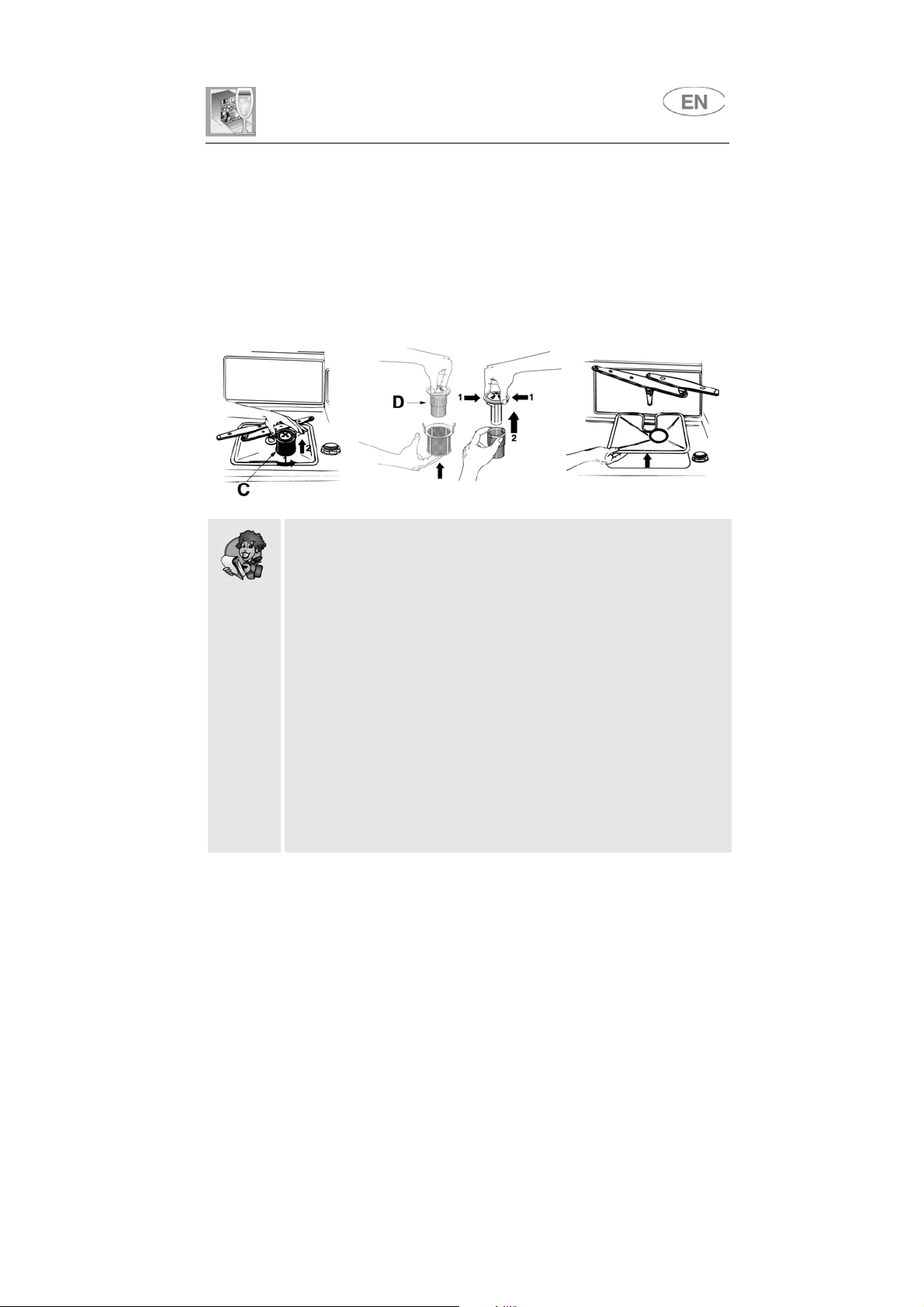

CLEANING THE FILTER UNIT

•

It is advisable to periodically inspect the centre filter Cand, if

necessary, to clean it. To remove the filter, grip the tabs, turn them anticlockwise and lift upwards;

•

push the centre filter Dfrom the underside to remove it from the

micro-filter:

•

separate the two parts which make up the plastic filter by pressing

the body of the filter in the zone shown by the arrows;

•

remove the centre filter by lifting it upwards.

GENERAL WARNINGS AND RECOMMENDATIONS FOR CORRECT MAINTENANCE:

x The filters should be cleaned under running water using a stiff

brush.

x When removing the filter, take care that there are no food residues

on it. If any residues fall into the washing pit they might block hydraulic components, or foul the spray arm nozzles.

x It is essential to thoroughly clean the filters according to the

above instructions: the dishwasher cannot function if the filters are clogged.

x Carefully replace the filters in their seats, to avoid damaging the

wash pump.

PROLONGED DISUSE:

x Run the soak program twice in succession. x Unplug the power cord from the socket. x Leave the door slightly open, in order to prevent the formation of

unpleasant odours inside the washing tank.

x Fill the rinse aid dispenser. x Shut off the water supply tap.

Page 30

User instructions

BEFORE STARTING THE DISHWASHER AFTER PROLONGED DISUSE:

• Check that there are no deposits of sludge or rust inside the water pipe: if there are, allow the water to run from the water supply tap for a few minutes.

•

Plug the power cord back into the socket.

•

Reconnect the water intake hose and open the tap again.

TROUBLESHOOTING MINOR PROBLEMS

In some cases it is possible to remedy minor problems by referring to the following instructions:

If the program fails to start, check that:

• the dishwasher is connected to the electrical power supply;

• there is no power failure;

• the water tap is open;

• the dishwasher door is properly closed.

If water remains inside the dishwasher, check that:

• the drain hose is not kinked;

• the drain siphon is not obstructed;

• the dishwasher filters are not clogged.

If the dishes are not being cleaned properly, check that:

• the correct amount of detergent has been added;

• the dishes are being loaded correctly;

• the selected program is suitable for the dish types and their degree

of soiling;

• all the filters are clean and positioned correctly;

• the spray arm nozzles are not obstructed;

• there is no object obstructing the rotation of the spray arms.

Page 31

User instructions

If the dishes fail to dry or remain dull, check that:

• there is rinse aid inside the special container;

• the rinse aid dispenser setting is correct;

• the detergent used is of good quality and has not lost its

effectiveness (for example, through incorrect storage, with the box left open).

If the dishes show signs of streaking, staining, etc., check that:

• the rinse aid dispenser setting is not too high.

If there are visible traces of rust inside the tank:

• the tank is made of steel, and therefore any rust marks are due to external elements (fragments of rust from the water pipes, pots, cutlery, etc.). Special products are commercially available to remove such marks;

• check that the amount of detergent being used is correct. Certain detergents can be more corrosive than others.

If after following the above troubleshooting instructions the problem persists, call the nearest After-Sales Centre.

WARNING: any operations performed on the appliance by unauthorised persons are not covered by the warranty and shall be paid for by the user.

Page 32

User instructions

2. Troubleshooting

The dishwasher is equipped with a self-diagnostics system that is capable of detecting and signalling a number of possible faults.

TABLE OF FAULTS DETECTED BY THE SELF-DIAGNOSTICS SYSTEM

FAULT DESCRIPTION

Acquastop failure

The anti-flooding system has been activated (for the relevant models only). The system is tripped in case of water leaks. Contact the aftersales service.

Safety level

The system which limits the water level inside the dishwasher has been tripped. Interrupt the program and switch off the dishwasher. Switch the dishwasher back on, program it again and start the washing cycle. If the problem persists, contact the after-sales service.

Water heating malfunction

The water is not heated or the heating parameters are not correct. Repeat the washing program; if the problem persists, contact the aftersales service.

Water temperature monitoring malfunction

Interrupt the program and switch off the dishwasher. Switch the dishwasher back on, program it again and start the washing cycle. If the problem persists, contact the after-sales service.

Water intake malfunction

The appliance does not take in water or does not do so correctly. Check that the water connections are correct, the water intake tap is turned on and the filter is not fouled. If the problem persists, contact the aftersales service.

Water pump-out malfunction

The appliance does not pump out the water or does not do so correctly. Check that the drain hose is not kinked or crushed and that the siphon and filter are not fouled. If the problem persists, contact the after-sales service.

Page 33

User instructions

FAULT DESCRIPTION

Turbine flow-regulator malfunction

The appliance is not able to "measure" the amount of water loaded accurately. Interrupt the program and switch off the dishwasher. Switch the dishwasher back on, program it again and start the washing cycle. If the problem persists, contact the after-sales service.

Alternate washing system malfunction

Interrupt the program and switch off the dishwasher. Switch the dishwasher back on, program it again and start the washing cycle. If the problem persists, contact the after-sales service.

Water intake system malfunction

Contact the after-sales service.

• The E1,E2,E3,E4,E8,E9 alarms provoke the “forcing” to end cycle of the running program.

• The E5,E6 alarms interrupts the running program once the cause is resolved, it will bring bach the execution of the program.

• The alarm E7 is visualized at the end of the cycle that comes, however, brought to the end since the operation of the dishwasher is not harmed.

(for the relevant models only)

To “reset” an alarm is necessary:

• Open and close the door, or turn off and on the machine. At this point is possible to program the dishwasher again.

If the fault persists, call the authorised Technical Service Centre.

TECHNICAL DATA

Width

Depth measured flush with the outer edge of the control panel

Height

Capacity Water supply pressure Electrical characteristics

597÷ 599 mm Free standing: 600 mm

Semi-integrated: 570 mm Free standing from 850 mm to 870 mm

Semi-integrated from 820 mm to 870 mm 14 Standard place settings min. 0,05 - max. 0,9 MPa (min. 0.5 – max. 9 bar) See rating plate

Page 34

115 125

Misurarel’altezzadelpannellocomandi;farecoinciderel’indicerelativoatalevaloreconilprofilosuperioredellaportainlegno;tracciareilposizionamentodegliagganciporta.

Measuretheheightofthecontrolpanel;bringthemarkrelatingtothisvalueintolinewiththetopedgeofthewoodendoor;markthepositionsofthedoorconnections.

Measurerlahauteurdupanneaudecommandes;fairecoïnciderl’indexrelatifàcettevaleuravecleprofilsupérieur delaporteenbois;tracerlepositionnementdescrochetsdelaporte.

DieHöhedesBedienfeldsmessen;DiediesemWertentsprechendeMarkierungmitdemoberenProfilderHolztürzurDeckungbringen;DiePositionderTüraufhängungenanzeichen.

Meetdehoogtevanhetbedieningspaneel;laatdemarkeringdiebijdiewaardehoortovereenstemmenmethetbovensteprofielvandehoutendeur;tekendepositievandedeurhengselsaf.

Medirlaalturadelpaneldemandos;hacercoincidirelíndicecorrespondienteadichovalorconelperfilsuperiorde lapuertademadera;trazarelposicionamientodelasbisagrasdelapuerta.

Meçaaalturadopaineldecomandos;façacomqueoindicadorrelativoaestevalorcoincida comoperfilsuperiordaportademadeira;marqueaposiçãodosganchosparaporta.

115

125 135 145 155

ATTENZIONE:

Montarelaportaeregolarelatensionedelle

mollelateraliprimadell’installazione.

Solosualcunimodelli Certainmodelsonly

Seulementsurcertainsmodèles nurbeieinigeModellen Sóloenalgunosmodelos alleenindienvantoepassing

SUPERFICIEINTERNA SURFACEINTERNE INNERSURFACE INNENFLACHE

LATOSUPERIORE BORDSUPERIEURE UPPEREDGE OBERKANTE

135

145

155

WICHTIG:

Türmontieren,TürfedernvorEinbau

einstellen.

IMPORTANT:

Doortemplate,donotdestroy.Fitdoorand

adjusthingetensionbeforeinstallation.

ATTENTION:

Apresmontàgedelaporte,reglerlatension

desressortslaterauxavantl’installation.

Solosualcunimodelli Certainmodelsonly

Seulementsurcertainsmodèles nurbeieinigeModellen Sóloenalgunosmodelos alleenindienvantoepassing

Regolazionevitetensionemolle(13) Coperturafotocontappoindotazione(14) DoorspringAdjustementdevice(13) Coveringofholeusingcapprovided(14) Réglagedesressortsdelaporte(13) Couverturedutrouaveclebouchonfourni(14) VorrichtungfürdieEinstellungderSpannungderTürfedem(13)AbdeckendesLochsmitdemmitgeliefertenStopfen(14)

ATENÇÃO:

Antesdainstalação,monteaportae

reguleatensãodasmolaslaterais.

IMPORTANTE:

Montarlapuertayregularlos

muellaslateralesantesdelainstalación.

NOTA:N.B.:REMARQUE: ANMERKUNG: NOTA:

Solamentealcunimodellisonodotatidiunodeidispositivisottoillustrati.Onlysomemodelsareequippedwithoneofthetwodevicesillustratedbelow.seulquelquesmodèlessontmunisdel’undedeuxdispositifsillustrésci-dessus.

NureinigeModelleverfügenübereinederbeidenuntendargestelltenEinrichtungen.NOTABENE:NOTA:

uitsluitendbepaaldemodellenzijnuitgerustmetéénvandetweeonderstaandafgebeeldeinrichtingenSóloalgunosmodelosestánequipadosconunodelosdosdispositivosqueseilustranacontinuación.

Sóalgunsmodelosestãoequipadoscomoudosdoisdispositivosilustradosabaixo

1/2”

3/4”

SW32

3/4”

Cuø10

MIN

40cm
