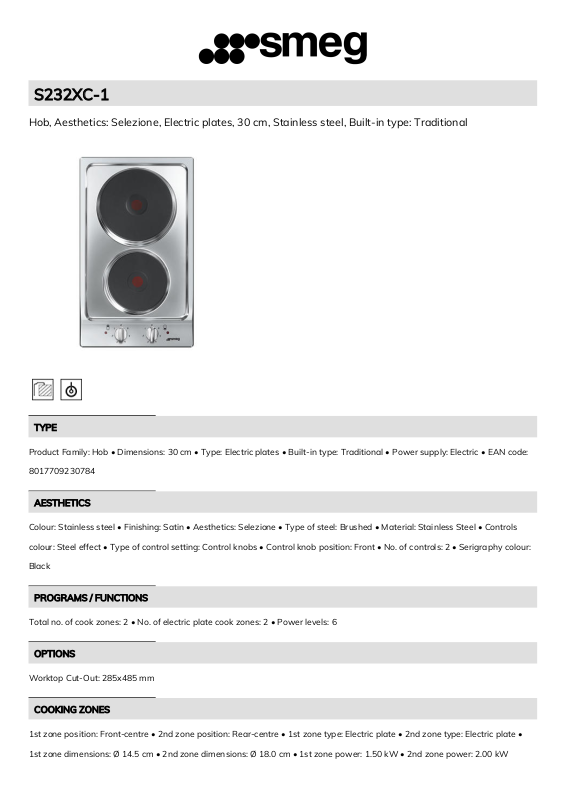

Smeg S232XC-1 Technical sheet

S232XC-1

Hob, Aesthetics: Selezione, Electric plates, 30 cm, Stainless steel, Built-in type: Traditional

TYPE

Product Family: Hob • Dimensions: 30 cm • Type: Electric plates • Built-in type: Traditional • Power supply: Electric • EAN code:

8017709230784

AESTHETICS

Colour: Stainless steel • Finishing: Satin • Aesthetics: Selezione • Type of steel: Brushed • Material: Stainless Steel • Controls

colour: Steel effect • Type of control setting: Control knobs • Control knob position: Front • No. of controls: 2 • Serigraphy colour:

Black

PROGRAMS / FUNCTIONS

Total no. of cook zones: 2 • No. of electric plate cook zones: 2 • Power levels: 6

OPTIONS

Worktop Cut-Out: 285x485 mm

COOKING ZONES

1st zone position: Front-centre • 2nd zone position: Rear-centre • 1st zone type: Electric plate • 2nd zone type: Electric plate •

1st zone dimensions: Ø 14.5 cm • 2nd zone dimensions: Ø 18.0 cm • 1st zone power: 1.50 kW • 2nd zone power: 2.00 kW

PERFORMANCE / ENERGY LABEL

2nd zone energy consumption: 197.0 Wh/Kg

ELECTRICAL CONNECTION

Electrical connection rating (W): 3500 W • Voltage (V): 230-240 V • Frequency (Hz): 50/60 Hz • Type of electric cable: Single

phase

LOGISTIC INFORMATION

Dimensions of the product (mm): 50x300x500 • Depth: 500 mm • Width: 300 mm • Product Height: 50 mm
