Table of contents
Introduction
Installation
Operation
Entry
Important safety instruction
Identication of parts
Where to install
Door removal
Door replacement
Feed water pipe installation
Height adjustment
Starting
Adjusting the temperatures and functions
Refreshment center (Applicable to some models only)
Shelf (Applicable to some models only)
Wine holder (Applicable to some models only)
Egg box
3
3
4
6
7
8
8
9
10
10
18
19
19
19
Suggestion on
food storage
Care and
maintenance
Humidity control in the vegetable compartment
Convert into a vegetable or meat compartment (Applicable to some models only)
Deodorizer (Applicable to some models only)
Extra Fresh Temperature Transition Corner (Applicable to some models only)
Temperature Change at Extra Fresh (Applicable to some models only)
Extra Fresh (Applicable to some models only)
Location of foods
Storing foods

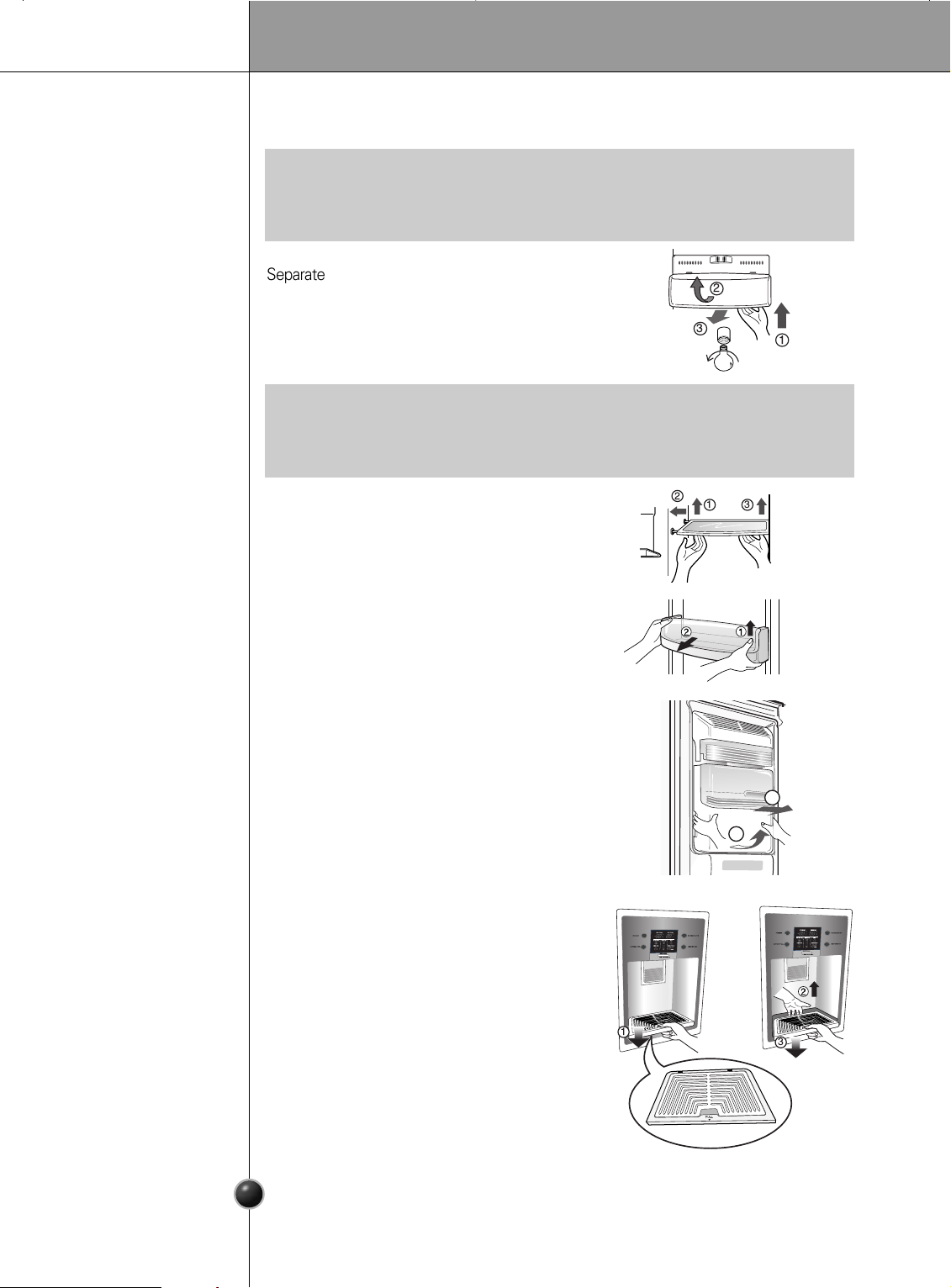

How to dismantle parts
General information
Cleaning
Trouble shooting
20
20
20
21
21
21
22
23
24
26
26
27
2
Introduction
Don’t use an
extension cord
Accessibility of
Supply Plug
Supply Cord
Replacement
Warning
Entry
The model and serial numbers are found on the inner case or back of refrigerator
compartment of this unit. These numbers are unique to this unit and not
available to others. You should record requested information here and retain
this guide as a permanent record of your purchase. Staple your receipt here.
Date of purchase :
Dealer purchased from :
Dealer address :
Dealer phone no. :
Model no. :
Serial no. :
Important safety instruction
Before it is used, this refrigerator must be properly installed and located in accordance
with the installation instructions in this document.
Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and
pull it straight out from the outlet.
When moving your appliance away from the wall, be careful not to roll over the power
cord or to damage it in any way.
After your refrigerator is in operation, do not touch the cold surfaces in the freezer
compartment
these extremely cold surfaces.
Unplug the power cord from the power outlet for cleaning or other requirements. Never
touch it with wet hands because you can get an electric shock or be hurt.
Never damage, process, severely bend, pull out, or twist the power cord because
damage the power cord may cause a fire or electric shock. You have doubts on whether
the appliance is properly grounded.
Never place glass products in the freezer because they may be broken due to expansion
when their contents are frozen.
Never allow your hands within the ice storage bin of the automatic ice maker. You could
be hurt by the operation of the automatic ice maker.
The appliance is not intended for use by young children or infirm persons without
supervision.
Young children should be supervised to ensure that they do not play with the appliance.
Never allow anyone to climb, sit, stand or hang on the refreshment center door. These
actions may damage the refrigerator and even tip it over, causing severe personal injury.
If possible, connect the refrigerator to its own individual electrical outlet to prevent it and
other appliances or household lights from causing an overload that could cause a power
outage.
The refrigerator-freezer should be so positioned that the supply plug is accessible for
quick disconnection when accident happens.
If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
Do not modify or extend the Power Cord length.
It will cause electric shock or fire.
, particularly when your hands are damp or wet. Skin could adhere to
3
Introduction
Child entrapment
warning
Don’t store
warning
Grounding (Earthing)
warning
Door rack
Shelf or Drawer
Lamp
Shelf or Drawer
DANGER: Risk of child entrapment.
Before you throw away your old refrigerator or freezer:
Take off the doors but leave the shelves in place so that children may not easily climb
inside.
The appliance is not intended for use by young children or infirm persons without
supervision.
Young children should be supervised to ensure that they do not play with the appliance.
Don’t store or use gasoline or other flammable vapor and liquids in the vicinity of this or
any other appliance.
In the event of an electric short circuit, grounding (earthing) reduces the risk of electric
shock by providing an escape wire for the electric current.
In order to prevent possible electric shock, this appliance must be grounded
improper use of the grounding plug can result in an electric shock. Consult a qualified
electrician or service person if the grounding instructions are not completely
understood, or if you have doubts on whether the appliance is properly grounded.
Identification of parts
*Non dispenser model
Freezer
Compartment
Refrigerator
Compartment
Milk product corner
Lamp
Shelf
Wine holder (Plastic or wire)
(Optional)
Door rack (1piece or 2piece)
Shelf
Snack drawer (Optional)
Shelf (Folding or Normal)
Refreshment center (Optional)
Guide Pitcher
(Optional)
Door rack
Drawer (2 or 3)
Door rack
Lower cover
Door rack (1piece or 2piece)
(Optional)
Egg Box
Vegetable Drawer
(1 or 2)
Door Rack
Humidity switch
Extra Fresh (Optional)
Miracle Zone (Optional)
Fresh compartment
(Optional)
Conversion switch
(Meats/Vegetables)(Optional)
NOTE
•
Parts, features, and options vary by model. Your model may not include every option.
4
(Optional)
Introduction
*Dispenser model - Type 22
Automatic
Icemaker
Shelf or Drawer
Lamp
Shelf or Drawer
Drawer
Door rack
Drawer (2 or 3)
Door rack
Lower cover
Freezer
Compartment
Refrigerator
Compartment
Milk product corner
Lamp
Shelf
Wine holder (Plastic or wire)
Door Rack
Shelf
Can Server
(Optional)
Snack drawer (Optional)
Refreshment center (Optional)
Shelf (Folding or Normal)
Egg Box
Vegetable Drawer
(1 or 2)
Humidity switch
Miracle Zone (Optional)
Extra Fresh (Optional)
Fresh compartment (Optional)
Door Rack
Conversion switch
(Meats/Vegetables)(Optional)
Guide Pitcher
(Optional)
(Optional)
(Optional)
NOTE
•
Parts, features, and options vary by model. Your model may not include every option.
(Optional)
Automatic
Icemaker
Shelf
Lamp
Shelf
Drawer
Door Rack
Drawer
Door Rack
Lower Cover
*Dispenser model - Type 22
Freezer
Compartment
2
Refrigerator
Compartment
Milk product corner
Lamp
Door Rack
Shelf
Can Server
Wine holder
(Plastic or wire)
Refreshment center
(Optional)
Shelf (Folding or Normal)
Egg Box
Vegetable Drawer
Humidity Switch
Miracle Zone (Optional)
Extra Fresh (Optional)
Fresh compartment
(Optional)
Door Rack
Conversion switch
(Meats/Vegetables)
(Optional)
NOTE
•
Parts, features, and options vary by model. Your model may not include every option.
(Optional)
5
Where to Install
Installation
Select a good
location
Disposal of the
old appliance
1. Place your appliance where it is easy to
use.
2. Avoid placing the unit near heat sources,
direct sunlight or moisture.
3. To ensure proper air circulation around the
fridge -freezer, please maintain sufficient
space on both the sides as well as top and
maintain at least 2 inches (5 cm) from the
rear wall.
4. To avoid vibrations, the appliance must
be leveled.
5. Don't install the appliance below 5°C. It may cause affect the performance.
This appliance contains fluid (refrigerant, lubricant)and is made of parts and materials
which are reusable and/or recyclable.
All the important materials should be sent to the collection center of waste material
and can be reused after rework (recycling). For take back, please contact with the
local agency.
6
Installation
Warning
Remove lower
cover and
then feed water
tube
Remove the
freezer
compartment
door
Door removal
Electric Shock Hazard
Disconnect electrical supply to refrigerator before installing.
Failure to do so could result in death or serious injury.
If your access door is too narrow for the
refrigerator to pass through, remove the
refrigerator door and pass the refrigerator laterally.
Remove the lower cover by lifting upward, and
remove clip, and then pull up the feed water tube
while pressing area shown in the figure to the
right.
NOTE
•
If a tube end is deformed or abraded, cut the part away.
Hinge
1) Removing the hinge cover by loosening the
screws. Separate all connection wires except
for the earth line after.
Upper hinge
2) Remove the keeper by rotating it counter
)
clockwise (
hinge up (
and then lifting the upper
).
cover
Keeper
Feed water tube
Upper hinge
Lower cover
Connection
wires
Earth line
Remove the
refrigerator
door
NOTE
•
When removing the upper hinge, be careful that the door does not fall forwards .
3) Remove the freezer compartment door by
lifting it upward. This time, the door should
be lifted enough for the feed water pipe tube
to be completely pulled out.
Lower hinge
NOTE
•
Move the refrigerator compartment door passing through the access door and lay
it down, but be careful not to damage the feed water pipe tube.
1) Loosen the hinge cover screws and remove
the cover. Remove connection wire, if any,
except for the earth line.
Connection
wires
2) Remove keeper by rotating it clockwise ()
Upper hinge
Keeper
and then remove the upper hinge by lifting
it up ().
3) Remove the refrigerator compartment door
by lifting it up.
7
Lower hinge
Installation
1
2
345
M
a
x
FRZ
TEMP
REF
TEMP
Mi
n
5
4
3
2
1
Ma
x
Pass the
refrigerator
Before
installation
Pass the refrigerator laterally through the access
door as shown in the right figure.
Door replacement
Mount them in the reverse sequence of removal after they pass through the access
door.
Feed water pipe installation
(*Dispenser model only)
Automatic ice maker operation needs water pressure of 147~834 kPa (1.5~8.5
kgf/cm2) (That is, an instant paper cup (180 cc) will be fully filled within 3 sec.).
If water pressure does not reach the rating 147 kPa (1.5 kgf/cm2) or below, it is
necessary to purchase a separate pressure pump for normal automatic icing and
cool water feed.
Keep the total length of the feed water pipe tube within 8 m and be careful for the
tube not be bent. If the tube is 8 m or longer it may cause trouble in water feed
owing to the drain water pressure.
Install the feed water pipe tube at a place free from heat.
Warning
Connect to potable water supply only.
Refer to instructions with water filter kit for installation.
8
Installation
Height adjustment
If the freezer
compartment door
is lower than the
refrigerator
compartment door
If the freezer
compartment door
is higher than the
refrigerator
compartment door
Level the door by inserting flat (-type) driver into the groove of the left height adjusting
screw and rotate it clockwise ().
Level the door by inserting flat (-type) driver into the groove of the right height
adjusting screw and rotate it clockwise ().
After leveling the
door height
Next
The refrigerator doors will close smoothly by heightening the front side by adjusting
the height adjusting screw. If the doors do not close correctly, performance may be
affected.
1. Wipe off all dust accumulated during shipping and clean your appliance thoroughly.
2. Install accessories such as the ice cube box, cover evaporating tray, etc., in their
proper places. They are packed together to prevent possible damage during shipping.
3. Connect the power supply cord (or plug) to the outlet. Don't double up with other
appliances on the same outlet.
9
Operation
Optional
Type-1
Type-2
Function display board
Display Power Saving Mode
Refreshment Center
Refreshment Center
Button
Starting
When your refrigerator is first installed, allow it to stabilize at normal operating
temperatures for 2-3 hours prior to filling it with fresh or frozen foods.
If operation is interrupted, wait 5 minutes before restarting.
Adjusting the temperatures and functions
*Non dispenser model
10
Operation
*Dispenser model - Type 22
1
NOTE
•
Your model may not include every option.
11
Operation
FREEZER
REFRIGERATOR
Optional Type-1 Type-2
FRZ.TEMP.
REF.TEMP.
Optional Type-1 Type-2
Display power
saving
(on some model)
Freezer
control
Refrigerator
control
This function save the display power
Press the FREEZER and EXPRESS FRZ. buttons simultaneously and hold them for 5
seconds until the Ding sounds. All LED/LCDs will then turn ON, then OFF. When the
power saving mode is activated, the display will remain off until the next time the door
is opened. Then, it will come on whenever a door is opened or a button is pressed and
remain on for 20 seconds after the last door opening or button selection. To deactivate
the power saving mode, press the FREEZER and EXPRESS FRZ. buttons
simultaneously and hold them for 5 seconds until the Ding sounds.
You can adjust temperature of and freezer room and refrigerator room.
Middle(-190C)➔Middle strong(-220C)➔Strong(-230C)➔Weak(-150C)➔Middle weak(-170C)
Middle(3
The actual inner temperature varies depending on the food status, as the
indicated setting temperature is a target temperature, not actual temperature
within refrigerator.
Refrigeration function is weak in the initial time. Please adjust temperature as
above after using refrigerator for minimum 2~3 days.
0
C)➔Middle strong(20C)➔Strong(00C)➔Weak(60C)➔Middle weak(40C)
12
Operation
Display Power
Saving Mode
(hidden)
Refreshment Center
Button
Refreshment Center
*Dispenser model - Type 22
2
NOTE
•
Your model may not include every option.
•
The control display is operated by touch. Excessive moisture on the display may
cause a malfunction. Please keep display clean and dry.
13
Freezer Compartment
temperature adjustment
Setting
temperature
Setting
temperature
Refrigerator Compartment
temperature adjustment
How to adjust the
temperature in
the freezer
compartment
Operation
Display Power Saving Mode
This function places the display into power saving mode until the next time the door
is opened.
Press the FREEZER and EXPRESS FRZ. buttons simultaneously and hold them for 5
seconds until the Ding sounds. All LEDs will then turn ON, then OFF. When the
power saving mode is activated, the display will remain off until the next time the
door is opened. Then, it will come on whenever a door is opened or a button is
pressed and remain on for 20 seconds after the last door opening or button selection.
To deactivate the power saving mode, press the FREEZER and EXPRESS FRZ.
buttons simultaneously and hold them for 5 seconds until the Ding sounds.
You can adjust temperature of and freezer room and refrigerator room.
How to adjust the
temperature in
the refrigerator
compartment
❇ Whenever pressing button, setting is repeated in the order of (Weak)
(Middle Weak) ➔(Middle)➔(Middle Strong)➔(Strong).
The actual inner temperature varies depending on the food status, as the
indicated setting temperature is a target temperature, not actual temperature
within refrigerator.
Refrigeration function is weak in the initial time. Please adjust temperature as
above after using refrigerator for minimum 2~3 days.
➔
14
Operation
Power
Switch
Feeler Arm
Dispenser use
(on some model)
Automatic
icemaker
(on some model)
Select among crushed ice, water, and cubed ice and press the push switch with a
glass or other container.
Crushed Ice
Light the crushed ice
lamp by pressing the
selection button.
•
Reference : Hold your cup in place for a couple of seconds after dispensing ice or water so
the last few drops go in to your cup instead of the floor.
Light the water lamp by
pressing the selection
button.
Water
Cubed Ice
Light the cubed ice
lamp by pressing the
selection button.
The automatic icemaker can automatically make 6 cubes at a time, 50~60 pieces
per day. This quantity may vary by circumstance, including ambient temperature,
door opening, freezer load. etc.
Icemaking stops when the ice storage bin is full.
If you don't want to use the automatic icemaker, turn the icemaker switch to OFF.
If you want to use automatic icemaker again, change the switch to ON.
NOTE
•
It is normal that a noise is produced when ice drops into the ice storage bin.
WARNING
•
Do not insert your hands in to the Icemaker in operation. It may cause to injure you.
WARNING
•
Do not store ice (cubes) longer then two weeks.
15
Operation
LOCK
UNLOCK
LOCK
UNLOCK
<Type-1> <Type-2>
<Type-1> <Type-2>
On Off On Off
<Type-1> <Type-2>
On Off
<Type-1> <Type-2>
On Off
When ice maker
does not operate
smoothly
Express freezer
Ice is lumped together
When ice is lumped together, take the ice lumps out of the ice storage bin, break
them into small pieces, and then place them into the ice storage bin again.
When the ice maker produces too small or lumped together ice, the amount of
water supplied to the ice maker need to adjusted. Contact the service center.
❈
If ice is not used frequently, it may lump together.
Power failure
Ice may drop into the freezer compartment. Take the ice storage bin out and discard
all the ice then dry it and place it back. After the machine is powered again, crushed
ice will be automatically selected.
The unit is newly installed
It takes about 12 hours for a newly installed refrigerator to make ice in the freezer
compartment.
Please select this function for
prompt freezer.
OFF➝ ON➝ OFF is repeated
whenever pressing button.
The arrow mark graphic remains at the
On status after flickering 4 times when
selecting Special Refrigeration On.
Prompt freezer function automatically turns off after a fixed time passes.
Lock
Filter condition
(filter replacement
cycle) display
function
(on some model)
Dispenser light
(on some model)
This button stops operation of different button.
Locking or Release is repeated whenever
the is pressed more than
3 seconds.
If you use the lock button,
none of the other buttons will work
until you unlock them.
There is a replacement indicator light
for the water filter cartridge on the
dispenser.
The water filter should be replaced
every six months.
The filter light comes on to let you
know when to replace filter.
After replacing the filter, press and hold the filter button more than 3 seconds to reset
the indicator.
This button turn the dispenser light
in the dispenser on an off.
The dispenser light function is turned
ON or OFF by pressing Light/Filter
button.
16
Operation
The other
functions
How ice/cold
water is supplied
Cautions
Door open warning
3 times of warning sounds at the interval of 30 seconds if a minute passes with the
door of refrigerator and the hombar door opened or completely closed.
Please contact with the local service center if warning continue to sound even after
closing the door.
Diagnosis (failure detection) function
Diagnosis function automatically detects failure when failure is found in product during
the use of refrigerator.
If failure occurs at product, it does not operate though pressing any button and normal
indication is not done. In this case, do not turn power off but immediately contact with
the local service center. A lot of time are need for service engineer to detect the failed
part if turning it off.
Water is cooled while stored in the water tank in the refrigerator compartment, and
then sent to the dispenser.
Ice is made in the automatic ice maker and sent to the dispenser divided into crushed
or cubed form ice.
NOTE
•
It is normal that the water is not very cold at first. If you want colder water, add
ice into the glass.
Throw away the ice (about 20 pieces) and water (about 7 glasses) first made after
refrigerator installation.
The first ice and water may include particles or odor from the feed water pipe or feed
water box. This is necessary in case that the refrigerator has not been used for a long
time.
Keep children away from the dispenser.
Children may push switch incorrectly bad or damage lamps.
Be careful that food is not block the ice passage.
If foods are placed at the entrance of ice passage, ice may not be dispensed. The ice
passage may also be covered with ice powder if splinter ice is used only. This time,
remove the ice powder accumulated.
Never store beverage cans or other foods in ice storage bin for the purpose of
rapid cooling.
Such actions may damage the automatic ice maker.
Never use thin crystal glass or crockery to collect ice.
Such glasses or containers may be broken.
Put ice first into a glass before filling water or other beverages.
Water may be splashed if ice is added to existing liquid in a glass.
Never touch a hand or other tools on ice outlet.
Touch may cause a part breakage or hand injury.
Never remove the ice maker cover.
Sometimes level the surface so that the ice storage bin is fully filled with ice.
Ice is piled up just near the ice maker. So, such status may be considered, by the ice
maker, that the ice storage bin is fully filled and ice making operation may stop.
If discolored ice is dispensed, immediately contact service center, stopping use.
Never use too narrow or deep glass.
Ice may be jammed in ice passage and, thus, the refrigerator may be failed.
Keep the glass at a proper distance from ice outlet.
A glass too close to the outlet may hinder ice from coming out.
17
Operation
Refreshment center (Applicable to some models only)
How to use
Use the
refreshment
center door as a
stand
Never take out
the inner
refreshment
center cover
Open the refreshment center door.
You can access the refreshment center
without opening refrigerator door and thus
saving electricity.
Inner lamp is lit in refrigerator compartment
when the refreshment center door opens.
Thus it is easy to identify the contents.
Never use the refreshment center door as a
chopping board and take care not to damage it
with sharp tools.
Never rest your arms or severely press on it.
The
refreshment center
The
refreshment center
normally without the cover.
normally without the cover.
can not function
can not function
Only models with inner refreshment
center cover
Never place
heavy items on
the refreshment
center door or
allow children to
hang it on.
Not only can the refreshment center door may
be damaged, but also children may be hurt.
18
Operation
!
"
Shelf (Applicable to some models only)
Folding Shelf
Wine holder
adjustment
(Type 1)
You can store taller items such as a gallon container or bottles by simply pushing in
front half of shelf underneath back half of shelf. Pull toward you to return to a full shelf.
Wine holder (Applicable to some models only)
Bottles can be stored laterally with
this wine corner.
This can be attached to any shelf.
In case of inserting the wine holder :
Pull the wine holder downward as in
after inserting it into the side anchoring
part of the shelf as in by catching it
upward as in .
(Type 2)
In case of separating the wine holder :
Pull the wine holder inward as in ➃after
holding it upward as in ➂by catching it.
Bottles can be stored laterally with this
wine rack.
Egg box
NOTE
•
Never use the egg box as an ice storage bin. It can
be broken.
•
Never store the egg box in the freezer
compartment or fresh compartment.
19
Operation
HIGH
LOW
HIGH
LOW
HIGH LOW
HUMIDITY CONTROL
HIGH LOW
HUMIDITY CONTROL
Humidity control in the vegetable compartment
The humidity can be controlled by adjusting the humidity control switch to the
left/right when storing vegetables or fruits.
High humidity
Low humidity
Convert into a vegetable or meat compartment
(Applicable to some models only)
The bottom drawer in the refrigerator can be converted into a vegetable or meat
compartment
How to use the
deodorizing
system
The
meat
compartment maintains the temperature at a lower point than the
refrigerator compartment so that meat or fish can be stored fresh longer.
NOTE
•
Vegetables or fruits are frozen if the conversion switch is set to meats
compartment. So, be sure to check it before storing foods.
Deodorizer (Applicable to some models only)
This system efficiently absorbs strong
odors by using the optical catalyst. This
system does hot have any affect on
stored food.
Extra Fresh
Since it is installed already installed onto the cool air intake duct from the from
the refrigerator compartment, you need no separate installation.
Please use closed containers to store food with pungent odors.
Otherwise, this oder can be absorbed by other food in the compartment.
20
Operation
Extra Fresh Temperature Transition Corner
(Applicable to some models only)
By pressing the button, store vegetables,
fruits or other types of food such as meat to
be defrosted, raw sh, etc.
Temperature Change at Extra Fresh
(Applicable to some models only)
Method to Use
You can select optimum
temperature range depending on
types of foods stored.
- 3-step of temperature selection
including -3°C, -1°C and 4°C is
available. Vegetables/fruits and cold
storage foods requiring humidity
maintenance and meats/shes can
be more freshly stored depending on type of foods stored.
When using the Extra Fresh as storage room of meats, storing vegetables or fruits
may be frozen
When using the Extra Fresh as storage room of meats, keeping meats or shes
may be spoiled and thus meats or shes must be kept at the F-room.
If opening a door of the R-room, lamp turns on in the selected status and lamp turns
o if closing it.
(Vegetable/Fruit) (Cold storage while maintaining humidity) (Meat) is
sequentially repeated whenever pressing the "Selection" button.
Extra Fresh (Applicable to some models only)
When removing
Extra Fresh
When installing
Extra Fresh
First, remove the vegetable bin.
After lifting the Extra Fresh case slightly , reach
inside and pull it outward .
Fit the Extra Fresh case on to the ledge and
gently slide it in .
When forced, the connecting parts can be damaged.
21
Location of foods
(Refer to identification of parts)
Suggestion on food storage
Wine holder
Snack
drawer
Freezer
compartment
shelf
Freezer
compartment
door rack
Freezer
compartment
drawer
Milk product
corner
Egg box
Store wine.
Store small foods such as bread, snacks, etc..
Store various frozen foods such as meat, fish,
ice cream, frozen snacks, etc..
Store small packed frozen food.
Temperature is likely to increase as door
opens.
So, do not store long-term food such
ice cream, etc..
Store meat, fish, chicken, etc.. after
wrapping them with thin foil.
Store dry
Store milk products such as butter, cheese,
etc..
Place this egg box in the proper location.
.
Refreshment
center
Refrigerator
compartment
shelf
Refrigerator
compartment
door rack
Vegetable drawer
Vegetable
drawer
/meat
drawer
conversion corner
Store foods of frequent use such as beverage,
etc..
Store side dishes or other foods at a proper
distance.
Store small packed food or beverages such
as milk, juice, beer, etc..
Store vegetables or fruits.
Store vegetable, fruits, meat to thaw, raw
fish, etc.. setting the conversion switch as
necessary.
Be sure to check the conversion switch
setting before storing foods.
22
Suggestion on food storage
Storing foods
Store fresh food in the refrigerator compartment. How food is frozen and thawed is an
important factor in maintaining its freshness and flavor.
Do not store food which goes bad easily at low temperatures, such as bananas, and
melons.
Allow hot food to cool prior to storing, placing hot food in the refrigerator could spoil
other food, and lead to higher energy consumption.
When storing the food, cover it with vinyl wrap or store in a container with a lid. This
prevents moisture from evaporating, and helps food to keep its taste and nutrients.
Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator
temperatures even.
Do not open the door frequently. Opening the door lets warm air enter the refrigerator,
and cause temperatures to rise.
Never keep too much food in door rack because they may push against by inner racks
so that the door cannot be fully closed.
Freezer
compartment
Do not store bottles in the freezer compartment - they may break when frozen.
Do not refreeze food that has been thawed. This causes loss of taste and nutrient.
When storing frozen food like ice cream for a long period, place it on the freezer
shelf, not in the door rack.
Do not touch the cold foods or containers- especially made of metallic -, with wet
hands and place glass products in the freezer compartment.
- That’s why you may have chilblains and they may be broken when their inner matters
are frozen, causing personal injury.
Refrigerator
compartment
Avoid placing moist food in top refrigerator shelves, it could freeze from direct
contact with chilled air.
Always clean food prior to refrigeration. Vegetables and fruits should be washed and
wiped, and packed food should be wiped, to prevent adjacent food from spoiling.
When storing eggs in their storage rack or box, ensure that they are fresh, and always
store them in an upright position, which keeps them fresh longer.
NOTE
•
If you keep the refrigerator in a hot and humid place, frequent openning of the door
or storing a lot of vegetables in it may cause dew to form which has no effect on its
performance. Remove the dew with dust cloth free from care.
23
Care and maintenance
!
!
!
1
2
How to dismantle parts
NOTE
•
Dismantling is done in the reverse sequence of assembly.
Be sure to unplug the power plug before dismantling and assembly.
Never apply severe force to dismantle parts. Parts may be damaged.
Freezer
compartment
lamp
Freezer
compartment
shelf
Door rack and
support
Ice storage bin
Separate the lamp by pulling it out ➂
pressing
➀ and rotating ➁
the lamp cover.
while slightly
Turn the bulb counterclockwise. Use a 40-watt bulb
(max.) which
can be purchased at a service
center.
NOTE
•
Not all bulbs will fit your refrigerator.
Be sure to replace the bulb will one of the same size, shape and wattage.
•
The dispenser lights are LEDs that can not be changed.
To remove a shelf, push the shelf to the left ,
lift the left part of the shelf a bit ➀, lift the right
part up ➂ , and take it out.
Lift the door rack holding both sides and
pull it out .
Hold the ice storage bin as shown in the right
figure and pull it out while slightly lifting it .
Do not dismantle the ice storage bin unless
it is necessary.
Use both hands to remove the ice bin to avoid
dropping it.
After dispenser
is used
The water collector has no self-draining
function. It should be cleaned regularly.
Remove the cover by pulling the front side of
water collector cover and dry it with a cloth.
Pull the cover fully to the front ➀ and pull up
the rear end of the cover ➁ slightly to pull it out.
➂ Clean the floor and cover with a dry cloth.
24
Care and maintenance
Lamp in
refrigerator
compartment
Refreshment
center
Vegetable
compartment
cover
To remove the lamp cover, press the protrusion under the lamp cover to the front and
then pull the lamp cover out.
Turn the bulb counterclockwise. Max. 40 W bulb for refrigerator is used and can be
purchased at a service center.
Separate the bin () to upward.
Separate the upper rack of the refreshment
center and then pull out the refreshment
center cover ().
The refreshment center can be removed
by pulling it upwards.
NOTE
•
Be sure to remove parts from the refrigerator door when removing the vegetable
compartment,
To remove the vegetable compartment
snack drawer and refreshment center cover.
cover, pull out the vegetable compartment
a bit to the front , lift the front part of the
vegetable compartment cover as shown by
, and take it out.
25
0 0 Suggestion on food storage
General information
Care and maintenance
Vacation time
Power failure
If you move
Anti
condensation
pipe
During average length vacations, you will probably find it best to leave the refrigerator
in operation. Place freezable items in freezer for longer life.
When you plan not to operate, remove all food, disconnect the power cord, clean the
interior thoroughly, and leave each door OPEN to prevent odor formation.
Most power failures that are corrected in an hour or two will not affect your
refrigerator temperatures.
However, you should minimize the number of door openings while the power is off.
Remove or securely fasten down all loose items inside the refrigerator.
To avoid damaging the height adjusting screws, turn them all the way into the base.
The outside wall of the refrigerator cabinet may sometimes get warm, especially just
after installation.
Don’t be alarmed. This is due to the anti-condensation pipe, which pumps hot
refrigerator to prevent “sweating” on the outer cabinet wall.
Cleaning
It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled
food should be wiped up immediately, since it may acidify and stain plastic surfaces if
allowed to settle.
Exterior
Interior
After cleaning
Warning
Use a lukewarm solution of mild soap or detergent to clean the durable finish of your
refrigerator.
Wipe with a clean damp cloth and then dry.
Regular cleaning is recommended. Wash all compartments a baking soda solution or a
mild detergent and warm water. Rinse and dry.
Please verify that the power cord is not damaged, power plug is not overheated, or
power plug is well inserted into the power consent.
Always remove power cord from the wall outlet prior to cleaning in the vicinity of
electrical parts (lamps, switches, controls, etc.).
Wipe up excess moisture with a sponge or cloth to prevent water or liquid from
getting into any electrical part and causing an electric shock.
Never use metallic scouring pads, brushes, coarse abrasive cleaners, strong alkaline
solutions, flammable or toxic cleaning liquids on any surface.
Do not touch frozen surfaces with wet or damp hands, because damp object will stick
or adhere to extremely cold surfaces.
26
Care and maintenance
Trouble shooting
Before calling for service, review this list. It may save you both time and expense.
This list includes common occurrences that are not the result of defective
workmanship or materials in this appliance.
Occurrence
Runing of
refrigerator
Refrigerator
compressor
does not run.
Refrigerator
runs too much
or too long
Possible cause
Refrigerator control is off.
Refrigerator is in defrost cycle.
Plug at wall outlet is disconnected.
Power outage. Check house lights.
Refrigerator is larger than the previous
one you owned.
Room or outside weather is hot.
Refrigerator has recently been
disconnected for a period of time.
Large amounts of warm or hot food
may have been stored recently.
Doors are opened too frequently or too
long.
Refrigerator or freezer door may be
slightly open.
Refrigerator control is set too cold.
Solution
Set refrigerator control. See setting the
controls.
This is normal for a fully automatic
defrosting refrigerator. The defrost
cycle occurs periodically.
Make sure plug is tightly pushed into
outlet.
Call local electric company.
This is normal. Larger, more efficient
units run longer in these conditions.
It is normal for the refrigerator to work
longer under these conditions.
It takes some hours for the refrigerator
to cool down completely.
Warm food will cause the refrigerator to
run longer until the desired temperature
is reached.
Warm air entering the refrigerator
causes it to run longer. Open the door
less often.
Make sure the refrigerator is level.
Keep food and containers from
blocking door. See problem section.
OPENING/CLOSING of doors.
Set the refrigerator control to a
warmer setting until the refrigerator
temperature is satisfactory.
Refrigerator or freezer gasket is dirty,
worn, cracked, or poorly fitted.
Thermostat is keeping the refrigerator
at a constant temperature.
27
Clean or change gasket. Leaks in the
door seal will cause refrigerator to run
longer in order to maintain desired
temperatures.
This is normal. Refrigerator goes on
off to keep the temperature constant.
and
Care and maintenance
Occurrence
Refrigerator
compressor
does not run.
Temperatures are
too cold
Temperature in the
freezer is too cold
but the refrigerator
temperature is
satisfactory.
Temperature in the
refrigerator is too
cold and the
freezer
temperature
is satisfactory.
Food stored in
drawers freezes.
Meat stored in
fresh meat
drawer freezes.
Temperatures
are too warm
Possible cause
Thermostat is keeping the refrigerator
at a constant temperature.
Freezer control is set too cold
Refrigerator control is set too cold.
Refrigerator control is set too cold.
Meat should be stored at a temperature
just below the freezing point of water
0˚C) for maximum fresh storage time.
(32˚F,
Solution
This is normal. The refrigerator goes on
and off to keep the temperature constant.
Set the freezer control to a warmer
setting until the freezer temperature is
satisfactory.
Set the refrigerator control to a
warmer setting
See above solution.
It is normal for ice crystals to form due
to the moisture content of meat.
Temperatures in
the refrigerator
or freezer are
too warm.
Temperature in the
refrigerator
is too warm but
the freezer
temperature is
satisfactory.
Freezer control is set too warm.
Refrigerator control is set too warm.
Refrigerator control has some effect on
freezer temperature.
Doors are opened too frequently or too
long.
Door is slightly open.
Large amounts of warm or hot food
may have been stored recently.
Refrigerator has recently been
disconnected for a period of time.
Refrigerator control is set too warm.
Set the freezer or refrigerator control to
a colder setting until the freezer or
refrigerator temperature is satisfactory.
Set the freezer or refrigerator control to a
colder setting until the freezer or
refrigerator temperature is satisfactory.
Warm air enters the refrigerator/ freezer
whenever the door is opened.
Open the door less often.
Close the door completely.
Wait until the refrigerator or freezer
has a chance to reach its selected
temperature.
A refrigerator requires some hours to
cool down completely.
Set the refrigerator control to a colder
setting.
28
Care and maintenance
Occurrence
Sound and noise
Louder sound
levels when
refrigerator is on.
Louder sound
levels when
compressor
comes on.
Vibrating or
rattling noise.
Possible cause
Today’s refrigerators have increased
storage capacity and maintain more
even temperatures.
Refrigerator operates at higher pressures
during the start of the ON cycle.
Floor is uneven or weak.
Refrigerator rocks on the floor when it is
moved slightly.
Items placed on the top of the refrigerator
are vibrating.
Dishes are vibrating on the shelves in
the refrigerator.
Refrigerator is touching wall or cabinets.
Solution
It is normal for sound levels to be higher.
This is normal. The sound will level off as
the refrigerator continues to run.
Be sure floor is level and solid and can
adequately support refrigerator.
Remove items.
It is normal for dishes to vibrate slightly.
Move dishes slightly.
Make sure refrigerator is level and firmly
set on floor.
Move refrigerator so that it does not
touch the wall or refrigerator.
Water/Moisture
/Ice inside
refrigerator
Moisture collects
on the inside walls
of the refrigerator.
Water/Moisture
/Ice outside
refrigerator
Moisture forms
on the outside of
the refrigerator
or between doors.
The weather is hot and humid which
increases the rate of frost buildup
and internal sweating.
Door is slightly open.
Door is opened too often or too long.
Weather is humid.
Door is slightly open,causing cold air
from the inside the refrigerator to meet
warm air from the outside.
This is normal.
See problem section opening/closing of
doors.
Open the door less often.
This is normal in humid weather.
When humidity is lower, the moisture
should disappear.
This time, close the door completely.
29
Care and maintenance
Occurrence
Odors in refrigerator
Opening/Closing of
doors/Drawers
Door(s) will not
close.
Door(s) will not
close.
Possible cause
Interior needs to be cleaned.
Food with strong odor is in the refrigerator.
Some containers and wrapping materials
produce odors.
Food package is keeping door open.
Door was closed too hard, causing other
door to open slightly.
Refrigerator is not level. It rocks on the
floor when it is moved slightly.
Floor is uneven or weak.
Refrigerator rocks on the floor when it
is moved slightly.
Solution
Clean interior with sponge,warm water
and baking soda.
Cover food completely.
Use a different container or brand of
wrapping
Move packages that keep door from
closing.
Close both doors gently.
Adjust the height adjusting screw.
Be sure floor is level and can adequately
support refrigerator.
Contact carpenter to correct sagging or
sloping floor.
materials
.
Drawers are
difficult to move.
Dispenser
Dispenser will not
dispense ice
Refrigerator is touching wall or cabinets.
Food is touching shelf on top of the
drawer
Track that drawer slides on is dirty.
Ice storage bin is empty.
Freezer temperature is set too warm.
Household water line valve is not open.
Refrigerator or freezer door is not
closed.
Move refrigerator.
Keep less food in drawer.
Clean drawer and track.
When the first supply of ice is dropped
into the bin, the dispenser should operate.
Turn the freezer control to a higher
setting so that ice cubes will be made.
When the first supply of ice is made,
the dispenser should operate.
Open household water line valve and
allow sufficient time for ice to be made.
When ice is made, dispenser should
operate.
Be sure both doors are closed.
.
30
Care and maintenance
Occurrence
Dispenser will
dispense
not
ice.
Ice dispenser
is jammed.
Dispenser will
not dispense
water.
Water has an
odd taste
and/or odor.
Possible cause
Ice has melted and frozen around auger
due to infrequent use, temperature
fluctuations and/or power outrages.
Ice cubes are jammed between the ice
maker arm and back of the bin.
Ice cubes are frozen together.
Ice cubes that have been purchased or
made in some other way have been
used in the dispenser.
Household water line valve is not open.
See problem “Ice maker is not making
any ice.”
Refrigerator or freezer door is not closed.
Water has been in the tank for too long.
Solution
Remove ice storage bin, and thaw and
the contents. Clean bin, wipe dry and
replace in proper position.
When new ice is made, dispenser should
operate.
Remove the ice cubes that are jamming
the dispenser.
Use the dispenser often so that cubes do
not freeze together.
Only the ice cubes made by the ice maker
should be used with the dispenser.
Open household water line valve.
Be sure both doors are closed.
Draw and discard 7 glasses of water
to freshen the supply. Draw and discard
an additional 7 glasses to completely rinse
out tank.
Sound of ice
dropping
Sound of water
supply
Other
Unit not properly connected to cold
water line.
Connect unit to cold water line which
supplies water to kitchen faucet.
This sound is normally made when automatically made ice is dropped into ice storage
bin. Volume may vary according to refrigerator’s location.
This sound is normally made when ice maker is supplied with water after dropping
the automatically made ice.
Please thoroughly read ‘Automatic ice maker and dispenser’ in this manual.
DISPOSAL OF YOUR OLD APPLIANCE
1. When this crossed-out wheeled bin symbol is attached to a
product it means the product is covered by the European Directive
2002/96/EC.
All electrical and electronic products should be disposed of separately
2.
from the municipal waste stream via designated collection facilities
appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance,
please contact your city office, waste disposal service or the shop
where you purchased the product.
31
(Optional).
Optional
32
Loading...
