Smeg PV664LCNXAU Technical sheet

PV664LCNXAU

Hob, Dolce Stil Novo, Gas, 65 cm, Traditional

TYPE

Product Family: Hob • Dimensions: 65 cm • Type: Gas • Built-in type: Traditional • Power supply: Gas • EAN code:

8017709258047

AESTHETICS

Colour: Black • Finishing: Glass • Aesthetics: Dolce Stil Novo • Components finishing: Stainless Steel • Material: Glass • Glass

type: Ceramic • Controls colour: Black • Type of control setting: Control knobs • Control knob position: Front • No. of controls: 4 •

Glass on Steel: Yes • Pan stands: Cast iron • Burner Coating: Black Ceram • Serigraphy colour: Grey

PROGRAMS / FUNCTIONS

Total no. of cook zones: 4 • No. of gas cook zones: 4

OPTIONS

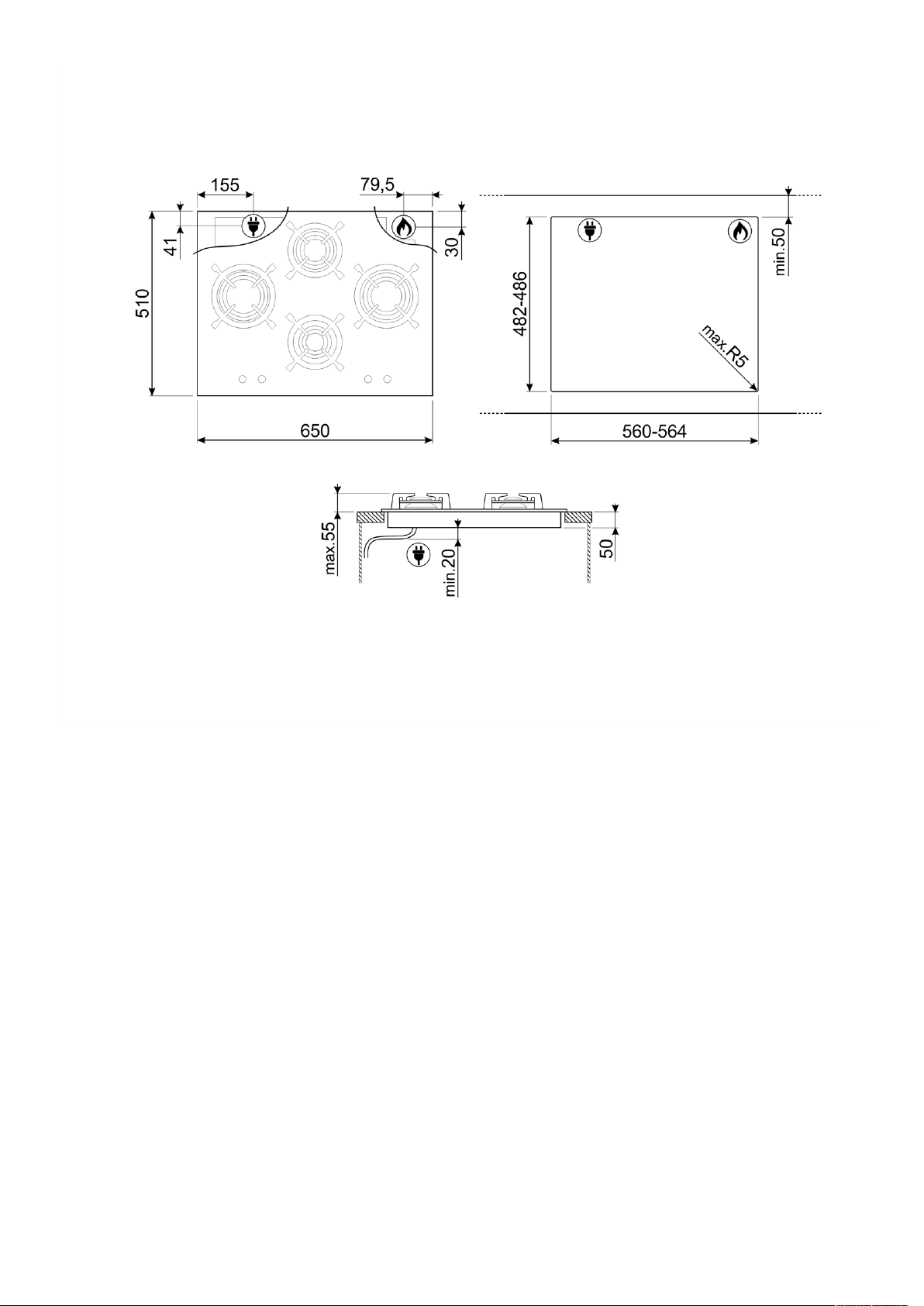

Standard cut out: 482-486x560-564 mm

Smeg Australia, 2-8 Baker St, Banksmeadow NSW 2019

COOKING ZONES

1st zone position: Left • 2nd zone position: Rear-centre • 3rd zone position: Front-centre • 4th zone position: Right • 1st zone

type: Gas - Rapid • 2nd zone type: Gas - Semi Rapid • 3rd zone type: Gas - AUX • 4th zone tipe: Gas - Rapid • 1st zone power:

3.10 kW • 2nd zone power: 1.70 kW • 3rd zone power: 1.10 kW • 4th zone power: 2.60 kW

TECHNICAL FEATURES

Gas Type: G20 Natural gas • Gas safety valves: Yes • Automatic Ignition: Yes

PERFORMANCE / ENERGY LABEL

ELECTRICAL CONNECTION

Gas connection rating (W): 8361.11 W • Electrical connection rating (W): 1 W • Voltage (V): 220-240 V • Frequency (Hz): 50/60

Hz • Type of electric cable: Single phase • Power supply cable length: 120 cm

LOGISTIC INFORMATION

Dimensions of the product (mm): 102x650x510 • Depth (mm): 510 mm • Width (mm): 650 mm • Product Height (mm): 102 mm

ACCESSORIES INCLUDED

Other gas nozzles included: G30 GPL Liquid gasOther gas connections provided: Cylindrical
