Smeg PV631CNX Technical sheet

PV631CNX

Hob, Aesthetics: Dolce Stil Novo, Gas, 38 cm, Black, Built-in type: Traditional

TYPE

Product Family: Hob • Dimensions: 38 cm • Type: Gas • Built-in type: Traditional • Power supply: Gas • EAN code:

8017709221997

AESTHETICS

Colour: Black • Finishing: Glass • Aesthetics: Dolce Stil Novo • Components finishing: Stainless Steel • Material: Glass • Glass

type: Ceramic • Controls colour: Black • Type of control setting: Control knobs • Control knob position: Front • No. of controls: 1 •

Glass on Steel: Yes • Pan stands: Cast iron • Burner Coating: Black Ceram • Serigraphy colour: Grey

PROGRAMS / FUNCTIONS

Total no. of cook zones: 1 • No. of gas cook zones: 1

OPTIONS

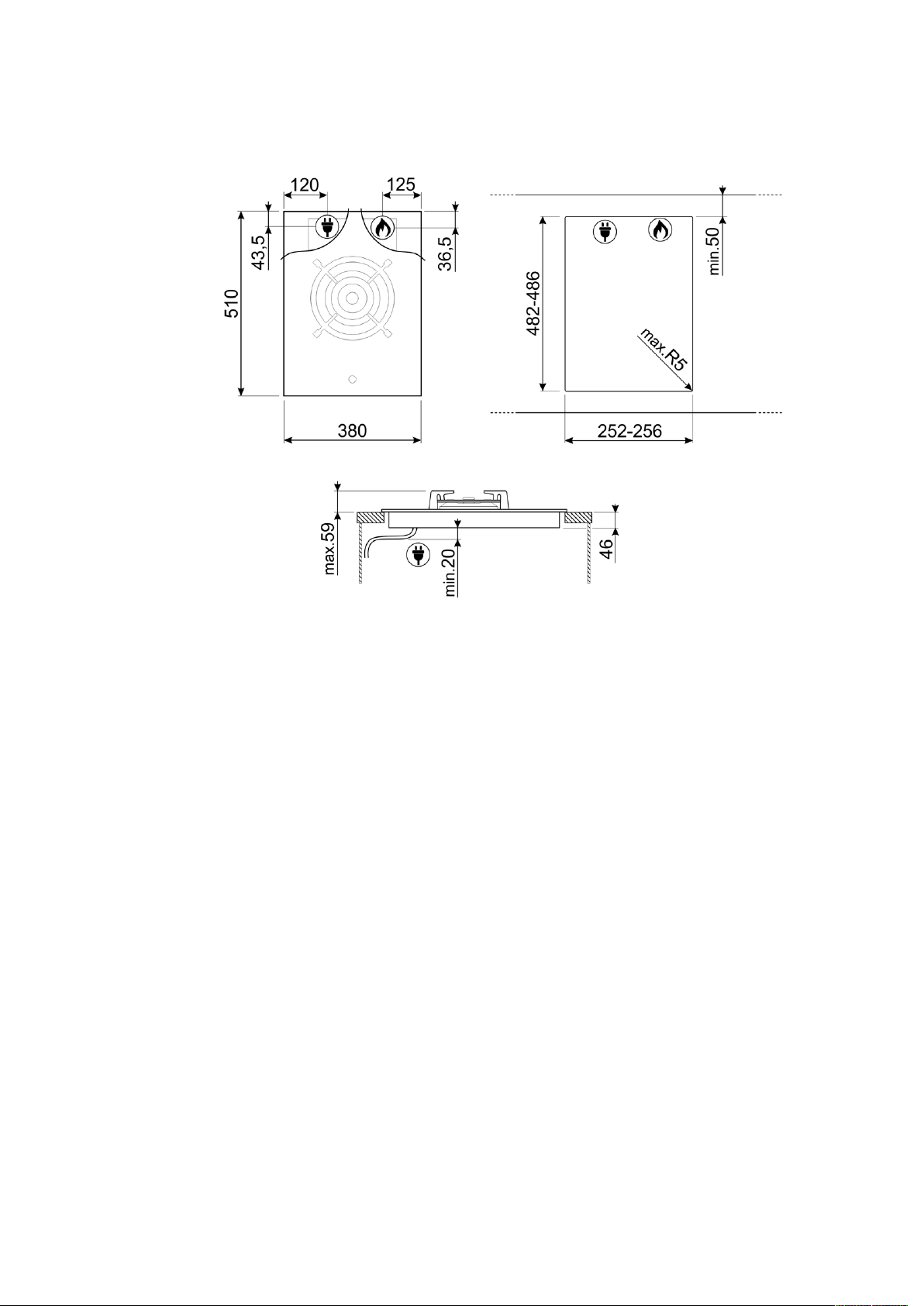

Worktop Cut-Out: 482-486x252-256 mm

COOKING ZONES

1st zone position: Central • 1st zone type: Gas - UR • 1st zone power: 6.00 kW

TECHNICAL FEATURES

Gas Type: G20 Natural gas • Gas safety valves: Yes • Automatic Ignition: Yes

PERFORMANCE / ENERGY LABEL

ELECTRICAL CONNECTION

Gas connection rating (W): 6000 W • Electrical connection rating (W): 1 W • Voltage (V): 220-240 V • Frequency (Hz): 50/60 Hz

• Power supply cable length: 120 cm

LOGISTIC INFORMATION

Dimensions of the product (mm): 102x380x510 • Depth: 510 mm • Width: 380 mm • Product Height: 102 mm

ACCESSORIES INCLUDED

Cast iron wok support: 1Other gas nozzles included: G30 GPL Liquid gasOther gas connections provided: Conical

OPTIONAL

LGCN: Connecting Strip, HobsGRM: Reduction Grid, Cookers, HobsGRW: Reduction Grid, HobsWOKGHU: Reduction Grid,

Cookers, Hobs
