Smeg PV175CN2AU Technical sheet

PV175CN2AU

Hob, Linea, Gas, 70/75 cm, Ultra-low profile

TYPE

Product Family: Hob • Dimensions: 70/75 cm • Type: Gas • Built-in type: Ultra-low profile • Power supply: Mixed • EAN code:

8017709268893

AESTHETICS

Colour: Black • Finishing: Glass • Aesthetics: Linea • Material: Glass • Glass type: Ceramic • Controls colour: Steel effect • Type

of control setting: Control knobs • Control knob position: Front • No. of controls: 5 • Glass edge: Straight edge • Glass on Steel:

Yes • Pan stands: Cast iron • Burners: Vertical flame, flat design • Burners Material: Alluminium • Serigraphy colour: White

PROGRAMS / FUNCTIONS

Total no. of cook zones: 5 • No. of gas cook zones: 5

OPTIONS

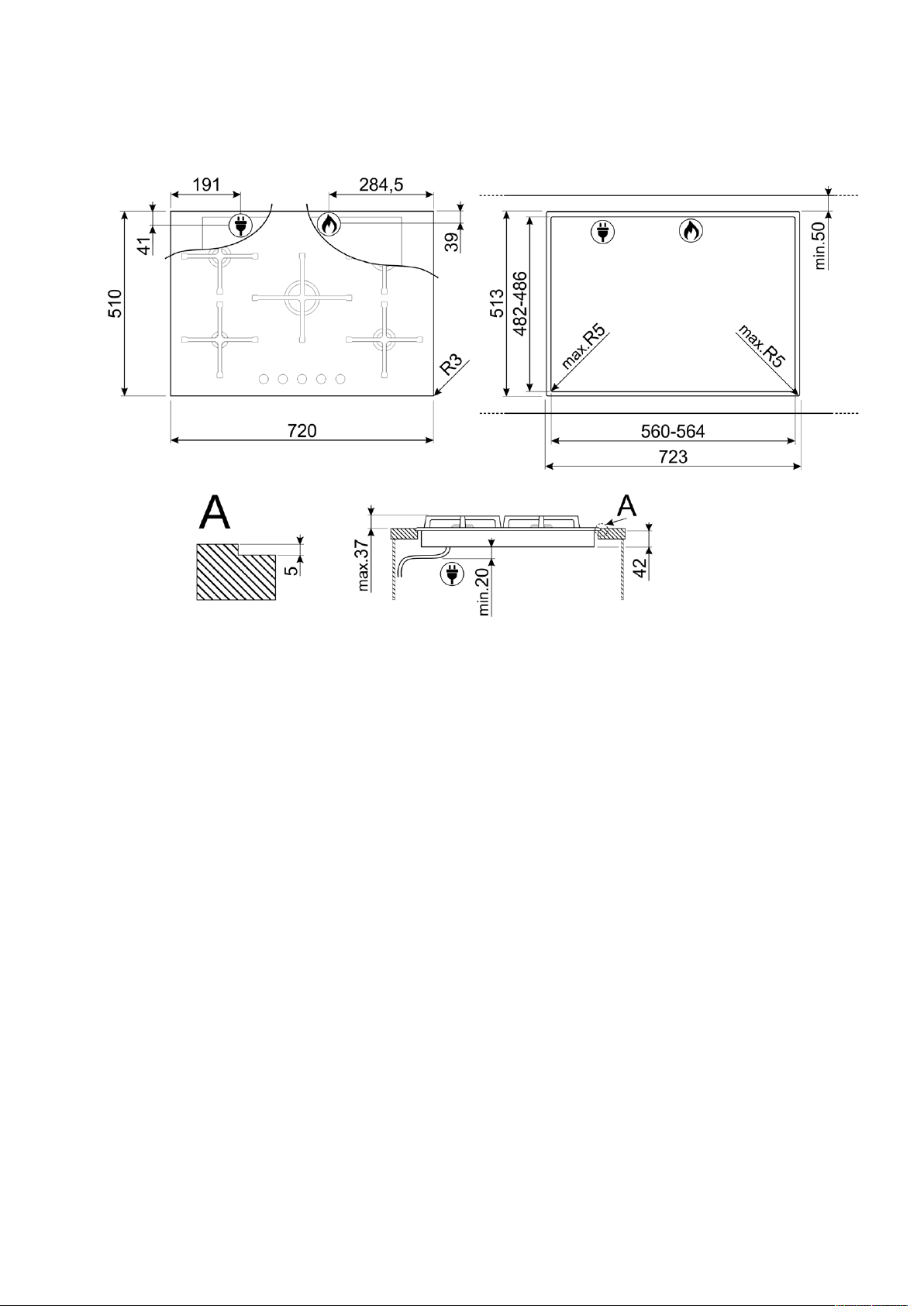

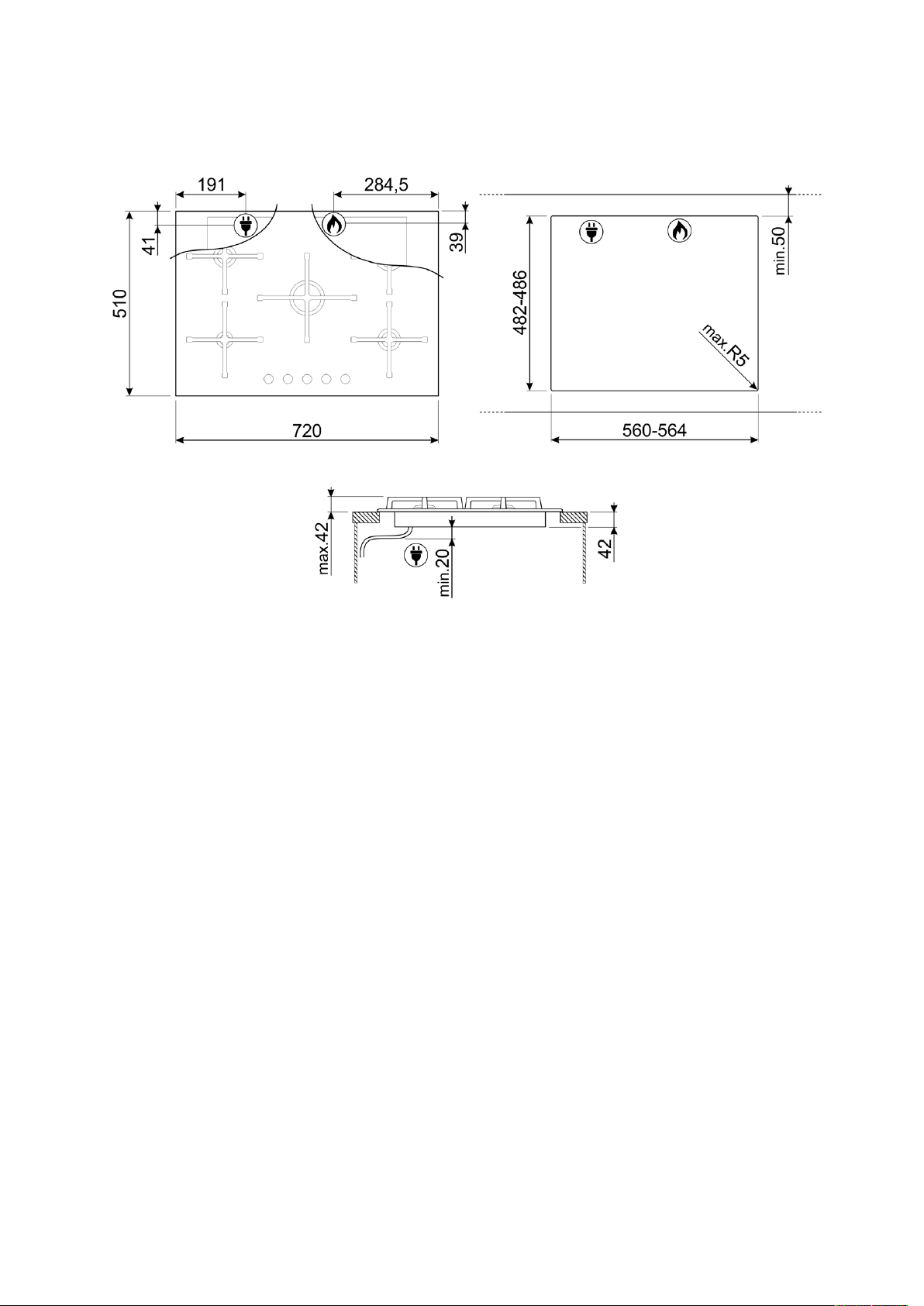

Standard cut out: 482-486x560-564 mm

Smeg Australia, 2-8 Baker St, Banksmeadow NSW 2019

COOKING ZONES

1st zone position: Front-left • 2nd zone position: Rear-left • 3rd zone position: Central • 4th zone position: Rear-right • 5th zone

position: Front-right • 1st zone type: Gas - AUX • 2nd zone type: Gas - Semi Rapid • 3rd zone type: Gas - UR • 4th zone tipe:

Gas - Rapid • 5th zone type: Gas - Semi Rapid • 1st zone power: 1.10 kW • 2nd zone power: 1.70 kW • 3rd zone power: 3.50

kW • 4th zone power: 2.60 kW • 5th zone power: 1.70 kW

TECHNICAL FEATURES

Gas Type: G20 Natural gas • Gas safety valves: Yes • Automatic Ignition: Yes

ELECTRICAL CONNECTION

Gas connection rating (W): 11333.3 W • Electrical connection rating (W): 1 W • Voltage (V): 220-240 V • Frequency (Hz): 50/60

Hz • Type of electric cable: Single phase • Power supply cable length: 120 cm

ALSO AVAILABLE

LOGISTIC INFORMATION

Dimensions of the product (mm): 48x720x510 • Depth (mm): 510 mm • Width (mm): 720 mm • Product Height (mm): 48 mm

ACCESSORIES INCLUDED

Other gas nozzles included: G30 GPL Liquid gasOther gas connections provided: Conical
