Cleaning
Warning: Before cleaning, please ensure that the power is
switched off by detaching the plug from the wall socket.
10.1 Clean the surface of hood every week with mild soap
or detergent . Avoid solvents, acid, alkali, scouring pads
or powders that could irreparably damage the stainless
steel surface.
10.2 The grease filters may be washed using mild soap,
detergent or degreasing agent.
10.3 Charcoal filters cannot be cleaned and must be generally replaced after 6 months of use.
& Maintenance
PUM60X&PUM90X
RANGE HOOD
INSTRUCTION MANUAL
Thank you for your purchase of this product. Please read the
manual carefully before operating the appliance.
Power Supply
220V~240V 50Hz
Rated Input Power
140W
Lighting Power
2W×1
Motor Power
138W
Outlet Diameter
150mm
Power Supply
220V~240V 50Hz
Rated Input Power
142W
Lighting Power
2W×2
Motor Power
138W
Outlet Diameter
150mm
Installation Diagram
Specifications
PUM60X
PUM90X
Electrical
PUM60X
PUM90X
Diagram
Contents
I
ntr
oduction…
Feature
Installat
s
……………………………
io
n……
Charcoal filter (Optiona
How To
Use
Lamp Change…………………….
Safety Inf
ormatio
Trouble Shooting……………….
Electrical Diagram
Specifications
Cleaning
& Maintenanc
……………………
………………….
l)…
….1
.....2
………
…………………………
.…6
n……
…………
….7
.….8
……………
……………………
e
…………
..…..9
….10
...2
.4
..
5
.
11
Problem
Cause
Solution
Light on, but motor
does not work
The outlet valve is blocked
Detach flue and duct then
turn on the hood to check if
the valve opens
The capacitor has failed
Call for technical service
The control switch has
failed
Call for technical service
Light does not work,
motor does not work
No power supply
Plug another appliance into
the socket to confirm there is
power supply
Vibration
The propeller is damaged or
unbalanced
Call for technical service
The hood is not installed
correctly
Review the installation instructions & check the installation again for loose screws,
brackets or connections
Insufficient suction
effect
The distance between the
hood and the cooker is too
high.
Check that the distance is
between 650mm to 700mm
The filters are saturated
Clean the grease filters
regularly and replace the
charcoal filters every 6 months.
Introductio
n
1.1 This appliance has been manufactured with materials
and processes that respect the environment. We hope that
you will continue this important consideration in the operation of this appliance & the disposal of the packaging materials, thank you.
1.2 The installation work must be undertaken by a qualified
technician experienced in cooker hood installation. Please
connect the correct power rating (see page 6).
1.3 The manufacturer disclaims all liability for any damage
or injury caused as a result of not following the instructions
for installation contained in the following text.
1.4 The appliance is not intended for use by young children
or infirm persons without supervision.
1.5 Young children should be supervised to ensure that they
do not play with the appliance.
1.6 The maximum number of burners covered by range hood
should not exceed 5.
1.7 Any modifications to the appliance, electric wire and
plug is dangerous & voids the warranty.
Trouble
Shooting
If any problem occurs, please detach the plug from the socket and contact the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
Safety
◆ There must permanent & adequate ventilation of the room
Information
when operating the range hood with appliances burning
gas or other fuels.
◆ Do not check the status of the filters when the range hood
is operating, wait at least 30 minutes after switching off to
avoid scalding.
◆ Do not touch the (Halogen) light within 30 minutes after
appliance use.
◆ Avoid operating a gas cooker when there is no pan on the
stove, it is a fire hazard and may cause damage to the
hood filters.
◆ Disconnect the electrical plug prior to any maintenance.
◆ This appliance is not intended for use by young children
and persons unless they have been adequately supervised
by a responsible person to ensure that they can use the
appliance safely.
◆ The range hood is for home use only and is not suitable
for outdoor, barbecue, and other comm ercial applications.
◆ The range hood and its filter should be cleaned regularly
for best performance.
◆ Before cleaning, please confirm that the power is
switched off.
◆ Building regulations concerning the discharge of exhaust
air have to be fulfilled.
◆ Don’t cook with an open flame under the range hood.
◆ For any technical issues ensure that a suitably qualified
person effects any repairs or inspection.
Features
2.1 This appliance is manufactured from top quality materials,
and offers superb streamlined effects.
2.2 With high suction power and low noise, it is designed to
remove cooking fumes from your kitchen quietly & effectively.
Installation（duct

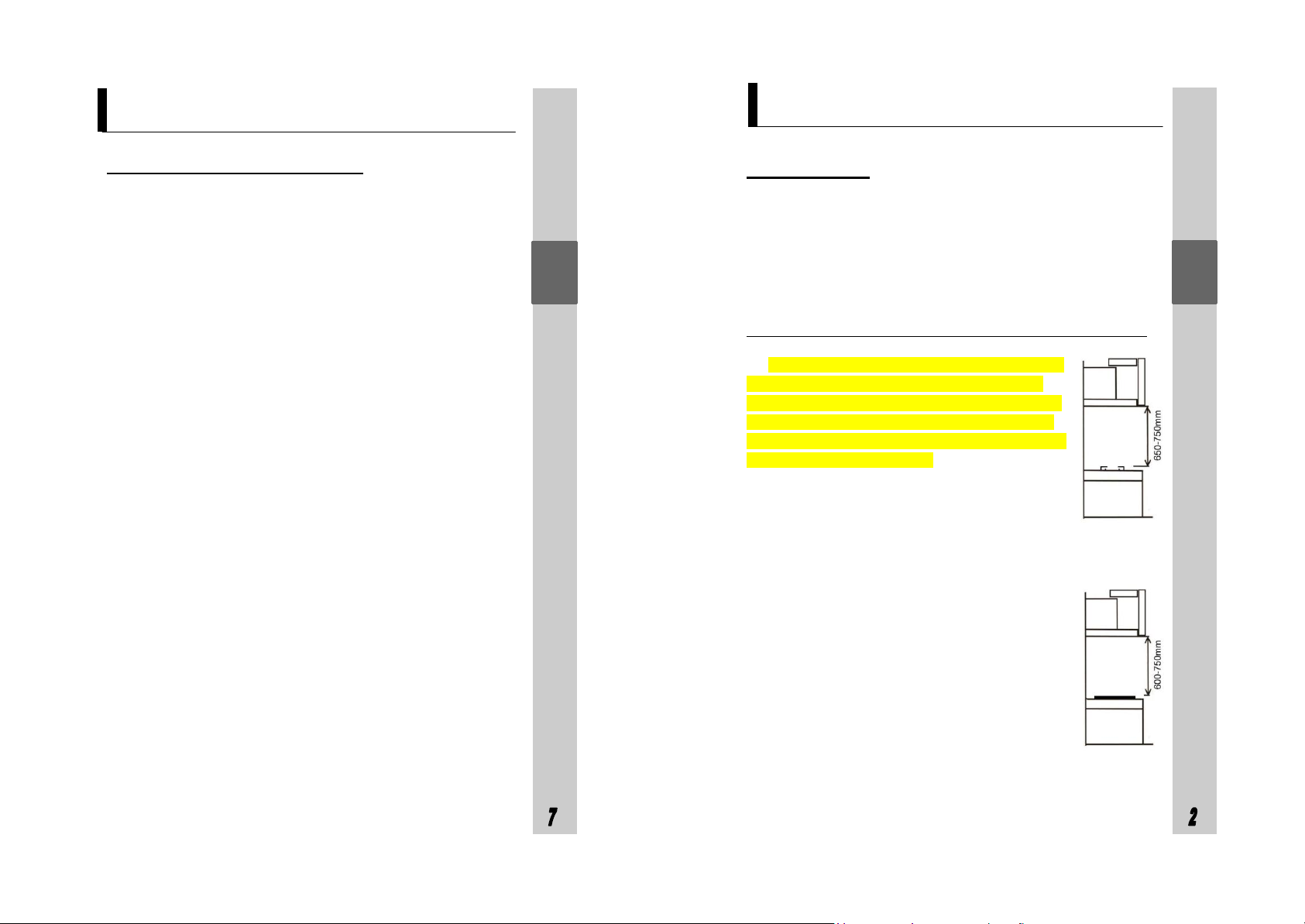

3.1 The clearance between the highest part of the highest
burner of a multi-burner gas cooking appliance and a
range hood or exhaust fan (overhead clearance), shall be
no less than 650mm for the range hood and 750mm for
an exhaust fan (pic.1a) and no less than 600mm above an
electric cooking product (pic.1b). The exhaust air must
not be discharged into a flue which is used for exhausting
fumes from other appliances burning gas or other fuels.
3.2 To install, drill 2 holes of Ø8mm on a sturdy wall
and in line with the hood.
3.3 Insert expending screws into the holes.
3.4 Fix drilling template on the wall (see pic 2).
3.5 The appliance should be embedded into the wall unit
or another support. This process should be carried out by
4 screws suitable for the kind of unit following the
instructions for the drilling of the holes as shown in (see
pic 3).
3.6 Attach the duct to the one way valve, and connect
it to the kitchen outlet vent (see pic 4).
is not supplied)
pic 1a (gas
product)
pic 1b
(electric
product)
pic 2
pic 3
pic 4
pic 5

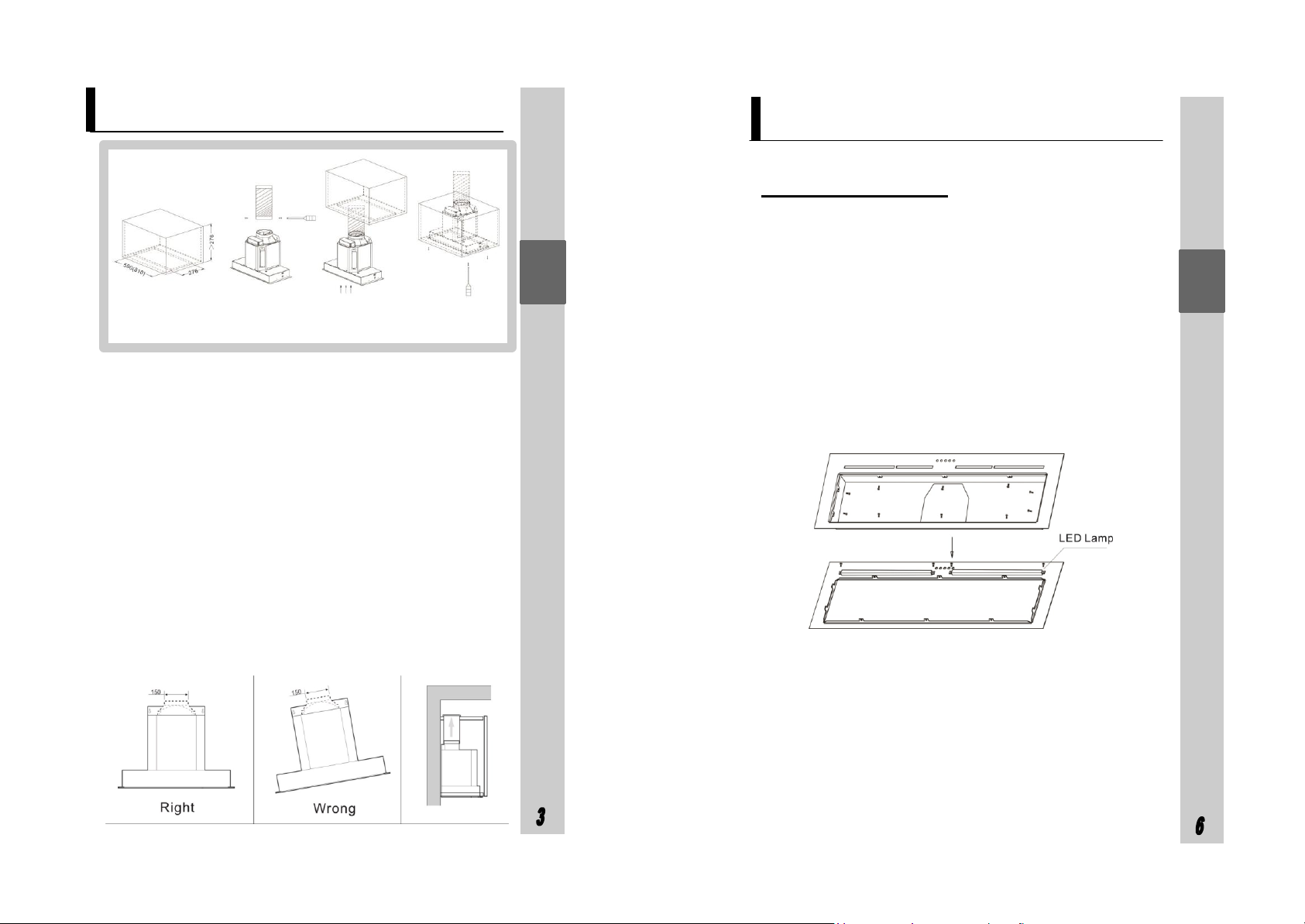

3.7 Ensure that the wall to be installed on is sufficiently
sturdy to carry the weight of the hood. It should be mounted level for best performance (see illustration).
3.8 Do not connect to a common vent with other appliance
such as gas heater, water heater, laundry dryer etc.
3.9 The duct should not be bent more than ≥120°from the
one way valve outlet to the kitchen vent.
3.10 Check to make sure that the electric chord is not in
contact with sharp edges of the appliance.
3.11 Be sure that the plug is accessible after installation.
Warning: Failure to install the screws or fixing device
in accordance with these instructions may result in electrical hazards.
Lamp Change
As with any maintenance on the appliance, first turn off the
power supply by unplugging from the wall socket.
1.Remove the filters from the appliance.
2.Unload the screws on the stainless steel hood panel.
3.Remove the stainless steel panel before changing the lamp
(see pic 12).
4.Change the lamp (LED Lamp Max.2W) and then reinstall
in the reverse manner.
pic 12
3
3
3
S
S
S
p
p
p
e
e
e
e
e
e
d
d
d
a
a
a
d
d
d
j
j
j
u
u
u
s
s
s
t
t
t
m
m
m
e
e
e
n
n
n
t
t
t
(
(
(
s
s
s
e
e
e
e
e
e
p
p
p
i
i
i
c
c
c
1
1
1
1
1
1
)
)
)

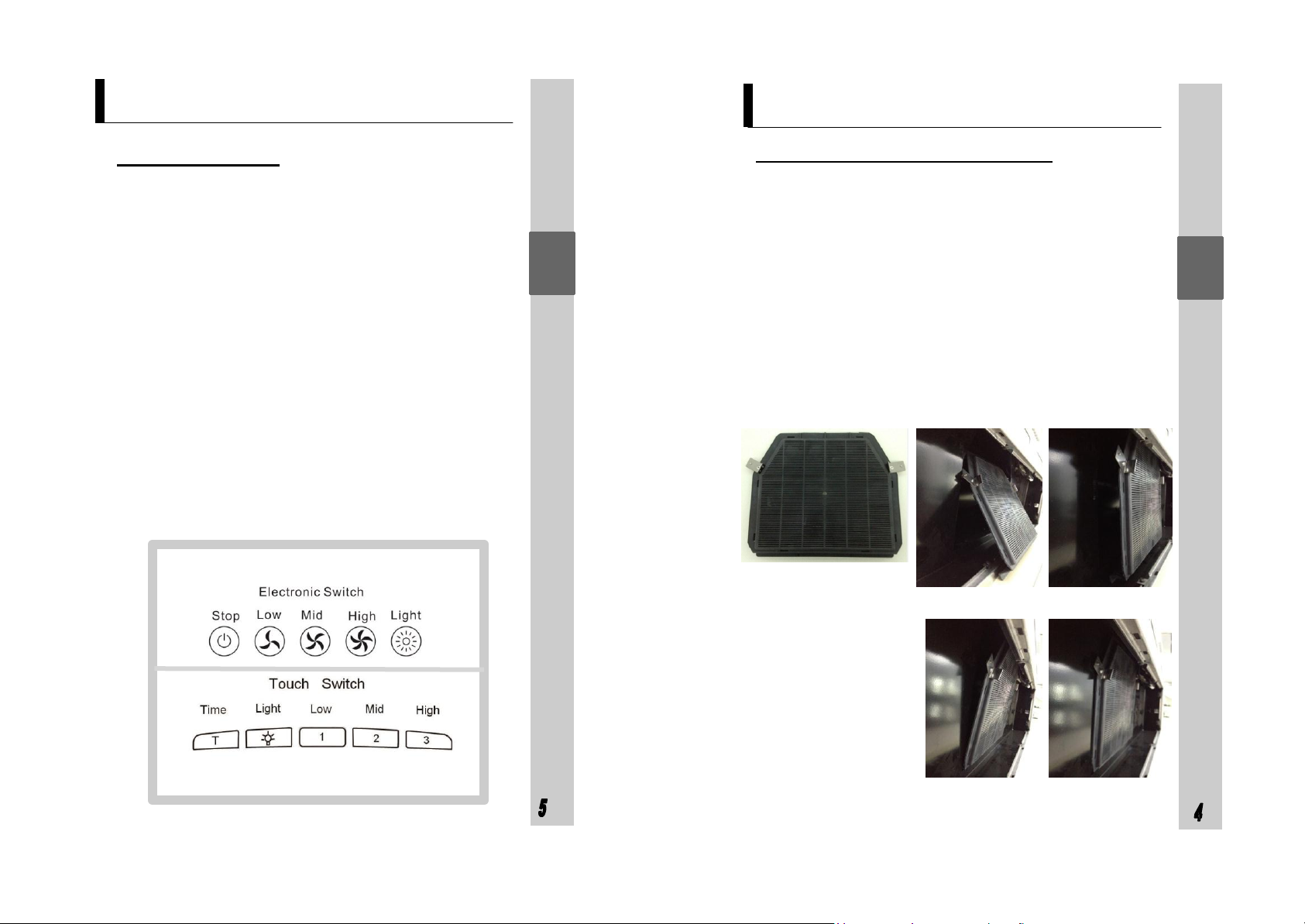

How To Use
◆ Push Stop button, and the motor will stop.
◆ Push the Low button, and the motor runs at low
speed.
◆ Push the Mid button, and the motor runs at mid. speed.
◆ Push the High button, and the motor runs at high
speed.
◆ Push the Light button, and the two lighting lamps illu-
minate. Push it again and the lamp will turn off.
◆ On any speed, push “T” & the delay timer will switch
off the hood after 5 minutes.
pic 11
..
Charcoal
The hood can be fitted with a charcoal filter which can make
your kitchen cleaner.
Step 1. Take out the charcoal filter from the package.(see pic 6)
filter (Optional)
Step 2. Buckle the filter on the air cabinet and push it up.
(see pic 7,8,9)
Step 3. push the charcoal filter and let the magnet attract the
air cabinet.(see pic 10)
pic 6
pic 7 pic 8
pic 9 pic 10
