INSTRUCTION MANUAL
DISHWASHER
Contents
1. Safety and operating instructions ___________________________ 4
2. Installation and hook-up __________________________________ 6
2.1 Water supply connection ______________________________________________________ 6
2.2 Electrical connection _________________________________________________________ 7
3. Description of the controls ________________________________ 8
3.1 Front panel _________________________________________________________________ 8
3.2 Washing programs__________________________________________________________ 12
4. Operating instructions___________________________________ 14
4.1 Using the water softening system ______________________________________________ 14
4.2 Using the rinse aid and detergent dispensers _____________________________________ 16
4.3 General warnings and recommendations ________________________________________ 18
4.4 Using the baskets___________________________________________________________ 19
5. Cleaning and maintenance _______________________________ 22
5.1 General warnings and recommendations ________________________________________ 22
6. Troubleshooting _______________________________________ 25
Thank you for choosing this product.
We advise you to carefully read all the instructions contained in this manual, in order to understand
how to operate your dishwasher safely and correctly.
The manual is divided into paragraphs, which provide a step by step description of the dishwasher
functions, with clear instructions accompanied by detailed illustrations.
Recommendations are given for the correct use of the baskets, spray arms, containers, filters,
washing programs, and for operating the controls.
Follow the recommended cleaning procedures to ensure that your dishwasher always remains in
perfect working order.
This manual provides a quick and easy reference for answering all your questions concerning the
use of your new dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the
out the installation, hook-up and testing of the appliance.
qualified technician
who must carry
USER INSTRUCTIONS: these consist of recommendations for using the appliance, a description of
its controls and of the correct cleaning and maintenance procedures.
3
Safety instructions
1. Safety and operating instructions
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER
WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS
CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN
COMPLIANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC USE, AND
COMPLIES WITH THE
PREVENTION AND ELIMINATION OF RADIO FREQUENCY INTERFERENCE. THE APPLIANCE IS DESIGNED FOR
THE FOLLOWING PURPOSE:
IMPROPER.
DESCRIBED ABOVE.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER AND MARKINGS IS VISIBLY POSITIONED
ON THE INNE R EDGE OF THE DOOR.
REMOVED.
DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED WITHIN THE HOME. SEPARATE THE
VARIOUS MATERIALS WHICH MAKE UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE
COLLECTION CENTRE.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR USES OTHER THAN THOSE
EEC DIRECTIVES 72/23, 89/336 (INCLUDING 92/31)
WASHING AN D DRYING OF DISHES
THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST NEVER BE
CURRENTLY IN FORCE, INCLUDING THE
; ANY OTHER USE SHALL BE CONSIDERED
THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN ACCORDANCE WITH THE ELECTRICAL
SAFETY REGULATIONS IN FORCE.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO PERSONS OR PROPERTY RESULTING
FROM THE FAILURE TO EARTH THE APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.
IF THE APPLIANCE IS NOT CONNECTED TO THE ELECTRICAL POWER SUPPLY BY MEANS OF A PLUG, IT IS
NECESSARY TO INSTALL AN ISOLATION SWITCH WITH A CONTACT OPENING GAP OF AT LEAST 3 MM.
THE PLUG ON THE POWER CORD AND THE CORRESPONDING SOCKET OUTLET MUST BE OF THE SAME TYPE,
AND MUST CONFORM TO THE REGULATIONS IN FORCE. CHECK THAT THE VOLTAGE AND FREQUENCY OF THE
ELECTRICAL POWER SUPPLY MATCH THE RATINGS ON THE NAME PLATE. AVOID USING ADAPTORS OR SHUNT
CONNE CTIO NS.
NEVER UNPLUG THE APPLIANCE BY PULLING THE POWER CORD.
•
AFTER INSTALLATION, THE PLUG MUST REMAIN ACCESSIBLE.
•
IN THE EVENT OF DAMAGE TO THE POWER CORD, HAVE IT REPLACED BY A QUALIFIED TECHNICIAN.
IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR, ENSURE THAT THE OPENINGS ON ITS
UNDERSIDE ARE NOT OBSTRUCTED.
ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID WASTING ELECTRICITY.
OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE MAINS POWER CORD AFTER
UNPLUGGING IT FROM THE WALL OUTLET, AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS
FOR CHILDREN (LOCKS, DOORS, ETC.). THE APPLIANCE MUST THEN BE TAKEN TO A SORTED WASTE
COLLECTION CENTRE.
IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE ELECTRICAL POWER SUPPLY AND
SHUT OFF THE WATER TAP. THEN CALL IN A QUALIFIED TECHNICIAN.
4
Safety instructions
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT! IF IN DOUBT, CONSULT YOUR
DEALER.
THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE WITH THE INSTRUCTIONS PROVIDED
BY THE MANUFACTURER OR BY A QUALIFIED TECHNICIAN.
THE APPLIANC E IS INTE NDED FOR USE BY ADULTS.
THE DISHWASHER. KEEP CHILDREN AWAY FROM DETERGENTS AND FROM THE OPEN DISHWASHER DOOR.
THE PACKAGING MATERIALS (PLASTIC BAGS, POLYSTYRENE, METAL BARS, ETC.) MUST NOT BE LEFT WITHIN
THE REACH OF CHILDREN.
KEEP CHILDREN AWAY FROM THE OPEN DISHWASHER. THE APPLIANCE MAY CONTAIN RESIDUES OF
DETERGENT WHICH CAN CAUSE IRREVERSIBLE DAMAGE TO THE EYES, MOUTH, AND THROAT, AS WELL AS
POSSIBLE DEATH BY SUFFOCATION.
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE WHICH MAY CAUSE AN EXPLOSION.
DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.
LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY CAUSE THE APPLIANCE TO OVERTURN,
PUTING PEOPLE AT RISK.
DO NOT UNDER ANY CIRCUMSTANCES TOUCH THE HEATING ELEMENT IMMEDIATELY AFTER THE END OF A
WASHING PROGRAM.
OVER TIME, THE DISHWASHER HEATING ELEMENTS MAY CHANGE COLOUR, IN PART OR OVERALL. THIS IS
PERFECTLY NORMAL AND DOES NOT IN ANY WAY AFFECT THE OPERATION OF THE APPLIANCE.
DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE
END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE.
DO NOT ALLOW CHILDREN TO COME NEAR OR PLAY WITH
KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED IN THE CUTLERY BASKET BLADEDOWN, OR LAID HORIZONTAL IN THE TOP BASKET. TAKE CARE NOT TO CUT YOURSELF AND ENSURE THAT
THEY DO NOT PROJECT FROM THE BASKET.
AQUASTOP MODELS
THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A WATER LEAK. WHEN THE AQUASTOP
DEVICE IS TRIPPED, CALL IN A QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT.
IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A SOLENOID VALVE INSIDE THE WATER INTAKE
HOSE.
DO NOT CUT THE HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO WATER.
EVENT OF DAMAGE TO THE WATER INTAKE HOSE, DISCONNECT THE APPLIANCE FROM THE ELECTRICAL
POWER SUPPLY AND FROM THE WATER SUPPLY.
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK TEST OF THE APPLIANCE FOLLOWING
THE INSTRUCTIONS BELOW. IF THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT FROM THE
ELECTRICAL POWER SUPPLY AND CALL THE NEAREST TECHNICAL SERVICE CENTRE.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE.
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE REGULATIONS IN FORCE CONCERNING
SAFETY AND ELECTRICAL EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED EXCLUSIVELY BY A
TRAINED AND AUTHORISED TECHNICIA N:
INVALIDATE THE WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.
The manufacturer declines all responsibility
REPAIRS CARRIED OUT BY UNAUTHORISED PERSONS WILL
for damage to persons or property resulting from failure to
IN THE
observe the above precautions, from tampering with even a single component of the appliance, or from the use
of non original spare parts.
5
Installation instructions
2. Installation and hook-up

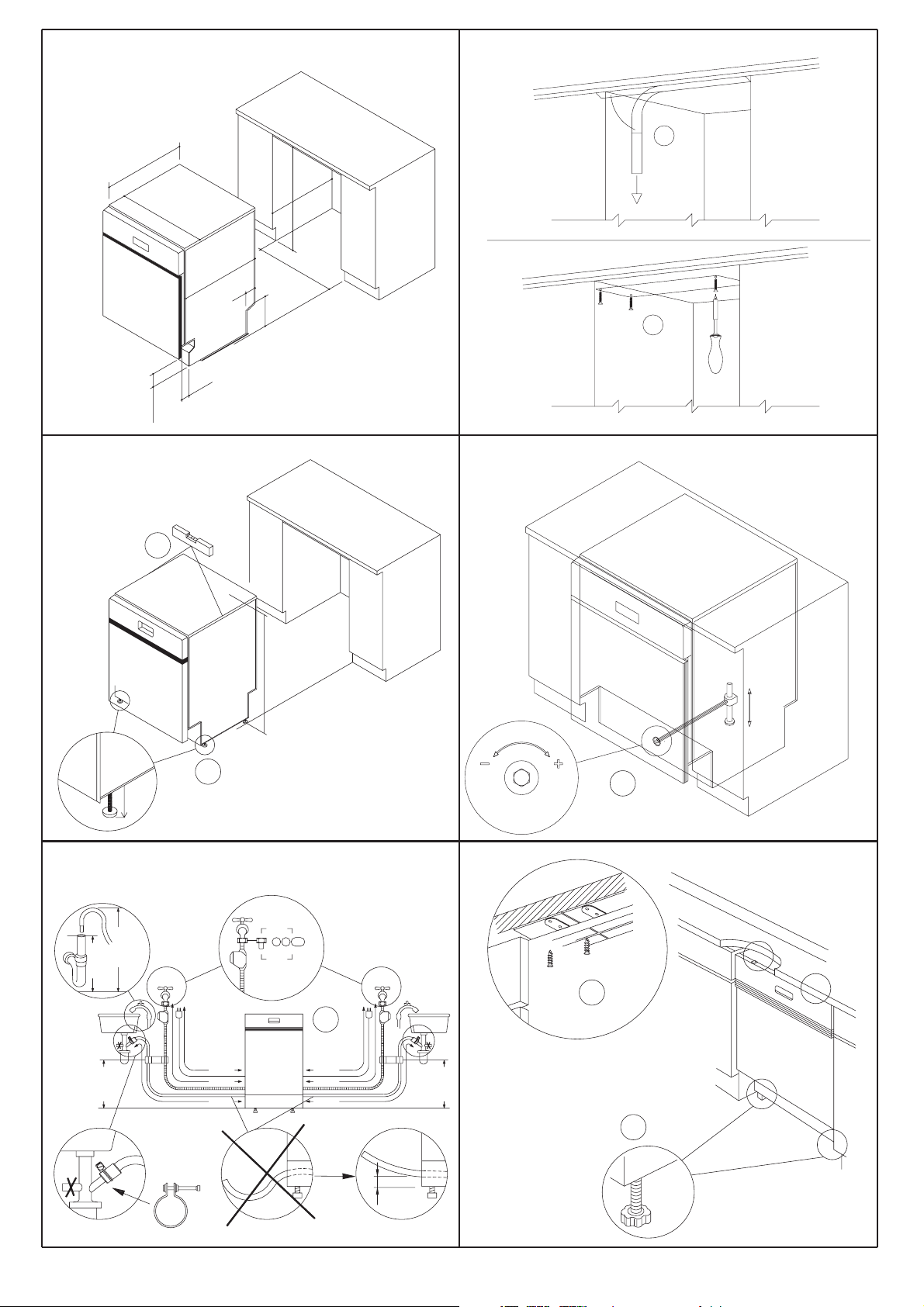

Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation. The back or sides of the dishwasher may
be placed up against walls or other furniture units.
If the dishwasher is installed near a heat source, fit the special insulating panel to prevent
overheating and malfunction of the appliance.
To ensure stability, install integrated or built-under dishwashers only under continuous worktops,
and screw them to the adjacent units.
To facilitate the installation procedure, the intake a nd drain hoses can be positioned in any
direction; make sure that the hoses are not kinked, crushed or pulled too tightly. A hole at least
8 cm in diameter is required to allow the power supply cable and pipes to pass.
Level the appliance on the floor using its adjustable feet. This operation is essential for ensuring
correct operation of the dishwasher.
For free-standing models only:
side, the door hinge area must be covered for safety reasons (injury hazard).
The covering fixtures are available as an accessory from specialist dealers or the After-Sales
Service.
Some models are equipped with only one adjustable foot at the rear, which can be adjusted by
turning the screw on the lower front part of the appliance.
if the appliance is not built-in and is therefore accessible on one
2.1 Water supply connection
Preventing the risk of clogging or damage:
long time, before connecting to the water supply check that the water is clear and free of impurities,
to prevent damage to the appliance.
The dishwasher must always be connected to the water system with new hoses; old or used
ho ses mu st ne ver be reu sed.
CONNECTING T O THE WATER SUPPLY
Connect the intake hose to a cold water supply with ¾” gas thread, inserting the filter A supplied
with the dishwasher.
Take care to screw the hose firmly into place with your hands and then complete by
tightening about ¼ of a turn with pliers. In dishwashers equipped with the ACQUASTOP
device, the filters is already fitted inside the threaded ring.
if the water pipe is new or has not been used for a
6
Installation instructions
The dishwasher can also be connected to a hot water supply
appliance with hot water cuts down the washing time by approximately 20 minutes, but slightly
reduces its effectiveness. Make the connection to the domestic hot water supply using the same
procedure described for connecting to the cold water supply.
DRAIN CONNECT ION
Insert the dishwasher’s drain hose into a drain pipe
having a diameter of at least
place it inside the kitchen sink using the plastic support
provided, taking care not to crush or excessively bend
the hose. It is important to prevent the hose from
coming loose and falling. For this purpose, the plastic
support is equipped with a hole for tying it to the wall or
water tap.
The free end should be positioned at a height of
between
submerged in water.
If a horizo ntal dr ai n e xte ns io n hose is us ed (for a
maximum of 3 m) the drain hose can be placed at a
maximum heig ht of
30 and 100 cm,
from the ground.
85 cm
, or alternatively,
4 cm
and should never be
not exceeding 60°C
. Supplying the
2.2 Electrical connection
Plug the power cord into a suitable electrical outlet, according to the instr uctions given in chapter
"1. Safety and operating instructions".
7
User instructions
3. Description of the controls
3.1 Front panel
All the dishwasher control are grouped on the front panel.
1 ON/OFF
2 SELECTION PROGRAMS
3 DELAY PROGRAM
4 ½ LOAD WASH
5 START/PAUSE
6 POWER ON
7 PROGRAMS
8 DELAY PROGRAM
9 ½ LOAD WASH
10 PROGRAM PHASES
11 NO SALT
12 NO RINSE AID
RECESS ED DOOR HANDLE
13
BUTTON
BUTTO N (on some models only)
BUTTON (on some models only)
BUTTON
LIGHT
LIGHTS
LIGHTS (on some models only)
LIGHT (on some models only)
LIGHTS
LIGHT (on some models only)
LIGHT (on some models only)
BUTTONS
(P1...P5)
LIGHTING
When the
About
PROGRAMMING
In this model of dishwasher, all programming procedures can only be carried out with the door
closed. As long as the door is open, the
(10)
ON/OFF
2 seconds
will remain off.
button
later, the
is pressed, the dishwasher switches on and the light
(1)
PROGRAM PHASES
PROGRAMS
lights
will come on.
(10)
lights
(7)
and
PROGRAM PHASES
comes on.
(6)
lights
8
User instructions
SELECTION PROGRAM
The program selection is possible through the relative
buttons
When the button relating to the program required (see enclosed programs chart) is pressed, the
relative light will come on to confir m the operation.
(2)
.
PROGRAM SEL ECTION TY PE A ND G RA DE DI RT
SOAK
QUICK
ECO
DAILY
STRONG
GLASS
PANS AND DISHES IN WAITING
OF COMPLETING THE LOAD
DISHES NOT MUCH DIRTY
AND WITH "FRESH DIRT"
WITHOUT RESIDUAL DRY
PANS AND DISHES
NOT VERY DIRTY
BUT WITH DRY RESIDUALS
PANS AND DISHES
WITH NORMAL DIRT,
WITHOUT DRY RESIDUAL
PANS AND DISHES
VERY DIRTY
DISHES NOT VERY DIRTY
+
BIO
PANS AND DISHES DIRTY
AND WITH DRY RESIDUALS
+
PROGR ESS PROG RAM
PREWASH WASH COLD RINS E HOT RINSE DRY
COLD
_
_
_
_
COLD
COLD
_ _ _ _
38°C
55°C
65°C
68°C
40°C
55°C
1
1
1
2
1
1
55°C
68°C
68°C
68°C
45°C
68°C
YES
YES
YES
YES
YES
_
NORMAL
PANS AND DISHES DIRTY
AND WITH DRY RESIDUALS
+
SUPER
+
run the soak program with half loads.
Only
The
HALF LOAD
option
is available for all programs
(4)
AND WITH DRY RESIDUALS
Reference program as AS/NZS 2007 is
(-) Not present.
The washing cycle will not take place if the dishwasher door is left open or not properly closed.
PANS AND DISHES
VERY DIRTY
(
P2+P1
GLASS
COLD
45°C 70°C
except the soak program
).
65°C
1
2
68°C
70°C
YES
YES
.
9
User instructions
TABLE FOR CERTIF ICATION BODIES
Reference standard AS/NZS 2007
Reference program
Load 14 place-settings
Type of detergent in accordance with AS/NZS 2007
Amount of detergent
Rinse aid setting Depending on the model 3/4 or 4/6
pour
P2+P1
10g
of cleaner on to the appliance door
and
program (glass)
30g
into the dispenser
The door can be opened at the end of cycle approximately
performance.
AS/NZS 2007
for improved drying
50mm
10
START PROGRAM
To start the appliance, simply press the
PROGRAM PHASES
start flashing (confirmation buzzer). This phase, that updates itself during the cycle, is “indicative”
since it is influenced by the washing conditions such as dishwasher type and quantity, entry
temperature etc.
lights
(10)
will go out until the light of the first phase of the selected program
START /PAUSE button (5)
for a few seconds, the
User instructions
At this point the
indicating the point reached in the washing procedure:
Prewash
Wash
END PROGRAM
When the program finishes, a buzzer sounds briefly and all the
PROGRAM PHASES
PROGRAMS
dishwasher is now ready to perform a new cycle; opening and
shutting the door or switching the appliance off and on has the same
effect.
PROGRAM PHASES
Rinse
Dry
(10)
buttons
lights
(2)
flash. Press any of the
, stops the light flashins, and the
The light of the phase in progress will flash, and will remain
constantly on while heating is in progress.
lights
(10)
will illuminate as the program progresses,
SELECTION
INTERRUPTION OF A PROGRAM
In order to interrupt a running program it is necessary:
• press the
• keep the button pressed until the
buzzer).
TO CHANGE A PROGRAM
To change the running program it is necessary:
• to interrupt the running program (see “
• select the new program;
• to press again the
START/PAUSE
START/PAUSE
button
(5)
, the light of the current phase goes out;
PROGRAM PHASES
I
NTER RUP TION OF A PROGRAM
(5)
button
to make start the new program.
lights
(10)
come on (confirmation
”);
11
User instructions
ANNULL ING A PROGRAM
To annul the program in progress, it must first be interrupted (see “
Now press buttons P1+P2 simultaneously and the first three program
lights will come o n.
In case that the door is opened during the operation, to the next door closing it is going to be
necessary to start the program as shown in paragraph “
S
TART P ROGRAM
from the point in which it was interrupted.
In case that the tub temperature is higher than 50°C the program will start about 30 seconds
later.
3.2 Washing programs
The dishwasher is equipped with a control panel, described in chapter "3. Description of the
controls", from which it is possible to carry out all the power switch-on, switch-off and programming
operations.
I
NTERRUPTION OF A PR OGR AM
”. The program will resume
”).
Before starting a washing program make sure that:
The water supply tap is
•
The
•
•
•
•
correct amount of detergent
The baskets have been
The spray arms are able to
The dishwasher door is
HALF LOAD WASH FUNCTION
Pressing button
½ LOAD WASH (4)
open.
has been added to the
correctly loaded.
rotate freely
securel y cl o sed
and without obstruction.
.
(o n some models only)
selects washing on the top basket only.
After selecting the program, proceed as follows:
• press the button
• press the button
½ LOAD WASH (4)
½ LOAD WASH (4)
once to select the top basket (the relative light comes on);
again to return to full load wash status (the light goes
out).
½ LOAD
The
wash option can be selected in all programs
dispenser
.
except the soak
program.
12
N.B.:
selecting the
It is possible to place a cutlery basket inside the basket selected for the
other basket
½ LOAD
option changes the duration of the program.
must remain empty.
HALF-LOAD
program; the
WARNING: do not load dishes and cutlery into the non-selected basket, because the water
spray will only reach the selected basket.
User instructions
DELAY PROGRAM
Pressing butt on
hours
. This allows you to set the dishwasher to work at specific times of day.
After selecting the delay, start the program in the normal way (see relative section).
The appliance will prewash the dishes, after which the “delay program” set previously will come into
effect (the phase lights switch off and the light relating to the delay set flashes).
reset or change the delay
To
• press the
(10)
come on;
• press the
(all the lights indicating the delay go out);
•
press the
To set the delay once the program has started
If the program you wish to carry out is the same as the one already in progress:
• press the
(10)
come on;
• annul the program in progress (see relative section) and wait for the cycle to come to an end;
• select the program again;
• select the delay required;
•
press the
If the program you wish to carry out is different from the one already in progress:
• press the
(10)
come on;
• change the program;
• select the delay required;
•
press the
the water and restart with the delay set and the new program.
(on some models only)
DELAY PROGRAM (3)
once the program has started:
START/PAUSE
DELAY PROGRAM
START/PAUSE
START/PAUSE
START/PAUSE
START/PAUSE
START/PAUSE
button
button
button
button
button
button
in sequence delays the start of the program by 3, 6 or
(5)
for a few seconds, until the
button
(3)
several times “until the program delay” returns to zero
(5)
to start the new program.
, proceed as follows.
(5)
for a few seconds, until the
(5)
to start the new program.
(5)
for a few seconds, until the
(5)
to start the new program. The dis hwahser will pump out
PROGRAM PHASES
PROGRAM PHASES
PROGRAM PHASES
lights
lights
lights
9
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONM ENT
Always try to run the dishwasher
•
Do not wash the dishes in running water.
•
Use the washing program that is
•
Do not carry out any preliminary rinsing.
•
If available, connect the dishwasher to a hot water supply up to 60°C.
•
When possible,
•
complete; the air and the residual heat will dry the dishes perfectly.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT THE ENVIRONM ENT
The phosphates contained in dishwasher detergents are harmful to the environment. To avoid
using excessive amounts of detergent and to save on electricity, observe the following:
•
sep arate
and high temperatures;
•
do not pour
REMOVING T HE DISHES
The door can be opened at the end of cycle approximately
performance. At the end of the washing program, wait at least
dishes, to allow them to cool down. To prevent any water droplets on the upper basket from falling
on the dishes in the lower basket, it is
upper basket.
ski p the dr ying cycle
the more delicate items from dishes that are more resistant to aggressive detergents
the detergent directly on the dishes.
fully loaded
most appropriate
advisable
.
for each type of load.
by leaving the door open when the washing cycle is
50mm
for improved drying
20 minutes
to unload the lower basket first, and then the
before removing the
13
User instructions
4. Operating instructions
Once the dishwasher has been correctly installed, prepare for use as follows:
Adjust the water softening system;
•
Add the regenerating salt;
•
Add the rinse aid and detergent.
•
4.1 Using the water softening system
The amount of scale contained in the water (water hardness
index) can cause whitish staining on the dry dishes, which tend
to become dull over time. The dishwasher is equipped with an
automatic softening system which uses a special regenerating
salt to reduce the hardness of the water.
The dishwasher is factory set for water hardness level
(average hardness
41-60°dF – 24-31°dH
).
3
SALT
When using water of medium hardness, the regenerating salt container should be refilled after
approximately
grains. Some models are equipped with an optical no-salt indicator. In these models, the cap of the
salt container contains a green float which descends as the salt concentration in the water drops.
When the green float can no longer be seen through the transparent cap, the container must be
topped up with regenerating salt. The container is situated at the bottom of the dishwasher. After
removing the lower basket, unscrew the salt container cap by turning it anticlockwise and pour in
the salt using the funnel supplied with the dishwasher. Before replacing the cap, remove any salt
residues from around the opening.
When using the dishwasher for the first time, in addition to the salt it is also necessary to add
•
one litre of water
Each time the salt container is refilled, make sure that
•
mixture of water and detergent must never penetrate the salt container, as this would
compromise the operation of the regeneration system. In the event of this occurring, the
warranty will be invalidated.
•
Only
do not fill the container completely
•
Do not use table salt
water softening system.
20 washing cycles
to the container.
use regenerating salt specially formulated for domestic dishwashers. If using salt tablets,
as it contains insoluble substances which, over time, may damage the
. The salt container can hold approximately
the cap i s se curely closed
.
1.7 Kg
of salt in
. The
14
When necessary, refill the regenerating salt container
•
In this way, the excess saline solution will be immediately removed by the water; the prolonged
presence of salt water inside the tank may lead to
Be careful not to confuse the salt and detergent packages
container will
damage
the water softening system.
before starting the washing program
corro sion
.
; adding detergent to the salt
.
User instructions
ADJUSTING THE WATER SOFTENING SYSTEM
The dishwasher is equipped with an device for the user to adjust the water softening system
according to the hardness of the water supply.
According to the machine model, the selector which acts on the adjustment may be located:
inside the plastic locking ring located on the
•
inside the water softener, just below the cap.
•
Both allow for adjustment to 5 settings:
right-hand
side, inside the dishwasher;
WATER HARDNESS TABLE
WATER HARDNESS
German Degrees (°dH) French Degrees (°dF)
0 - 4 0 - 7 Setting N. 1 NO SALT
5 - 9 8 - 15 Setting N. 1
10 - 17 16 - 30 Setting N. 2
18 - 26 31 - 45 Setting N. 3
27 - 35 46 - 60 Setting N. 4
36 - 47 61 - 80 Setting N. 5
Contact your local water board for information on the hardness of your water supply.
SETTING
15
User instructions
4.2 Using the rinse aid and detergent dispensers
The detergent and rinse aid dispensers are situated on the
inner part of the door: the
and the
rinse aid dispenser
detergent dispenser
is on the right.
is on the left,
With the exception of the
required amount of detergent to the
program, before every washing cycle it is necessary to add the
SOAK
detergent dispenser
. The rinse aid, on the other hand, should
only be added as required.
ADDING THE RINSE AID
The rinse aid helps the dishes dry faster and prevents the formation of scale deposits and staining;
it is automatically added to the water during the final rinse cycle, from the container situated on the
inner side of the door.
Open the door.
•
Rotate the container cap anticlockwise by ¼ of a turn and remove it.
•
Add the rinse aid until the container is full (approximately 140 cc). The optical level indicator on
•
the side of the cap should be completely obsc ured. Refill t he rinse aid when the optical level
indicator becomes clear again, or when the rinse aid warning light illuminates.
Replace the cover and turn it in a clockwise direction.
•
Use a cloth to remove any spillage of rinse aid which might lead to the formation of excess
•
foam.
ADJUSTING THE RINSE AID DISPENSER SETTING
The dishwasher is factory set for medium water hardness. However it possible to change the
setting by turning the dispenser’s selector to the desired position: the amount of rinse aid
dispensed is proportional to the selector position.
The setting must be increased when the washed dishes appear dull or have circular staining.
To adjust the rinse aid setting, rotate the dispenser cap through a quarter turn in an
•
anticlockwise direction and remove it.
Then use a screwdriver to rotate the rinse aid selector to the desired position.
•
Replace the cap, turning it clockwise.
•
16
The amount of rinse aid must be
•
increased
if the washed dishes appear dull or feature circular
stains.
If, on the other hand, the dishes are sticky or have white streaks, it is necessary to
•
rinse aid setting.
reduce
the
User instructions
ADDING THE DETERGENT
To open the detergent dispenser cap, lightly press the button P. Add the detergent and close the
cap carefully.
During the washing cycle, the dispenser will be opened automatically.
•
When a
SUPER
program is selected, in addition to the normal dose of detergent, it is
necessary to add an additional amount inside compartment G or H.
Use
•
detergents specially formulated for dishwashers. For optimal washing results it is
only
important to use a good quality detergent.
The detergent packs must be sealed and stored in a dry place to prevent the formation of
•
lumps which may negatively affect washing results. Once opened the detergent packs should
not be kept for too long, otherwise the detergent loses its effectiveness.
Do not use detergents formulated for washing dishes by hand, because they produce a great
•
deal of foam and may negatively affect the operation of the dishwasher.
Add the correct amount of detergent. An insufficient amount of detergent will result in a partial
•
removal of dirt from the dishes, whereas an excessive amount is wasteful and does not
improve the washing results.
The market offers liquid and powder detergents with differing chemical compositions, which
•
may contain
phosphates
- Detergents containing
temperatures above 60°C
-
Enzyme
55°C
detergents, on the other hand, are also effective at lower temperatures (
) and are more easily biodegradable. With enzyme detergents it is possible to obtain at
low temperatures comparable results to those which can only be achieved at
, or be phosphate-free but contain
phosphates
are more effective against grease and starch at
.
natural enzymes
.
from 40 to
65°C
traditional detergents.
For the safeguarding of the environment we recommend the use of
detergents.
free
Also available are tablet detergents which state that that no salt or rinse aid is required. In
•
phosphate- and chlorine
some cases, these detergents might not give good results, especially with short and/or lowtemperature washing cycles. If performance problems (e.g. a white coating on the tank or
dishes, poor drying, dirt on dishes at the end of the wash) are noted, users are advised to
return to conventional products (granular salt, powder detergent and liquid rinse aid). However,
please note that on return to the use of conventional salt, a number of cycles will be required
before the system becomes fully efficient again, so traces of white coating may still be found on
the tank and dishes. If the problem persists for too long, contact the After-Sales Service.
using
When using detergent in tablet form (bear in mind that we recommend the use of three
•
separate products: detergent, salt and rinse aid), place the tablets in the cutlery rack. The
dispenser is designed to use powder or liquid detergent and the door does not open completely
during the washing cycle. This means that a tablet is not completely dissolved (released),
which may lead to the following:
not enough detergent released during the cycle, with poor washing results;
-
the detergent forms a solid block in the distributor and is released during the final rinse cycle.
-
The introduction of detergent into the rinse aid dispenser, even in liquid form, will damage
the dishwasher.
17
User instructions
4.3 General warnings and recommendations
Before using the dishwasher for the first time, it is advisable to read the following
recommendations concerning
dish types
There are generally no constraints on the washing of domestic dishes, but in certain cases it is
necessary to take their characteristics into account.
Before loading the dishes into the baskets it is necessary to:
remove coarse food remains: e.g. bones, fish-bones, etc. which may clog the filter or damage
•
the wash pump.
soak any pots or pans with burnt-on food remains on the bottom to facilitate removal, then
•
load them into the LOWER BASKET.
to be washed and their
loading
.
If a small quantity of dishes has to be washed, use the
“½ load wash”
option; this saves
electricity and water.
Remember to load the upper basket only; the lower basket must be left empty.
There is no need to pre-wash the dishes under running water before loading them into the baskets
since this only wastes water.
Correct loading of the dishes helps ensure optimal washing results.
WARNING!
Make sure that the dishes are securely in place so that they cannot tip over or obstruct the
•
rotation of the spray arms during the washing cycle.
Do not place very small objects in the baskets as these could fall and obstruct the spray arms
•
or the wash pump.
Containers such as cups, bowls, glasses and pots should always be loaded with the opening
•
facing downwards and with any cavities at an angle, to allow the water to drain out.
Do not stack dishes or place them in such a way that they cover one other.
•
Do not place glasses too close together because they may knock against each other and
•
break, or there might be staining at the point where they touch.
MAKE SURE that the items being washed are dishwasher-safe.
Items which are not dishwasher-safe:
•
Wooden dishes, pots or pans:
•
Handcrafted items:
these are rarely suitable for washing in a dishwasher. The relatively high
these may be damaged by the high washing temperatures.
water temperatures and the detergents used may damage them.
•
Pl asti c di she s:
•
Dishes and objects in copper, tin, zinc or brass:
•
Aluminium dishes:
•
Silverware:
•
Glass an d cry stal :
heat resistant plastic dishes must be washed in the upper basket.
these tend to stain.
items made from anodised aluminium may lose their colour.
silver items may stain.
in general, glass and crystal objects can be washed in the dishwasher.
However, certain types of glass and crystal may become dull and lose their clearness after
many washings. Therefore, for these items we recommend using the least aggressive
program available.
•
Decorated i tems:
the decorated objects available on the market are generally able to
withstand washing in the dishwasher, although the colours may fade after a great many
washes. If in doubt as to the fastness of the colours, it is advisable to wash just a few items at
a time for approximately one month.
18
User instructions
4.4 Using the baskets
The dishwasher has a capacity of
LOWER BASKET
The lower basket receives the full force of the lower spray arm, and should therefore be used for
the “toughest” items with a heavier degree of soiling. All types and combinations of loads are
permitted, provided that the dishes, pots and pans are arranged with all t he soiled surfaces
exposed to the water jets coming from the bottom.
For optimum use of space, the bottom basket is fitted with two plate supports which can be laid flat
if there are no plates to be loaded. It also has a "tip-up support" (with one or two sectors depending
on models) for small plates; to take small plates, it must be positioned as shown in the illustrations.
14 place-settings
, including serving dishes.
LOADING THE LOWER BASKET
Carefully load flat plates, soup plates, dessert and serving dishes, positioning them vertically. Pots,
pans and their covers must be loaded upside down. When loading soup plates and dessert bowls,
be sure to leave a gap between them.
Loading examples:
19
User instructions
CUTLERY BAS KET
The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing
downwards. Take care during loading to avoid injury from the knife blades.
The basket is suitable for all types of cutlery, except those long enough to interfere with the upper
spray arm.
Ladles, wooden spoons and cooking knives can be placed in the upper basket,
the knife blades do not protrude from the basket.
making sure that
The cutlery basket features an
exclusive system
of independent
sliding tip-up supports
, offering
a series of combinations to allow optimum use of the space available. It can also be separated into
two parts, particularly useful when carrying out a
Movement required
to extract the inserts
Vertical
inserts
½ load wash
(on models with this function).
Horizontal
insert closed
Horizontal
insert
open
20
UPPER BASKET
It is recommended to load the upper basket with small- or medium-sized items such as glasses,
small plates, tea or coffee cups, shallow bowls and light objects made from heat resistant plastic. If
the upper basket is used in the lowermost position, it can also be loaded with serving dishes,
provided they are only slightly soiled.
The top basket is fitted (on the left) with two plastic racks
which can be raised to make room for tall glasses, such as
stem glasses.
On the right there are two cutlery racks designed to take
knives and teaspoons; when not in use, they can be left
vertical, attached to the basket.
To use the space designed for teaspoons, remove the insert
as shown in the illustrations.
User instructions
LOADING THE UPPER BASKET
Load plates facing forward; cups, bowls etc. must always be facing downwards. The left-hand side
of the basket can be loaded with two layers of cups and glasses. In the centre section, plates and
saucers can be loaded vertically into the supports provided.
Loading examples:
ADJUSTING THE UPPER BASKET
The upper basket can be adjusted in
two positions
, according to the user’s needs and according
to the height of the dishes in the lower basket. Proceed as follows
Pull-out
•
•
•
•
•
Push-button
•
versio n:
pull out the right-hand basket guide;
remove the stop, first releasing it as shown in the diagram;
push the guide to free the wheels;
fit the upper or lower pair of wheels into the guide, depending on the setting required;
return the stop to its original position.
vers io n:
pull out the basket to its limit position and pull the right side upwards.
At this point it is possible to load larger sized plates into the lower basket.
To return to the original position, pull out the upper basket again and press the release lever.
•
21
User instructions
5. Cleaning and maintenance
Before carrying out any work, always disconnect the appliance from the electrical power
supply.
5.1 General warnings and recommendations
Avoid the use of acidic or abrasive detergents.
Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened
with water or with a normal detergent suitable for painted surfaces.
Clean the door gaskets with a damp sponge.
Periodically (once or twice a year) it is advisable to clean the tank and gaskets, using a soft cloth
and water to remove any deposits.
CLEANING THE WATER INT AKE FILTER
The water intake filter A located at the outlet of the water supply tap needs to be cleaned
periodically.
After having closed the water supply tap, unscrew the end of the water intake hose, remove the
filter A and clean it delicately under running water. Reassemble filter A in its seat and carefully
screw the water intake hose back into position.
CLEANING THE SPRAY ARMS
The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible
clogging. Wash them under running water and carefully replace them in their seats,
their rotary movement is in no way impeded
To remove the
•
To remove the
•
CLEANING THE ORBIT AL VERSION SPRAY ARM
To remove the ORBITAL spray arm assembly, take hold of the
longer arm and pull the ORBITAL unit upward.
Wash the arms under a jet of running water and return them
carefully to their seat.
After reassembly, check that the spray arms turn freely.
Otherwise, check that they have been installed correctly.
spray arm, unscrew locking ring R.
upper
spray arm, simply lift it up, pulling by the central part.
lower
.
checking that
ORBITAL
22
User instructions
CLEANING THE FILTER UNIT
It is advisable to periodically inspect the centre filter C and, if necessary, to clean it. To remove
•
the filter, grip the tabs, turn them anticlockwise and lift upwards;
push the centre filter D from the underside to remove it from the micro-filter:
•
separate the two parts which make up the plastic filter by pressing the body of the filter in the
•
zone shown by the arrows;
remove the centre filter by lifting it upwards.
•
GENERAL WARNINGS AND RECOMMENDATIONS FOR CORRECT M AINTENANCE:
The filters should be cleaned
•
It is essential to
•
thoroughly clean the filters
under running water
using a stiff brush.
according to the above instructions: the
dishwasher cannot function if the filters are clogged.
•
Carefully replace
the filters in their seats, to avoid damaging the wash pump.
PROLONGED DISUSE:
Run the soak program twice in succession.
•
•
Unplug
•
Leave the door slightly open
the power cord from the socket.
, in order to prevent the formation of unpleasant odours inside
the washing tank.
•
Fill the rinse aid dispenser
•
Shut off the water supply tap.
.
BEFORE STARTING THE DISHWASHER AFTER PROLONGED DISUSE:
Check that there are no deposits of sludge or rust inside the water pipe: if there are, allow the
•
water to run from the water supply tap for a few minutes.
•
Plug the power cord
•
Reconnect the water intake hose and open the tap again.
back into the socket.
23
User instructions
TROUBLESHOOTING MINOR PROBLEMS
In some cases it is possible to remedy minor problems by referring to the following instructions:
If the program fails to start, check that:
the dishwasher is connected to the electrical power supply;
•
there is no power failure;
•
the water tap is open;
•
the dishwasher door is properly closed.
•
If water remains inside the dishwasher, check that:
the drain hose is not kinked;
•
the drain siphon is not obstructed;
•
the dishwasher filters are not clogged.
•
If the dishes are not being cleaned properly, check that:
the correct amount of detergent has been added;
•
there is regenerating salt inside the special container;
•
the dishes are being loaded correctly;
•
the selected program is suitable for the dish types and their degree of soiling;
•
all the filters are clean and positioned correctly;
•
the spray arm nozzles are not obstructed;
•
there is no object obstructing the rotation of the spray arms.
•
If the dishes fail to dry or remain dull, check that:
there is rinse aid inside the special container;
•
the rinse aid dispenser setting is correct;
•
the detergent used is of good quality and has not lost its effectiveness (for example, through
•
incorrect storage, with the box left open).
If the dishes show signs of streaking, staining, etc., check that:
the rinse aid dispenser setting is not too high.
•
If there are visible traces of rust inside the tank:
the tank is made of steel, and therefore any rust marks are due to external elements
•
(fragments of rust from the water pipes, pots, cutlery, etc.). Special products are commercially
available t o remove such marks;
check that the amount of detergent being used is correct. Certain detergents can be more
•
corrosive than others.
check that the cap of the salt container is securely closed, and that the water softening setting
•
is correct.
24
If after following the above troubleshooting instructions the problem persists, call the nearest AfterSales Centre.
WARNING: any operations performed on the appliance by unauthorised persons are not
covered by the warranty and shall be paid for by the user.
User instructions
6. Troubleshooting
In case of a malfunctio n, the dis hwasher will identify the program by switching on a combination of
lights.
When an alrm is present, all the
come on, while the
(7)
identify the error code:
(10)
CODE PHASES LIGHTS DESCRIPTION
PROGRAM PHASES
E1
E2
E3
E4
PROGRAM
The anti-flooding system (if installed) has been tripped.
The system which limits the water level inside the dishwasher (safety
unit) has been tripped.
The appliance is not able to pump out the water.
Temperature sensor disconnected.
lights
lights
E5
E6
E7
E8
E9
The appliance is not able to take in water.
The appliance is not able to pump out the water from the tank.
The appliance is not able to measure the amount of water loaded
accurately (on models with turbine flow-regulator only).
Anomaly in the system which distributes water to the basket (where
installed).
The maximum level of water for loading has been exceeded (on
models with turbine flow-regulator only).
25
User instructions
TECHNICAL DATA
Width
Depth measured flush with the outer edge of
the control panel
Height
Capacity
Water supply pressure
Electrical characteristics
597 ÷ 599 mm
Free standing: 600 mm
Semi-integrated: 590 mm
Free standing from 850 mm to 870 mm
Semi-integrated from 820 mm to 870 mm
14 Standard place settings
min. 50 – max. 900 KPa (min. 0.5 – max. 9 bar)
See rating plate
26
1
567
598
- 870
min. 567min.
820 - 870820
2
1
567
3
- 165
75 - 16575
3
90
522
60
130
816-870
600
4
1
Solo su alcuni modelli
Certain models only
Seulement sur certains modèles
nur bei einige Modellen
Sólo en algunos modelos
alleen indien van toepassing
5
m
0,5
min. 0,5 mmin.
m
0,4
min. 0,4 mmin.
m
1,10
max. 1,10 mmax.
820-
820-
870
870
0,3-10 bar0,3-10 bar
2
1/2”
S N SF
3/4”
1,14 m1,14 m 1,25 m1,25 m
1,23 m1,23 m 1,50 m1,50 m
1,78 m1,78 m 1,66 m1,66 m
4
6
3x16
0,3-10 bar0,3-10 bar
7
5
m
0,4
min. 0,4 mmin.
6
m
0,00
min. 0,00 mmin.
820-
820-
870
870
7
8
SUPERFICIE INTERNA
SURFACE INTERNE
INNER SURFACE
INNENFLACHE
9
LATO SUPERIORE
BORD SUPERIEURE
UPPER EDGE
OBERKANTE
9
8
Solo su alcuni modelli - Certain models only
Seulement sur certains modèles - nur bei einige Modellen
10
Sólo en algunos modelos - alleen indien van toepassing
11
11
14
10
13
12
Regolazione vite tensione molle (11) - Copertura foto con tappo in dotazione (12)
Door spring Adjustement device (11) - Covering of hole using cap provided (12)
Réglage des ressorts de la porte (11) - Couverture du trou avec le bouchon fourni (12)
Vorrichtung für die Einstellung der Spannung der Türfedem (11) Abdecken des Lochs mit dem mitgelieferten Stopfen (12)
12
10
1
12
15
14
8
13
9
Loading...
