Smeg PGA32C User Manual
Contents
@
1. INSTRUCTIONS FOR USE ................................................................ 4
2. SAFETY PRECAUTIONS ................................................................... 6
3. ENVIRONMENTAL RESPONSIBILITY............................................... 8
4. KNOW YOUR APPLIANCE................................................................. 9
5. USING THE HOB.............................................................................. 10
6. CLEANING AND MAINTENANCE.................................................... 26
7. POSITIONING ON THE HOB TOP................................................... 29
THESE INSTRUCTIONS ARE VALID FOR THOSE COUNTRIES IDENTIFIED BY THE
SYMBOLS REPORTED ON THE COVER OF THIS MANUAL.
INSTRUCTIONS FOR THE USER: these instructions contain user
recommendations, a description of the controls and the correct
procedures for cleaning and maintenance of the appliance.
INSTRUCTIONS FOR THE INSTALLER: these are intended for the
authorised person who must install the appliance, set it functioning and
carry out an inspection test.
Further information about the products can be found at www.smeg.com
3
General instructions
1. INSTRUCTIONS FOR USE
THIS MANUAL CONSTITUTES AN INTEGRAL PART OF THE APPLIANCE. THIS
MANUAL CONSTITUTES AN INTEGRAL PART OF THE APPLIANCE. IT SHOULD BE
KEPT INTACT AND AT HAND FOR THE APPLIANCE’S ENTIRE LIFE CYCLE.
IT IS IMPORTANT TO CAREFULLY READ THIS MANUAL AND ALL THE
INSTRUCTIONS CONTAINED HEREIN BEFORE USING THE APPLIANCE.
INSTALLATION MUST BE CARRIED OUT BY COMPETENT PERSONS IN
ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR HOUSEHOLD USE AND COMPLIES WITH THE EEC DIRECTIVES
CURRENTLY IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY OUT THE
FOLLOWING FUNCTIONS: COOKING FOOD; IT IS CONSIDERED UNSUITABLE FOR
ANY OTHER USE.
THE MANUFACTURER CANNOT BE HELD LIABLE FOR USE OTHER THAN AS
INDICATED.
IF THE APPLIANCE IS INSTALLED ON BOATS OR IN CARAVANS, DO NOT USE IT AS
A ROOM HEATER.
DO NOT USE THIS APPLIANCE FOR HEATING ROOMS.
THIS APPLIANCE IS MARKED ACCORDING TO EUROPEAN DIRECTIVE 2002/96/EC
ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
THIS DIRECTIVE DEFINES THE STANDARDS FOR THE COLLECTION AND
RECYCLING OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT APPLICABLE
THROUGHOUT THE EUROPEAN UNION.
THE IDENTIFICATION PLATE WITH THE TECHNICAL DATA, SERIAL NUMBER AND
BRAND NAME HAS BEEN VISIBLY AFFIXED TO THE APPLIANCE.
DO NOT REMOVE THIS PLATE FOR ANY REASON.
BEFORE OPERATING THE APPLIANCE ALL PROTECTIVE COVERS MUST BE
REMOVED.
SUITABLE HEAT-PROOF GLOVES SHOULD BE WORN FOR ALL OPERATIONS.
DO NOT USE STEEL SPONGES AND SHARP SCRAPERS AS THEY WILL
DAMAGE THE SURFACE.
USE NORMAL NON-ABRASIVE PRODUCTS, INCLUDING WOODEN OR
PLASTIC UTENSILS IF NECESSARY. RINSE THOROUGHLY AND DRY
USING A SOFT CLOTH OR A MICROFIBRE CLOTH.
4
General instructions
DO NOT LEAVE THE APPLIANCE UNATTENDED DURING COOKING PROCESSES
WHERE FATS OR OILS COULD BE RELEASED.
FATS AND OILS MAY CATCH FIRE.
ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE
WHEN YOU FINISH USING THE APPLIANCE
NEVER PLACE PANS WITH BOTTOMS WHICH ARE NOT PERFECTLY FLAT AND
SMOOTH ON THE COOKING HOB PAN STANDS.
NEVER USE PANS WHICH PROJECT BEYOND THE OUTSIDE EDGE OF THE HOB.
DO NOT OBSTRUCT VENTILATION OPENINGS AND HEAT DISPERSAL SLITS.
(ONLY FOR GLASS CERAMIC MODELS)
TAKE CARE NOT TO SPILL SUGAR OR SWEET MIXTURES ON THE HOB
WHILE COOKING OR TO PLACE MATERIALS OR SUBSTANCES WHICH
COULD MELT ON IT (PLASTIC OR TINFOIL). IF THIS HAPPENS, TO AVOID
DAMAGE TO THE SURFACE, TURN OFF THE HEAT IMMEDIATELY AND
CLEAN THE SURFACE WITH THE SCRAPER PROVIDED WHILE THE PLATE IS STILL
WARM. IF THE GLASS CERAMIC HOB IS NOT CLEANED IMMEDIATELY, THERE IS A
RISK THAT INCRUSTATIONS WILL BE LEFT THAT ARE IMPOSSIBLE TO REMOVE
ONCE THE HOB HAS COOLED.
O (OFF) POSITION
5
General instructions
2. SAFETY PRECAUTIONS
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY REGULATIONS
FOR ELECTRIC OR GAS APPLIANCES AND VENTILATION FUNCTIONS.
IN YOUR INTERESTS AND FOR YOUR SAFETY THE LAW REQUIRES THAT THE
INSTALLATION AND SERVICING OF ALL ELECTRICAL APPLIANCES IS CARRIED
OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN
FORCE.
OUR APPROVED INSTALLERS GUARANTEE A SATISFACTORY JOB.
GAS OR ELECTRICAL APPLIANCES MUST ALWAYS BE DISCONNECTED BY
SUITABLY SKILLED PEOPLE.
BEFORE CONNECTING THE APPLIANCE TO THE POWER GRID, CHECK THE DATA
ON THE PLATE AGAINST THE DATA FOR THE GRID ITSELF.
THE IDENTIFICATION PLATE CONTAINING THE TECHNICAL DATA, SERIAL NUMBER
AND
BRAND NAME IS IN A VISIBLE POSITION UNDER THE CASING.
DO NOT REMOVE THIS PLATE ON THE CASING FOR ANY REASON.
BEFORE CARRYING OUT INSTALLATION/MAINTENANCE WORK, MAKE SURE THAT
THE APPLIANCE IS NOT CONNECTED TO THE POWER GRID.
THE PLUG TO BE CONNECTED TO THE POWER SUPPLY CABLE AND ITS SOCKET
MUST BE OF THE SAME TYPE AND CONFORM TO THE REGULATIONS IN FORCE.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN BUILT IN.
NEVER DISCONNECT THE PLUG BY PULLING ON THE CABLE.
IF THE POWER SUPPLY CABLE IS DAMAGED, CONTACT THE TECHNICAL SUPPORT
SERVICE IMMEDIATELY AND THEY WILL REPLACE IT.
IT IS OBLIGATORY FOR ALL ELECTRICAL EQUIPMENT TO BE EARTHED
ACCORDING TO THE METHODS LAID DOWN BY SAFETY REGULATIONS.
IMMEDIATELY AFTER INSTALLATION, CARRY OUT A BRIEF INSPECTION TEST,
FOLLOWING THE INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT
FUNCTION, DISCONNECT IT FROM THE ELECTRICITY SUPPLY AND CALL THE
NEAREST TECHNICAL SUPPORT CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
DURING USE THE APPLIANCE BECOMES VERY HOT. BE CAREFUL NOT TO TOUCH
THE HEATING ELEMENTS.
THIS APPLIANCE MAY NOT BE USED BY PEOPLE (INCLUDING CHILDREN) OF
REDUCED PHYSICAL AND MENTAL CAPACITY, OR LACKING IN EXPERIENCE IN
THE USE OF ELECTRICAL APPLIANCES, UNLESS THEY ARE SUPERVISED OR
INSTRUCTED BY ADULTS RESPONSIBLE FOR THEIR SAFETY.
6
General instructions
DO NOT LET CHILDREN GO NEAR THE APPLIANCE WHEN IT IS IN OPERATION OR
PLAY WITH IT AT ANY TIME.
DO NOT INSERT POINTED METAL OBJECTS (CUTLERY OR UTENSILS) INTO THE
SLITS IN THE APPLIANCE.
DO NOT USE STEAM JETS FOR CLEANING THE APPLIANCE.
THE STEAM COULD REACH THE ELECTRONICS, DAMAGING THEM AND CAUSING
SHORT-CIRCUITS.
DO NOT MODIFY THIS APPLIANCE.
FAT AND OIL CAN CATCH FIRE IF THEY OVERHEAT. YOU ARE THEREFORE
RECOMMENDED NOT TO LEAVE THE HOB WHILE PREPARING FOODS
CONTAINING OIL OR FAT. IF FAT OR OIL CATCHES FIRE, NEVER PUT WATER ON IT.
COVER THE PAN AND SWITCH OFF THE COOKING ZONE.
AS SOON AS YOU NOTICE A FRACTURE OR A CRACK ON THE SURFACE OF THE
GLASS CERAMIC HOB, SWITCH THE APPLIANCE OFF AND CONTACT AN
AUTHORISED TECHNICAL ASSISTANCE CENTRE.
DO NOT SPRAY ANY SPRAY PRODUCTS NEAR THE ELECTRICAL APPLIANCE
WHILE IT IS IN OPERATION.
DO NOT USE SPRAY PRODUCTS WHILE THE PRODUCT IS STILL HOT.
USERS OF PACEMAKERS OR SIMILAR DEVICES MUST ENSURE THAT THE
OPERATION OF THEIR DEVICES WILL NOT BE AFFECTED BY THE INDUCTION
FIELD, WHICH HAS A FREQUENCY RANGE OF 20-50 KHZ.
IN CONFORMITY WITH THE PROVISIONS REGARDING ELECTROMAGNETIC
COMPATIBILITY, THE ELECTROMAGNETIC INDUCTION COOKING HOB COMES
UNDER GROUP 2 AND CLASS B.
The manufacturer cannot be held liable for damage to persons or things caused
by failure to observe the above instructions, by interference with any part of the
appliance or by the use of non-original spare parts.
7
Instructions for disposal
3. ENVIRONMENTAL RESPONSIBILITY
3.1 Your environmental responsibility
Our product's packing is made of non-polluting materials, which are therefore
compatible with the environment and recyclable. Please help by disposing of the
packaging correctly. You can obtain the addresses of collection, recycling and
disposal centres from your retailer or from the competent local organisations.
Do not discard the packaging or any part of it, or leave it unattended. It can
constitute a suffocation hazard for children, especially the plastic bags.
Your old appliance also needs to be disposed of correctly.
Important: hand over your appliance to the local agency authorised for the
collection of electrical appliances no longer in use. Correct disposal enables
intelligent recovery of valuable materials.
Before disposing of your appliance it is important to remove doors and leave
shelves in the same position as for use, to ensure that children cannot
accidentally become trapped inside during play. It is also necessary to cut the
connecting cable to the power grid, removing it along with the plug.
8
Instructions for the user
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
2
1
3 3
5
4
1
2
3
4
5
6
7
8
9
6
7
50°
100°
160°
200°
P
50°
100°
160°
200°
P
8
1
5
2
6
3
7
4
8
4. KNOW YOUR APPLIANCE
Small glass ceramic hot
plate
Large glass ceramic hot
plate
Residual heat indicator
lights
Large induction hot plate

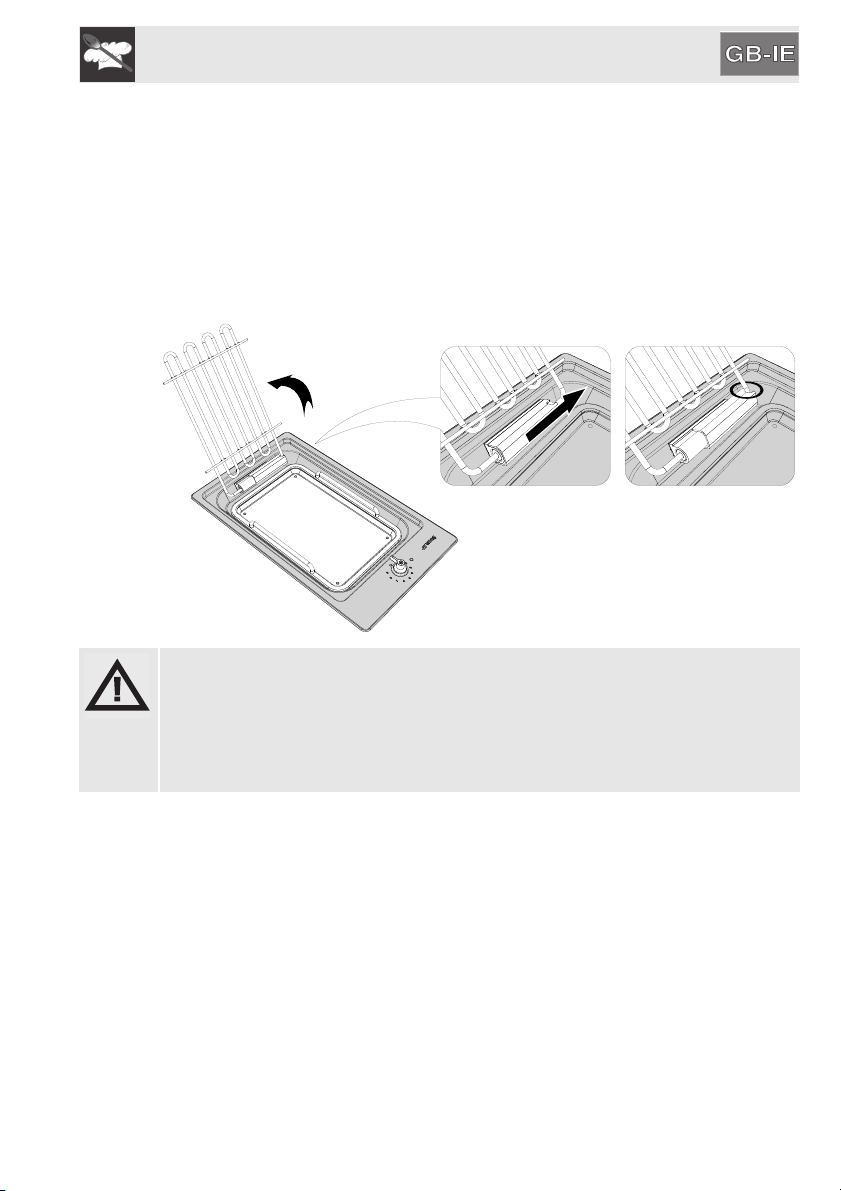

Barbeque resistance
Barbeque resistance
thermostat light
Small induction hot plate Teppan yaki plate
Before using the electric plates or the barbecue (if included) for the first time,
pre-heat them to the maximum temperature long enough to burn off any
manufacturing oily residues which could give the food a bad smell.
9
Instructions for the user
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
5. USING THE HOB
5.1 Glass ceramic hob
The appliance has two cooking zones of various
power levels and diameters.
The positions are clearly indicated by circles and the
heat is concentrated within the diameters traced on
the hob. The radiating zones come on after a few
seconds and their heat level can be adjusted by
rotating the knob of the power regulator.
To switch the cooking zones on, rotate the knob to the
desired position between 1 and 9..
The adjustment is gradual so all the intermediate
zones can be used. The lights to the side of the knobs
indicate the residual heat: they come on when the
electric hot plates exceed 50°C and go off when the
temperature falls below this level. For cleaning, see
paragraph "6.2 Cleaning the cooking hob parts".
10
Instructions for the user
5.1.1 Cooking guidelines
The table below shows the power values which can be set, with the relative type
of food alongside. Settings may vary depending on the amount of food and
personal taste.
Knob Position Suitable kind of cooking
1 To melt butter, chocolate or similar products.
2 - 3
4 - 5
6
7 - 8
9
For best cooking results and energy saving, only use containers suitable for
electric cooking:
• The bases of containers must be very thick, perfectly flat and clean and dry.
The hob must also be clean and dry.
• Do not use cast iron saucepans or saucepans with a rough base, as they
may scratch the cooking surface.
To heat food, keep small amounts of water on the boil,
and whip up sauces with egg yolk or butter.
To heat solid or liquid food, keep water on the boil, thaw
deep-frozen food, cook omelettes of 2 or 3 eggs, fruit and
vegetables, various cooking processes.
To stew meat, fish and vegetables, simmer food, make
jams, etc.
To roast meat, fish, steaks and liver; to sauté meat, fish,
eggs, etc.
To deep-fry potatoes, etc., or bring water to the boil
rapidly.
The diameter of the base of the saucepans must be equal to the diameter of the
circle outlining the cooking zone. If not, energy will be wasted.
11
Instructions for the user
5.2 Induction hob
Metal objects such as silverware or lids must not be placed on the cooking hob
surface as they can become very hot.
5.2.1 Cooking zones
The appliance has two cooking zones of various
power levels and diameters. Their position is clearly
indicated with circles and the heat is limited to within
the diameters traced on the glass.
Under each cooking zone there is a coil called an
inductor which is powered by an electronic system and
which creates a variable magnetic field. When a pan is
positioned within this magnetic field, the high
frequency currents are concentrated directly onto the
pan producing the heat required for cooking the food.
The symbols alongside the knobs indicates the
cooking zone they control. To switch a zone on, press
the knob and turn it to the desired position. Adjustment
is continuous, so the appliance functions when set to
the intermediate values as well. To switch off a zone,
reset the knob to
0.
12
The two displays next to the cooking zones indicate
the cooking power and special “Booster” and
“Automatic heating” functions.
Loading...
