These instructions apply only for the destination countries listed on the appliance’s data plate.
This is a class 3 built in hob.
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
29
Instructions
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless
they are constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by
unsupervised children.
• Make sure that the flamespreader crowns are correctly
positioned in their housings with
their respective burner caps.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid
on the pan and turn off the
relevant cooking zone.
• The cooking process must always
be monitored. A short cooking
process must be continuously
monitored.
• Do not place metal objects, such
as dishes or cutlery, on the hob
surface during use as they may
overheat.
• Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
30
Instructions
• Do not use aerosols in the vicinity
of this appliance whilst it is in use.
• Switch off the appliance
immediately after use.
• Do not modify this appliance.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• Do not pull the cable to remove
the plug.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
Risk of damaging the appliance
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released, as these could
then heat up and catch fire. Be
very careful.
• Never leave objects on the
cooking surface.
• Do not use the appliance to heat
rooms for any reason.
• Do not spray any spray products
near the oven.
• Do not use plastic cookware or
containers when cooking food.
• Cooking vessels or griddle plates
should be placed inside the
perimeter of the hob.
• All pans must have smooth, flat
bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
• Take care not to spill acid
substances such as lemon juice or
vinegar on the hob.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use steam jets to clean the
appliance.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
EN
• Do not wash removable parts
such as the hob grids, flamespreader crowns and burner caps
in the dishwasher.
31
Instructions
Installation
• This appliance must not be
installed in a boat or caravan.
• The appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cut-out with the help of a
second person.
• To avoid potential overheating,
the appliance must not be
installed behind a decorative
door or a panel.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any work on
the appliance, switch off the
power supply.
• Have qualified personnel carry
out installation and assistance
interventions according to the
standards in force.
• Have the gas connection
performed by authorised
technical personnel.
• Installation using a hose must be
carried out so that the length of
the hose does not exceed 2 metres
when fully extended for steel
hoses and 1.5 metres for rubber
hoses.
• The hoses should not come into
contact with moving parts and
should not be crushed in any way.
• If required, use a pressure
regulator that complies with
current regulations.
• After carrying out any operation,
check that the tightening torque of
gas connections is between 10 Nm
and 15 Nm.
• At the end of the installation,
check for any leaks with a soapy
solution, never with a flame.
• Have the electrical connection
performed by authorised
technical personnel.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90°C.
32
Instructions
• The tightening torque of the
screws of the terminal supply
wires must be 1.5 - 2 Nm.
• If it is necessary to replace the
power cable, this must only be
performed by a qualified
technician.
For this appliance
• Do not obstruct ventilation
openings and heat dispersal slots.
• Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
• Do not use the appliance to heat
rooms for any reason.
• The appliance is not designed to
operate with external timers or
with remote-control systems.
1.2 Manufacturer liability
The manufacturer declines all liability for
damage to persons or property caused by:
• Use of the appliance other than the one
envisaged,
• Failure to comply with the instructions in
the user manual;
• Tampering with any part of the
appliance,
• The use of non-original spare parts.
1.3 Appliance purpose
This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
1.4 Identification plate
The identification plate bears the
technical data, serial number and
brand name of the appliance. Do not
remove the identification plate for
any reason.
1.5 This user manual
This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the
user’s reach for the whole working
life of the appliance.
Read this user manual carefully
before using the appliance.
EN
33
Instructions
1.6 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packaged in nonpolluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.
34
Instructions
1.7 How to read the user manual
This user manual uses the following reading
conventions:
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
EN
Information
Advice
1. Sequence of instructions for use.
• Standalone instruction.
35
2 Description
2.1 General Description
Description
60 cm
AUX = Auxiliary
SR = Semi-rapid
RR = Reduced rapid
R = Rapid
UR3 = Triple crown ultra-rapid
UR2 int = Internal crown ultra rapid
UR2 est = External crown ultra rapid
36
70 cm
2.2 Symbols
Cooking zones
Front left
Centre left
Rear left
Centre internal
Centre external
Front right
Central right
Rear right
Burners
Burner off
Burner at minimum setting
Description
Burner at maximum setting
Burner knobs
For lighting and adjusting the hob burners.
Press and turn the knobs anti-clockwise to
in order to light the relative burners. Turn the
knobs to the zone between the maximum
and minimum setting to adjust the flame.
Return the knobs to the position to turn
off the burners.
(on certain models only)
EN
Double-crown burners comprise an
auxiliary and a rapid burner. They are
controlled by two different knobs which
allow both burners to be used at the same
time or to select one or the other as
required.
37
Use
3 Use
3.1 Instructions
Improper use
Danger of burns
• Make sure that the flame-spreader
crowns are correctly positioned in their
housings with their respective burner
caps.
• Oils and fats could catch fire if
overheated. Be very careful.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Do not spray any spray products near
the appliance.
• Do not touch the appliance’s heating
elements when it is running. Leave them
to cool before cleaning.
• Keep children under the age of 8 away
from the appliance when it is in use.
Improper use
Risk of damage to surfaces
• Do not use aluminium foil to cover the
burners or hob body.
• Cooking vessels or griddle plates
should be placed inside the perimeter of
the hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from accessories.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
3.3 Using the hob
All the appliance’s control and monitoring
devices are located together on the front
panel. The burner controlled by each knob
is shown next to the knob. The appliance is
equipped with an electronic ignition device.
Simply press the knob and turn it anticlockwise to the maximum flame symbol,
until the burner ignites. If the burner does not
light in the first 15 seconds, turn the knob
to and wait 60 seconds before trying
again. After lighting, keep the knob pressed
in for a few seconds to allow the
thermocouple to heat up. The burner may
go out when the knob is released: In this
case, the thermocouple has not heated up
sufficiently. Wait a few moments and repeat
the operation. Keep the knob pressed in
longer.
In case of an accidental switching
off, a safety device will be tripped,
cutting off the gas supply, even if
the gas cock is open. Return the
knob to and wait at least 60
seconds before lighting it again.
38
Use
Correct positioning of the grids
Under the grids there are silicone rests with
a hole that must be centred onto the
matching fixing pins on the surface.
Make sure that the grids are simply centred
on their respective burners, without forcing
them to be raised or tilted. If they are,
repeat the positioning procedure.
If you find that a pan is particularly unstable,
make sure that the grids have not been
positioned incorrectly.

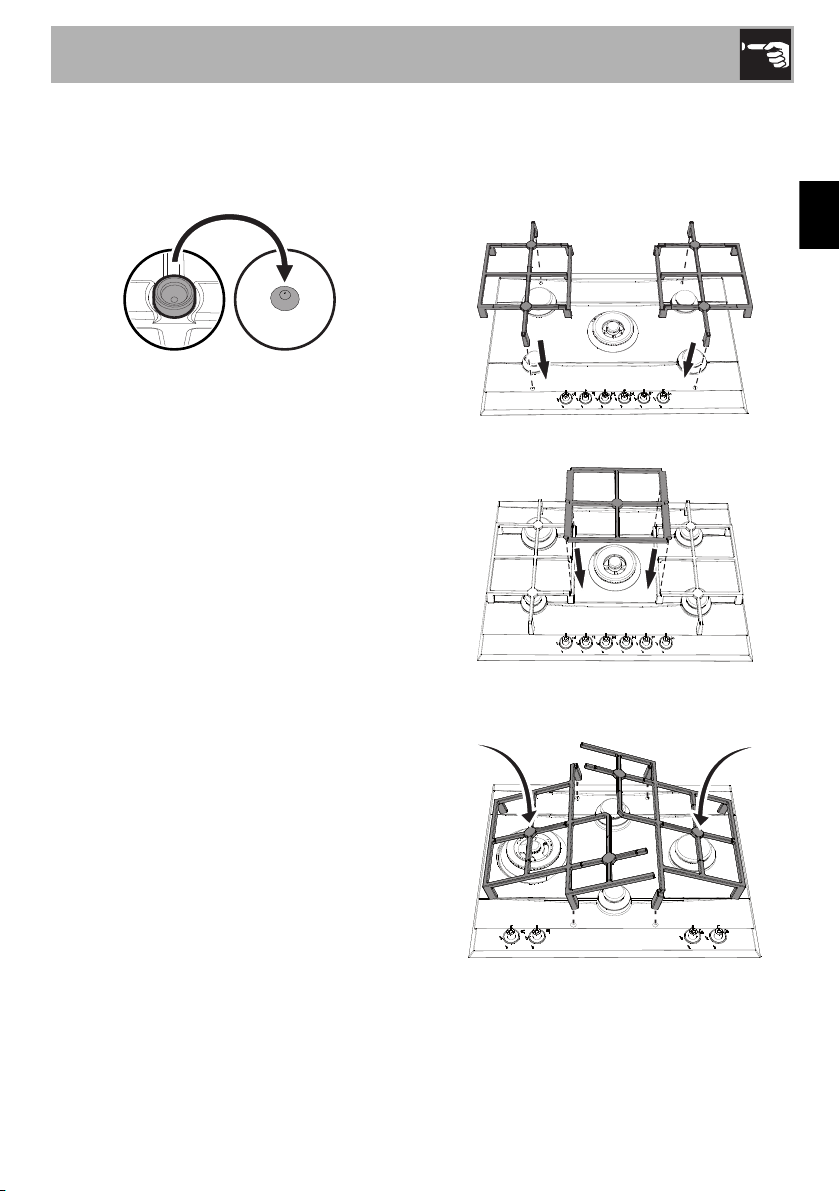

Installing the grids
To position the grids correctly on their
burners, follow the instructions below:
EN
70 cm
60 cm
39
Use

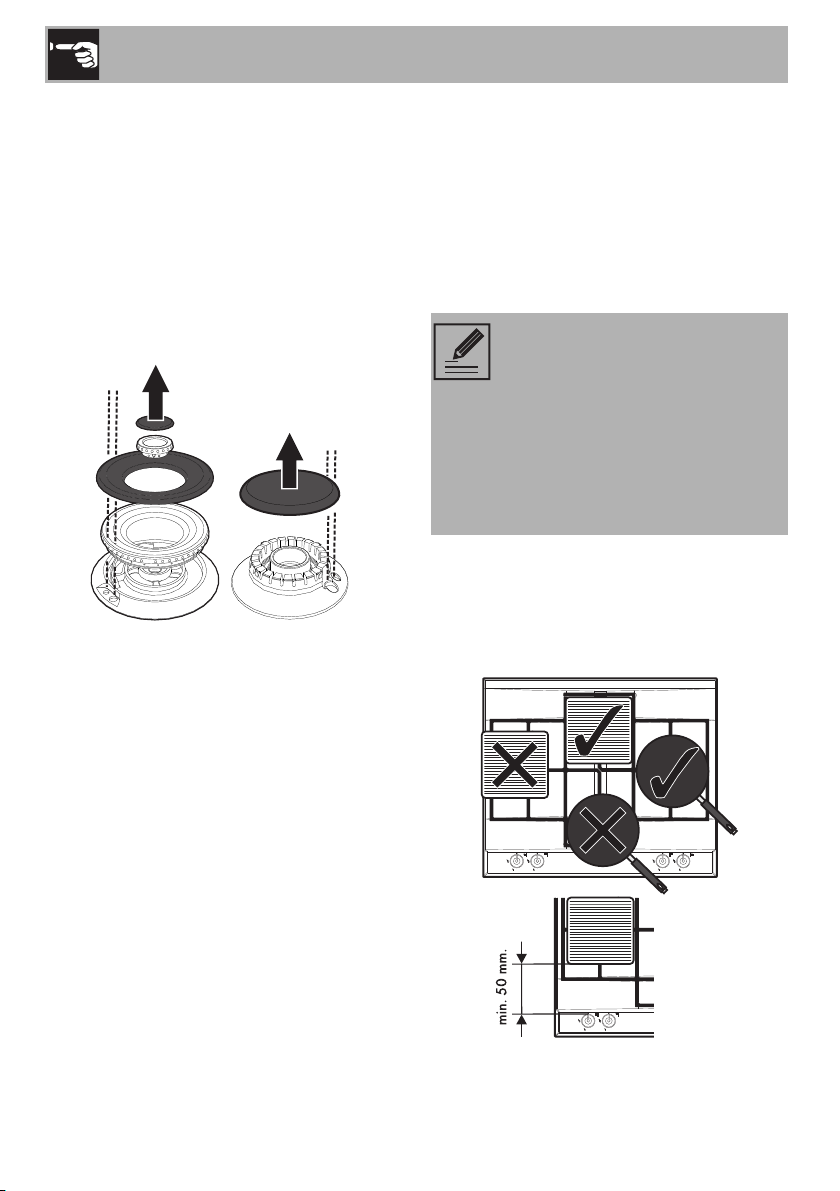

Correct positioning of the flamespreader crowns and burner caps
Before lighting the hob burners, make sure
that the flame-spreader crowns are
correctly positioned in their housings with
their respective burner caps. Make sure that
the holes in the burners are aligned with the
igniters and thermocouples. Also ensure that
the flame-spreader crowns are correctly
engaged in the burner holes.
Practical tips for using the hob
For better burner efficiency and to minimise
gas consumption, use pans with lids and of
suitable size for the burner, so that the
flames do not reach up the sides of the pan.
Once the contents come to the boil, turn
down the flame far enough to ensure that
the liquid does not boil over.
Cookware diameters:
• AUX: 7 - 18 cm.
• SR: 10 - 24 cm.
• RR: 12 - 24 cm.
• R: 14 - 26 cm.
• UR3: 12 - 26 cm
• UR2:12 - 26 cm.
During cooking, in order to avoid burns or
damage to the hob or top, all pans or
griddles must be positioned inside the outer
edge of the hob and at a minimum distance
of 50 mm from the knobs.
40
Use

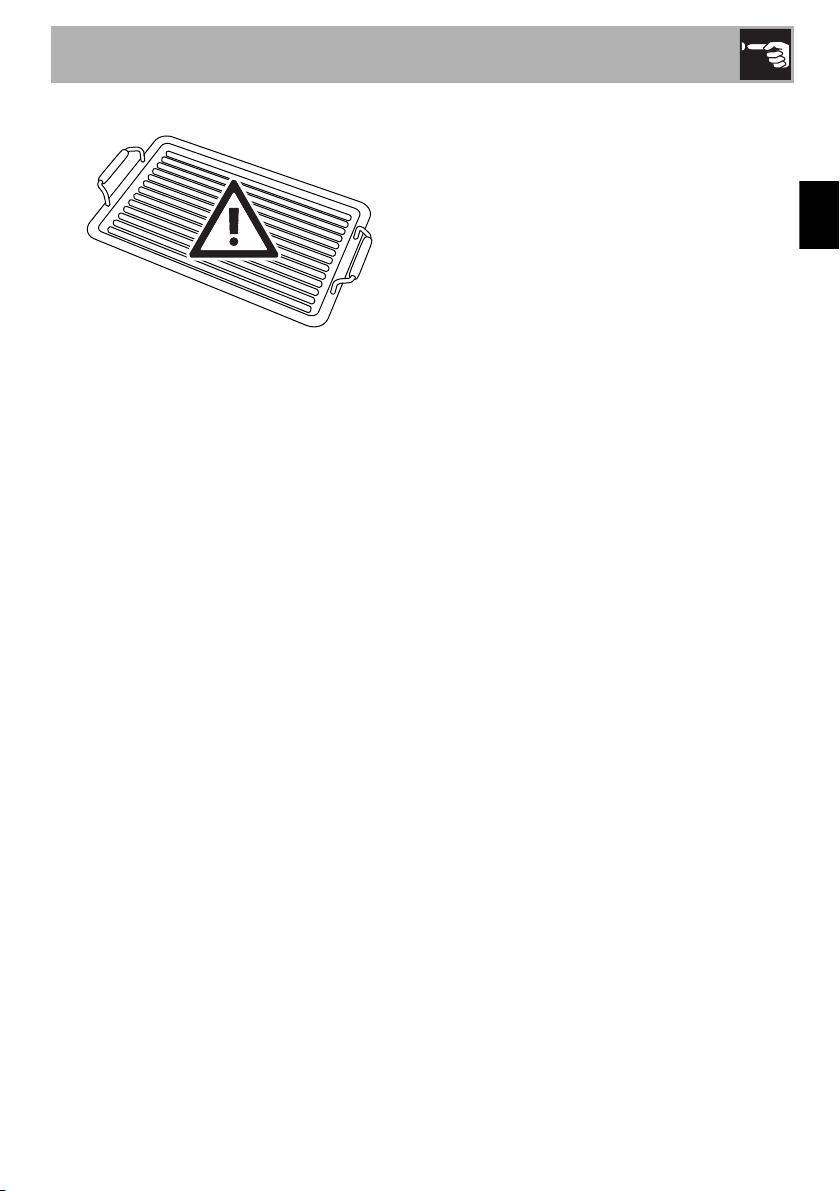

Limitations on griddle use
A few precautions are necessary if you wish
to use a griddle:
• Griddles must never protrude beyond
the edge of the hob.
• Aluminium griddles with Teflon anti-stick
coating should be pre-heated for a
maximum of 5 minutes in order to avoid
damage to the appliance and the Teflon
coating. After pre-heating, place the
foodstuffs on the griddle to cook them;
do not exceed 40 minutes of total use for
the griddle.
• If one of the burners close to the wooden
rear wall is an ultra-rapid burner (UR3 or
UR2), leave a gap of at least 160 mm
between this wall and the edge of the
griddle;
• Do not use griddles or plates to cook or
heat food on the ultra-rapid/triple crown
burner (UR3) or the ultra-rapid/double
crown burner (UR2).
• It is not recommended to use
earthenware or steatite (soapstone) pans
to cook or heat food.
• Do not allow the burner flames to extend
beyond the edge of the griddle;
• Leave a gap of at least 160 mm
between the edge of the griddle and the
side wall;
• Do not place the griddle over more than
one burner at the same time.
• Never use the griddle for more than 40
minutes.
EN
41
Cleaning and maintenance
4 Cleaning and maintenance
4.1 Instructions
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not use cleaning products containing
chlorine, ammonia or bleach on parts
made of steel or that have metallic
surface finishes (e.g. anodizing, nickelor chromium-plating).
• Do not use rough or abrasive materials
or sharp metal scrapers.
• Do not wash removable parts such as
the hob grids, flame-spreader crowns
and burner caps in the dishwasher.
4.2 Cleaning the appliance
To keep the surfaces in good condition,
they should be cleaned regularly after use.
Let them cool first.
Food stains or residues
Do not use steel sponges and sharp
scrapers as they will damage the surface.
Use normal, non-abrasive products and a
wooden or plastic tool, if necessary. Rinse
thoroughly and dry with a soft cloth or a
microfibre cloth.
Ordinary daily cleaning
Always and only use specific products that
do not contain abrasives or chlorine-based
acids.
Pour the product onto a damp cloth and
wipe the surface, rinse thoroughly and dry
with a soft cloth or a microfibre cloth.
42
Cleaning and maintenance
Cooking hob grids
Remove the grids and clean them in
lukewarm water and non-abrasive
detergent. Make sure to remove any
encrustations. Dry them thoroughly and
return them to the hob.
The continuous contact between
the grids and the flame can cause
modifications to the enamel over
time in those parts exposed to
heat. This is a completely natural
phenomenon which has no effect
on the operation of this
component.
Flame-spreader crowns and burner caps
For easier cleaning, the flame-spreader
crowns and the burner caps can be
removed. Wash them in hot water and nonabrasive detergent. Carefully remove any
encrustation, then wait until they are
perfectly dry. Refit the flame-spreader
crowns, making sure that they are correctly
positioned in their housings with their
respective burner caps.
Igniters and thermocouples
For correct operation the igniters and
thermocouples must always be perfectly
clean. Check them frequently and clean
them with a damp cloth if necessary.
Remove any dry residues with a wooden
toothpick or a needle.
After cleaning, dry the appliance
thoroughly to prevent water or
detergent drips from interfering
with its operation or creating
unsightly marks.
EN
Knobs
Do not use aggressive products
containing alcohol or products for
cleaning steel and glass when
cleaning the knobs, as these
products could cause permanent
damage.
The knobs should be cleaned with a soft
cloth dampened with warm water, then
dried carefully. They can easily be removed
by pulling them upwards.
43
Installation
5 Installation
5.1 Safety instructions
Heat production during appliance
operation
Risk of fire
• Check that the carcase material is heat
resistant.
• Check that the carcase has the required
openings.
Veneers, adhesives or plastic coatings on
adjacent furniture should be temperatureresistant (>90°C), otherwise they might
warp over time.
The minimum clearance between a
ventilation hood and the cooking
surface must be at least the
distance indicated in the ventilation
hood installation instructions.
The minimum clearances must also be
respected for the edges of the hob on the
back as indicated in the mounting
illustrations.
5.2 Section cut from the countertop
The following operation requires
building and/or carpentry work
and must therefore be carried out
by a competent tradesman.
Installation can be carried out on
various materials such as masonry,
metal, solid wood or plastic
laminated wood as long as they
are heat resistant (>90°C).
Create an opening with the dimensions
shown in the figure in the countertop of the
carcase.
L (mm) X (mm) Y (mm)
600 - 725 555÷560 478÷482
44
A (mm) B (mm) C (mm) D (mm) E (mm)
min 150 min 460 min 750 20÷40 min 50
Installation
5.3 Mounting
Over built-in oven unit
The clearance between the hob and the
kitchen furniture or other installed
appliances must be enough to ensure
sufficient ventilation and air discharge.
If installed above an oven, a space must be
left between the bottom of the hob and the
top of the appliance installed below.
opens on bottom

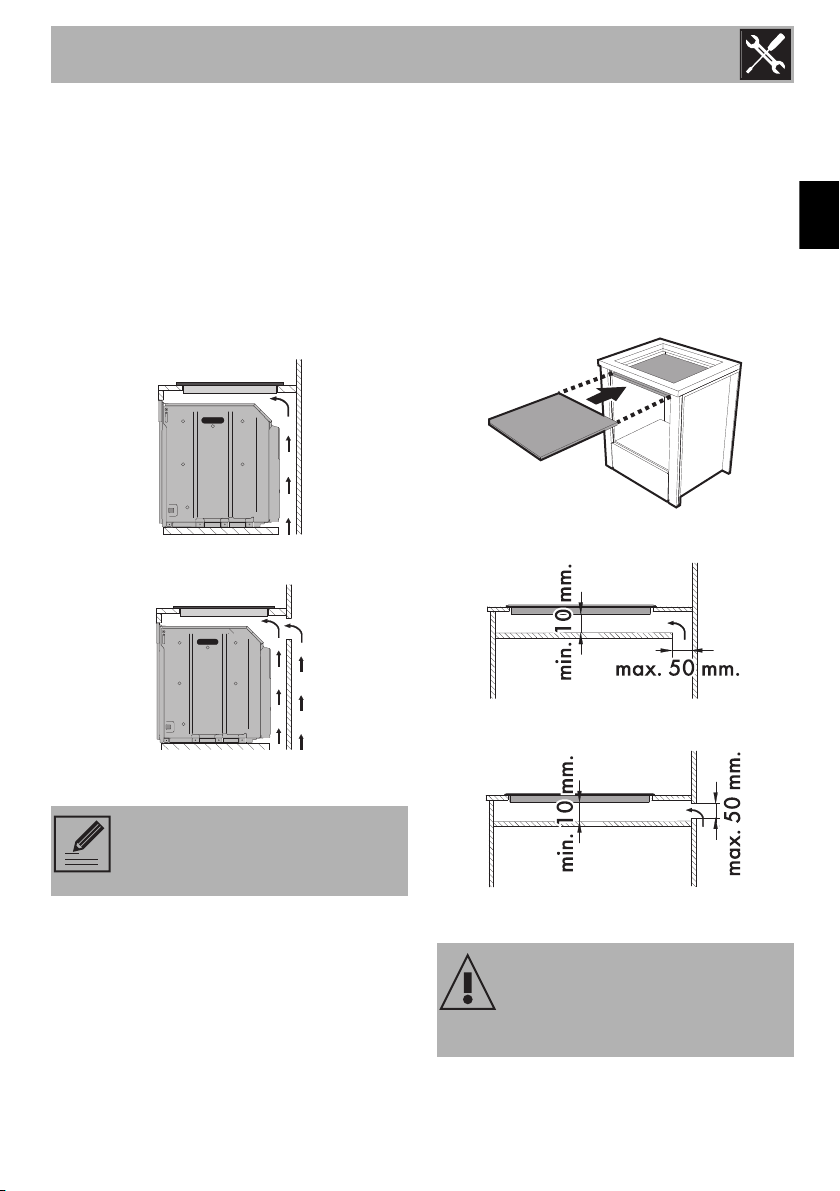

Over empty kitchen unit or drawers
If there are other pieces of furniture (lateral
walls, drawers, etc.), dishwashers or fridges
under the hob, a double-layer wooden
base must be installed at least 10 mm from
the bottom of the hob to avoid any
accidental contact. It must only be possible
to remove the double-layer base using
suitable equipment.
EN
opens on bottom and on rear
If installed on top of an oven, the
latter must be equipped with a
cooling fan.
opens on bottom
opens on rear
Failure to install the double-layer
wooden base exposes the user to
possible accidental contact with
sharp or hot parts.
45
Installation
Hob seal
To prevent leakage of liquid between the
frame of the hob and the work surface, put
the insulating seal provided in position
before assembly.
1. Refer to the dimensions in the figure,
bearing in mind that the long front side
must be flush with the hole.
5.4 Fastening with brackets
The figures below show the exact holes to
be used to correctly attach the hob to the
work surface with brackets.
2. Use light pressure to make the seal stick
to the edge around the hole cut in the
worktop.
3. Carefully trim the surplus edge away
from the seal.
46
Installation

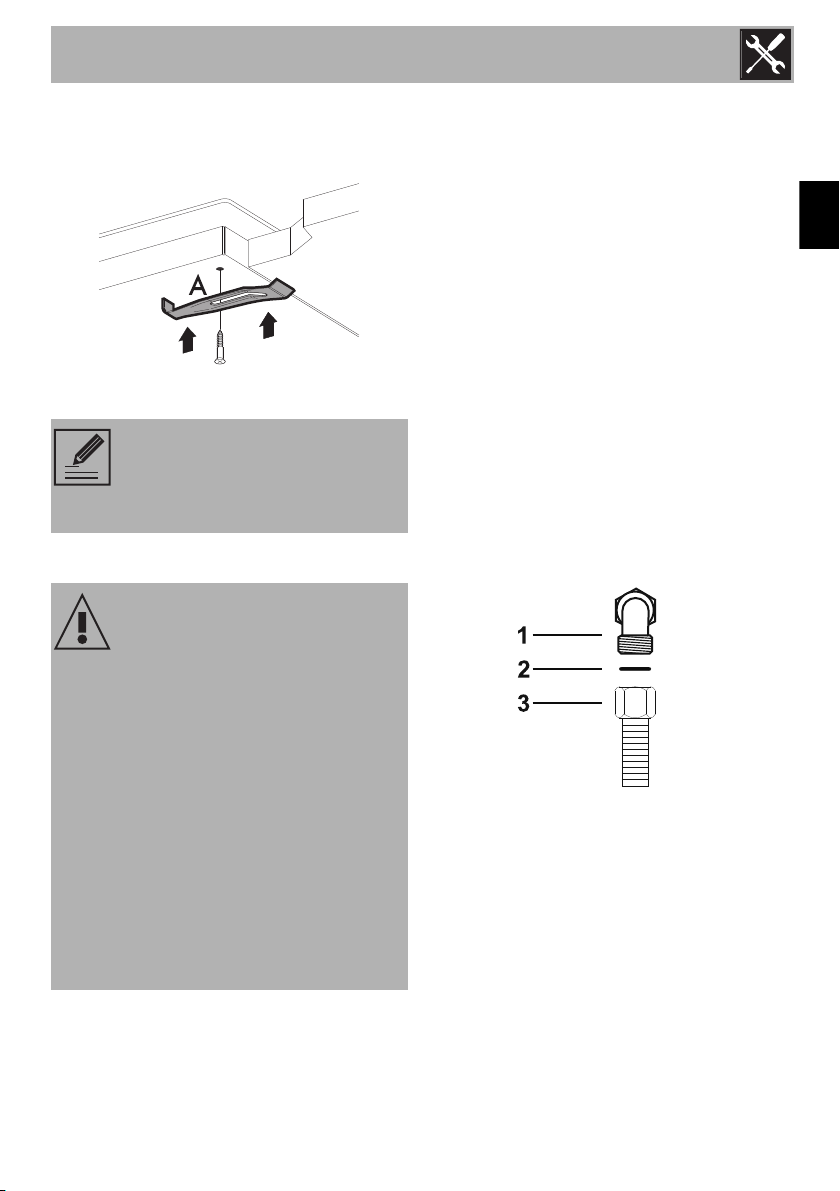

Screw the fixing brackets (A) into the holes
on the sides of the bottom casing to
properly fasten the hob to the structure.
Do not use silicone to secure the
hob. This would make it impossible
to remove the hob, if necessary,
without damaging it.
5.5 Gas connection
Gas leak
Danger of explosion
• After carrying out any operation, check
that the tightening torque of gas
connections is between 10 Nm and
15 Nm.
• If required, use a pressure regulator that
complies with current regulations.
• At the end of the installation, check for
any leaks with a soapy solution, never
with a flame.
• The hoses should not come into contact
with moving parts and should not be
crushed in any way.
General information
Connection to the gas mains can be made
using a rigid copper pipe or a continuous
wall steel hose in compliance with the
provisions established by the applicable
standard.
For supplying it with other types of gas, see
chapter “5.6 Adaptation to different types
of gas”. The gas inlet connection is
threaded ½” external gas (ISO 228-1).
Connection with a steel hose
Make the connection to the gas mains
using a continuous wall steel hose whose
specifications comply with the applicable
standard.
Carefully screw the connector 3 to the gas
connector 1 of the appliance, placing the
seal 2 between them.
EN
47
Installation
Connection with a steel hose with conical
fitting
Make the connection to the gas mains
using a continuous wall steel hose whose
specifications comply with the applicable
standard.
Carefully screw the hose connector 3 to the
appliance’s gas connector 1 (½” thread
ISO 228-1), placing the supplied seal 2
between them. Apply insulating material to
the thread of connector 3, then tighten the
steel hose 4 to the connector 3.
Room ventilation
The appliance should be installed in rooms
that have a permanent air supply in
accordance with the standards in force. The
room where the appliance is installed must
have enough air flow for the regular
combustion of gas and the necessary air
change in the room itself. The air vents,
protected by grilles, must be the right size to
comply with current regulations and
positioned so that no part of them is
obstructed, not even partially.
The room must be kept adequately
ventilated in order to eliminate the heat and
humidity produced by cooking: In
particular, after prolonged use, you are
recommended to open a window or to
increase the speed of any fans.
Connection to LPG
Use a pressure regulator and make the
connection on the gas cylinder, following
all applicable standards and regulations.
The supply pressure must comply with the
values indicated in the table in “Burner and
nozzle characteristics tables”.
48
Installation
Extraction of the combustion products
The combustion products may be extracted
by means of hoods connected to a natural
draught chimney whose efficiency is certain
or via forced extraction. An efficient
extraction system requires precision
planning by a specialist qualified in this
area and must comply with the positions
and clearances indicated by the applicable
standards.
When the job is complete, the installer must
issue a certificate of conformity.
1 Extraction using a hood
2 Extraction without a hood
A Single natural draught chimney
B Single chimney with extractor fan
C Directly outdoors with wall- or window-
mounted extractor fan
D Directly outdoors through wall
Air
Combustion products
Extractor fan
EN
49
Installation
5.6 Adaptation to different types of
gas
If other types of gas are to be used, the
nozzles must be replaced and the primary
air must be adjusted. In order to replace the
nozzles and adjust the burners, the hob top
must be removed.

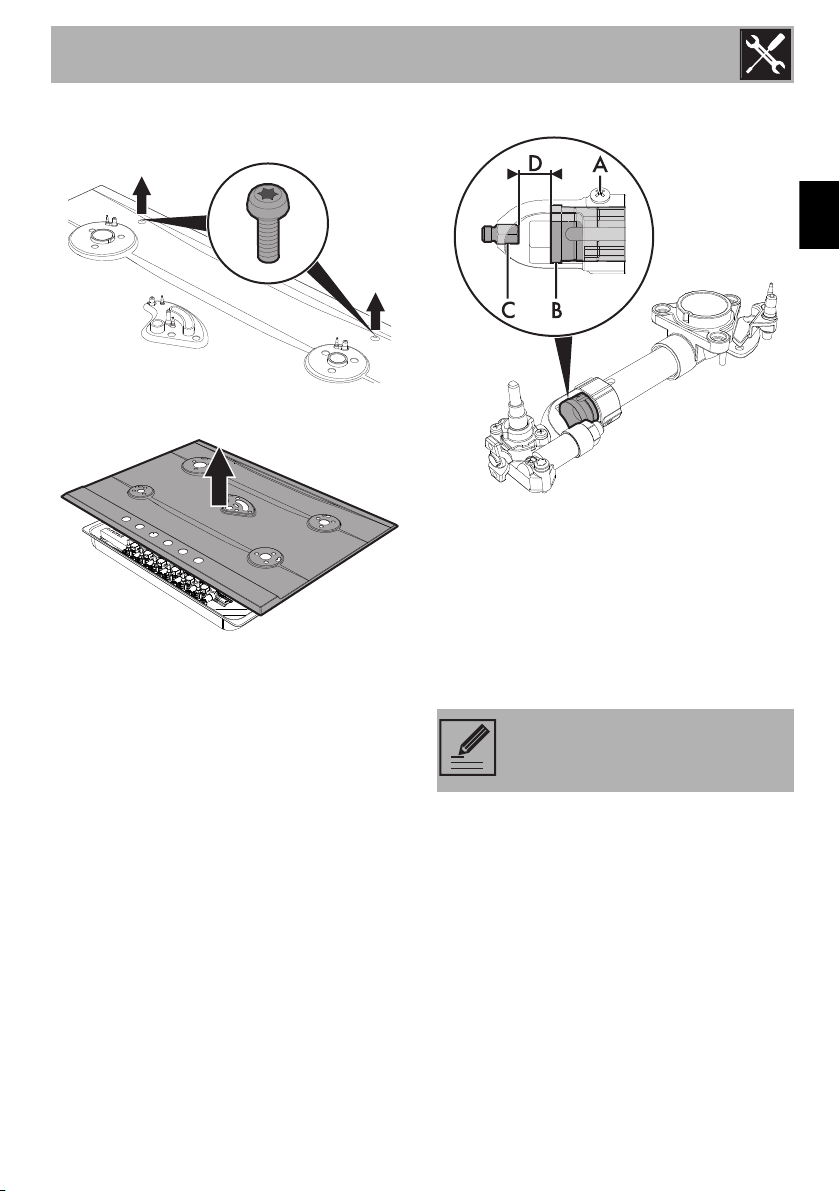

Removing the hob top
1. Remove the grids from the hob.
2. Remove the flame-spreader crowns and
relative burner caps.
3. Pull the knobs upwards to remove them.
4. Remove the screws fastening the hob
and the plates corresponding to each
burner zone.
50
Installation
5. The two rear screws need to be removed
only on 70 cm models.
6. Remove the hob top.
Replacing nozzles
EN
1. Unscrew screw A and push air
regulator B as far as it will go.
2. Use a spanner to remove the nozzles C
and install the new ones for the required
gas supply, following the indications
given in the relevant table (see “Burner
and nozzle characteristics tables”).
The nozzle tightening torque must
be no more than 3 Nm.
3. Adjust the air flow by moving the air
regulator B to obtain the distance D
given in the corresponding table (see
“Burner and nozzle characteristics
tables”).
4. After adjusting each burner, reassemble
the appliance correctly.
51
Installation
Adjusting the minimum setting for natural
or town gas
Light the burner and turn it to the minimum
position. Extract the gas cock knob and turn
the adjustment screw next to the gas cock
rod (depending on the model) until the
correct minimum flame is achieved.
Refit the knob and verify that the burner
flame is stable. Turn the knob rapidly from
the maximum to the minimum setting: The
flame should not go out. Repeat the
operation on all gas cocks.

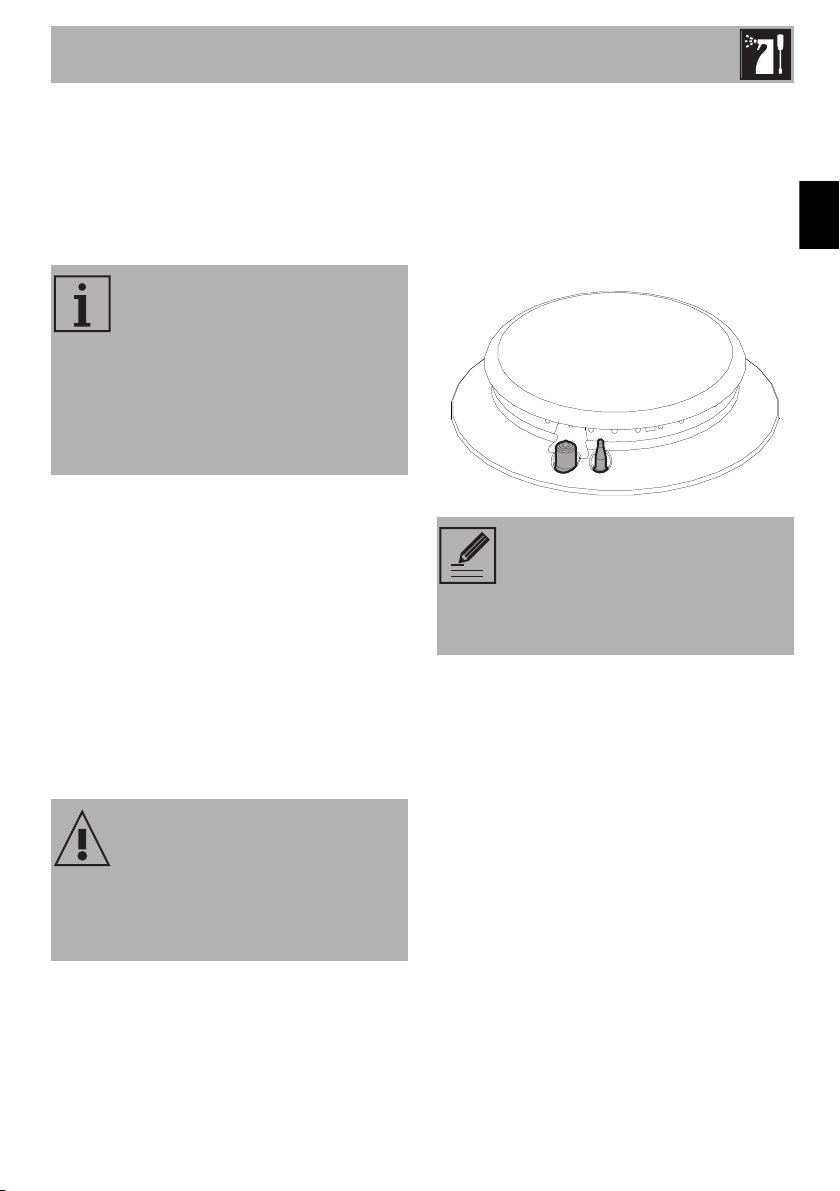

52
Installation
Adjusting the minimum setting for LPG
Tighten the screw located at the side of the
tap rod clockwise all the way.
Lubricating the gas cocks
Over time the gas cocks may become
difficult to turn and get blocked. Clean them
internally and replace the lubrication
Following adjustment to a gas
grease.
other than the one originally set in
the factory, replace the gas setting
label on the appliance with the
one corresponding to the new gas.
Lubrication of the gas cocks should
be performed by a specialised
technician.
The label is inserted inside the
nozzle pack (where present).
Burner and nozzle characteristics tables
Natural Gas G20 – 20 mbar AUX SR RR R UR3 UR2 int. UR2 ext.
Rated heating capacity (kW)
Nozzle diameter (1/100 mm)
Reduced flow rate (W)
Primary air (mm)
Natural Gas G25 - 25 mbar / G25.3 - 25 mbar
Rated heating capacity (kW)
Nozzle diameter (1/100 mm)
Reduced flow rate (W)
Primary air (mm)
LPG G30/31 - 30/30 mbar AUX SR RR R UR3 UR2 int. UR2 ext.
Rated heating capacity (kW)
Nozzle diameter (1/100 mm)
Reduced flow rate (W)
Primary air (mm)
Rated flow rate G30 (g/h)
Rated flow rate G31 (g/h)
1.1 1.7 2.6 3.1 3.5 1.0 3.2
76 95 115 126 135 73 130
400 500 750 900 1600 400 1400
1 0.5 1 1 1.5 2 1.5
AUX SR RR R UR3 UR2 int. UR2 ext.
1.1 1.7 3.1 3.1 3.5 1.0 3.2
76 95 115 126 135 73 130
400 500 750 900 1600 400 1400
10.511121
1.1 1.7 2.6 3.1 3.5 1.0 3.2
48 62 76 85 87 48 85
400 500 750 1000 1600 400 1400
1.5 1.5 1.5 8 3 4 12
80 124 189 225 254 73 233
79 121 186 221 250 71 229
EN
The nozzles not provided are available at Authorised Service Centres.
Appliance set for:
G+ Groningen Group K gas
G25 (2L) - 25 mbar
G25.3 (2K) - 25 mbar
53
Installation
5.7 Electrical connection
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised technical
personnel.
• Use personal protective equipment.
• The appliance must be connected to
earth in compliance with electrical
system safety standards.
• Disconnect the mains power supply.
• Do not pull the cable to remove the
plug.
• Use cables withstanding a temperature
of at least 90°C.
• The tightening torque of the screws of
the terminal supply wires must be 1.5 2 Nm.
General information
Check the grid characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
Perform the ground connection using a wire
that is 20 mm longer than the other wires.
Pass the power supply cable through
the back of the unit, taking care that it
does not touch the bottom casing of
the hob or the oven (if any) installed
underneath it.
The appliance can work in the following
modes:
• 220-240 V 1N~
220-240V~
20 mm
1 mm
2
Use a 3 x 1 mm² three-core cable.
The values indicated refer to the
cross-section of the internal
conductor.
Fixed connection
Fit the power line with an omnipolar circuit
breaker with contact separation equal to or
greater than 3 mm in compliance with
installation regulations.
The circuit breaker should be located near
the appliance and in an easily reachable
position.
54
Connection with plug and socket
Make sure that the plug and socket are of
the same type.
Avoid using adapters and shunts as these
could cause overheating and a risk of
burns.
Loading...
