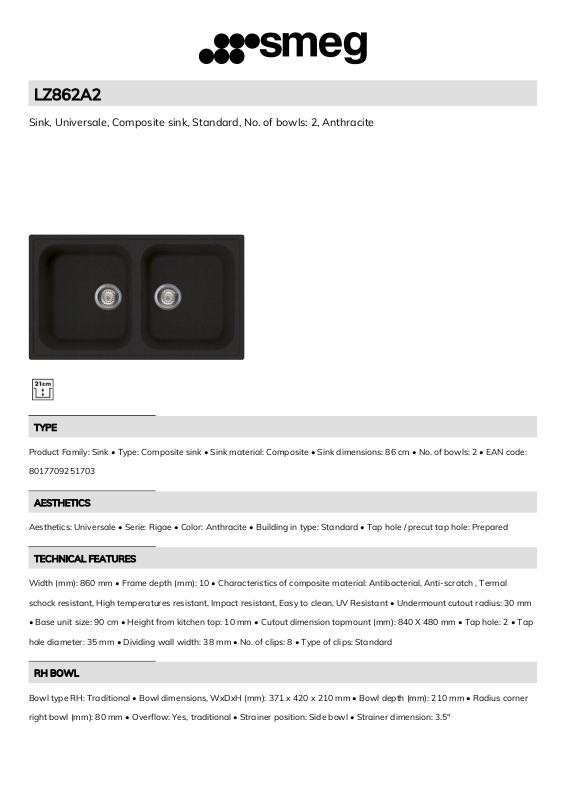

Smeg LZ862A2 Technical sheet

LZ862A2

Sink, Universale, Composite sink, Standard, No. of bowls: 2, Anthracite

TYPE

Product Family: Sink • Type: Composite sink • Sink material: Composite • Sink dimensions: 86 cm • No. of bowls: 2 • EAN code:

8017709251703

AESTHETICS

Aesthetics: Universale • Serie: Rigae • Color: Anthracite • Building in type: Standard • Tap hole / precut tap hole: Prepared

TECHNICAL FEATURES

Width (mm): 860 mm • Frame depth (mm): 10 • Characteristics of composite material: Antibacterial, Anti-scratch , Termal

schock resistant, High temperatures resistant, Impact resistant, Easy to clean, UV Resistant • Undermount cutout radius: 30 mm

• Base unit size: 90 cm • Height from kitchen top: 10 mm • Cutout dimension topmount (mm): 840 X 480 mm • Tap hole: 2 • Tap

hole diameter: 35 mm • Dividing wall width: 38 mm • No. of clips: 8 • Type of clips: Standard

RH BOWL

Bowl type RH: Traditional • Bowl dimensions, WxDxH (mm): 371 x 420 x 210 mm • Bowl depth (mm): 210 mm • Radius corner

right bowl (mm): 80 mm • Overflow: Yes, traditional • Strainer position: Side bowl • Strainer dimension: 3.5"

LH BOWL

Bowl type LH: Traditional • Bowl dimensions LH, WxDxA (mm): 371 x 420 x210 mm • LH Bowl depth (mm): 210 mm • Radius

corner left bowl: 80 mm • Strainer position LH bowl: Side bowl • Strainer dimension LH bowl: 3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 210x860x500 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer,

SinksKITDSQ: Soap Dispenser, SinksDBSINT34: Basket, Sinks
