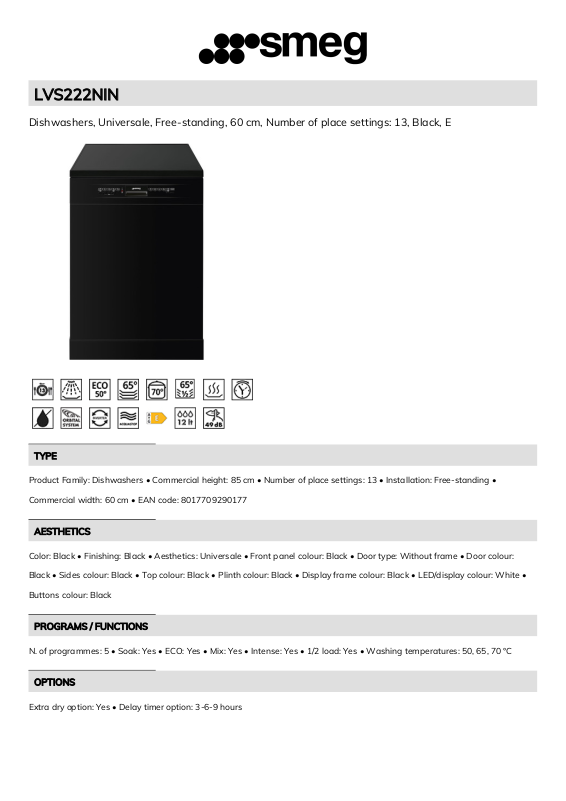

Smeg LVS222NIN Technical sheet

LVS222NIN

Dishwashers, Universale, Free-standing, 60 cm, Number of place settings: 13, Black, E

TYPE

Product Family: Dishwashers • Commercial height: 85 cm • Number of place settings: 13 • Installation: Free-standing •

Commercial width: 60 cm • EAN code: 8017709290177

AESTHETICS

Color: Black • Finishing: Black • Aesthetics: Universale • Front panel colour: Black • Door type: Without frame • Door colour:

Black • Sides colour: Black • Top colour: Black • Plinth colour: Black • Display frame colour: Black • LED/display colour: White •

Buttons colour: Black

PROGRAMS / FUNCTIONS

N. of programmes: 5 • Soak: Yes • ECO: Yes • Mix: Yes • Intense: Yes • 1/2 load: Yes • Washing temperatures: 50, 65, 70 °C

OPTIONS

Extra dry option: Yes • Delay timer option: 3-6-9 hours

BASKETS

N° baskets: 2 • Basket colour: Grey • Basket components colour: Grey • Handle: In plastic on upper and lower basket • Upper

Basket: With central fixed racks • Height adjustment of the upper basket: On two levels, by extraction • Largest loadable dish in

upper basket: 25,0 cm • Lower Basket: With 2 foldable racks • Lower basket with anti-drip inserts: Yes • Largest loadable dish

in lower basket: 30,0 cm • Cutlery basket: 13 place settings sliding • Colour Inner Components: Green

TECHNICAL FEATURES

Controls: Electronic • Door opening system: Yes • Salt light indicator: Light • Rinse aid indicator: Light • End of cycle indicator:

Led on display, with acoustic signal • Washing system: Orbital • Drying system: Natural condenser drying • Motor: Inverter •

Third spray arm: Single • Water softener: With electronic setting • Flood protection system: Total Acquastop • Water supply:

Single; cold/hot water max. 60°C - energysave with hot water up to 35% • Max water hardness: 100°fH;58°dH • Tub material:

Stainless steel • Filter: Stainless steel • Concealed heating element: Yes • Hinges: Self balancing with fixed hinges • Adjustable

feet: Just for levelling

PERFORMANCE / ENERGY LABEL - REG. 2019

Energy Efficiency Class: E • Energy consumption [per 100 cycles, based on the eco programme]: 90 KWh • Rated capacity (ps):

13 • Water consumption [per cycle]: 12.0 litres • Programme duration: 3:20 h:min • Airborne acoustical noise emissions: 49 dB

(A) re 1 pW • Airborne acoustical noise emission class: C • Energy efficiency Index (EEI): 53.7

ELECTRICAL CONNECTION

Connected power: 1800 W • Voltage: 220-240 V • Type of connection: Single-phase • Frequency (Hz): 50 Hz • Power supply

cable length: 140 cm

LOGISTIC INFORMATION

Dimensions of the product HxWxD (mm): 848x598x600

OPTIONAL

KITPLV2: Extension kit, DishwashersKITGH: Glass holder kit, Dishwashers
