Smeg LSTA126C User manual [GB]

WASHER-DRYER
INSTRUCTION MANUAL
EN
Contents
1. PRECAUTIONS FOR SAFETY AND USE ................................................................................ 2

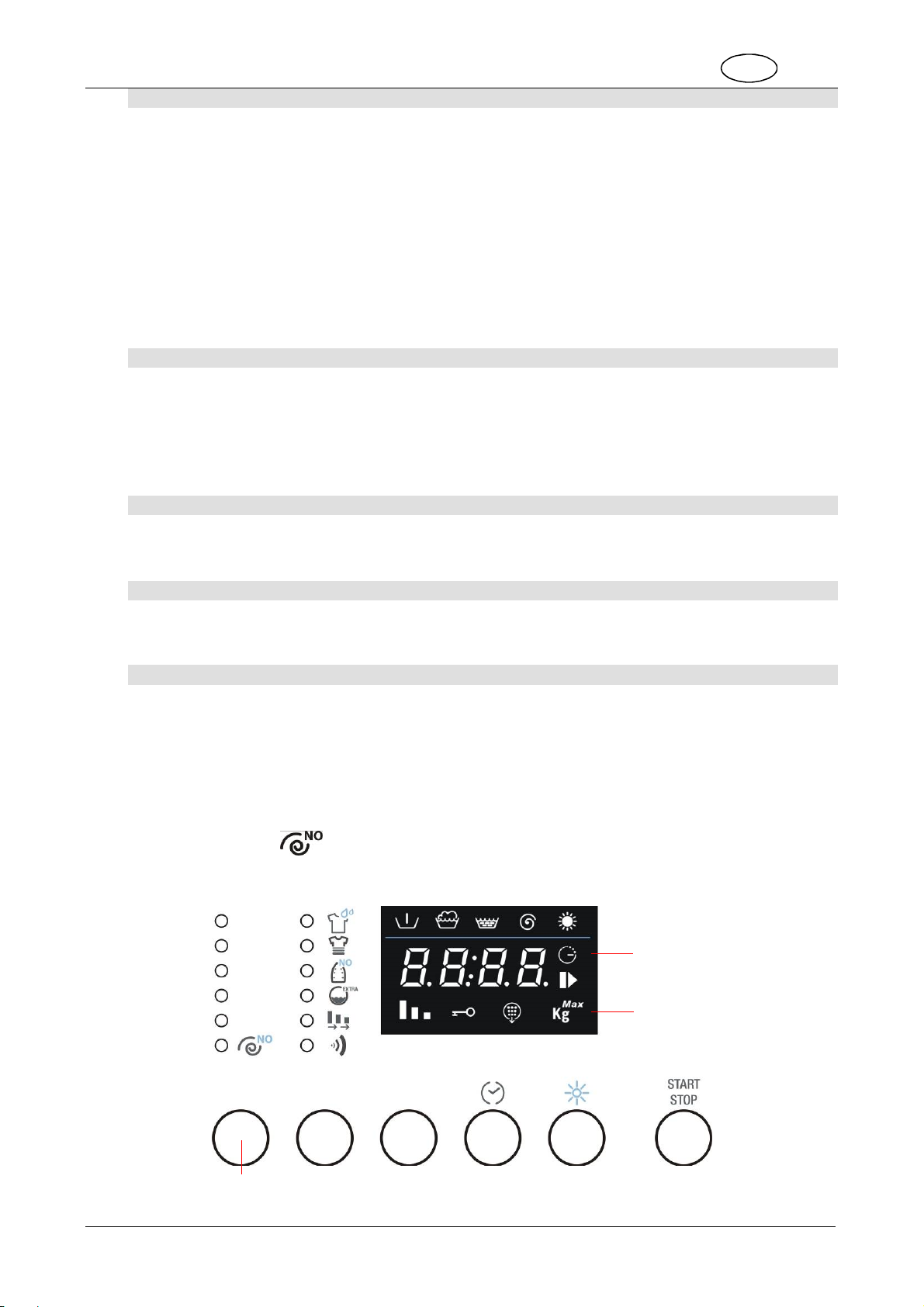

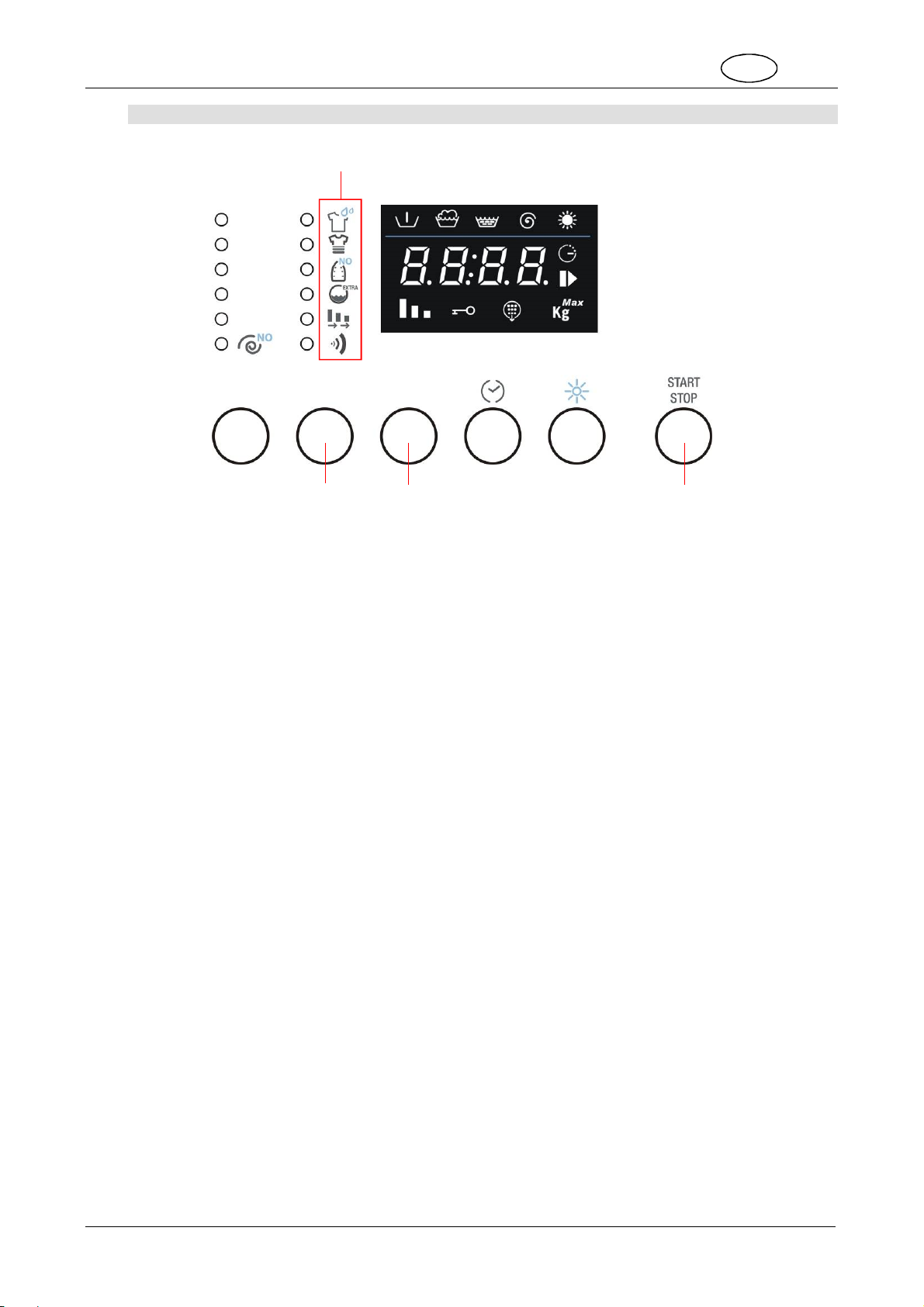

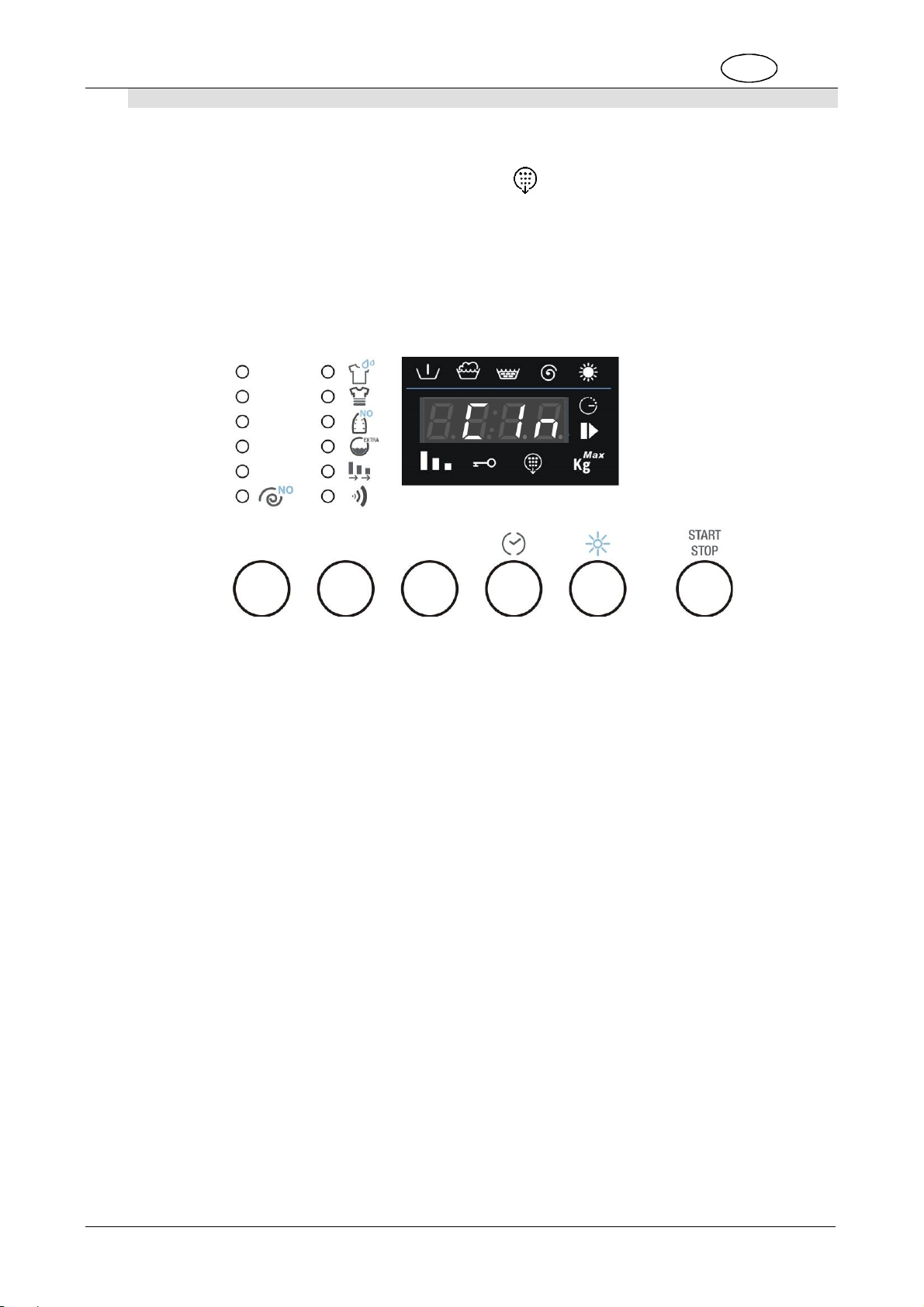

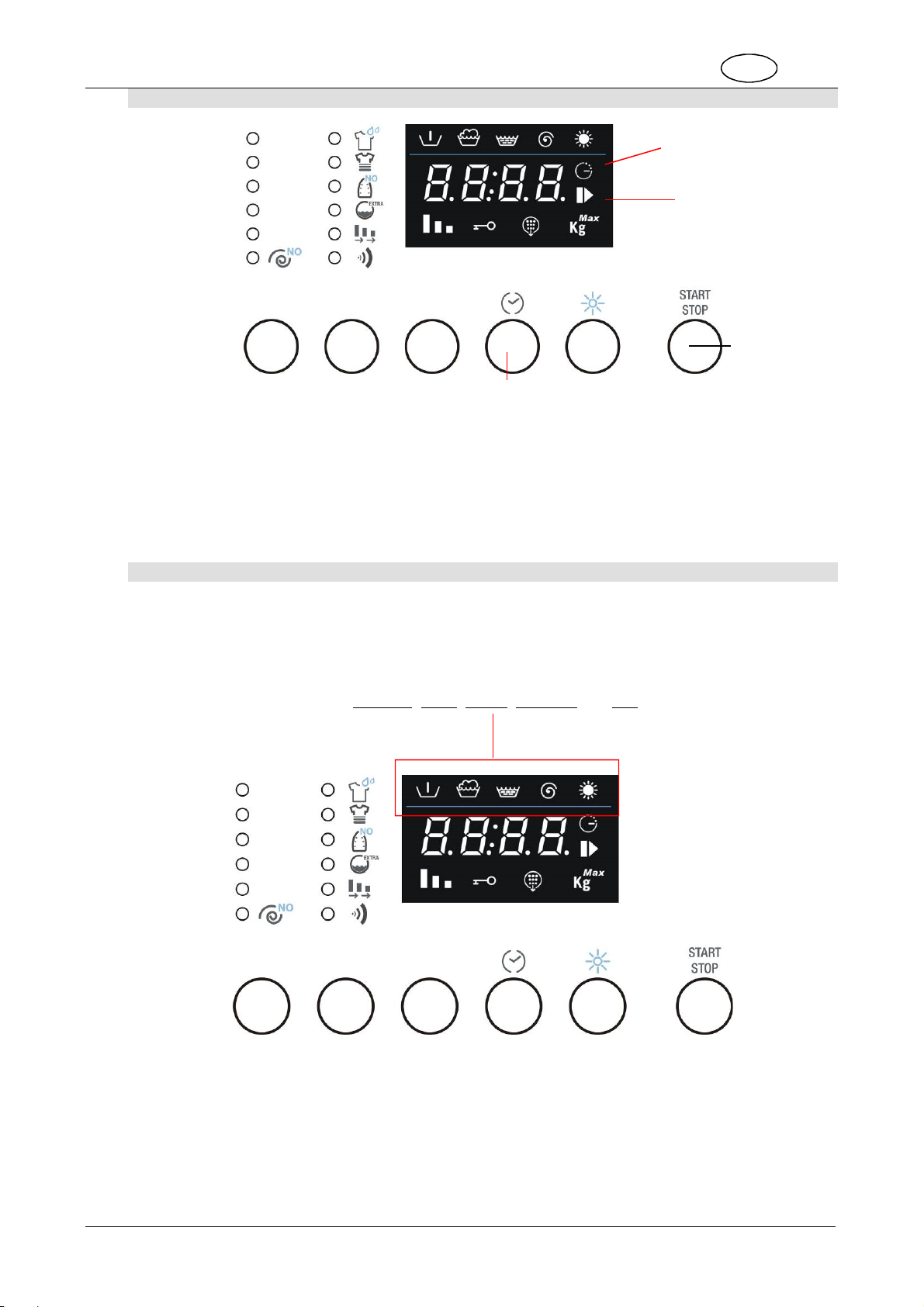

3. DESCRIPTION OF CONTROLS ............................................................................................. 12

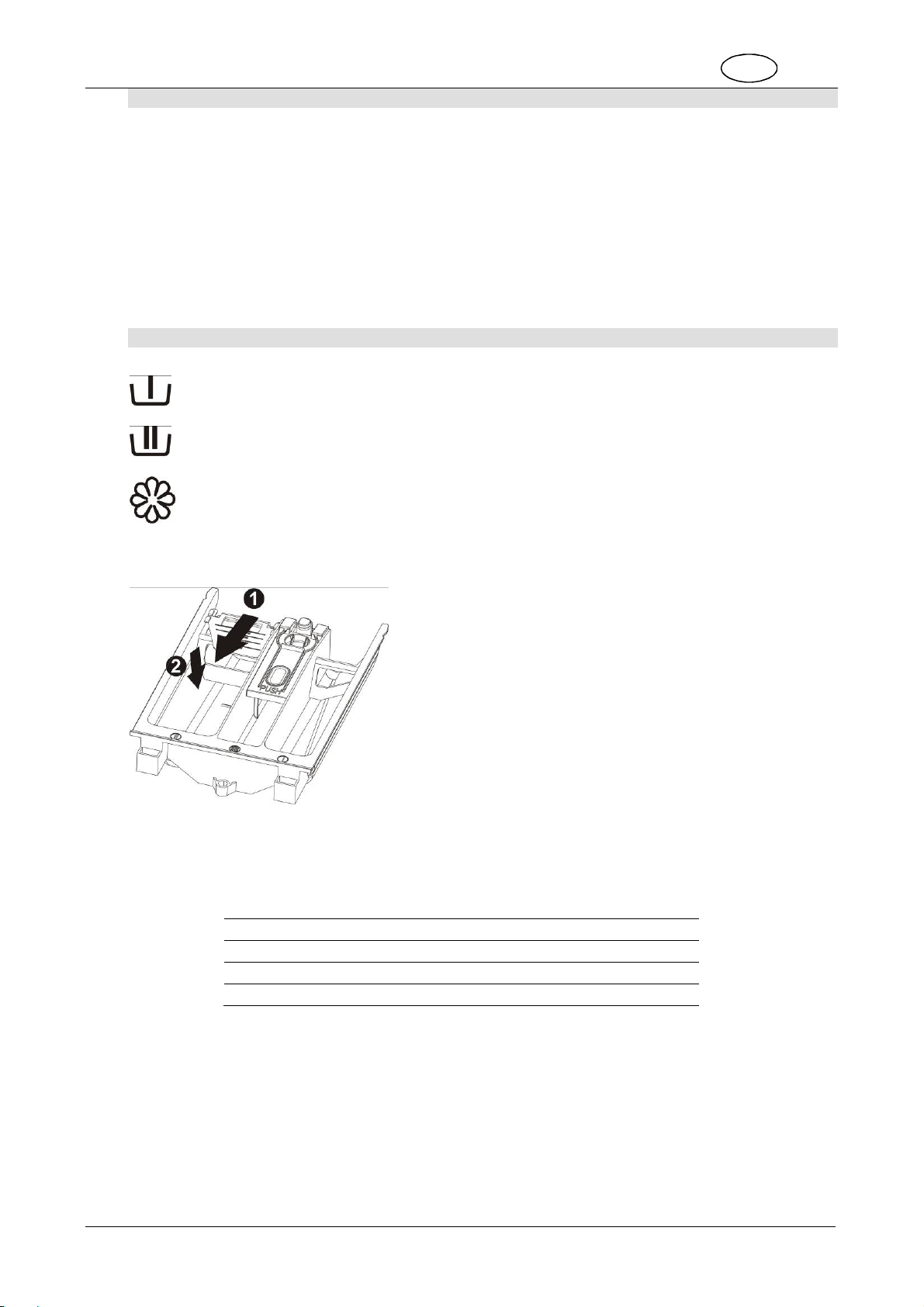

4. USING THE APPLIANCE FOR WASHING ............................................................................ 13
5. USING THE APPLIANCE FOR DRYING ............................................................................... 19

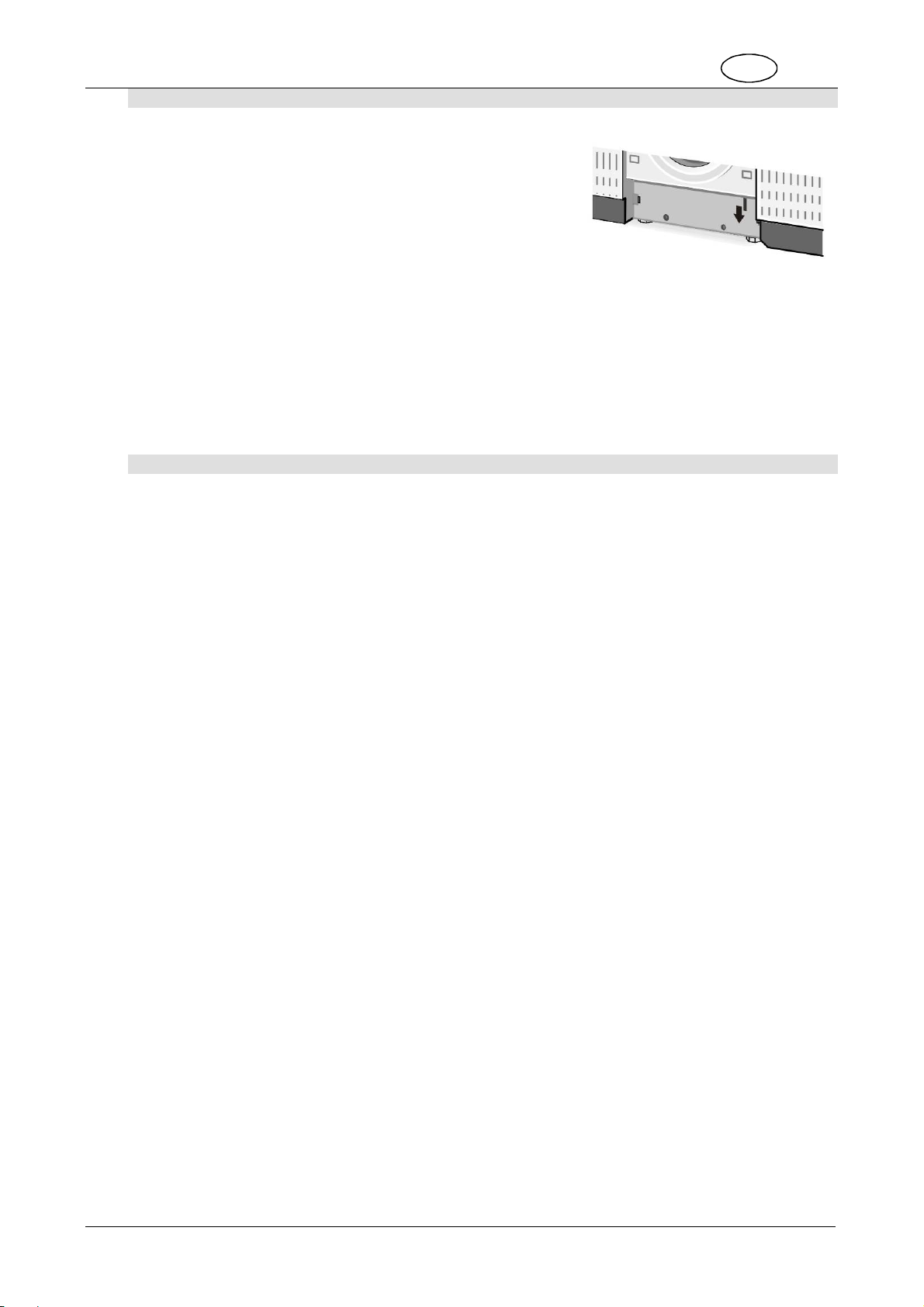

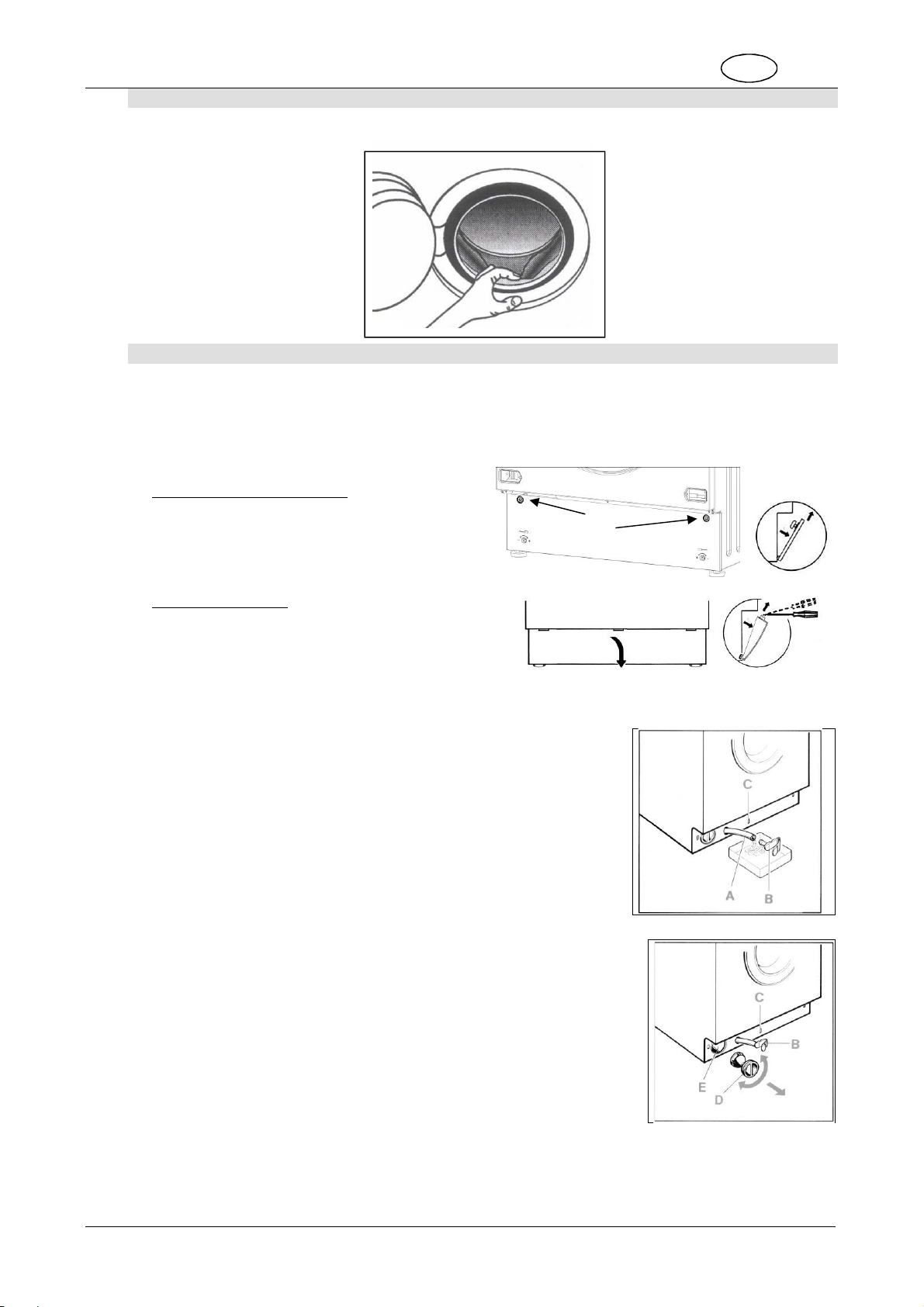

6. CLEANING AND MAINTENANCE ....................................................................................... 22

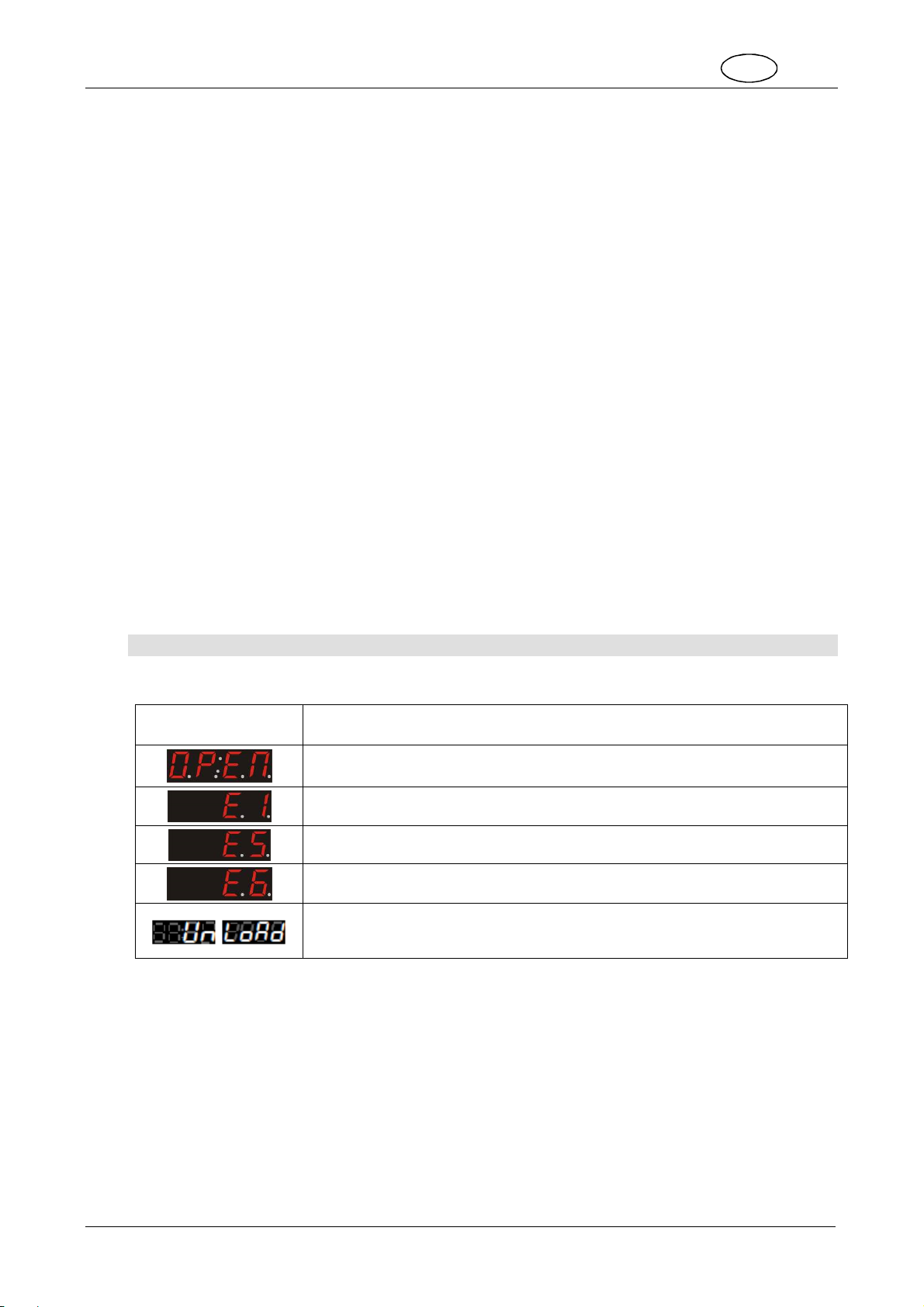

7. TROUBLESHOOTING ............................................................................................................ 25
This appliance is tagged in accordance with European Directive 2012/19/EU on Waste Electrical and Elec­tronic Equipment - WEEE. This directive contains the regulations governing the collection and recycling of decommissioned appliances throughout the European Union. The symbol of the rubbish bin with a line through it on the appliance or its packaging indicates that the product must be disposed of separately from other waste at the end of its life cycle. The user is thus obliged to consign scrapped appliances to the special electronic and electrotechnical waste disposal centres, or return them to the dealer on purchase of a similar new appliance, on a one-to-one basis. Consignment to the appropriate facility for environmentally responsible recycling, treatment and disposal helps to prevent any negative effects on the environment and health, and encourages the reuse and/or recycling of the appliance’s component materials. Illegal dumping of the appliance by the user will be subject to prosecution under the relevant law.
1
EN
READ THE INSTRUCTIONS
Attention!
You are advised to read all the instructions in this manual carefully; it will inform you about the right conditions for the proper, safe use of your washer-dryer It is very important to keep this instruction manual with the appliance for future reference. In the event of sale or transfer, ensure that the manual always accompanies the appliance, to provide the necessary information about its use.
1. PRECAUTIONS FOR SAFETY AND USE
Attention!
These precautions are detailed for reasons of safety. This section must be read carefully before installation and use.
Disposing of packaging
Never leave packaging residues unattended in the home. Separate waste packag-
ing materials by type and consign them to the nearest recycling centre.
Packaging materials (plastic bags, polystyrene, etc.) must not be left within reach
of children.
Disposing of old appliances
Once no longer in use, appliances must be rendered unusable: permanently
disarm the lock on the door (this will prevent children risking their lives by locking themselves inside during play) and cut the power supply lead after removing the plug from the socket. The appliance must be delivered to a recycling facility.
Environmental protection
Use the whole of the maximum recommended capacity. Never exceed the maxi-
mum permitted load.
Do not use the prewash function for lightly or normally soiled items. Follow the manufacturer's recommendations on detergent usage. Use the highest spin speed permitted for the fabric type. Fast spins reduce the dry-
ing time and thus energy consumption.
Safety instructions
This appliance is intended for domestic use and similar applications such as staff
kitchen area in shops, offices and other working environments, farm houses, and for the use by clients in hotels, motels, bed and breakfast type environments, and other residential facilities and is compliant with Directives 2014/35/EU and 2014/30/EU currently in force.
Read all the instructions in this manual carefully before installation and use. Check that the drum assembly has been released before use (see instructions).
Failure to release the drum assembly may cause damage to the washer-dryer and the surrounding furniture or appliances during the spin cycle.
This Instruction Manual is an integral part of the appliance: it must always be kept
intact with the appliance. Installation must be carried out by qualified staff in com­pliance with the relevant regulations. The appliance is built to provide the following functions: washing and drying of clothes or fabrics stated to be suitable for machine
2
EN
washing by the producer on the relevant label. All other uses are to be considered improper. The manufacturer declines all liability for uses other than those stated above.
The nameplate with the technical data, serial number and mark is in a visible posi-
tion in the part in view after the door has been opened. The nameplate must never be removed.
The electrical and plumbing works required to install the appliance must only
be carried out by skilled staff.
The appliance must be connected to earth in compliance with electrical system
safety regulations. The manufacturer declines all liability for direct or indirect
injury or damage deriving from a non-existent or defective earth connection.
In the event that the appliance is not connected by means of a plug, an omnipolar
circuit-breaker device with contact gap of at least 3 mm must be provided.
The plug to be connected to the power supply lead and the relative socket must be
of the same type and comply with the relevant regulations. Check that the mains voltage and frequency are the same as the values marked on the nameplate. The use of adapters or junctions is not recommended. Never disconnect the plug by pulling on the power supply lead.
The appliance is only disconnected from the electricity supply if the plug has
been removed from the socket or the electrical system master switch has been turned off. The power plug must be accessible after the appliance has been installed.
WARNING: The appliance must not be supplied through an external switching de-
vice, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
The appliance must be installed using new sets of hoses (supplied with the appli-
ance). Old hose sets should not be reused.
Take care that the appliance is not standing on the power supply cable. The washer-dryer must never be used on vehicles, on board ships or planes, or in
environments with hazards, such as explosive or corrosive environments (powders, vapours and gases) or explosive and/or corrosive liquids,
Do not install the washer-dryer in places with a risk of frost. Frozen pipes may burst
under the pressure.
Make sure that the drain hose connected to the sink is securely fastened and
cannot move.
If it is not fixed in place, the repulsive force of the water might thrust it away from
the sink, causing the risk of flooding.
When connecting the hose to a sink also check that the water drains from it
quickly, as otherwise the sink may overflow.
Do not overload the appliance. Never use detergents which contain solvents or chemicals for washing in the
washer-dryer. They might damage the appliance and form poisonous vapours. These fumes might also catch fire and explode.
Garments soaked in petroleum products must not be washed in the washing ma-
chine. Before washing, check that garments do not contain inflammable devices (e.g. cigarette-lighters, matches, etc.)
If volatile cleaning fluids are used, ensure that these substances have been re-
moved from the garments before they are placed in the appliance.
Before loading garments for washing, check that the pockets are empty, buttons
secure and zips fastened.
Do not wash frayed or torn garments.
3
EN
During washing at high temperatures, the glass in the door will become very hot. Check that all water has been drained from the appliance before opening the
door.
If there is water inside, pump it out before opening the door. If in doubt, read the
instruction manual.
The water in the appliance is not suitable for drinking! Swallowing washing machine detergents may injure the mouth and throat. Before removing the garments from the washer-dryer check that the drum is at a
standstill.
Switch the appliance off after each use to avoid wasting electricity. Leave the door ajar between washes to keep the gasket in good condition. In the event of a malfunction never attempt to repair the appliance yourself.
Disconnect the appliance from the electricity supply and turn off the water tap. Then contact a qualified engineer. Repairs must only be carried out by qualified staff.
The appliance is intended for use by adults. Do not allow children to tamper with
the washer-dryer's controls or play with it and do not keep children in the vicinity
while the programme is in progress.
Young animals or small children might climb into the washer-dryer . Always check the inside of the drum before use and do not allow children to play
with the appliance.
Keep children away from the appliance when the door or the detergent drawer is
open; the appliance might contain detergent residues which may cause permanent injury to the eyes, mouth and throat, or even cause death by suffocation.
This washing machine / washer dryer, must be used by adults. Use of the appliance
by children aged from eight years and a person with reduced physical sensory or mental capabilities or lack of experience and knowledge is only permitted under the supervision of a person responsible for their safety.
The appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, un­less they have been given supervision or instruction concerning use of the appli­ance by a person responsible for their safety.
That the tumble dryer is not to be used if industrial chemicals have been used for
cleaning
That lint must not be allowed to accumulate around the tumble dryer Do not dry unwashed items in the tumble dryer Items that have been soiled with substances such as cooking oil, acetone, petrol,
kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer
Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer
Fabric softeners, or similar products, should be used as specified by the fabric sof-
tener instructions.
The final part of a tumble dryer cycle occurs without heat (cool down cycle) to en-
sure that the items are left at a temperature that ensures that the items will not be changed
Never stop a tumble drier before the end of the drying cycle unless all items are
quickly removed and spread out so that the heat is dissipated
Do not store flammable fluids near the appliance.
4
EN
Lengthy periods out of use.
If the appliance is not to be used for a lengthy period it should be disconnected from
the electricity and water supplies and the door should be left ajar to prevent un­pleasant smells from building up inside.
Important!
This appliance is easy to use. However, for the best results it is important to read this manual carefully and follow all the instructions before putting it into operation. The manual provides the correct instructions for installation, use and maintenance, as well as giving useful advice.
For Great Britain only Warning: this appliance must be earthed.
Fuse replacement If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows:
1. Remove the fuse cover (A) and fuse (B)
2. Fit replacement 13A fuse into fuse cover
3. Refit both into plug
5
EN
Important:
The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted. Correct replacement are identified by the colour insert or the colour embossed in words on the base of the plug. Replacement fuse covers are available from your local electrical store. If the appliance is provided with a plugless supply cord:
It is necessary to install in the fixed wiring an all-pole disconnection device having
a gap between contacts of at least 3,5mm. After installation the disconnection device has to be easy to reach.
The connection to the mains must be carried out by a qualified technician in ac-
cordance to the scheme shown below and the regulations in force
L
= brown
N
= blue
= yellow-green
In the event of damage to the supply cord, it has to be replaced by the manu-
facturer or an authorized technical service center in order to avoid any risk.
The manufacturer declines all responsibility for injury or damage caused by fail­ure to comply with the above regulations or deriving from tampering with even just one part of the appliance and the use of non-original spare parts.
6
EN
WARNING:
It is absolutely necessary to fit
all
(
nr.5
) the
2. INSTALLATION INSTRUCTIONS
Important!
The appliance must be installed by a qualified engineer in compliance with the relevant regulations. The washer-dryer is heavy. Take care when lifting it.
2.1 UNPACKING
The unit on flexible mounts is fixed in place for transport using the screws (A) on the rear of the washer-dryer, with the relative plastic spacers (B). Once the screws have been removed, the power supply lead can be used.
A+B
1. Undo all the screws with a 10 mm spanner
2. Remove all the screws (A) from the rear
3. Remove all the plastic spacers (B)
B
A
supplied plastic plugs (C) in order to avoid splashes or water penetrating the machine or to avoid contact with live parts.
Warning!
Do not turn the appliance upside-down or place it on its sides.  All the transport retainer fittings should be kept in a safe place; they must be fitted
again if the appliance has to be moved around in the future.
C
7
EN

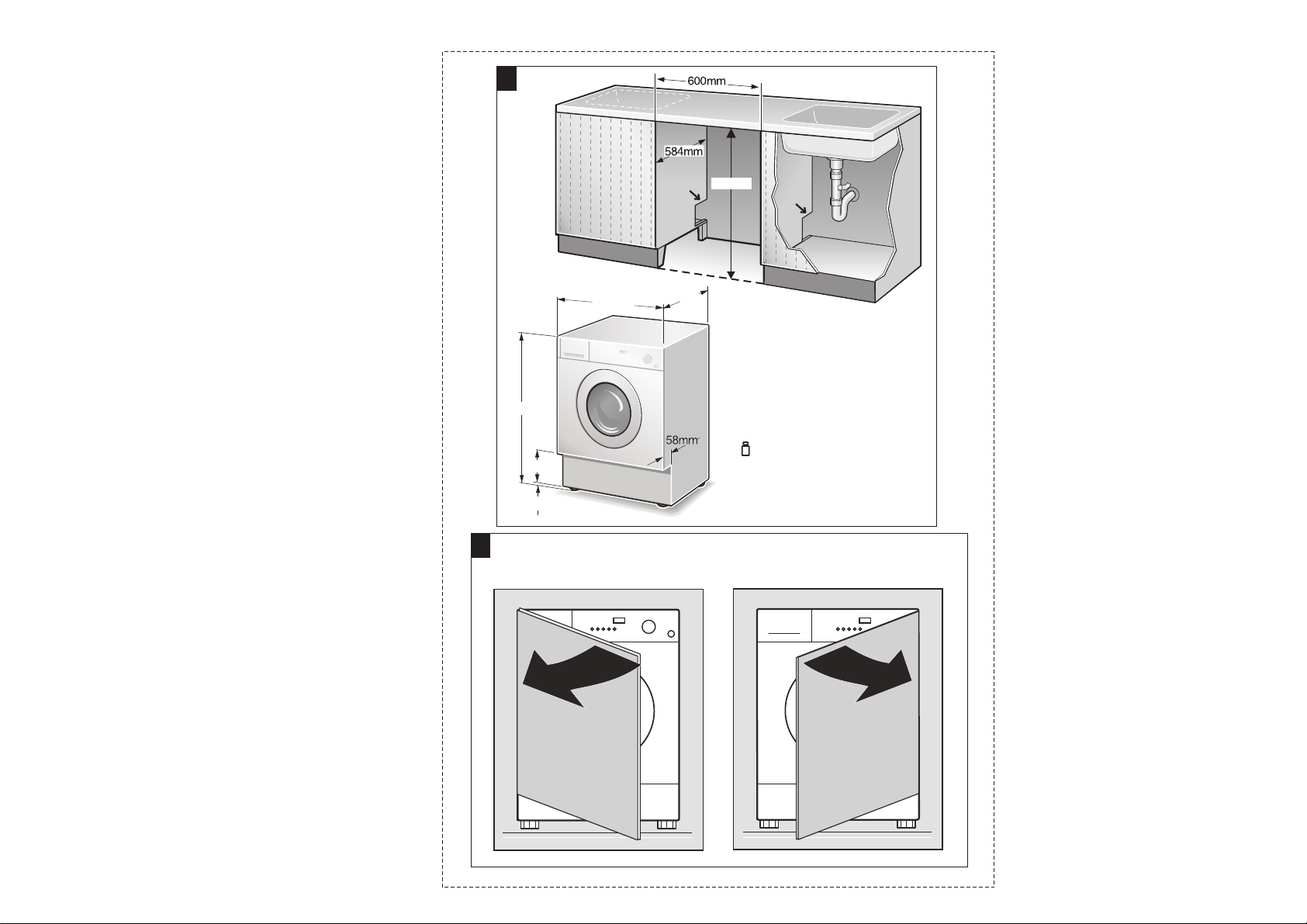

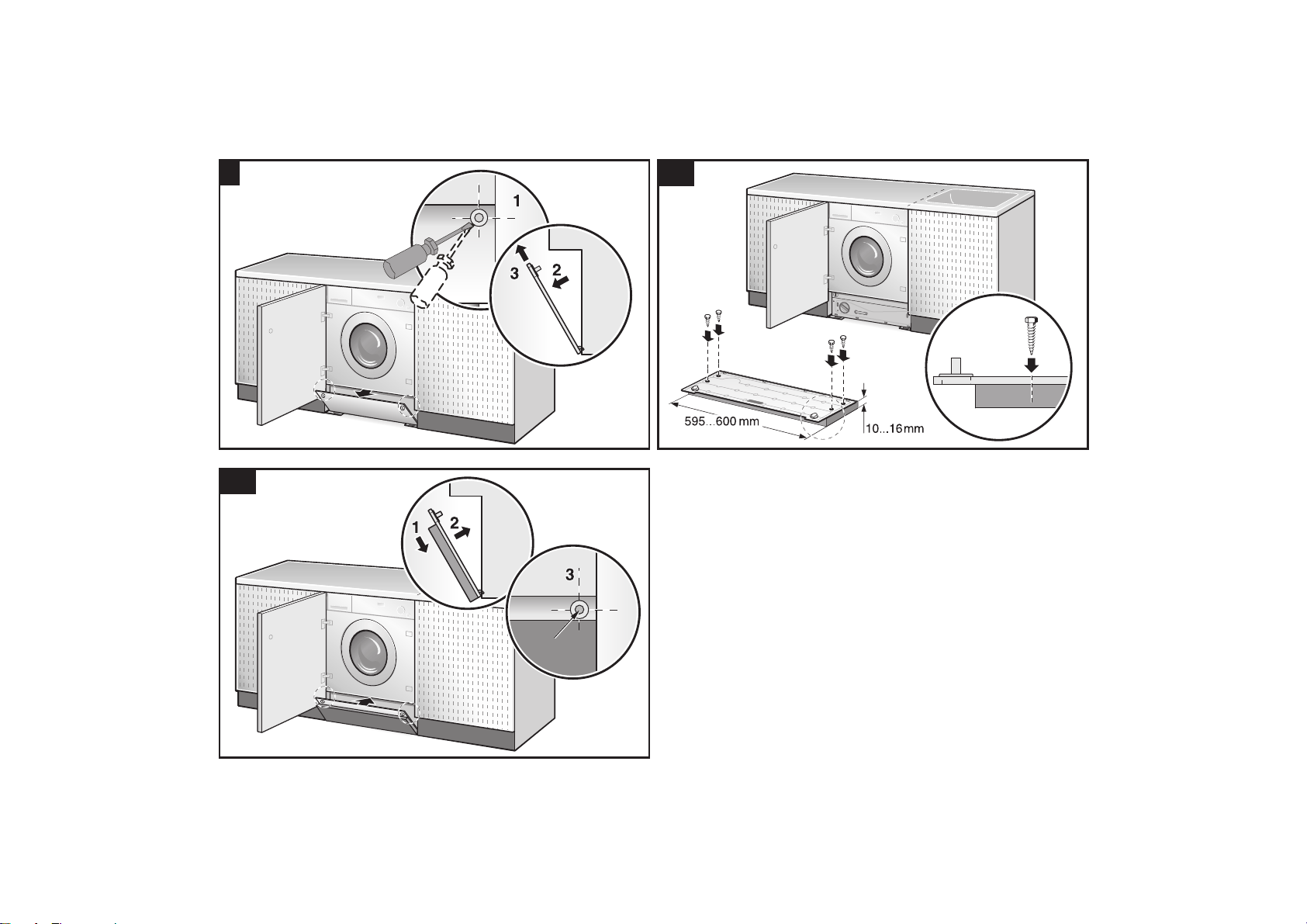

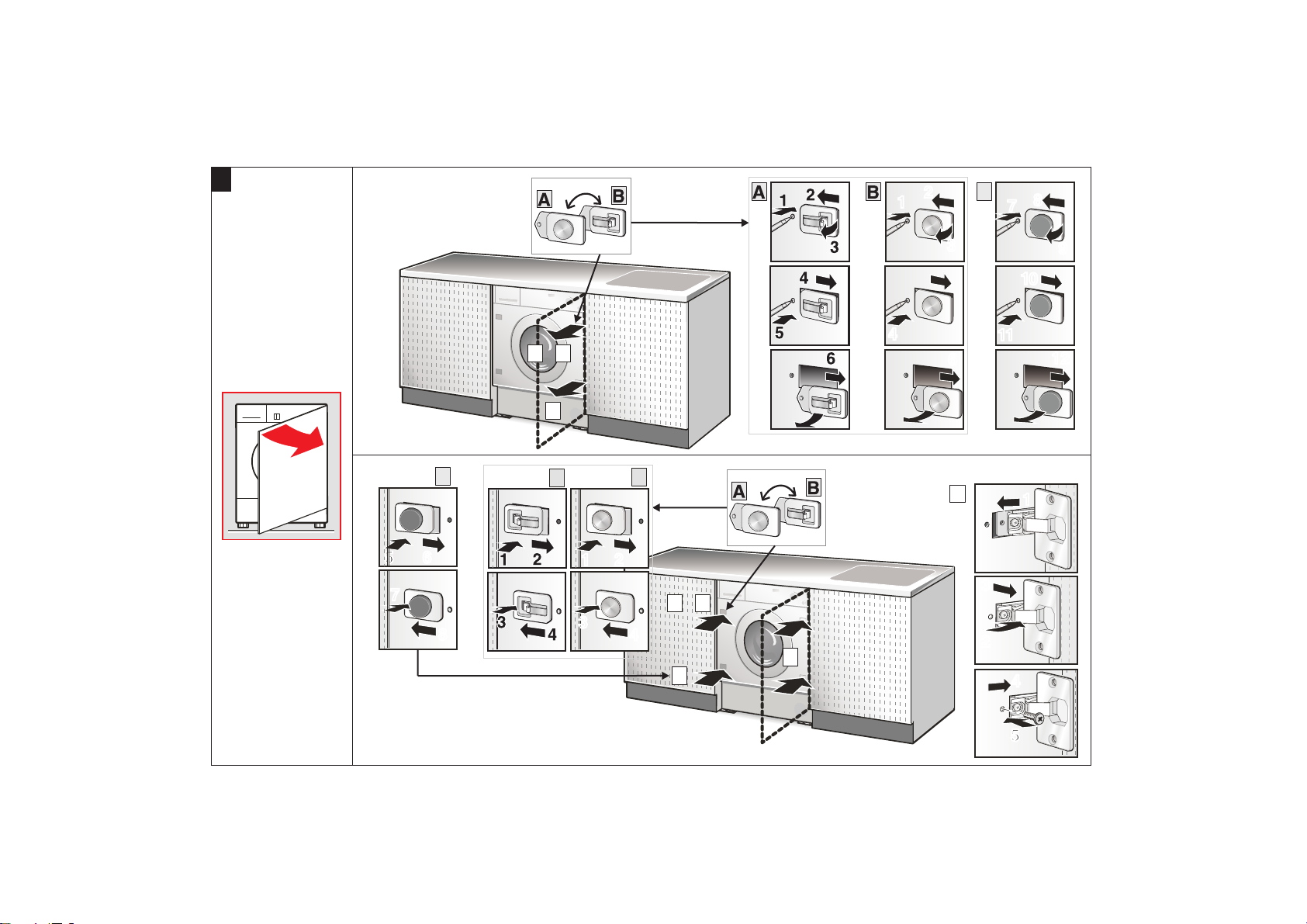

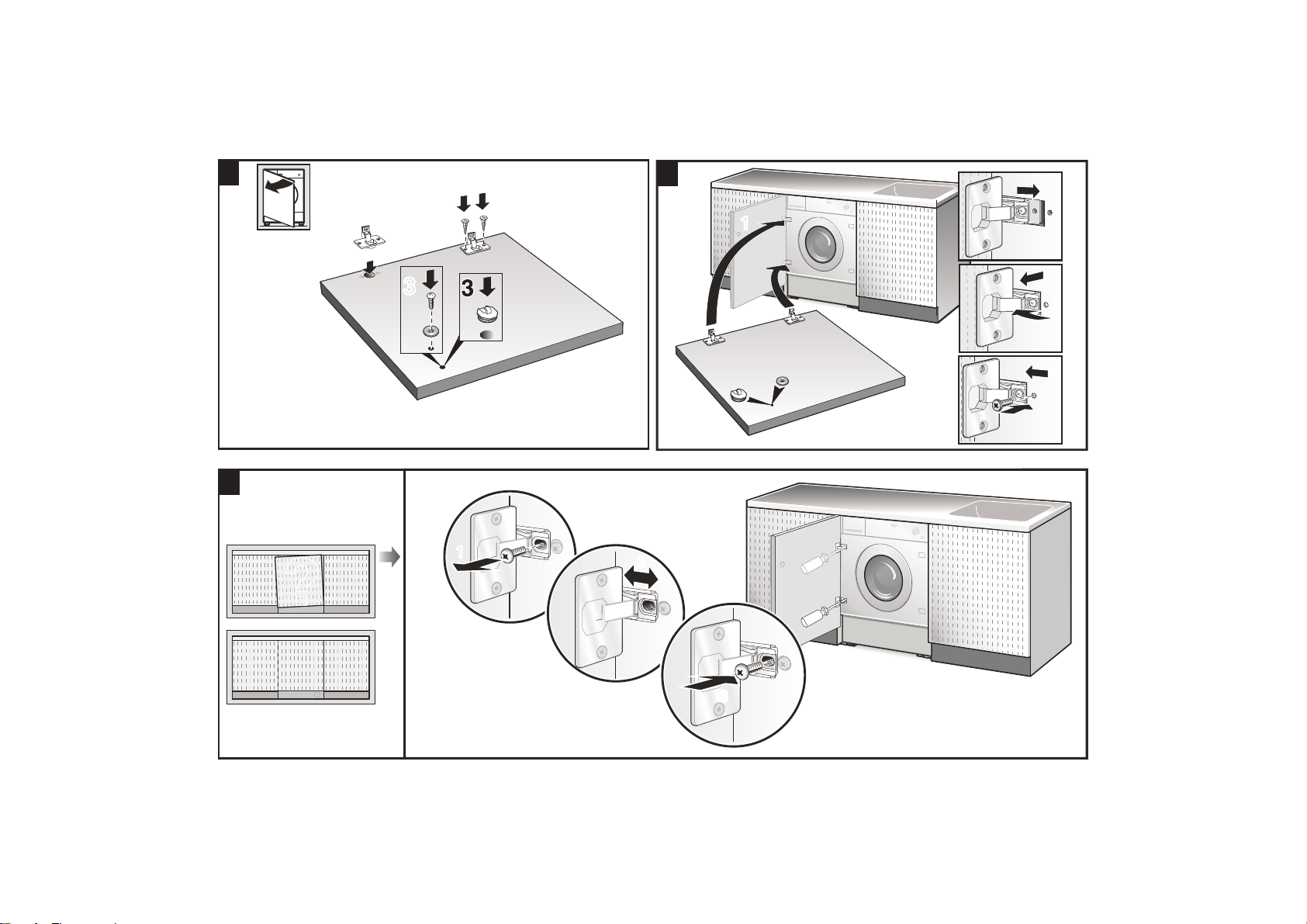

2.2 POSITIONING AND LEVELLING
1. Place the appliance in the chosen position.
2. Level the appliance carefully in all direc­tions with the aid of a spirit level, adjusting the height of the feet if necessary. Once done, fix the feet in place with the locknuts provided.
3. On appliances with adjustable rear feet, note that the rear of the appliance rests on skids and not on the feet. Before inserting the appliance into its place between the kitchen units, check that the rear feet are screwed fully in to prevent damage as the appliance is shifted into position.
Once the appliance is in position in the kitchen, the height of the rear feet has to be increased so that the appliance no longer stands on the skids. After adjusting the rear feet, level the appliance and fix the front feet at the height required.
8
EN
The water intake and drain hoses can be fitted pointing to the left or right for effective installation.
Warning! This operation must be carried out with care to prevent the washer-dryer
from vibrating, moving or generating excessive noise during use.
If the appliance is installed on a carpeted floor, take care to ensure that the
openings in the bottom of the washer-dryer are not obstructed.
Also check that during operation the washer-dryer is not resting against walls,
kitchen units, etc.
The appliance must not be installed behind a door with lock, a sliding door, or a door
with hinge on the opposite side.
9
EN

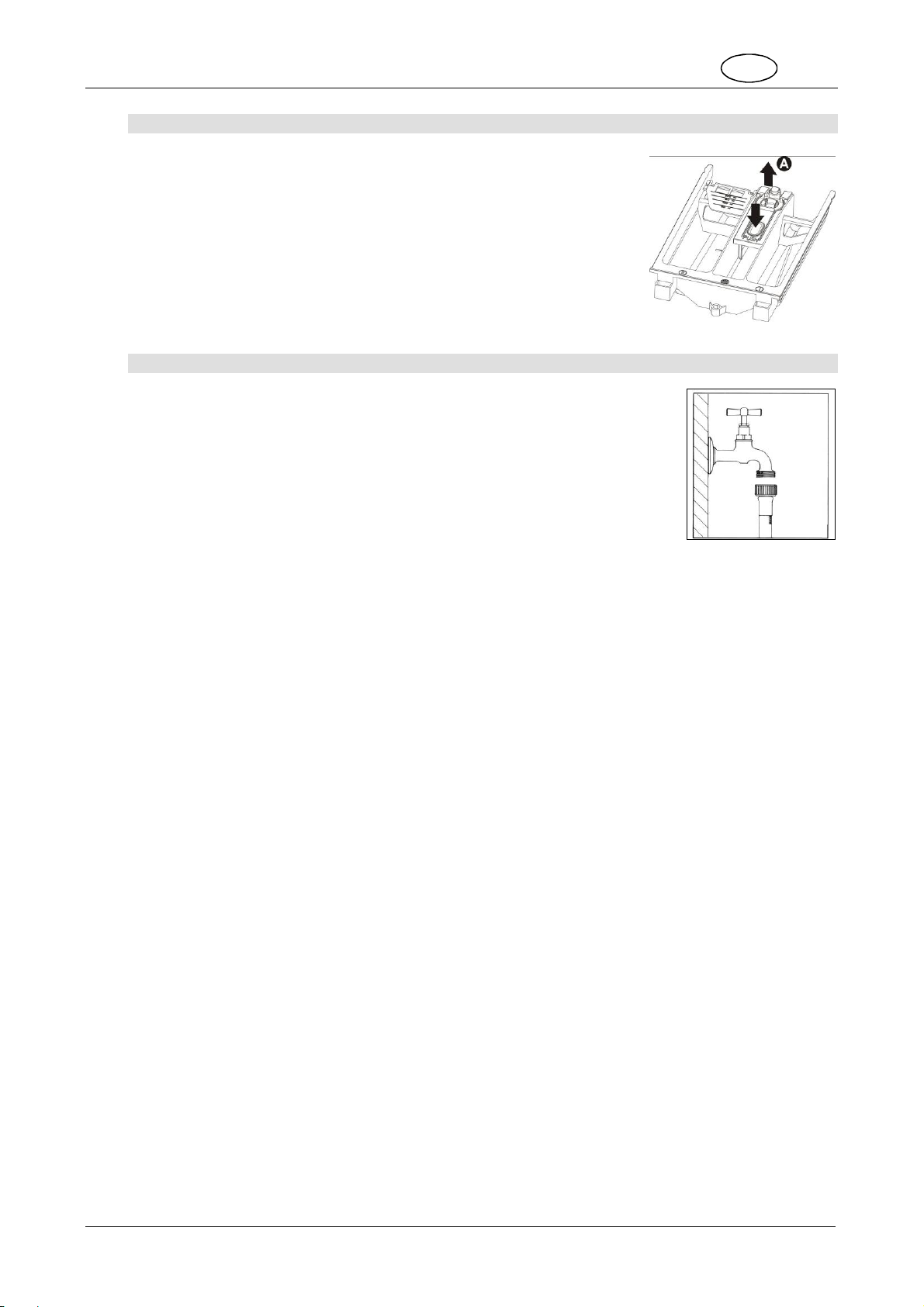

2.3 CONNECTING TO THE WATER SUPPLY
1. Check that the water supply pressure is in the following range: 0,05-0,9MPa. With higher pressures, use a pressure reducer.
2. Connect the cold water supply hose (blue screw collar) to the cold water tap with ¾ gas threaded connector, taking care to tighten firmly to prevent leaks. The water supply hose must not be kinked or crushed and must not be changed or cut. Threaded connections must only be tight­ened by hand.
3. When appliances are supplied with hot water, the intake water temperature must not exceed 60°C and the hose with red screw collar must be connected to the hot water supply tap.
Warning!
If the connection is made to new pipelines, or lines which have been out of use
for a long time, allow a considerable amount of water to flow out before connecting the intake hose. This prevents any sand or other dirt from fouling the filters installed in the appliance to protect the water intake valves.
The new intake hose supplied with the appliance must be used, and the old water
supply hose must not be used.
2.4 CONNECTING TO THE DRAIN
1. Insert the end of the drain hose into a drain pipe having inside diameter of at least 4 cm, at least 50 to 90 cm above floor level, or connect it securely (using the plastic fitting on the elbow in the hose) to a sink or bathtub.
2. In all cases, check that the end of the drain hose is securely fixed to prevent the repulsive force of the water from pushing it out of place.
Warning!
Avoid kinks or restrictions to ensure effective drainage. Any drain hose extensions must be no more than 1 metre long, must be of the
same diameter and must be free from restrictions of all kinds.
The end of the drain hose must never be submerged in water.
10
EN
2.5 ELECTRICAL CONNECTION
Before connecting the plug to the power socket ensure that:
1. The electrical system voltage is the same as that stated on the nameplate on
the front of the appliance, in the zone visible when the door is open. The rated power supply and the fuses required are specified on the nameplate.
2. The meter, safety breakers, power supply line and power socket are rated to
withstand the maximum load required, stated on the nameplate.
3. The power supply socket and the plug fitted to the appliance are compatible
without the use of reductions, multiple sockets, adapters and extension leads which might cause overheating or scorching. If the power supply socket is not compatible with the plug supplied, replace the socket with one of the appropriate type.
Warning
 The power plug must be accessible after the appliance has been installed.  It is absolutely essential to connect the appliance to earth. Connect the plug
to a socket with an earth connection in good working order.
The manufacturer declines all liability for direct or indirect injury or damage de­riving from a non-existent or defective earth connection. Correct electrical con­nection guarantees conditions of maximum safety.
This appliance is compliant with the requirements of EEC directive 89/336 of
3.5.89 (including the amendment directive 92/31/EEC) concerning the elimination of radio-frequency disturbance.
If the power supply lead is damaged, it must only be replaced with an original
spare, available from the After-Sales Service.
Do not connection/disconnect the power supply plug from the socket with
wet hands
Only disconnect the power supply plug from the socket by taking hold of
the plug itself, never by pulling on the lead.
11
