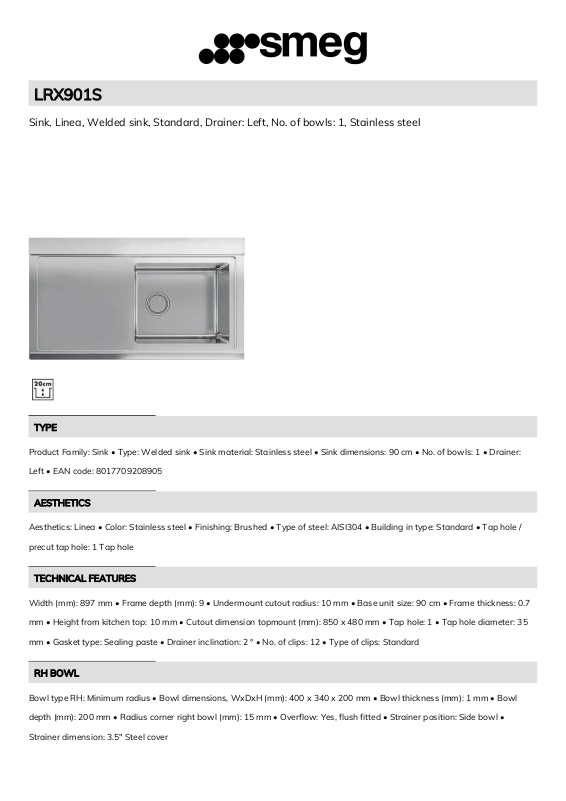

Smeg LRX901S Technical sheet
LRX901S
Sink, Linea, Welded sink, Standard, Drainer: Left, No. of bowls: 1, Stainless steel
TYPE
Product Family: Sink • Type: Welded sink • Sink material: Stainless steel • Sink dimensions: 90 cm • No. of bowls: 1 • Drainer:
Left • EAN code: 8017709208905
AESTHETICS
Aesthetics: Linea • Color: Stainless steel • Finishing: Brushed • Type of steel: AISI304 • Building in type: Standard • Tap hole /
precut tap hole: 1 Tap hole
TECHNICAL FEATURES
Width (mm): 897 mm • Frame depth (mm): 9 • Undermount cutout radius: 10 mm • Base unit size: 90 cm • Frame thickness: 0.7
mm • Height from kitchen top: 10 mm • Cutout dimension topmount (mm): 850 x 480 mm • Tap hole: 1 • Tap hole diameter: 35
mm • Gasket type: Sealing paste • Drainer inclination: 2 ° • No. of clips: 12 • Type of clips: Standard
RH BOWL
Bowl type RH: Minimum radius • Bowl dimensions, WxDxH (mm): 400 x 340 x 200 mm • Bowl thickness (mm): 1 mm • Bowl
depth (mm): 200 mm • Radius corner right bowl (mm): 15 mm • Overflow: Yes, flush fitted • Strainer position: Side bowl •
Strainer dimension: 3.5" Steel cover
LOGISTIC INFORMATION
Dimensions of the product (mm): 219x897x510 mm
ACCESSORIES INCLUDED
Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips, GasketRondò Cover
waste kit: Yes
OPTIONAL
KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer,
SinksCVB40S2: Chopping board, SinksCVB40N2: Chopping board, SinksCVB40B2: Chopping board, SinksDB34: Basket,
SinksSTABMIX: Stabiliser, Sinks
