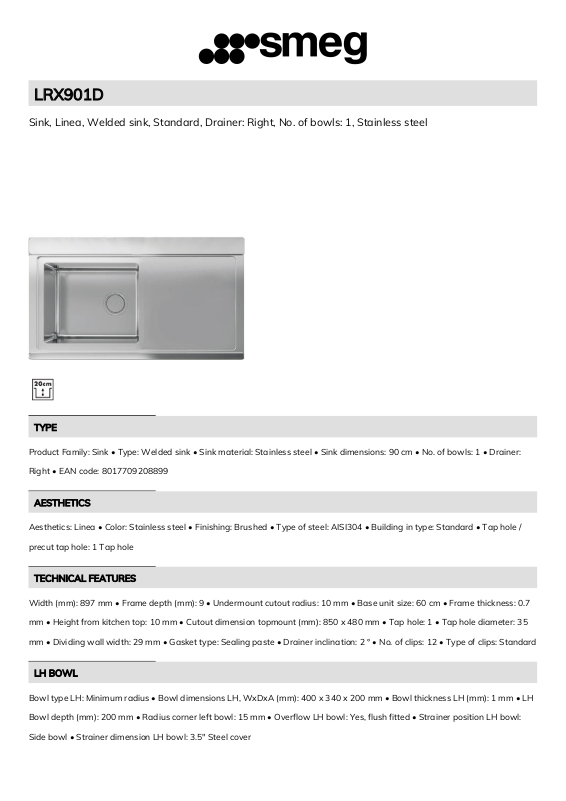

Smeg LRX901D Technical sheet

LRX901D

Sink, Linea, Welded sink, Standard, Drainer: Right, No. of bowls: 1, Stainless steel

TYPE

Product Family: Sink • Type: Welded sink • Sink material: Stainless steel • Sink dimensions: 90 cm • No. of bowls: 1 • Drainer:

Right • EAN code: 8017709208899

AESTHETICS

Aesthetics: Linea • Color: Stainless steel • Finishing: Brushed • Type of steel: AISI304 • Building in type: Standard • Tap hole /

precut tap hole: 1 Tap hole

TECHNICAL FEATURES

Width (mm): 897 mm • Frame depth (mm): 9 • Undermount cutout radius: 10 mm • Base unit size: 60 cm • Frame thickness: 0.7

mm • Height from kitchen top: 10 mm • Cutout dimension topmount (mm): 850 x 480 mm • Tap hole: 1 • Tap hole diameter: 35

mm • Dividing wall width: 29 mm • Gasket type: Sealing paste • Drainer inclination: 2 ° • No. of clips: 12 • Type of clips: Standard

LH BOWL

Bowl type LH: Minimum radius • Bowl dimensions LH, WxDxA (mm): 400 x 340 x 200 mm • Bowl thickness LH (mm): 1 mm • LH

Bowl depth (mm): 200 mm • Radius corner left bowl: 15 mm • Overflow LH bowl: Yes, flush fitted • Strainer position LH bowl:

Side bowl • Strainer dimension LH bowl: 3.5" Steel cover

LOGISTIC INFORMATION

Dimensions of the product (mm): 219x897x510 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips, GasketRondò Cover

waste kit: Yes

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer,

SinksCVB40S2: Chopping board, SinksCVB40N2: Chopping board, SinksCVB40B2: Chopping board, SinksDB34: Basket,

SinksSTABMIX: Stabiliser, Sinks
